INSTRUCTION MANUAL

Please read this instruction carefully before the operation

NBPC1330

Ultra-Portable NETBOOK PC

Page 2

English

Table of Contents

PACKAGE CONTENTS ........................................................ 4

SAFETY PRECAUTIONS ..................................................... 5

General Operation .................................................................................................. 5

Battery ........................................................................................................................ 6

Power Connection ................................................................................................... 6

Unit Components .................................................................................................... 7

NETBOOK AT A GLANCE ................................................... 8

Top View ..................................................................................................................... 8

Left View ...................................................................................................................10

Bottom View ............................................................................................................ 11

BASIC OPERATION ...........................................................12

Power ......................................................................................................................... 12

AC Power ................................................................................................... 12

Battery Power ........................................................................................... 12

Getting Started ....................................................................................................... 14

Turning On Your Computer ................................................................. 14

Sleep Mode ............................................................................................... 14

Shut Down ................................................................................................ 14

Keyboard Functions .............................................................................................. 15

Function Key Combinations ................................................................ 15

Numeric Keypad ...................................................................................... 16

Using the Touchpad .............................................................................................. 17

Page 3

English

Table of Contents

FEATURES .........................................................................18

Using Memory Cards ............................................................................................ 18

Using the Web Camera ........................................................................................ 18

Using the Internet .................................................................................................. 18

LAN Port ..................................................................................................... 18

Wireless ...................................................................................................... 19

Installing Device Drivers ...................................................................................... 19

EXTERNAL DEVICES ........................................................ 20

Connecting a Universal Serial Bus (USB) Device ..........................................20

Connecting an External Display ........................................................................20

Connecting an Audio Device ............................................................................. 21

Connecting an External Microphone .............................................................. 21

TROUBLESHOOTING ....................................................... 22

SPECIFICATIONS .............................................................. 27

Page 4

English

Package Contents

Congratulations on your purchase of the netbook computer. This

instruction manual guides you in setting up and using your new com-

puter. Please read the manual carefully before operation, and keep it

for future reference.

This package contains:

Computer unit

–V AC adapter

-cell lithium-ion battery

This package may contain plastic bags or other materials that

pose a hazard to children. Be sure to safely dispose of all pack-

ing materials after opening.

Product names used herein are for identiﬁcation purposes only

and may be the trademarks of their respective companies. Mi-

crosoft®, Windows® XP, Windows® 7, and Windows Sound Sys-

tem are trademarks of Microsoft Corporation. Intel®, Intel®

Core™, Intel® HD Audio (Azalia) are registered trademark of Intel

Corporation. All other brands or product names mentioned in

this manual are trademarks or registered trademarks of their

respective companies.

Page 5

English

Safety Precautions

Follow the guidelines below to ensure the safe operation of

your computer.

General Operation

Set up and store the computer on a ﬁrm, ﬂat surface. Make sure

that your workspace allows for proper ventilation.

To avoid overheating, do not operate the computer on a soft

surface, such as a bed, for long periods of time.

Keep the computer away from water. Exposure to moisture may

cause malfunction or risk of electric shock.

Do not expose the computer to excessive heat, including direct

sunlight and heat-producing appliances.

To avoid potential damage to the hard drive, do not expose the

computer to electromagnetic ﬁelds from stereos, microwaves, or

other household appliances.

If liquid is spilled on or into the computer, unplug it immediately

and contact customer service.

Clean with a damp cloth or mild detergent; do not use harsh

chemicals.

Handle your computer gently to avoid hard drive damage. Do not

drop the computer.

Back up your hard drive regularly to avoid loss of data in the event

of damage.

Page 6

English

Safety Precautions

Battery

Use only the recommended battery pack.

Keep metallic objects, such as keys and clips, away from the bat-

tery pack.

To avoid risk of ﬁre, keep electrical appliances away from the bat-

tery pack.

Do not expose the battery pack to heat or moisture.

Do not short-circuit the battery terminals.

To avoid damage to the battery, make sure that the battery catch

locks ﬁrmly in place upon installation.

Power Connection

Connect to a properly grounded outlet of the recommended volt-

age, only.

Do not use the power cord if it is damaged or frayed.

Do not connect the power cord to a loose or damaged socket.

To unplug the power cord, hold the body of the plug and pull

gently. Do not yank or stress the cord.

Disconnect the cord before cleaning the computer.

Disconnect the cord during electrical storms.

Page 7

English

Safety Precautions

Unit Components

Do not connect the LAN port to a telephone line.

Connect only appropriate devices and drives to the SD, USB and

modem ports on the unit. Do not insert other objects into these

ports.

Do not stress, bend, or scratch the LCD. Doing so may cause it to

break.

Do not touch or ingest the liquid that spills from a broken LCD.

Do not operate the wireless internet within  meters of a micro-

wave oven or plasma lamp.

Page 8

English

Netbook at a Glance

Illustrations in this manual may diﬀer from the actual product.

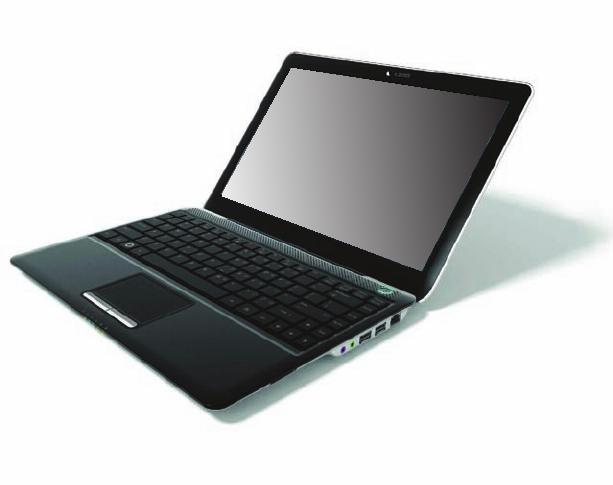

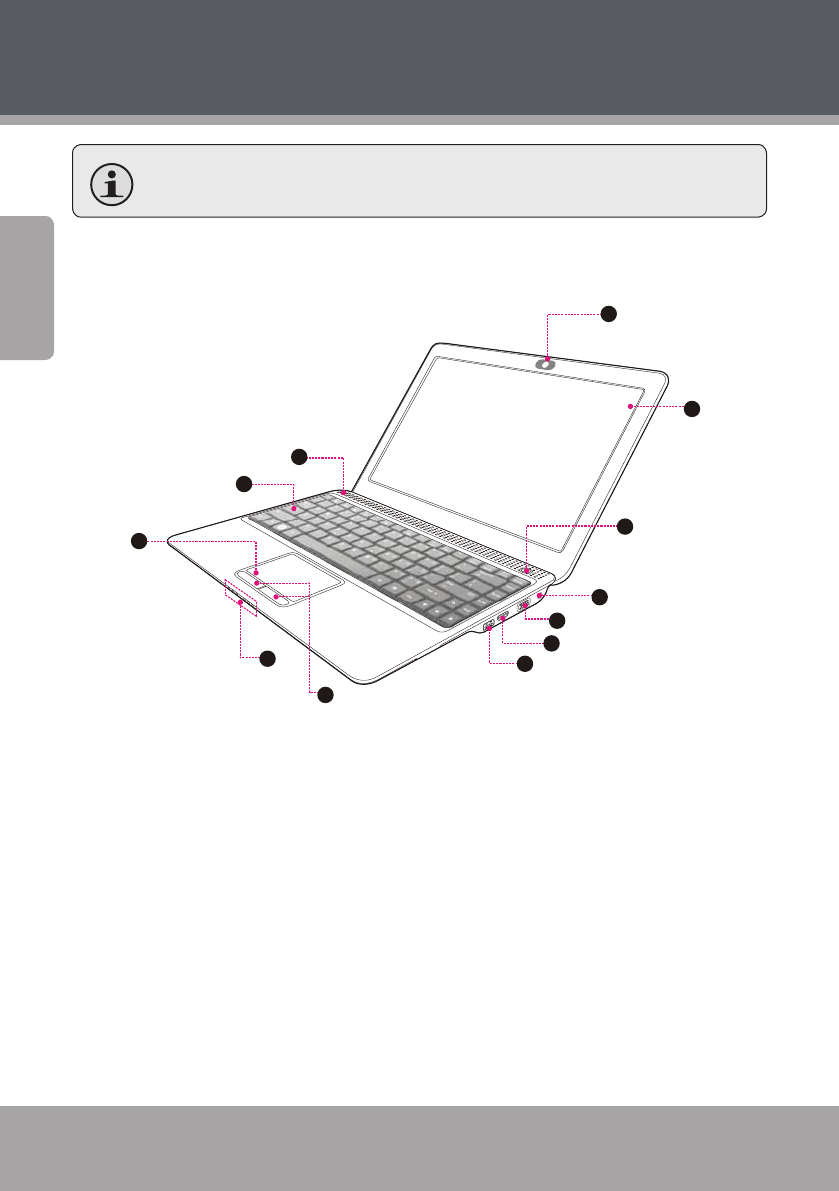

Top View

1. Web camera

2. Display panel

3. Power button

4. AC adapter jack

5. VGA connection (monitor or

projector input)

6. HDMI input

7. USB port

8. Integrated mouse (left/right

click)

9. System status indicators

10. Touchpad

11. Keyboard

12. Speakers

Page 9

English

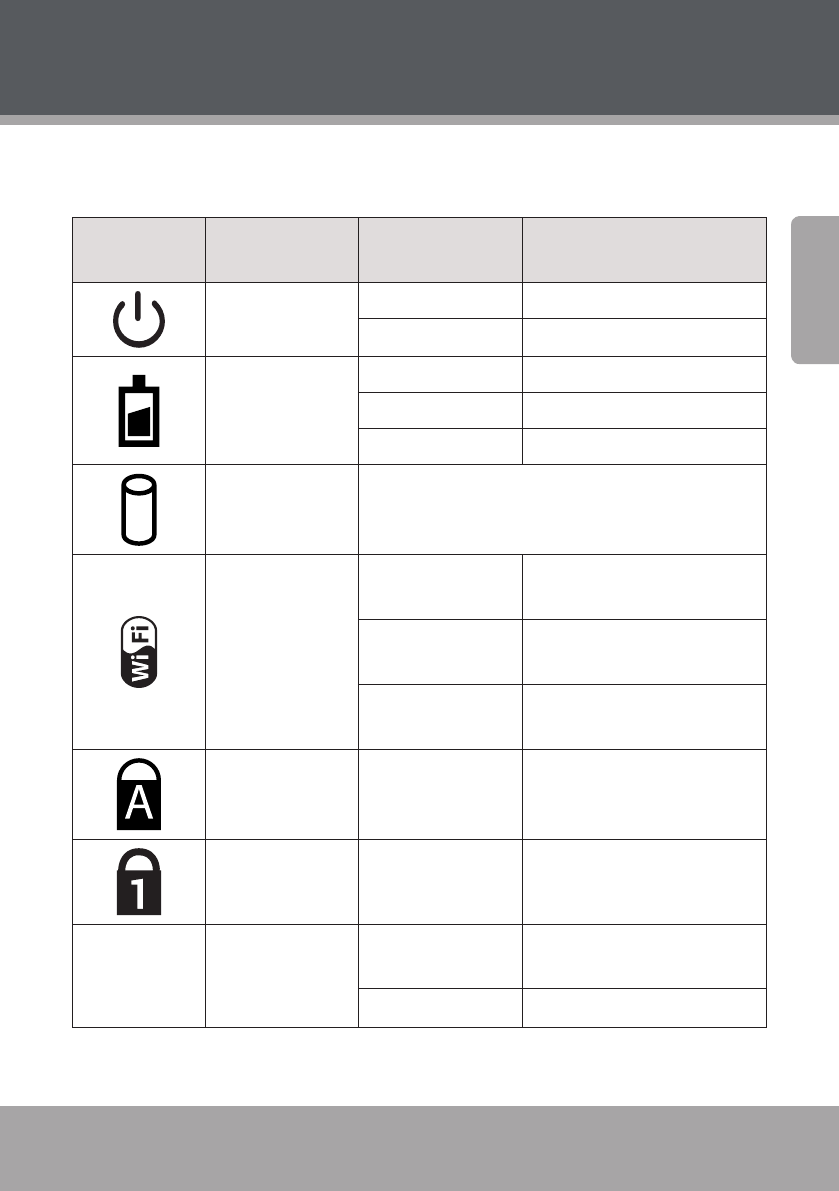

These indicators display your computer’s current status. Please refer to

the table below for more information.

Indicator

Symbol

Indicator Type Appearance Status

Power Solid blue System on

Flashing blue System in standby mode

Battery Oﬀ Battery charged

Solid blue Charging

Flashing blue Low battery

HDD The HDD indicator will ﬂash blue when data is being

written to/read from the hard disk.

Wireless LAN Oﬀ No power to wireless card/ RF

deactivated

Flashing blue, slow Wireless client is not associ-

ated with the network

Flashing blue, rapid Wireless transmitting/receiv-

ing data

Caps Lock Solid blue Caps lock on

Number Lock Solid blue

Number lock on/numeric

keypad active

3G 3G Network

(Optional)

Flashing blue 3G Network transmitting/

receiving data

Oﬀ 3G Network oﬀ/hibernating

Netbook at a Glance

Page 10

English

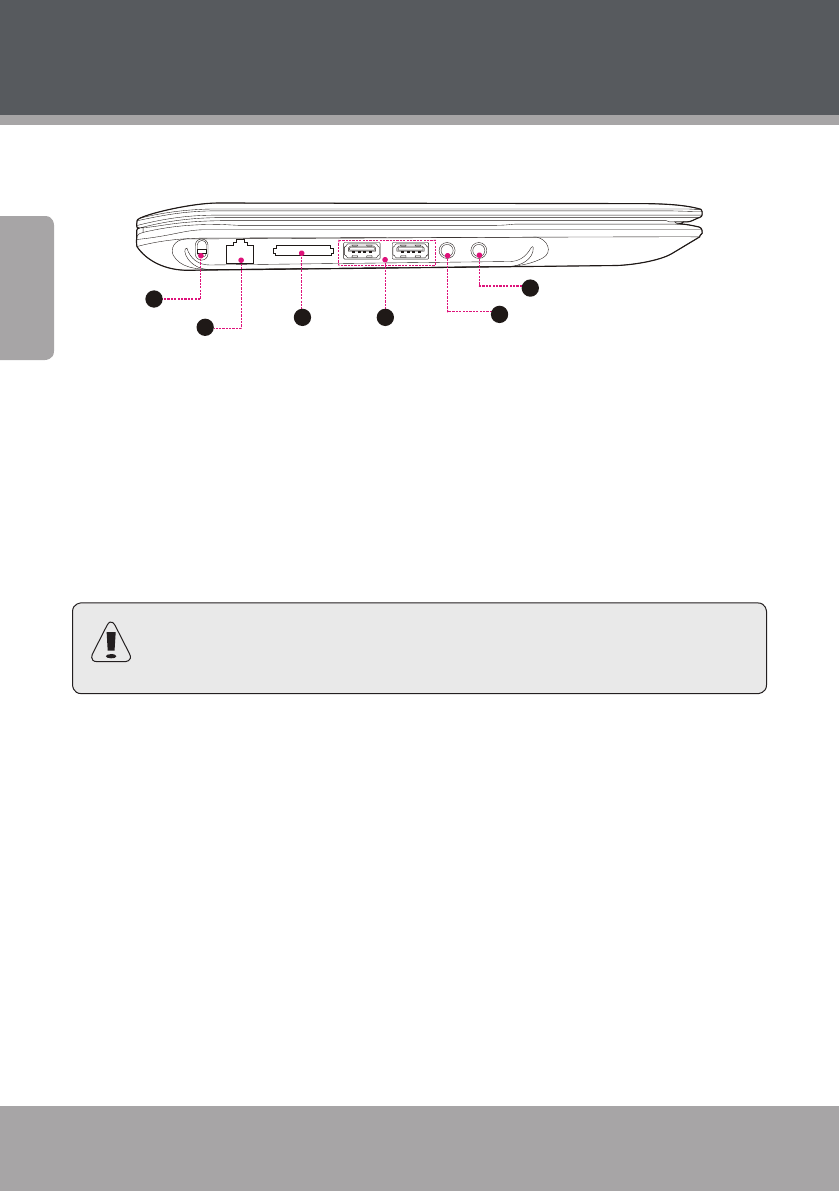

Left View

3 4 5

1. Security key port (security cable not included)

2. LAN connection (broadband or cable internet input)

3. SD card slot (SDHC compatible)

4. USB port(x2)

5. Headphone jack

6. Microphone jack

To avoid overheating, do not block the vents when the com-

puter is in use.

Netbook at a Glance

Page 11

English

Bottom View

1. Battery Pack

2. Battery latch (automatic/

spring-loaded)

3. Battery latch (manual)

4. Vent

5. DDRII RAM card compartment

6. Vent

7. Hard drive compartment

Do not attempt to disassemble or replace your hard drive. For

assistance with hard drive replacement and repair, contact a

qualiﬁed service professional.

To avoid overheating, do not block the vents when the com-

puter is in use.

Netbook at a Glance

Page 12

English

Basic Operation

Power

Your computer includes both an AC adapter and built-in, rechargeable

lithium-ion battery for maximum portability.

AC Power

Use the AC adapter to run your computer on AC power and charge the

battery. To connect the AC adapter:

Connect the power cord to the transformer pack.

Plug the power cord into an electrical outlet.

Connect the AC adapter to the AC power adapter jack of the com-

puter.

Battery Power

Make sure the battery is fully charged before ﬁrst use. The battery

power status indicator will ﬂash when the battery is low. Connect the

AC adapter as instructed above to charge the battery.

To replace the battery:

Shut down the computer and disconnect all cables, including the

AC power cord.

Turn the computer over to access the battery release. Slide the bat-

tery release latch to the unlock position and hold.

Pull out the battery.

Press the replacement battery into the compartment until it clicks

into place. Slide the release latch to the locked position.

Page 13

English

The components and programs on your computer consume

power at diﬀerent rates. Using power-intensive components/

programs will cause the battery to drain faster.

Your computer’s operating system may run more slowly when

operating on battery power.

Use only approved battery packs to power your computer. Us-

ing an incompatible battery may increase the risk of ﬁre or ex-

plosion.

Do not attempt to disassemble or modify the battery pack. A

battery pack other than the one speciﬁed by us, or a disassem-

bled or modiﬁed battery pack, is not covered by the warranty.

When disposing of the battery, comply with local ordinances

and regulations. Do not attempt to dispose of the battery in

your household trash.

Basic Operation

Page 14

English

Getting Started

Open the computer and adjust the display panel for comfortable viewing.

Turning On Your Computer

Press and hold the power button to turn on the computer.

Sleep Mode

When you ﬁnish working with your computer, you can put it to sleep

or shut it down.

Use sleep mode if you will be away from your computer for only a

short time. To enter sleep mode:

Click the Start menu and select Sleep, or

Press Fn + Esc.

To wake the computer, press the Power button.

Wait until the power indicator light starts blinking (indicating

that the computer is in sleep) before you move your computer.

Moving your computer while the hard disk is spinning may

cause damage or loss of data.

Shut Down

Your computer should be shut down when not in use for  hours or

more. Enter the Start menu and select Shut Down to turn oﬀ the com-

puter.

Basic Operation

Page 15

English

Keyboard Functions

Your computer’s standard keyboard incorporates a numeric keypad

and function keys.

Function Key Combinations

The function keys allow you to change your computer’s operating

features instantly. See below for more information on using function

key combinations.

Key Description

Fn + Esc Put your computer in sleep mode.

Fn + F1 Enable/disable the built-in wireless internet.

Fn + F3 Enable/disable the touch pad.

Fn + F4 Turn on/oﬀ the LCD screen.

Fn + F5 Decrease display brightness.

Fn + F6 Increase display brightness.

Fn + F7 Shift to other connected display devices, i.e. another monitor.

Fn + F8 Mute.

Fn + F9 Decrease computer volume.

Fn + F10 Increase computer volume.

Fn + Ins/NumLk Enable/disable the Numeric keypad.

Basic Operation

Page 16

English

Basic Operation

Numeric Keypad

When enabled, the keys indicated below can be used as a -key nu-

meric keypad. To enable or disable the numeric keypad, press Fn+Ins/

NumLk.

Page 17

English

Basic Operation

Using the Touchpad

Use the touchpad and integrated mouse to navigate your computer’s

operating system. To move the cursor on the screen, slide your ﬁngertip

over the touchpad in the direction in which you want the cursor to move.

Use the left/right click buttons on the integrated mouse just as you

would the left/right click on a conventional mouse to select objects,

open programs, or retrieve information.

1. Touchpad

2. Left click

3. Right click

Use one ﬁnger only to navigate the touchpad. Moisture or dirt

may cause the touchpad to function incorrectly.

Sharp objects or excessive pressure may damage the touch-

pad’s surface.

Do not attempt to remove the cover of the touchpad.

Page 18

English

Features

Using Memory Cards

Your computer includes an SD memory card slot for easy transfer of

data. To insert a memory card, orient the memory card with the label

upward. Gently slide the card into the slot.

To remove a memory card, grasp it by the end and pull gently.

When a memory card is fully inserted, the rear half of the card

will remain outside of the card slot.

Using the Web Camera

The built-in web camera can be used for capturing photos, recording

video, or as a component of chat and conferencing applications.

Windows users will need to install a third-party dedicated applica-

tion in order to take pictures and video using the webcam.

Using the Internet

Your computer comes with LAN port for Ethernet connection or local

area network (LAN), as well as a built-in wireless connection.

LAN Port

The LAN port supports a standard RJ- connector, and allows you to con-

nect the computer to an Ethernet connection and local area network (LAN).

Do not attempt to connect a telephone cable (types RJ11,

RJ14, RJ25, RJ61) to the LAN port. Doing so may short-circuit

your computer.

Page 19

English

Wireless

An antenna system is built into the display for optimal reception,

enabling wireless communication wherever you are. To connect to the

internet wirelessly, press Fn + F.

Installing Device Drivers

A compatible device driver is required to ensure correct operation and

performance of each component in your computer.

Most installations require a reboot to update the driver. Be sure

to perform this step when prompted.

Failing to reboot may compromise the system’s stability and re-

quire reinstallation of the operating system.

Features

Page 20

English

External Devices

Your computer includes multiple connection ports for maximum

performance and productivity.

Do not connect or disconnect any external device cables other than

USB cables while the computer power is on. To avoid possible damage

to attached devices, wait at least ﬁve seconds after the computer is

shut down to disconnect external devices.

Connecting a Universal Serial Bus (USB)

Device

Your computer comes with three Universal Serial Bus Ports compatible

with USB . or USB . devices such as a keyboard, mouse, camera,

hard disk drive, printer, and scanner. USB devices may be connected

and disconnected without rebooting the computer (hot swapping),

and allow speciﬁc classes of hardware to be used without requiring

individual device drivers to be installed.

When using a high power consumption USB device such as

USB HDD, use an external device power adapter to avoid sys-

tem damage.

Connecting an External Display

You can connect a VGA monitor via the computer’s built-in VGA port.

To connect a VGA monitor, plug the -pin display cable into the cor-

responding VGA port on your computer.

To shift to other connected display devices, press Fn + F. You may

also select a device using the Control Panel  Display menu.

Page 21

English

Connecting an Audio Device

Your computer includes one headphone jack for use in connecting

headphones, speakers, or other audio output devices. To connect,

insert the audio device plug into the jack.

Connecting an External Microphone

Your computer includes one external jack for connecting a micro-

phone. To connect, insert the microphone plug into the jack.

External Devices

Page 22

English

Troubleshooting

If you have a problem with this device, please read the troubleshoot-

ing guide below.

Page 23

English

Problem Solution

Display

Computer does not turn on. If using AC power, check that the AC adapter is securely con-

nected to the computer and the power cord is plugged into a

working electrical outlet.

If using battery power, check that the battery is charged.

Computer turns on, but

there is no screen image.

Conﬁrm that the screen brightness level is not at its minimum

setting. (To increase brightness, press Fn +F7.)

If using battery power, check that the battery is installed

correctly.

If using AC power, check that the AC adapter is connected to

the computer and the power cord is plugged into a working

electrical outlet.

Screen goes blank while

the computer is on.

Screen saver may be enabled; touch the touchpad or any key to

exit screen saver mode.

If power management is enabled, the computer may have en-

tered sleep mode. Press the power button to exit sleep mode.

Keyboard

A number appears when

you enter a letter.

The numeric lock function is enabled. To disable it, press Fn +

Insert.

All or some of the keys

on the external numeric

keypad do not work.

Make sure that the external numeric keypad is securely con-

nected to the computer.

Sleep/Hibernation Mode

The computer enters sleep

mode unexpectedly.

Check that the battery is charged.

Troubleshooting

Page 24

English

Problem Solution

If the processor overheats, the computer will automatically

enter sleep mode to allow the computer to cool and to protect

the processor and other internal components. Check that the

computer is properly ventilated and not hot to the touch.

Check the sleep mode settings. The computer enters sleep

mode (the sleep indicator turns on) immediately after Power-

on self-test (POST).

The critical low-battery er-

ror message appears, and

the computer immediately

turns oﬀ.

Connect the AC adapter to the computer, or replace the battery

with a fully charged one.

The computer does not

return from sleep mode,

or the sleep indicator stays

on and the computer does

not work.

Check the sleep indicator light to conﬁrm that your system is

in sleep mode. If it has turned oﬀ, your computer has gone into

hibernation mode. Press the power button to exit hibernation

mode.

Check that the battery is charged. A depleted battery will

cause the computer to automatically enter hibernation mode.

If the battery is depleted, connect to AC power and press the

power button to exit hibernation mode.

If the system still does not return from sleep mode, your sys-

tem has stopped responding. Reset the computer by pressing

and holding the Power button for 4 seconds or more. Unsaved

data may be lost.

If the computer fails to reset, unplug the AC adapter and

remove, then reinsert, the battery.

Troubleshooting

Page 25

English

Problem Solution

The screen is unreadable or

distorted.

Check that screen resolution and color quality are correctly set.

Check that the monitor type is correct. This information is

available under the menu Display Settings  Monitor.

Conﬁrm that the display device driver is installed correctly. This

information is available under the menu Personalize  Display

Settings  Advanced Settings  Adapter. The Adapter Infor-

mation window should display the correct device driver name.

NOTE: The device driver name depends on the video chip that

has been installed on your computer. Click the Properties button

and check the “Device status” box to conﬁrm that the device is

working properly. If not, click the Troubleshoot button.

Incorrect characters appear

on the screen.

Check that your application and operating system are correctly

installed.

Missing, discolored, or

bright dots appear on the

screen every time you turn

on your computer.

Check that the surface of the screen is not scratched or dam-

aged. If there is no visible damage, these small idiosyncrasies

are a standard element of TFT screen technology and will not

aﬀect the computer’s performance.

Sound

No sound can be heard from

the speaker even when the

volume is turned up.

Conﬁrm that the Mute function is oﬀ.

Check that no external device, such as a headphone or speaker,

is plugged into the audio output (headphone) jack.

Check that speakers are selected as a playback device.

Battery

Your computer shuts down

before the battery status in-

dicator turns on, or continues

to operate after the battery

status indicator lights.

Remove and reinsert the battery. If the problem persists, you

may need to replace the battery.

Troubleshooting

Page 26

English

Problem Solution

The operating time for a

fully charged battery is

short, or the computer

does not operate with a

fully charged battery.

Remove and reinsert the battery. If the problem persists, you

may need to replace the battery.

The surge protector in the battery might be active. Turn oﬀ the

computer for one minute to reset the protector; then turn on

the computer again.

The battery does not

charge.

Replace the battery.

Hard Drive

The hard disk drive does

not work.

In the Boot menu in AMI Setup Utility, make sure that the hard

disk drive is included in the Boot Sequence.

Coby Communications NBPCCONGO Notebook User Manual

Coby Communications Ltd. Notebook

User Manual

Navigation menu

Namespaces

Views

Navigation
