 FEATURES AT A GLANCE

12-20258-EN Issue 2 9/2012

3046 HF ANTENNA TUNER

 Fast tuning

 High efficiency

 Waterproof

 MIL-STD-810G compliance

 2 to 30 MHz

 125 W RF power handling

 Suits antennas up to 9 m

 Flexible mounting

 ALE & Frequency Hopping

compatibility

 Internal receive mode amplifier

The 3046 is a low profi le, 125 W HF antenna tuning unit

designed to deliver high performance and reliability in the

world’s harshest environments. It provides high speed and

effi cient tuning of short and long whip antennas across

the full operational HF band.

HIGH PERFORMANCE

With a 125 W RF power handling capability, the 3046 can be used for

voice (including Frequency Hopping) and data operation over the full

2 to 30 MHz frequency band. The tuner has an unlimited tune from

memory capacity, and using a state-of-the-art tuning algorithm, new

frequencies are tuned in typically less than one second.

The 3046’s innovative circuit design ensures power delivery to the

antenna is maximised, and receive mode performance is optimised

by the internal receive mode amplifi er. These features combine

to provide an easy-to-use, trouble-free, high performance mobile

antenna solution.

COMPLIANT TO MIL-STD-810G

The high strength and lightweight alloy housing of the 3046

ensures that it is capable of withstanding the severe environmental

conditions encountered in mobile environments. The unit is designed

to meet MIL-STD-810G for Dust and Vibration and is waterproof to

1 m as per IP68 Standard.

TRANSCEIVER INTEGRATION

The control interface of the 3046 is fully integrated with Codan’s

HF transceivers so that tuning is transparent to the operator. If

there is a tune problem, the transceiver issues an audible and visual

warning, however an override capability exists for emergency

situations. The 3046 is designed for full compatibility with all modes

of operation, including receiver scanning, ALE (Automatic Link

Establishment) and Frequency Hopping.

T: +61 8 8305 0311  F: +61 8 8305 0411  E: sales@codanradio.com

Codan Limited  81 Graves Street  Newton South Australia 5074  Australia

RADIO COMMUNICATIONS

www.codanradio.com

3046 HF ANTENNA TUNER

CODAN™ and NGT™ are trademarks of

Codan Limited. Other brand, product and company

names mentioned in this document are trademarks

or registered trademarks of their respective holders.

Values noted are typical. Equipment descriptions and specifi cations subject to change without notice or obligation.

12-20258-EN Issue 2 9/2012

SPECIFICATIONS

GENERAL

Frequency range 2 to 30 MHz (using 3 m or 7 m MIL spec whip or 9 m long wire antenna)

Power rating 125 W PEP

Power consumption Typically 400 mA, less than 0.8 A maximum

Input impedance 50 Ω

VSWR Typical ≤1.5:1

Tuning speed New frequency <1 second average, memory tune <150 ms

Memory channels Unlimited (unique non-linear memory allocation)

DC operating range Codan transceiver (12 V nominal)

MECHANICAL

Temperature –30 to +60°C (–22 to +140°F), 95% humidity

Protection Open Circuit, Short Circuit, Over Temperature, High VSWR

Environmental MIL-STD-810G (Dust, Vibration)

Immersion to IP68

EMC Designed to MIL-STD-461

Dimensions 340 mm L x 210 m W x 95 mm H (13.4 in L x 8.3 in W x 3.7 in H)

Weight 2.4 kg (5.3 lbs)

Colour White or olive drab green

INTERFACE

RF connector N-type socket

Control 6 pin bayonet (MIL spec)

ANTENNA & MOUNT OPTIONS

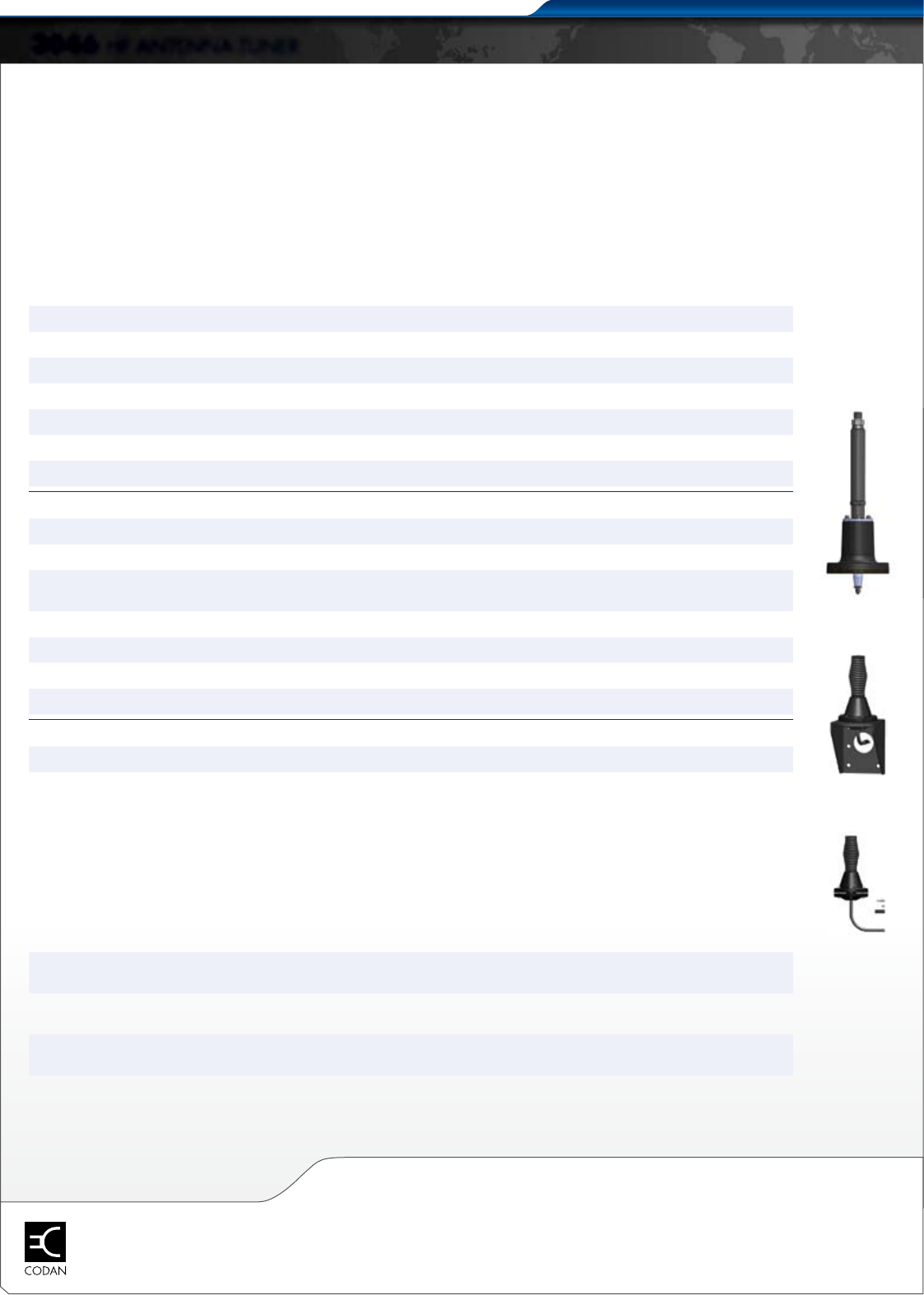

The 3046 is offered with a 3 m carbon fi ber MIL spec whip

antenna, MIL spec rubber spring and NATO hole pattern

base. The 3 m whip can be confi gured for NVIS operation

using the tie down kit included and can also be extended

to 7 m with the 3 section Extension & Guy Kit for semi-

permanent stationary use. An additional antenna accessory

is the 9 m tactical long wire kit designed to attach directly

to the NATO base stud.

ACCESSORIES

Antennas

3 m MIL spec two section whip (includes NVIS tie down kit)

MIL spec, 3 section antenna extension and guy kit (extends standard

3 m antenna to 7 m)

9 m long wire antenna kit

Antenna bases MIL spec rubber spring

NATO hole pattern antenna base

Mounting hardware Vehicle shock mount

Installation kit

Cables 2, 6 10 and 20 m (6.6, 19.7, 32.8 and 65.6 ft) RF coaxial cables

2, 6 10 and 20 m (6.6, 19.7, 32.8 and 65.6 ft) control cables
