ä FEATURES at a GLaNCe

12-20310-EN Issue 2 1/2016

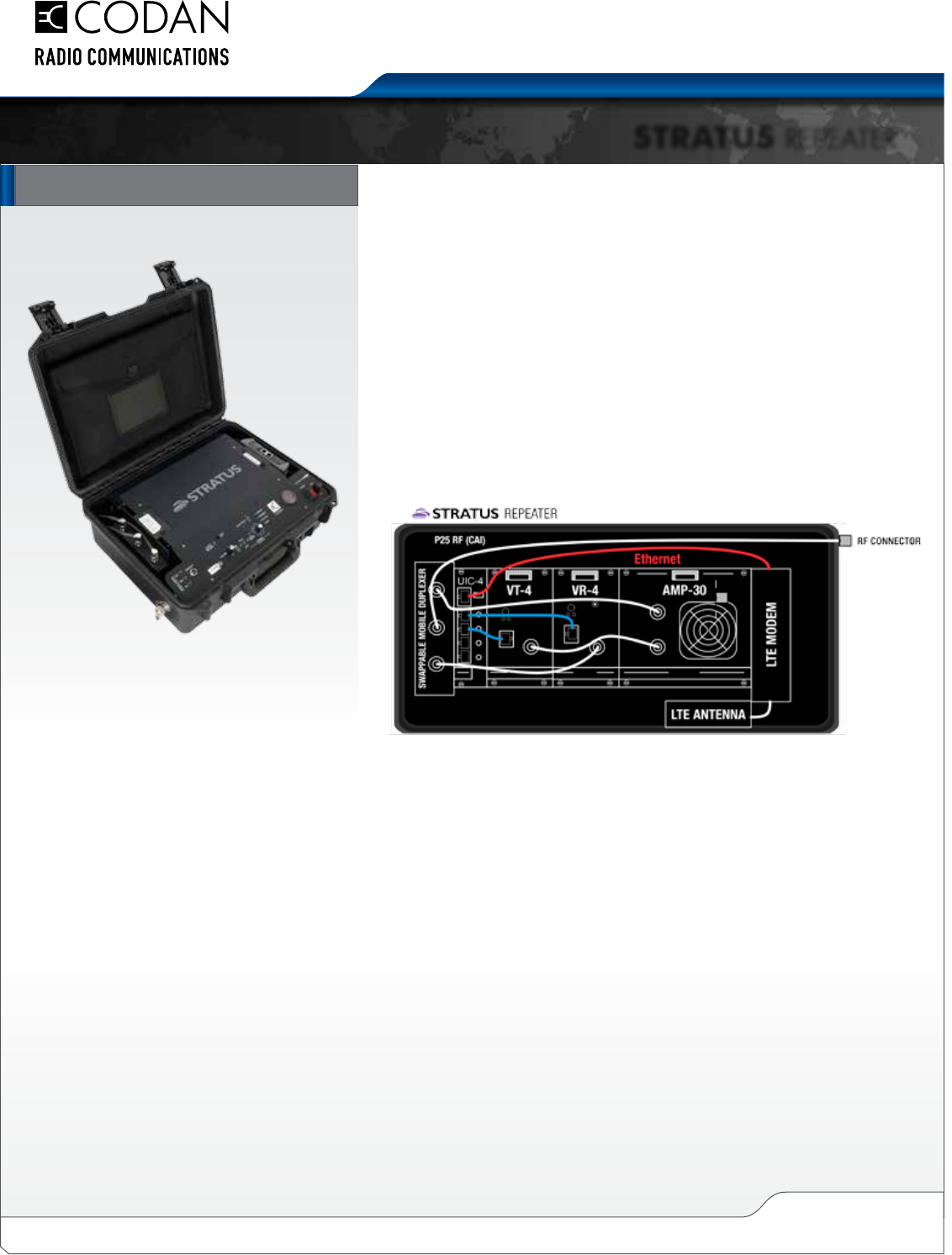

STRATUS repeater

 Deployable P25 Repeater with optional

4G LTE interface (with fallback to 3G)

 Secure mobile voice network

 IP linking over LTE to P25 DFSI consoles

and other Stratus repeaters

 No hardwired Ethernet connection

required

 VHF/UHF coverage in buildings and any

outdoor location

 Quickly add and remove repeaters

on the network

 Rugged, transportable case

 Rapidly deployable

 IP 65 Rated

 MIL-STD-810G pending

CODaN Stratus™ is the first deployable P25/LTE hybrid

solution that leverages the strengths of both technologies

to provide secure mobile voice networks. The Stratus P25

repeaters support transparent end-to-end encryption

across an entire communications network.

P25 COMMUNICATIONS OVER LTE

Housed in a rugged Pelican case, Stratus integrates a VHF, UHF, 700

MHz, or 800 MHz repeater, Universal Interface Card (UIC) and LTE

modem, linking instantaneously into established communications

networks without requiring a hard wired Ethernet connection.

IN-BUILDING COVERAGE WITH EXTERNAL COMMUNICATIONS LINK

The P25 repeater provides reliable communications coverage within a

building while the LTE modem provides a reliable and secure bridge to

an existing P25 communications network. This ensures the repeater

is not isolated from the P25 network.

RAPID VOICE NETWORK DEPLOYMENT

Stratus enables a new, secure voice network to be deployed in an

instant. A lightweight and transportable design, multiple Stratus

repeaters can be deployed at a site by simply locating the repeaters

in the required coverage area and powering on. The Stratus

repeaters will automatically link with each other over LTE and to the

P25 console via the Stratus Server on a private or public network

anywhere in the world.

www.codanradio.com

STRATUS repeater

QUICK NETWORK EXPANSION

A Stratus repeater can be quickly added to an established

network without any setup required by the user. A Stratus

will automatically connect into the network over the

LTE connection and establish a link with the dispatch

console for immediate tracking and control and instant

communications for the user.

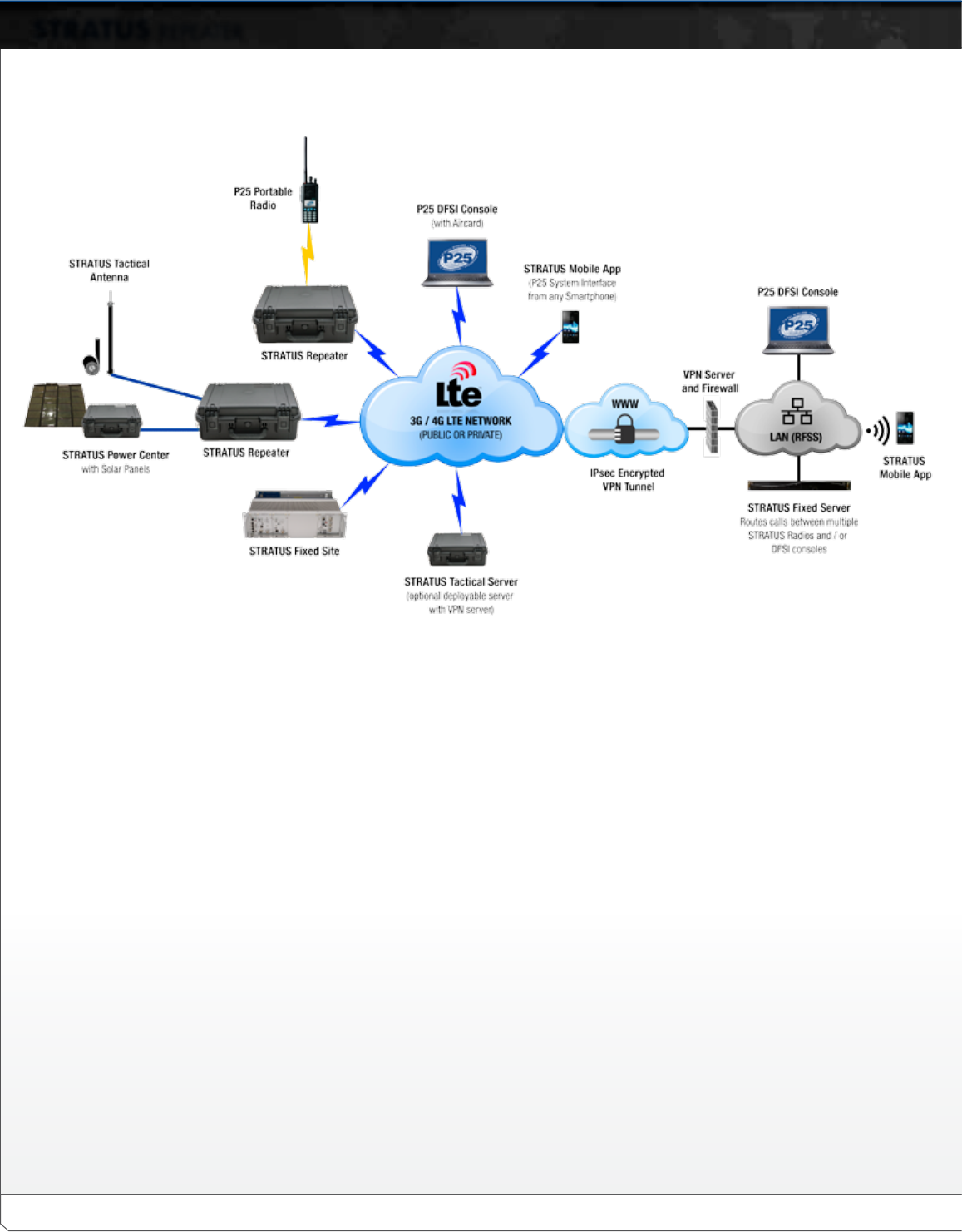

STRATUS NETWORK CONFIGURATION

© Copyright 2016

STRATUS FAMILY PRODUCTS

STRATUS FIXED SITE

Stratus Fixed enables new and existing Codan Base

Stations and Repeaters in a fixed configuration to utilise

LTE cellular networks for backhaul into dispatch, replacing

the need for costly leased lines and T1 connections. The

network interfaces of Stratus Fixed have been optimized

to provide a more robust connection over the cellular

network ensuring a reliable connection at a fraction of the

current costs. The two rack unit Stratus Fixed can connect

up to four base stations or repeaters to the cellular

network, providing flexibility for system configurations

and easy upgrade options.

STRATUS LITE

Stratus Lite provides a compact 30 Watt repeater/

base station solution. The system can be configured

as a repeater, a base station or a repeater/base station

combination. Stratus Lite includes an optional expansion

to a full Stratus repeater for a P25/LTE hybrid solution that

leverages the strengths of both technologies to provide

secure mobile voice networks and integration into an

existing P25 network.

STRATUS FIXED/TACTICAL SERVER

Based on Codan Digital Link Controller technology,

the Stratus Fixed Server is situated at a fixed location

anywhere in the world with an Ethernet connection.

The Stratus Tactical Server is housed in a rugged,

transportable case for quick deployment. Always

available and accessible, a Stratus Server will route calls

between multiple Stratus Repeaters. The Server receives

the digital audio and control signals from the VHF/UHF

repeaters via the Ethernet and LTE link and routes the P25

communications within the network, with all encrypted

calls routed transparently.

STRATUS CONSOLE

The Stratus Console is for remote configuration and

monitoring of the Stratus Repeater functions. The open

standard P25 interface of the Stratus Network ensures all

third party DFSI consoles are interoperable with

the network.

STRATUS STORM MOBILE APP

The Stratus Mobile app enables interfacing to a LMR P25

network from any smartphone. Each smartphone running

a security code authorized instance of the Stratus Mobile

app can be configured to act as a P25 subscriber unit.

STRATUS RAPID ANTENNA

The Stratus Rapid Antenna is a compact, lightweight and

robust rapidly deployable antenna solution. The antenna

is hung enclosed within a hollow mast made of composite

material that transports as a flat coil then rapidly expands

into a rigid mast with a total step time of approximately

two minutes.

STRATUS POWER CENTER

The Stratus Power Center is a 35 A hour battery

housed in a compact and rugged transportable case

for power support of the Stratus Repeater. The power

center provides a 12 V DC power source to the Stratus

repeater. The battery in the power center is charged and

maintained by a 15 V DC input from an AC/DC 15 V DC

power supply or Solar panel.

Codan RadIo CoMMUnICaTIonS

www.codanradio.com

Australia: +61 8 8305 0528

Canada: +1 250 382 8268

§ US: +1 571 919 6432

§ UAE: +971 44 53 72 01

LMRsales@codanradio.com

STRATUS repeater

CODaN™ and Stratus™ are trademarks of

Codan Limited. Other brand, product and company

names mentioned in this document are trademarks

or registered trademarks of their respective holders.

Values noted are typical. Equipment descriptions and specifications subject to change without notice or obligation.

12-20310-EN Issue 2 1/2016

SPECIFICATIONS

Repeater bands 136-174, 380-520, 768-869, 896-960 MHz

Encryption DES-OFB / AES-256 (FIPS certified)

Modes of operation Analog, P25, Mixed Mode, LTE, 3G

Size 19.2ʺ L x 15.2ʺ W x 7.3ʺ D (48.8 cm L x 38.6 cm W x 18.5 cm D)

Weight 32 lbs (14.5 kg)

Operating temperature

–40°C to + 60°C (100% Duty Cycle — lid open)

–40°C to + 40°C (100% Duty Cycle — lid closed)

+ 40°C to + 50°C (50% Duty Cycle — lid closed)

Over temperature alarm protection Turn Off Radio at +67°C, Turn On Radio at +64°C

RF power outputs Low Power Switching (VHF / UHF only): 12 to 30 W adjustable (15 W standard)

25 W (700 MHz / 800 MHz)

DC power inputs 10 to 16 V DC

AC power inputs 110/220 VAC (auto-switching) external power supply

Current draw 750 mA ±10% (VHF/UHF)

7.0 A ±10% (VHF/UHF)

Voltage protection circuit Shut-off at 9.0 V DC, turn on at 11.0 V DC

Internal duplexer frequency separation

136–174 MHz VHF: 4.5 MHz separation

400 MHz UHF: 5.0 MHz separation

700 MHz UHF: 30 MHz separation

800 MHz UHF: 45 MHz separation

LTE modem options 700 MHz Band 13 LTE with fallback to 800/1900 MHz EV-DO

700 MHz Band 17 LTE & AWS Band 4 LTE with fallback to 850/1900 MHz HSPA+

Carrier approvals Approved for deployment by Verizon, AT&T, Sprint, Rogers, Bell, Telus, Telstra

Additional ethernet ports 2 RJ45 Ethernet ports

VPN/security

IKE Encryption - AES-256 capable

IPsec, SSL, and GRE VPN Client

Up to 5 VPN Tunnels

Trusted IP

MAC Address Filtering

Environmental MIL-STD-810

IP65
