 FEATURES AT A GLANCE

 Compatible with RM50 (2110M

Manpack Internal Modem)

 MIL-STD Waveforms

 MIL-STD-188-110A

 MIL-STD-188-110B (Inc. Appendix F)

 STANAG 4285

 STANAG 4529

 STANAG 4415

 STANAG 4539

 ISB option

 Data Encryption

 AES-256 bit Algorithm

 Up to 256 stored keys

 Key fill via Codan Key Management

Software (KMS)

 MIL-STD-810F

 Immersion

 Dust

 Vibration

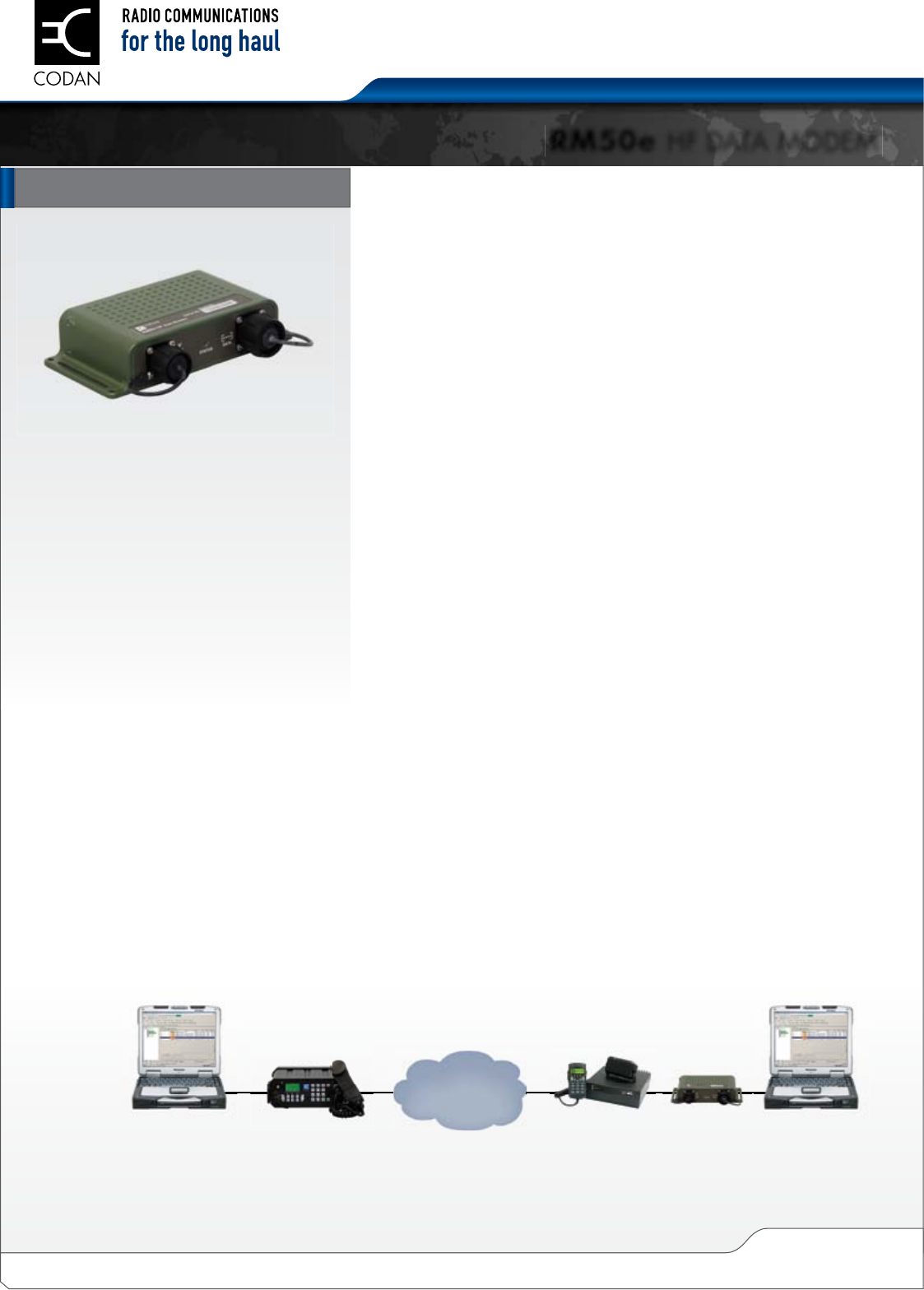

The RM50e is a high performance MIL-spec HF modem

designed to connect to the NGT™ family of radios.

Compatible with the RM50 in the 2110M Manpack, this

modem provides legacy interoperability with systems

running Fixed Frequency and ALE networks operating

STANAG 5066 email.

MILITARY STANDARD WAVEFORMS

The RM50e operates using the most highly advanced Military

Standard (MIL-STD) waveforms, including STANAG 4539 and

MIL-STD-188-110A/B, providing adaptive rates from 75–9600 bps

coded. When used in conjunction with an ISB capable NGT™, even

higher rates of up to 19200 bps are available using MIL-STD-188-110B

Appendix F waveforms.

STANAG 5066 EMAIL CLIENT

To ensure compatibility with other Military Standards, Codan offers

the RC50-C STANAG 5066 email client.

RC50-C is compatible with industry standard SMTP/POP email clients

such as Microsoft Outlook™. RC50-C provides compression and

adaptive data rate control to optimise performance over HF.

DATA ENCRYPTION

The RM50e provides optional AES-256 bit data encryption, which

is controlled from the attached transceiver. Up to 256 encryption

keys can be stored internally. Encryption key management is easily

facilitated through Codan’s Key Management Software (KMS) and

Key Fill Software (KFS).

12-20234-EN Issue 6 3/2012

RM50e HF DATA MODEM

HF

T: +61 8 8305 0311  F: +61 8 8305 0411  E: sales@codanradio.com

Codan Limited  81 Graves Street  Newton South Australia 5074  Australia

RADIO COMMUNICATIONS

www.codanradio.com

SPECIFICATIONS

SUPPORTED WAVEFORMS Modulation Data Rates

MIL-STD-188-110A Coded PSK 75, 150, 300, 600, 1200, 2400

Uncoded PSK 4800

MIL-STD-188-110B (serial tone) Coded PSK/QAM 3200, 4800, 6400, 8000, 9600

MIL-STD-188-110B (Appendix F) * Coded PSK/QAM ISB: 9600, 12800, 16000, 19200

STANAG 4539 Coded PSK/QAM 75, 150, 300, 600, 1200, 2400

3200, 4800, 6400, 8000, 9600

Uncoded PSK/QAM 12800

STANAG 4285 Coded PSK 75, 150, 300, 600, 1200, 2400

Uncoded PSK 1200, 2400, 3600

STANAG 4415 Coded PSK 75

STANAG 4529 Coded PSK 75, 150, 300, 600, 1200

Uncoded PSK 600, 1200, 1800

DATA ENCRYPTION

Algorithm AES-256 bits (block cypher), 256 user-programmable keys

Key fill Via the front panel of CODAN™ Transceivers, Key Management Software (KMS) &

Key Fill Software (KFS)

GENERAL

LED indication Green — Data Modem Active (modem is ready to transmit or receive data)

Orange — Data Modem Standby (modem is in power saving mode)

Supply voltage 9 to 16 V DC (13.8 V DC nominal)

Supply current 100 mA typical at 13.8 V DC (data modem active Tx or Rx), <3 mA (standby)

Temperature –30°C to +60°C

MECHANICAL

PC interface 19-way MS bayonet

Transceiver interface 14-way MS bayonet

MIL-STD-810F Immersion (1 m), Dust, Vibration

Dimensions 185 mm W x 41 mm H x 92 mm D (excluding connector protrusions)

Weight 0.7 kg

SYSTEM

08-06978-001 RM50e Data Modem

15-04167-EN RM50e Data Modem Operator Guide

15-04161-CD RC50-C STANAG 5066 Email Client

08-06901-001 RM50e USB Data Cable

08-07167-00x RM50e to NGT™ Transceiver Interface Cable (x = cable length, 1 or 6 m)

REQUIRED OPTIONS FOR NGT™

15-10469-000 Opt NGT™ Fan (Factory fi t)

15-10514-000 Opt 2.7 kHz Filter (for SSB MIL-STD waveforms)

15-10556-000 Opt Independent Sideband (for SSB and ISB MIL-STD waveforms)

RM50e HF DATA MODEM

CODAN™ and NGT™ are trademarks of

Codan Limited. Other brand, product and company

names mentioned in this document are trademarks

or registered trademarks of their respective holders.

12-20234-EN Issue 6 3/2012

* Requires ISB capable NGT™

Values noted are typical. Equipment descriptions and specifi cations subject to change without notice or obligation.
