FEATURES AT A GLANCE
Asset tracking and map location
Manual and automatic polling
Emergency and safety event log
Collision and proximity detection
Corridor zoning
Vehicle Telemetry
Logging and playback
Full system integration
Internav® CHF is an Automatic Vehicle Location and
Tracking system that uses Navstar Global Positioning
System (GPS) and CODAN™ HF Transceivers to exchange
position data between mobile stations and a central
control station. The MS Windows™ based tracking
software, located at the control station, acquires position
data from selected mobile stations and then plots their
positions on a computer based map.
Codan’s High Frequency (HF) Transceiver technology
coupled with the powerful Internav® CHF application
provides a sophisticated but cost effective solution for
mobile asset management.
TRACKING
Internav® software may be confi gured for automatic or manual
polling of remote mobile assets. Mobile stations may also send their
GPS position details to the tracking base station. Once the position
data is received, a user-selectable icon identifi es the mobile station’s
position on a customer defi ned map on the computer display.
Sequential acquisition of a given mobile station’s position may be
displayed as individual points or shown as a track to show overall
progress of the station. Internav® has the capacity to track up to
100 mobile stations.
Map information may be scanned into the program from hardcopies
or registered directly as electronic fi les in raster or vector format.
Multiple maps of the same area but of different scales may be
registered to achieve the necessary resolution of geographic position.
PROXIMITY DETECTION
Internav® provides a full range of proximity detection methods to
ensure maximum situational awareness at all times. The system will
provide a warning when mobile stations enter user-defi ned restricted
areas (alarm zones), when they are outside designated safety areas
(corridor zones) or when they approach designated waypoints
(waypoint proximity). Map areas may also be defi ned where
proximity detection is disabled (blind zones).
TELEMETRY
When a mobile station position is received, its speed, distance,
bearing and ETA to a waypoint destination can be displayed with
the position icon on the map display. Conversely, if a mobile station
experiences trouble or encounters an emergency situation, they can
initiate an Emergency call from the CODAN™ HF Transceiver and
trigger an alarm status on the Internav® application at the
tracking station.
12-40001 Issue 11 3/2012
INTERNAV® CHF GPS LOCATION & TRACKING
T: +61 8 8305 0311 F: +61 8 8305 0411 E: sales@codanradio.com
Codan Limited 81 Graves Street Newton South Australia 5074 Australia
RADIO COMMUNICATIONS
www.codanradio.com
INTERNAV® CHF GPS LOCATION & TRACKING
12-40001 Issue 11 3/2012
Values noted are typical. Equipment descriptions and specifi cations subject to change without notice or obligation.
CODAN™ is a trademark of Codan Limited.
Other brand, product and company names mentioned
in this document are trademarks or registered
trademarks of their respective holders.
LOGGING
Internav® CHF has the capability to record all safety and
emergency events into a log fi le as well as record all mobile
station travel activity for a given period of time. These log
fi les can provide critical information for incident investigation
and reporting.
SYSTEM INTEGRATION
The Internav® CHF application is designed to fully integrate
with the Selcall and Automatic Link Establishment (ALE)
call capabilities of CODAN™ Transceivers. This high level of
integration enables the HF linking required to acquire GPS
position data to be transparent to core operations, which
simplifi es operation and increases tracking effi ciency.
Internav® CHF includes a virtual “transceiver console”
which extends transceiver control to the computer screen.
Important transceiver capabilities such as Message, Status,
and Emergency calls, as well as receiver scan and mute status,
can all be accessed from the computer. This provides the
operator with a very high level of overall system control.
MINIMUM SYSTEM REQUIREMENTS
Pentium III processor
256 MB RAM, 512 MB recommended
MS Windows™ NT, 2000, XP or higher
1 serial communications port
1 USB port
SVGA 1024 x 768 high colour graphics card
CD drive
100 MB hard drive
Mobile station with
Codan Transceiver
GPS receiver
Fixed station with
Codan Transceiver
AC mains 3020 Transceiver
Supply
Computer with Internav® CHF
tracking software
Broadband antenna
Mobile station Fixed station

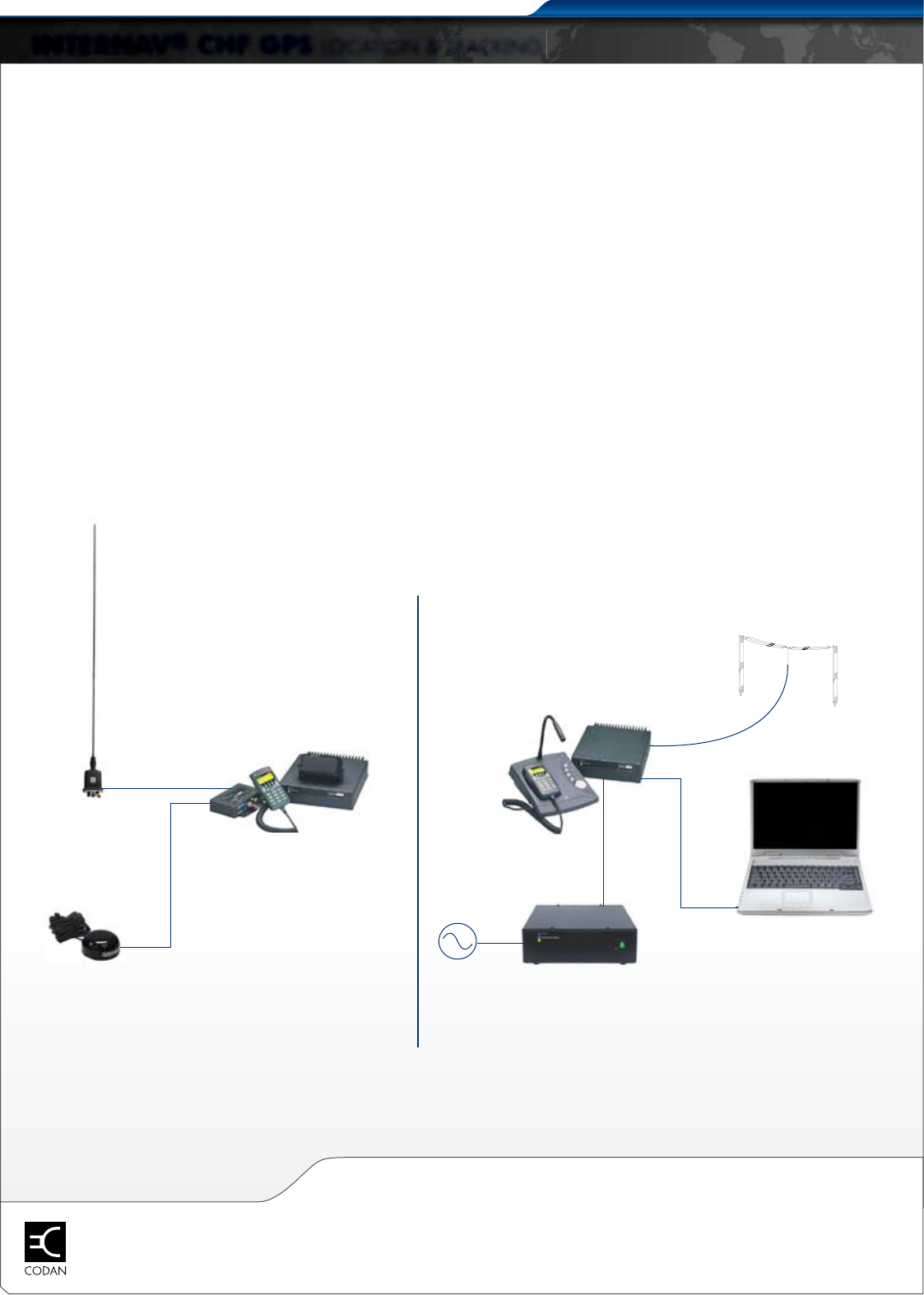

SYSTEM DIAGRAM
3040 Automatic
Whip Antenna
