Users Manual
USER MANUAL
NORTH AMERICA: ENGLISH
MANUAL VERSION 04
RELEASE DATE: JULY 2014
CR2300
Configuration Guidewww.codecorp.com YouTube.com/codecorporation
2
D014276_02_CR2300_User_Manual
Statement of Agency Compliance
The Code Reader™ 2300 (CR2300) has been tested for compliance with FCC regulations and was found to be compliant
with all applicable FCC Rules and Regulations.
IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co-located or
operate in conjunction with any other antenna or transmitter.
CAUTION: Changes or modications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
The CR2300 has been tested for compliance to CE standards and guidelines and was found to conform to applicable CE
standards, specically the EMC requirements EN 55024, ESD EN 61000-4-2, Radiated RF Immunity EN 61000-4-3,
ENV 50204, EFT EN 61000-4-4, Conducted RF Immunity EN 61000-4-6, EN 55022, Class B Radiated Emissions, and
Class B Conducted Emissions.
The CR2300 has been tested and certied in compliance with the Technical Regulations Conformity Certication of
Specied Radio Equipment (ordinance of MPT N°.37. 1981), Article 2, Paragraph 1, Item 19.
Code voids product warranty if the hard case has been opened or tampered with in any way.
The CR2300 meets all safety and quality standards in accordance to EN 60950-1:2006/A11:2009/A1:2010.
CR2300 CodeXML® Modem FCC, Industry Canada and ICES Compliance
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation
est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit
accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Important Note:
Radiation Exposure Statement:
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the radiator and your body.
Note Importante: (Pour l’utilisation de dispositifs mobiles)
Declaration d’exposition aus radiations:
Cet équipement est conforme aux limites d´exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet
équipment doit être installé et utilisé avec un mimimum de 20 cm de distance entre la source de rayonnement et votre corps.
3
D014276_02_CR2300_User_Manual
Code Reader™ 2300 User Manual
Copyright © 2014 Code Corporation.
All Rights Reserved.
The software described in this manual may only be used in accordance with the terms of its license agreement.
No part of this publication may be reproduced in any form or by any means without written permission from Code Corporation. This includes
electronic or mechanical means such as photocopying or recording in information storage and retrieval systems.
NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part
of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation
is at the risk of the user. Code Corporation reserves the right to make changes in specications and other information contained in this
document without prior notice, and the reader should in all cases consult Code Corporation to determine whether any such changes
have been made. Code Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or
consequential damages resulting from the furnishing, performance, or use of this material. Code Corporation does not assume any product
liability arising out of or in connection with the application or use of any product or application described herein.
NO LICENSE. No license is granted, either by implication, estoppel, or otherwise under any intellectual property rights of Code Corporation.
Any use of hardware, software and/or technology of Code Corporation is governed by its own agreement.
The following are trademarks or registered trademarks of Code Corporation:
CodeXML®, Maker, QuickMaker, CodeXML® Maker, CodeXML® Maker Pro, CodeXML® Router, CodeXML® Client SDK, CodeXML® Filter,
HyperPage, CodeTrack, GoCard, GoWeb, ShortCode, GoCode®, Code Router, QuickConnect Code, Rule Runner®, Cortex®, CortexRM,
CortexMobile, Code, Code Reader, CortexAG, CortexStudio, CortexTools, Afnity®, CortexDecoder, CortexJPOS, and CortexOPOS.
All other product names mentioned in this manual may be trademarks of their respective companies and are hereby acknowledged.
The software and/or products of Code Corporation include inventions that are patented or that are the subject of patents pending. U.S.
Patents: 6997387, 6942152, 7014113, 7070091, 7097099, 7353999, 7519239, 7621453, 8001550, 8011584.
The Code Reader software uses the Mozilla SpiderMonkey JavaScript engine, which is distributed under the terms of the Mozilla Public
License Version 1.1. The Code Reader software is based in part on the work of the Independent JPEG Group.
Code Corporation, 12393 S. Gateway Park Place, Ste. 600, Draper, Utah 84020
www.codecorp.com
4
D014276_02_CR2300_User_Manual
Table of Contents
1.0 - Included Items ........................................................................................... 5
2.0 - Set Up ....................................................................................................... 6
3.0 - Battery Installation and Removal .................................................................. 6
4.0 - Fuel Gauge Battery Status Indicator .............................................................. 6
5.0 - Charging the CR2300 ................................................................................. 7
6.0 - Powering On/Off the Reader ......................................................................... 7
7.0 - Scanning ................................................................................................... 7
8.0 - Establishing a Bluetooth Connection ............................................................. 8
9.0 - Transmitting Batch Data via Bluetooth Communication ................................... 9
10.0 - Transmitting Batch Data via USB Communication ........................................ 9
11.0 - Wired Communication via USB Downloader Mode ...................................... 10
12.0 - Reader Feedback .................................................................................... 10
13.0 - Reading Ranges ...................................................................................... 11
14.0 - Symbologies Defaulted On ....................................................................... 11
15.0 - Symbologies Defaulted Off ....................................................................... 11
16.0 - Reader ID and Firmware Version ............................................................... 12
17.0 - CR2300 Dimensions ............................................................................... 12

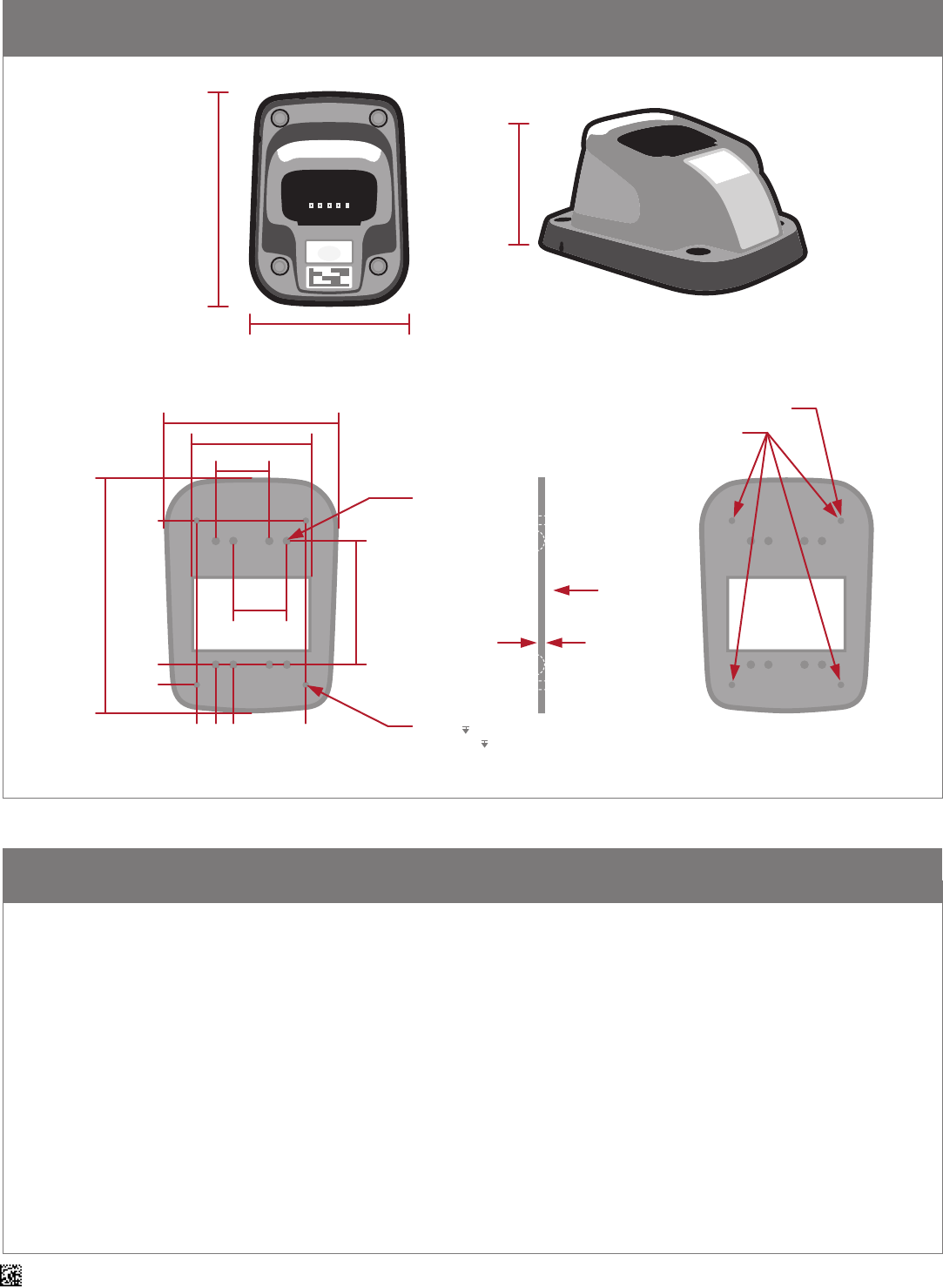

18.0 - Charging Station Dimensions ................................................................... 13
19.0 - CR2300 Maintenance ............................................................................. 13
20.0 - Warranty ................................................................................................ 14
5
D014276_02_CR2300_User_Manual
1.0 - Included if Ordered
CR2300
(Model #: CR2321)
USB 2.0 Cable
RS232 Cable
5VDC Power Supply
CodeXML® M3 Modem
Battery Cartridge
Charging Station Charging Station
with Embedded
CodeXML® Modem
6
D014276_02_CR2300_User_Manual

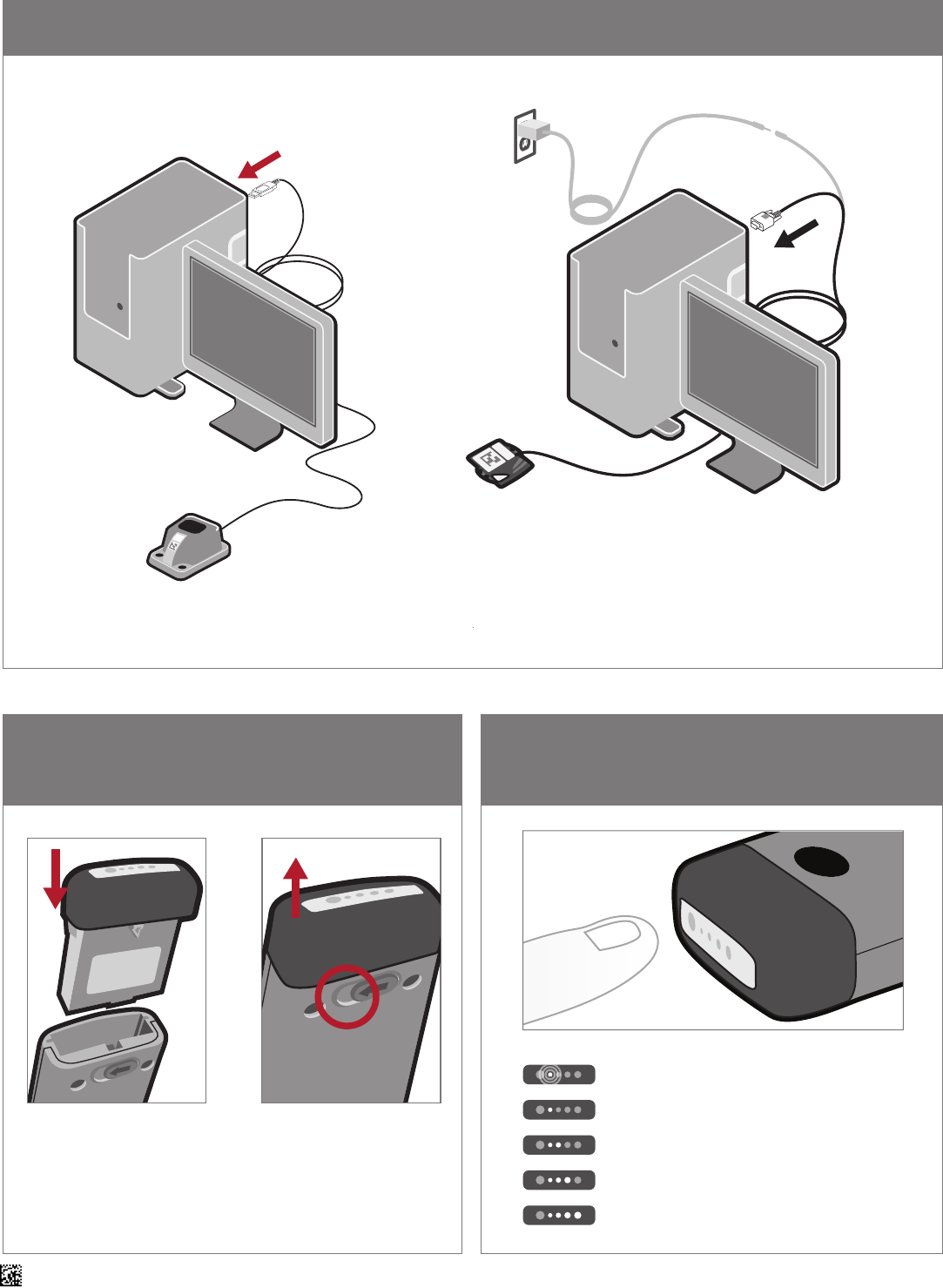

4.0 - Fuel Gauge Battery
Status Indicator
3.0 - Battery Installation
and Removal
<25%
<10%
25-50%
50-75%
75-100%
Completely charge before initial use.
2.0 - Set Up
7
D014276_02_CR2300_User_Manual

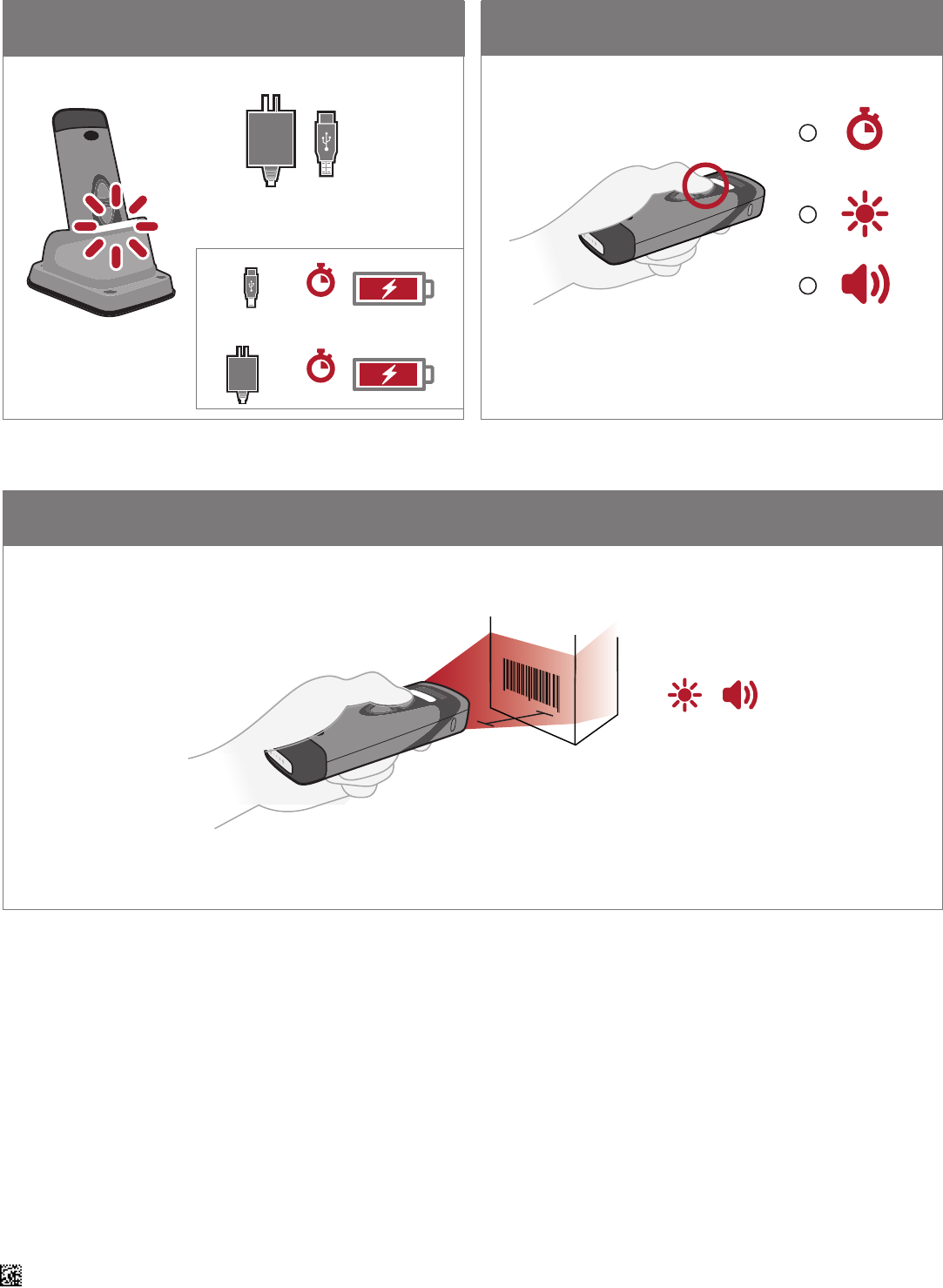

6.0 - Powering On/Off the Reader
1
2
3
5.0 - Charging the CR2300
=
=
4 Hrs.
2.5 Hrs.
1 Sec.
1x
7.0 - Scanning
10 cm
8
D014276_02_CR2300_User_Manual

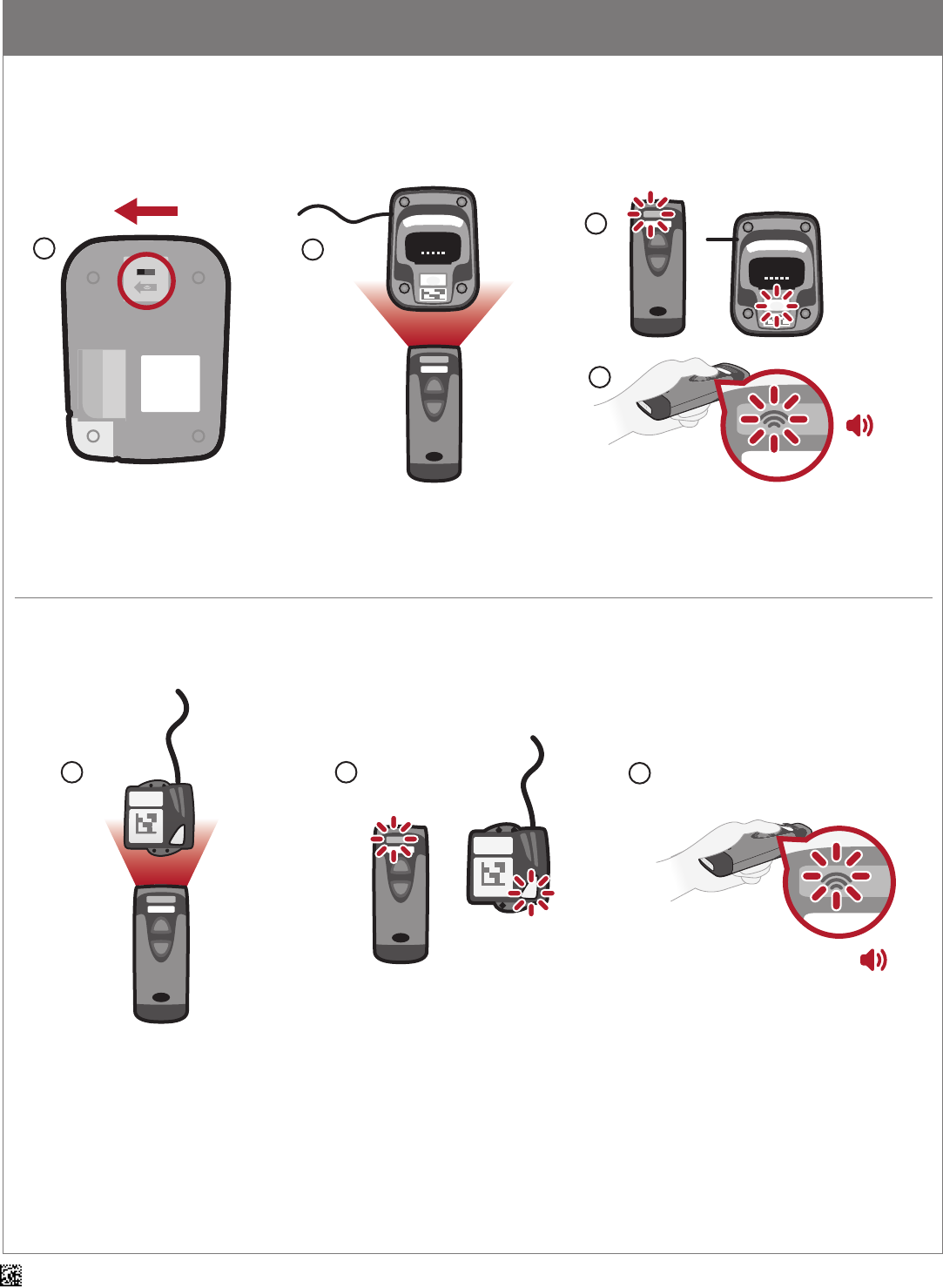

8.0 - Establishing a Bluetooth Connection
12
3
4
1X
123
1X
9
D014276_02_CR2300_User_Manual

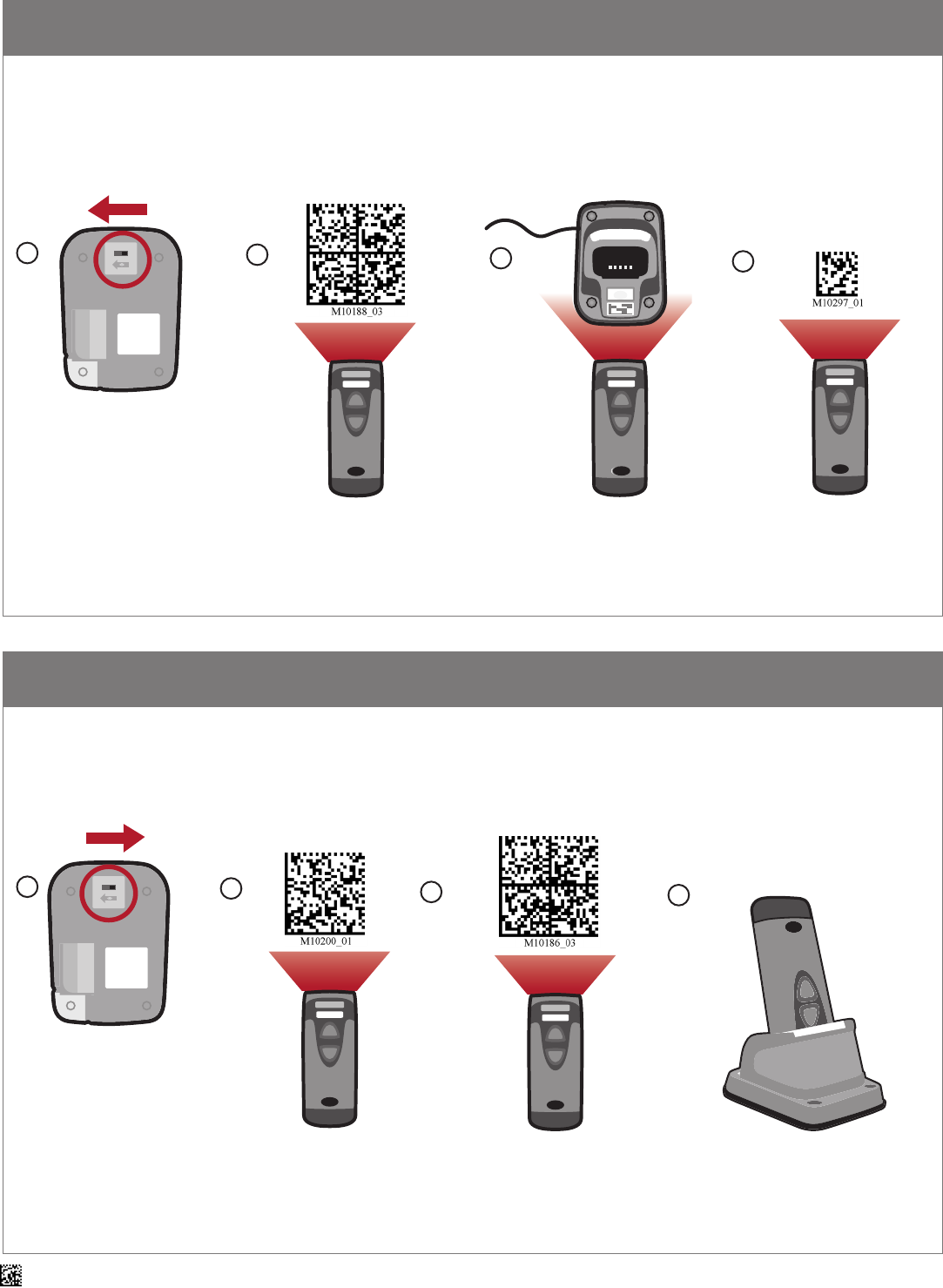

9.0 - Transmitting Batch Data via Bluetooth Communication
1
Scan the Batch Mode Enable -
Log Only* conguration barcode
to save scanned data to reader
memory.
2
* Additional Batch Mode and Communication conguration options are available in the
CR2300 Conguration Guide located at www.codecorp.com/les.php
Scan the Batch Mode
Transfer All Data in
Memory* conguration
barcode to transfer data to
the host device.
4
3
10.0 - Transmitting Batch Data via USB Communication
1
Scan the Batch Mode Enable
- Send and Log* conguration
barcode to save scanned data
to reader memory:
2
* Additional Batch Mode and Communication conguration options are available in the
CR2300 Conguration Guide located at www.codecorp.com/les.php
4
3
Scan the USB Keyboard
Communication Mode*
conguration barcode:
Open an application on the host
device. Dock the reader into the
charging station to transfer data
to the host device.
10
D014276_02_CR2300_User_Manual

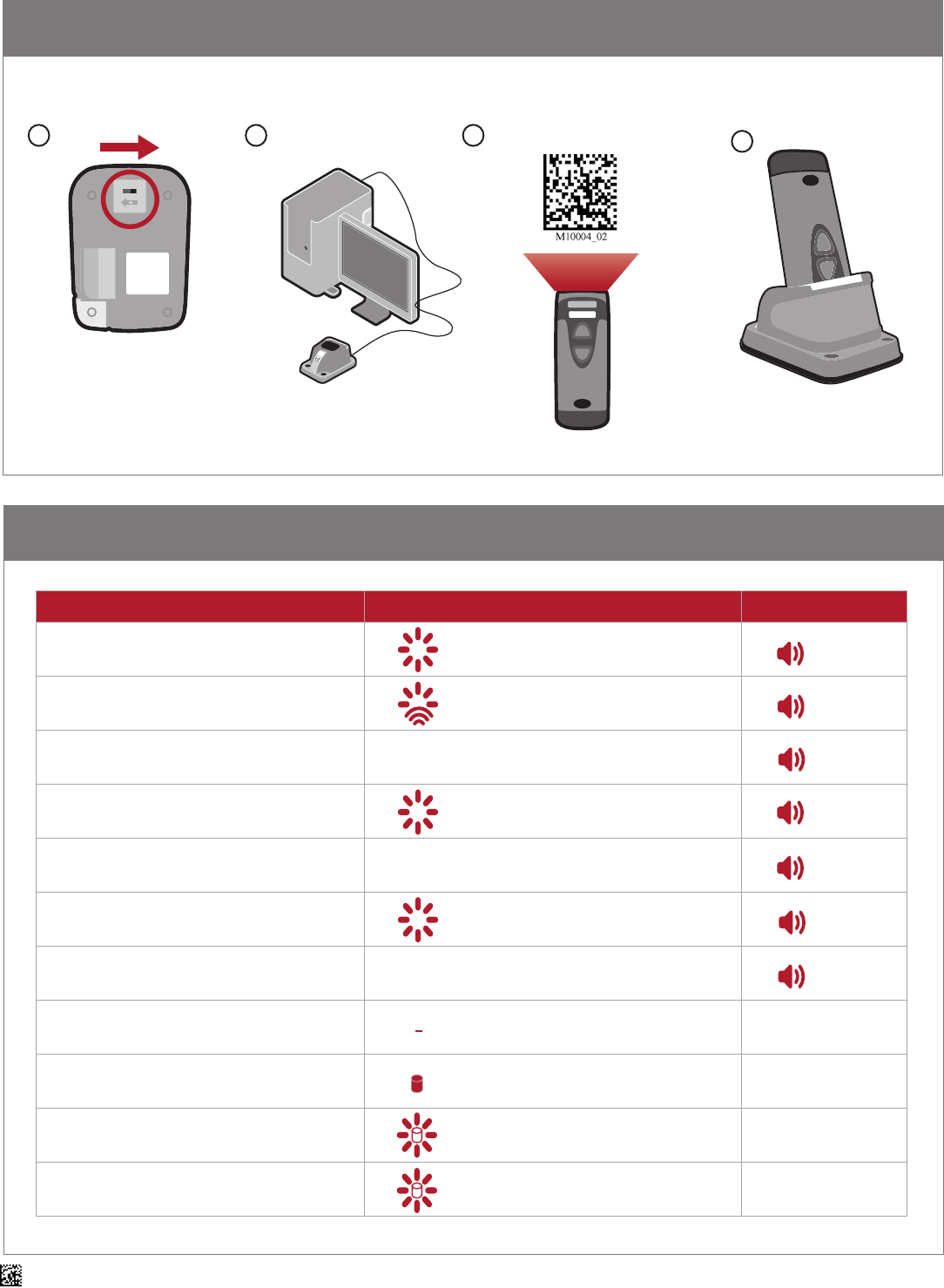

Scenario LEDs on Reader Sound
CR2300 Successfully Powers Up All LEDs Flash 1X
CR2300 Successfully Connects with Host Wireless Icon Flashes 1X
CR2300 Unsuccessfully Connects with Host -3X
Successful Decode and Data Transfer Good Read Indicator will Flash 1X
Unsuccessful Decode and Data Transfer -3X
Conguration Code Successfully
Decoded and Processed Good Read Indicator will Flash 2X
Conguration Code Unsuccessfully
Decoded and Processed -4X
Batch Mode Enabled and No Data is Stored Batch Icon Off -
Batch Mode Enabled and Data Stored Batch Icon Remains Solid -
Memory Space for Batching is Full Batch Icon Flashes 5 Times a Second -
Batch Mode Enabled, Data Stored, and Reader is
in Sleep Mode
Batch Icon Flashes Once Every 10 Seconds -
11.0 - Wired Communication via USB Downloader Mode
Scan USB Downloader (HID) Mode
conguration barcode:
1234
Open
CortexTools™
12.0 - Reader Feedback
11
D014276_02_CR2300_User_Manual
13.0 - Reading Ranges
CR2300 Performance
Test Barcode Min Inches (mm) Max Inches (mm)
4 mil Code 39 1.6” (40 mm) 3.1” (78 mm)
7.5 mil Code 39 1.3” (34 mm) 7.2” (182 mm)
9.5 mil Code 128 0.6” (15 mm) 8.3” (212 mm)
10.5 mil UPC 0.8” (20 mm) 9.0” (228 mm)
13 mil UPC 1.1” (28 mm) 11.0” (280 mm)
5 mil Data Matrix 1.7” (43 mm) 3.0” (76 mm)
6.3 mil Data Matrix 1.3” (33 mm) 4.1” (104 mm)
10 mil Data Matrix 0.8” (20 mm) 6.5” (165 mm)
20.8 mil Data Matrix 1.1” (28 mm) 13.5” (343 mm)
Note: All samples were high quality barcodes and were read along a physical center line at a 10° angle. Default AGC settings were used.
Accuracy= +/- 10%.
14.0 - Symbologies Defaulted On 15.0 - Symbologies Defaulted Off
The following are symbologies that have a default of ON.
To turn symbologies on or off, scan the symbology barcodes
located in the CR2300 Conguration Guide located on our
website at http://www.codecorp.com.
Aztec
Codabar
Code 39
Code 93
Code 128
Data Matrix
Data Matrix Rectangle
The following are symbologies that have a default of OFF.
To turn symbologies on or off, scan the symbology barcodes
located in the CR2300 Conguration Guide located on our
website at http://www.codecorp.com.
Codablock F
Code 11
Code 32
Composite
Data Matrix Inverse
Han Xin Code
Hong Kong 2 of 5
IATA 2 of 5
Maxicode
Matrix 2 of 5
All GS1 DataBar
Interleaved 2 of 5
PDF417
QR Code
UPC/EAN/UPC-E
Micro PDF417
MSI Plessey
NEC 2 of 5
Pharmacode
Plessey
Straight 2 of 5
Telepen
Trioptic
Postal Codes
12
D014276_02_CR2300_User_Manual

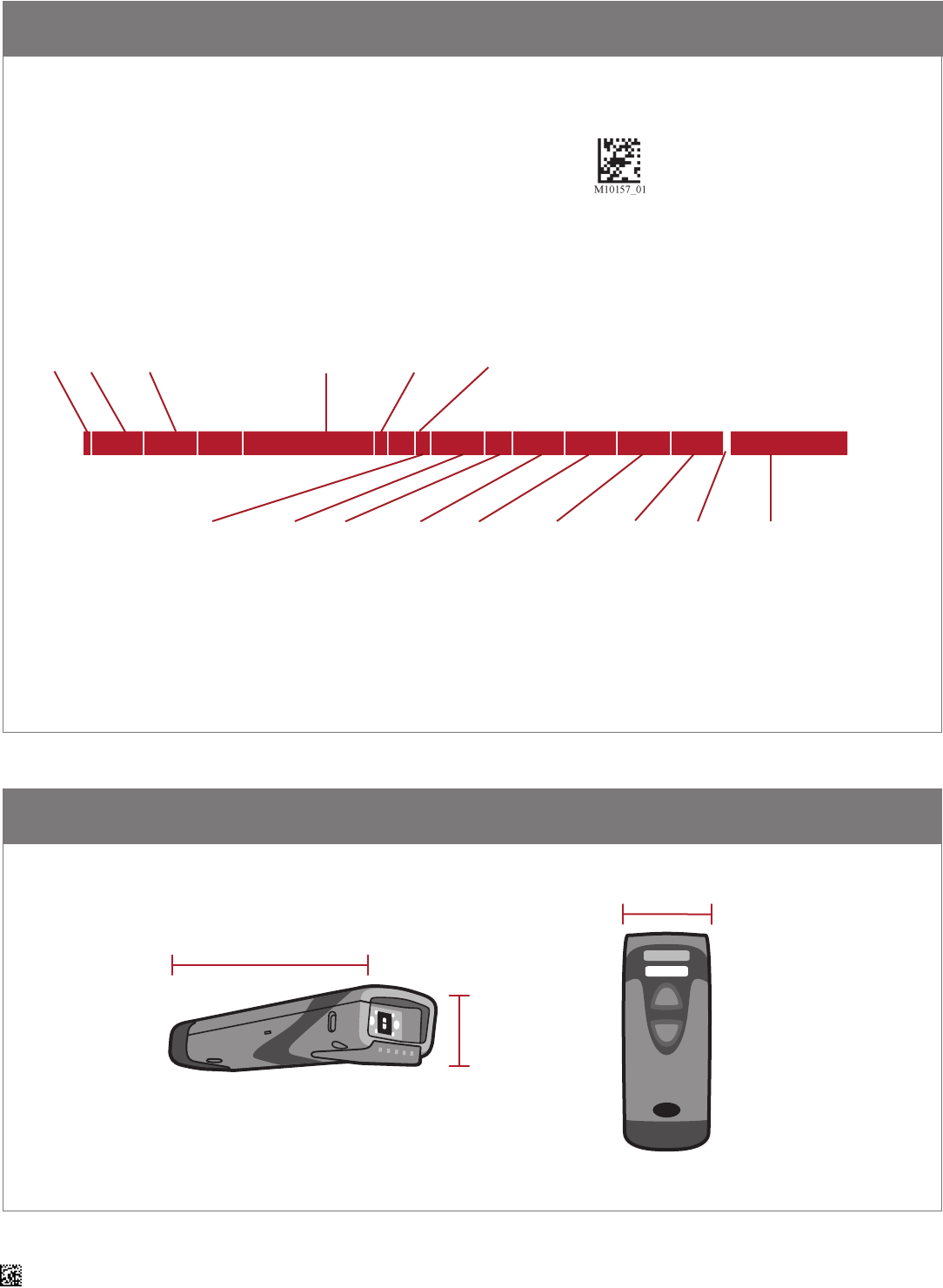

16.0 - Reader ID and Firmware Version
Reader ID and Firmware
Xap/ i 0808 0808 none 0020094903 A 06 0 0000 0700070016 0062 0002 cd(13.2.18)
A text string indicating the rmware version and CR2300 ID number will be displayed.
example: Xap/i06760456none0020094903A06000000700070016006200 02cd(13.2.18) (see below):
To nd out the Reader ID and Firmware version, open a text editor program
(i.e., Notepad, Microsoft Word, etc.) and read the Reader ID and Firmware
conguration barcode.
Note: Code will periodically release new rmware for CR2300 readers. For information on latest rmware visit our website at
www.codecorp.com/codesupport.php.
Display
type
Flash file system
version number
Hardware
revision
Hardware type
identifier
Boot
application
version
Operating
system kernel
version
Root file
system
version
Decoder version
ASCII TAB
character
○
Firmware
version
Boot firmware
version
Radio firmware
version
Reader serial
number (ten digits)
Current
execution state
String
output
OEM
identifier
○
17.0 - CR2300 Dimensions
5.1"
(130 mm)
1.1"
(28 mm)
2.0"
(51 mm)
13
D014276_02_CR2300_User_Manual
18.0 - Charging Station Dimensions
3.3"
(83 mm)
4.5"
(115 mm)
2.4"
(60 mm)
84.99 ± 0.20 mm
66.50 mm
117 mm 66.80 mm
32 mm
32 mm
0
0
3
BURR DIRECTION
Printing Mark (white color)
THIS SIDE DOWN
7.43
16.57
56
83.98
8.90
8X Ø 5.11 THRU ALL
\/
Ø 9.78 X 82º
4X Ø 10.50 ± 0.40
WIDTH 0.50 mm
4X Ø 3.30 3
M4X0.7 - 6HX 3
19.0 - CR2300 Maintenance
The CR2300 device needs only a minimum of maintenance to operate. A few tips are given below for maintenance suggestions.
Cleaning the CR2300 Window
CR2300 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the
reader. Do not touch the window. Your CR2300 uses CMOS technology that is much like a digital camera. A dirty window may stop the
CR2300 from reading barcodes.
If the window becomes dirty, clean it with a soft, non-abrasive cloth or a facial tissue (no lotions or additives) that has been moistened with
water. A mild detergent may be used to clean the window, but the window should be wiped with a water moistened cloth or tissue after using
the detergent.
Technical Support and Returns
For returns or technical support visit www.codecorp.com/codesupport.php.
14
D014276_02_CR2300_User_Manual
20.0 - Warranty*
The CR2300 carries a one year limited warranty as described herein. Charging Stations, Modems and Batteries carry a one year limited warranty.
Cables and Power Supplies carry a 30 day limited warranty.
Limited Warranty. Code warrants each Code product against defects in materials and workmanship under normal use for the Warranty Coverage Term
applicable to the product as described at www.codecorp.com/legal/warranty/term.php. If a hardware defect arises and a valid warranty claim is
received by Code during the Warranty Coverage Term, Code will either: i) repair a hardware defect at no charge, using new parts or parts equivalent
to new in performance and reliability; ii) replace the Code product with a product that is new or refurbished product with equivalent functionality
and performance, which may include replacing a product that is no longer available with a newer model product; or ii) in the case of failure with any
software, including embedded software included in any Code product, provide a patch, update, or other work around. All replaced products become the
property of Code. All warranty claims must be made using Code’s RMA process.
Exclusions. This warranty does not apply to: i) cosmetic damage, including but not limited to scratches, dents, and broken plastic; ii) damage resulting
from use with non-Code products or peripherals, including batteries, power supplies, cables, and docking station/cradles; iii) damage resulting from
accident, abuse, misuse, ood, re or other external causes, including damage caused by unusual physical or electrical stress, immersion in uids or
exposure to cleaning products not approved by Code, puncture, crushing, and incorrect voltage or polarity; iv) damage resulting from services performed
by anyone other than a Code authorized repair facility; v) any product that has been modied or altered; vi) any product on which the Code serial
number has been removed or defaced. If a Code Product is returned under a warranty claim and Code determines, in Code’s sole discretion, that the
warranty remedies do not apply, Code will contact Customer to arrange either: i) repair or replace the Product; or ii) return the Product to Customer, in
each case at Customer’s expense.
Non Warranty Repairs. Code warrants its repair/replacement services for ninety (90) days from the date of shipment of the repaired/replacement product
to the Customer. This warranty applies to repairs and replacements for: i) damage excluded from the limited warranty described above; and ii) Code
Products on which the limited warranty described above has expired (or will expire within such ninety (90) day warranty period). For repaired product
this warranty covers only the parts that were replaced during the repair and the labor associated with such parts.
No Extension of Term of Coverage. Product that is repaired or replaced, or for which a software patch, update, or other work around is provided, assumes
the remaining warranty of the original Code Product and does not extend the duration of the original warranty period.
Software and Data. Code is not responsible for backing up or restoring any of software, data, or conguration settings, or reinstalling any of the foregoing
on products repaired or replaced under this limited warranty.
Shipping and Turn Around Time. The estimated RMA turn-around time from receipt at Code’s facility to shipment of the repaired or replaced product
to Customer is ten (10) business days. An expedited turn-around time may apply to products covered under certain CodeOne Service Plans. Customer
is responsible for shipping and insurance charges for shipping Code Product to Code’s designated RMA facility and repaired or replaced product is
returned with shipping and insurance paid by Code. Customer is responsible for all applicable taxes, duties, and similar charges.
Transfer. If a customer sells a covered Code Product during the Warranty Coverage Term, then that coverage may be transferred to the new owner by
written notication from the original owner to Code Corporation at:
CodeOne Service Center
12393 South Gateway Park Place, Suite 600
Draper, UT 84020 USA
Limitation on Liability. Code’s performance as described herein shall be Code’s entire liability, and the Customer’s sole remedy, resulting from any
defective Code product. Any claim that Code has failed to perform its warranty obligations as described herein must be made within six (6) months of
the alleged failure. Code’s maximum liability related to its performance, or failure to perform, as described herein shall be limited to the amount paid
by Customer for the Code product that is subject to the claim. In no event will either party be liable for any lost prots, lost savings, incidental damage,
or other economic consequential damages. This is true even if the other party is advised of the possibility of such damages.
EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE LIMITED WARRANTIES DESCRIBE HEREIN REPRESENT THE ONLY
WARRANTIES CODE MAKES WITH RESPECT TO ANY PRODUCT. CODE DISCLAIMS ALL OTHER WARRANTIES, WHETHER EXPRESSED OR
IMPLIED, ORAL OR WRITTEN, INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE AND NON-INFRINGEMENT.
THE REMEDIES DESCRIBED HEREIN REPRESENT CUSTOMER’S EXCLUSIVE REMEDY, AND CODE’S ENTIRE RESPONSIBILITY, RESULTING FROM
ANY DEFECTIVE CODE PRODUCT.
CODE SHALL NOT BE LIABLE TO CUSTOMER (OR TO ANY PERSON OR ENTITY CLAIMING THROUGH CUSTOMER) FOR LOST PROFITS, LOSS OF
DATA, DAMAGE TO ANY EQUIPMENT WITH WHICH THE CODE PRODUCT INTERFACES (INCLUDING ANY MOBILE TELEPHONE, PDA, OR OTHER
COMPUTING DEVICES), OR FOR ANY SPECIAL, INCIDENTAL, INDIRECT, CONSEQUENTIAL OR EXEMPLARY DAMAGES ARISING OUT OF OR IN
ANY MANNER CONNECTED WITH THE PRODUCT, REGARDLESS OF THE FORM OF ACTION AND WHETHER OR NOT CODE HAS BEEN INFORMED
OF, OR OTHERWISE MIGHT HAVE ANTICIPATED, THE POSSIBILITY OF SUCH DAMAGES.
*Warranty periods are North America specific.
