Technical Guide
CLIMATE
CONTROL
Indoor and Outdoor
Air-Cooled Models
2© 2007, Heatcraft Refrigeration Products LLC
ITEM PAGE
PSC Motors are an Energy
Solutions feature and are
optimized to help you save
money by increasing energy
efficiency.
TM
TABLE OF CONTENTS
Standard Features ....................................... 3
Options & Nomenclature ............................. 4
Benefits ....................................................... 5, 6
Beacon II™.................................................. 6
Performance Data, Hermetic Compressors,
Medium & High Temp., R–22 .................... 7
Performance Data, Hermetic Compressors,
Extended Temp., R–404A/507 .................. 8
Performance Data, Hermetic Compressors,
Low Temp., R–404A/507 .......................... 9
Specifications Data, Hermetic Comp. .......... 9
Electrical Data, Hermetic Compressors ...... 10
Performance Data, Scroll Compressors,
Medium Temp., R–404A/507 .................... 11
Performance Data, Scroll Compressors,
Low Temp., R–404A/507 .......................... 12
Performance Data, Scroll Compressors,
Medium Temp., R–22 ............................... 13
Performance Data, Scroll Compressors,
Low Temp., R–22 ...................................... 14
Specifications Data, Scroll Comp. ............... 15
Electrical Data, Scroll Compressors ............ 15
Performance Data, Semi–hermetic
Compressors, High Temp., R–22.............. 16
Performance Data, Semi–hermetic Comp.,
Medium Temp., R–404A/507 .................... 17
Performance Data, Semi–hermetic Comp.,
Low Temp., R–404A/507 .......................... 18
Performance Data, Semi–hermetic Comp.,
Low Temp., R–22 ...................................... 19
Specifications Data, Semi–hermetic
Compressors ............................................ 20
Electrical Data, Semi–hermetic
Compressors, Medium Temp. ................... 21
Electrical Data, Semi–hermetic Compressors,
Low Temp., Replacement Parts ................ 22

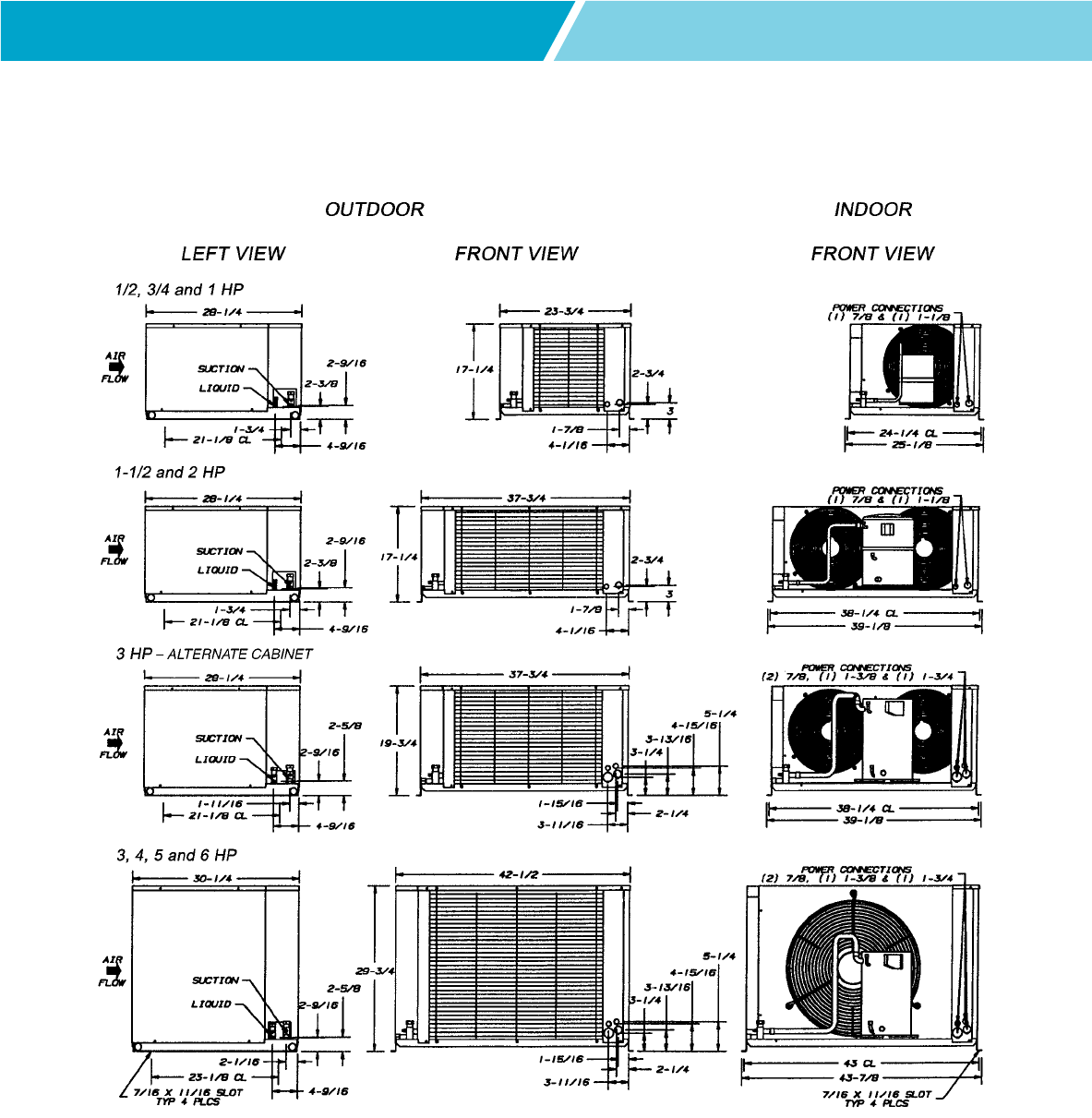

Dimensional Drawings of Cabinet ............... 23
3
STANDARD FEATURES
Oversized aluminum fin, copper tube condenser that
works in high ambients.
Motors rated for 50 and 60 cycle application.
Fans specifically matched with motor and coil to attain
maximum air movement and cooling.
Prepainted G90 galvanized cabinets for superior strength
and corrosion protection including hoods for outdoor units only.
Heavy duty steel raised base with 1 1/2" legs.
Suction service valves for hermetic and scroll compressors located
outside the cabinet for quick installations. Semi–hermetic
compressor models have a suction valve on the compressor
and an access fitting on the suction line entering the cabinet. A
receiver with fusible plug, liquid shutoff valve and charging port is
also standard.
Discharge service valves on all compressors including hermetics.
Wide variety of compressors including:
Copeland hermetic, semi–hermetic, Glacier Scroll and the
popular Copeland low temperature compressors.
R–22 and R–404A/507 available for both medium and low
temperature applications.
Spring mounted compressors with vibration eliminators on all
1/2 to 6 HP semi–hermetic compressors.
Large electrical panel for ease of access.
Prefabricated wiring harnesses for tight connections and to
simplify service.
Encapsulated, auto–reset, high and low pressure controls to eliminate leaks (standard
on all high and medium temperature models, adjustable low pressure control standard on low
temperature models).
All units completely leak tested in a helium
environment and run tested. Each unit will have a copy
of the run data shipped inside the electrical panel.
UL listed and UL listed for Canada.
Large availability of stocked units with liquid line drier
assemblies and defrost timers/kits for low temperature
models.
N.Y. MEA
4
Options / Nomenclature Benefits
C H T 030 L 6 C F
Model Compressor Application Equiv. HP Temp. Refrigerant Voltage Identifier
C = H = Hermetic T = Outdoor 005 = 1/2 HP H = High 2 = R-22 B = 208/230/1/60 F = Stock
Climate S = Semi-herm. N = Indoor 008/009 = 3/4 HP L = Low 6 = R-404A/507 C = 208/230/3/60
Control Z = Scroll S = Beacon II™ 010, 011 = 1 HP M = Medium D = 460/3/60
Microprocessor 01* = 1-1/2 HP E = Extra Low G = 230/1/60
02* = 2 HP X = Extended
03* = 3 HP Medium
04* = 4 HP
05* = 5 HP
060 = 6 HP
OPTIONS
Electrical options: Outdoor Indoor Stock
Dual pressure control (not available on Beacon II™) Option Option NA
Adjustable low pressure control for medium temp. comp. Option Option NA
Crankcase heater Standard NA Standard
Fused disconnect Option Shipped loose NA
Phase loss / low voltage monitor Option Option NA
Fixed fan cycling – pressure or temperature (2 fan units) Option Option NA
(Pressure standard on Beacon II™)
Variable speed fan motor using the Hoffman controller Option Option NA
(29 3/4" high cabinet) for medium temperature only
Air or electric defrost timer only Option Option 1/2–3 HP low temp.
Electric defrost with timer & contactors (040–060 models only) Option Option 4–6 HP low temp.
Beacon II™ Option Option NA
Head pressure control flooding valve Standard Option Standard
Liquid line drier, sight glass Option Option Standard
Suction line filter Option Option NA
Suction accumulator (standard on X6 models) Option Option NA
Oil separator with discharge line check valve Option Option NA
(29 3/4" high cabinet)
Liquid line solenoid valve and pumpdown switch Option Option NA
Replaceable core liquid line filter (29 3/4" high cabinet) Option Option NA
Replaceable core suction line filter (29 3/4" high cabinet) Option Option NA
Protective coil coatings: Option Option NA
Polyester coated fins, copper fins, or epoxy coated coils
Precharged refrigerant with line sets and wire harnesses Option Option NA
Oversize receiver (29 3/4" high cabinet) Option Option NA
Low ambient kit with heated and insulated receiver, TD relay Option NA NA
12" Extended legs for snowbelt operation Shipped loose Shipped loose Shipped loose
NOMENCLATURE
5
Options / Nomenclature Benefits
Oversized condenser allows units to operate
in high ambients.
Piping is laid out to minimize stress and
vibration.
Complete line of compressors including
Copeland's Glacier refrigeration Scrolls.
Lots of room for options, including the accessible
replaceable core liquid line filter drier and suction line
replaceable core filters on largest cabinet model.
Sight glass is easily viewable from the front.
Easy to verify leak free unit by checking Schrader
valve outside the unit for nitrogen holding charge.
Variable speed motor option on the 29 3/4" high
cabinets using the Hoffman controller instead of the
head pressure control valve. This works down to 20°F.
ambient on medium temperature units.
Access valve on the outside of the cabinet for easy
connections on all hermetic and scroll compressors.
Spring mounted semi–hermetic compressor with
discharge and suction vibration eliminators.

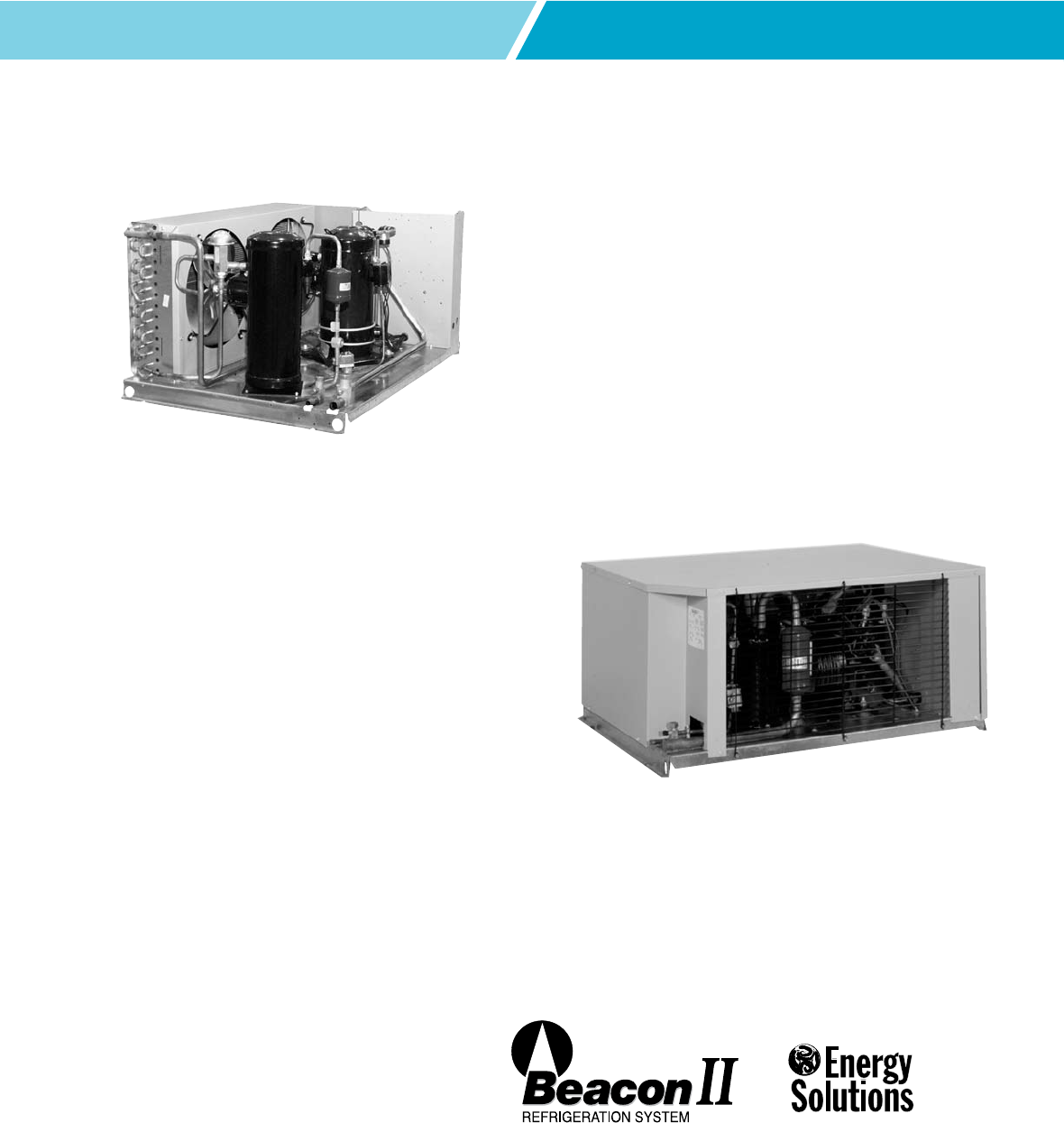

OUTDOOR SCROLL
CONDENSING UNITS
OUTDOOR SEMI–HERMETIC
LOW TEMPERATURE
CONDENSING UNITS
BENEFITS
INDOOR CONDENSING UNITS
Fan guards and wiring conduit.
Encapsulated, auto–reset, fixed high and fixed low
pressure controls to eliminate leaks are standard
on all medium and high temperature models. Low
temperature models come standard with fixed high
pressure and adjustable low pressure controls.
Easy access to the large electrical panel out of the air
flow.
Prefabricated wire harnesses with color coded and
labeled wires for easy identification.

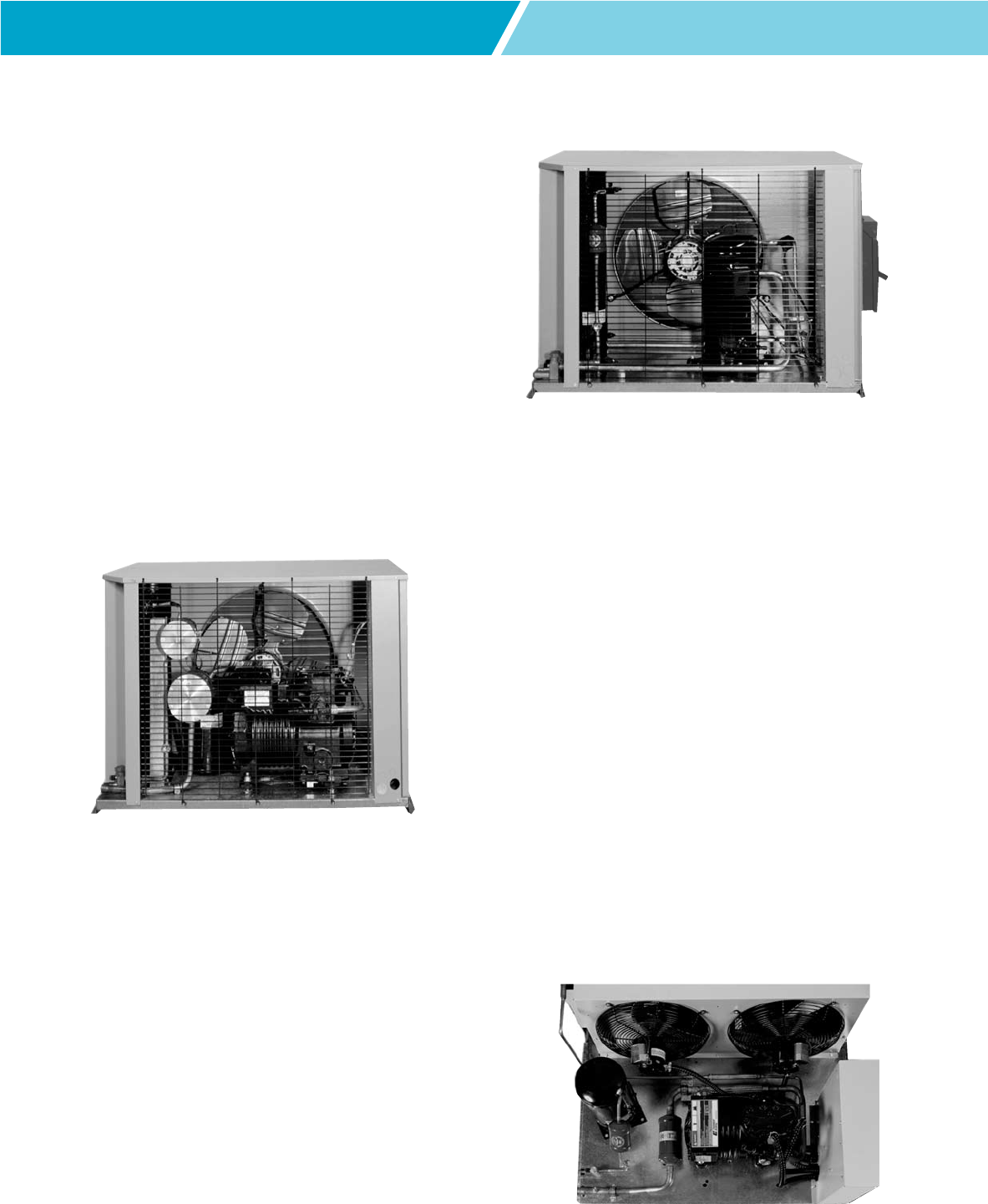

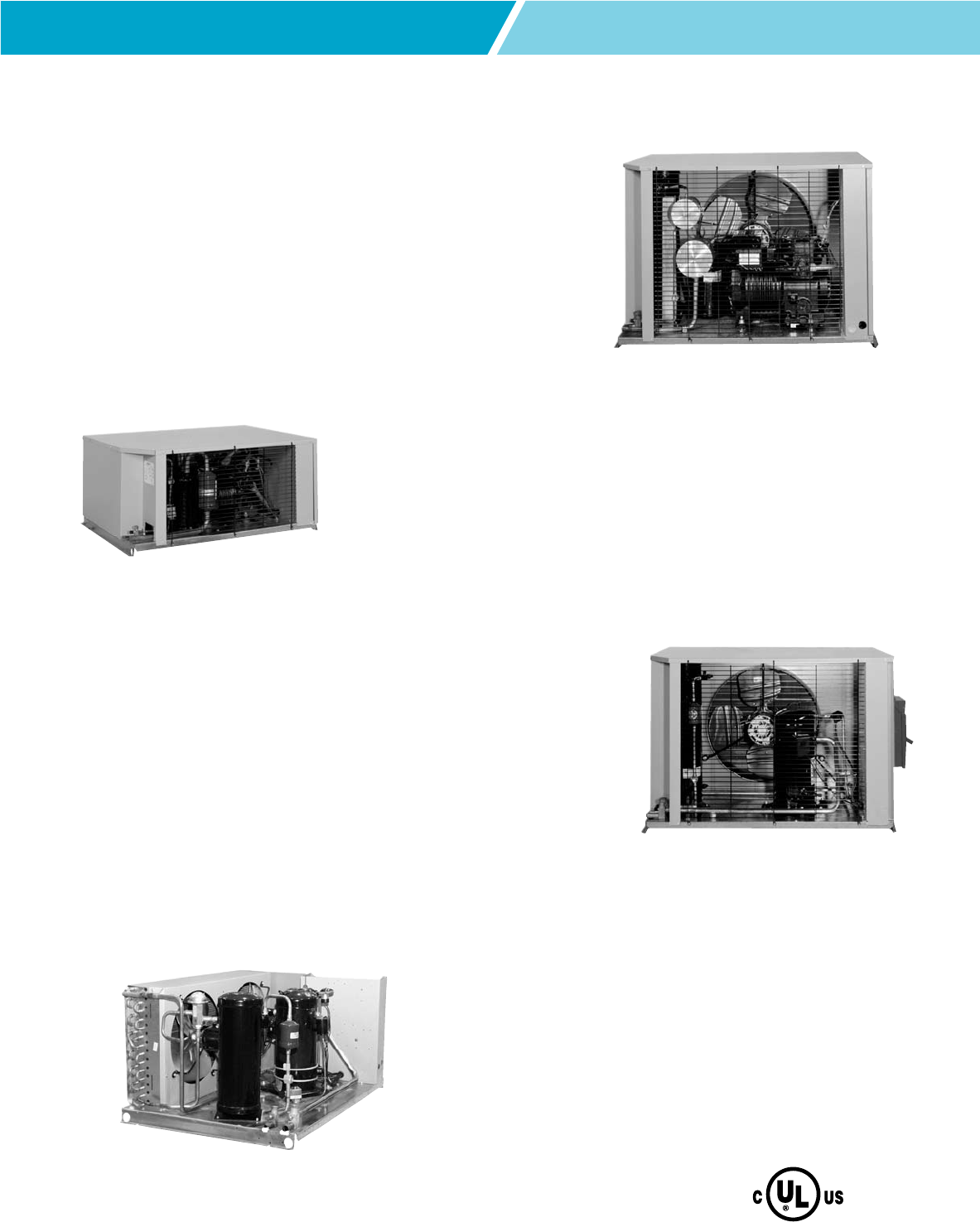

Typical Outdoor Scroll Unit with
optional fused disconnect switch
Typical Outdoor Semi–hermetic Unit with
optional replaceable core liquid filter drier
and replaceable core suction filter
Typical Indoor Unit with optional throwaway
suction filter
6
Outdoor Condensing Unit / Beacon II™ Performance Data
OUTDOOR CONDENSING UNITS,
READY TO INSTALL!
Each unit is put into a vacuum and subjected to a
rigorous leak test in a helium environment. Several
times more effective than using a handheld leak
detector!
Electrical circuits are completely checked for
continuity.
Each unit is run tested and allowed to cycle off on the
high and low pressure control.
A run test certificate is shipped with each unit
verifying operation.
Typical Outdoor Unit with hood removed
Typical Outdoor Semi–hermetic Unit with optional
throwaway suction filter
Shut off valve in the discharge line of the hermetic
compressor for easier changes.
Unit stays on line if the hood is removed for servicing.
Liquid and suction filters available as options.
Raised base construction with 1 1/2" legs.
2 HP OUTDOOR HERMETIC CONDENSING UNITS
WITH HOOD REMOVED
THE BEACON II™ REFRIGERATION SYSTEM
The Beacon II™ Refrigeration System is a preassembled, factory installed refrigeration system featuring an
integrated microcomputer–based electronic control board.
The Beacon II™ Refrigeration System replaces the expansion valve, solenoid valve, room thermostat, defrost
control and timer. It comes factory preset thereby eliminating all of the expensive and time consuming fine
tuning and adjustments necessary for a good system installation.
For additional information, contact your Sales Representative.
™
TM
7
Outdoor Condensing Unit / Beacon II™ Performance Data
HERMETIC COMPRESSORS
Capacity BTU/HR @ 90°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 15°F. 10°F. 0°F.
Capacity BTU/HR @ 95°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 15°F. 10°F. 0°F.
Capacity BTU/HR @ 100°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 15°F. 10°F. 0°F.
Capacity BTU/HR @ 110°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 15°F. 10°F. 0°F.
Performance Data - Medium & High Temp. Models - Hermetic Compressors
* = T for Outdoor, N for Indoor, S for Beacon II™
CH*–005H2 ART82C1 8380 6900 6230 5610 5060 4570 3830
CH*–008H2 RS64C2 – 9860 8770 7720 6730 5740 4250
CH*–010H2 RS70C1 13640 11180 9980 8800 7690 6560 4590
CH*–015H2 CR18KQ – 15250 13550 11910 10350 8800 5930
CH*–020H2 CR24KQ 24360 19930 17760 15650 13650 11640 8560
CH*–029M2 CR37KQ – 28090 25120 22220 19410 16720 11880
CH*–030H2 CR37KQ 41190 33300 29500 25830 22330 19040 13210
CH*–040H2 CR53KQ 57430 46140 40790 35620 30740 26150 18100
CH*–050H2 CRN–0500 64770 52240 46250 40490 35010 29860 20740
CH*–005H2 ART82C1 8050 6610 5960 5360 4820 4350 3630
CH*–008H2 RS64C2 11550 9390 8350 7350 6420 5470 4050
CH*–010H2 RS70C1 12990 10650 9500 8380 7320 6250 4370
CH*–015H2 CR18KQ – 14520 12910 11340 9860 8380 5640
CH*–020H2 CR24KQ 23190 18980 16910 14900 12990 11090 8150
CH*–029M2 CR37KQ – 26750 23930 21160 18480 15920 11310
CH*–030H2 CR37KQ 38230 31710 28090 24610 21260 18140 12580
CH*–040H2 CR53KQ 54690 43950 38840 33930 29270 24920 17240
CH*–050H2 CRN–0500 61680 49760 44050 38560 33340 28440 19750
CH*–005H2 ART82C1 7710 6320 5690 5110 4590 4130 3440
CH*–008H2 RS64C2 10970 8930 7940 6990 6100 5190 3850
CH*–010H2 RS70C1 12340 10120 9030 7960 6950 5940 4150
CH*–015H2 CR18KQ – 13800 12260 10770 9370 7960 5360
CH*–020H2 CR24KQ 22030 18030 16070 14160 12340 10540 7740
CH*–029M2 CR37KQ – 25410 22730 20100 17550 15130 10740
CH*–030H2 CR37KQ 37270 30130 26690 23380 20200 17220 11950
CH*–040H2 CR53KQ 51960 41760 36890 32240 27820 23670 16390
CH*–050H2 CRN–0500 58600 47270 41850 36630 31680 27020 18760
CH*–005H2 ART82C1 7040 5740 5150 4600 4110 3690 3050
CH*–008H2 RS64C2 9570 7680 6790 5970 5180 4480 3320
CH*–010H2 RS70C1 10600 8540 7530 6560 5630 4760 3200
CH*–015H2 CR18KQ – 12360 10980 9610 8320 7090 4860
CH*–020H2 CR24KQ 19770 16180 14410 12680 11000 9400 6490
CH*–029M2 CR37KQ – 22690 20190 17760 15420 13200 9290
CH*–030H2 CR37KQ 33900 27120 23870 20760 17820 15080 10350
CH*–040H2 CR53KQ 48390 38470 33780 29320 25120 21230 14550
CH*–050H2 CRN–0500 54770 43730 38490 33470 28740 24340 16760
8
Performance Data Performance Data
HERMETIC COMPRESSORS
Capacity BTU/HR @ 95°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 30°F. 25°F. 20°F. 0°F. -10°F. -20°F. -25°F.
Performance Data - Extended Temperature Models - Hermetic Compressors
Capacity BTU/HR @ 90°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 30°F. 25°F. 20°F. 0°F. -10°F. -20°F. -25°F.
Capacity BTU/HR @ 100°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 30°F. 25°F. 20°F. 0°F. -10°F. -20°F. -25°F.
Capacity BTU/HR @ 110°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 30°F. 25°F. 20°F. 0°F. -10°F. -20°F. -25°F.
* = T for Outdoor, N for Indoor, S for Beacon II™
CH*005X6 RS43C2E 5890 5410 4850 3260 2130 1810 1380
CH*008X6 RS55C2E 8490 8050 7480 4260 2350 1750 1130
CH*009X6 RS64C2E 9710 9090 8310 5220 4130 3240 2400
CH*010X6 RS70C1E 10360 9660 9160 5640 4160 2970 1870
CH*015X6 CS10K6E 15940 14660 13330 7700 4900 3610 2330
CH*020X6 CS12K6E 18050 16680 15150 8940 6170 4410 2640
CH*025X6 CS14K6E 19830 18220 16770 10810 7840 6360 4470
CH*030X6 CS18K6E 31240 28630 25980 15400 10260 8110 5950
CH*032X6 CS20K6E 34200 31310 28580 16910 11960 9440 6930
CH*040X6 CS27K6E 43970 39510 35150 20560 14980 11830 8690
CH*050X6 CS33K6E 49470 45010 40420 24860 18110 14300 10500
CH*005X6 RS43C2E 5560 5100 4580 3080 2010 1710 1300
CH*008X6 RS55C2E 8010 7590 7060 4020 2220 1650 1070
CH*009X6 RS64C2E 9170 8580 7850 4920 3900 3060 2260
CH*010X6 RS70C1E 9770 9110 8640 5320 3920 2800 1760
CH*015X6 CS10K6E 15040 13830 12580 7260 4620 3410 2200
CH*020X6 CS12K6E 17030 15740 14290 8430 5820 4160 2490
CH*025X6 CS14K6E 18710 17190 15820 10200 7400 6000 4220
CH*030X6 CS18K6E 29470 27010 24510 14530 9680 7650 5610
CH*032X6 CS20K6E 32260 29540 26960 15950 11280 8910 6540
CH*040X6 CS27K6E 41480 37270 33160 19400 14130 11160 8200
CH*050X6 CS33K6E 46670 42460 38130 23450 17080 13490 9900
CH*005X6 RS43C2E 5230 4790 4310 2900 1890 1610 1220
CH*008X6 RS55C2E 7530 7130 6640 3780 2090 1550 1010
CH*009X6 RS64C2E 8620 8060 7380 4630 3660 2870 2130
CH*010X6 RS70C1E 9180 8560 8120 5000 3680 2630 1650
CH*015X6 CS10K6E 14140 13000 11830 6820 4340 3210 2070
CH*020X6 CS12K6E 16010 14800 13430 7920 5470 3910 2340
CH*025X6 CS14K6E 17590 16160 14870 9590 6960 5640 3970
CH*030X6 CS18K6E 27700 25390 23040 13660 9100 7190 5270
CH*032X6 CS20K6E 30320 27770 25340 14990 10600 8380 6150
CH*040X6 CS27K6E 38980 35030 31180 18240 13290 10500 7700
CH*050X6 CS33K6E 43860 39910 35840 22050 16050 12690 9310
CH*005X6 RS43C2E 5380 4830 4300 2480 1860 1470 1080
CH*008X6 RS55C2E 6150 5900 5520 2730 2050 1620 1190
CH*009X6 RS64C2E 7370 6840 6300 4070 3000 2380 1750
CH*010X6 RS70C1E 7610 7130 6600 4080 2710 2140 1570
CH*015X6 CS10K6E 12780 11700 9920 5690 3220 2540 1870
CH*020X6 CS12K6E 14870 13540 12180 6820 4400 3480 2550
CH*025X6 CS14K6E 16280 15050 13780 8600 6170 4870 3580
CH*030X6 CS18K6E 24270 22160 20020 11590 7660 6050 4440
CH*032X6 CS20K6E 26320 24040 21690 12250 8020 6340 4650
CH*040X6 CS27K6E 35150 31240 27520 15210 11290 8920 6550
CH*050X6 CS33K6E 39870 35920 32070 18230 12840 10150 7450
9
Performance Data Performance Data
HERMETIC COMPRESSORS
* = T for Outdoor, N for Indoor, S for Beacon II™
Performance Data - Low Temperature Models - Hermetic Compressors
Connections Receiver Dimensions Net Sound
Model Fig. (ID) 90% Full D W H Wt. Data
Number ++ Compressor Liquid Suction Lbs. Fan(s) In. In. In. Lbs. dba†
Unit Specifications - Hermetic Compressors
R404/507 Capacity BTUH @ 90°F. Ambient / Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F.
R404/507 Capacity BTUH @ 95°F. Ambient / Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F.
R404/507 Capacity BTUH @ 100°F. Ambient / Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F.
R404/507 Capacity BTUH @ 110°F. Ambient / Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F.
++ = See page 23 for details † = Estimated sound pressure values are 10 feet from the unit. For estimating sound pressure from the unit at
different distances, deduct the following from the unit values: 20 feet, deduct 6 dba..... for 40 feet, deduct 12 dba........for 80 feet, deduct
18 dba. This data is typical of “free field” conditions for horizontal air cooled condensing units at the outlet of the discharge air. The actual
sound measurements may vary depending on the condensing unit installation. Factors such as reflecting walls, background noise and
mounting conditions may have a significant influence on this data.
CH*011L6 CF04K6E 7484 6624 5765 4090 3293 2536
CH*014L6 CF06K6E 10610 9460 8340 6220 5250 4340
CH*019L6 CF06K6E 12100 10700 9350 6870 5570 4720
CH*025L6 CF09K6E 17940 15970 14050 10400 8700 7130
CH*031L6 CF12K6E 20793 18889 16931 12938 10952 9009
CH*011L6 CF04K6E 6930 6109 5289 3684 2919 2196
CH*014L6 CF06K6E 9980 8870 7790 5740 4810 3940
CH*019L6 CF06K6E 11370 10010 8710 6310 5070 4260
CH*025L6 CF09K6E 16870 14990 13150 9650 8040 6560
CH*031L6 CF12K6E 19598 17782 15909 12070 10152 8268
CH*011L6 CF04K6E 6379 5597 4814 3281 2549 1856
CH*014L6 CF06K6E 9360 8280 7230 5270 4370 3550
CH*019L6 CF06K6E 10650 9330 8070 5760 4580 3810
CH*025L6 CF09K6E 15810 14000 12240 8910 7390 6000
CH*031L6 CF12K6E 18410 16681 14892 11206 9354 7530
CH*011L6 CF04K6E 5288 4581 3872 2477 1809 n/a
CH*014L6 CF06K6E 8130 7110 6130 4310 3500 2770
CH*019L6 CF06K6E 9210 7970 6800 4670 3600 2930
CH*025L6 CF09K6E 13680 12050 10440 7440 6080 4850
CH*031L6 CF12K6E 16056 14500 12875 9490 7770 6061
CH*005H2 A ART82C1 3/8 1/2 6 1 28.25 23.75 17.25 187 67
CH*008H2 A RS64C2 3/8 1/2 6 1 28.25 23.75 17.25 141 68
CH*010H2 A RS70C1 3/8 5/8 6 1 28.25 23.75 17.25 136 68
CH*015H2 B CR18KQ 3/8 5/8 10 2 28.25 37.75 17.25 189 71
CH*020H2 B CR24KQ 3/8 7/8 10 2 28.25 37.75 17.25 193 72
CH*029M2 C CR37KQ 1/2 7/8 16 2 28.25 37.75 19.25 214 72
CH*030H2 D CR37KQ 1/2 7/8 22 1 30.25 42.50 29.75 281 73
CH*040H2 D CR53KQ 1/2 1 1/8 22 1 30.25 42.50 29.75 299 73
CH*050H2 D CRN–0500 1/2 1 1/8 22 1 30.25 42.50 29.75 310 75
CH*005X6 A RS43C2E 3/8 1/2 5.5 1 28.25 23.75 17.25 135 68
CH*008X6 A RS55C2E 3/8 1/2 5.5 1 28.25 23.75 17.25 135 68
CH*009X6 A RS64C2E 3/8 5/8 5.5 1 28.25 23.75 17.25 144 68
CH*010X6 A RS70C1E 3/8 5/8 5.5 1 28.25 23.75 17.25 138 68
CH*015X6 B CS10K6E 3/8 5/8 9 2 28.25 37.75 17.25 193 71
CH*020X6 B CS12K6E 3/8 7/8 9 2 28.25 37.75 17.25 203 73
CH*025X6 B CS14K6E 3/8 7/8 9 2 28.25 37.75 17.25 208 74
CH*030X6 D CS18K6E 1/2 7/8 20 1 30.25 42.50 29.75 290 73
CH*032X6 D CS20K6E 1/2 7/8 20 1 30.25 42.50 29.75 275 76
CH*040X6 D CS27K6E 1/2 1 1/8 20 1 30.25 42.50 29.75 281 73
CH*050X6 D CS33K6E 1/2 1 1/8 20 1 30.25 42.50 29.75 313 73
CH*011L6 A CF04K6E 3/8 5/8 5.5 1 28.25 23.75 17.25 139 73
CH*014L6 A CF06K6E 3/8 5/8 5.5 1 28.25 23.75 17.25 170 73
CH*019L6 B CF06K6E 3/8 5/8 9 2 28.25 37.75 17.25 200 69
CH*025L6 B CF09K6E 3/8 7/8 9 2 28.25 37.75 17.25 222 76
CH*031L6 C CF12K6E 1/2 7/8 14 2 28.25 37.75 19.75 223 77
10
HERMETIC COMPRESSORS
Electrical Data - Hermetic Compressors
Evap. Defrost
Model Part Power Supply Compressor Fan Motor MCA MOPD Fan Heater
Number Number Volts Ph Hz† RLA LRA Qty. HP FLA Air Elec. Air Elec. Amps Amps
* = T for Outdoor, N for Indoor, S for Beacon II™
Per UL and NEC, RLA values have been calculated by dividing the Maximum Continuous Current (MCC) by 1.56.
^ Power supplied by customer.
† Consult factory for 50 HZ applications.
CH*005H2B ART82C1–CAV 208–230 1 60 5.9 30 1 1/15 0.5 15 20 15 20 8 15
CH*008H2B RS64C2-CAV 208–230 1 60 6.9 37 1 1/15 0.5 15 20 15 20 8 15
CH*010H2B RS70C1–PFV 208–230 1 60 6.3 34.2 1 1/15 0.5 15 20 15 20 7 15
CH*010H2C RS70C1–TFC 208–230 3 60 4.2 31 1 1/15 0.5 15 20 15 20 8.6 15
CH*015H2B CR18KQ-PFV 208–230 1 60 8.1 41 2 1/15 1.0 15 24 15 25 6 19
CH*015H2C CR18KQ-TF5 208–230 3 60 4.9 40 2 1/15 1.0 15 24 15 20 7 19
CH*015H2D CR18KQ-TFD 460 3 60 2.8 23 2 1/15 1.0 15 20 15 20 ^ ^
CH*020H2B CR24KQ-PFV 208–230 1 60 12.2 70.5 2 1/15 1.0 20 29 25 30 6 23
CH*020H2C CR24KQ-TF5 208–230 3 60 6.7 40 2 1/15 1.0 15 24 15 25 9 19
CH*020H2D CR24KQ-TFD 460 3 60 3.6 28 2 1/15 1.0 15 20 15 20 ^ ^
CH*029M2B CR37KQ-PFV 208–230 1 60 16.7 100.3 2 1/15 1.0 21.8 38 35 50 12 30
CH*029M2C CR37KQ-TF5 208–230 3 60 9.9 85 2 1/15 1.0 15 38 20 40 12 30
CH*029M2D CR37KQ-TFD 460 3 60 5.0 39 2 1/15 1.0 15 15 15 25 ^ ^
CH*030H2B CR37KQ-PFV 208–230 1 60 16.7 100.3 1 1/3 3.5 24.3 38 40 50 12 30
CH*030H2C CR37KQ-TF5 208–230 3 60 9.9 85 1 1/3 3.5 20 38 25 40 12 30
CH*030H2D CR37KQ-TFD 460 3 60 5.0 39 1 1/3 1.9 15 24 15 25 ^ ^
CH*040H2B CR53KQ-PFV 208–230 1 60 26.0 140 1 1/3 3.5 36.0 48.0 50 60 12 35
CH*040H2C CR53KQ-TF5 208–230 3 60 16.3 107 1 1/3 3.5 23.9 38 40 50 12 30
CH*040H2D CR53KQ-TFD 460 3 60 8.1 55 1 1/3 1.9 15 29 15 30 11 23
CH*050H2B CRN5–0500–PFV 208–230 1 60 30.8 142.0 1 1/3 3.5 42 59 50 60 12 47
CH*050H2C CRN5–0500–TF5 208–230 3 60 19.2 130.0 1 1/3 3.5 28 40 45 50 12 30
CH*050H2D CRN5–0500–TFD 460 3 60 8.7 65.0 1 1/3 1.9 15 29 20 30 10 23
CH*005X6B RS43C2E-CAV 208–230 1 60 4.8 24.1 1 1/15 0.5 15 20 15 20 8 15
CH*008X6B RS55C2E-CAV 208–230 1 60 5.4 40 1 1/15 0.5 15 20 15 20 8 15
CH*009X6B RS64C2E-CAV 208–230 1 60 6.9 37 1 1/15 0.5 15 20 15 20 7 15
CH*010X6B RS70C1E–PFV 208–230 1 60 6.3 34.2 1 1/15 0.5 15 20 15 20 7 15
CH*010X6C RS70C1E–TFC 208–230 3 60 4.2 31 1 1/15 0.5 15 20 15 20 8.6 15
CH*015X6B CS10K6E–PFV 208–230 1 60 9.8 56 2 1/15 1.0 15 24 20 25 6 19
CH*015X6C CS10K6E–TF5 208–230 3 60 6.7 51 2 1/15 1.0 15 20 15 20 7 15
CH*020X6B CS12K6E–PFV 208–230 1 60 9.8 56 2 1/15 1.0 15 24 20 25 6 19
CH*020X6C CS12K6E–TF5 208–230 3 60 6.7 51 2 1/15 1.0 15 24 15 25 9 19
CH*025X6B CS14K6E–PFV 208–230 1 60 11.2 61 2 1/15 1.0 15 29 25 30 6 23
CH*025X6C CS14K6E–TF5 208–230 3 60 8.2 55 2 1/15 1.0 15 24 15 25 9 19
CH*025X6D CS14K6E–TFD 460 3 60 4.2 28 2 1/15 1.0 15 20 15 20 ^ ^
CH*030X6B CS18K6E–PFV 208–230 1 60 14.4 82.0 1 1/3 3.5 21 38 35 45 12 30
CH*030X6C CS18K6E–TF5 208–230 3 60 9.4 65.5 1 1/3 3.5 15 29 20 30 7 23
CH*030X6D CS18K6E–TFD 460 3 60 3.9 33.0 1 1/3 1.9 15 24 15 25 ^ ^
CH*032X6B CS20K6E–PFV 208–230 1 60 16.7 96.0 1 1/3 3.5 24 38 40 50 12 30
CH*032X6C CS20K6E–TF5 208–230 3 60 10.3 75.0 1 1/3 3.5 20 29 25 30 7 23
CH*032X6D CS20K6E–TFD 460 3 60 4.6 40.0 1 1/3 1.9 15 24 15 25 ^ ^
CH*040X6B CS27K6E–PFV 208–230 1 60 21.5 121 1 1/3 3.5 30.3 44 50 60 12 35
CH*040X6C CS27K6E–TF5 208–230 3 60 13.7 105 1 1/3 3.5 20.7 38 30 45 12 30
CH*040X6D CS27K6E–TFD 460 3 60 7.6 52 1 1/3 1.9 15 29 15 30 11 23
CH*050X6B CS33K6E–PFV 208–230 1 60 27.6 125.0 1 1/3 3.5 38.0 59 50 60 12 47
CH*050X6C CS33K6E–TF5 208–230 3 60 16.8 102 1 1/3 3.5 24.5 38 40 50 12 30
CH*050X6D CS33K6E–TFD 460 3 60 8.8 48 1 1/3 1.9 15 29 20 30 10 23
CH*011L6B CF04K6E–PFV 208–230 1 60 8.6 59.2 1 1/15 0.5 15.0 20.0 15 25 7 15
CH*011L6C CF04K6E–TF5 200–230 3 60 3.9 52.0 1 1/15 0.5 15.0 20.0 15 20 8 15
CH*014L6B CF06K6E–PFV 208–230 1 60 10.3 59.2 1 1/15 0.5 15.0 20.0 20 25 4 15
CH*014L6C CF06K6E–TF5 200–230 3 60 6.3 52.0 1 1/15 0.5 15.0 24.0 15 25 9 19
CH*025L6B CF09K6E–PFV 208–230 1 60 15 87.0 2 1/15 1.0 20.0 29.0 30 40 6 23
CH*025L6C CF09K6E–TF5 200–230 3 60 9.2 72.2 2 1/15 1.0 15.0 21 20 25 7 15
CH*031L6B CF12K6E–PFV 208–230 1 60 17 105.0 2 1/15 1.0 22.3 37.5 35 50 12 30
CH*031L6C CF12K6E–TF5 200–230 3 60 10.7 85.0 2 1/15 1.0 15.0 28.8 25 30 7 23
CH*031L6D CF12K6E–TFD 460 3 60 5.3 42.0 2 1/15 1.0 15.0 23.8 15 25 ^ ^
11
* = T for Outdoor, N for Indoor, S for Beacon II™
SCROLL COMPRESSORS
TM
PSC Motors are an Energy Solutions feature
and are optimized to help you save money by
increasing energy efficiency.
Capacity BTU/HR @ 90°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F. 0°F. -5°F.
Capacity BTU/HR @ 95°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F. 0°F. -5°F.
Capacity BTU/HR @ 100°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F. 0°F. -5°F.
Capacity BTU/HR @ 110°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F. 0°F. -5°F.
Performance Data - Medium Temperature Models - Scroll Compressors
CZ*020M6 ZS15K4E 22630 21160 19690 18210 15340 12640 11390
CZ*025M6 ZS19K4E 26730 25070 23390 21700 18380 15230 13750
CZ*030M6 ZS21K4E 32760 30580 28360 26170 21900 17950 16140
CZ*035M6 ZS26K4E 39310 36730 34130 31560 26540 21850 19690
CZ*045M6 ZS30K4E 46490 43050 39760 36560 30480 24890 22310
CZ*055M6 ZS38K4E 53990 50410 46970 43530 36770 30380 27400
CZ*060M6 ZS45K4E 61960 58120 54430 50680 43160 35890 32490
CZ*020M6 ZS15K4E 21760 20350 18930 17510 14750 12150 10950
CZ*025M6 ZS19K4E 25700 24110 22490 20870 17670 14640 11790
CZ*030M6 ZS21K4E 31500 29400 27270 25160 21060 17260 15520
CZ*035M6 ZS26K4E 37800 35320 32820 30350 25520 21010 18930
CZ*045M6 ZS30K4E 44700 41390 38230 35150 29310 23930 21450
CZ*055M6 ZS38K4E 51910 48470 45160 41860 35360 29210 26350
CZ*060M6 ZS45K4E 59580 55880 52340 48730 41500 34510 31240
CZ*020M6 ZS15K4E 20890 19540 18170 16810 14160 11660 10510
CZ*025M6 ZS19K4E 24670 23150 21590 20040 16960 14050 12690
CZ*030M6 ZS21K4E 30240 28220 26180 24150 20220 16570 14900
CZ*035M6 ZS26K4E 36290 33910 31510 29140 24500 20170 18170
CZ*045M6 ZS30K4E 42910 39730 36700 33740 28140 22970 20590
CZ*055M6 ZS38K4E 49830 46530 43350 40190 33950 28040 25300
CZ*060M6 ZS45K4E 57200 53640 50250 46780 39840 33130 29990
CZ*020M6 ZS15K4E 19150 17910 16660 15410 12980 10690 9640
CZ*025M6 ZS19K4E 22620 21220 19760 18370 15550 14190 11630
CZ*030M6 ZS21K4E 27720 25870 24000 22140 18530 15190 13660
CZ*035M6 ZS26K4E 33260 31080 28880 26710 22460 18490 16660
CZ*045M6 ZS30K4E 39340 36420 33640 30930 25790 21060 18880
CZ*055M6 ZS38K4E 45680 42650 39740 36840 31120 25700 23190
CZ*060M6 ZS45K4E – 49170 46060 42880 36520 30370 27490
12
SCROLL COMPRESSORS
Capacity BTU/HR @ 90°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -10°F. -15°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 95°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -10°F. -15°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 100°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -10°F. -15°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 110°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -10°F. -15°F. -20°F. -25°F. -30°F. -40°F.
Performance Data - Low Temperature Models - Scroll Compressors
* = T for Outdoor, N for Indoor, S for Beacon II™
NOTE: The ZF compressor comes with liquid injection.
CZ*020L6 ZF06K4E 11970 9920 8940 8010 7130 6310 4900
CZ*025L6 ZF08K4E 14880 12320 11120 9960 8890 7900 6230
CZ*030L6 ZF09K4E 16540 13730 12400 11130 9930 8840 6980
CZ*035L6 ZF11K4E 19800 16490 14910 13420 12000 10710 8530
CZ*045L6 ZF13K4E 25950 21230 19020 16940 14990 13170 10070
CZ*055L6 ZF15K4E 31030 25640 23070 20650 18390 16280 12740
CZ*060L6 ZF18K4E 36360 30140 27160 24330 21680 19240 15100
CZ*020L6 ZF06K4E 11510 9540 8600 7700 6860 6070 4710
CZ*025L6 ZF08K4E 14310 11850 10690 9580 8550 7600 5990
CZ*030L6 ZF09K4E 15900 13200 11920 10700 9550 8500 6710
CZ*035L6 ZF11K4E 19040 15860 14340 12900 11540 10300 8200
CZ*045L6 ZF13K4E 24950 20410 18290 16290 14410 12670 9680
CZ*055L6 ZF15K4E 29840 24650 22190 19860 17670 15660 12250
CZ*060L6 ZF18K4E 34960 28970 26120 23390 20850 18500 14520
CZ*020L6 ZF06K4E 11050 9160 8260 7390 6590 5830 4520
CZ*025L6 ZF08K4E 13740 11380 10260 9200 8210 7300 5750
CZ*030L6 ZF09K4E 15260 12670 11440 10270 9170 8160 6440
CZ*035L6 ZF11K4E 18280 15230 13770 12380 11080 9890 7870
CZ*045L6 ZF13K4E 23950 19600 17560 15650 13830 12160 9290
CZ*055L6 ZF15K4E 28640 23660 21300 19070 16960 15030 11750
CZ*060L6 ZF18K4E 33560 27810 25080 22450 20010 17760 13950
CZ*020L6 ZF06K4E 10130 8400 7570 6780 6040 5340 4140
CZ*025L6 ZF08K4E 12590 10430 9410 8430 7520 6690 5270
CZ*030L6 ZF09K4E 13990 11620 10490 9420 8400 7480 5900
CZ*035L6 ZF11K4E 16760 13960 12620 11350 10160 9060 7220
CZ*045L6 ZF13K4E 21950 17960 16100 14340 12680 11140 8520
CZ*055L6 ZF15K4E 26250 21690 19530 17480 15550 13780 10770
CZ*060L6 ZF18K4E 30770 25490 22990 20580 18340 16270 12780
13
SCROLL COMPRESSORS
Capacity BTU/HR @ 90°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F.
Performance Data - Medium Temp. Models – Scroll Compressors
* = T for Outdoor, N for Indoor, S for Beacon II™
Capacity BTU/HR @ 95°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F.
Capacity BTU/HR @ 110°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F.
Capacity BTU/HR @ 100°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 35°F. 30°F. 25°F. 20°F. 10°F.
CZ*020M6 ZS15K4E 22080 20420 18800 17220 14260
CZ*025M6 ZS19K4E 26080 24190 22340 20530 17090
CZ*030M6 ZS21K4E 31970 29490 27080 24750 20360
CZ*035M6 ZS26K4E 38930 35820 32830 29970 24520
CZ*045M6 ZS30K4E 45920 42010 38300 34810 28450
CZ*055M6 ZS38K4E 54050 49950 45960 42100 34600
CZ*060M6 ZS45K4E 63670 58960 54320 49800 41190
CZ*020M6 ZS15K4E 20380 18850 17360 15900 13160
CZ*025M6 ZS19K4E 24080 22330 20620 18950 15770
CZ*030M6 ZS21K4E 29510 27230 25000 22850 18800
CZ*035M6 ZS26K4E 35930 33060 30310 27670 22640
CZ*045M6 ZS30K4E 42380 38770 35360 32130 26270
CZ*055M6 ZS38K4E 49890 46110 42420 38860 31940
CZ*060M6 ZS45K4E 58770 54420 50140 45970 38030
CZ*020M6 ZS15K4E 19530 18060 16630 15240 12610
CZ*025M6 ZS19K4E 23070 21400 19760 18160 15120
CZ*030M6 ZS21K4E 28280 26090 23960 21900 18010
CZ*035M6 ZS26K4E 34440 31690 29040 26510 21690
CZ*045M6 ZS30K4E 40620 37160 33880 30790 25170
CZ*055M6 ZS38K4E 47810 44190 40660 37240 30610
CZ*060M6 ZS45K4E 56320 52160 48050 44050 36440
CZ*020M6 ZS15K4E 21230 19630 18080 16560 13710
CZ*025M6 ZS19K4E 25080 23260 21480 19740 16430
CZ*030M6 ZS21K4E 30740 28360 26040 23800 19580
CZ*035M6 ZS26K4E 37430 34440 31570 28820 23580
CZ*045M6 ZS30K4E 44150 40390 36830 33470 27360
CZ*055M6 ZS38K4E 51970 48030 44190 40480 33270
CZ*060M6 ZS45K4E 61220 56690 52230 47880 39610
14
SCROLL COMPRESSORS
TM
Capacity BTU/HR @ 90°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 0°F. –10°F. –15°F. –20°F. –25°F. –30°F. –40°F.
Capacity BTU/HR @ 95°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 0°F. –10°F. –15°F. –20°F. –25°F. –30°F. –40°F.
Capacity BTU/HR @ 100°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 0°F. –10°F. –15°F. –20°F. –25°F. –30°F. –40°F.
Capacity BTU/HR @ 110°F. Ambient
R–22 Suction Temperature °F.
Model Compressor 0°F. –10°F. –15°F. –20°F. –25°F. –30°F. –40°F.
Performance Data - Low Temperature Models – Scroll Compressors
CZ*020L6 ZF06K4E 11060 8950 7980 7090 6280 5560 4370
CZ*025L6 ZF08K4E 13870 11240 10040 8930 7910 6990 5500
CZ*030L6 ZF09K4E 15180 12450 11190 10000 8890 7870 6150
CZ*035L6 ZF11K4E 18390 15110 13590 12150 10820 9600 7520
CZ*045L6 ZF13K4E 22370 18230 16320 14550 12910 11430 8950
CZ*055L6 ZF15K4E 27430 22370 20050 17880 15580 14050 11000
CZ*060L6 ZF18K4E 32190 26240 23490 20920 18550 16400 12800
CZ*020L6 ZF06K4E 11610 9400 8380 7450 6590 5840 4590
CZ*025L6 ZF08K4E 14560 11800 10540 9380 8310 7340 5780
CZ*030L6 ZF09K4E 15940 13070 11750 10500 9340 8260 6460
CZ*035L6 ZF11K4E 19310 15870 14270 12760 11360 10080 7900
CZ*045L6 ZF13K4E 23490 19140 17140 15280 13560 12000 9400
CZ*055L6 ZF15K4E 28800 23490 21050 18770 16360 14750 11550
CZ*060L6 ZF18K4E 33800 27550 24670 21970 19480 17220 13440
CZ*020L6 ZF06K4E 10840 8770 7820 6950 6150 5450 4280
CZ*025L6 ZF08K4E 13590 11020 9840 8750 7750 6850 5390
CZ*030L6 ZF09K4E 14880 12200 10970 9800 8710 7710 6030
CZ*035L6 ZF11K4E 18020 14810 13320 11910 10600 9410 7370
CZ*045L6 ZF13K4E 21920 17870 15990 14260 12650 11200 8770
CZ*055L6 ZF15K4E 26880 21920 19650 17520 15270 13770 10780
CZ*060L6 ZF18K4E 31550 25720 23020 20500 18180 16070 12540
CZ*020L6 ZF06K4E 10290 8320 7420 6590 5840 5170 4060
CZ*025L6 ZF08K4E 12900 10450 9340 8310 7360 6500 5120
CZ*030L6 ZF09K4E 14120 11580 10410 9300 8270 7320 5720
CZ*035L6 ZF11K4E 17100 14050 12640 11300 10060 8930 6990
CZ*045L6 ZF13K4E 20800 16950 15180 13530 12010 10630 8320
CZ*055L6 ZF15K4E 25510 20800 18650 16630 14490 13070 10230
CZ*060L6 ZF18K4E 29940 24400 21850 19460 17250 15250 11900
NOTE: The ZF compressor comes with liquid injection.
* = T for Outdoor, N for Indoor, S for Beacon II™
PSC Motors are an Energy Solutions feature
and are optimized to help you save money by
increasing energy efficiency.
15
SCROLL COMPRESSORS
Unit Specifications - Scroll Compressors
Connections Receiver Dimensions Net Sound
Model Fig. (ID) 90% Full D W H Wt. Data
Number ++ Compressor Liquid Suction Lbs. Fan(s) In. In. In. Lbs. dba†
++ = See page 23 for details. † = Estimated sound pressure values are 10 feet from the unit. For estimating sound pressure from the
unit at different distances, deduct the following from the unit values: 20 feet, deduct 6 dba..... for 40 feet, deduct 12 dba........for 80 feet,
deduct 18 dba. This data is typical of “free field” conditions for horizontal air cooled condensing units at the outlet of the discharge air. The
actual sound measurements may vary depending on the condensing unit installation. Factors such as reflecting walls, background noise
and mounting conditions may have a significant influence on this data.
Electrical Data - Scroll Compressors
Evap. Defrost
Model Part Power Supply Compressor Fan Motor MCA MOPD Fan Heater
Number Number Volts Ph Hz† RLA LRA Qty. HP FLA Air Elec. Air Elec. Amps Amps
* = T for Outdoor, N for Indoor, S for Beacon II™
Per UL and NEC, RLA values have been calculated by dividing the Maximum Continuous Current (MCC) by 1.56.
^ Power supplied by customer.
† Consult factory for 50 HZ applications.
CZ*020M6 C ZS15K4E 1/2 7/8 14 2 28.25 37.75 19.75 209 71
CZ*025M6 C ZS19K4E 1/2 7/8 14 2 28.25 37.75 19.75 218 73
CZ*030M6 D ZS21K4E 1/2 7/8 20 1 30.25 42.5 29.75 287 72
CZ*035M6 D ZS26K4E 1/2 7/8 20 1 30.25 42.5 29.75 290 74
CZ*045M6 D ZS30K4E 1/2 1 1/8 20 1 30.25 42.5 29.75 317 73
CZ*055M6 D ZS38K4E 1/2 1 1/8 20 1 30.25 42.5 29.75 317 74
CZ*060M6 D ZS45K43 1/2 1 1/8 20 1 30.25 42.5 29.75 317 76
CZ*020L6 C ZF06K4E 1/2 7/8 14 2 28.25 37.75 19.75 209 71
CZ*025L6 C ZF08K4E 1/2 7/8 14 2 28.25 37.75 19.75 218 73
CZ*030L6 C ZF09K4E 1/2 7/8 14 2 28.25 37.75 19.75 218 71
CZ*035L6 C ZF11K4E 1/2 7/8 14 2 28.25 37.75 19.75 217 73
CZ*045L6 D ZF13K4E 1/2 1 1/8 20 1 30.25 42.5 29.75 307 73
CZ*055L6 D ZF15K4E 1/2 1 1/8 20 1 30.25 42.5 29.75 313 74
CZ*060L6 D ZF18K4E 1/2 1 1/8 20 1 30.25 42.5 29.75 317 76
CZ*020M6B ZS15K4E–PFV 208–230 1 60 12.2 61 2 1/15 1 20 38 25 40 12 30
CZ*020M6C ZS15K4E–TF5 208–230 3 60 8.3 55 2 1/15 1 15 24 15 25 9 19
CZ*020M6D ZS15K4E–TFD 460 3 60 3.8 27 2 1/15 1 15 24 15 25 ^ ^
CZ*025M6B ZS19K4E–PFV 208–230 1 60 14.7 73 2 1/15 1 20 38 30 45 12 30
CZ*025M6C ZS19K4E–TF5 208–230 3 60 8.7 63 2 1/15 1 15 29 20 30 11 23
CZ*025M6D ZS19K4E–TFD 460 3 60 4.5 31 2 1/15 1 15 24 15 25 ^ ^
CZ*030M6B ZS21K4E–PFV 208–230 1 60 14.7 88 1 1/3 3.5 22 38 35 45 12 30
CZ*030M6C ZS21K4E–TF5 208–230 3 60 9.9 77 1 1/3 3.5 20 38 25 40 12 30
CZ*030M6D ZS21K4E–TFD 460 3 60 5.1 39 1 1/3 1.9 15 24 15 25 ^ ^
CZ*035M6B ZS26K4E–PFV 208–230 1 60 18.6 109 1 1/3 3.5 27 39 45 50 12 30
CZ*035M6C ZS26K4E–TF5 208–230 3 60 12.2 88 1 1/3 3.5 20 38 30 40 12 30
CZ*035M6D ZS26K4E–TFD 460 3 60 6.4 44 1 1/3 1.9 15 24 15 25 ^ ^
CZ*045M6B ZS30K4E–PFV 208–230 1 60 24.0 129 1 1/3 3.5 34 59 50 60 11 47
CZ*045M6C ZS30K4E–TF5 208–230 3 60 13.5 99 1 1/3 3.5 20 44 30 45 12 35
CZ*045M6D ZS30K4E–TFD 460 3 60 7.4 49.5 1 1/3 1.9 15 29 15 30 11 23
CZ*055M6B ZS38K4E–PFV 208–230 1 60 28.8 169 1 1/3 3.5 40 59 50 60 12 47
CZ*055M6C ZS38K4E–TF5 208–230 3 60 19.2 123 1 1/3 3.5 28 44 45 50 12 35
CZ*055M6D ZS38K4E–TFD 460 3 60 8.7 62 1 1/3 1.9 15 29 20 30 10 23
CZ*060M6C ZS45K4E–TF5 208–230 3 60 21.5 156 1 1/3 3.5 30 42 50 60 12 30
CZ*060M6D ZS45K4E–TFD 460 3 60 8.3 70 1 1/3 1.9 15 29 20 30 10.6 23
CZ*020L6B ZF06K4E–PFV 208–230 1 60 12.2 61 2 1/15 1 20 38 25 40 12 30
CZ*020L6C ZF06K4E–TF5 208–230 3 60 8.3 55 2 1/15 1 15 24 15 25 9 19
CZ*020L6D ZF06K4E–TFD 460 3 60 3.8 27 2 1/15 1 15 24 15 25 ^ ^
CZ*025L6B ZF08K4E–PFV 208–230 1 60 14.7 73 2 1/15 1 20 38 30 45 12 30
CZ*025L6C ZF08K4E–TF5 208–230 3 60 8.7 63 2 1/15 1 15 29 20 30 11 23
CZ*025L6D ZF08K4E–TFD 460 3 60 4.5 31 2 1/15 1 15 24 15 25 ^ ^
CZ*030L6B ZF09K4E–PFV 208–230 1 60 14.7 88 2 1/15 1 20 38 30 45 12 30
CZ*030L6C ZF09K4E–TF5 208–230 3 60 9.9 77 2 1/15 1 15 24 20 25 6 19
CZ*030L6D ZF09K4E–TFD 460 3 60 5.1 39 2 1/15 1 15 15 15 15 ^ ^
CZ*035L6B ZF11K4E–PFV 208–230 1 60 18.6 109 2 1/15 1 24 38 40 50 12 30
CZ*035L6C ZF11K4E–TF5 208–230 3 60 12.2 88 2 1/15 1 20 29 25 30 6 23
CZ*035L6D ZF11K4E–TFD 460 3 60 6.4 44 2 1/15 1 15 15 15 15 ^ ^
CZ*045L6B ZF13K4E–PFV 208–230 1 60 24.0 129 1 1/3 3.5 34 45 50 60 11 30
CZ*045L6C ZF13K4E–TF5 208–230 3 60 13.5 99 1 1/3 3.5 20 38 30 40 11 30
CZ*045L6D ZF13K4E–TFD 460 3 60 7.4 49.5 1 1/3 1.9 15 24 15 25 9 19
CZ*055L6B ZF15K4E–PFV 208–230 1 60 28.8 169 1 1/3 3.5 40 50 50 60 10 30
CZ*055L6C ZF15K4E–TF5 208–230 3 60 19.2 123 1 1/3 3.5 28 40 45 50 10 30
CZ*055L6D ZF15K4E–TFD 460 3 60 8.7 62 1 1/3 1.9 15 24 20 25 8 19
CZ*060L6C ZF18K4E–TF5 208–230 3 60 21.5 156 1 1/3 3.5 30 44 50 60 12 35
CZ*060L6D ZF18K4E–TFD 460 3 60 8.3 70 1 1/3 1.9 15 29 20 30 11 23
* = T for Outdoor, N for Indoor, S for Beacon II™
16
SEMI-HERMETIC COMPRESSORS
Performance Data - High Temp. Models - Semi-hermetic Compressors
Capacity BTU/HR @ 90°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 10°F. 0°F.
Capacity BTU/HR @ 95°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 10°F. 0°F.
Capacity BTU/HR @ 100°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 10°F. 0°F.
Capacity BTU/HR @ 110°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 40°F. 30°F. 25°F. 20°F. 10°F. 0°F.
CS*005H2 HAG–0050 5820 4870 4430 4000 3220 —
CS*008H2 KAN–0075 9240 7660 6920 6220 4960 —
CS*008M2 KAE–0075 — — 7910 7140 5740 4560
CS*010H2 KAR–0100 12410 10260 9260 8300 6570 —
CS*010M2 KAM–0100 — — 10690 9660 7770 6190
CS*015H2 KAG–0150 16340 13350 12230 11000 8770 —
CS*020H2 ERA–0200 22010 18120 16210 14330 10750 —
CS*020M2 KAK–0200 — — 16530 14910 11970 9500
CS*021M2 ERC–0200 — — 17640 16010 13000 10430
CS*029M2 ERF–0310 — — 24720 22400 18200 14760
CS*030H2 ERF–0310 35640 29630 26800 24130 19380 —
CS*030M2 3RA–0310 — — 32290 29330 23910 19430
CS*040H2 NRB–0400 51340 42930 38950 35170 28370 —
CS*050H2 NRA–0500 58160 49060 44690 40500 32870 —
CS*050M2 NRM–0500 — — 51590 46900 38280 31150
CS*005H2 HAG–0050 6050 5060 4610 4160 3350 —
CS*008H2 KAN–0075 9610 7970 7200 6470 5160 —
CS*008M2 KAE–0075 — — 8230 7430 5970 4740
CS*010H2 KAR–0100 12910 10670 9630 8630 6830 —
CS*010M2 KAM–0100 — — 11120 10050 8080 6440
CS*015H2 KAG–0150 16990 13880 12720 11440 9120 —
CS*020H2 ERA–0200 22890 18840 16860 14900 11180 —
CS*020M2 KAK–0200 — — 17190 15510 12450 9880
CS*021M2 ERC–0200 — — 18350 16650 13520 10850
CS*029M2 ERF–0310 — — 25570 23190 18860 15330
CS*030H2 ERF–0310 37070 30820 27870 25100 20160 —
CS*030M2 3RA–0310 — — 33580 30500 24870 20210
CS*040H2 NRB–0400 53390 44650 40510 36580 29500 —
CS*050H2 NRA–0500 60490 51020 46480 42120 34180 —
CS*050M2 NRM–0500 — — 53650 48780 39810 32400
CS*005H2 HAG–0050 5590 4680 4250 3840 3090 —
CS*008H2 KAN–0075 8870 7350 6640 5970 4760 —
CS*008M2 KAE–0075 — — 7590 6850 5510 4380
CS*010H2 KAR–0100 11910 9850 8890 7970 6310 —
CS*010M2 KAM–0100 — — 10260 9270 7460 5940
CS*015H2 KAG–0150 15690 12820 11740 10560 8420 —
CS*020H2 ERA–0200 21130 17400 15560 13760 10320 —
CS*020M2 KAK–0200 — — 15870 14310 11490 9120
CS*021M2 ERC–0200 — — 16930 15370 12480 10010
CS*029M2 ERF–0310 — — 23850 21610 17530 14200
CS*030H2 ERF–0310 34210 28450 25720 23160 18600 —
CS*030M2 3RA–0310 — — 31000 28150 22950 18660
CS*040H2 NRB–0400 49290 41210 37390 33760 27240 —
CS*050H2 NRA–0500 55830 47100 42900 38880 31560 —
CS*050M2 NRM–0500 — — 49530 45020 36750 29910
CS*005H2 HAG–0050 5120 4290 3900 3520 2830 —
CS*008H2 KAN–0075 8130 6740 6090 5470 4360 —
CS*008M2 KAE–0075 — — 6960 6280 5050 4010
CS*010H2 KAR–0100 10920 9030 8150 7300 5780 —
CS*010M2 KAM–0100 — — 9410 8500 6840 5450
CS*015H2 KAG–0150 14380 11750 10760 9680 7720 —
CS*020H2 ERA–0200 19370 15950 14260 12610 9460 —
CS*020M2 KAK–0200 — — 14550 13120 10530 8360
CS*021M2 ERC–0200 — — 15520 14090 11440 9180
CS*029M2 ERF–0310 — — 22150 20040 16210 13080
CS*030H2 ERF–0310 31370 26070 23580 21240 17050 —
CS*030M2 3RA–0310 — — 28420 25810 21040 17100
CS*040H2 NRB–0400 45180 37780 34280 30950 24970 —
CS*050H2 NRA–0500 51180 43180 39320 35640 28930 —
CS*050M2 NRM–0500 — — 45400 41270 33690 27420
17
SEMI-HERMETIC COMPRESSORS
Performance Data - High Temp. Models - Semi-hermetic Compressors
Capacity BTU/HR @ 90°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 25°F. 20°F. 15°F. 10°F. 5°F. 0°F. -5°F.
Capacity BTU/HR @ 95°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 25°F. 20°F. 15°F. 10°F. 5°F. 0°F. -5°F.
Capacity BTU/HR @ 100°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 25°F. 20°F. 15°F. 10°F. 5°F. 0°F. -5°F.
Capacity BTU/HR @ 110°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 25°F. 20°F. 15°F. 10°F. 5°F. 0°F. -5°F.
Performance Data - Medium Temp. Models - Semi-hermetic Compressors
* = T for Outdoor, N for Indoor, S for Beacon II™
CS*005M6 HAJ–005E 5420 4960 4440 3930 3460 3060 2690
CS*010M6 KAR–010E 10140 9370 8480 7600 6770 5990 5290
CS*020M6 KAK–020E 16890 15110 13590 12260 11070 9940 8690
CS*021M6 ERC–021E 20860 19650 17590 15940 14160 12490 10870
CS*030M6 ERF–031E 30880 28310 25730 23180 20690 18260 15950
CS*040M6 NRB–040E 40810 37350 33810 30250 26730 23250 19900
CS*005M6 HAJ–005E 5210 4770 4270 3780 3330 2940 2590
CS*010M6 KAR–010E 9750 9010 8150 7310 6510 5760 5090
CS*020M6 KAK–020E 16240 14530 13070 11790 10640 9560 8360
CS*021M6 ERC–021E 20060 18890 16910 15330 13620 12010 10450
CS*030M6 ERF–031E 29690 27220 24740 22290 19890 17560 15340
CS*040M6 NRB–040E 39240 35910 32510 29090 25700 22360 19130
CS*005M6 HAJ–005E 5000 4580 4100 3630 3200 2820 2490
CS*010M6 KAR–010E 9360 8650 7820 7020 6250 5530 4890
CS*020M6 KAK–020E 15590 13950 12550 11320 10210 9180 8030
CS*021M6 ERC–021E 19260 18130 16230 14720 13080 11530 10030
CS*030M6 ERF–031E 28500 26130 23750 21400 19090 16860 14730
CS*040M6 NRB–040E 37670 34470 31210 27930 24670 21470 18360
CS*005M6 HAJ–005E 4580 4200 3760 3330 2930 2590 2280
CS*010M6 KAR–010E 8580 7930 7170 6430 5730 5070 4480
CS*020M6 KAK–020E 14290 12790 11500 10380 9360 8410 7360
CS*021M6 ERC–021E 17650 16620 14880 13490 11990 10570 9200
CS*030M6 ERF–031E 26130 23950 21770 19620 17500 15450 13500
CS*040M6 NRB–040E 34530 31600 28610 25600 22620 19680 16830
18
SEMI-HERMETIC COMPRESSORS
Capacity BTU/HR @ 95°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 90°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 100°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 110°F. Ambient
R-404A/507 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
CS*005L6 KAN–005E 3310 2940 2580 1900 1580 1300 830
CS*008L6 KAM–007E 5520 4900 4320 3280 2810 2390 1620
CS*010L6 KAJ–010E 7220 6480 5790 4520 3940 3390 2440
CS*015L6 KAL–015E 10960 9930 8920 6990 6110 5300 3930
CS*020L6 EAD–020E 12530 11160 9870 7520 6490 5560 3980
CS*021L6 EAV–021E 13920 12600 11280 8780 7610 6520 4590
CS*027L6 3AB–031E 16640 14890 13210 10100 8710 7450 5420
CS*030L6 LAH–032E 21310 19100 16930 12800 10880 9100 6040
CS*030E6 LAC–032E 15700 13550 11580 8270
CS*040L6 NRD–040E^ 28090 25280 22530 17300 14860 12590 8630
NRD–032E^^
CS*005L6 KAN–005E 3530 3150 2760 2050 1720 1420 930
CS*008L6 KAM–007E 6010 5360 4730 3570 3050 2580 1820
CS*010L6 KAJ–010E 7770 6990 6240 4830 4190 3610 2640
CS*015L6 KAL–015E 11780 10600 9470 7340 6370 5500 4020
CS*020L6 EAD–020E 13780 12290 10860 8260 7120 6100 4470
CS*021L6 EAV–021E 15120 13660 12200 9420 8140 6980 5160
CS*027L6 3AB–031E 17670 15860 14110 10870 9420 8100 5940
CS*030L6 LAH–032E 22600 20320 18090 13810 11830 9970 6780
CS*030E6 LAC–032E 16780 14570 12540 9010
CS*040L6 NRD–040E^ 29660 26750 23910 18490 15980 13640 9480
NRD–032E^^
CS*005L6 KAN–005E 3100 2760 2400 1750 1450 1170 750
CS*008L6 KAM–007E 5290 4680 4100 3020 2540 2100 1400
CS*010L6 KAJ–010E 6900 6180 5470 4160 3570 3030 2150
CS*015L6 KAL–015E 10520 9460 8410 6440 5540 4700 3300
CS*020L6 EAD–020E 12140 10730 9400 6970 5920 4980 3530
CS*021L6 EAV–021E 13390 12110 10810 8260 7060 5940 4050
CS*027L6 3AB–031E 15620 13940 12320 9330 8000 6800 4900
CS*030L6 LAH–032E 20020 17890 15790 11790 9940 8230 5300
CS*030E6 LAC–032E 14630 12530 10640 7540
CS*040L6 NRD–040E^ 26520 23810 21160 16100 13750 11560 7720
NRD–032E^^
CS*005L6 KAN–005E 2680 2360 2030 1440 1160 900 520
CS*008L6 KAM–007E 4560 4010 3470 2480 2030 1620 970
CS*010L6 KAJ–010E 6040 5370 4720 3510 2960 2470 1660
CS*015L6 KAL–015E 9290 8320 7370 5560 4710 3930 2580
CS*020L6 EAD–020E 10510 9210 7950 6000 4720 3880 2610
CS*021L6 EAV–021E 11670 10570 9450 7130 5990 4900 2950
CS*027L6 3AB–031E 13590 12040 10540 7800 6590 5520 3870
CS*030L6 LAH–032E 17480 15490 13530 9800 8080 6490 3750
CS*030E6 LAC–032E 12510 10510 8760 6090
CS*040L6 NRD–040E^ 23410 20900 18440 13740 11550 9500 5880
NRD–032E^^
Performance Data - Low Temp. Models - Semi-hermetic Compressors
^ NRD1–040E Compressor is Single Phase & uses R–404A only.
^^ Uses R–404A & 507 in 3 phase model.
19
SEMI-HERMETIC COMPRESSORS
Capacity BTU/HR @ 90°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 95°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 100°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
Capacity BTU/HR @ 110°F. Ambient
R-22 Suction Temperature °F.
Model Compressor 0°F. -5°F. -10°F. -20°F. -25°F. -30°F. -40°F.
Performance Data - Low Temp. Models - Semi-hermetic Compressors
* = T for Outdoor, N for Indoor, S for Beacon II™
CS*005L2 KAN–0050 3710 3240 2800 2020 1680 1340 810
CS*008L2 KAM–0075 5890 5230 4610 3490 3000 2560 1850
CS*010L2 KAJ–0100 7250 6460 5710 4330 3730 3190 2330
CS*020L2 EAD–0200 12580 11130 9740 7210 6090 6000 3090
CS*021L2 EAV–0210 14910 13160 11500 8550 7300 6150 4580
CS*030L2 LAH–0310 21090 18740 16450 12210 10300 8500 5800
CS*005L2 KAN–0050 3480 3030 2560 1800 1520 1180 650
CS*008L2 KAM–0075 5880 4970 4560 3430 2820 2470 1690
CS*010L2 KAJ–0100 7280 6150 5630 4260 3500 3150 2140
CS*020L2 EAD–0200 12530 10480 9580 6920 5600 4700 2700
CS*021L2 EAV–0210 14330 12500 11010 8140 6820 5840 4200
CS*030L2 LAH–0310 20120 17840 15630 11520 9670 7920 5300
CS*005L2 KAN–0050 3300 2860 2450 1700 1420 1110 590
CS*008L2 KAM–0075 5370 4750 4170 3110 2640 2220 1540
CS*010L2 KAJ–0100 6590 5850 5140 3850 3270 2760 1940
CS*020L2 EAD–0200 11350 9950 8620 6220 5180 4240 2350
CS*021L2 EAV–0210 13640 11970 10400 7610 6410 5380 3860
CS*030L2 LAH–0310 19140 16940 14800 10820 9030 7340 4280
CS*005L2 KAN–0050 2900 2480 2100 1380 1050 760 280
CS*008L2 KAM–0075 4850 4280 3730 2730 2290 1890 1220
CS*010L2 KAJ–0100 5940 5240 4580 3360 2810 2330 1530
CS*020L2 EAD–0200 10110 8780 7530 5250 4270 2380 1590
CS*021L2 EAV–0210 12370 10790 9310 6650 5480 4560 3120
CS*030L2 LAH–0310 17200 15150 13160 9440 7760 6240 3250
20
SEMI-HERMETIC COMPRESSORS
Unit Specifications - Semi-hermetic Compressors
Connections Receiver Dimensions Net Sound
Model Fig. (ID) 90% Full D W H Wt. Data
Number ++ Compressor Liquid Suction Lbs. Fan(s) In. In. In. Lbs. dba†
CS*005H2 A HAG–0050 3/8 1/2 6 1 28.25 23.75 17.25 161 66
CS*008H2 A KAN–0075 3/8 5/8 6 1 28.25 23.75 17.25 180 66
CS*008M2 A KAE–0075 3/8 5/8 6 1 28.25 23.75 17.25 180 66
CS*010H2 A KAR–0100 3/8 5/8 6 1 28.25 23.75 17.25 175 66
CS*010M2 A KAM–0100 3/8 5/8 6 1 28.25 23.75 17.25 178 66
CS*015H2 B KAG–0150 3/8 7/8 10 2 28.25 37.75 17.25 221 69
CS*020H2 B ERA–0200 3/8 7/8 10 2 28.25 37.75 17.25 293 69
CS*020M2 B KAK–0200 3/8 7/8 10 2 28.25 37.75 17.25 189 69
CS*021M2 B ERC–0200 3/8 7/8 10 2 28.25 37.75 17.25 301 69
CS*029M2 C ERF–0310 1/2 7/8 16 2 28.25 37.75 19.75 391 69
CS*030H2 D ERF–0310 1/2 7/8 22 1 30.25 42.5 29.75 385 70
CS*030M2 D 3RA–0310 1/2 7/8 22 1 30.25 42.5 29.75 397 71
CS*040H2 D NRB–0400 1/2 1 1/8 22 1 30.25 42.5 29.75 460 71
CS*050H2 D NRA–0500 1/2 1 1/8 22 1 30.25 42.5 29.75 462 71
CS*050M2 D NRM–0500 1/2 1 1/8 22 1 30.25 42.5 29.75 462 71
CS*005M6 A HAJ–005E 3/8 1/2 5.5 1 28.25 23.75 17.25 161 66
CS*010M6 A KAR–010E 3/8 5/8 5.5 1 28.25 23.75 17.25 178 67
CS*020M6 B KAK–020E 3/8 7/8 9 2 28.25 37.75 17.25 189 69
CS*021M6 B ERC–021E 3/8 7/8 9 2 28.25 37.75 17.25 301 70
CS*030M6 D ERF–031E 1/2 7/8 20 1 30.25 42.5 29.75 397 71
CS*040M6 D NRB–040E 1/2 1 1/8 20 1 30.25 42.5 29.75 460 73
CS*005L2 A KAN–0050 3/8 1/2 6 1 28.25 23.75 17.25 172 67
CS*008L2 A KAM–0075 3/8 5/8 6 1 28.25 23.75 17.25 172 67
CS*010L2 A KAJ–0100 3/8 5/8 6 1 28.25 23.75 17.25 175 67
CS*020L2 B EAD–0200 3/8 7/8 10 2 28.25 37.75 17.25 298 70
CS*021L2 B EAV–0210 3/8 7/8 10 2 28.25 37.75 17.25 301 70
CS*030L2 C LAH–0311 1/2 7/8 16 2 28.25 37.75 19.75 347 71
CS*005L6 A KAN–005E 3/8 1/2 5.5 1 28.25 23.75 17.25 172 67
CS*008L6 A KAM–007E 3/8 5/8 5.5 1 28.25 23.75 17.25 172 67
CS*010L6 A KAJ–010E 3/8 5/8 5.5 1 28.25 23.75 17.25 178 67
CS*015L6 B KAL–015E 3/8 7/8 9 2 28.25 37.75 17.25 225 69
CS*020L6 B EAD–020E 3/8 7/8 9 2 28.25 37.75 17.25 291 70
CS*021L6 B EAV–021E 3/8 7/8 9 2 28.25 37.75 17.25 301 70
CS*027L6 C 3AB–031E 1/2 7/8 14 2 28.25 37.75 19.75 391 71
CS*030L6 C LAH–032E 1/2 7/8 14 2 28.25 37.75 19.75 357 71
CS*030E6 C LAC–032E 1/2 7/8 14 2 28.25 37.75 19.75 391 71
CS*040L6 D NRD–032/040E 1/2 1 1/8 20 1 30.25 42.5 29.75 457 73
++ = See page 23 for details. † = Estimated sound pressure values are 10 feet from the unit. For estimating sound pressure from the
unit at different distances, deduct the following from the unit values: 20 feet, deduct 6 dba..... for 40 feet, deduct 12 dba........for
80 feet, deduct 18 dba. This data is typical of “free field” conditions for horizontal air cooled condensing units at the outlet of the
discharge air. The actual sound measurements may vary depending on the condensing unit installation. Factors such as reflecting
walls, background noise and mounting conditions may have a significant influence on this data.
* = T for Outdoor, N for Indoor, S for Beacon II™
21
SEMI-HERMETIC COMPRESSORS
TM
Electrical Data - Medium Temperature - Semi-hermetic Compressors
* = T for Outdoor, N for Indoor, S for Beacon II™
^ Power supplied by customer.
† Consult factory for 50 HZ applications.
Evap. Defrost
Model Part Power Supply Compressor Fan Motor MCA MOPD Fan Heater
Number Number Volts Ph Hz† RLA LRA Qty. HP FLA Air Elec. Air Elec. Amps Amps
CS*005H2B HAG2–0050–CAV 208–230 1 60 3.6 22.0 1 1/15 0.5 15 20 15 20 9 15
CS*005H2C HAG1–0050–TAC 208–230 3 60 2.1 13.0 1 1/15 0.5 15 20 15 20 9.5 15
CS*008H2B KAN2–0075–CAV 208–230 1 60 5.4 36.0 1 1/15 0.5 15 20 15 20 8 15
CS*008H2C KAN1–0075–TAC 208–230 3 60 3.1 19.9 1 1/15 0.5 15 20 15 20 9 15
CS*008M2B KAE2–0075–CAV 208–230 1 60 4.9 36.0 1 1/15 0.5 15 20 15 20 8 15
CS*008M2C KAE1–0075–TAC 208–230 3 60 3.0 19.9 1 1/15 0.5 15 20 15 20 9 15
CS*010H2B KAR2–0100–CAV 208–230 1 60 6.6 40.0 1 1/15 0.5 15 20 15 20 7 15
CS*010H2C KAR1–0100–TAC 208–230 3 60 3.8 27.0 1 1/15 0.5 15 20 15 20 9 15
CS*010M2B KAM2–0100–CAV 208–230 1 60 6.7 40.0 1 1/15 0.5 15 20 15 20 7 15
CS*010M2C KAM1–0100–TAC 208–230 3 60 4.0 27 1 1/15 0.5 15 20 15 20 9 15
CS*015H2B KAGB–0150–CAV 208–230 1 60 8.6 55.0 2 1/15 1.0 15 24 20 25 9 19
CS*015H2C KAGA–0150–TAC 208–230 3 60 4.9 35.5 2 1/15 1.0 15 20 15 20 8 15
CS*015H2D KAGA–0150–TAD 460 3 60 2.2 18.2 2 1/15 1.0 15 20 15 20 ^ ^
CS*020H2G ERA2–0200–CAB 230 1 60 9.3 58.0 2 1/15 1.0 15 24 20 25 6 19
CS*020H2C ERA1–0200–TAC 208–230 3 60 5.9 46.0 2 1/15 1.0 15 24 15 25 9 19
CS*020H2D ERA1–0200–TAD 460 3 60 3.1 46.0 2 1/15 1.0 15 20 15 20 ^ ^
CS*020M2B KAKB–0200–CAV 208–230 1 60 9.5 55.0 2 1/15 1.0 15 24 20 25 6 19
CS*020M2C KAKA–0200–TAC 208–230 3 60 6.1 50.0 2 1/15 1.0 15 24 15 25 9 19
CS*021M2G ERC2–0200–CAB 230 1 60 9.7 58.0 2 1/15 1.0 15 24 20 25 6 19
CS*021M2C ERC1–0200–TAC 208–230 3 60 6.1 46.0 2 1/15 1.0 15 24 15 25 9 19
CS*021M2D ERC1–0200–TAD 460 3 60 3.3 23.0 2 1/15 1.0 15 20 15 20 ^ ^
CS*029M2G ERF2–0310–CAB 230 1 60 15.6 86.0 2 1/15 1.0 21 38 35 45 12 30
CS*029M2C ERF1–0311–TAC 208–230 3 60 11.2 82.0 2 1/15 1.0 15 29 25 35 12 23
CS*029M2D ERFI–0311–TAD 460 3 60 5.2 41.0 2 1/15 1.0 15 15 15 25 ^ ^
CS*030H2G ERF2–0310–CAB 230 1 60 15.6 86.0 1 1/3 3.5 23 38 35 50 12 30
CS*030H2C ERF1–0311–TAC 208–230 3 60 11.2 82.0 1 1/3 3.5 20 38 25 40 12 30
CS*030H2D ERF1–0311–TAD 460 3 60 5.2 41.0 1 1/3 1.9 15 24 15 25 ^ ^
CS*030M2G 3RA2–0310–CAB 230 1 60 16.0 86.0 1 1/3 3.5 24 38 35 50 12 30
CS*030M2C 3RA1–0311–TAC 208–230 3 60 12.7 82.0 1 1/3 3.5 20 38 30 40 12 30
CS*030M2D 3RA1–0311–TAD 460 3 60 5.6 41.0 1 1/3 1.9 15 24 15 25 ^ ^
CS*040H2C NRB2–0400–TFC 208–230 3 60 19.6 141.0 1 1/3 3.5 28 40 45 50 12 30
CS*040H2D NRB2–0400–TFD 460 3 60 10.1 62.5 1 1/3 1.9 15 29 20 35 12 23
CS*050H2C NRA3–0500–TFC 208–230 3 60 17.2 141.0 1 1/3 3.5 25 38 40 50 12 30
CS*050H2D NRA3–0500–TFD 460 3 60 8.7 62.5 1 1/3 1.9 15 29 20 35 12 23
CS*050M2C NRM1–0500–TFC 208–230 3 60 21.8 141.0 1 1/3 3.5 31 43 50 60 12 32
CS*050M2D NRM1–0500–TFD 460 3 60 10.8 62.5 1 1/3 1.9 15 29 25 35 12 23
CS*005M6B HAJB–005E–CAV 208–230 1 60 3.3 22.0 1 1/15 0.5 15 20 15 20 9 15
CS*010M6B KARB–010E–CAV 208–230 1 60 6.4 40.0 1 1/15 0.5 15 20 15 20 7 15
CS*010M6C KARA–010E–TAC 208–230 3 60 3.8 27 1 1/15 0.5 15 20 15 20 9 15
CS*020M6B KAKB–021E–CAV 208–230 1 60 9.1 55.0 2 1/15 1.0 15 24 20 25 6 19
CS*020M6C KAKA–020E–TAC 208–230 3 60 5.8 50.0 2 1/15 1.0 15 24 15 25 9 19
CS*021M6C ERCA–021E–TAC 208–230 3 60 7.9 46 2 1/15 1.0 15 24 15 25 9 19
CS*021M6D ERCA–020E–TAD 460 3 60 3.1 23 2 1/15 1.0 15 20 15 20 ^ ^
CS*030M6G ERFB–031E–CAB 230 1 60 15.3 86.0 1 1/3 3.5 23 38 35 45 12 30
CS*030M6C ERFA–031E–TAC 208–230 3 60 11.2 82.0 1 1/3 3.5 20 38 25 40 12 30
CS*030M6D ERFA–031E–TAD 460 3 60 5.2 41.0 1 1/3 1.9 15 24 15 25 ^ ^
CS*040M6C NRB2–040E–TFC 208–230 3 60 19.6 141.0 1 1/3 3.5 28 40 45 50 12 30
CS*040M6D NRB2–040E–TFD 460 3 60 8.1 62.5 1 1/3 1.9 15 29 20 35 12 23
PSC Motors are an Energy Solutions feature
and are optimized to help you save money by
increasing energy efficiency.
22
SEMI-HERMETIC COMPRESSORS
TM
Electrical Data - Low Temperature - Semi-hermetic Compressors
Evap. Defrost
Model Part Power Supply Compressor Fan Motor MCA MOPD Fan Heater
Number Number Volts Ph Hz† RLA LRA Qty. HP FLA Air Elec. Air Elec. Amps Amps
* = T for Outdoor, N for Indoor, S for Beacon II™
Per UL and NEC, RLA values have been calculated by dividing the Maximum Continuous Current (MCC) by 1.56.
^ Power supplied by customer.
† Consult factory for 50 HZ applications. Replacement Parts List
Model Motor Fan Blade
1/2 - 3 HP 25309101, 230/1 22901601, 14"
(030 and 035 low)
3 - 6 HP 25309001, 230/1 7173156, 22"
(030 med./high) 25309002, 460/1
CS*005L2B KANB-0050-CAV 208-230 1 60 3.2 24.0 1 1/15 0.5 15 20 15 20 9 15
CS*008L2B KAMB-0075-CAV 208-230 1 60 5.1 36.0 1 1/15 0.5 15 20 15 20 8 15
CS*008L2C KAMA-0075-TAC 208-230 3 60 2.9 19.9 1 1/15 0.5 15 20 15 20 9 15
CS*010L2B KAJB-0100-CAV 208-230 1 60 6.2 40.0 1 1/15 0.5 15 20 15 20 8 15
CS*010L2C KAJA-0101-TAC 208-230 3 60 4.0 27.0 1 1/15 0.5 15 20 15 20 9 15
CS*020L2G EADB-0200-CAB 230 1 60 7.6 58.0 2 1/15 1.0 15 20 15 20 4 15
CS*020L2C EADA-0200-TAC 208-230 3 60 6.1 46.0 2 1/15 1.0 15 20 15 20 7 15
CS*021L2B EAVB-0210-CAV 208-230 1 60 13.2 102.0 2 1/15 1.0 20 29 30 30 4 23
CS*021L2C EAVA-0210-TAC 208-230 3 60 6.6 50.0 2 1/15 1.0 15 20 15 20 7 15
CS*021L2D EAVA-0210-TAD 460 3 60 3.5 26.6 2 1/15 1.0 15 20 15 20 ^ ^
CS*030L2G LAHB-0311-CAB 230 1 60 14.9 93.0 2 1/15 1.0 20 38 30 45 12 30
CS*030L2C LAHA-0310-TAC 208-230 3 60 7.8 82.0 2 1/15 1.0 15 24 15 25 9 19
CS*030L2D LAHA-0310-TAD 460 3 60 4.6 41.0 2 1/15 1.0 15 15 15 15 ^ ^
CS*005L6B KANB-005E-CAV 208-230 1 60 3.1 24.0 1 1/15 0.5 15 20 15 20 9 15
CS*005L6C KANA-006E-TAC 208-230 3 60 2.0 13.2 1 1/15 0.5 15 20 15 20 9.6 15
CS*008L6B KAMB-007E-CAV 208-230 1 60 5.1 36.0 1 1/15 0.5 15 20 15 20 8 15
CS*008L6C KAMA-007E-TAC 208-230 3 60 2.9 19.9 1 1/15 0.5 15 20 15 20 9 15
CS*010L6B KAJB-010E-CAV 208-230 1 60 6.2 40.0 1 1/15 0.5 15 20 15 20 8 15
CS*010L6C KAJA-011E-TAC 208-230 3 60 4.1 27.0 1 1/15 0.5 15 20 15 20 9 15
CS*015L6B KALB-015E-CAV 208-230 1 60 8.9 55.0 2 1/15 1.0 15 24 20 25 8 19
CS*015L6C KALA-016E-TAC 208-230 3 60 6.0 50.0 2 1/15 1.0 15 20 15 20 7.6 15
CS*015L6D KALA-016E-TAD 460 3 60 3.1 25.0 2 1/15 1.0 15 20 15 20 ^ ^
CS*020L6G EADB-021E-CAB 230 1 60 9.0 58.0 2 1/15 1.0 15 24 20 25 4 19
CS*020L6C EADA-020E-TAC 208-230 3 60 6.1 46.0 2 1/15 1.0 15 20 15 20 7 15
CS*021L6B EAVB-021E-CAV 208-230 1 60 13.2 102.0 2 1/15 1.0 20 29 30 30 4 23
CS*021L6C EAVA-021E-TAC 208-230 3 60 6.6 50.0 2 1/15 1.0 15 20 15 20 7 15
CS*021L6D EAVA-021E-TAD 460 3 60 2.9 26.6 2 1/15 1.0 15 20 15 20 ^ ^
CS*027L6G 3ABB-032E-CAB 230 1 60 13.2 86.0 2 1/15 1.0 20 38 30 40 12 30
CS*027L6C 3ABA-031E-TAC 208-230 3 60 9.0 82.0 2 1/15 1.0 15 24 20 25 8 19
CS*027L6D 3ABA-031E-TAD 460 3 60 4.6 41.0 2 1/15 1.0 15 15 15 15 ^ ^
CS*030L6G LAHB-032E-CAB 230 1 60 15.0 105.0 2 1/15 1.0 20 38 30 45 12 30
CS*030L6C LAHA-032E-TAC 208-230 3 60 11.5 112.0 2 1/15 1.0 20 29 25 35 12 23
CS*030L6D LAHA-032E-TAD 460 3 60 5.4 56.0 2 1/15 1.0 15 15 15 15 ^ ^
CS*030E6G LACB-032E-CAB 230 1 60 13.9 105.0 2 1/15 1.0 20 38 30 40 12 30
CS*030E6C LACA-032E-TAC 208-230 3 60 11.5 112.0 2 1/15 1.0 15 29 25 35 12 23
CS*030E6D LACA-032E-TAD 460 3 60 5.4 56.0 2 1/15 1.0 15 15 15 15 ^ ^
CS*040L6G NRD1-040E-CFB 230 1 60 24.9 115.0 1 1/3 3.5 35 44 50 60 10 30
CS*040L6C NRD1-032E-TFC 208-230 3 60 14.6 82.0 1 1/3 3.5 22 38 35 45 12 30
CS*040L6D NRD1-032E-TFD 460 3 60 7.6 41.0 1 1/3 1.9 15 24 15 25 9 19
PSC Motors are an Energy Solutions feature
and are optimized to help you save money by
increasing energy efficiency.
23
A
Dimensional Drawings
B
C
D
www.coldyoucancounton.com
CLIMATE
CONTROL
Cold You Can Count On
Since product improvement is a continuing effort, we reserve the right to make changes in specications without notice.
v. 005
