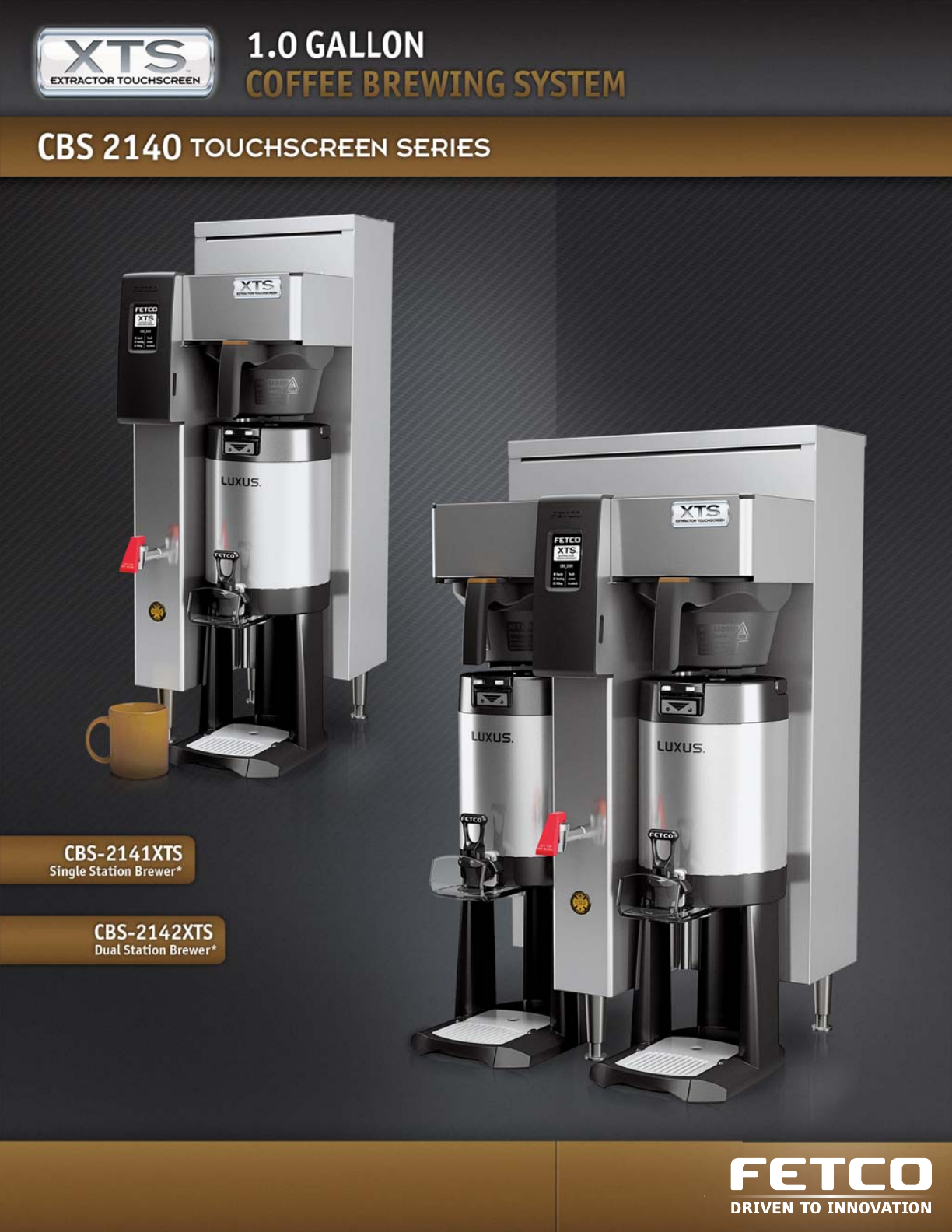

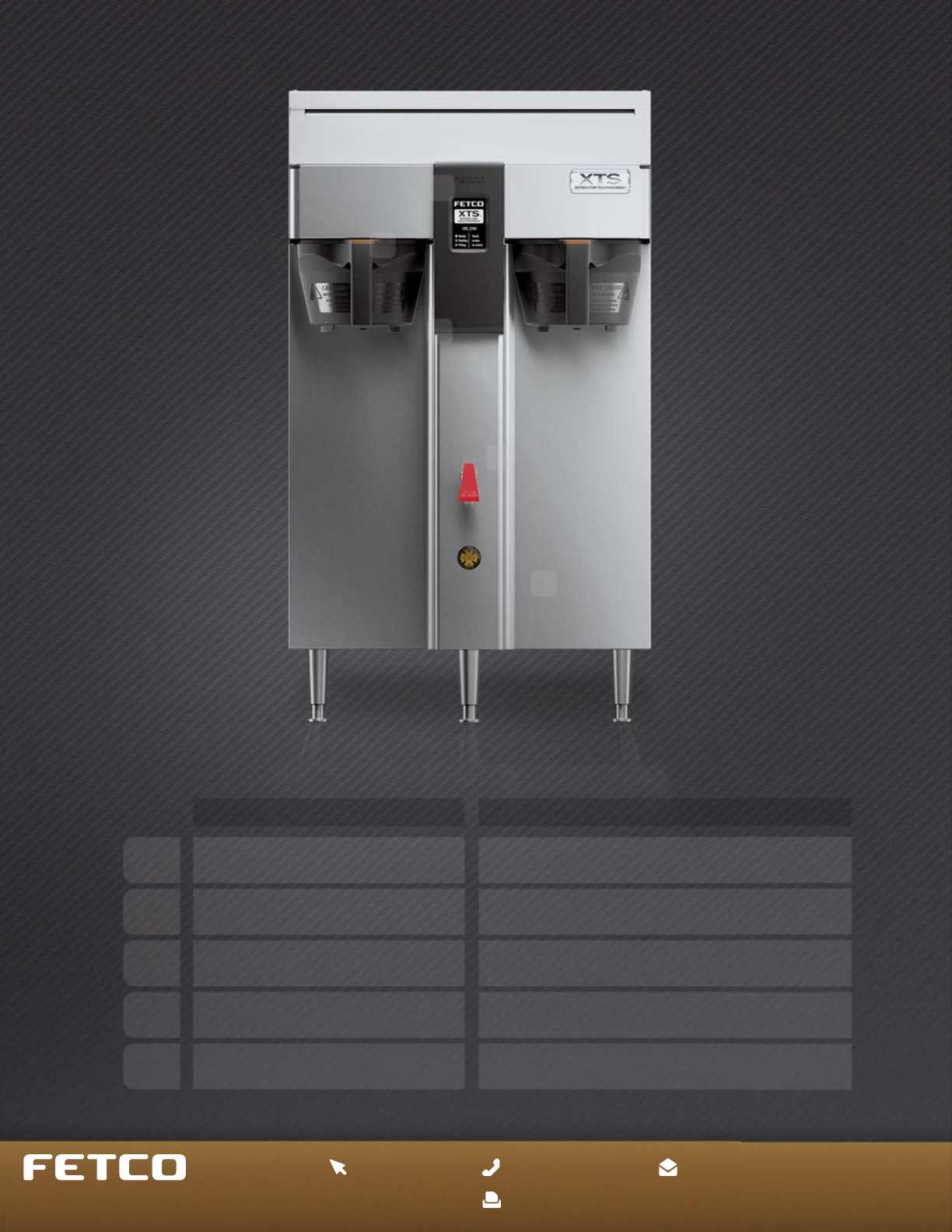

The 1.0 Gallon CBS-2141 / 2142 XTS Touchscreen

Series Coffee Brewers provide fl exibility in small-to-

medium sized venues such as Convenience Stores,

Bakery Cafés and Lobbies. Simplify your daily

operations and experience total control of this fully

featured Extractor® Brewing System via an inviting

touchscreen interface display that is intuitive, easy

to read and simple to navigate.

* Shown with L3D-10 Luxus® Dispenser (sold separately)

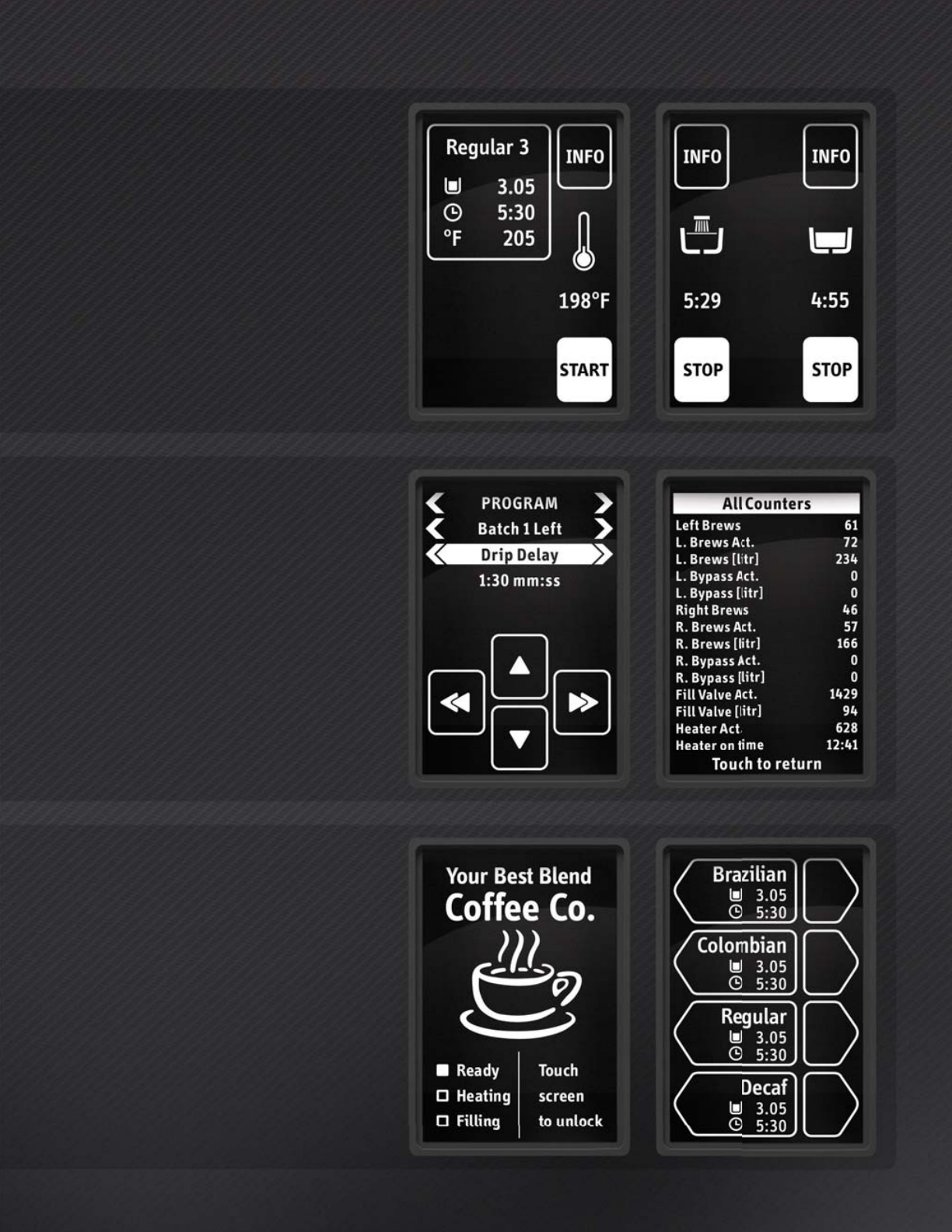

Access all controls via an inviting touchscreen

interface display that blends intuitive icons with

dynamic time and volume data to provide instant

visual feedback at any point during programming,

diagnostics or the brew cycle.

Customize the start screen to tie your equipment

and product offerings into a consistent brand

message. You can also create and display

individual recipe names for quick and easy

access to your most used coffee blends.

Perfect taste begins with a simple touch...

User Friendly Touchscreen

Customizable Screens

The Extractor® Touchscreen Operating System

(ETOS) was engineered for quick and effi cient

navigation through set-up, programming,

diagnostics and daily operational brewing modes.

Streamlined Programming,

Diagnostics and Metrics

LUXUS®

Thermal Dispenser

D

R

I

P

D

E

L

A

Y

P

R

E

-

W

E

T

B

R

E

W

T

I

M

E

B

Y

P

A

S

S

%

B

R

E

W

V

O

L

U

M

E

B

Y

P

A

S

S

Sleek European cabinet design is attractive and fi ts well in

most front-of-house decor typically found in coffee shops,

lounges and cafes.

Driven by a user friendly touchscreen interface and intuitive

software, the XTS series represents the next step in the

evolution of FETCO’s renown EXTRACTOR® brewing technology.

Legendary Extractor® Control Contemporary Design

XTS™ Series Cascading Spray Dome™

Duplicate profi les and parameters to and from any of the

batch buttons on a single machine or copy the information

to an unlimited number of brewers via a removable SD card

(Sold separately).

Modern Convenience

Take your coffee to its peak level by unlocking the full freshness,

aroma and fl avor of your taste profi le with the legendary

EXTRACTOR® brewing technology.

Luxus® Dispensing

The portable LUXUS® L3D Series

Thermal Servers and Dispensers

feature high-quality stainless-steel

vacuum liners for optimum retention

of heat, freshness and fl avor.

Hot tank water fl ows over clog-free channels built

into the dome and virtually eliminates spray head scale

buildup – a leading reason for service calls.

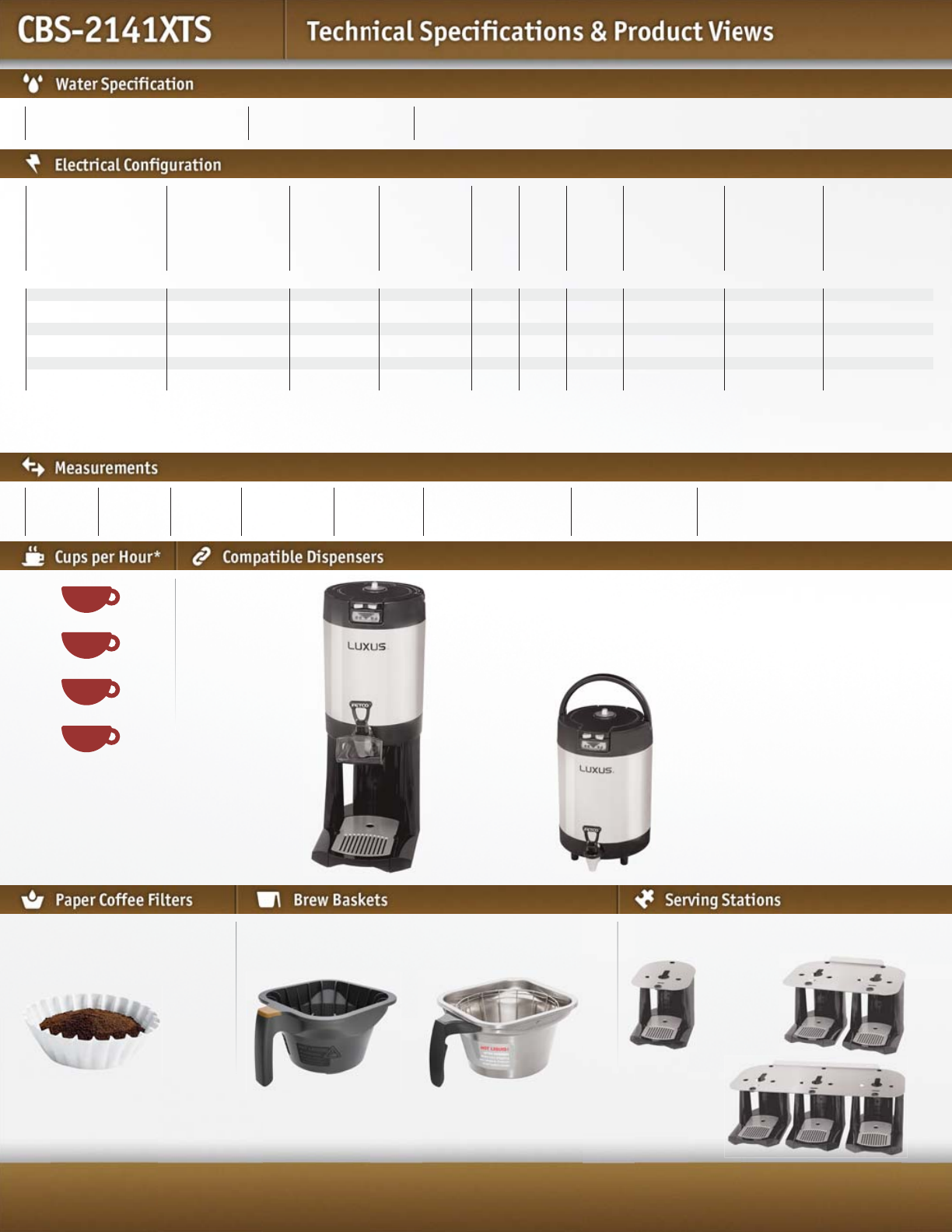

Water Connection Inlet

3/8” Male Flare Fitting

Minimum Flow Rate

11/2 gpm [5.7 lpm]

Water Pressure

20-75 psig [138-517 kPa]

Height

343/8”

[87 cm]

Width

113/4”

[29 cm]

Depth

203/8”

[51 cm]

Empty Weight

29 lbs

[13 kg]

Filled Weight

55 lbs

[25 kg]

Combined Filled Weight

66 lbs [34 kg]

BREWER + 1 FILLED L3D-10 DISPENSER

Hot Water Tank Cap.

3.3 gal

[12 l]

Shipping Weight:

41 lbs

[18 kg]

Shipping Dimensions:

16” x 23” x 29”

[40 x 58 x 73 cm]

* Approximate based on

maximum power setting.

8oz.

12oz.

16oz.

20oz.

184

123

92

74

#B012218B1

13” x 5”

Stainless Steel

#B014218BN2

13” x 5”

Plastic w/ Brown Insert

#F002

13” x 5”

Paper Coffee Filter

L3S-10

1.0 Gallon LUXUS®

Thermal Server*

S3S-1 Single

Serving Station

S3S-3 Triple

Serving Station

S3S-2 Twin

Serving Station

L3D-10

1.0 Gallon LUXUS®

Thermal Dispenser

Product DIMS:

Height: 135/16”

Width: 8”

Depth: 101/4”

Weight:

Empty: 5.6 lbs

Filled: 12.4 lbs

Product DIMS:

Height: 211/2”

Width: 8”

Depth: 9”

Weight:

Empty: 8 lbs

Filled: 15.9 lbs

* Must be used

with S3S Serving

Stations.

Plastic Brew Basket

Configuration Code

E214154

E214151

E214171

Optional(2)

E214172

Optional(2)

E214173

Optional(2)

Heater

Configuration

1 x 1.7 kW

1 x 2.3 kW

1 x 1.5 kW

2 x 1.5 kW

1 x 1.7 kW

2 x 1.7 kW

1 x 2.3 kW

2 x 2.3 kW

Voltage

100-120

100-120

120

120/208-240

120

120/208-240

120

120/208-240

Wires

2+G

2+G

2+G

3+G

2+G

3+G

2+G

3+G

Phase

1

1

1

1

1

1

1

1

Electrical

Connection

NEMA 5-15P

NEMA 5-20P

NEMA 5-15P

L1 / L2 / N+G

NEMA 5-15P

L1 / L2 / N+G

NEMA 5-20P

L1 / L2 / N+G

KW

1.3-1.8

1.7-2.4

1.6

3.1

1.8

3.5

2.4

4.7

Max Amp Draw

12.3-14.7

16.5-19.7

13.0

13.0

14.7

14.7

19.7

19.7

Gallon [Liter] /

Hour

4.4 [16.7](1)

5.8 [22.0](1)

3.9 [14.8](1)(3)

5.8 [22.0](1)(3)

4.4 [16.7](1)(3)

8.7 [33.0](1)(3)

5.8 [22.0](1)(3)

11.0 [41.6](1)(3)

Stainless Steel

Brew Basket

Configuration Code

E214154M

E214151M

E214171M

Optional(2)

E214172M

Optional(2)

E214173M

Optional(2)

(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 1 gallon per batch.

(2) Sold with factory cord & plug for 120 Volt confi guration. Optional user connection to a terminal block requiring L1, L2, N and ground to 120/208-240 VAC.

No airpot locator for this group . User selectable for optional, dual in-series heater confi guration.

(3) 3 liters per batch.

UNIVERSAL VOLTAGE OPTIONS

Patents: 6,148,717 & 6,565,906 & 6,576,282. Other Patents pending.

Designs, materials, specifi cations, physical dimensions, fi rmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.

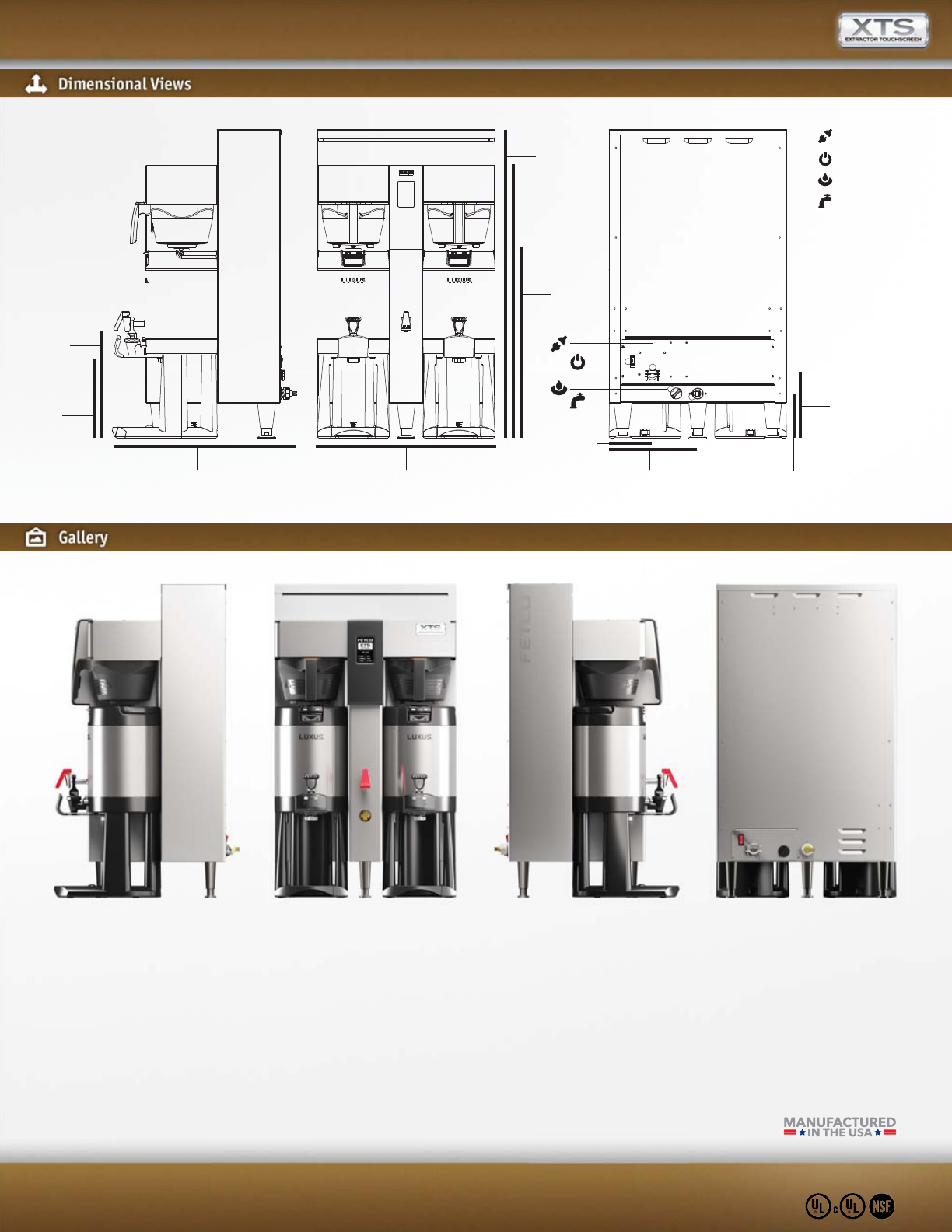

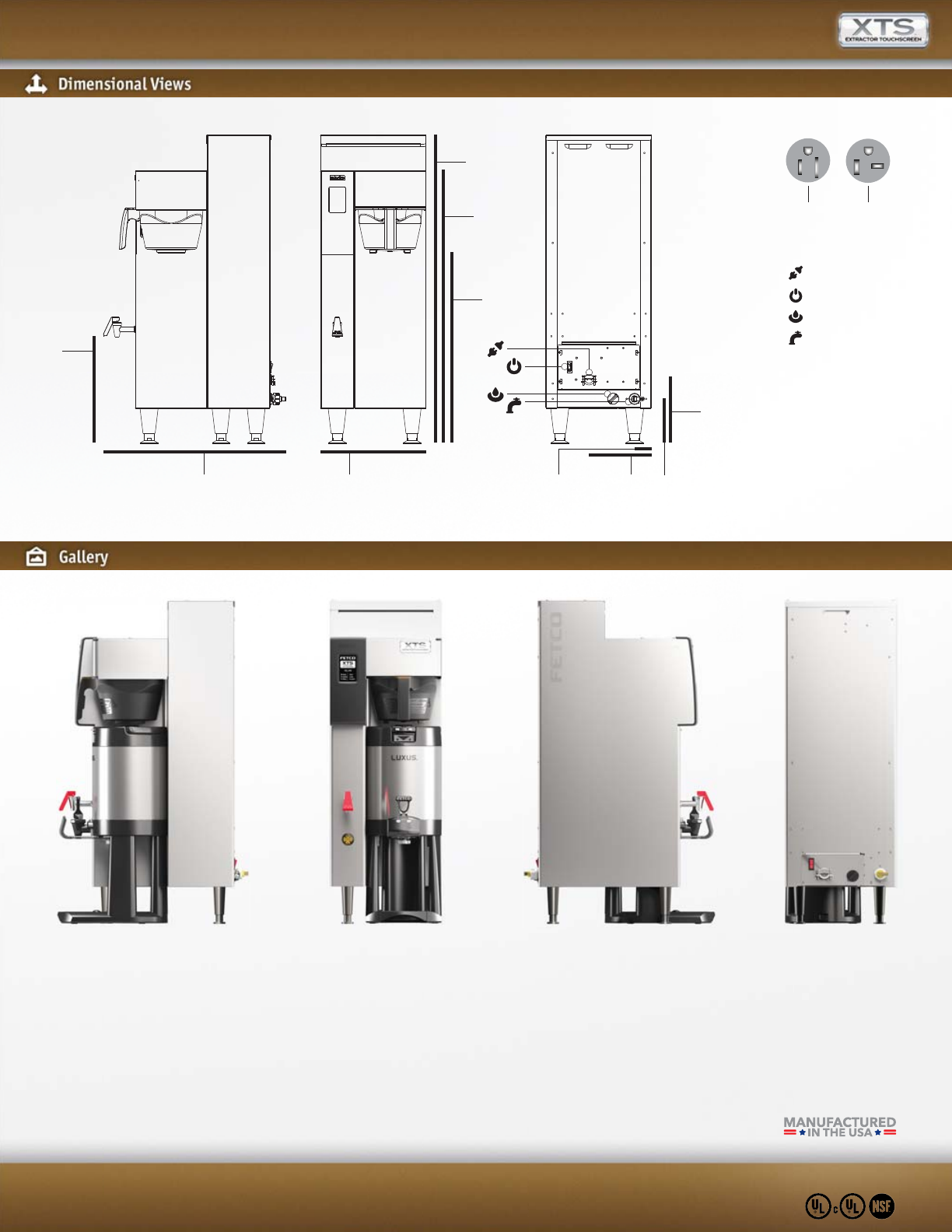

34-3/8”

[87.3 cm]

7-1/8”

[18.1 cm]

12”

[30.6 cm]

11-3/4”

[29.8 cm]

20-3/8”

[51.6 cm]

5”

[12.7 cm]

1-7/8”

[4.8 cm]

7”

[17.6 cm]

30-3/8”

[77.2 cm]

21-3/8”

[54.3 cm]

NEMA PLUGS

CONFIGURATIONS

G

W

NEMA

5-15P NEMA

5-20P

W

G

SYMBOLS

Electrical Connector

On / Off Switch

Tank Drain

Water Inlet

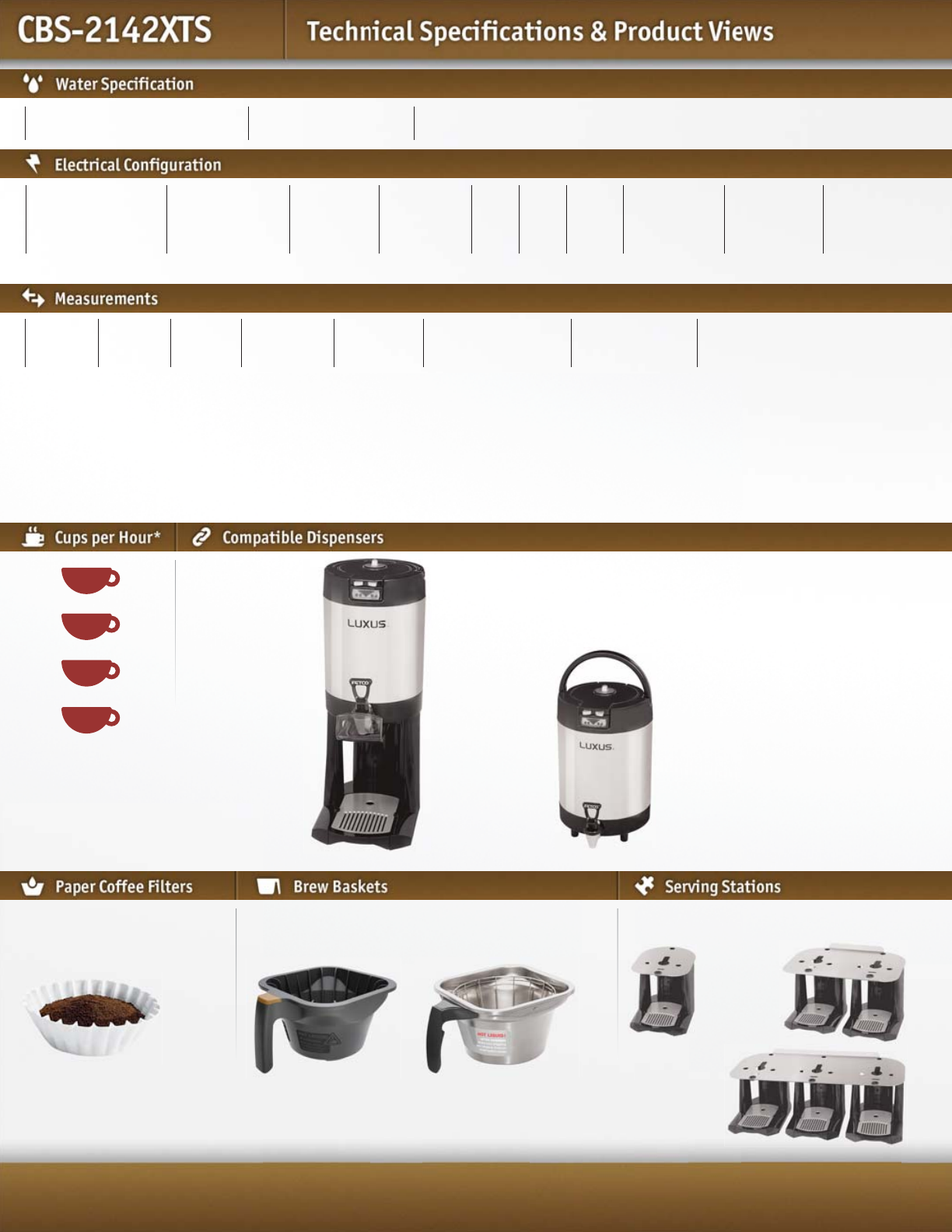

Water Connection Inlet

3/8” Male Flare Fitting

Minimum Flow Rate

11/2 gpm [5.7 lpm]

Water Pressure

20-75 psig [138-517 kPa]

Height

343/8”

[87 cm]

Width

193/4”

[50 cm]

Depth

203/8”

[51 cm]

Empty Weight

47 lbs

[21 kg]

Filled Weight

92 lbs

[41 kg]

Combined Filled Weight

114 lbs [51 kg]

BREWER + 2 FILLED L3D-10 DISPENSERS

Hot Water Tank Cap.

5.8 gal

[22 l]

Shipping Weight:

58 lb

[26 kg]

Shipping Dimensions:

23” x 25” x 29”

[58 x 63 x 73 cm]

* Approximate based on

maximum power setting.

8oz.

12oz.

16oz.

20oz.

224

149

112

90

#B012218B1

13” x 5”

Stainless Steel

#B014218BN2

13” x 5”

Plastic w/ Brown Insert

#F002

13” x 5”

Paper Coffee Filter

L3S-10

1.0 Gallon LUXUS®

Thermal Server*

L3D-10

1.0 Gallon LUXUS®

Thermal Dispenser

Product DIMS:

Height: 135/16”

Width: 8”

Depth: 101/4”

Weight:

Empty: 5.6 lbs

Filled: 12.4 lbs

Product DIMS:

Height: 211/2”

Width: 8”

Depth: 9”

Weight:

Empty: 8 lbs

Filled: 15.9 lbs

* Must be used

with S3S Serving

Stations.

S3S-1 Single

Serving Station

S3S-3 Triple

Serving Station

S3S-2 Twin

Serving Station

(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 1 gallon per batch.

Plastic Brew Basket

Configuration Code

E214251

Heater

Configuration

2 x 3.0 kW

Voltage

200-240

Wires

2+G

Phase

1

Electrical

Connection

Hardwired

KW

4.2-6.1

Max Amp Draw

21.3-25.5

Gallon [Liter] /

Hour

14.0 [53](1)

Stainless Steel

Brew Basket

Configuration Code

E214251M

Patents: 6,148,717 & 6,565,906 & 6,576,282. Other Patents pending.

Designs, materials, specifi cations, physical dimensions, fi rmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.

34-3/8”

[87.3 cm]

7-1/8”

[18.1 cm]

12”

[30.6 cm]

9”

[22.9 cm]

19-3/4”

[50.2 cm]

20-3/8”

[51.6 cm]

5”

[12.7 cm]

4-7/8”

[12.2 cm]

9-7/8”

[25.1 cm]

30-3/8”

[77.2 cm]

21-3/8”

[54.3 cm]

SYMBOLS

Electrical Connector

On / Off Switch

Tank Drain

Water Inlet
