The 1.0 Gallon CBS-2141 / 2142 XTS Touchscreen Series
Coffee Brewers provide flexibility in small-to-medium sized
venues such as Convenience Stores, Bakery Cafés and Lobbies.
Simplify your daily operations and experience total control of
this fully featured Extractor® Brewing System via an inviting
touchscreen interface display that is intuitive, easy to read
and simple to navigate.
* Shown with L4D-10 Luxus® Dispenser (sold separately)
TRUSTED | RELIABLE | QUALITY
TRUSTED | RELIABLE | QUALITY

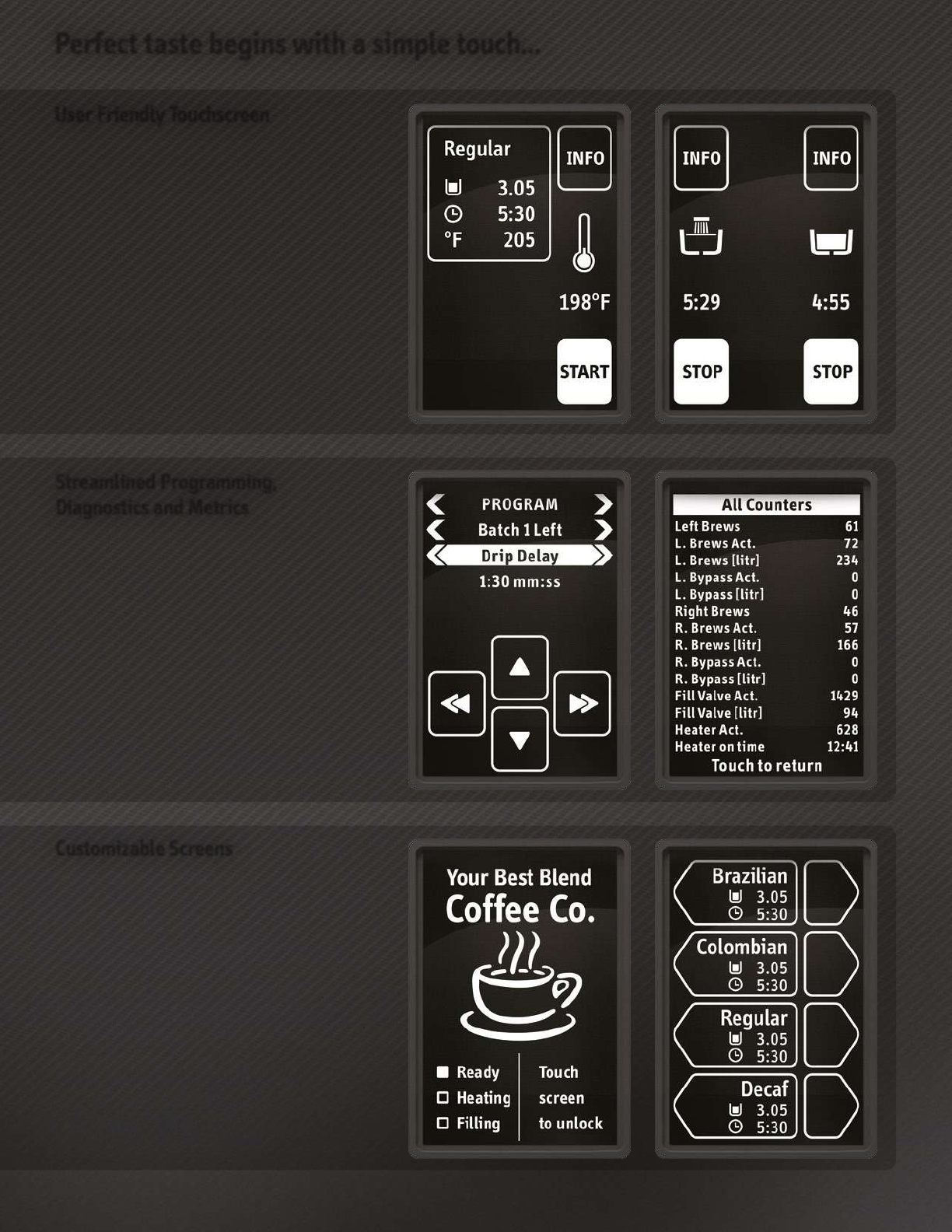

Access all controls via an inviting touchscreen interface
display that blends intuitive icons with dynamic time
and volume data to provide instant visual feedback
at any point during programming, diagnostics
or the brew cycle.
Customize the start screen to tie your equipment and
product offerings into a consistent brand message.
You can also create and display individual recipe
names for quick and easy access to your
most used coffee blends.
Perfect taste begins with a simple touch...
User Friendly Touchscreen
Customizable Screens
The Extractor® Touchscreen Operating System (ETOS)
was engineered for quick and efficient navigation
through set-up, programming, diagnostics and
daily operational brewing modes.
Streamlined Programming,
Diagnostics and Metrics
Driven by a user friendly touchscreen interface and intuitive
software, the XTS series represents the next step in the evolution
of FETCO’s renown EXTRACTOR brewing technology.

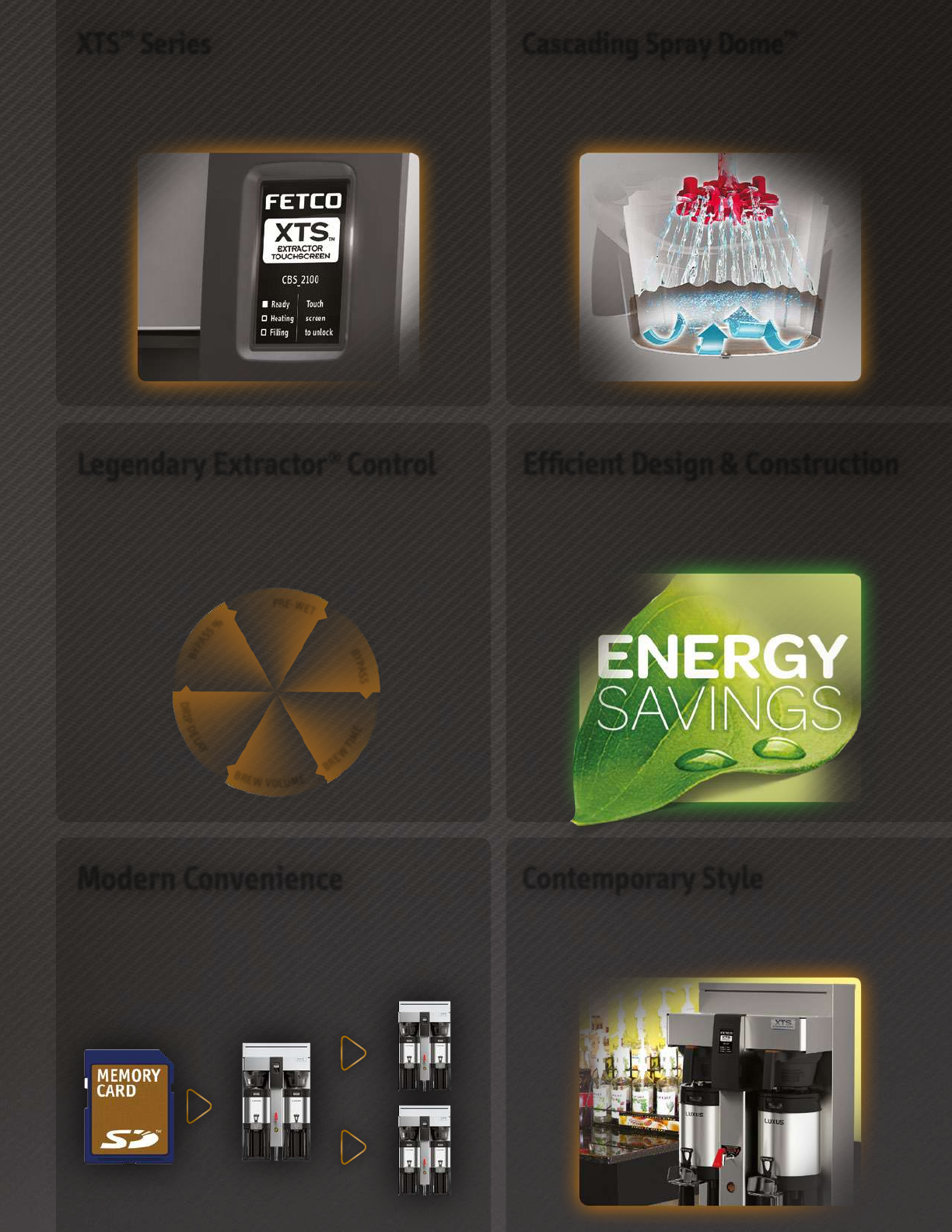

Legendary Extractor® Control
XTS™ Series
Duplicate profiles and parameters to and from any of the batch
buttons on a single machine or copy the information to
an unlimited number of brewers via a removable SD card
(sold separately).
Modern Convenience
Although designed specifically for smaller batch airpot dispensing,
these high quality brewers possess the legendary features and
reliable performance you’ve come to expect from Extractor®
branded products.
Cascading Spray Dome™
Hot tank water flows over clog-free channels built into the dome
and virtually eliminates spray head scale buildup – a leading
reason for service calls.
D
R
I
P
D
E
L
A
Y
P
R
E
-
W
E
T
B
R
E
W
T
I
M
E
B
Y
P
A
S
S
%
B
R
E
W
V
O
L
U
M
E
B
Y
P
A
S
S
Contemporary Style
Sleek European cabinet design is attractive and fits well in most front-
of-house decor typically found in coffee shops, lounges and cafes.
Efficient Design & Construction
FETCO equipment is designed and built to standards well above most
others on the market today and can deliver significant energy savings
when compared to similar competitor’s products.

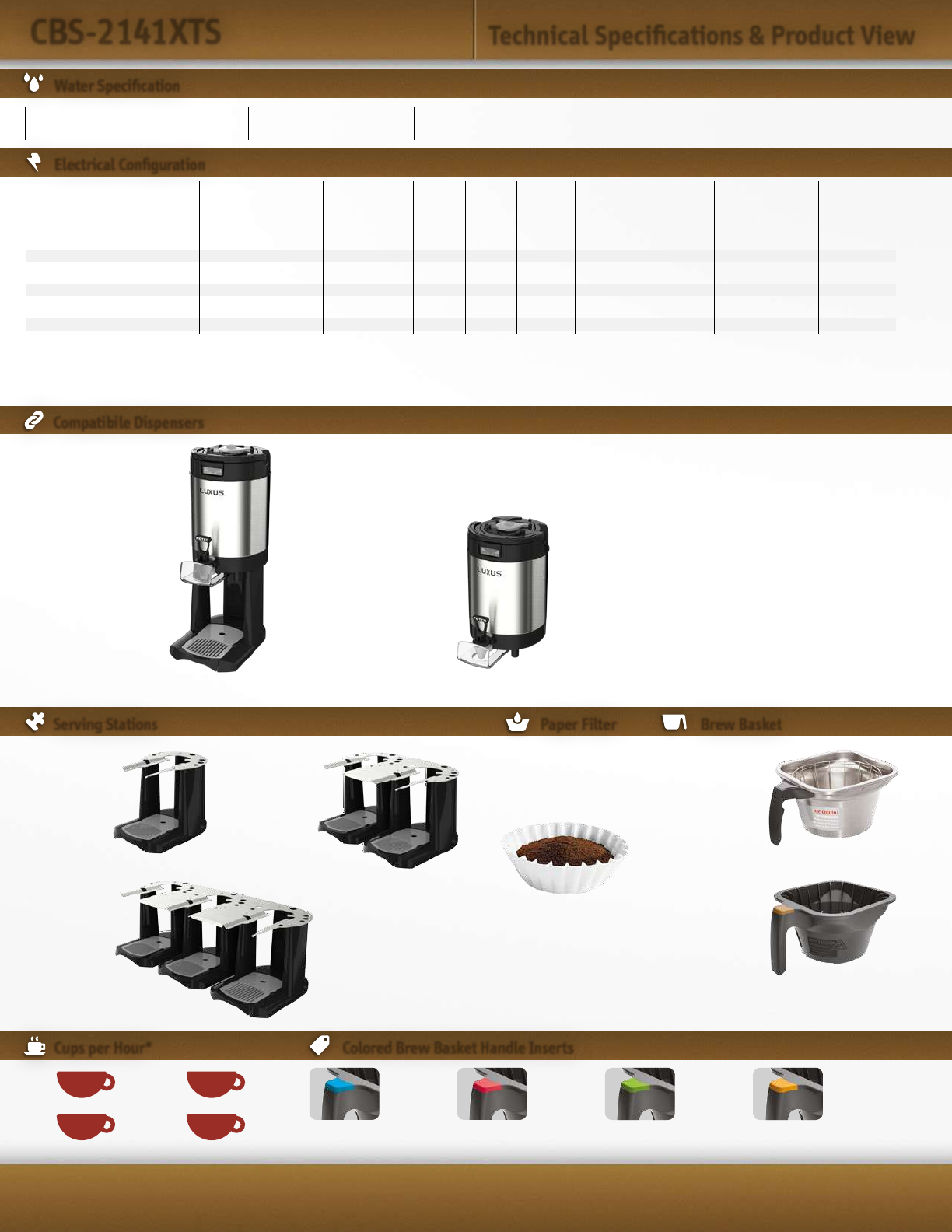

CBS-2141XTS Technical Specifications & Product View
Water Specification
Water Connection Inlet
3/8" Male Flare Fitting
Minimum Flow Rate
11/2 gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Electrical Configuration
Compatibile Dispensers
Paper Filter
#A147
S4S-10-1
#A148
S4S-10-2
#A149
S4S-10-3
Single Serving Station
for L4S-10 Server
Twin Serving Station
for L4S-10 Server
Triple Serving Station
for L4S-10 Server
#B003218B1
13" x 5"
#B014218BN2
13" x 5"
Stainless Steel
Brew Basket
Plastic Brew Basket
w/ Brown Insert
Serving Stations
#F002
13" x 5"
Standard Paper
Coffee Filter
* Approximate based on maximum power setting.
Cups per Hour*
8oz. 12oz.
16oz. 20oz.
184 123
92 74
* Must be used with S4S Serving Stations.
#D451
L4S-10
#D448
L4D-10
1.0 Gallon LUXUS®
Thermal Server*
1.0 Gallon LUXUS®
Thermal Dispenser
Product Dimensions
(HxWxD):
131/2" x 8" x 111/2"
[34.2 x 20.3 x 29.2 cm]
Weight (Empty / Filled)
5.6 lbs [2.5 kg] /
12.4 lbs [5.6 kg]
Product Dimensions
(HxWxD):
213/4" x 8" x 121/2"
[55.2 x 20.3 x 31.7 cm]
Weight (Empty / Filled)
8.0 lbs [3.6 kg] /
15.9 lbs [7.2 kg]
Brew Basket
(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 1 gallon per batch.
(2) Sold with factory cord & plug for 120 Volt configuration. Optional user connection to a terminal block requiring L1, L2, N and ground to 120/208-240 VAC. No airpot locator for this group . User selectable for optional, dual in-series heater configuration.
(3) Sold with factory cord & plug.
Configuration Code
UNIVERSAL VOLTAGE OPTIONS
E214171
Optional(2)
E214172
Optional(2)
E214173
Optional(2)
Heater Configuration
1 x 1.5 kW
2 x 1.5 kW
1 x 1.7 kW
2 x 1.7 kW
1 x 2.3 kW
2 x 2.3 kW
Voltage
120
120/208-240
120
120/208-240
120
120/208-240
Wires
2+G
3+G
2+G
3+G
2+G
3+G
Phase
1
1
1
1
1
1
Electrical Connection
NEMA 5-15P(3)
L1 / L2 / N+G
NEMA 5-15P(3)
L1 / L2 / N+G
NEMA 5-20P(3)
L1 / L2 / N+G
KW
1.6
3.1
1.8
3.5
2.4
4.7
Max Amp Draw
13.0
13.0
14.7
14.7
19.7
19.7
Gallon [Liter] / Hour
3.9 [14.8](1)
5.8 [22.0](1)
4.4 [16.7](1)
8.7 [33.0](1)
5.8 [22.0](1)
11.0 [41.6](1)
Blue:
1023.00180.00
Red:
1023.00190.00
Green:
1023.00191.00
Orange:
1023.00192.00
Colored Brew Basket Handle Inserts
Designs, materials, specifications, physical dimensions, firmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.

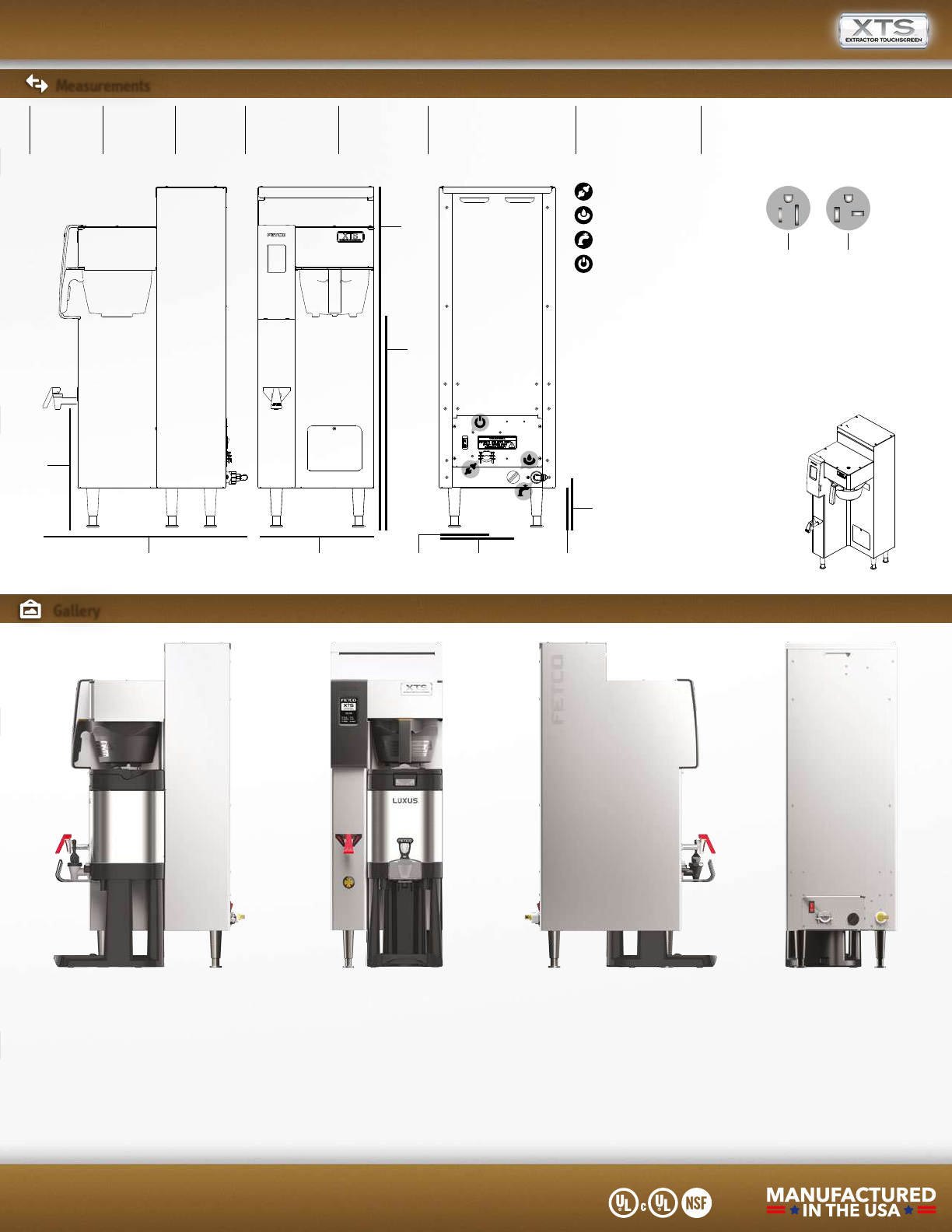

Measurements
Height
343/8"
[87.3 cm]
Width
113/4"
[29.8 cm]
Depth
203/8"
[51.8 cm]
Empty Weight
29 lbs
[13.2 kg]
Filled Weight
55 lbs
[25.0 kg]
Combined Filled Weight
66 lbs [30.0 kg]
BREWER + 1 FILLED L4D-10 DISPENSER
Hot Water Tank Cap.
3.3 gal
[12.5 l]
Shipping Weight:
41 lbs
[18.6 kg]
Shipping Dimensions:
35" x 17" x 22"
[89.0 x 43.2 x 55.9 cm]
34-3/8"
[87.3 cm]
5"
[12.7 cm]
12"
[30.6 cm]
11-3/4"
[29.8 cm]
20-3/8"
[51.8 cm]
3-31/32"
[10.7 cm]
4-13/16"
[12.2 cm]
7-1/2"
[19.0 cm]
21-3/8"
[54.3 cm]
34-3/8"
[87.3 cm]
5"
[12.7 cm]
12"
[30.6 cm]
11-3/4"
[29.8 cm]
20-3/8"
[51.8 cm]
3-31/32"
[10.7 cm]
4-13/16"
[12.2 cm]
7-1/2"
[19.0 cm]
21-3/8"
[54.3 cm]
G
W
NEMA
5-15P
NEMA
5-20P
W
G
NEMA
6-15P
G
NEMA
6-30P
G
Gallery
Electrical
Connector
Tank
Drain
Water
Inlet
On / Off
Switch
