The 1.5 Gallon CBS-2151 / 2152 XTS Touchscreen
Series Coffee Brewers provide fl exibility in medium-to-
large sized venues such as Banquet Halls, Cafeterias and
Restaurants. Simplify your daily operations and
experience total control of this fully featured Extractor®
Brewing System via an inviting touchscreen interface
display that is intuitive, easy to read and
simple to navigate.

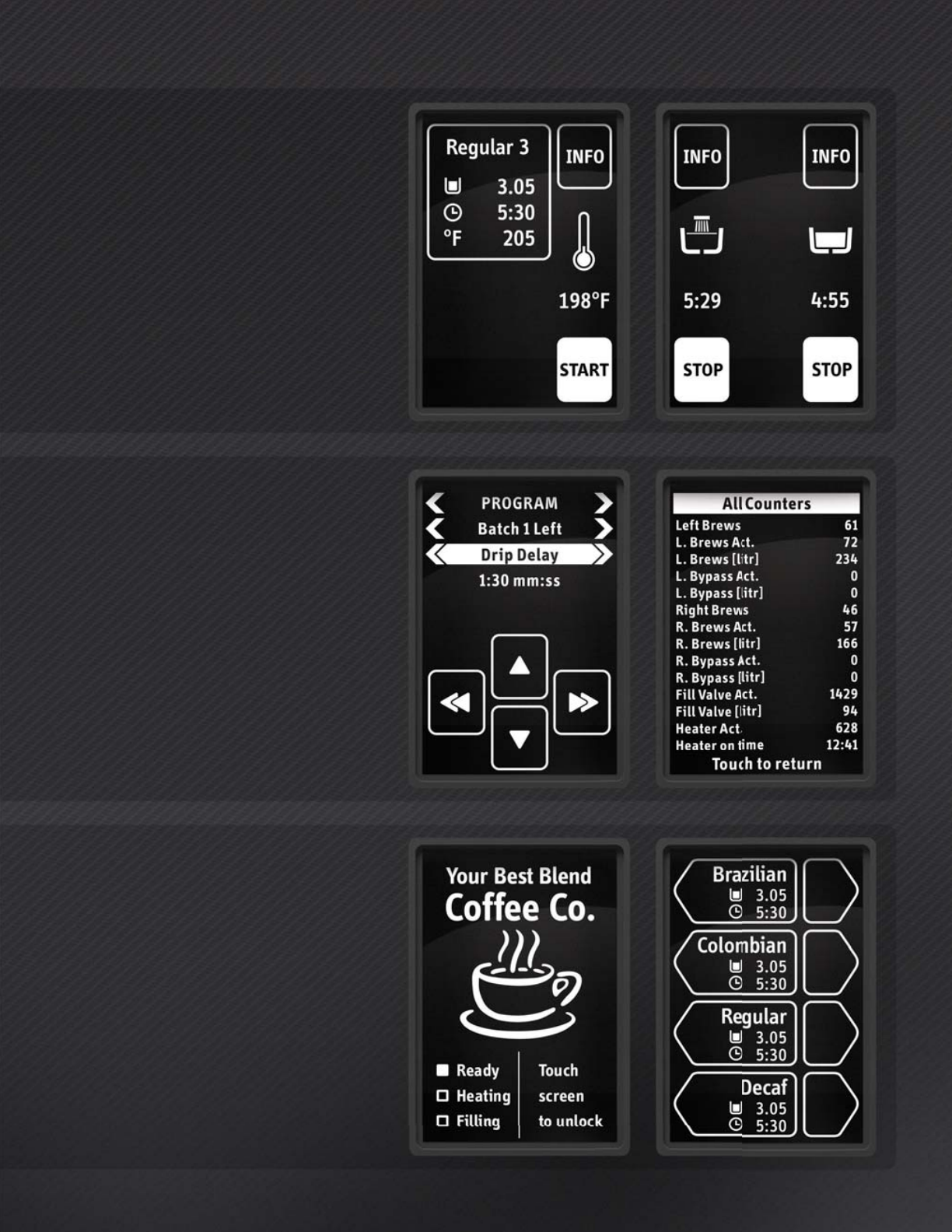

Access all controls via an inviting touchscreen
interface display that blends intuitive icons with
dynamic time and volume data to provide instant
visual feedback at any point during programming,
diagnostics or the brew cycle.
Customize the start screen to tie your equipment
and product offerings into a consistent brand
message. You can also create and display
individual recipe names for quick and easy
access to your most used coffee blends.
Perfect taste begins with a simple touch...
User Friendly Touchscreen
Customizable Screens
The Extractor® Touchscreen Operating System
(ETOS) was engineered for quick and effi cient
navigation through set-up, programming,
diagnostics and daily operational brewing modes.
Streamlined Programming,
Diagnostics and Metrics
LUXUS®
Thermal Dispenser
D
R
I
P
D
E
L
A
Y
P
R
E
-
W
E
T
B
R
E
W
T
I
M
E
B
Y
P
A
S
S
%
B
R
E
W
V
O
L
U
M
E
B
Y
P
A
S
S
Sleek European cabinet design is attractive and fi ts well in
most front-of-house decor typically found in coffee shops,
lounges and cafes.
Driven by a user friendly touchscreen interface and intuitive
software, the XTS series represents the next step in the
evolution of FETCO’s renown EXTRACTOR® brewing technology.
Legendary Extractor® Control Contemporary Design
XTS™ Series Cascading Spray Dome™
Duplicate profi les and parameters to and from any of the
batch buttons on a single machine or copy the information
to an unlimited number of brewers via a removable SD card
(Sold separately).
Modern Convenience
Take your coffee to its peak level by unlocking the full freshness,
aroma and fl avor of your taste profi le with the legendary
EXTRACTOR® brewing technology.
Luxus® Dispensing
The portable LUXUS® L3D Series
Thermal Servers and Dispensers
feature high-quality stainless-steel
vacuum liners for optimum retention
of heat, freshness and fl avor.
Hot tank water fl ows over clog-free channels built
into the dome and virtually eliminates spray head scale
buildup – a leading reason for service calls.

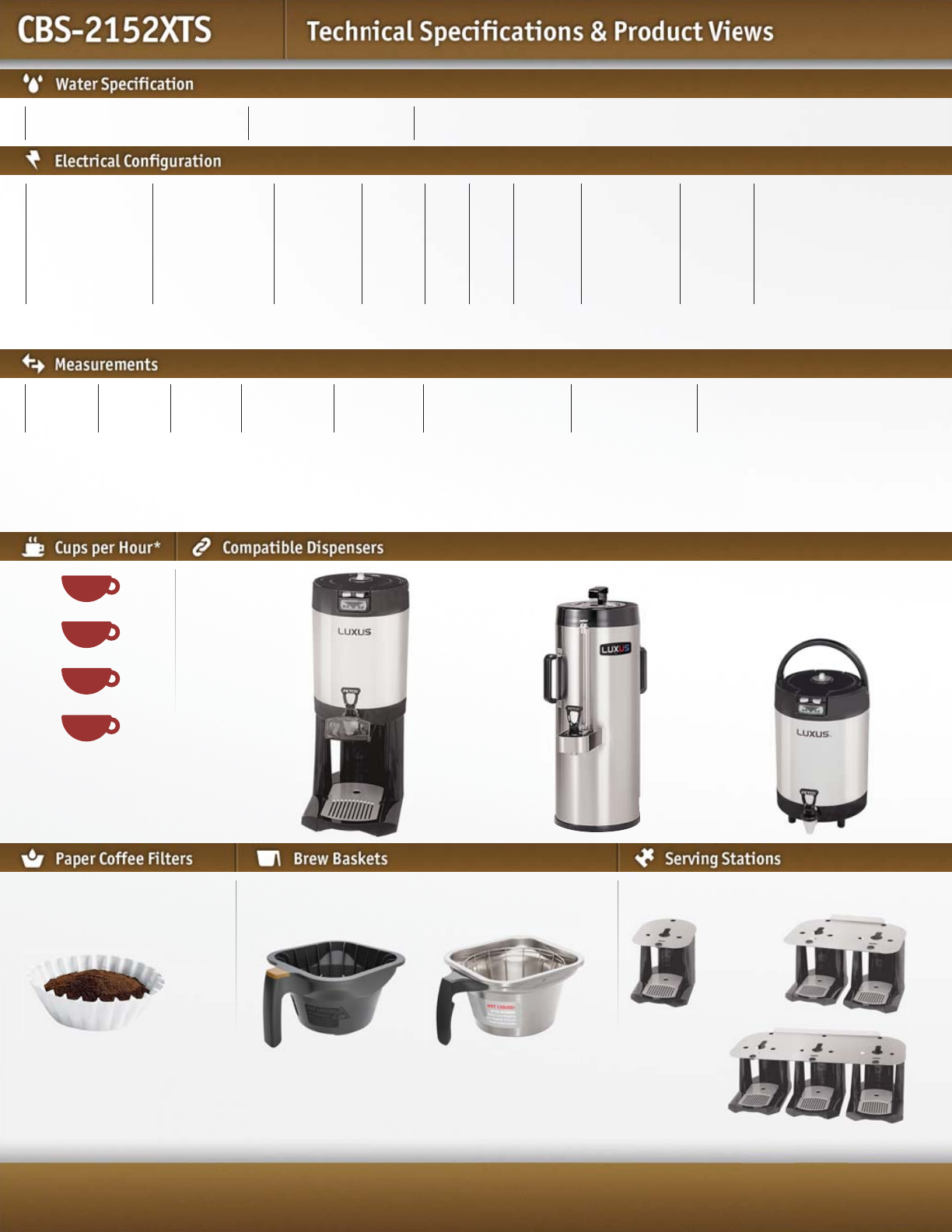

(1) Based on standard factory settings: 5.5 minute brew time; 0% prewet; 200°F water. 11/2 gallon per batch.
(2) 1 or 3 phase confi guration is fi eld selectable by user. Sold factory confi gured for single phase 2 wire plus ground.
Water Connection Inlet
3/8” Male Flare Fitting
Minimum Flow Rate
11/2 gpm [5.7 lpm]
Water Pressure
20-75 psig [138-517 kPa]
Height
363/4”
[93 cm]
Width
213/4”
[55 cm]
Depth
203/8”
[51 cm]
Empty Weight
77 lbs
[35 kg]
Filled Weight
174 lbs
[78 kg]
Combined Filled Weight
220 lbs [99 kg]
BREWER + 2 FILLED L3D-15 DISPENSERS
Hot Water Tank Cap.
11.5 gal
[43 l]
Shipping Weight:
90 lbs
[41 kg]
Shipping Dimensions:
22” x 27” x 35”
[55 x 68 x 88 cm]
* Approximate based on
maximum power setting.
8oz.
12oz.
16oz.
20oz.
614
410
307
246
#B001280B1
16” x 6”
Stainless Steel
#B015280BN2
16” x 6”
Plastic w/ Brown Insert
#F001
15” x 5.5”
Paper Coffee Filter
L3S-15
1.5 Gallon LUXUS®
Thermal Server*
L3D-15
1.5 Gallon LUXUS®
Thermal Dispenser
TPD-15
1.5 Gallon LUXUS®
Portable Thermal
Dispenser
Product DIMS:
Height: 141/2”
Width: 9”
Depth: 111/4”
Weight:
Empty: 7.2 lbs
Filled: 17.6 lbs
Product DIMS:
Height: 227/8”
Width: 9”
Depth: 223/4”
Weight:
Empty: 10.5 lbs
Filled: 22.4 lbs
Product DIMS:
Height: 227/8”
Width: 95/16”
Depth: 137/8”
Weight:
Empty: 12.8 lbs
Filled: 24.7 lbs
®
r
S
®
l
S3S-1 Single
Serving Station
S3S-3 Triple
Serving Station
S3S-2 Twin
Serving Station
* Must be used
with S3S Serving
Stations.
Plastic Brew Basket
Configuration Code
E215251
E215252
Heater
Configuration
2 x 3.0 kW
3 x 3.0 kW
2 x 5.0 kW
3 x 5.0 kW
Voltage
208-240
208-240
208-240
208-240
Wires
2+G
3+G
2+G
3+G
Phase
1(2)
3
1(2)
3
Electrical
Connection
Hardwired
Hardwired
Hardwired
Hardwired
KW
4.6-6.1
6.9-9.1
7.6-10.1
11.4-15.1
Max Amp
Draw
22.4-25.8
19.5-22.5
36.9-42.5
32.0-36.9
Gallon [Liter] /
Hour
11.5-15.5 [43.7-58.9](1)
17.4-23.0 [65.9-87.0](1)
19.3-25.7 [73.1-97.3](1)
29.0-38.4 [109.4-145.3](1)
Stainless Steel
Brew Basket
Configuration Code
E215251M
E215252M
Patents: 6,148,717 & 6,565,906 & 6,576,282. Other Patents pending.
Designs, materials, specifi cations, physical dimensions, fi rmware and software protocol for equipment or replacement parts are subject to review and change by FETCO without notice.

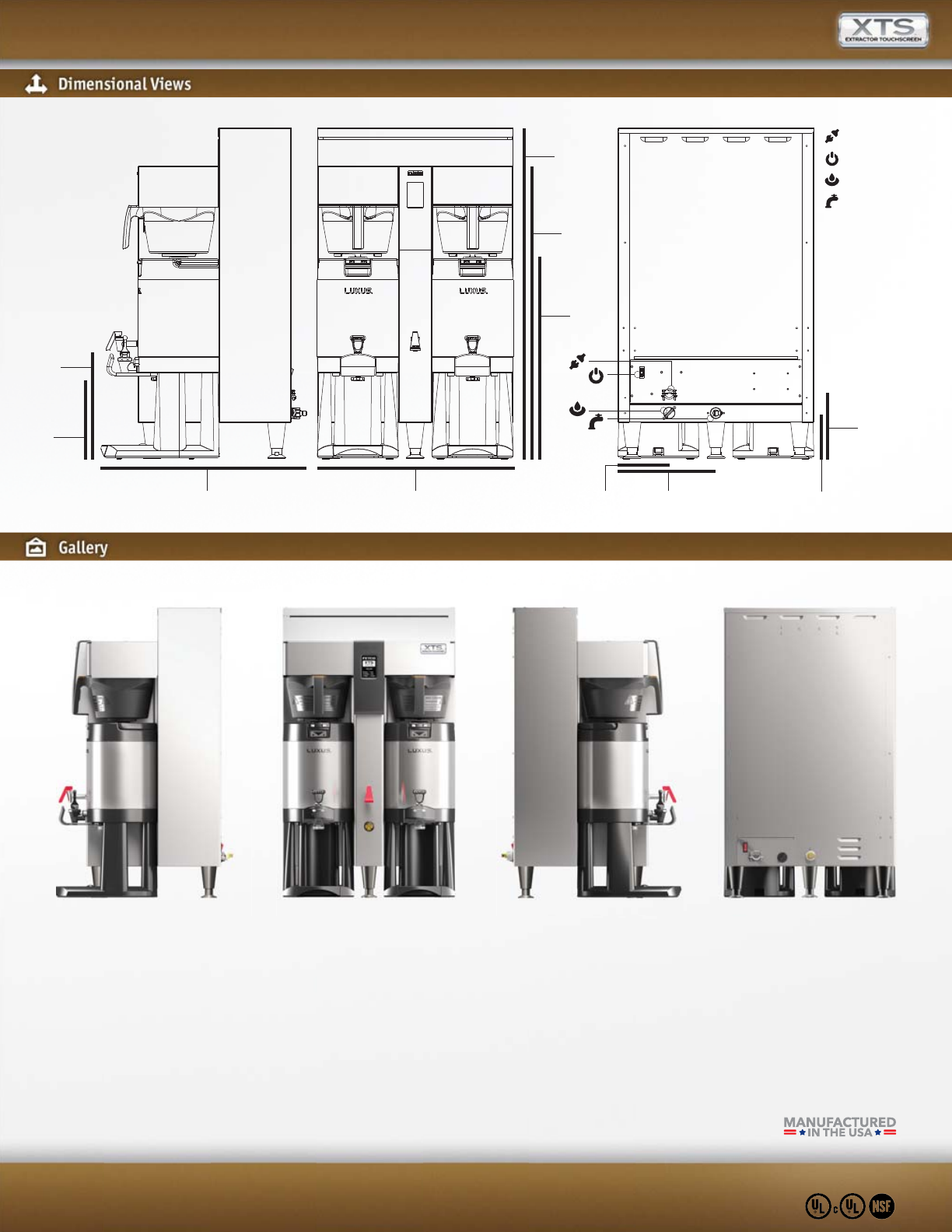

36-3/4”
[93.3 cm]
7-1/8”
[18.1 cm]
12”
[30.6 cm]
9-1/4”
[23.5 cm]
21-3/4”
[55.2 cm]
20-3/8”
[52 cm]
5”
[12.7 cm]
5-3/4”
[14.5 cm]
10-7/8”
[27.6 cm]
33-1/2”
[82.5 cm]
22-5/8”
[57.3 cm]
SYMBOLS
Electrical Connector
On / Off Switch
Tank Drain
Water Inlet

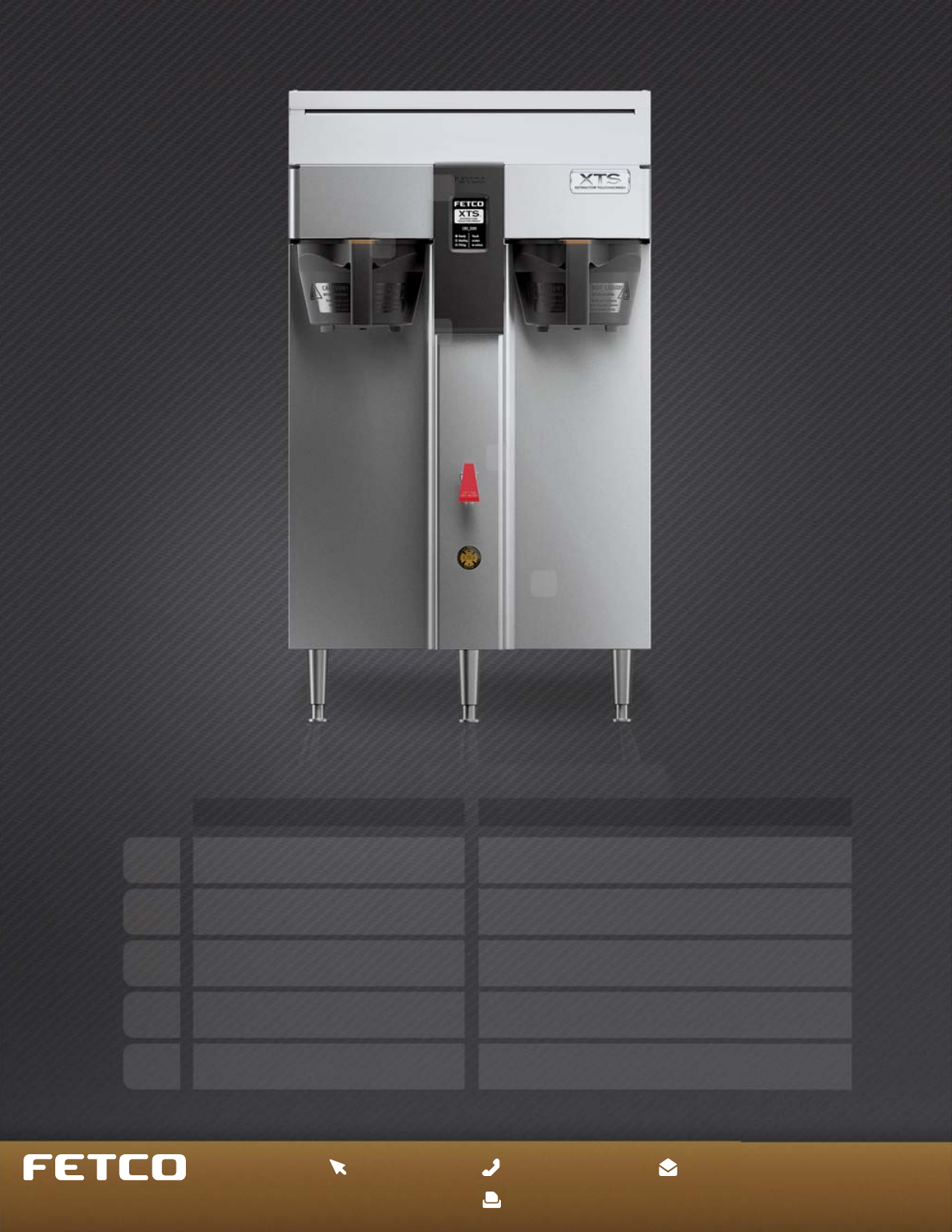

Features & Benefi ts
Feature
1
1
3
4
5
2
3
4
5
Allows for quick and easy access to brew controls.
Automatically discontinues operation of brew cycle
if basket is removed.
Mixed material is attractive and comfortable
in any front-of-house setting.
Safely dispenses hot water away from steam
and brew basket.
Withstands the harshest foodservice environments
and is durable and easy to clean.
Benefi t
Touchscreen Interface
Brew Basket Sensors
Mixed Material Construction
Manual Water Faucet
Stainless Steel Finish
2
Dispensers sold separately.
fetco.com 847.719.3000
1.800.338.2699 USA
847.719.3001
Food Equipment Technologies Co.
600 Rose Road
Lake Zurich, IL 60047
USA
© Copyright 2014 FETCO®, Driven to Innovation™
is a mark of Food Equipment Technologies Company. SS14006
