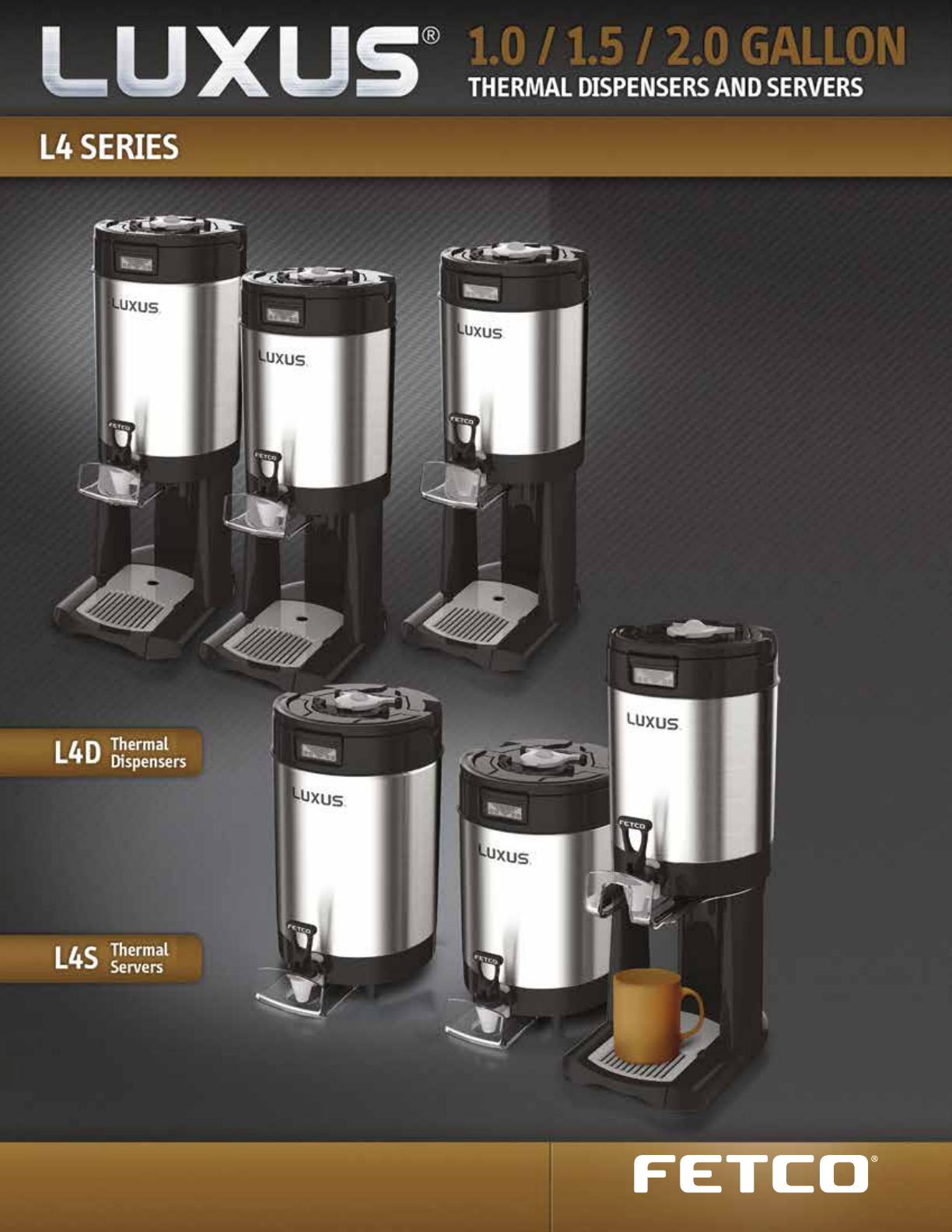

The L4 Series Thermal Dispenser and Servers

are designed to keep your coffee service hot,

fresh and portable. With the legendary

thermal retention properties you’d expect

from FETCO, the L4 is equipped with enhanced

features that now make it even easier for

operators to manage their daily coffee service.

Digital liquid-level monitoring and rugged

stainless construction make the L4 the perfect

self-serve choice for any foodservice

segment - Hotels, OCS, C-Stores,

Restaurants, Coffee Shops, Cafes, etc.

* Shown with #A093

Server Stand

(sold separately)

2.0 Gallon

2.0 Gallon

1.5 Gallon

1.5 Gallon

1.0 Gallon

1.0 Gallon

L4D Series LUXUS® Thermal Dispensers & Servers

The LUXUS® L4D Thermal Dispensers and Servers are designed to retain all the heat generated during

the brewing process with very little dissipation. In fact, FETCO thermal dispensers maintain the

suggested 180-185°F holding temperature for at least 4 hours and meet or exceed industry standards.

This patented technology eliminates the need for an additional heat source, thus saving energy

and equipment costs.

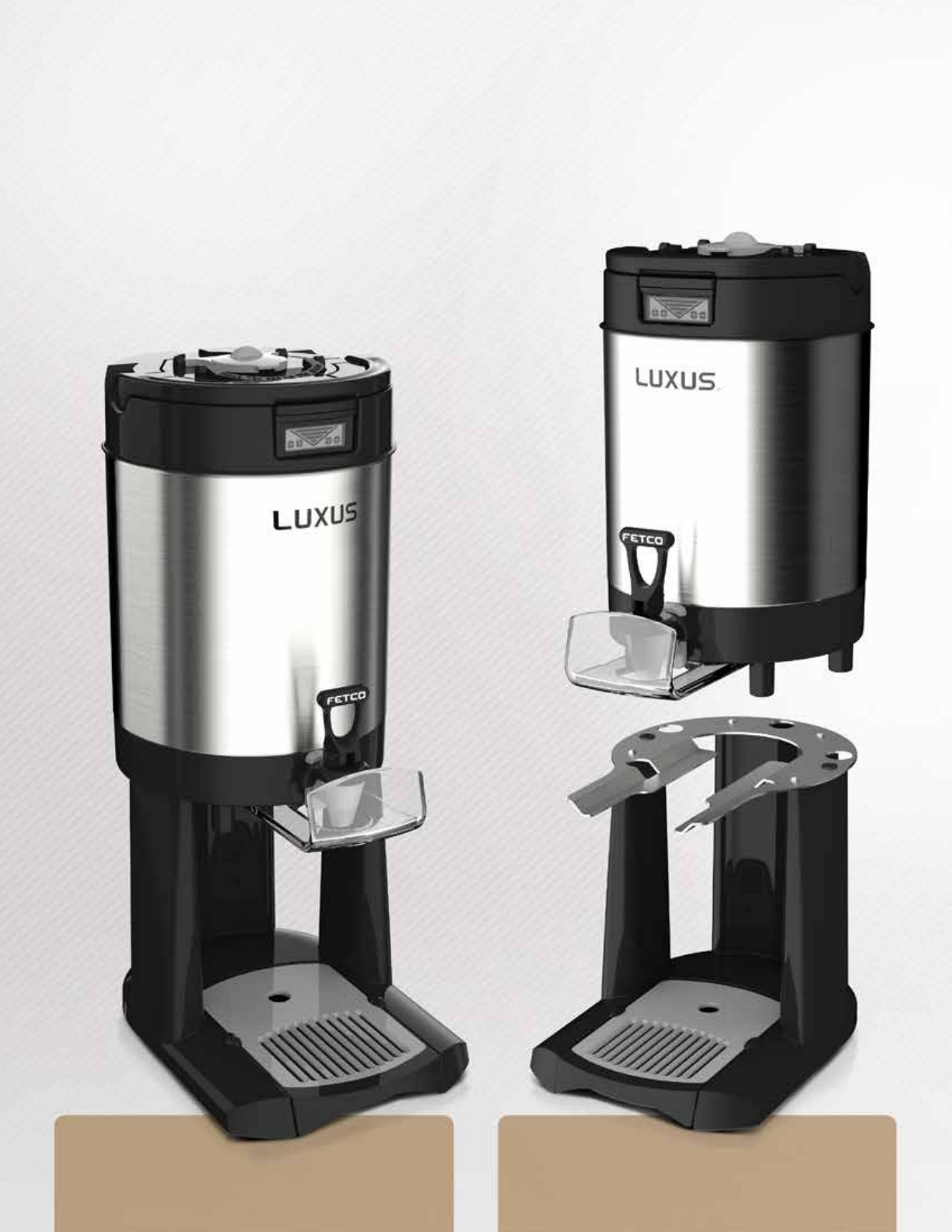

With integrated stand and removable drip tray. Shown with Serving Station with

removable drip tray (sold separately).

L4D Dispenser L4S Server

Example #1 Example #2

1 hour 15 mins. elapsed / 80% liquid remaining (represented by 4 filled bars) 2 hours 30 mins. elapsed / 20% liquid remaining (represented by 1 filled bar)

* NOTE: Time is reset when dispenser is emptied, removing funnel or when enough liquid

is added to increase volume by one level.

* NOTE: Time is reset when dispenser is emptied, removing funnel or when enough liquid

is added to increase volume by one level.

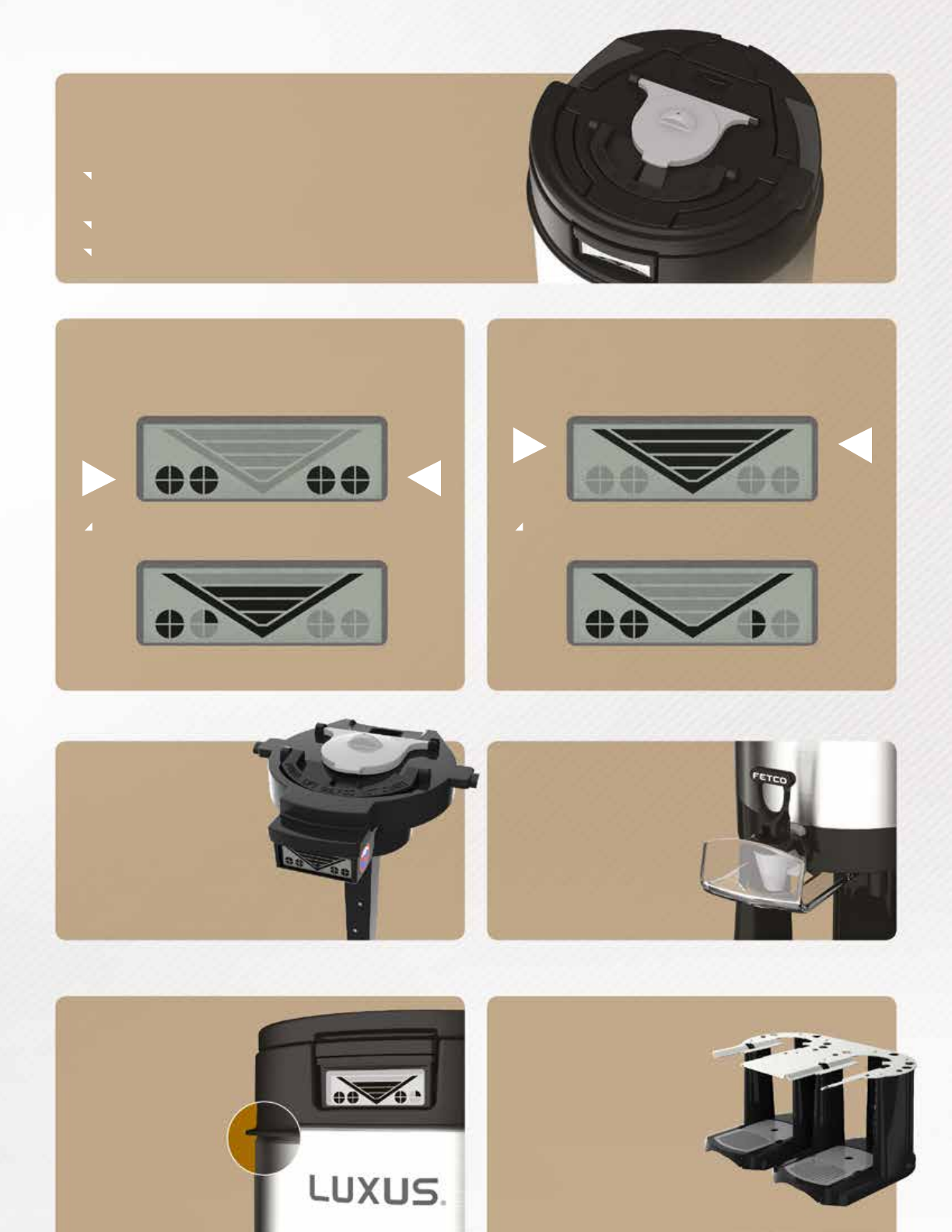

Key Features and Benefits

The integrated lid design features a removable funnel system,

pivoting brew cap and front-positioned handle.

Precision Fit Funnel Assembly keeps moisture and heat

from escaping to lock in freshness and aroma

Brew Cap mounted on lid exterior for easy access

Forward positioned handle for better maneuverability

Four pie-shaped visual indicators that represent how much

time (in 15 minute increments) has elapsed since filling.

Integrated Lid Design with Improved Functionality

Digital Freshness Timer

Digital visual indicator shows how much liquid remains with

a series of “V” shape bars representing 20% increments.

Digital Volume Indicator

Funnel enclosure helps provide

additional protection to circuit

board, internal battery and

display window. Features

built-in handle for quick

cleaning and maintenance.

Precise control of beverage

container filling. Transparent

polycarbonate faucet guard

keeps containers and cups

away from the spout to help

prevent cross contamination.

Pronounced ledge in molded

plastic cover helps prevent

graphic “wraps” from sliding

up the dispenser body

during handling.

Modular multi-station design in

1, 2 or 3 increments can create

a permanent or temporary beverage

service on any countertop,

meeting room, lobby or food line.

Funnel Construction Traditional Pull Faucet

Wrap Stabilizer Mullti-Face Serving Stations

(L4 Servers)

© Copyright 2017 FETCO® is a mark of Food Equipment Technologies Company.

#1071.00030.00 Orange Dispenser Faucet Replacement Handle*

#1071.00031.00 Green Dispenser Faucet Replacement Handle*

#1071.00032.00 Blue Dispenser Faucet Replacement Handle*

#1071.00040.00 Red Dispenser Faucet Replacement Handle*

#Z053 Rear Facing Positioned Digital Display

* Color choice must be specified at time of purchase for no charge

NOTE: Serving stations work for both L3 and L4 series servers.

Height

213/4"

[55.2 cm]

23"

Height

131/2"

[34.2 cm]

15"

Height

143/4"

[37.4 cm]

16"

Height

161/16"

[40.8 cm]

21"

Height

23"

[58.4 cm]

25"

Height

241/2"

[62.2 cm]

27"

Width

8"

[20.3 cm]

16"

Width

8"

[20.3 cm]

16"

Width

9"

[22.9 cm]

17"

Width

9"

[22.9 cm]

17"

Width

9"

[22.9 cm]

17"

Width

9"

[22.9 cm]

17"

Depth

121/2"

[31.7 cm]

13"

Depth

111/2"

[29.2 cm]

12"

Depth

121/2"

[31.7 cm]

13"

Depth

121/2"

[31.7 cm]

13"

Depth

131/4"

[33.6 cm]

13"

Depth

131/4"

[33.6 cm]

13"

Empty Weight

8.0 lbs

[3.6 kg]

12.0 lbs

Empty Weight

5.6 lbs

[2.5 kg]

9.0 lbs

Empty Weight

7.2 lbs

[3.3 kg]

10.0 lbs

Empty Weight

8.3 lbs

[3.3 kg]

12.0 lbs

Empty Weight

10.5 lbs

[4.8 kg]

14.0 lbs

Empty Weight

11.5 lbs

[4.8 kg]

16.0 lbs

Filled Weight

15.9 lbs

[7.2 kg]

–

Filled Weight

12.4 lbs

[5.6 kg]

–

Filled Weight

17.6 lbs

[8.0 kg]

–

Filled Weight

25.0 lbs

[8.0 kg]

–

Filled Weight

22.4 lbs

[10.2 kg]

–

Filled Weight

27.5 lbs

[10.2 kg]

–

Technical Specifications

Customize Your Dispenser

Information

#BR14094

fetco.com 847.719.3000

1.800.338.2699 USA

847.719.3001

Food Equipment Technologies Co.

600 Rose Road

Lake Zurich, IL 60047

USA

info@fetco.com

Serving Stations

1.5

GALLON

* Must be used with with "A" series Serving Stations.

D448 L4D-10 1.0 Gallon LUXUS® Thermal Dispenser D451 L4S-10 1.0 Gallon LUXUS® Thermal Server*

D452 L4S-15 1.5 Gallon LUXUS® Thermal Server*

D453 L4S-20 2.0 Gallon LUXUS® Thermal Server*

D449 L4D-15 1.5 Gallon LUXUS® Thermal Dispenser

D450 L4D-20 2.0 Gallon LUXUS® Thermal Dispenser

Product

Shipping

Product

Shipping

Product

Shipping

Product

Shipping

Product

Shipping

Product

Shipping

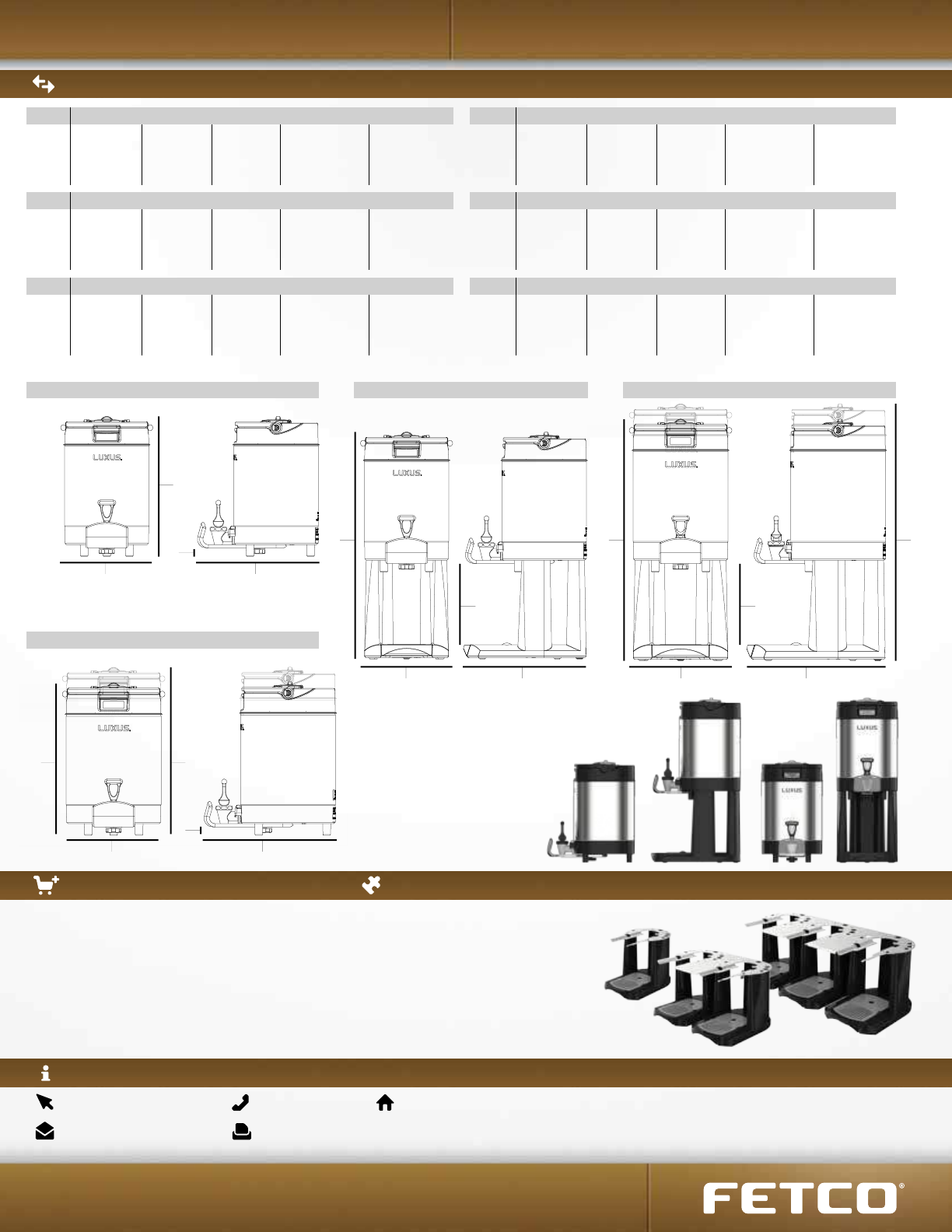

L4D Dispenser / L4S Server

13-1/2"

[34.2 cm]

13/16"

[2.0 cm]

7-23/32"

[19.6 cm]

24-1/2"

[62.2 cm]

L4D-20L4D-15

L4S-15 L4S-20

7-3/4"

[19.6 cm]

8"

[20.3 cm]

8"

[20.3 cm]

9"

[22.9 cm]

16-1/16"

[40.8 cm]

14-3/4"

[37.4 cm]

21-3/4"

[55.2 cm]

23"

[58.4 cm]

9"

[22.9 cm]

11-1/2"

[29.2 cm]

12-1/2"

[31.7 cm]

13-1/4"

[33.6 cm]

13/16"

[2.0 cm]

12-1/2"

[31.7 cm]

13-1/2"

[34.2 cm]

13/16"

[2.0 cm]

7-23/32"

[19.6 cm]

24-1/2"

[62.2 cm]

L4D-20L4D-15

L4S-15 L4S-20

7-3/4"

[19.6 cm]

8"

[20.3 cm]

8"

[20.3 cm]

9"

[22.9 cm]

16-1/16"

[40.8 cm]

14-3/4"

[37.4 cm]

21-3/4"

[55.2 cm]

23"

[58.4 cm]

9"

[22.9 cm]

11-1/2"

[29.2 cm]

12-1/2"

[31.7 cm]

13-1/4"

[33.6 cm]

13/16"

[2.0 cm]

12-1/2"

[31.7 cm]

13-1/2"

[34.2 cm]

13/16"

[2.0 cm]

7-23/32"

[19.6 cm]

24-1/2"

[62.2 cm]

L4D-20L4D-15

L4S-15 L4S-20

7-3/4"

[19.6 cm]

8"

[20.3 cm]

8"

[20.3 cm]

9"

[22.9 cm]

16-1/16"

[40.8 cm]

14-3/4"

[37.4 cm]

21-3/4"

[55.2 cm]

23"

[58.4 cm]

9"

[22.9 cm]

11-1/2"

[29.2 cm]

12-1/2"

[31.7 cm]

13-1/4"

[33.6 cm]

13/16"

[2.0 cm]

12-1/2"

[31.7 cm]

13-1/2"

[34.2 cm]

13/16"

[2.0 cm]

7-23/32"

[19.6 cm]

24-1/2"

[62.2 cm]

L4D-20L4D-15

L4S-15 L4S-20

7-3/4"

[19.6 cm]

8"

[20.3 cm]

8"

[20.3 cm]

9"

[22.9 cm]

16-1/16"

[40.8 cm]

14-3/4"

[37.4 cm]

21-3/4"

[55.2 cm]

23"

[58.4 cm]

9"

[22.9 cm]

11-1/2"

[29.2 cm]

12-1/2"

[31.7 cm]

13-1/4"

[33.6 cm]

13/16"

[2.0 cm]

12-1/2"

[31.7 cm]

L4S-10 L4D-10

L4S-15/20

L4D-15/20

Measurements

Serving Stations for L4S-10 Server

#A147 Single Face

#A148 Double Facing

#A149 Triple Facing

Serving Stations for L4S-15/L4S-20 Servers

#A150 Single Face

#A151 Double Facing

#A152 Triple Facing
