DISPOSER MOUNTING ASSEMBLIES

SPECIFICATIONS

GRIND CHAMBER - Corrosion Resistant Stainless Steel

MOUNTING - ¾" rubber mounting above grinding chamber isolates

sound and eliminates vibration. Mounting is enclosed in

chrome plated covers for sanitation and appearance.

MOTOR - 1 HP Induction Motor, 1725 RPM’s, totally enclosed to

provide protection against outside moisture. Controlled

power air flow cools motor for efficiency and longer life.

Built-in thermal overload protection.

CUTTING ELEMENTS - Stationary and rotating shredding elements made from

cast nickel chrome alloy for long life and corrosion

resistance, designed for reverse action grinding.

MAIN BEARINGS - Double-tapered Timken roller bearings provide a shock

absorbing cushion.

MOTOR SEALS - Triple lip seal protects motor from water damage.

Secondary spring-loaded oil seal provides double

protection against water and loss of grease.

FINISH - All Stainless Steel and Chrome plated. Paint-free for

lasting sanitation.

WARRANTY - 1 year full warranty from date of installation.

PROJECT: ITEM NO.:

A COMMERCIAL DISPOSER PACKAGE INCLUDES:

1 Mounting/Bowl Assembly, 1 Electrical Control, 1 Syphon Breaker, 1 Solenoid

Valve, and 1 Flow Control Valve. The standard Flow Control Valve will be sent with

the unit unless the optional valve is specified.

BASE DISPOSER/ELECTRICAL REQUIREMENTS

115 volts, 1 phase, 11.6 amps 208 volts, 3 phase, 2.2 amps

208 volts, 1 phase, 5.1 amps 230 volts, 3 phase, 3.0 amps

230 volts, 1 phase, 5.7 amps 460 volts, 3 phase, 1.5 amps

NOTE: All amp ratings denote the amp draw during a grind load.

Select Sink Bowl Assembly Size

12" with one adjustable water nozzle

15" with one adjustable water nozzle

18" with two adjustable water nozzles

Type A Sink Bowl

Assembly*

Type B Sink

Bowl Assembly*

Type C Sink

Bowl Assembly*

*If using Type A, B, or C, you must specify either a 12", 15" or 18" sink bowl.

WATER CONTROLS

Solenoid Valve Syphon Breaker

Flow Control Valve

Recommended Water Usage

Standard Optional

5 GPM 3 GPM

For additional information, see Commercial Product Information Binder.

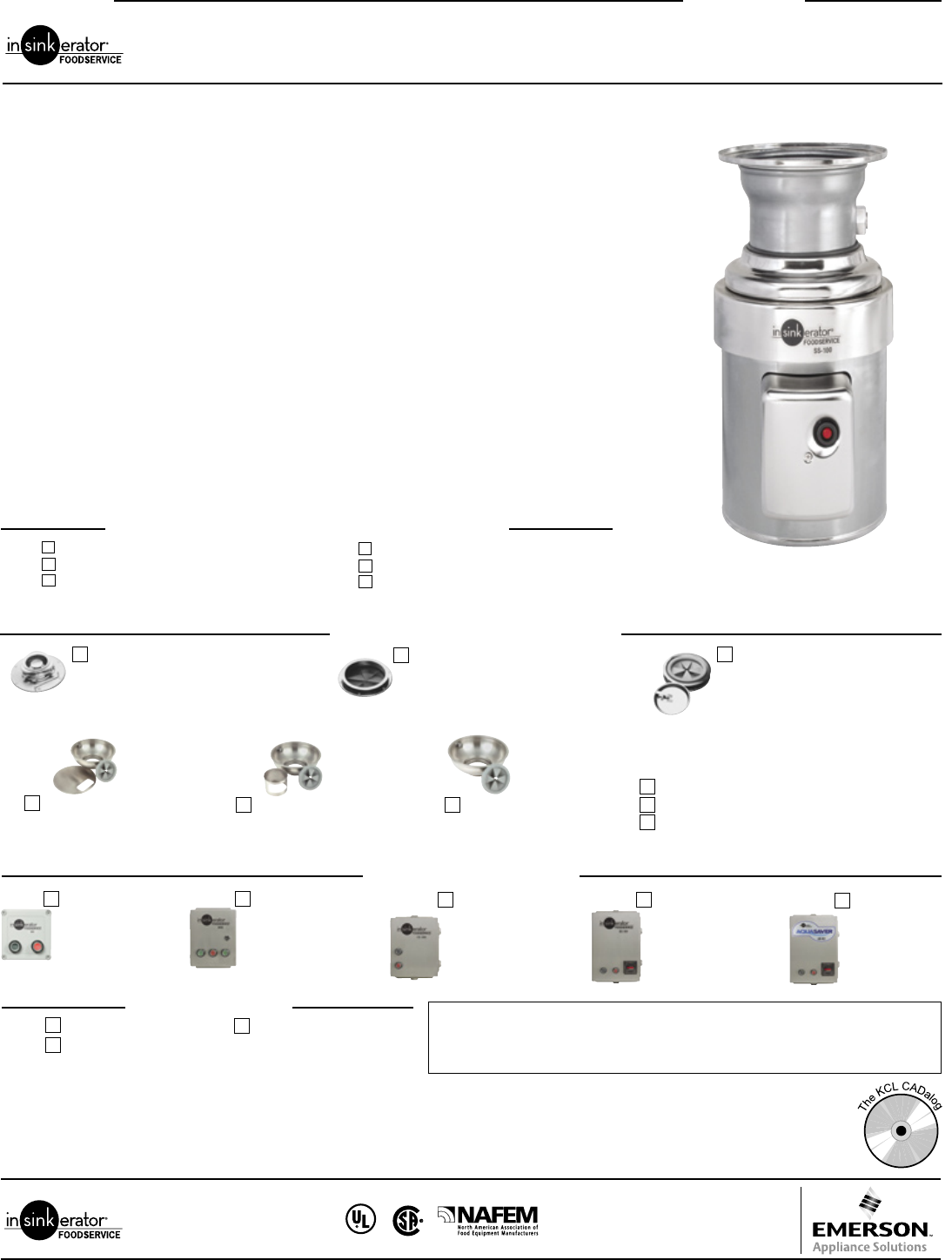

1 H.P. MODEL SS-100

1 H.P. heavy duty disposer is designed for continuous operation in

restaurants, hotels, hospitals and cafeterias. Food waste including

steak bones is quickly and efficiently removed with this labor-saving,

self-cleaning, environmentally sound disposer.

#6 Collar Adapter for

welding into trough,

provides 65/8" opening,

includes splash baffle

#7 Collar Adapter for welding

into sink, provides 65/8"

opening, includes splash baffle

and stopper

#5 Sink Flange Mounting

Assemblies for 3½" - 4" sink

opening

* Support legs are recommended for

this unit when using #5 mounting

ELECTRICAL CONTROLS

© InSinkErator Printed in USA Form No. F174-06E-19-02

InSinkErator is a division of Emerson Electric Co.

4700 21st STREET

RACINE, WI 53406

TEL: 800-845-8345

FAX: 262-554-3620

www.insinkerator.com

The Emerson logo is a trademark and a

service mark of Emerson Electric Co.

Our products appear on The KCL CADalog

CD-ROM based CAD Foodservice Symbol

Library. More information is available from

Kochman Consultants, Ltd. at www.kclcad.com.

Manual

Reverse

Switch

(Dual

Direction)

CC-202

Control

Center

(Auto-

Reversing)

CC-101

Control

Center

(Auto-

Reversing)

Manual

Switch

(Single

Direction)

AS-101

Control

Center

“Aqua Saver”

(Auto-

Reversing)

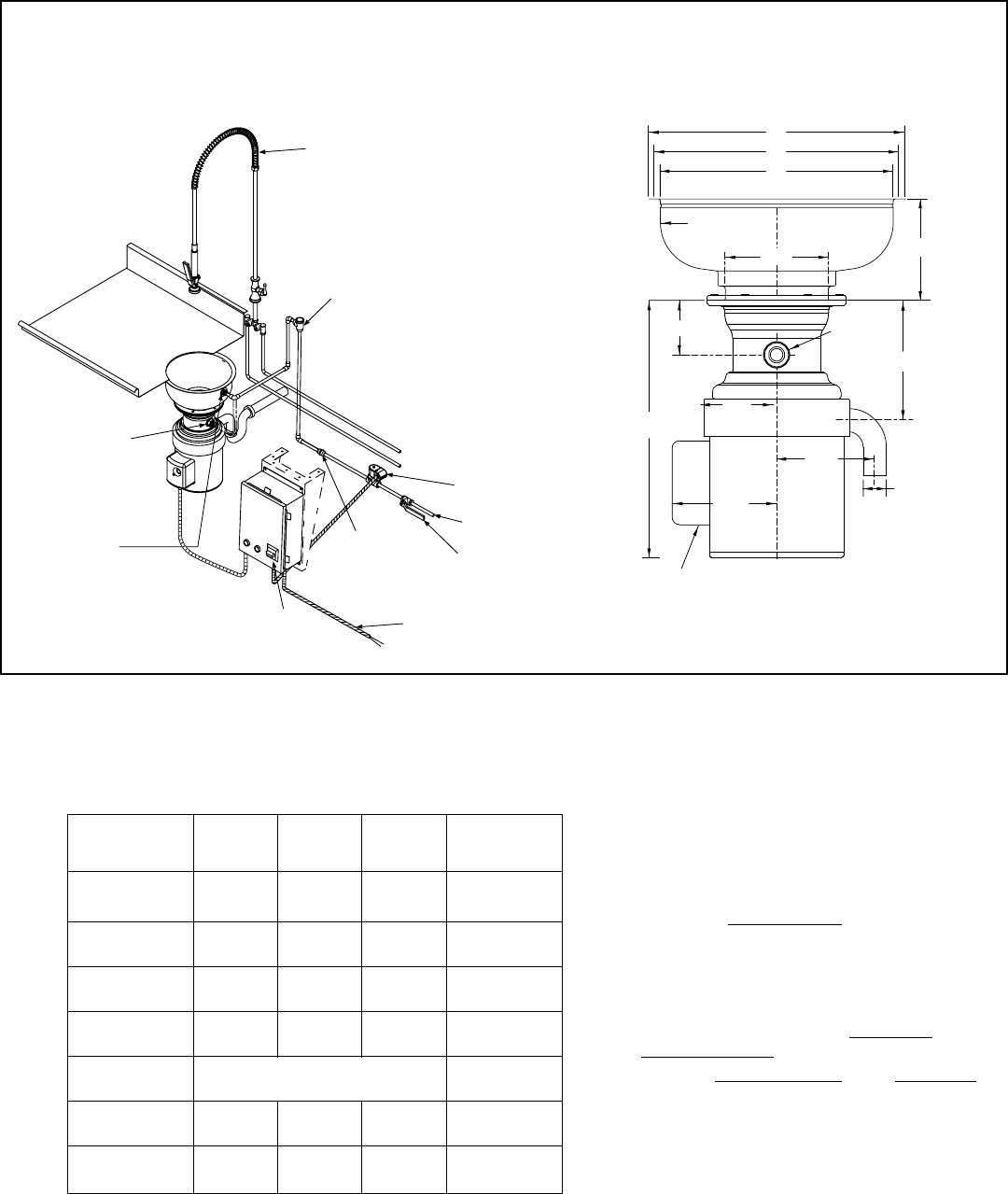

RECOMMENDED

INSTALLATION

MODEL SS-100

IMPORTANT: Use dimension chart below for adaptor height in

place of ISE bowl sink height when mounting directly to a sink.

SYPHON BREAKER

DISPOSER BODY

WATER INLET

(Optional Installation)

PRE-RINSE ASSEMBLY

(Optional Accessory)

WATER

NOZZLE

INLET

1 for 12" & 15" Sink Bowls

2 for 18" Sink Bowls

( )

SOLENOID

VALVE

FLOW

CONTROL

VALVEWATER

SHUTOFF VALVE

(Not Supplied)

ELECTRICAL

CONTROLS

(Start/Stop Switch)

COLD WATER

SUPPLY

INCOMING

ELECTRICAL

POWER

Z

Y

65/8"

X

613/16"

47/8"

63/8"

11/2"

33/8"

61/2"

711/16"

17"

EXTERNAL ELECTRICAL

CONNECTIONS

1/2-14 N.P.T.

WATER INLET

InSinkErator

BOWL SINK

NOTE:

• Adaptors are available upon request for all competitor sink bowls or cones.

• Please have sink bowl/cone type with the necessary dimensions when ordering adaptors.

BOWL

SINKS X Y Z HEIGHT

12" 13½" 12¼" 12" 6½"

15" 16½" 15¼" 15" 6½"

18" 19½" 18¼" 18" 6½"

ADAPTORS X Y Z HEIGHT

No. 5 2¾"

No. 6 713/16" 67/8" 65/8" 13/16"

No. 7 91/8" 77/8" 75/8" 21/16"

Fits Standard Sink

Opening — 3½" — 4"

DIMENSIONS

X — Flange O.D.

Y — Diameter of Work Table Hole

Z — Flange I.D.

1 H.P. COMMERCIAL DISPOSER

SAMPLE SPECIFICATION

ITEM NO. DISPOSER

Quantity: One required (1)

Manufacturer: InSinkErator Division,

Commercial Racine, WI

Model: SS-100-15B/CC101

Electrical Requirements: volts/

phase

Install in , Item .
