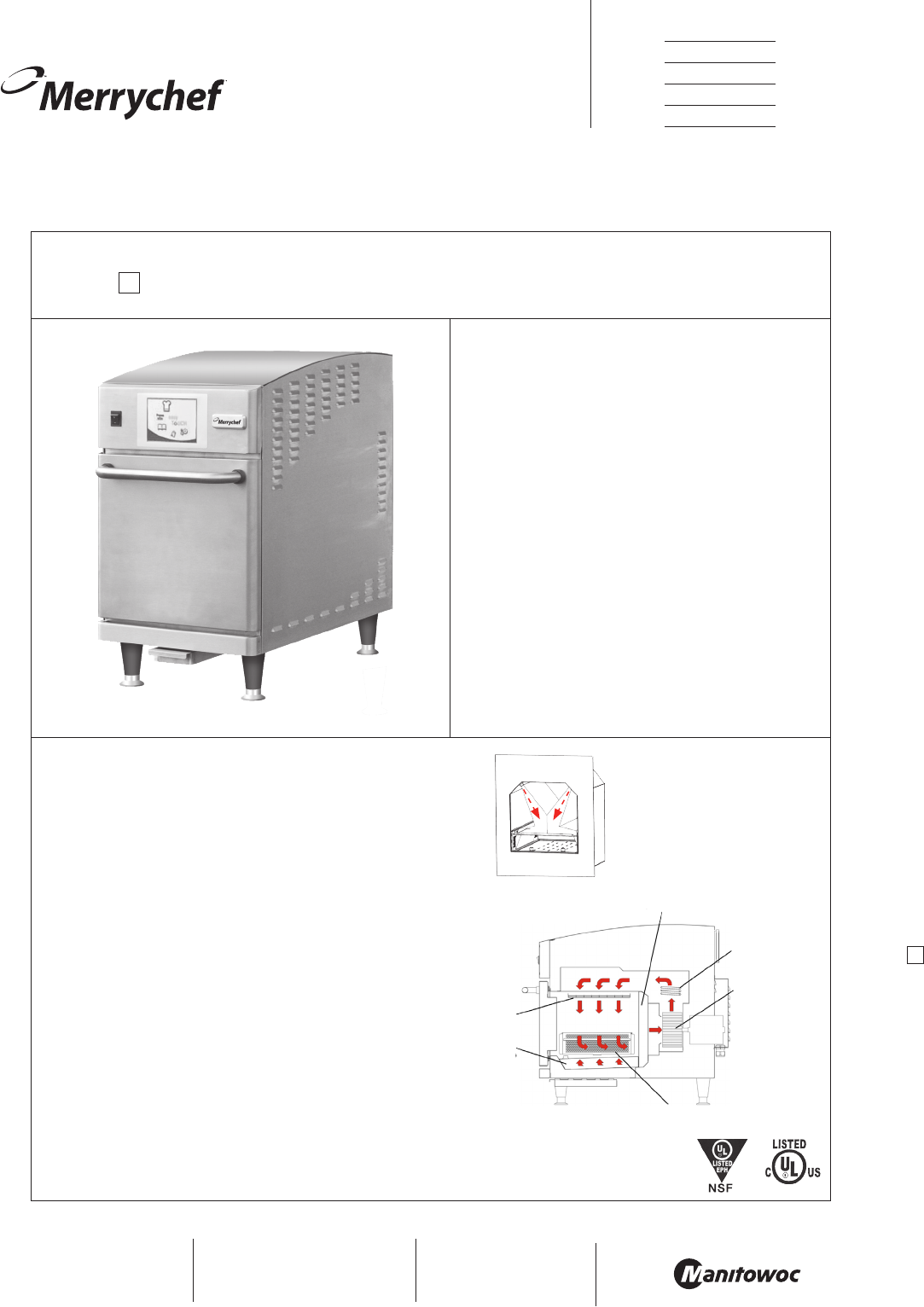

eikon™ e2

eikon™ e2

Model

e2

Model

Merrychef U.S.A

1111 N. Hadley Rd.

Ft. Wayne, IN 46804

Tel: 888.417.5462

Fax: 800.285-9511

E-Mail: info@merrychefusa.com

www.merrychefusa.com

e2

Specifications

Construction

•430 stainless steel casework and 304 stainless steel

interior cavity

•Easily removable and cleanable grease and cooling air filters

EasyToUCH™ Control Panel

•Icon driven, color touch screen control panel with

the capability of storing up to 1,024 multi-stage

recipe programs

•Each program offers up to six (6) stages with programmable

cooking times, microwave power settings and user

instructions for each stage

•Self diagnostics capability to monitor components

•Easy menu updates or data transfer via USB memory stick

•Multi-languages available

Standard Features

•Advanced Cooking Technology® with planar plume

and microwave technologies for faster, even heating

and browning

•“Ventless* Cooking” capabilities through built-in

catalytic converter with full protein capabilities

•Ability to use a standard metal baking pan while in

convection/microwave mode

•Automatic voltage detection (U.S. only)

•Up to ten (10) times faster than conventional

cooking methods

•Power management system keeps power below

18 amps

•Quiet operation - maximum noise level of 59 dBA in

idle mode

*Local codes prevail. These are the “authority having jurisdiction” as stated by

the National Fire Protection Association, Inc., in NFPA96-1994.

Project:

Item:

Quantity:

Approval:

Date:

Heating

Element

Convection

Fan

(Side view)

Planar

Plumes

Lower

Jet Plate

Grease Filter

Catalytic Converter

The e2 utilizes a new and patented

heat transfer method called “planar

plumes”. Heated air is directed into

planes which collide above the

food surface and are then drawn

around the food.

Merrychef U.S.A

1111 N. Hadley Rd.

Ft. Wayne, IN 46804

Tel: 888.417.5462

Fax: 800.285-9511

E-Mail: info@merrychefusa.com

www.merrychefusa.com

©2014 Merrychef U.S.A.

10/14

Overall Size

Height (on 4” legs) 27" 686 mm

Width 14.75” 375 mm

Depth (overall without handle) 31” 787 mm

Depth (door open 90 degrees) 40.25” 1022 mm

Weight 150 lbs. 68 kg

Oven Cavity Dimensions

Height 9.6” 244 mm

Width 9.6” 244 mm

Depth 12” 305 mm

Wall Clearance

Top 2” 50.8 mm

Sides 2” 50.8 mm

Electrical Specifications

Phase 1 ph

Voltage 208 / 240

Frequency 60Hz

Amperage Requirement 20 amp

Plug NEMA 6-20P

Cord Length 6’

Power Consumption 4015W/4460W

Power Output (Microwave) 1000W

Power Output (Heater) 2200W

Control System easyToUCH™, iconic symbol

touch screen control panel

Cooking Stages 6

Total Cooking Programs 600

Maximum Cooking Time 60 Min

Defrost No

Microwave Distribution System Rotating Active Antennae

Magnetron(s) 1

Display LCD Backlit

Interior Light No

Automatic Voltage Sensor Yes

USB & Menu Updates Software Yes

Temperature Range 212-527°F (100-275°C)

Temperature Increments 1°F

Air Filter Yes - Air & grease

Fan Speed 10%-100%

Fan Speed Increments 1%

Microwave Power 0-100%

Microwave Power Increments 1%

Rack Option No

Rack Positions 1

Turntable No

Stackable No

Warranty 1 year parts and labor

Accessories in Box

14.75”

(375 mm)

17.17”

(436 mm)

27.02”

(686 mm)

11.75”

(298 mm)

6.85”

(174 mm)

1.5”

(38 mm)

30.98”

(787 mm) 28.44”

(722 mm)

eikon™ e2 Model e2

This model is intended to operate as a stand alone unit

only and cannot be a component of an e2 Twin.

Specifications
