Faucets Splash Mount

: Coffee Splash Mount Faucets splash_mount_faucets images

Open the PDF directly: View PDF .
Page Count: 2

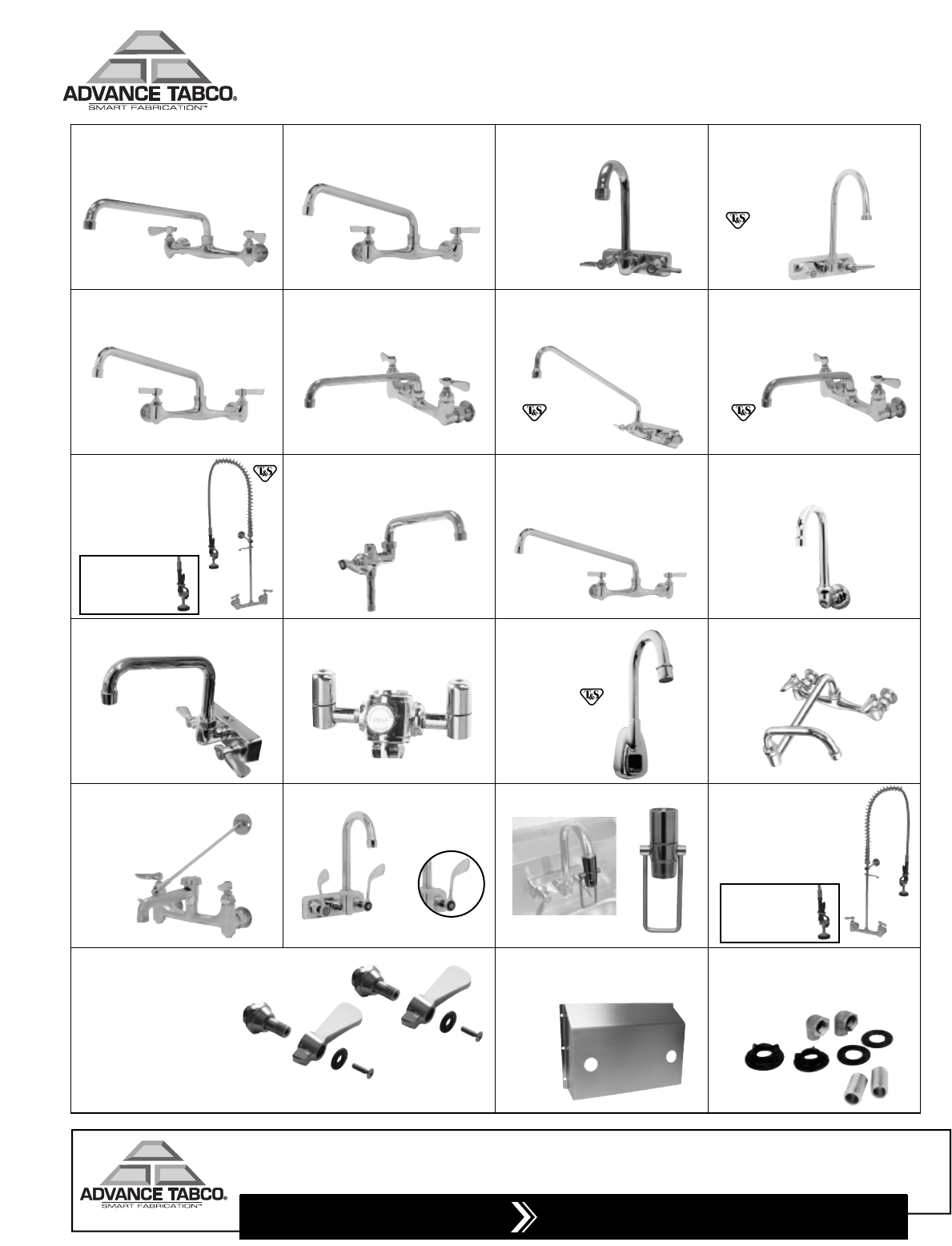

G-2

K-1

12” Swing Spout

8” Swing Spout

HEAVY DUTY

Pre-Rinse

Faucet (T&S)

16” Swing Spout

Hands-Free

Electronic

(T&S)

6” Extended Spout

Service Faucet Wrist handle Gooseneck Hands-Free Wand

Splash Mount Swivel

Gooseneck

12” Swing Spout

Add-A-Faucet

HEAVY DUTY

14” Swing Spout

HEAVY DUTY

14” Swing Spout (T&S)

HEAVY DUTY

12” Swing Spout (T&S)

14” Swing Spout 3-1/2” Gooseneck HEAVY DUTY

Gooseneck

K-11

K-101 K-111

K-59

K-123

HEAVY DUTY

Extra Long Faucet

K-211

K-400

K-69

K-105

K-316

Wrist Handles

Only

K-316-LU

K-240

SPLASH MOUNTED

FAUCETS

K-112

K-117

K-175

Battery Operated

K-176

Electric Operated

K-119 K-121

K-116

HEAVY DUTY

Pre-Rinse

Faucet

DTA-53

NEW YORK GEORGIA TEXAS NEVADA

(800) 645-3166 (800) 832-1218 (800) 527-0353 (800) 446-8684

Fax: (631) 242-6900 Fax: (770) 775-5625 Fax: (972) 932-4795 Fax: (775) 972-1578

1-800-498-6634 Fax: 631-586-2933

smartfab@advancetabco.com

For Assistance with

Smart Modifications & Accessories Call:

www.advancetabco.com

K-170

Eye Wash Attachment

K-114

Replacement Spray

Head & Handle

K-114

Replacement Spray

Head & Handle

Faucet Wall

Mounting Bracket

K-30

Faucet Mounting Kit

K-1, K-11, K-101, K-105,

K-112, K-119

& K-211

K-06

Repair Kit For

K-1, K-11, K-101,

K-112, K-119

& K-211

K-00

Repair Kit can only be used on

faucets purchased after 12/03

TOL ± .125” ALL DIMENSIONS ARE TYPICAL

SPLASH MOUNTED FAUCETS

Swing Spout Faucet Gooseneck Faucet

C

L

C

L

C

L

A

D

B

C

G-2a

DIMENSIONS and SPECIFICATIONS

200 Heartland Boulevard, Edgewood, NY 11717-8380

ADVANCE TABCO is constantly engaged in a program of

improving our products. Therefore, we reserve the right to

change specifications without prior notice.

© ADVANCE TABCO, JANUARY 2005

MODEL # A

LENGTH

Description B

HEIGHT

COn Center

Dimensions

K-00 Repair Kit For K-1, K-11, K-101, K-119 & 211 N/A N/A N/A N/A N/A

K-06

Faucet Mt. Kit for K-1, K-11, K-101, K-119 & K-211

N/A N/A N/A N/A N/A

K-1 12” Swing Spout Faucet 12” 5” 2 1/2” 14” 8” O.C.

K-11 14” Swing Spout Faucet 14” 5 1/2” 3” 16” 8” O.C.

K-59 3 1/2” Gooseneck Faucet 3 1/2” 8” 5” 6” 4” O.C.

K-69 Heavy Duty Gooseneck Faucet 4 3/8” 10 1/4” 6 3/4” 7” 4” O.C.

K-101 8” Swing Spout Faucet 8” 4 1/4” 2 1/4” 10” 8” O.C.

K-105 Heavy Duty 14” Swing Spout Faucet 14” 5” 3” 16” 8” O.C.

K-111 Heavy Duty 14” Swing Spout (T&S) Faucet 14” 8 1/4” 5 1/2” 16 1/2” 8” O.C.

K-112 Heavy Duty 12” Swing Spout Faucet 12” 5” 3” 14” 8” O.C.

K-116 Heavy Duty Pre-Rinse (T&S) Faucet 15” 34” 5” 34” 8” O.C.

K-117 Add-A-Faucet with 12” Spout Faucet 12” N/A N/A N/A N/A

K-119 16” Swing Spout Faucet 18” 16” 4” 18 1/2” 8” O.C.

K-121 Splash Mount Swivel Gooseneck Faucet 3 1/2” 11 7/8” 9 1/4” 5 3/4” Single Hole

K-123 6” Extended Spout Faucet 6” 5” 2 1/2” 8” 4” O.C.

K-170 Eye Wash Attachment (See Above Detail) N/A N/A N/A N/A N/A

K-175 Hands Free Battery Operated Faucet 4 1/2” 7” 3 3/4” 5 1/2” Single Hole

K-176 Hands Free Electric Operated Faucet 4 1/2” 7” 3 3/4” 5 1/2” Single Hole

K-211 Heavy Duty Extra Long Spout Faucet 18” 7 3/4” 5” 21” 8” O.C.

K-240 Service Faucet 6 1/2” 2 1/2” 1 3/8” 9” 8” O.C.

K-316 Wrist Handle Gooseneck Faucet 3 1/2” 8” 5” 6” 4” O.C.

K-400 Hands Free Wand N/A N/A N/A N/A N/A

DTA-53 Heavy Duty Pre-Rinse Faucet 15” 34” 5” 34” 8” O.C.

B

C

D

A

C

L

C

L

DIVERTER VALVE

ACTIVATE EYE WASH)

(PULL KNOB TO

3-1/4"

PULL

(83mm)

REMOVABLE

AERATOR

INCLUDES 3 ADAPTERS FOR ATTACHING

TO MOST COMMON FAUCETS

(38mm)

1-1/2"

SOLID STREAM

OUTLET HEAD

BRASS VALVE BODY

CHROME PLATED FORGED

THREAD ON INLET

55/64"-27 FEMALE

K-170 - Eye Wash Detail

D

N/A = Not Applicable T

o Faucet

ALL FAUCET AERATORS

CONFORM TO

ASTM.A112.18.1M

2.0 GPM/7.56 LPM

THREAD: 55/64 - 27 FEMALE

K-240 SERVICE FAUCET HAS

3/4” HOSE END SPOUT
