Cogent Systems FUSION Wireless WiFi User Manual Blackbird User s Guide
Cogent Systems Inc Wireless WiFi Blackbird User s Guide
User Manual
Cogent Systems
- 1 -
Instruction of Fusion
Cogent Systems
Cogent Systems
- 2 -
Table of Contents
1. Power On……………………………………………………………3
2. Log on the Fusion………………………………………………..4
3. Set Time……………………………………………………………..5
4. ‘Home’ Page…………………………………………………………7
4.1. Active Tasks……………………………………………………7
4.2 Settings…………………………………………………………7
4.2.1. GPRS……………………………………………………7
4.2.2. Set Time…………………………………………………8
4.2.3. User Manager……………………………………………8
4.2.4. Wifi………………………………………………………9
5. Other……………………………………………………………………9
5.1. System Info……………………………………………………..9
5.2. Terminal…………………………………………………………9
6. Cogent…………………………………………………………………10
6.1. Enroll……………………………………………………………10
6.1.1. Demographics…………………………………………..10
6.1.2. Fingerprints……………………………………………11
6.1.3. Photo……………………………………………………12
6.1.4. Iris Camera…………………………………………….13
6.2. Search Only…………………………………………………..14
7. GPS…………………………………………………………………...16
8. Power Control…………………………………………………………16
9. Battery…………………………………………………………………16
Cogent Systems
- 3 -
1. Power On

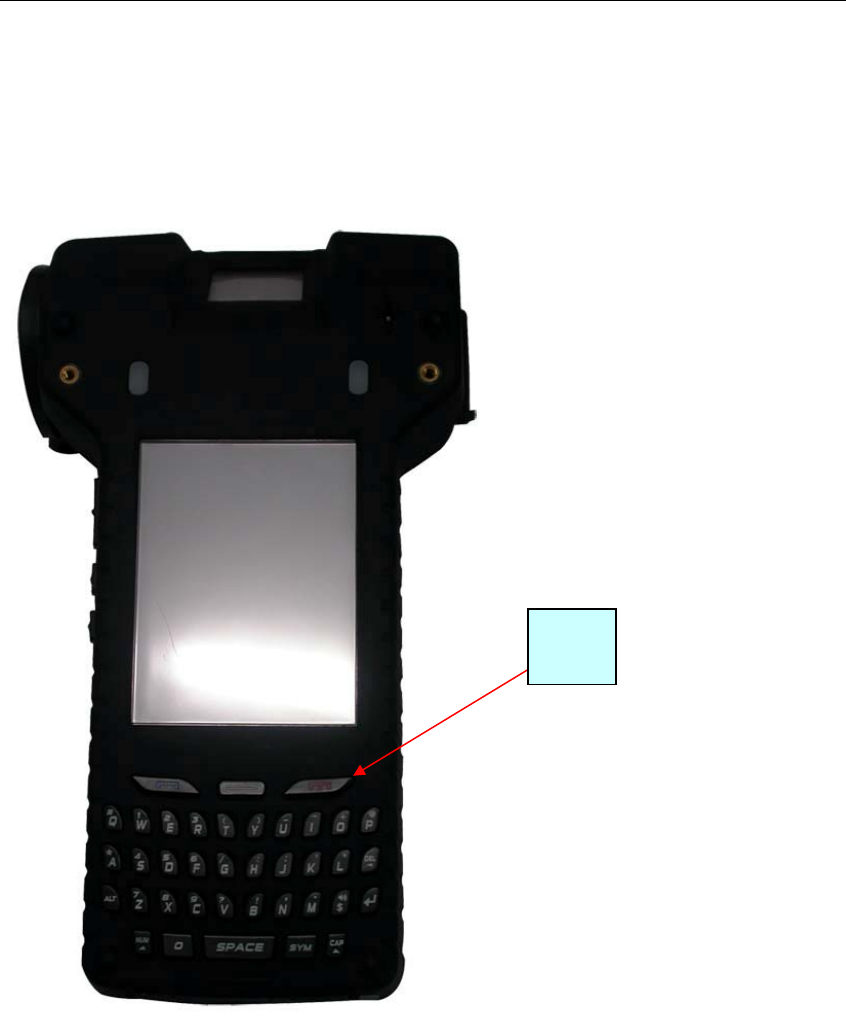

To turn on the device, press power button for 2-3 seconds, please refer to Figure-1; to
shut down the device, simply press the power button for 2-3 seconds again, a window as
Figure-2 will turn out to confirm your decision.
Figure –1
Power
Button
Cogent Systems
- 4 -
Figure-2
2. Log on the Fusion
In order to access the system, you must have a valid user name and password, as Figure-3
shown below. Administrators create user accounts using ‘User Manager’. For details,
please refer to 4.2.3. ‘User Manage’.
Figure-3
Cogent Systems
- 5 -

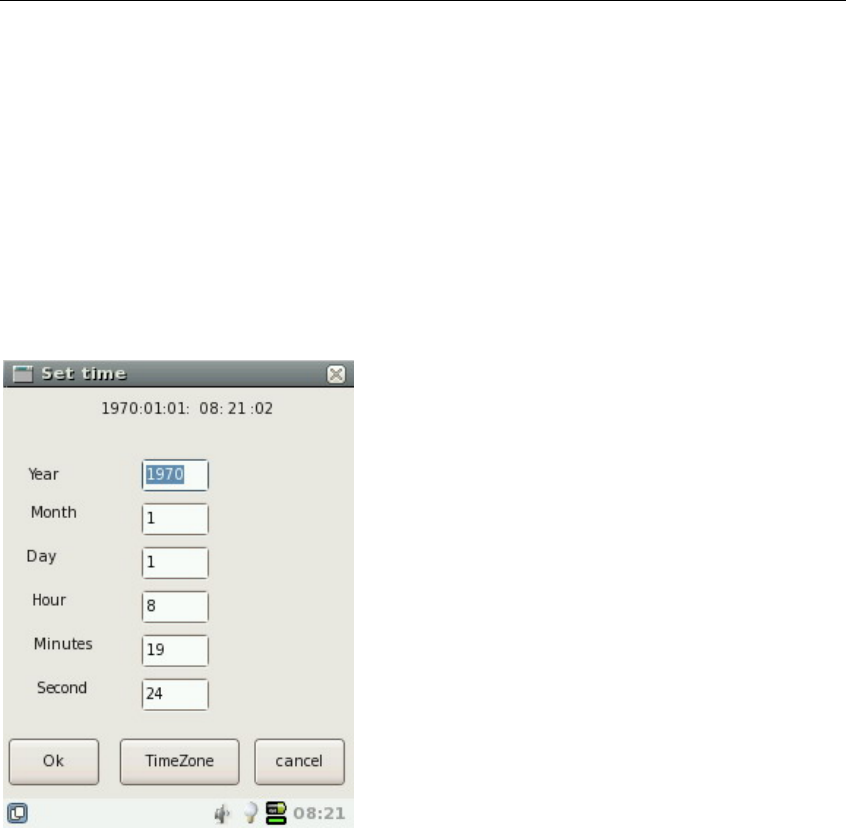

3. Set Time
The first time when you power on the device, it will ask you to set the time. Press the
shift button ‘NUM’ to enter the year, month, day and son on. Press the ‘____’ button to
set TimeZone (Figure-4). Use up-down button to select your location, press ‘Enter’ to
select your country, state or city. Press ‘OK’ to save your setting. Then you will enter the
main page ‘Home’. You will not be asked to set time when you turn on the device next
time, since your first setting is saved as default, and you will enter the ‘Home’ window
directly.
Figure-4
Cogent Systems
- 6 -

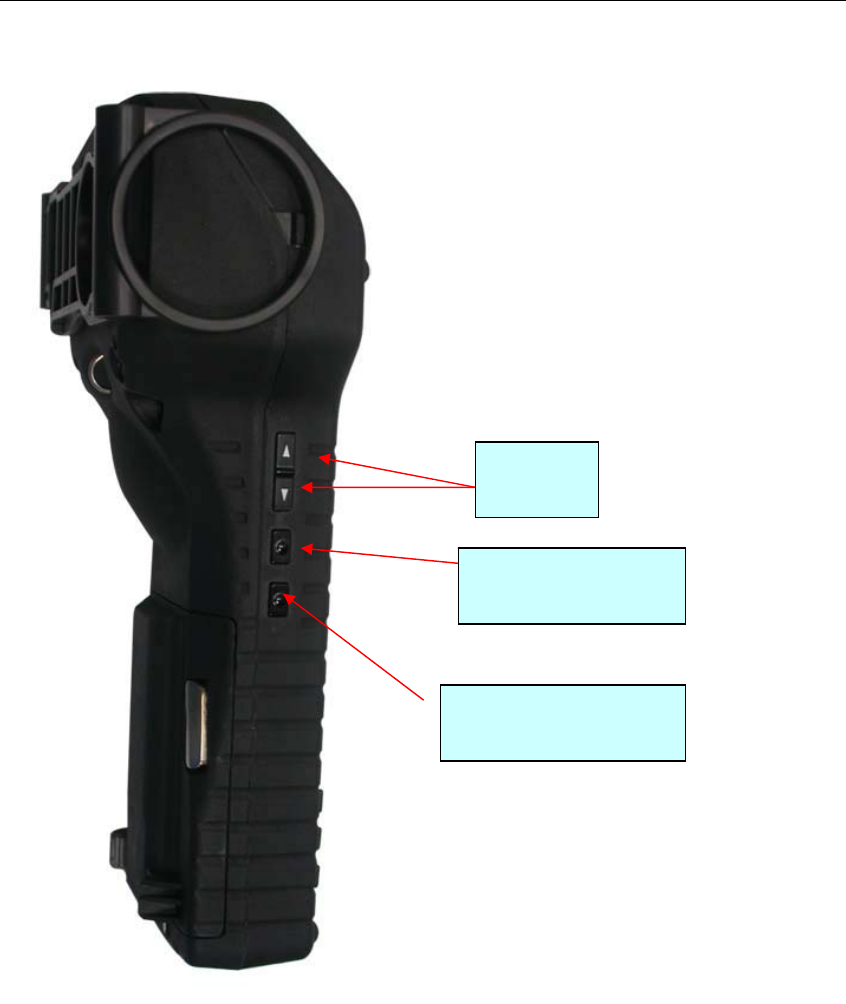

Figure-5
Up-down
Button
Functional button, same
as enter
Functional button, same
as cancel
Cogent Systems
- 7 -

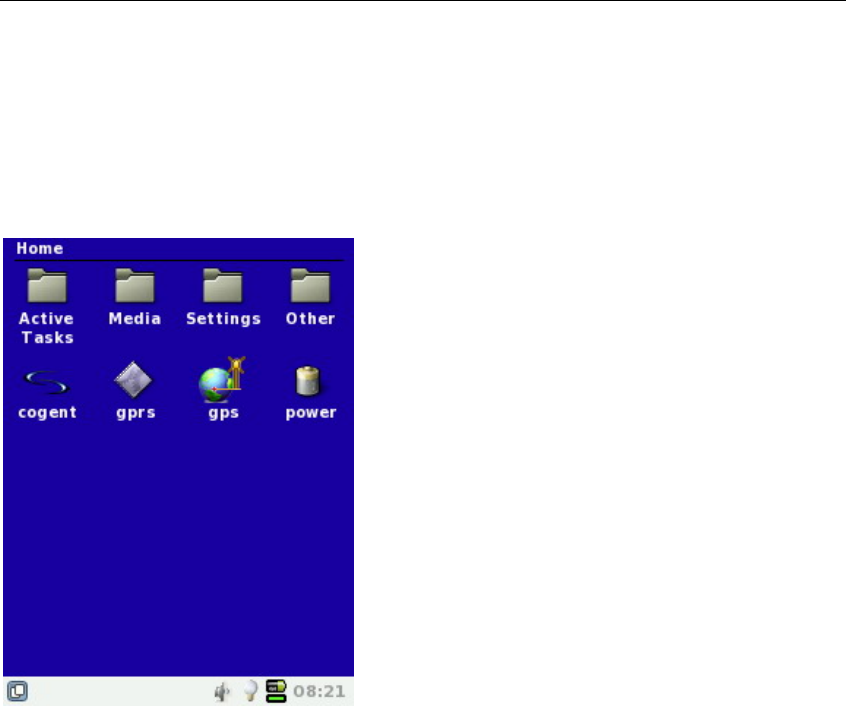

4. ‘Home’ Page
This is the main page of Fusion, all function icons of Fusion are displayed in this page.
4.1. Active Tasks
Select and enter ‘Active Tasks’ in the ‘Home’ page. It is use to check the processing
assignment of the device (Figure-6)
Figure-6
4.2 Settings

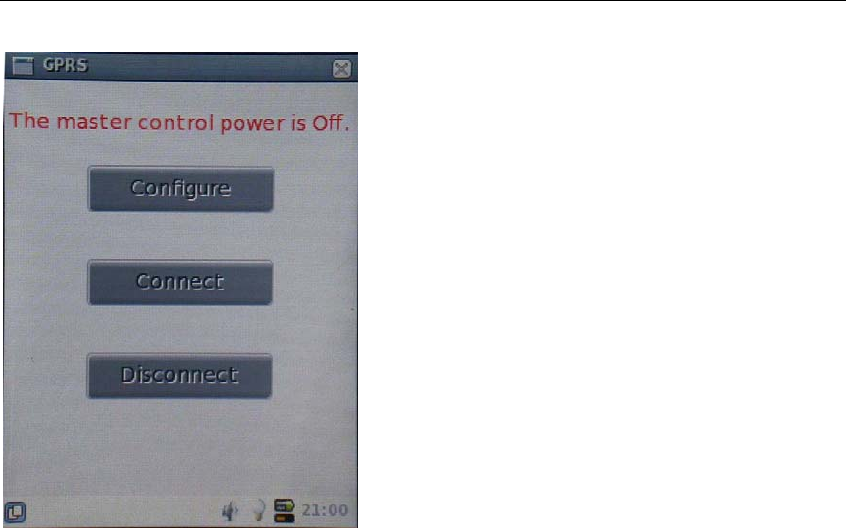

4.2.1. GPRS
Select ‘GPRS’. ‘Configure’ is the configuration of GPRS. Select ‘Connect’ to connect the
GPRS. Select ‘Disconnect’ to disconnect GPRS (Figure-7).
Note: GPRS, Wi-Fi and Bluetooth cannot work together. When scan fingerprint, face
image and iris, GPRS, Wi-Fi and Bluetooth cannot work either.
Cogent Systems
- 8 -
Figure-7
4.2.2. Set Time
Make the ‘Set Time’ icon to be selected, press enter to enter into it. It is use to set the
time of the device. Press the conversional function button ‘NUM’ to set your time, press
the ‘____’ button to set TimeZone. Use up-down button to select your location, press
‘Enter’ to select your country, state or city. Press ‘OK’ to save your setting. Press ‘Cancel’
back to ‘Settings’.

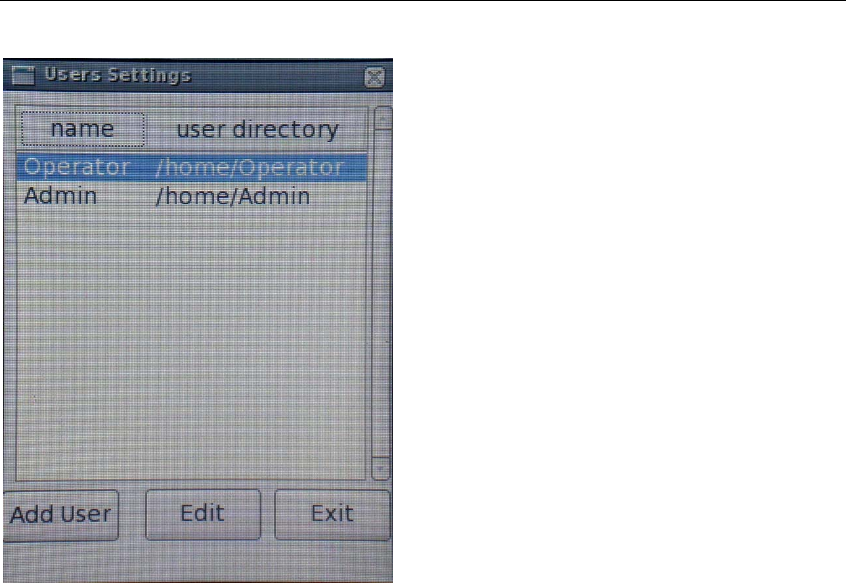

4.2.3. User Manager
Use up-down button to select and enter into ‘User Manager’. From here you can add user
of the device. To quit this window, make the dashed square in the red cross and press
enter or ‘____’ button (Figure-8).
Cogent Systems
- 9 -
Figure-8
4.2.4. Wifi
Use up-down button to select and enter into ‘Wifi’. Press ‘On’ button to turn on the Wifi
and search the router. After searching, a list of searched router will display. ‘ENCRYPT’
shows whether the router is encrypted or not. Use up-down button to select router, press
‘Select’ to enter into the router. Press ‘Connect’ to connect the router. Then the link
information will be displayed. Press ‘Exit’ back to Wifi window. Press ‘Exit’ back to
‘Settings’.
5. Other
5.1. System Info
It is use to check the system information of the device. Make the ‘System Info’ to be
selected. Press enter to enter it. In this window, you can check the system, hardware,
battery and storage information. Press conversional function button ‘NUM’ to make the
up-down button has left-right function. Use the up-down button to check the system
information you wish to know. Press ‘____’ button to close the window and go back to
the ‘Other’ window.
5.2. Terminal
Use up-down button to select and enter into ‘Terminal’ to enter commands. Enter ‘exit’
back to ‘Other’ window. Select ‘Back’ back to ‘Home’ window.
Cogent Systems
- 10 -

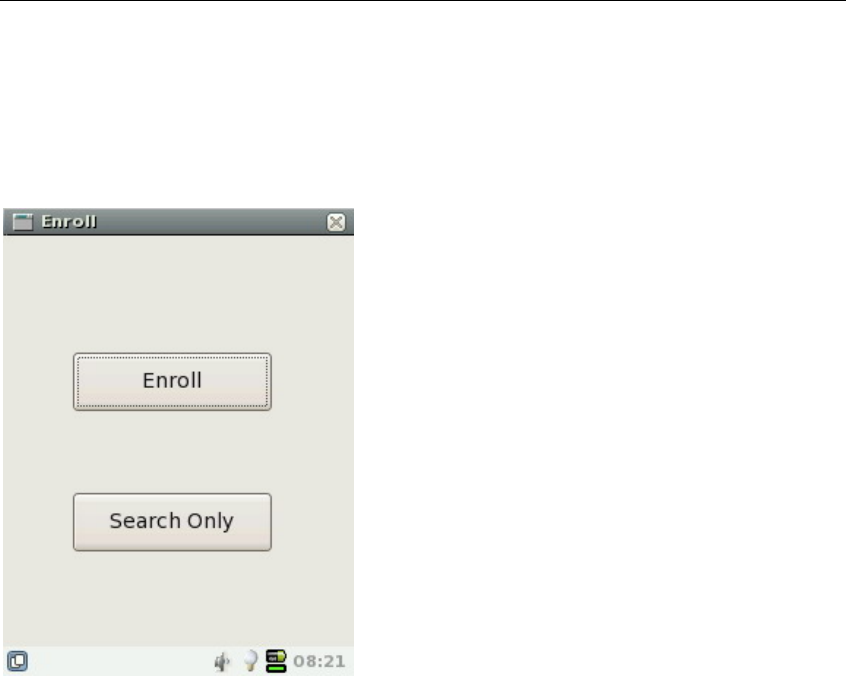

6. Cogent
‘Cogent’ is the main function of Fusion. It is use to enroll the fingerprint, edit and search
the demographics. Use up-down button to select and enter into ‘Cogent’. A window with
‘Enroll’ and ‘Search Only’ option will be displayed. Select the option you wish to operate
(Figure-9).
Figure-9
6.1. Enroll

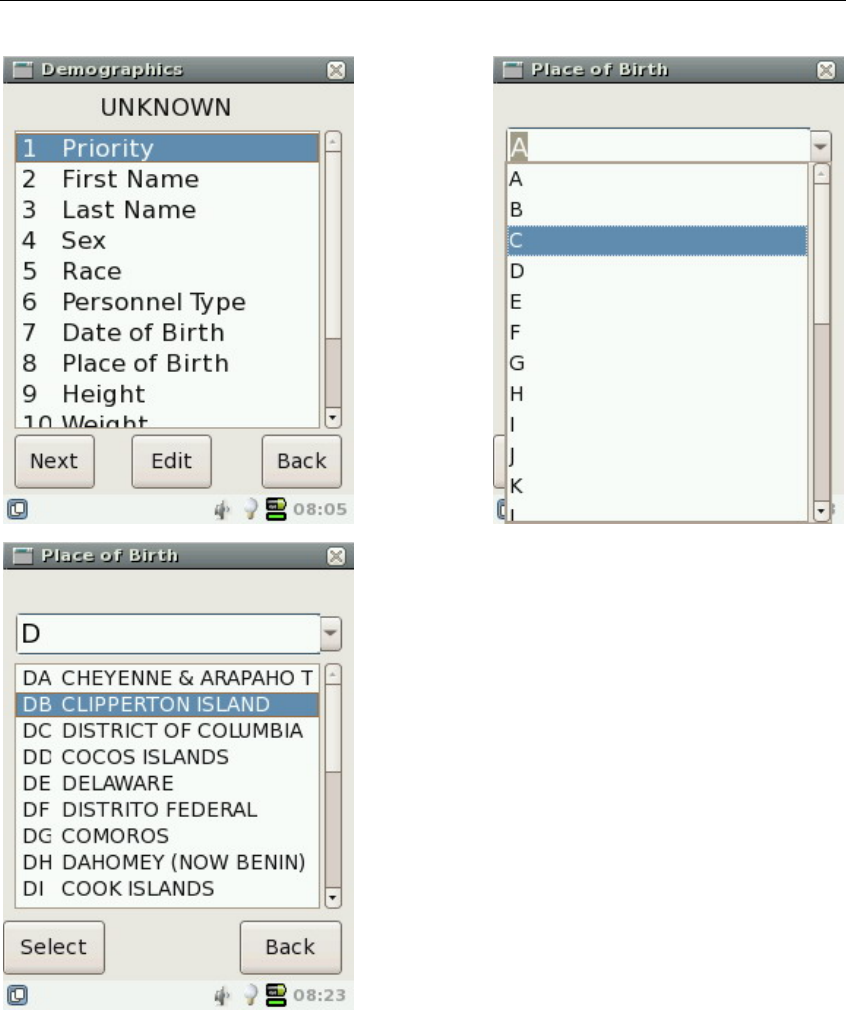

6.1.1. Demographics
Use up-down button to select ‘Enroll’. Press enter or ‘____’ button to enter into it. You
will be asked for entering the demographic details. Use up-down button to select the
information you wish to enter and press ‘Edit’ to edit the information. After editing the
information, press ‘Save’ to save the information, press ‘Back’ it will not save the
information. To select ‘Place of Birth’, make the capital letter be selected, press enter and
then select the initial letter of the country, then select the place of birth. Press ‘Select’ to
save the information. After editing demographics, press ‘Next’ go to the next step
(Figure-10).
Cogent Systems
- 11 -
Figure-10

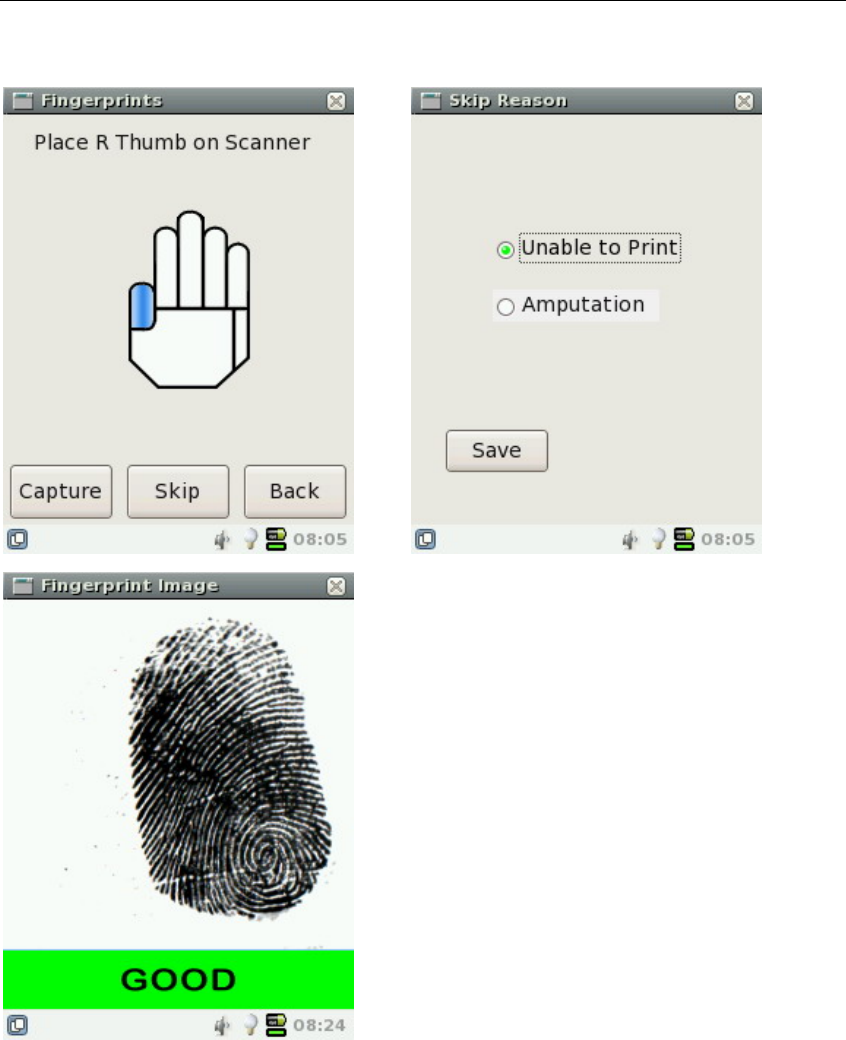

6.1.2. Fingerprints
Tenprint is required. Follow the instruction to enroll tenprint, from R Thumb to L Pinkie.
If the quality of fingerprint is poor, the system will ask for capture again. If the quality of
the image is good, then it will go to capture the next finger. Press ‘Skip’ to skip capturing
current fingerprint. Select the reason for skipping current fingerprint. Then press ‘Save’
to go back to the capture mode. Press ‘Back’ to go back to the previous record
(Figure-11).
Cogent Systems
- 12 -
Figure-11
6.1.3. Photo
After capturing the fingerprint, it will go to the next step ‘Photo’ automatically. It will
take 5 photos for 5 different face angles. First photo will capture from front face
(Figure-12); second is from left 90 degree; third is from left 45 degree; fourth is from
right 45 degree and the fifth is from right 90 degree. Select ‘Back’ back to the previous
record.
Cogent Systems
- 13 -
Figure-12
6.1.4. Iris Camera
To capture iris of left and right eye, press ‘Capture’ button. Press ‘Skip’ to skip capturing
iris, then select reason for not capturing iris (Figure-13).
Figure-13
Cogent Systems
- 14 -

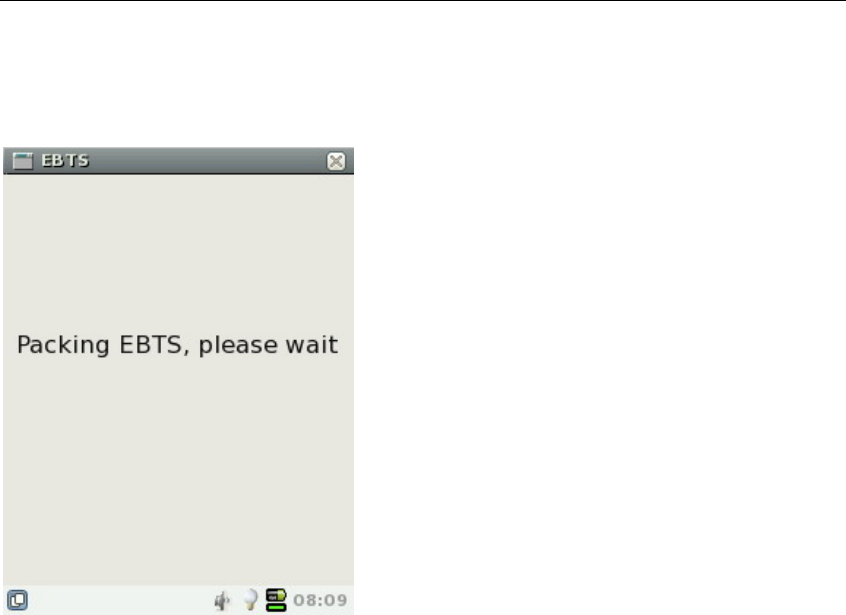

Press ‘Next’, all the information and records will be saved. ‘Packing EBTS, please wait’
will display. After saving the information, it will back to the ‘Cogent’ window
(Figure-14).
Figure-14

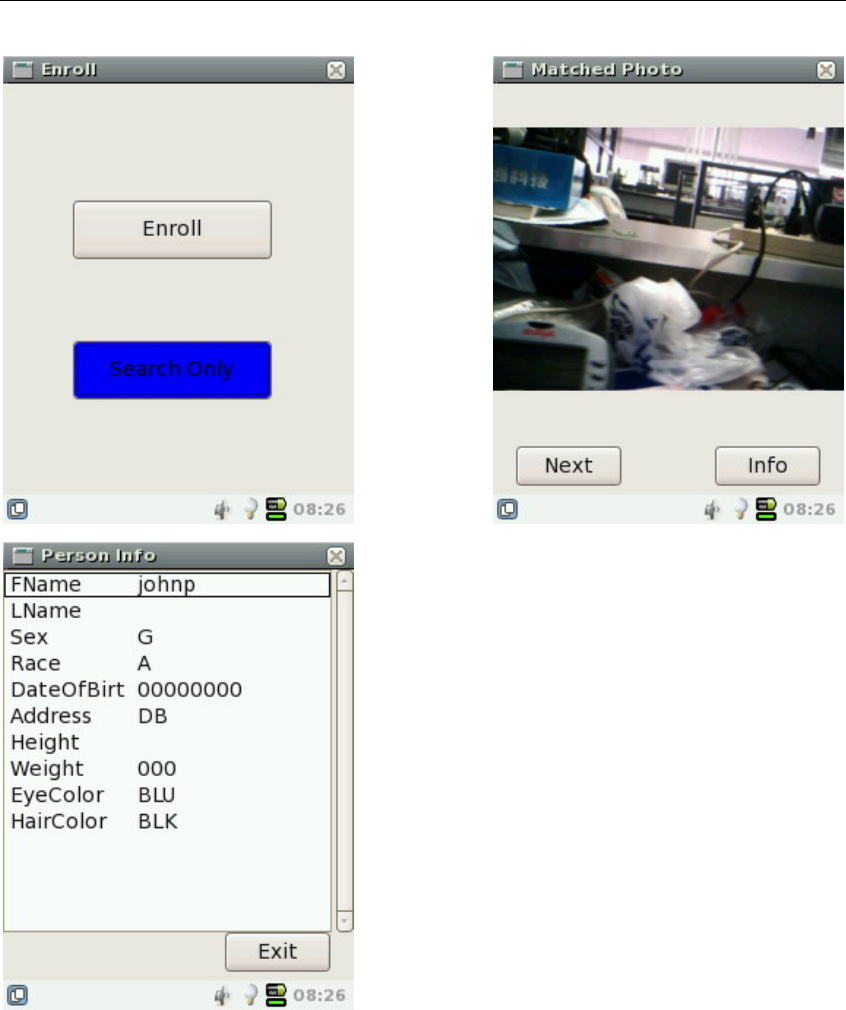

6.2. Search Only
Select ‘Search Only’ and enter into it. Capture fingerprint from R Thumb to L Pinkie. If it
finds a match in the database, the information will display. If the quality of fingerprint
image is poor or fingerprint ‘NotMatch’, it will ask for capturing fingerprint again. Press
‘Back’ go back to previous record (Figure-15).
Cogent Systems
- 15 -
Figure-15
Cogent Systems
- 16 -
7. GPS
Once you select ‘GPS’ it will search your location automatically.
8. Power Control
‘Power Control’ is use to control the switch of GPS, GPRS, WI-FI, bluetooth. Press
up-down button to select and enter into ‘Power Control’.
Press up-down button to select the switch you want to control, press enter to show the on
and off option. Press enter to save your setting. To exit the ‘Power Control’, press ‘Exit’.
9. Battery
Select ‘Battery’ to check the battery status. Fusion has two batteries, one is external
b
attery, the other is internal battery.

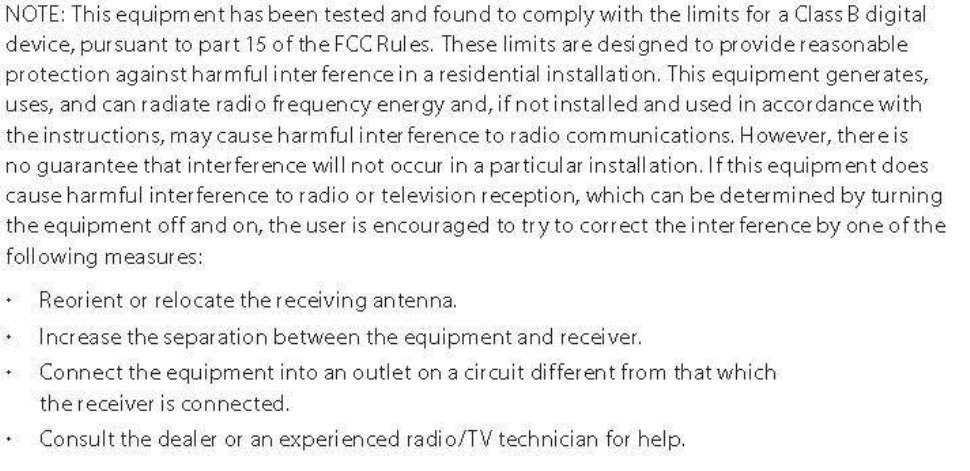

FCC INFORMATION
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. End users must follow the specific operating instructions for
satisfying RF exposure compliance. This transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
