Instructions for Use

IMPORTANT

Read this manual carefully before assembling, using or servicing this product. Keep this man-

ual for future reference. If you have questions about assembly, operation, servicing or repair,

please call Coleman at 1-800-835-3278 or TDD: 316-832-8707.

Outdoor use only

United States Patent D486,896 and 6,877,461

MODEL #2300 Series

CSA Requirement 3.03-US

Portable Water Heater For Outdoor Use

®

Contents

General Safety Information 2-3

System Overview 3

Before You Go 4

To Set Up 4-6

Use and Operation 6-7

Helpful Hints 8

Storage 8

This manual contains important information about the assembly, operation

and maintenance of this water heater. General safety information is pre-

sented in these first few pages and is also located throughout the manual.

Particular attention should be paid to information accompanied by the safety

alert symbol “ DANGER”, “ WARNING”, “ CAUTION”.

Keep this manual for future reference and to educate new users of this

product. This manual should be read in conjunction with the labeling on the

product.

Safety precautions are essential when any mechanical or propane fueled

equipment is involved. These precautions are necessary when using,

storing, and servicing. Using this equipment with the respect and caution

demanded will reduce the possibilities of personal injury or property

damage.

The symbols shown below are used throughout this manual. Always heed

these precautions, as they are essential when using any mechanical or

propane fueled equipment.

General Safety Information

DANGER

• CARBON MONOXIDE HAZARD

• This appliance can produce carbon monoxide

which has no odor.

• Using it in an enclosed space can kill you.

• Never use this appliance in an enclosed

space such as a camper, tent, car or home.

If you smell gas:

1. Do not attempt to light appliance.

2. Extinguish any open flame.

3. Disconnect from fuel supply.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

other appliance.

FOR YOUR SAFETY

General Safety Information

cont.

• EXPLOSION - FIRE HAZARD

• Never store propane near high heat, open flames, pilot lights, direct

sunlight, other ignition sources or where temperatures exceed 120

degrees F (49°C).

• Propane is heavier than air and can accumulate in low places. If you

smell gas, leave the area immediately.

• Never install or remove propane tank while heater is operating,

near flame, pilot lights, other ignition sources or while heater is hot

to touch.

• During operation, this product can be a source of ignition. Never

use the heater in spaces that contain or may contain volatile or air-

borne combustibles, or products such as gasoline, solvents, paint

thinner, dust particles or unknown chemicals. Minimum clearances

from combustible materials: 12 inches from the sides & 48 inches

from the top.

• Provide adequate clearances around air openings into the product.

DANGER

DANGER

DANGER indicates an imminently hazardous situation which, if not

avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not

avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not

avoided, may result in minor or moderate personal injury, or property

damage.

CALIFORNIA PROPOSITION 65:

WARNING: This fuel, and byproducts of combustion of this fuel, contain

chemicals known to the state of California to cause cancer, birth defects,

or other reproductive harm.

2

Maintenance 8

Troubleshooting Guide 9

Service 9

Replacement Parts 10

Warranty Information 11

Accessories 12

Failure to comply with the precautions and instructions provided with this

product can result in death, serious bodily injury and property loss or dam-

age from hazards of fire, explosion, burn, asphyxiation, and/or carbon

monoxide poisoning.

Only persons who can understand and follow the instructions should use

or service this product.

If you need assistance or information such as an instruction manual or

labels, contact The Coleman Company, Inc.

DANGER

General Safety Information

cont.

SERVICE SAFETY

• Keep all connections and fittings clean. Inspect propane cylinder and

propane connections for damage before attaching.

• During set up, check all connections and fittings for leaks using soapy

water. Never use a flame. Bubbles indicate a leak. Check that the

connection is not cross-threaded and that it is tight. Perform another

leak check. If there is still a leak, remove the cylinder and contact

Coleman for service or repairs.

• Use for water heating only. Never alter in any way or use with any

device or part not expressly approved by Coleman.

• Always use in an upright position.

CAUTION

WARNING

• This product is fueled by propane gas. Propane gas is invisible,

odorless, and flammable. An odorant is normally added to help

detect leaks and can be described as a “rotten egg” smell. The

odorant can fade over time so leaking gas is not always detectable

by smell alone.

• Propane gas is heavier than air and leaking propane will sink to

the lowest level possible. It can ignite by ignition sources including

matches, lighters, sparks or open flames of any kind many feet

away from the original leak. Use only propane gas set up for vapor

withdrawal.

• Propane gas should be stored or used in compliance with local

ordinances and codes or with ANSI/NFPA 58. Turn off propane

when not in use.

• Disconnect propane before storing the heater.

Not for home or recreational vehicle use.

We cannot foresee every use which may be made of our products.

Check with your local fire safety authority if you have ques-

tions about use.

Other standards govern the use of fuel gases and heat producing

products for specific uses. Your local authorities can advise you

about these.

• Never refill disposable cylinders.

• Use the preset regulator that is installed in the water heater. Do

not attempt to adjust.

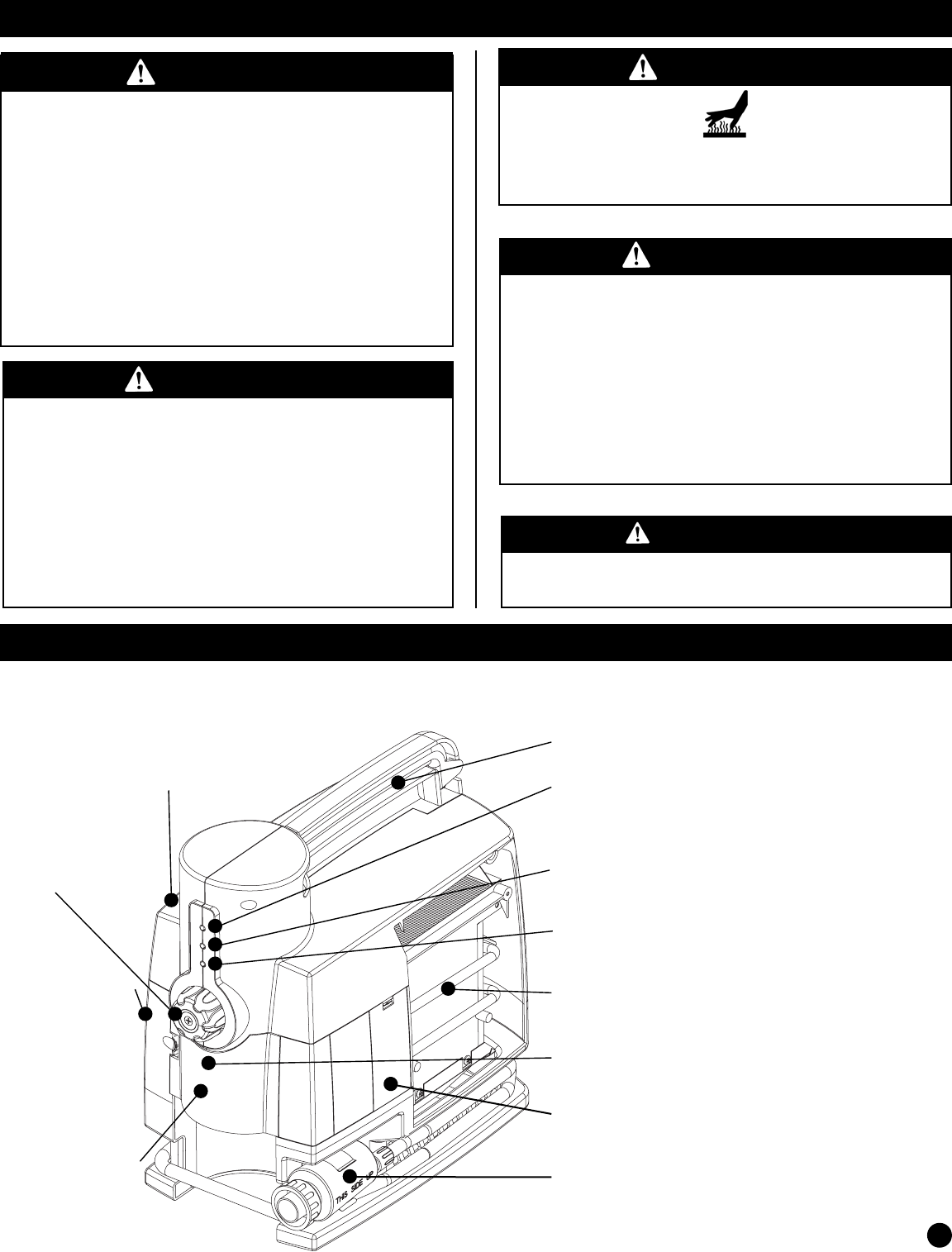

System Overview

Thank you for purchasing Coleman’s Hot Water on DemandTM unit. This portable and self-contained water heater provides hot water for

cleaning, cooking, washing – it even makes water hot enough for a satisfying mug of tea, coffee or cocoa. Here are some of the key

components.

3

• BURN HAZARD

• Never leave heater unattended when hot or in use.

• Keep out of reach of children.

WARNING

Recharging Port –

plug 12V and 110V/120V

Recharger cords

Rotating Faucet – full-sized faucet stores in handle for convenient stor-

age and swings out when not in use.

Over-Temp Indicator Light – when illuminated, the red light is

signaling that the water temperatures have exceeded the maxi-

mum temp of 160°F. The burner cycles off but water continues to

run through heater. Burner will cycle on when water has cooled

to 120°F.

Battery Low Indicator Light – when illuminated, the yellow light is

signaling that the battery voltage is low and it is time to recharge.

The burner will not light when the battery is low.

Charging Indicator Light – begins illuminated red, then will

change to green to signal that the battery has been completely

recharged.

Heat Exchanger – evenly and efficiently transfers heat from the

burner to the copper heating coils.

Recharger cord storage compartment – 12V auto recharger

and 110V/120V household recharger cords are stored here

(cords included)

Control knob – push

to turn in a counter-

clockwise direction.

Adjust knob to desired

water temperature.

Battery compartment –

6 volt rechargeable

lead acid battery is

located in compartment

on opposite side of

heater. Battery

operates the pump

& circuitry and has

a 40-minute run time.

Hose & Pump – for convenient storage, the hose wraps around

the water heater and the pump is secured by the pump clip.

Propane access door –

press latch to open

door to access propane

cylinder (propane not

included)

Regulator – located inside of the propane door. This is where the

propane cylinder is installed.

WARNING

WARNING

If used on boats, use only above deck with disposable cylinders.

Before You Go

To Set Up

Preparing Hot Water on DemandTM unit for initial use.

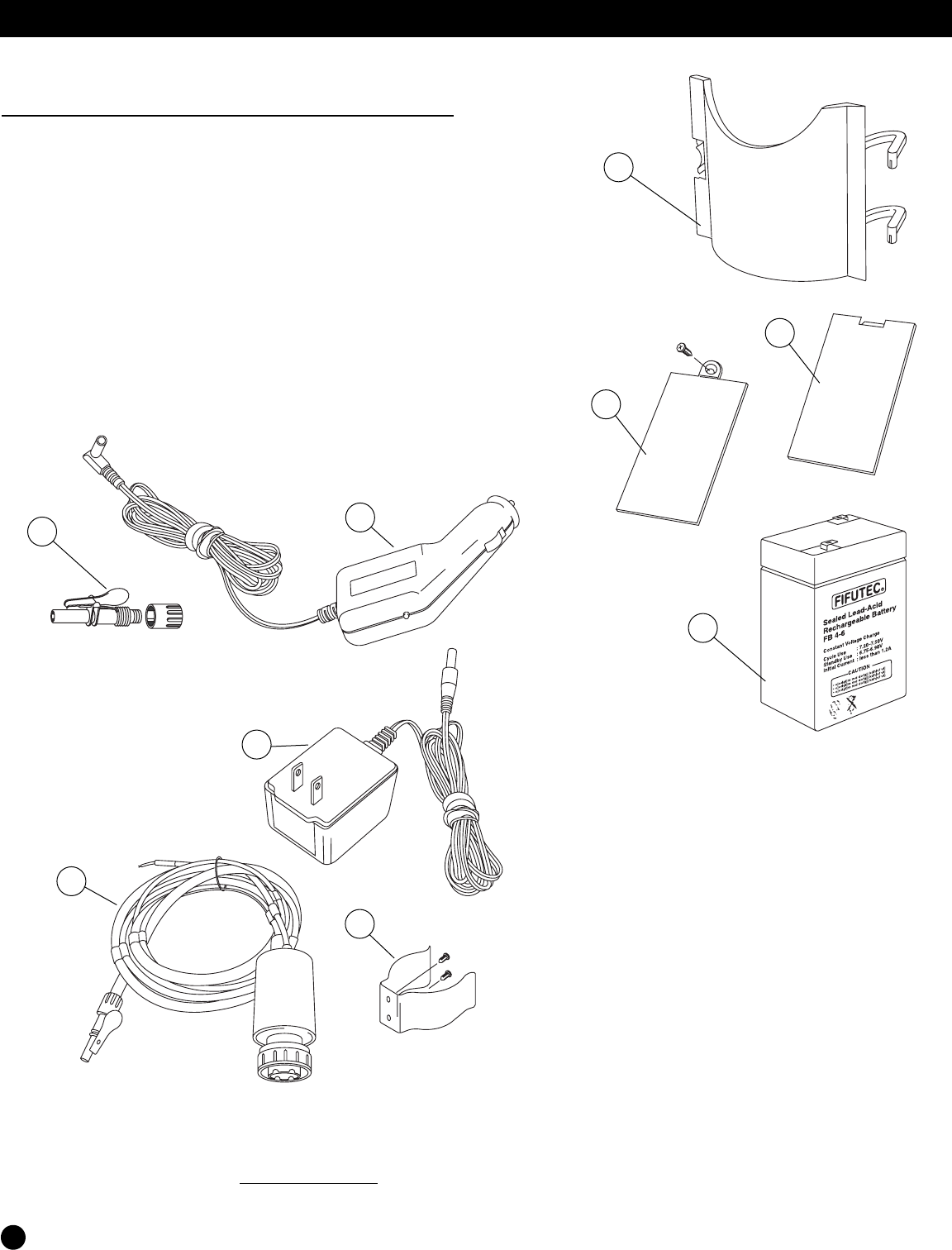

• Unpack your new water heater from the carton and make sure that all of the parts are included. If you find that one of the

components is missing, please contact Coleman for a replacement. 1-800-835-3278 or TDD 1-316-832-8707.

5-Gallon Collapsible

Water Carrier

(#809A606T)

12 Volt Auto

Recharger Cord

(Located in storage compartment of your

Hot Water on DemandTM unit)

(#2300-4071)

110V/120 Volt Household

Recharger Cord

(Located in storage compartment of your

Hot Water on DemandTM unit)

(#2300-4081)

• Charge the battery. Plug either 12 Volt Auto Recharger Cord or 110V/120 Volt Household

Recharger Cord into unit and the power source.

• Charging LED should come on. Allow eight hours to fully charge the battery. RED color

indicates a charging battery. A GREEN color indicates a fully charged battery.

• Charge the battery before using your water heater for the first time (Fig. 1).

• Clean before first use. It is strongly recommended that you clean the heater prior to using

for the first time. Follow the simple steps on page 6 before you leave home, and then clean at

least once a year or when the hose becomes discolored with a white calcium build up.

• Select a level, sturdy surface for your water heater. A picnic table or camp table is ideal. Do not operate Hot Water on

DemandTM unit from a position directly on the ground. (This allows water to drain, preventing damage while the unit is off in

freezing temperatures.)

• Fill the 5-gallon collapsible water container with water – use only potable

drinking water

. Never use water from a lake or

stream that has not been purified. Do not run any other liquid through Hot Water on DemandTM unit.

• Unwrap the pump hose

from around the water

heater.

• Place the water carrier

at a level below the

water heater for proper

drainage.

• Screw the water pump

to the opening of the

water container & hand

tighten.

• Lay the water container

on its side so the pump

is towards the bottom

of the container (step 2).

• Make sure to rotate the

pump where “THIS

SIDE UP” is facing

upward so pump will

prime and water will flow.

Step 1: Screw the Pump

onto the opening of the

Water Container and Hand

Tighten.

Step 2: Lay the Water

Container on its side so

the Pump is towards the

bottom of the container.

You can also submerge

The Water Pump into an

open water container

such as a cooler.

(Cooler

not included.)

4

• WATER CONNECTION

Fig. 1

To Set Up

cont.

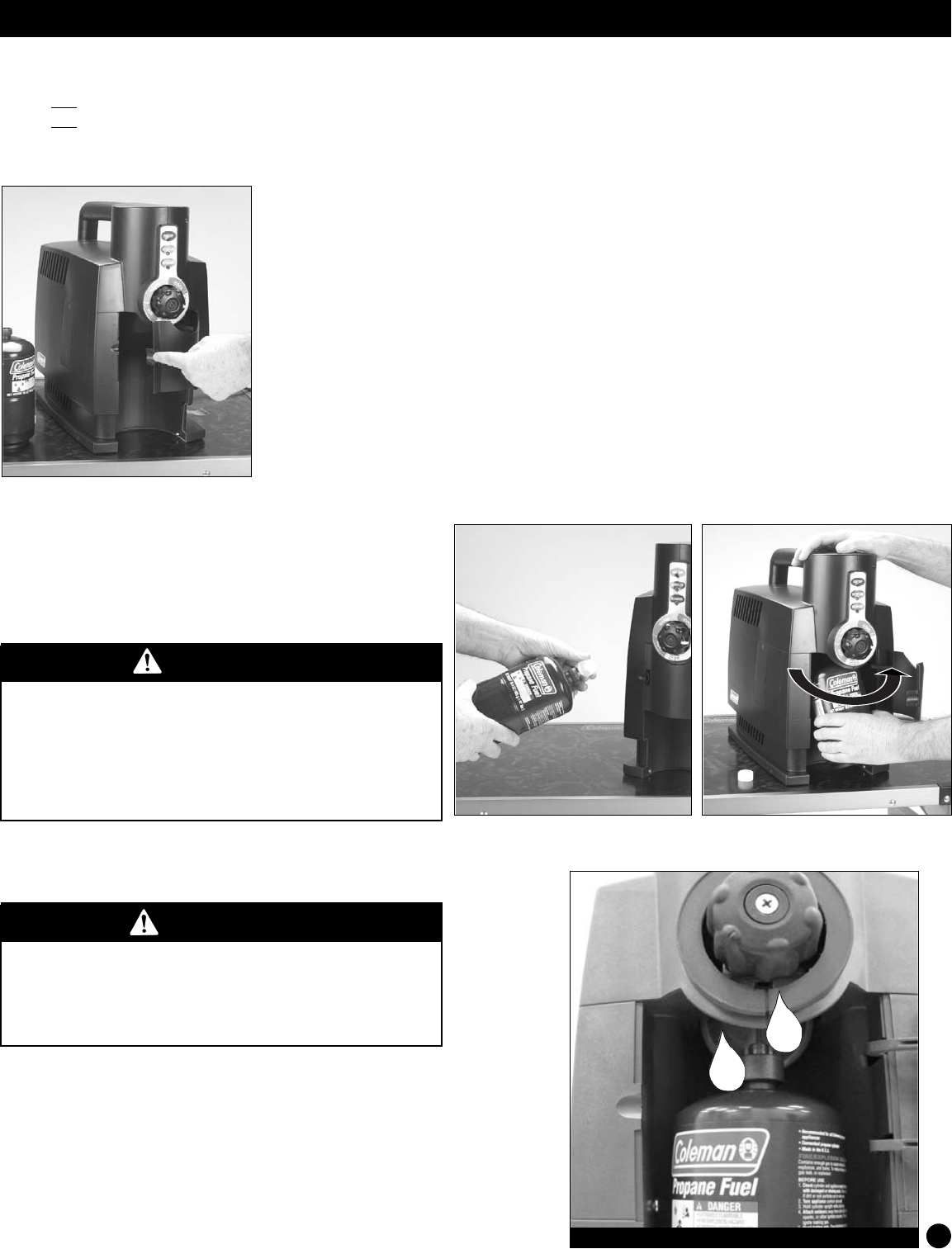

• Installation of propane cylinder in Hot Water on DemandTM unit.

• Use standard propane cylinders made for camping products.

• Do not use 14.1oz cylinders normally used for hand torches.

• Do not use MAPP gas cylinders or any other fuel except propane.

• Make sure the control knob is turned “OFF ”.

• Push in on the propane access door latch that is located on the left side of the door and swing door to opened position.

Open the Propane Access Door.

Remove propane cap. Install the propane cylinder.

• Check for Propane Leaks

• Make 2 to 3 oz. of leak check solution (one part liquid dishwashing

detergent and three parts water).

• Apply several drops of solution at the connection between the propane

cylinder and the regulator. (Fig. 2)

• Bubbles indicate a leak.

• Check that the connection is not cross-threaded and that it is tight.

• Perform another leak check. If there is still a leak, remove the cylinder

and contact Coleman for services or repair.

WARNING

• Perform leak test outdoors.

• Extinguish all open flames.

• NEVER leak test when smoking.

• Do not use Hot Water on DemandTM unit until connection has

been leak tested and does not leak.

5

WARNING

• If using refillable propane cylinder, the LP-gas cylinder(s) must be

constructed and marked in accordance with the specifications for

LP-gas cylinders of the U.S. Department of Transportation or

Transport Canada, CAN/CSA B339

. Use only Coleman® acces-

sories or parts. During heater set-up, check all hoses and fittings

for leaks using soapy water. Never use a flame. Always keep refill-

able cylinders outdoors, never inside house, camper or tent.

Fig. 2

• Remove cap from propane cylinder but do not discard.

• While holding the propane cylinder upright, thread it into

the REGULATOR located inside the door by turning as

shown. Be careful not to cross-thread, hand tighten only.

To Set Up

cont.

• Close Front Propane Access Door • Rotate

Faucet out-

ward from

the stored

position and

place a

water collec-

tion basin

under faucet.

Use and Operation

• Clean before first use. It is strongly recommended that

you clean the heater prior to using for the first time.

Follow these simple steps before you leave home, and

then clean at least once a year or when the hose

becomes discolored with a white calcium build up.

Cleaning instructions:

1. In a clean container mix two-gallons of water with

12 oz. of calcium, lime, and rust remover (available at

the cleaner section of hardware, general merchandise

and food stores).

2. Place the pump in the container with the water/solu-

tion. The label “This Side Up” on pump should be

facing up. (Fig. 3)

3. Position the container with the water/solution so that it

is placed under the faucet.

4. Push and turn the control knob and position the knob

at the “warm” setting. (Fig. 4)

5. Circulate the water/solution through the water heater

for 2 minutes, then turn off heater by turning the knob

clockwise to the “off” position. (Fig. 5)

6. Dispose of the cleaning solution in a sink or other

drain, do not dump on the ground.

7. Fill container with 2 1/2 gallons of clean water.

8. Place the pump in the container with the water.

9. Position the water heater so the container with the

water is placed under the faucet.

10. Turn the heater on by pushing and turning the control

knob and position to the “cool” setting. (Fig. 6)

11. Circulate the clean water through the water heater for

2 minutes, then turn the knob clockwise to turn the

heater off. (Fig. 7)

12. Repeat steps 6-11 with another batch of clean water.

Hot Water on DemandTM unit is now clean and ready for use.

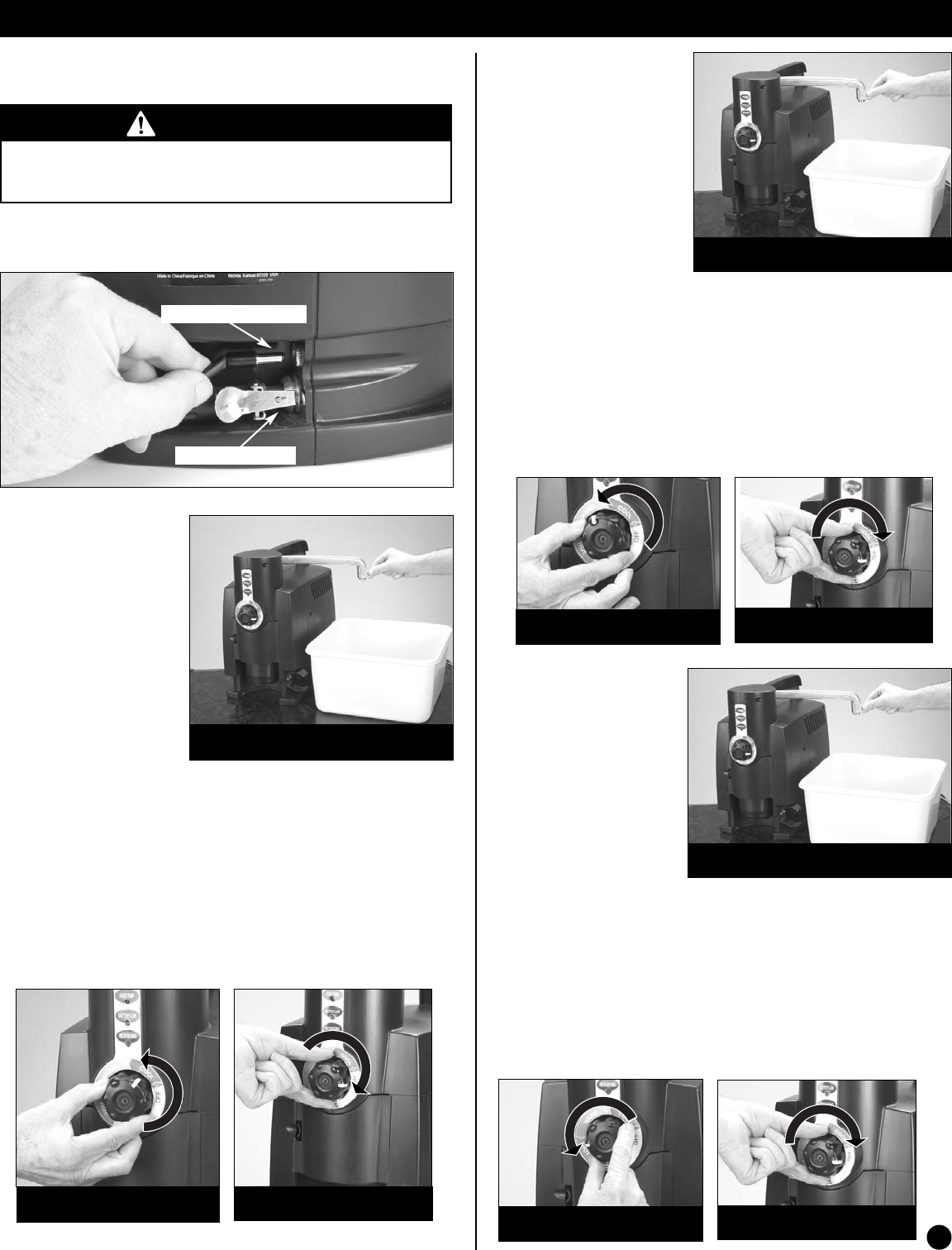

Fig. 3 Fig. 4

Fig. 6

Fig. 7

6

Fig. 5

Use and Operation

cont.

Follow these simple steps for using Hot Water on DemandTM

unit Complete Set-Up steps on previous pages.

CAUTION

Be cautious before plunging your hands into a basin of

water by testing the temperature first.

For Unheated Water:

• Rotate the faucet

outward (Fig. 8).

• Push and turn the

control knob

counterclockwise and

position the knob at the

“cool” setting (Fig. 9).

• You can release the

knob while unheated

water is pumping.

• Turn the knob

clockwise to turn the

water heater “off” (Fig. 10).

• The resulting output water temperature will be the same

temperature as your source water.

• Hot Water on DemandTM unit will not cool water to a

temperature lower than your source water in the cool

setting.

NOTE: Check electrical and quick connector before using

Hot Water on DemandTM unit.

Electrical Connection

Quick Connector

Fig. 9 Fig. 10

For Warm Water

• Rotate the faucet

outward (Fig. 11).

• Push and turn the

control knob counter-

clockwise and position

the knob at the “warm”

setting that is comfort-

able for you (Fig. 12).

• You can release the

knob while warm

water is pumping.

• Turn the knob clockwise to turn the water heater “off ”

(Fig.13).

• The resulting output water temperature is dependent on

the temperature of your source water.

• Hot Water on DemandTM unit will maintain a constant

temperature once you select the setting.

• Hot Water on DemandTM unit will not increase the water

temperature more than 55°over the temperature of the

source water in the warm setting.

Fig. 11

Fig. 12 Fig. 13

For Hotter Water

•Rotate the faucet out-

ward (Fig. 14).

•Push and turn the

control knob counter-

clockwise.

•To reach the hottest

water temperature, the

knob must be held

counterclockwise with

one hand all the way

to the “hot” setting (Fig. 15).

•When the water has reached your desired temperature,

place your cup or mug underneath the faucet.

•When you release the knob, the water heater will

automatically reset to warm or you can turn the knob

clockwise to turn the water heater “off ” (Fig. 16).

• Hot Water on DemandTM unit will not increase the water

temperature more than 100°over the temperature of

the source water in the “Hot” setting.

Fig. 14

Fig. 15 Fig. 16

7

Fig. 8

Helpful Hints

• Due to the integrated mechanical and electrical over-temperature shut-off devices, Hot Water on DemandTM unit will not

produce water that continuously exceeds 160°F. The burner will simply cycle off while the water keeps flowing for your

convenience The burner will cycle back on when internal water temperatures reach about 120°F.

• Hot Water on DemandTM unit is ideal for many outdoor cleaning tasks. Coleman supports the Leave No Trace Principles that

encourage minimal impact to the environment while camping. You’ll find that less soap is necessary with warm water than with

cool or cold water, so use small amounts of biodegradable soap. Please dispose of your gray water responsibly. Wash

yourself or dishes 200 feet away from streams or lakes to avoid soap run-off finding its way to a natural water source. Contact

your campground or park to learn about their specific gray water disposal policy.

• Hot Water on DemandTM unit will typically make 40 gallons of warm or hot water on one full battery charge and a 16.4 oz.

cylinder of propane. Make sure to pack sufficient fuel for the duration of your outing.

• To customize and enhance the use of your Hot Water on DemandTM unit, Coleman offers several accessories. Check your local

retailer or order directly from Coleman at 1-800-835-3278 or www.coleman.com.

• Continuous operation of water heater at warm setting for 20 minutes may cause the propane cylinder to freeze up. Let the

cylinder thaw or replace with a fresh propane cylinder.

Storage

• Remove propane cylinder from heater after use and before transporting or storing Hot Water on DemandTM unit. If using a

bulk tank, disconnect the hose from the bulk tank before transporting or storing. Always store propane outdoors.

• Drain water from hoses before storing.

• Recharge the battery before storing.

• For long term storage, clean and dry Hot Water on DemandTM unit and store indoors in a clean and dry location.

• Coleman’s padded carry case is ideal for storing and transporting Hot Water on DemandTM unit.

Maintenance

• Clean water heater at least once a year or whenever a white build up appears in the hose. Refer to Cleaning Instructions on

page 6 of this manual.

• Charge battery immediately after each outing to reach optimum performance.

• Replacing battery - Use only a 6 -volt, 4 AmpHr rechargeable lead acid battery. Remove the screw from the cover on the

right side of your water heater and remove the cover. Pull the battery out from storage compartment and remove the leads

from the battery terminals. Place the connectors on the battery terminals making sure to put the red terminal on the red or “+”

battery terminal and the black connector on the black or “–” battery terminal. Replacement batteries are available to order from

Coleman.

8

Troubleshooting Guide

Symptom Problem Solution

Yellow battery Low Light

on during operation Battery voltage low Charge battery

Battery defective Replace battery (refer to maintenance section for

instructions)

Burner will not light Propane cylinder empty Replace cylinder

Propane cylinder frosted Replace cylinder and reuse after thawing

Electronic circuit defective

Send to Coleman Service Center

Low or no water flow Battery lead disconnected Remove battery cover & reinstall lead

(less than 1 gallon per

minute) Pump is not positioned properly Rotate pump so “THIS SIDE UP” is facing upward

Water container out of water Fill water container

Pump screen clogged Remove and clean screen

Hose bent or kinked Straighten hose

Pump unplugged Make sure the black wire is plugged into back of heater

Air bubble in hose Drain hose completely

Water leak at pump to

container Fitting cross-threaded Remove pump and reconnect to water container

Hose turns white or

discolors inside Calcium buildup Clean heater (refer to page 6 for cleaning instructions)

Water leaking from

inside heater

Defective seal or break Send to authorized Coleman Service Center

Service

• Repairs to gas passages, electrical circuitry and associated components should be done only by Coleman or an authorized

service person.

• Owner repair and service should be limited and performed only to the following:

• Cleaning

• Propane cylinder leak checks and cylinder replacement

• Battery replacement

• Pump & pump hose replacement

• Repair to doors: battery compartment door & battery charger compartment door.

• For Coleman authorized service, call 1-800-835-3278 – TDD 316-832-8707.

9

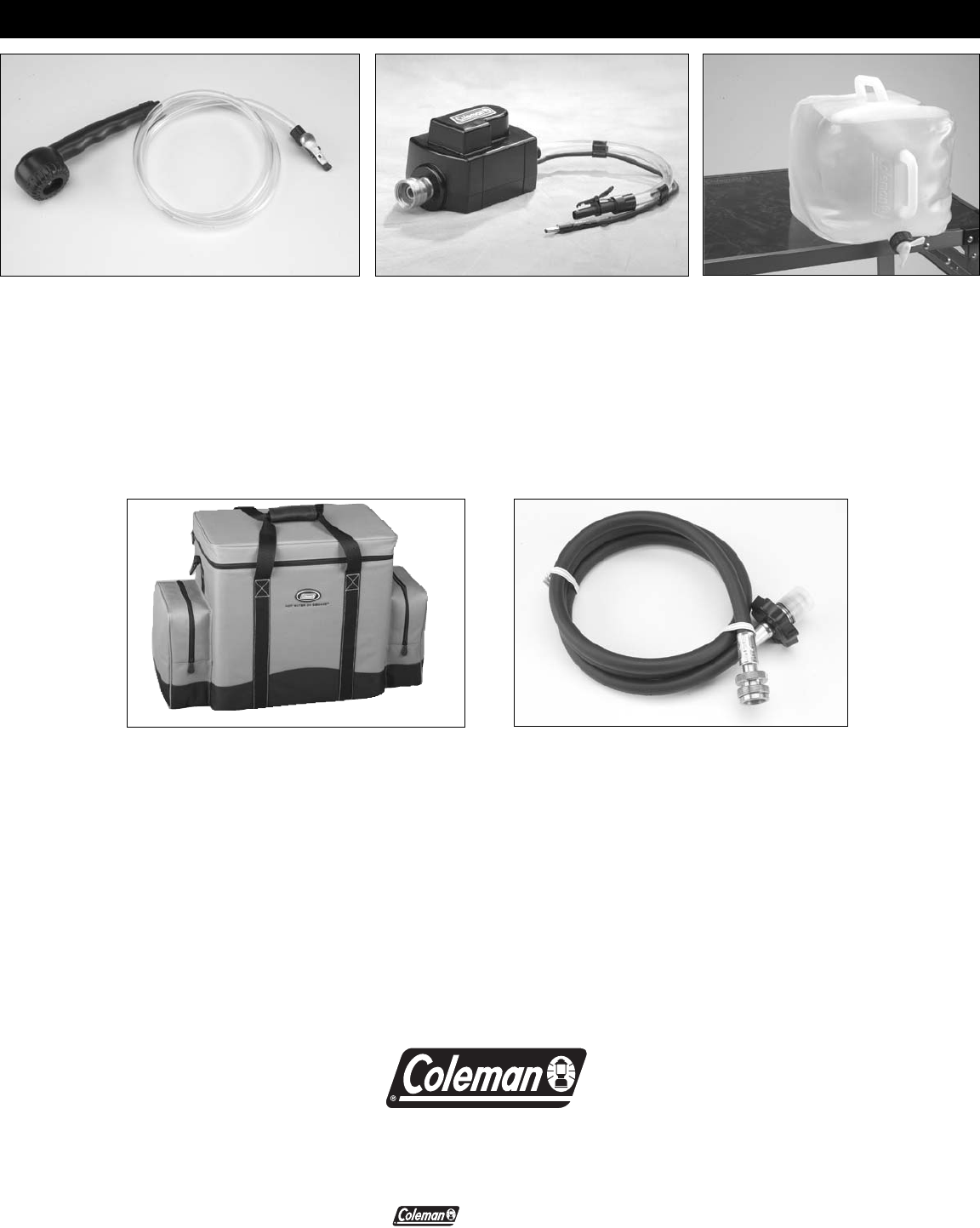

Replacement Parts

Contact Coleman

www.coleman.com 1-800-835-3278 TDD 316-832-8707

10

6

2

3

4

7

1

5

8

Parts List

No. Part No. Description

1 2300-4071 12 volt Recharger Cord (auto)

2 2300-4081 110 volt/120 volt Recharger Cord (household)

3 2300-6251 Pump and Hose Quick-connect

4 2300-1481 Pump Clip

5 2300-2111 Battery Compartment Door

6 2300-2201 Recharger Cord Compartment Door

7 2300-4061 6 volt Rechargeable Battery

8 2300-5521 Quick Connector

9 2300-1301 Propane Door Cover

9

Warranty Information

Three Year Limited Warranty

The Coleman Company, Inc. (“Coleman”) warrants that for a period of three years from the date of purchase, this

product will be free from defects in material and workmanship. Coleman, at its option, will repair or replace this prod-

uct or any component of the product found to be defective during the warranty period. Replacement will be made

with a new or remanufactured product or component. If the product is no longer available, replacement may be made

with a similar product of equal or greater value. This is your exclusive warranty.

This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not transferable.

Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Coleman dealers,

service centers or retail stores selling Coleman® products do not have the right to alter, modify or in any way change

the terms and conditions of this warranty.

This warranty does not cover normal wear of parts, including chips, scratches, abrasions, discoloration or fading from

extended exposure to sunlight or damage resulting from any of the following: negligent use or misuse of the product,

use on improper voltage or current, use of non-Coleman® accessories or parts, use contrary to the operating

instructions or failure to follow maintenance instructions, commercial for-profit or non-profit instructional or rental

applications, disassembly, repair or alteration by anyone other than Coleman or an authorized service center.

Further, the warranty does not cover Acts of God, such as fire, flood, hurricanes and tornadoes.

COLEMAN SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY

THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY. EXCEPT TO THE EXTENT PROHIBITED BY

APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE IS LIMITED IN DURATION TO THE DURATION OF THE ABOVE WARRANTY. SOME STATES,

PROVINCES OR JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR

CONSEQUENTIAL DAMAGES OR LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE

ABOVE LIMITATIONS OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC

LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR

PROVINCE TO PROVINCE.

How to obtain warranty service

Take the product to an authorized Coleman service center. You can find the nearest authorized service center by

calling 1-800-835-3278 or TDD 1-316-832-8707 in the United States. If a service center is not conveniently located,

attach a tag to the product that includes your name, address, daytime telephone number and description of the

problem. Include a copy of the original sales receipt. Carefully package the product and

send either by courier or insured mail with shipping and insurance prepaid to:

For products purchased in the United States:

The Coleman Company, Inc.

3600 North Hydraulic

Wichita, Kansas 67219

1-800-835-3278

Do not mail products with fuel in tanks or with disposable propane cylinders.

DO NOT RETURN THIS PRODUCT TO PLACE OF PURCHASE.

If you have any questions about this warranty please contact Coleman.

11

The Coleman Company, Inc. • 3600 North Hydraulic • Wichita, KS 67219 U.S.A.

1-800-835-3278 • TDD: 316-832-8707

© 2006 The Coleman Company, Inc. All Rights reserved.

Coleman® and are registered trademarks and

HOT WATER ON DEMAND™ is a trademark of The Coleman Company, Inc.

Hot Water On DemandTM Accessories (purchased separately)

Spray Adapter

48” long hose easily attaches to faucet

of Hot Water on DemandTM unit with

Quick-connect fitting. Handled spray

head is ideal for a light shower.

Not Included

(#2300A512) Camp

(#2300-612) Marine

5 gallon Water Container

Collapses for compact storage

when not filled with water – handled

carrier includes spigot to dispense

water. Threaded opening is sized to

screw securely to pump of

Hot Water on DemandTM unit for a

sealed connection.

(#809A606T)

Water Hose Adapter

Regulates water pressure from input

hose up to 100 PSI. Simply attach

to Hot Water on DemandTM unit for a

continuous water supply.

Not Included

(#2300A511) Camp

(#2300-611 Marine

Padded Carry Bag

Sized to carry the Hot Water

on DemandTM unit. Adjustable shoulderstrap

or barrel handles, includes two zippered

side pockets perfect for carrying two 16.4

oz. propane cylinders or other accessories.

Includes a PVC raincover that can be used

to protect heater from the elements.

Not Included

(#2300A200) Camp

(#2300-207) Marine

High Pressure Hose & Adapter

Adapts Hot Water on DemandTM unit to

refillable bulk propane tanks. Also works

with other Coleman appliances.

(Not recommended for use on boats.)

Not Included

(#5470A7931T)

Made in China

2300B050 (8/17/06)

Visit us at

www.coleman.com
