1Seat

Cushion

2 Guardrail

3 Folding

Latch

4 Footrest

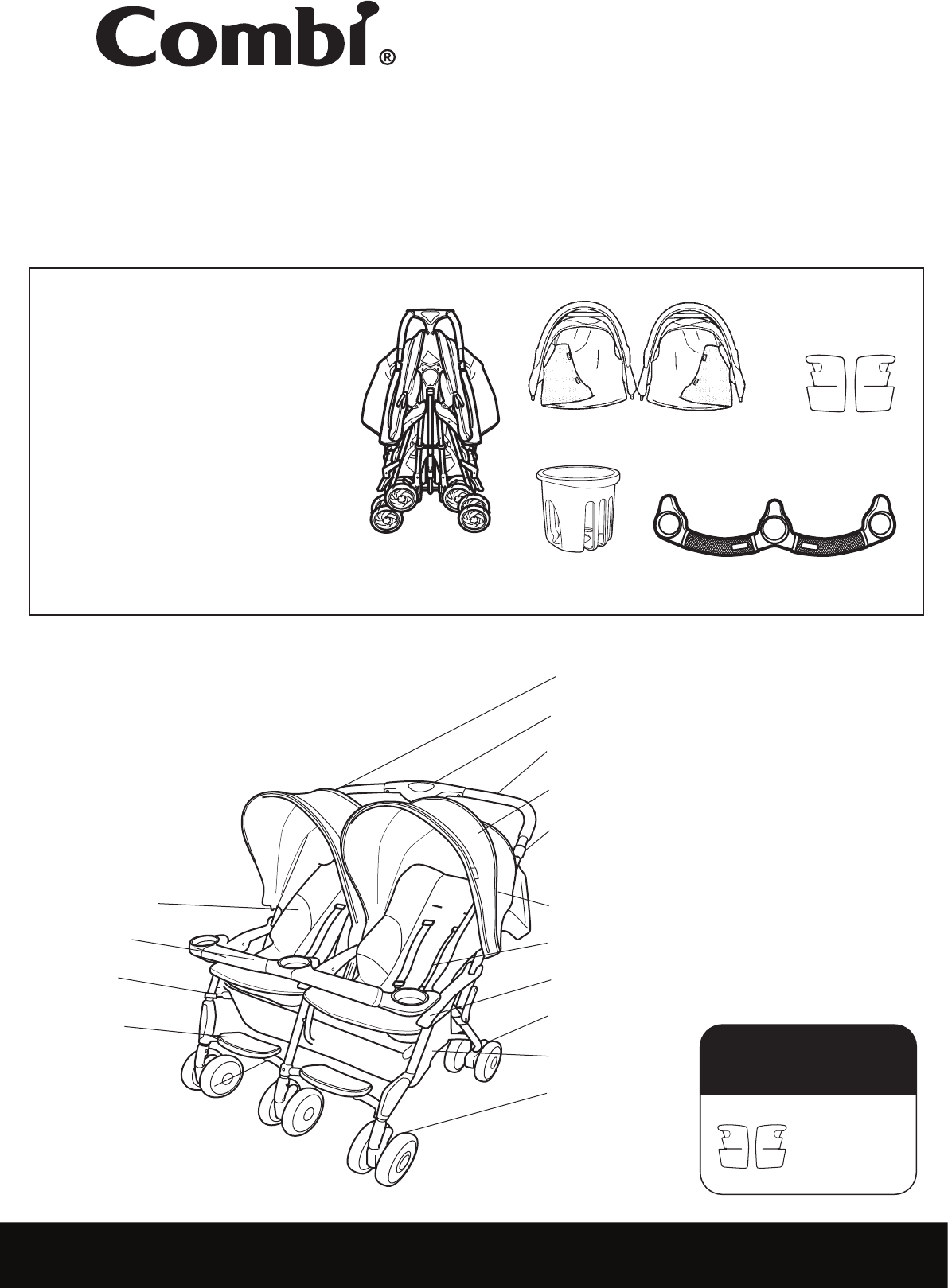

Name of Parts

6 Carrying Strap

7 Handle

8 Canopy

9 Folding Lever

10 Canopy Lever

11 5-Point Harness

12 Armrest

13 Brake Lever

14 Basket

15 Swivel Lock

Lever

Canopies

Located behind the handle.

Parts List

Guardrail

Main Body

Car Seat

Connectors

Read all instructions BEFORE assembly and USE of product. KEEP INSTRUCTIONS FOR FUTURE USE.

Record the following information for quick reference. Note: Illustrations and photographs are only

representative and not actual.

Attach copy of sales receipt for future reference.

Located on the rear right leg.

Date Purchased: ________________________ Model Number: ________________ - ____________________ Color: _____________________________________

Combi USA, Inc. • 3520 Westinghouse Blvd., Ste. B • Charlotte, NC 28273

www.CombiUSA.com • Customer Service 1-800-992-6624

Car Seat

Connectors

DO NOT DISCARD.

IMPORTANT PARTS NECESSARY

FOR CAR SEAT CONNECTION

Twin Sport Instruction Manual

Make sure you have all the

parts listed below before

using your stroller. If any parts

are missing, call Customer

Service at 1-800-99-Combi.

Parent

Cupholder

5Parent Cupholder

- 2 -

WARNINGS:

ALL OPERATING AND ASSEMBLY PROCEDURES SHOULD BE PERFORMED BY AN ADULT.

In the event of damage or problems, discontinue use and contact Customer Service

for instructions: 1-800-992-6624.

WARNING

NEVER allow children to

lean over sides of stroller. It

may become unbalanced and tip

over.

All products specifications are subject to change without notice. Sizes and weights are intended as guides and are approximations.

Combi® reserves the right to modify the products in its line during the course of the year. Non contractual media. Colors are as accurate as the media in which they appear allows.

©Combi USA, Inc. 2011

FAILURE TO FOLLOW THESE INSTRUCTIONS AND

WARNINGS COULD RESULT IN SERIOUS INJURY OR DEATH.

WARNING

Excessive weight in baskets

(or items placed in baskets

which overflow the top or

side of baskets) may cause a

hazardous condition. Do not

load more than 10 lbs. (4.5kg)

in the basket.

WARNING

Completely remove all plastic

bags and packing materials

before using this product to

prevent a possible choking

hazard.

Total Maximum weight of

the children MUST NOT exceed

90 lbs. (40 kg), 45 lbs per

seat.

WARNING

NEVER lift and carry stroller while

occupied. The stroller may fold.

WARNING

Do not use the stroller

on steep slopes, stairs,

escalators, beaches, rough

roads, mud, etc.

WARNING

NEVER allow your child to stand

in or on the stroller.

WARNING

NEVER hang items on handle

or place items on canopy. This

could cause the stroller to

become unbalanced or tip

over.

WARNING

Always engage both brakes

when parking the stroller.

WARNING

NEVER allow a child to ride or sit

on areas of stroller other than

seat.

WARNING

Avoid serious injury from falling

or sliding out. ALWAYS use restraint

system.

WARNING

Pulling stroller backward makes

going up a curb difficult, and

could pose a safety hazard.

WARNING

Child may slip into leg open-

ings and strangle. Never use

in reclined carriage position

unless the permanently

attached safety cover is used.

Observe the following weight

capacities:

Basket - 10 lbs each. (4.5 kg)

Kids Tray - 3 lbs per side. (1.36 kg)

Canopy Pocket - 1 lb each. (0.45 kg)

WARNING

To avoid finger entrapment or

pinching, use care when folding

and unfolding the stroller.

Be certain the stroller is fully

erected and locked in position

before allowing your child near

the stroller.

WARNING

Stroller is intended for walking

speed only. DO NOT use while

jogging, skating, etc.

WARNING

When Combi Shuttle infant seat is

attached, ALWAYS ensure it is

secure by pulling up on the handle.

WARNING

NEVER leave child unattended.

WARNING

ALWAYS secure your child with

the infant carriers harness before

using it with the stroller.

WARNING

The guardrail MUST be attached to

the stroller before attaching the

infant carrier.

WARNING

To ensure your child’s safety,

please refer to the Combi Shuttle

instruction manual before using

it with stroller

WARNING

If unable to securely attach the

Combi Shuttle to your stroller,

discontinue use and contact

Customer Service.

WARNING

TIPPING HAZARD: NEVER place

weight on rear of infant seat

while attached to the stroller.

This could cause the stroller to

become unbalanced and tip

over.

WARNING

NEVER carry stroller by using the

Combi Shuttle infant car seat

handle.

WARNING

Not locking the swivel wheels

before folding the stroller can

damage the wheels.

Use ONLY the Combi Shuttle

infant carrier with this stroller.

WARNING

To prevent tipping: do not

place more than 1.0 lbs (.045 kg)

in the parent cupholder.

- 3 -

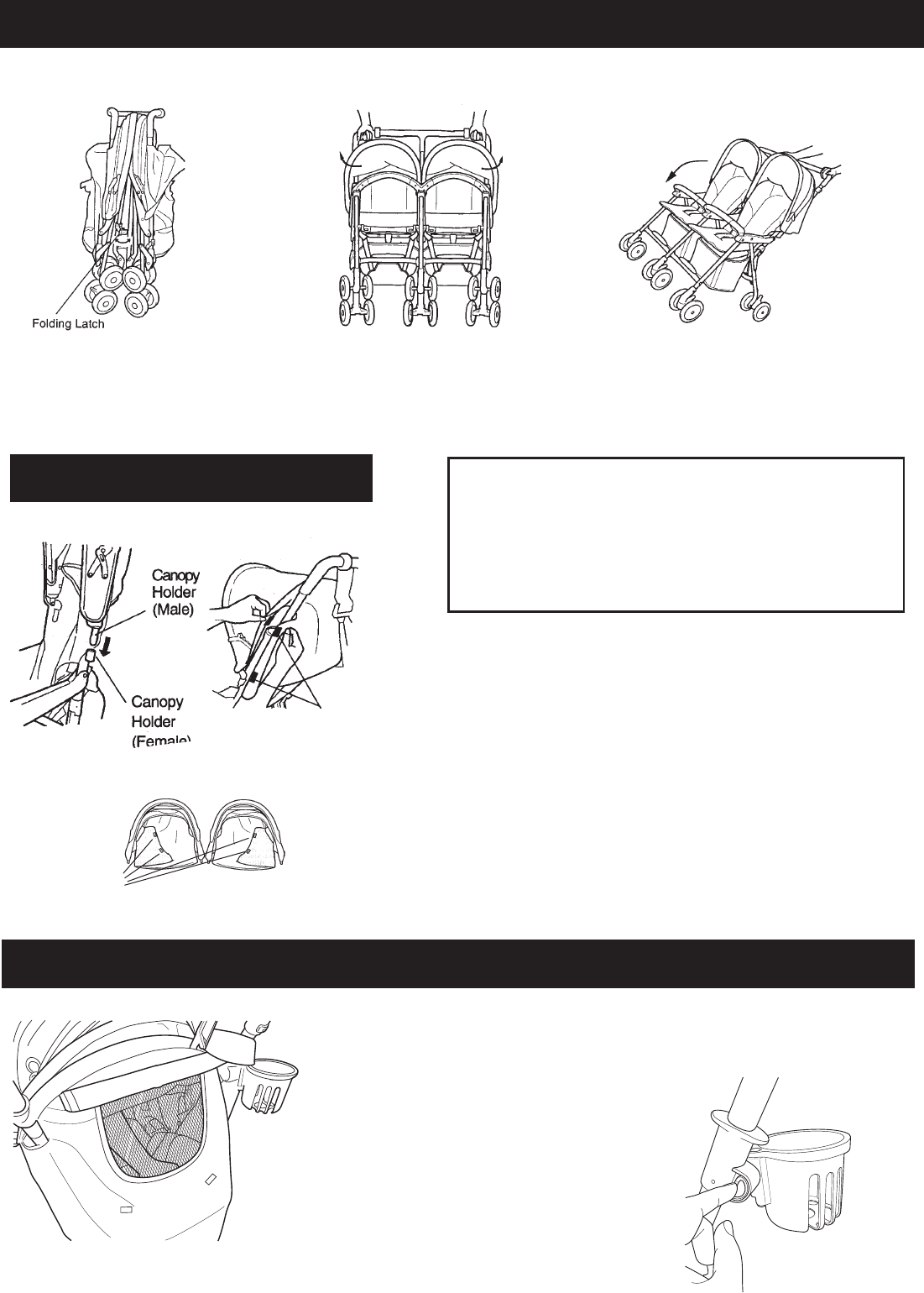

Opening the Stroller

1. Release folding latch by

pulling it forward.

2.Grip the handle on each side

and turn outward to open fully.

(Holding from underneath will

make this process easier.)

3. Lift handle and snap the stroller

away from you. It will open and

lock automatically into position.

Attaching the Canopy

Attaching the Canopy

1. Confirm canopies are facing the proper direction.

2. Fully insert the canopy holder (male) into the canopy

holder (female) until a click is heard.

3. Connect the hook & loop fasteners located on both sides

around the handle and to the back of the seats.

Removing the Canopy

Pull the hook & loop fasteners apart, squeeze the bottom of

the canopy holder (male) and pull the canopy off.

Canopy

Left

Canopy

Right

CAUTION

Failure to fully secure the canopy holders can cause the

holders to bend. When storing the stroller (by laying it

down), be sure the canopy is off the ground and nothing

is placed on canopy to prevent it from bending. ALWAYS

close canopy before folding stroller.

hook & loop

fasteners

Hook & Loop

fasteners

Using the Parent Cupholder

1. Attach the cup holder to the

stroller handle.

2. To Remove: Press the button shown

in figure 1 and pull away from stroller.

figure 1

- 4 -

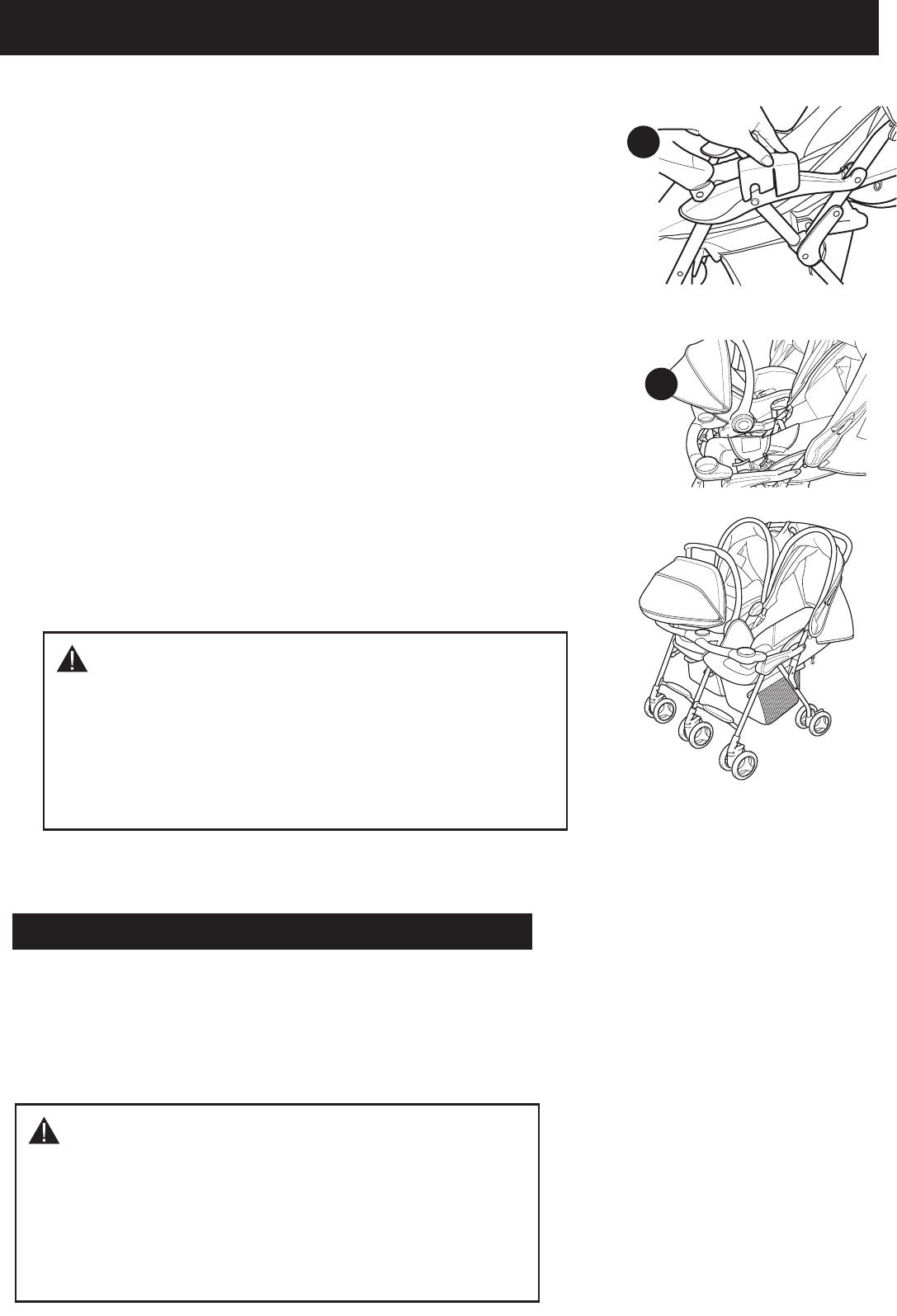

Attaching the Combi Shuttle Infant Seat

1. Recline stroller seat to the full recline position.

3. Insert Combi Shuttle infant carrier into left side of

stroller seat (while facing the stroller). Ensure bottom

of Infant Seat rests on stroller seat.

4. Press top and bottom of infant seat down into stroller

until it locks in place. Lift up gently on handle to ensure

seat is secure.

Removing Infant Seat

1. Pull red release lever on Combi Shuttle, while lifting up to release

from stroller.

3

WARNING

After installation, lift car seat to verify it is securely

locked onto the stroller.

Infant car seat MUST be attached to the stroller in

the rear facing position only.

2. While facing the stroller, attach car seat connectors to

left (outside) and middle armrest. Pull up on attachments

to ensure both connectors are secure.

2

2. Remove car seat connectors from stroller and store for future use.

WARNING - Pinch Hazard

Car seat connectors must NEVER be used

when seating position is being occupied

without the Shuttle infant seat.

When not in use, always remove and store

car seat connectors.

-5 -

To lock brakes, push all brake levers down. Brake levers

are located on the back wheels only.

To unlock brakes, lift all brake levers up.

CAUTION

Push the stroller forward to ensure that the

brakes are properly engaged.

Using the Guardrail

Using the Brakes

1. Squeeze both

buttons on the

underside of the

middle section

and lift up.

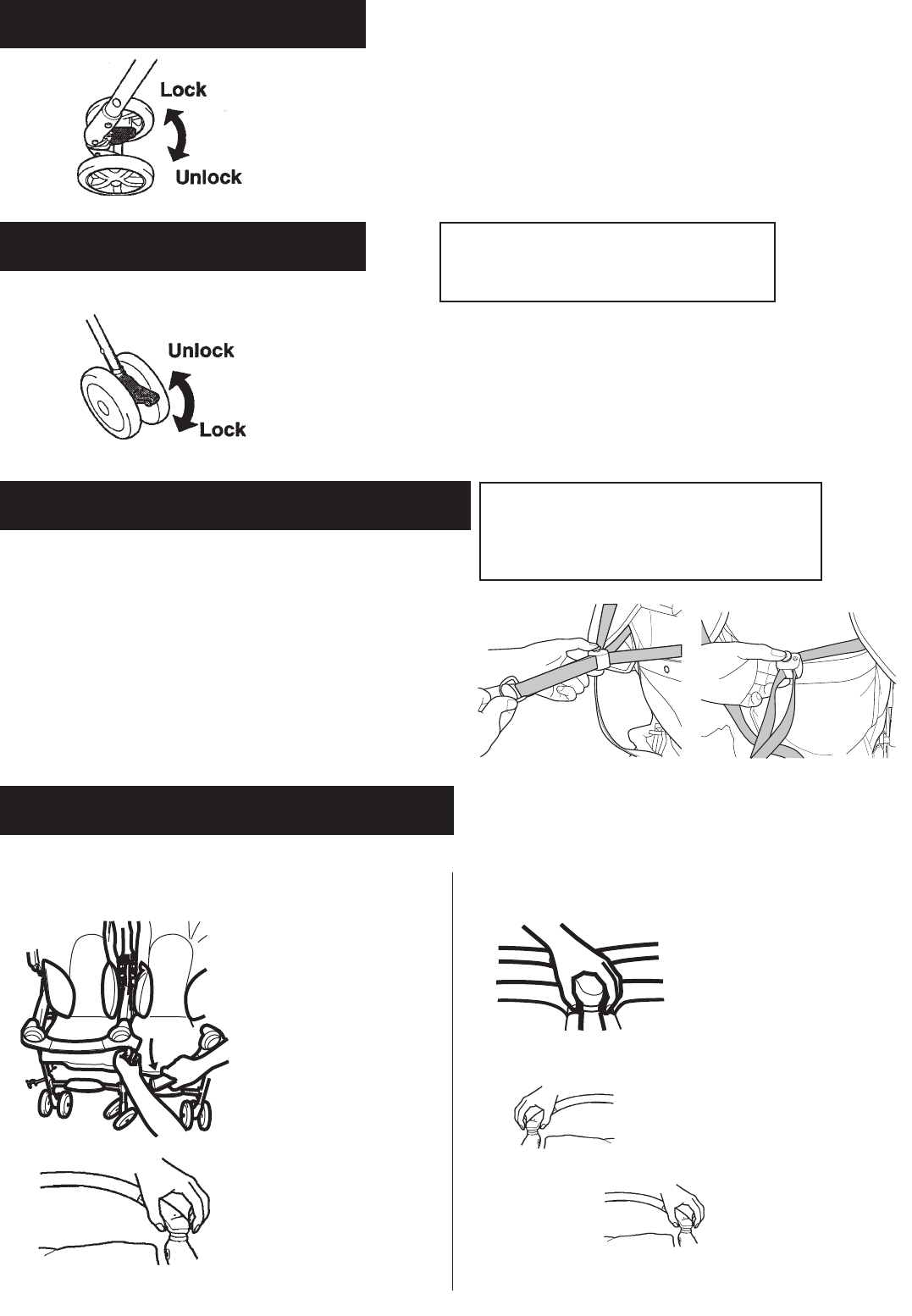

To lock swivels, make sure the lock lever is behind the

stroller frame; then lift all lock levers up.

To unlock swivels, push all swivel lock levers down.

1. Press release

button on the

underside of the

center section of

the guardrail and

pull out.

2. Squeeze the

buttons on the

outside of the

stroller and lift up

to remove one

side of the guard-

rail.

2. Squeeze the

buttons on the

both outside

sections of the

stroller and lift

up to completely

remove the

guardrail.

To remove individual sides

of the guardrail:

To remove the

complete guardrail:

Note:

To rotate either

side of the

guardrail to

permit easy

access, release

center button

and swing the

guardrail out.

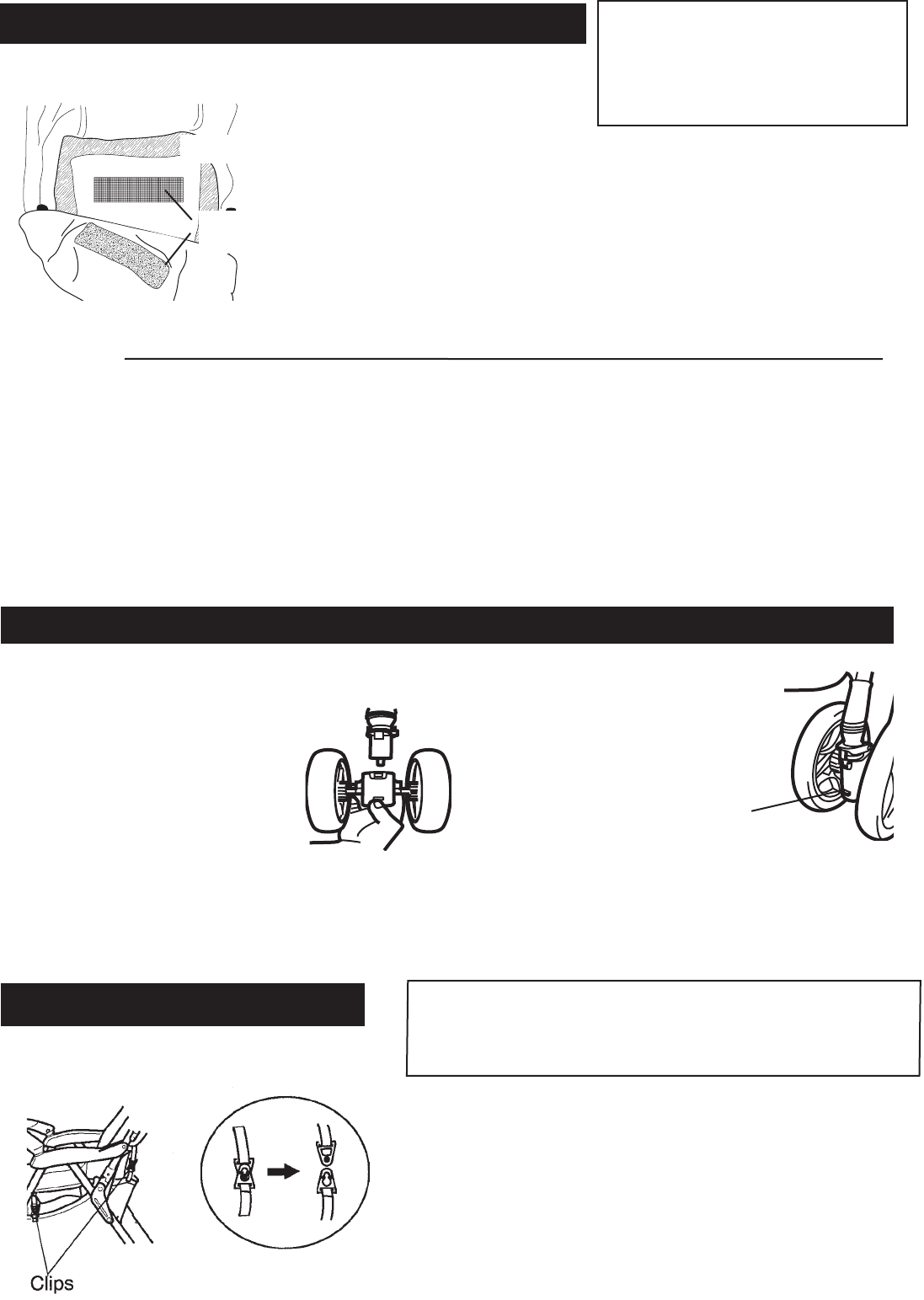

Using the Swivel Wheels

CAUTION

Use caution when reclining the backrest while

baby is in the stroller to prevent abrupt

changes in seating position.

1. To place the backrest in the upright postion, press

and hold down the button on the recline mechanism

and pull the strap tight while pushing the recline

mechanism toward the seat back.

2. To achieve a full recline, press and hold down the button

on the recline mechanism and pull downward.

Adjusting the Reclining Backrest

Swivel lever MUST be locked before folding and storing to

avoid damage.

- 6 -

Unbuckling the Harness

1. Press levers down on right and left harness hooks

to detach from buckle tongues.

2. Press buckle button down (with Combi logo) and

detach buckle tongues from buckle.

Buckling the Harness

1. Place the crotch belt between the baby’s legs.

2. Insert buckle tongues into buckle.

3. Lift buckle with tongues inserted and attach right and left hook to holes in buckle

tongue

4. To adjust the harness or waist belt, loosen the slack on both sides of each

buckle.

Using the Harness

Harness Height Adjustment

1. Unhook the shoulder straps from the center buckle as shown in

figure a.

2. Pull the back seat cushion forward and pull the shoulder straps

through the seat cushion as shown in figure b.

3. To raise the height, thread both shoulder straps through the

upper two loops as shown in figure c. To lower the height,

thread the shoulder straps through the lower two loops.

4. Thread the shoulder straps through the appropriate slot of the

seat cushion depending on which height the straps are set at as

shown in figure d.

figure a

figure b figure c figure d

WARNING

Avoid serious injury from falling

or sliding out. Always use the

5-point harness.

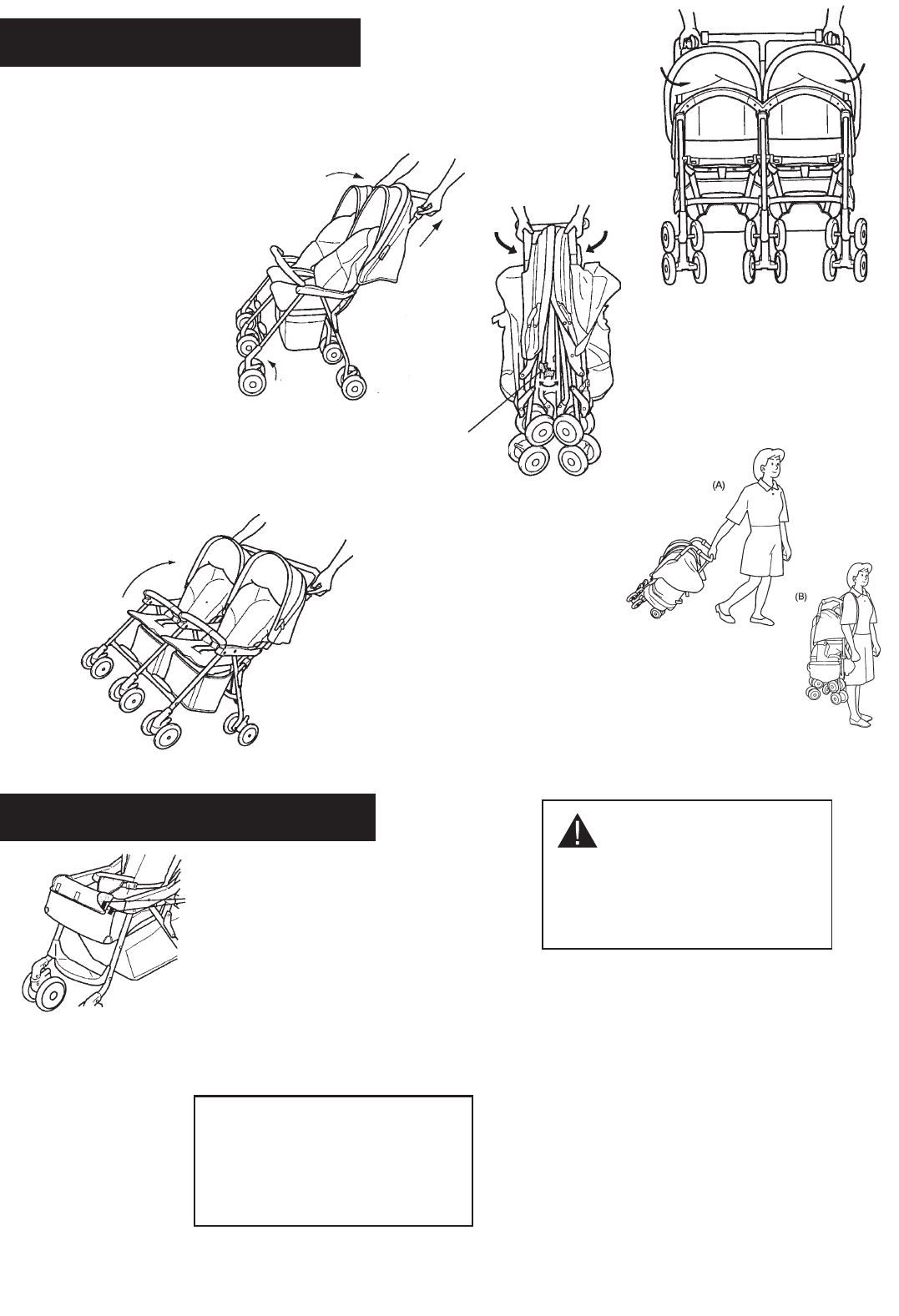

Folding the Stroller

8. Fold together by

bringing the sides

of the handle

together until the

canopies face each

other in the

middle.

9. Lock the folding latch to hold

the stroller together.

Folding Latch

The stroller can be pulled behind you

as shown in diagram A or carried over

your shoulder as shown in diagram B.

Hook & Loop

fasteners

Using the Safety Cover (Boot)

CAUTION

Before folding the stroller, unfasten

and store the safety cover (boot)

under the seat. The stroller will

not fold with it attached to

the guardrail.

Installing the Safety Cover (Boot)

1. Lift the seat cushion and pull safety cover (boot) out.

2. Place the safety cover (boot) over the guardrail and secure it

with the hook & loop fasteners.

WARNING: Child may slip

into leg openings and strangle.

Never use in reclined carriage

position(s) unless safety cover

(boot) is securely fastened.

- 7 -

1. ALWAYS lock both front

swivel wheels. Not

locking the swivel wheels

before folding the stroller

can damage the wheels.

2. Remove all items from the

basket.

3. Lock all front swivel wheels.

4. Make sure seat backs are in

the upright position.

5. Fold both canopies by

lifting up on

the canopy levers.

6. Remove your player

from the back pocket

of the canopy.

7. While lifting up

the folding levers

on both sides

of the handle,

tilt the stroller

back until it folds

together.

1

3

2

- 8 -

Removing the Basket CAUTION

Do not place more than 10 lbs. in either basket. Remove

all items from the basket before folding the stroller.

Removing & Attaching the Front Swivel Wheels

Place front swivel wheel assembly

on the swivel shaft. The assembly

is secure when it locks onto the

shaft.

To remove the Swivel Wheels

Press in the square release button

located at the bottom of the

wheel holder while pulling the

assembly off of the swivel

shaft.

Removing/Attaching the Seat Cushion CAUTION

If seat cushion is ripped or torn,

do not use.

Do not use the stroller without

the seat cushion.

Removing

1. Press levers down on

right and left harness

hooks to detach hooks

from buckle tongues.

Attaching

1. Attach hook & loop fastener

at the bottom of the seat pad

to hook & loop fastener on

the stroller base.

2. Pull top of seat pad forward;

the seat pad can rest on the

front guard rail.

3. Insert buckle strap into slot

at the bottom back of the

3. Pull top of seat pad

forward to detach hook &

4. Pull all the harness straps

through the top and side slots in

cover.

5. Unzip zipper at the base of the

seat cover.

6. Pull bottom of seat pad upward

to detach hook & loop fastener

4. Locate zipper on the back

of the seat pad and locate

the zipper in the seat bite

of the stroller. Zip seat pad

5. Insert harness straps with

hooks and harness straps

with buckle tongues through

slots on back of seat pad.

6. Attach hook & loop fastener

on top of seat pad to stroller.

Seat Base

hook & loop

fasteners

Release Button

Swivel lock MUST be locked before folding

and storing stroller to avoid damage.

1. Unhook and unloop the fasteners from the front and

back of the stroller basket.

2. Slide the basket off the basket frame.

2. Press buckle button

down and detach buckle

tongues from buckle.

loop fastener.

seat pad.

to stroller.

- 9 -

Routine Maintenance

Trouble Shooting

Store in a cool and dry area, especially in summer. To avoid damaging stroller, NEVER place items on top

of stroller during storage.

Seat Cushion:

The seat cushion is machine washable. Set to gentle cycle using cold water and a mild detergent. Do

not use bleach. Lay seat cushion flat to dry in shaded area. Do not machine dry. To prevent color fading,

do not leave soaking for a long period. If the seat cushion is frayed or unraveling, discontinue use and

call Consumer Affairs for further instruction.

Canopy, Waist Belt, Fixed Seat Base and Basket:

Hand wash with brush. Wipe out excess water with a dry cloth and dry in a shaded area. For stubborn

dirt, dilute a mild detergent and apply directly to the dirty area. Wipe out the detergent.

Stroller Frame (Main Body)

Briskly wipe off any mud and dirt. Wipe with a damp cloth then wipe out any traces of moisture on the

body with a dry cloth. If fabric is not dryed completely, mold or mildew could occur.

Excessive exposure to the sun could cause premature color fading of stroller plastic and fabric.

Wheel Assemblies:

After prolonged normal use, the wheels of your stroller may not swivel as easily as when the stroller

was new. This is usually due to buildup of dirt in the swivel mechanism. Before adding lubrication,

remove the swivel wheels by pressing in the release button and wiping off mud and dirt. Do not use

soap and water to wash wheels. Periodically check that all screws, bolts and nuts are tight.

Avoid lubricating the swivel wheels whenever possible. Excessive lubrication or adding lubricant to

swivel wheels when new may cause them to develop a shimmy or wobble that may quicken their

deterioration. Add a silicone* to the wheel assemblies in small amounts.

NEVER use lubircants because oil attracts dust and would hinder the movement rather than improve it.

*Silicone spray is available at most hardware stores.

Stroller will not fold:

- Ensure waist belt is not caught in the side.

- Make sure front swivels are locked.

- Remove all items from the basket.

- Make sure the seat back is in the upright position.

Difficult to steer or Stroller pulls to one side:

- NEVER hang items from the handle.

- Make sure weight in basket is distributed evenly.

- Check that the brakes are not in the locked position.

- Clean wheels and silicone to wheels, if necessary.

Difficult to get up curbs:

- Pulling stroller backward makes going

up a curb difficult, and could pose a safety hazard.

Pull the handle up to lift the rear wheels onto the

curb, then pull the stroller backward until the

front wheels clear.

LIMITED WARRANTY

1. Combi USA Products, when purchased from an authorized retailer; are warranted to the original purchaser to

be free from defect in materials and workmanship for a period of one (1) year from date of purchase. Combi products

purchased from unauthorized retailers are not covered under warranty. Warranty is valid for products purchased and

used in the U.S. only and used in compliance with the warrantor’s use and maintenance instructions.

Save your carton and receipt. These items may be required in case of return for warranty assistance.

2. During the warranty period your Combi product will either be repaired or replaced, at the warrantor’s discretion,

without charge for replacement parts if it is purchased from an authorized Combi dealer and is found to be

defective in workmanship or materials. For service, call 1-800-99-Combi (1-800-992-6624). For warranty service,

please contact your Combi retailer. The warrantor shall not be responsible for any costs incurred by the consumer in

returning a defective product for repair. The consumer will be responsible for all shipping and handling for replacement

parts.

This limited warranty shall not apply to normal wear to the product, or if the product has been:

a. Damaged due to accidents, misuse, abuse or neglect as determined by Combi.

b. Tampered with or repaired by any one other than an authorized Combi representative or with parts

other than Combi approved parts.

c. Leased or rented for commercial use.

THE WARRANTY PROVIDED HEREIN IS EXCLUSIVE AND IS IN LIEU OF ALL OTHER EXPRESS WARRANTIES. ANY

IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR

PURPOSE, ARE EXPRESSLY EXCLUDED. WARRANTOR’S OBLIGATIONS AND THE CONSUMER’S OR OTHER BUYER’S

REMEDIES UNDER THE LIMITED WARRANTY ABOVE ARE EXCLUSIVE AND ARE STRICTLY LIMITED TO REPAIR OR

REPLACEMENT AS STATED. ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES ON THE PART

OF THE WARRANTOR AND ANY SUPPLIER OR DEALER ARE HEREBY ALSO EXPRESSLY EXCLUDED.

Some states limit or do not allow exclusions or limitations on how long an implied warranty lasts, so the above limitations may

not apply to you. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above

limitations or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other

rights which vary from state to state.

Parts List for the Twin Sport only.

Price Quantity Total

$10/per or $25/set

1. Wheel Assemblies (front only)

Amount of Order

ADD

Shipping & Handling

Sales Tax (8.5%)

(NC residents only)

Total

Charge to my credit card:

VISA MASTERCARD

DISCOVER

Card Number

Expiration Date __________ - ___________ - ____________

Cardholder’s Signature

If you would like to place an order, please fill out the form below and return to

the following address:

Combi

or Fax this completed form to

Attn: Customer Service

3520 Westinghouse Blvd., Ste. B

Charlotte, NC 28273

IMPORTANT: We must have this information to process your order:

Model Number: ____________ - _____________ Color / Pattern of Fabric: _________________________________________

If you need to order other parts for your stroller, please call us

toll-free at 1-800-992-6624.

Shipping and Handling Fees: Add $8.00 for orders $34.99 and under.

Add $13.00 for orders $35.00 and over. Note: Additional shipping charges

will apply outside of the Continental U.S.

Combi USA reserves the right to change pricing at any time.

Ship To:

Customer Name

Street Address

Street Address

City, State, Zip

Telephone Number

704-697-1695

Located on the rear right leg.

05052011

Twin Sport

Instruction Manual

Combi USA, Inc. • 3520 Westinghouse Blvd., Ste. B • Charlotte, NC 28273

www.CombiUSA.com • Customer Service 1-800-992-6624
