12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 1
DS-SCA65FA2A-V1.0-171215

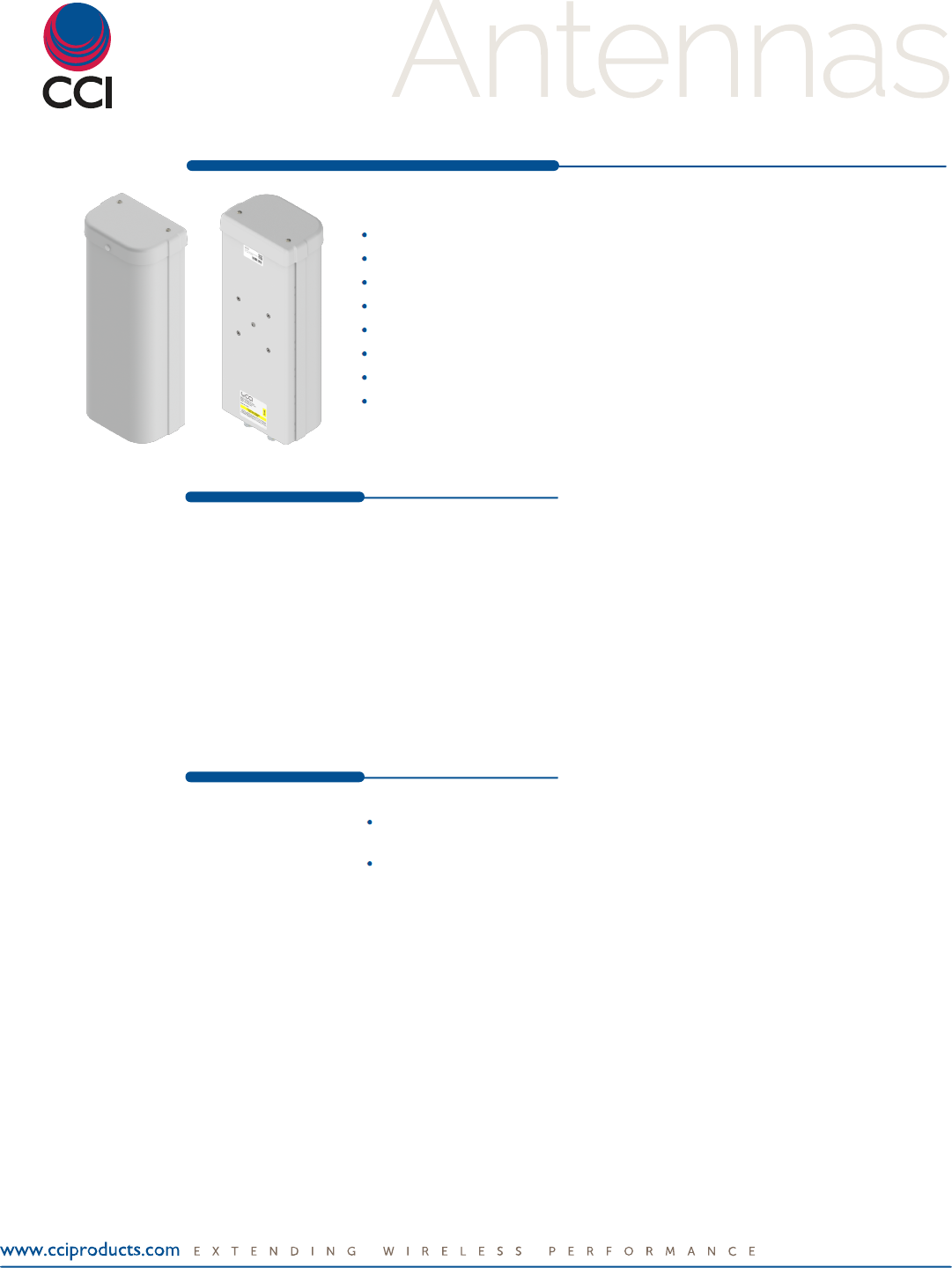

Small Cell 65 Degree Panel Antenna SCA65F-A2A
DATA SHEET
Small Cell Sector antenna covering 2300-2400 MHz band
Cross-Pol design for 2x2 MIMO
Excellent upper sidelobe suppression
Designed for superior Front to Back performance
Excellent PIM Performance
Fixed tilt of 2 degrees
Small form factor
Lightweight < 5 lbs (2.3 kg)
Overview
CCI’s Highband Small Cell Panel Antenna is optimized for 2300-2400 MHz
band and provides 65° of sectoral coverage in a small form factor panel
antenna. The unique design of the CCI antenna elements provides for
extremely stable azimuth patterns over the full operating frequency ranges,
thus ensuring consistent coverage area for all bands of operation. The Small
Cell Panel Antenna is the ideal choice for Macro, Mini-Macro and Small Cell
applications in urban and suburban environments where antenna size and
count are restricted. The antenna is well suited for mounting to utility,
lighting and traffic poles.
CCI antennas are designed and produced to ISO 9001:2008 certification
standards for reliability and quality in our state-of-the-art manufacturing
facilities.
Applications
Macro, Mini-Macro and Small Cell deployments in Urban, Suburban and
other visually sensitive environments
Meets Macro Cell Antenna performance criteria
12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 2
DS-SCA65FA2A-V1.0-171215
Small Cell 65 Degree Panel Antenna SCA65F-A2A
SPECIFICATIONS
Electrical
Ports 2 ×High Band Ports for 2300-2400 MHz
Frequency Range 2300-2400 MHz
Gain (dBi) 13.0
Azimuth Beamwidth (°) 65
Azimuth Beamwidth Squint (°) 1.5
Elevation Beamwidth (°) 20.0
Electrical Downtilt(°) 2
First Upper Sidelobe (dB) < -18
Front-to-Back Ratio over ± 15°(dB) > 28
Cross-Polar Discrimination at Peak (dB) > 19
Cross-Polar Discrimination over Sector (dB) > 10
Cross-Polar Port-to-Port Isolation (dB) > 25
Voltage Standing Wave Ratio (VSWR) < 1.5:1
Passive Intermodulation 2×20W (dBc) ≤ -150
Input Power Continuous Wave (W) 300
Polarization Dual Linear 45°
Input Impedance 50 ohms
Lightning Protection DC Ground
Mechanical
Dimensions (L×W×D) 16.9×6.8×4.5 in (430×172×114 mm)
Survival Wind Speed > 150 mph (>241 kph)
Front Wind Load 24 lbs (109 N) @ 100 mph (161 kph)
Side Wind Load 17 lbs (75 N) @ 100 mph (161 kph)
Equivalent Flat Plate Area 1.0 ft2 (0.1 m2)
Weight * 4.9 lbs (2.2 kg)
Connector 2×4.3-10 female
Mounting Pole 4" (10 cm) and larger
* Weight excludes mounting
12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 3
DS-SCA65FA2A-V1.0-171215
Small Cell 65 Degree Panel Antenna SCA65F-A2A
SPECIFICATIONS

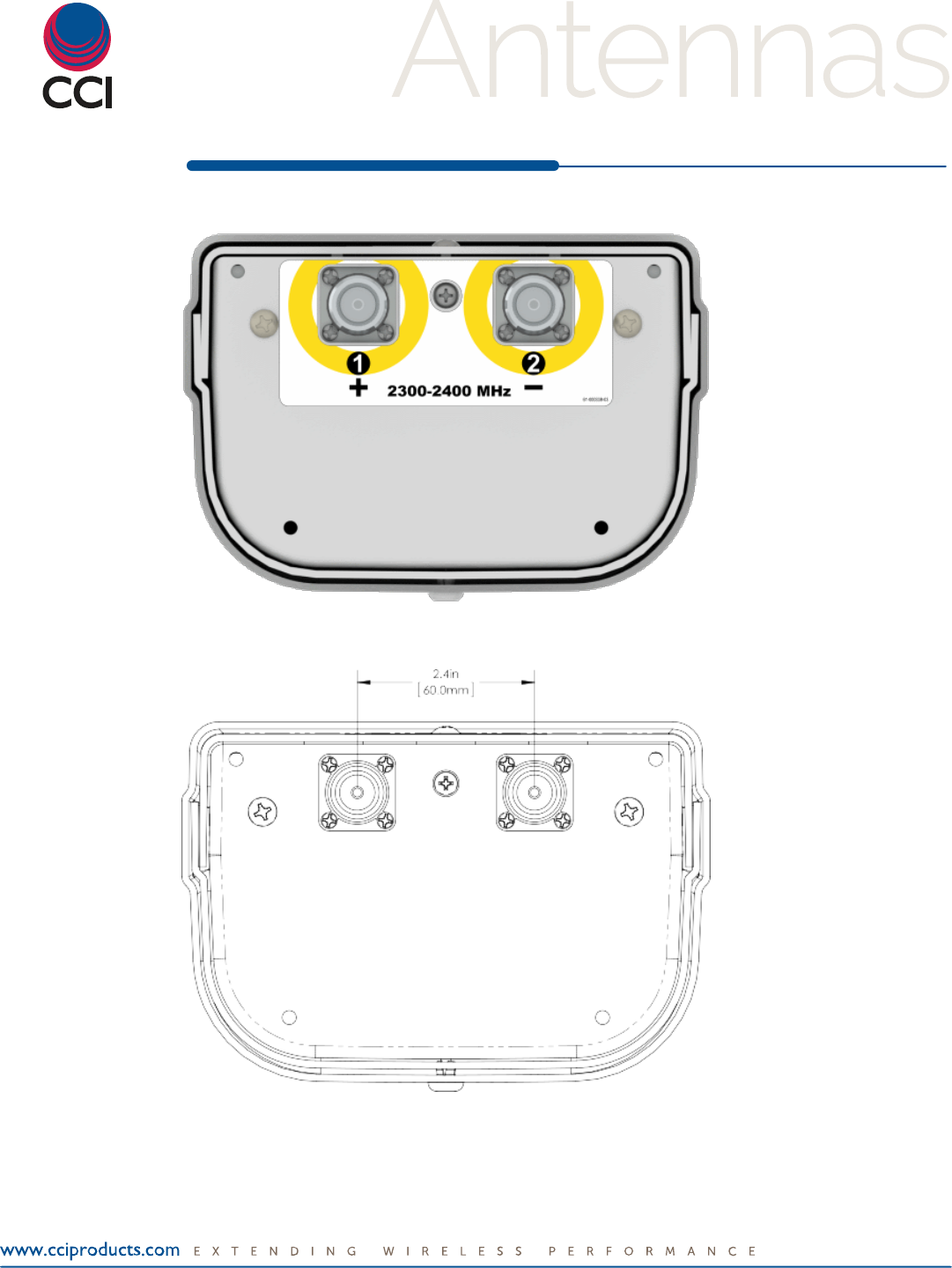

Bottom View
Mechanical
Connector Spacing
12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 4
DS-SCA65FA2A-V1.0-171215
Small Cell 65 Degree Panel Antenna SCA65F-A2A
SPECIFICATIONS
Typical Antenna Patterns
For detailed information on additional antenna patterns, contact customer support at support@cciproducts.com
2400 MHz Azimuth 2400 MHz Elevation 2°
12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 5
DS-SCA65FA2A-V1.0-171215
Small Cell 65 Degree Panel Antenna SCA65F-A2A
ORDERING
Parts & Accessories
SCA65F-A2AA-K 1.5 foot (0.4 m) antenna with 65°azimuth beamwidth
and2° fixed electrical downtilt, 4.3-10 connectors and
MBK-07 Mounting Bracket kit
MBK-07 Mounting bracket kit with ±20° of mechanical tilt
adjustment
12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 6
DS-SCA65FA2A-V1.0-171215
Mounting Bracket Kit MBK-07
ACCESSORIES
Mechanical
Weight 2.7 lbs (1.2 kg)
Mounting Pole Dimension 4 in (10 cm) and greater
Mechanical Tilt Adjustment ±20°
MBK-07
12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 7
DS-SCA65FA2A-V1.0-171215
Mounting Bracket Kit MBK-07
ACCESSORIES

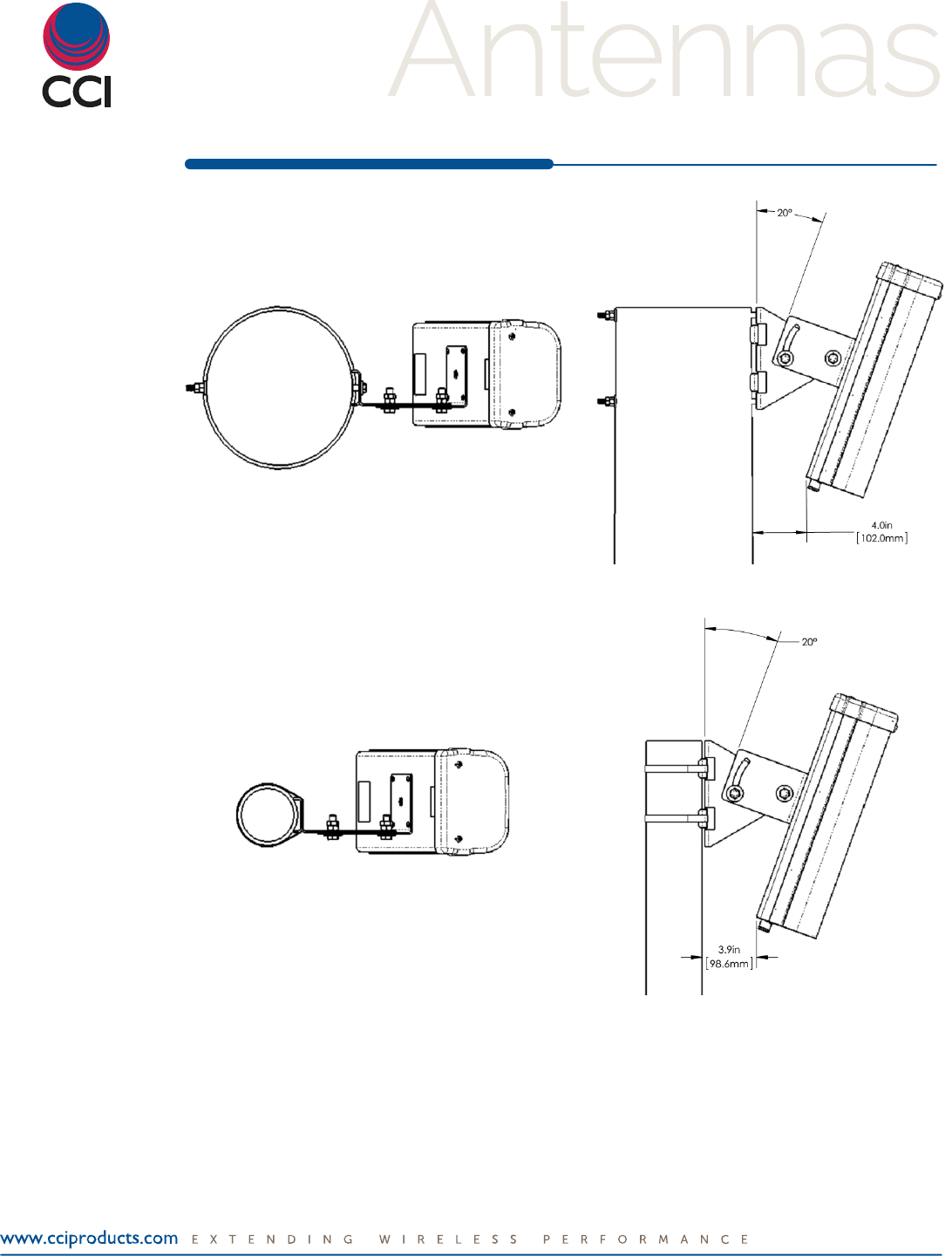

MBK-07 Typical Wooden Pole mount MBK-07 Typical Wooden Pole mount
MBK-07 Typical Steel Pole mount MBK-07 Typical Steel Pole mount
12/15/2017 © 2018 CCI All rights reserved. Specifications are subject to change. Revision 1.0 8
DS-SCA65FA2A-V1.0-171215
Small Cell 65 Degree Panel Antenna SCA65F-A2A
STANDARDS &
CERTIFICATIONS Standards & Compliance
Certifications
ISO 9001:2008
