Communication Network Interface CNI-900KM Two Way Personal Communicator User Manual
Communication Network Interface Inc. Two Way Personal Communicator Users Manual
Users Manual
Getting Started Guide
for CNI-900KM
Getting Started Guide for CNI-900KM
Document title: Getting Started Guide for CNI-900KM
Edition Date Version Remarks
1 September 17, 2002 Version 0.1 Preliminary Release
Copyright 2002, Communication Network Interface, Inc. All rights reserved.
Communication Network Interface and CNI are registered trademarks of Communication Network Interface, Inc.
MOBITALK is a registered trademark of Communication Network Interface, Inc.
Mobitex is a trademark of the Swedish Telecommunications Administrations.
MSN, ICQ and Yahoo are registered trademarks of respective owners of the trademarks.
This document is for supply to licensed customers or parties only. The contents are confidential, and any disclosure to
persons not directly authorized by CNI is strictly prohibited. No part of this publication, or any software included with it,
may be reproduced, distributed, stored in a retrieval system, or transmitted in any form or by any means without the
prior written permission of the copyright holder.
This document may contain technical inaccuracies or typographical errors. CNI and its subsidiaries waive responsibility
for any labor, material, or cost incurred by any person or party as a result of using this document. CNI and its
subsidiaries or other affiliates shall not be liable for any damages including, but not limited to, consequential, indirect or
incidental, special damages, or loss of profits or loss of data.
Communication Network Interface, Inc.
13F Dae-A Bldg. 165-5 Dong-Gyo Dong, Ma-Po Ku,
Seoul 121-200 KOREA
Phone : +82-2-330-5611
Fax : +82-2-330-5773
Getting Started Guide for CNI-900KM
Table Of Contents
GETTING TO KNOW YOUR MOBITALK......................................................................................... 1
FULLY CHARGE BEFORE USE...................................................................................................... 2
STARTING YOUR MOBTALK .......................................................................................................... 2
TURNING YOUR MOBITALK ON/OFF............................................................................................................................ 2
MOBITALK HOME SCREEN ........................................................................................................................................... 3
NAVIGATING USING TRACKWHEEL .................................................................................................................................. 4
ENTERING E-MAIL ADDRESS........................................................................................................................................... 4
ENTERING SYMBOLIC CHARACTERS................................................................................................................................4
KEYS AND KEY COMBINATIONS....................................................................................................................................... 5
CUSTOMIZING YOUR MOBITALK.................................................................................................. 6
HOW TO SET VALUES ........................................................................................................................................................ 6
MOBITALK PROGRAMS ................................................................................................................. 6
MESSENGER .................................................................................................................................................................... 6
SMS ................................................................................................................................................................................ 7
CHAT ............................................................................................................................................................................... 7
MAIL ............................................................................................................................................................................... 8
ADDRESS BOOK............................................................................................................................................................... 8
CALCULATOR................................................................................................................................................................... 9
DESKTOP SOFTWARE ................................................................................................................... 9
Getting Started Guide for CNI-900KM

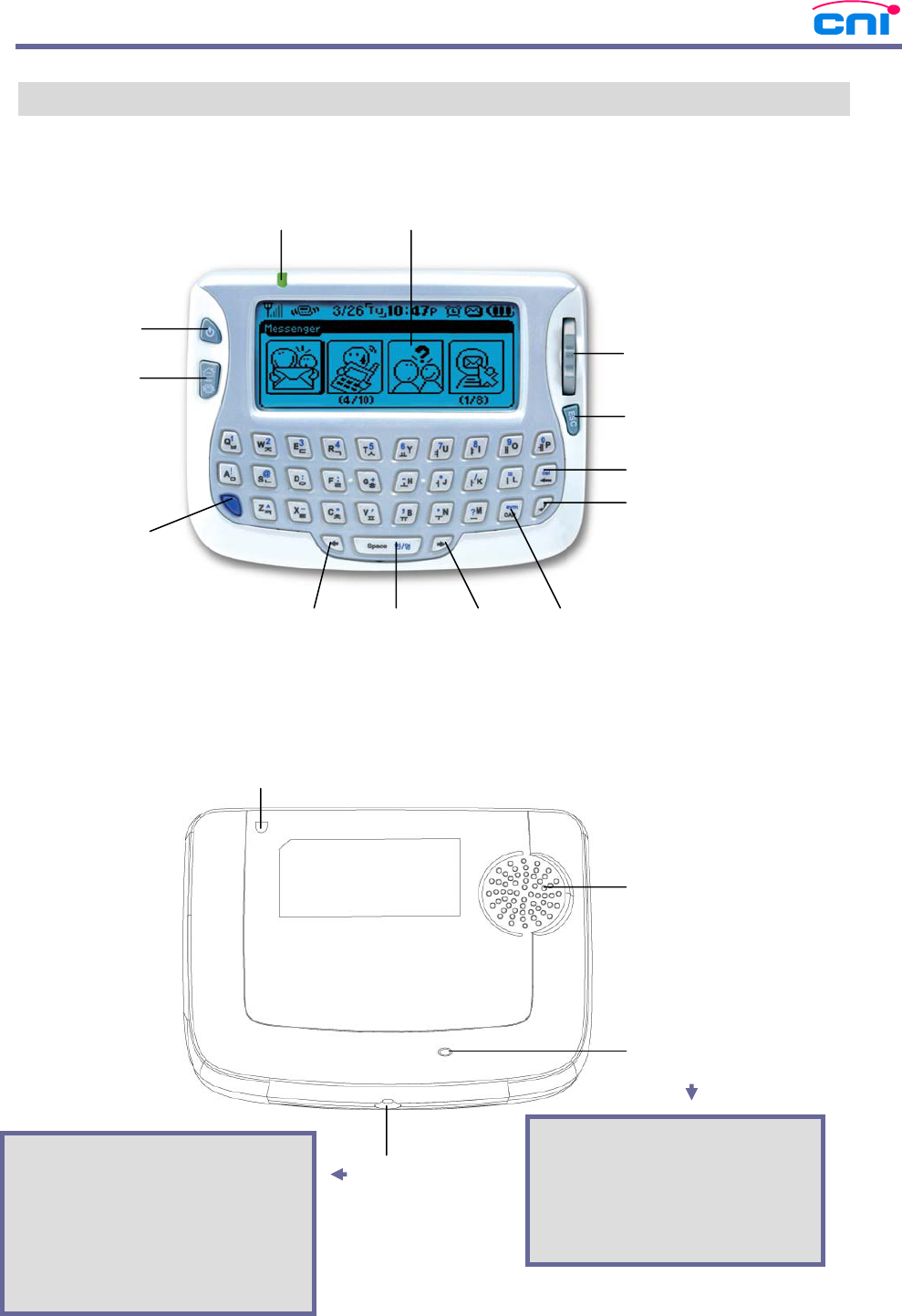

Getting to know Your MOBITALK
Front
Back
LED LCD
Trackwheel
ESC
Enter
Del/Backspace
CAP(sym)R-arrowSpaceL-arrow
ALT
Serial Port
Reset Button
Strap Hole
Speaker
Connect the Serial Port to the
serial cable provided.
(For information about connectin
g
the serial port, see “Fully Char
g
e
Before Use,” page 2.)
In case of difficulty
Press the Reset Button with a
sharp-end tool (such as a sharp
pencil) to restart the system.
Power
Home
Key
Getting Started Guide for CNI-900KM

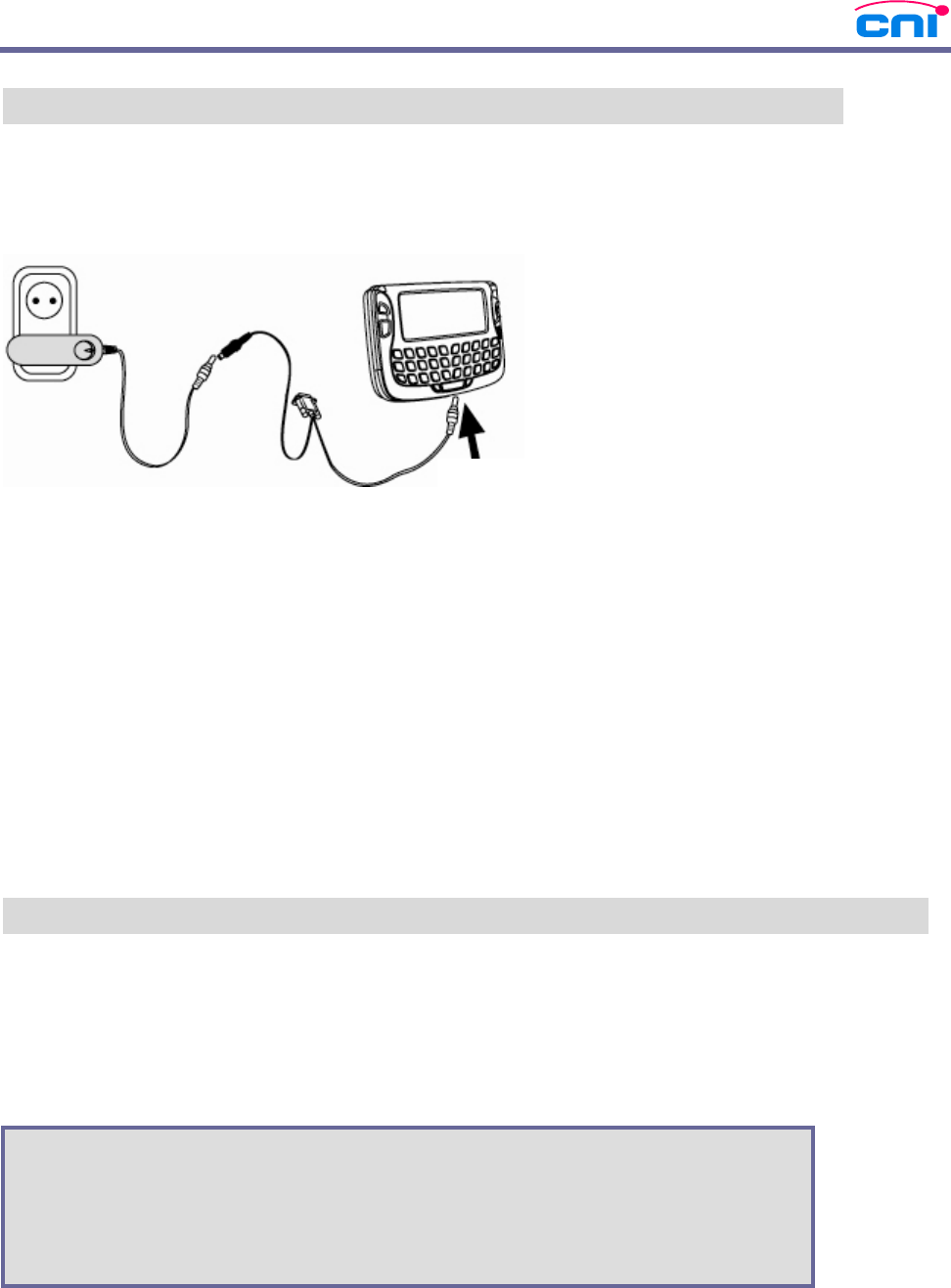

Fully Charge Before Use
Please follow the instructions below to fully charge your MOBITALK:
Connect the serial cable both to the serial port of the MOBITALK and to the power adapter cable.
It takes 3 hours to fully charge your MOBITALK.
Red LED: Charging
Green LED: Fully charged
Your MOBITALK is now ready for use. The following sections will help you understand the functions of your
MOBITALK.
Starting your MOBTALK
Turning Your MOBITALK ON/Off
To turn your MOBITALK on, press and hold the Power button for 4 seconds. To turn it off, press and hold
the Power button for 3 seconds.
Power Save Mode
Power Save Mode is set to one minute. To get out of the Power Save Mode, press the ESC
or Power button once. To chan
g
e the Power Save Mode settin
g
,
g
o to General Settin
g
s in
Functions.
Serial Port
Getting Started Guide for CNI-900KM

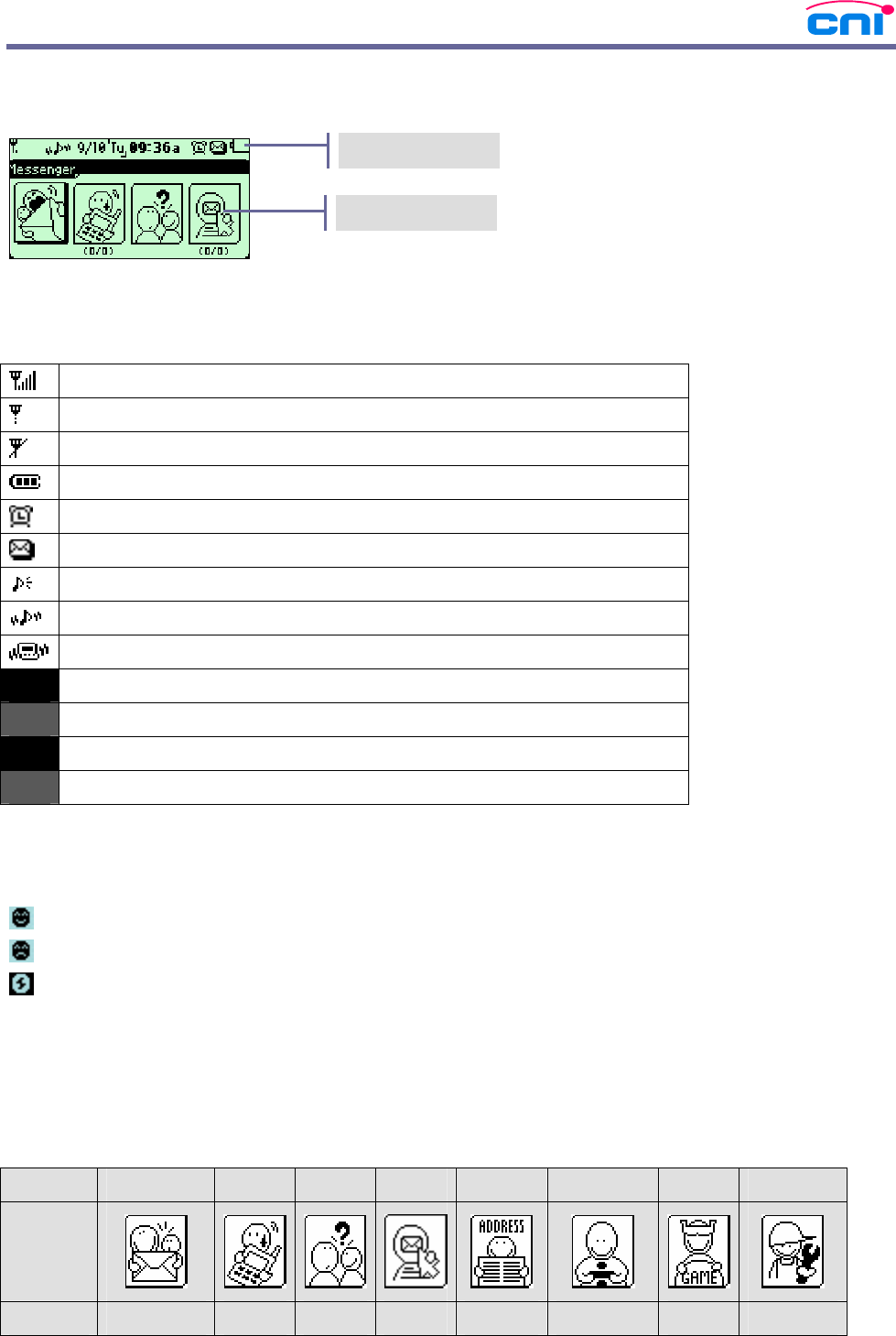

MOBITALK Home Screen
Status Icons
Coverage strength indicator
Communication services are disabled because the battery is low.
Modem is off
Battery power indicator
Alarm is set
Unread message waiting
Red LED + melody
Red LED + melody + vibration
Red LED + vibration
A Numeric/Symbolic Mode
N Num(Sym) Lock Mode
c Capitalization Mode
C Caps Lock Mode
Message Delivery Status Icon
You can check delivery status of your sent messages in Outbox by the following icons.
Successfully delivered
Couldn’t establish connection to the server.
Still waiting for response from the server.
Program Icon
To start a program, scroll to the program icon and click the trackwheel. You can also press the corresponding
hotkey in the Home screen to start the program.
Program Messenger SMS Chat Mail Address Calculator Game Functions
Program
Icon
Hotkey I S C M A N G F
Status Icon
Program Icon
Getting Started Guide for CNI-900KM
Navigating Using Trackwheel
Roll the trackwheel with your thumb to scroll up and down through screen lines, fields, and menu items
Click the trackwheel with your thumb to open menus and select options, similar to the function of a
mouse used with your PC.
Entering E-Mail Address
In the E-Mail input field, hit Space key to enter @ and hit Space key again to enter a period.
Entering Symbolic Characters
1. Display the Symbol Key Pad by pressing ALT + CAP (holding ALT while pressing CAP)
2. Click the trackwheel and select the symbol key pad you want (Greek, Basic..etc.)
3. To select a symbol, scroll to a symbol and press ENTER or click the trackwheel to select Insert.
4. To select more than one symbol at once, select each symbol and press the SPACE key. The selected
symbols are shown on top. press ENTER or click the trackwheel to select Insert.
You can scroll up the trackwheel to see more menus.
You can scroll down the trackwheel to see more menus.
Shortcut keys
Getting Started Guide for CNI-900KM

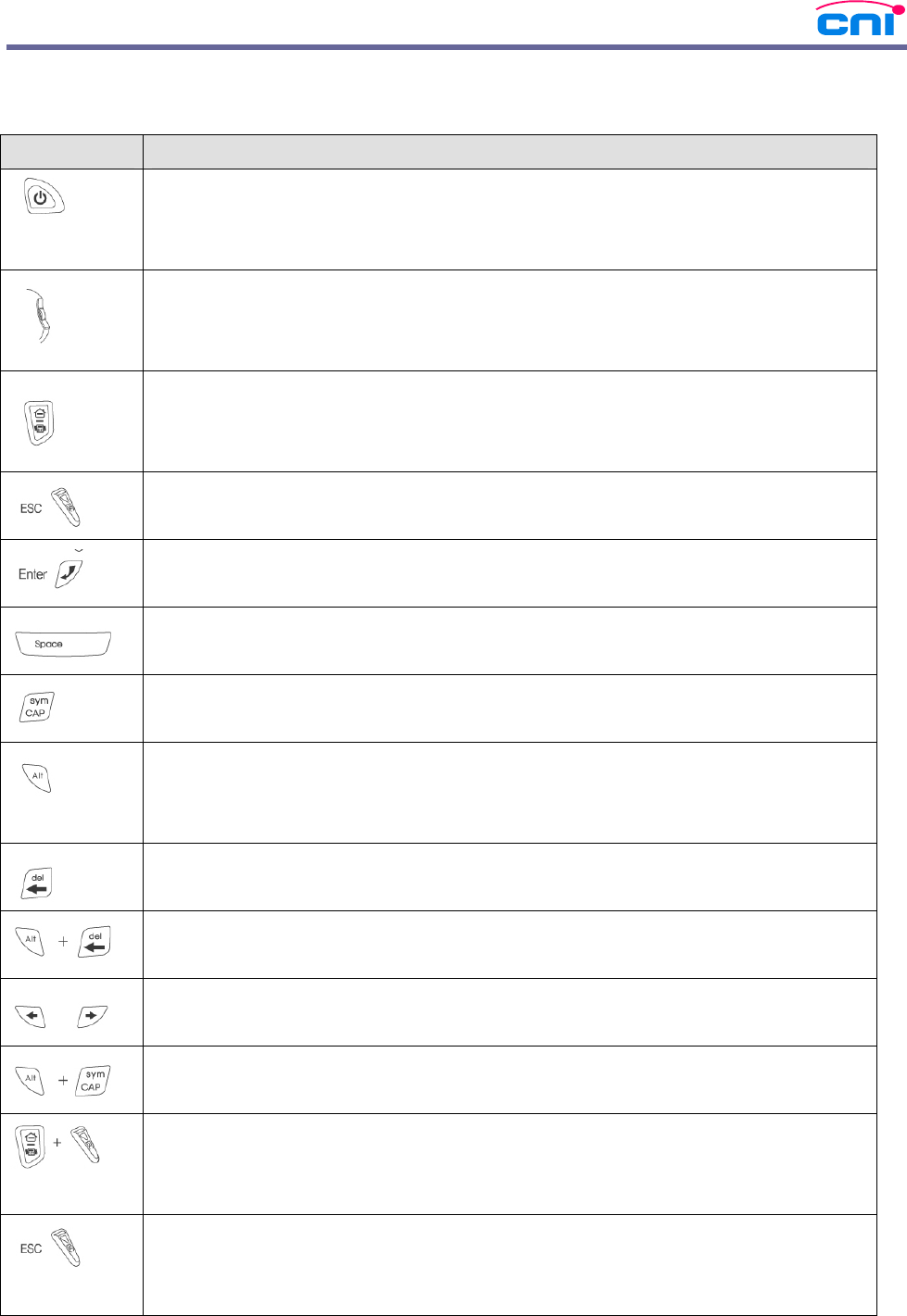

Keys and Key Combinations
Key Function
Power
Turning power on: Press and hold the Power button for 3 seconds.
Turing power off: Press and hold the Power button for 4 Seconds.
Activating backlighting: Press once
Trackwheel
Scrolling and selecting
Roll the trackwheel to scroll through screen lines, fields and menus items.
Click the trackwheel to open menus and select options.
Returning to Home screen: Press the Home Key once.
Setting manner mode: Press and hold the Home Key for 3 seconds.
Escaping from screens/menus
Inserting carriage returns and selecting
`
Inserting a space
Capitalizing an alphabetic characters: Press the CAP key once
Activating CAPs lock: Press the CAP key twice consecutively
Typing numeric and symbol characters: Press the ALT key once to affect the next
character you type
Activating Num(Sym) lock: Press the ALT key twice to affect all characters
Deleting previous characters
Deleting characters ahead of cursor
Moving cursor left or right
Increasing (right arrow) or decreasing (left arrow) values
Opening symbol library for extra characters
Home + ESC
Locking the keyboard: Hold Home Key while pressing ESC for two seconds
+
reset button
Switching to boot mode: Pres ESC + reset button in case your MOBITALK doesn’t
switch to boot mode when upgrading.
Home Key
Getting Started Guide for CNI-900KM
Customizing your MOBITALK
Customize your MOBITALK by adjusting settings in the Functions.
How to set values
To increase a value, use the right arrow; use the left arrow key to decrease a value.
To set data type, use the right or left arrow key to display the data type you want.
MOBITALK Programs

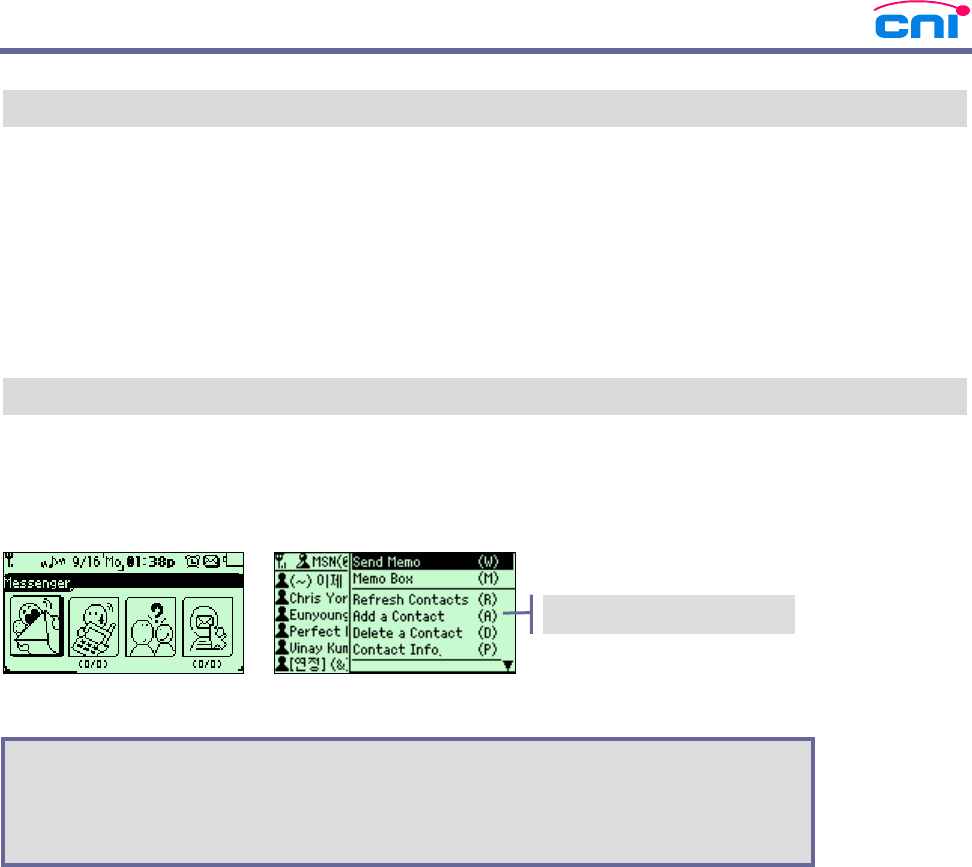

Messenger
Enjoy MSN, ICQ and Yahoo Messenger on the go.
Registering Messenger
Manage Messenger → Choose a messenger → Set → Enter ID/password → Register
Setting View Properties
In the View As field, choose display type of your buddies (Display name, Name, ID) → View As
In the Default Messenger field → Choose which messenger you want to display at login → Default
Messenger
My Messenger
My messenger is a favorite contact list made from MSN, ICQ and Yahoo messengers’ contact lists.
1. Manage Messenger → My Messenger → Set
2. Choose contacts from the messenger on the right → Add to My Messenger → Save & Exit
3. To choose contacts from the other messengers → Select Messenger → Select a messenger → Select
→ Choose contacts from the messenger on the right → Add to My Messenger → Save & Exit
Before using MOBITALK Messenger
You need to install each messen
g
er pro
g
ram on your computer and si
g
n up before
using MOBITALK Messenger.
Messenger Main Screen
Getting Started Guide for CNI-900KM

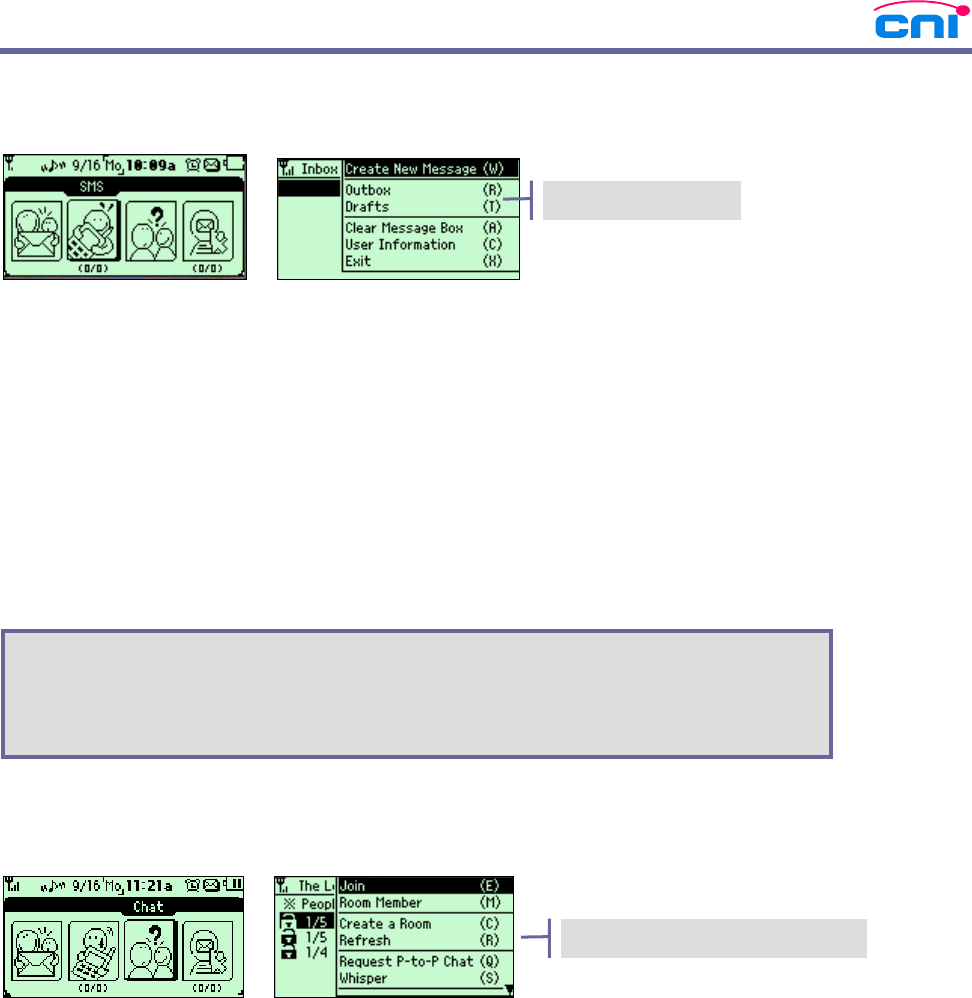

SMS
Setting User Info
SMS Main Screen → User Information → Enter a name and contact number (MOBITALK, MICESS or Cell
Phone) → Save
Sending New Message
SMS Main Screen → Create New Message → In To field, select Import from Addr.Book (or enter a
recipient’s number) → Select an address → Select/Deselect or press SPACE → OK → Enter a message in
Body → Send Message
Chat
You can enjoy MOBITALK Chat with MOBITALK and MICESS users.
Entering a Room/Starting a Chat
Chat Main Screen → Create a Room → Enter a Name, Number (maximum number of people: 7) → Set
Password (4-digit numbers) if you set the room as Private → OK → Enter a message and press ENTER.
P-to-P Chat (Peer to Peer Chat)
Chat Main Screen → Request P-to-P Chat → Enter a Recipient’s number or Select Address Book or
Find Friend → Request
Whisper
Chat Main Screen or Chat Room → Whisper → Enter a Recipient’s number or Select Address Book or
You can enter up to 5 numbers in To field,
When entering numbers directly in To field, use semi colon (;) between numbers.
If the number of received messages exceeds 50, no more message will be received.
SMS Main Screen
Chat Main Screen (Lobby)
Getting Started Guide for CNI-900KM
Find Friend → Request

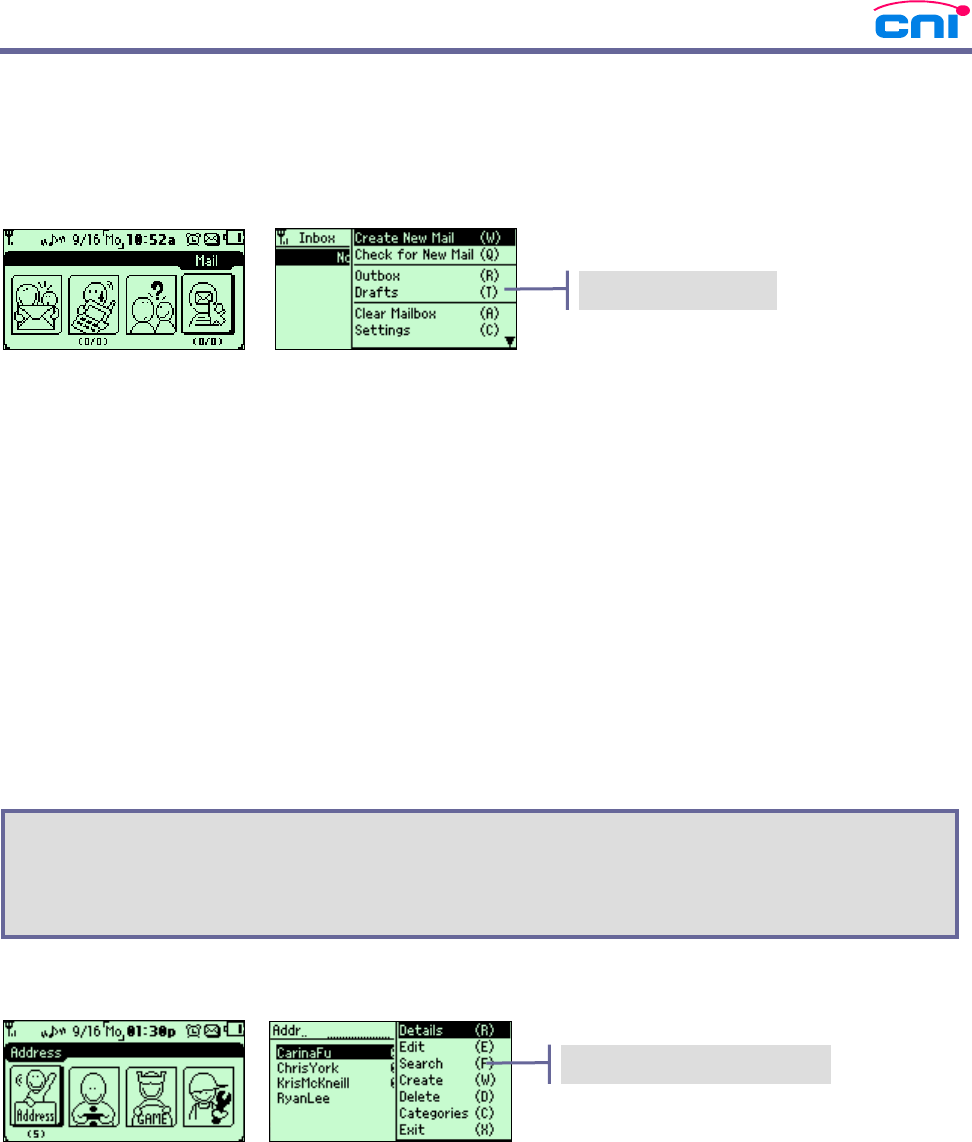

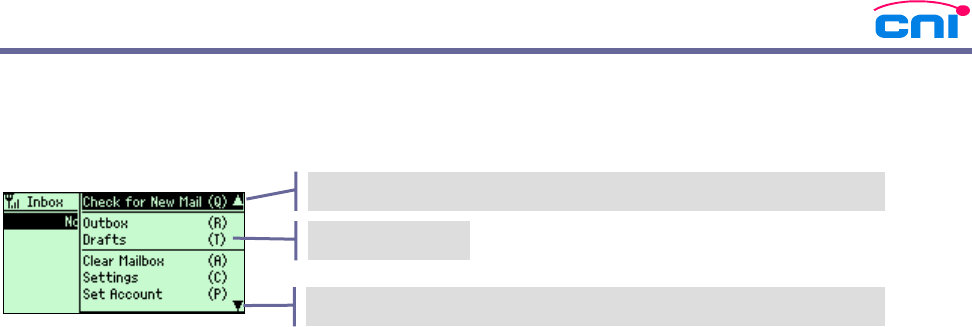

Mail
Setting User Accounts
Mail Main Screen → Set Account → In POP3 Ser. field, enter a mail server or Select Mail Sever →
Enter ID (the part before @) and password → Request Account
User Settings
Mail Main Screen → User Settings → Enter a Name and E-Mail address which you want to use sending out
emails → Enter your signature in Sig. → Save
Sending New Mail
Mail Main Screen → Create New Mail → In To and CC field, select Import from Addr.Book (or enter a
recipient’s number) → Select a address → Select/Deselect or press SPACE key → OK → Enter a Title and
a message in Body → Send Mail
Address Book
Creating New Address
Address Book Main Screen → Create → Set Category Name → Select a category → Set Category
Name → Save
Searching Address
Address Book Main Screen → Enter a character in the field on top → Search
Address Book Main Screen → Search → Enter a character in the field on top → Search
You can enter up to 5 mail addresses in To and CC field.
When entering mail addresses directly in To field, use semi colon (;) between mail addresses.
If numbers of received mails exceed 50, no more mail will be received.
Mail Main Screen
Address Book Main Screen
Getting Started Guide for CNI-900KM
Viewing Address by Category
Address Book Main Screen → Categories → Select a category → View Item

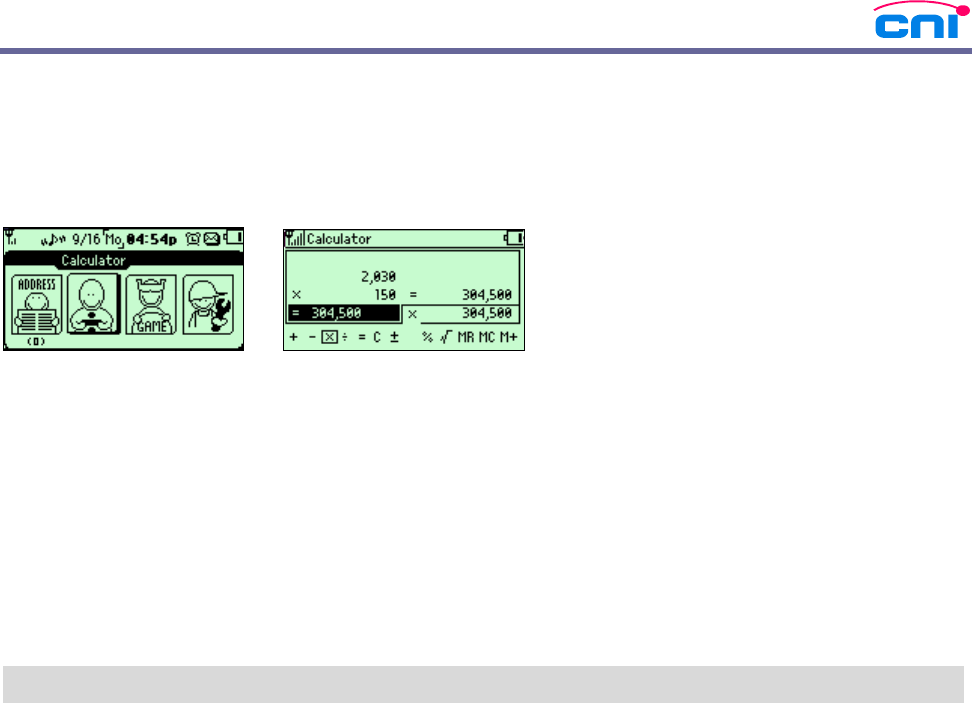

Calculator
How to use Calculator
1. Enter a number using ALT key
2. Use arrow keys to navigate through operators and select one by pressing ENTER key.
3. Enter the next number and press ENTER.
Calculating percentage
To calculate 20% of 1000, enter the following: 1000 + 20%
Desktop Software
Using the MOBITALK desktop software, MOBITALK XSync, you can perform the following tasks.
Synchronize your MOBITALK address book with MS Outlook contacts or MOBITALK Manager
contacts.
Backup any important information from MOBITALK to PC and restore MOBITALK from a backup file.
Download melodies and icons onto your MOBITALK.
Upgrade your MOBITALK with the latest software.
Safety Information
1 . SAFETY INFORMATION FOR FIXED WIRELESS TERMINALS
POTE NTIALLY EXPLOSIVE ATMOSPHERES
Turn your phone OFF when in any area with a potentially explosive atmosphere
and obey all signs and instructions. Sparks in such areas could cauls e an
explosion or fire resulting in bodily injury or even death.
INTERFERENCE TO MEDICAL DIVICES
Certain electronic equipment may be shielded against RF signal from you wireless
phone. (pacemakers, Hearing Aids, and so on) Turn your phone OFF in health care
facilities when any regulations posted in these areas instruct you to do so.
RF signals may affect improperly installed or inadequately shielded electronic
system in motor vehicles.
EXPOSURE TO RF ENERGY
Use only the supplied or an approved replacement antenna.
Do not touch the antenna unnecessarily when the phone is in use.
Do not move the antenna close to, or touching any exposed part of the body when
making a call.
SAFETY INFORMATION FOR RF EXPOSURE
This equipment has been approved for mobile operation, and requires a minimum
of 20 cm. spacing between antenna(s) and all person's body (excluding extremities
of hands, wrist and feet) during wireless modes of operaton.
