User Manual

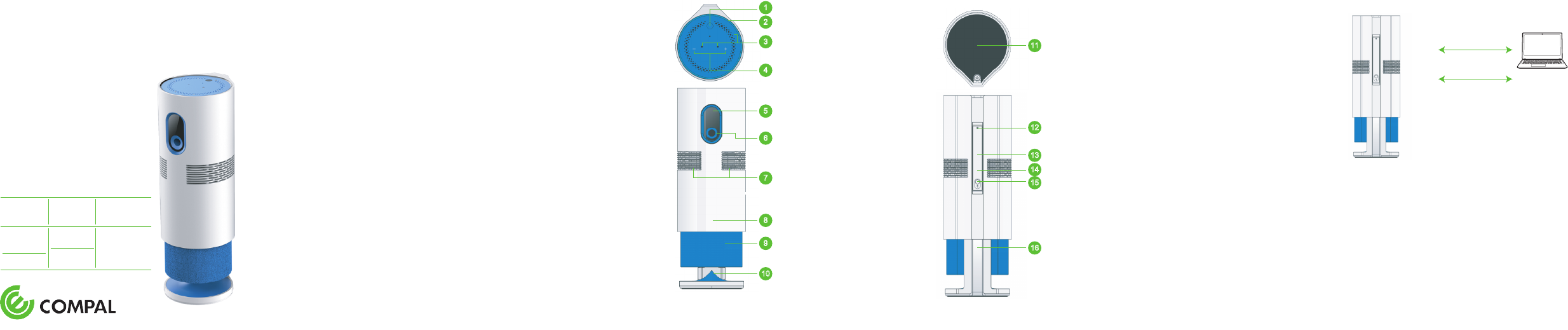

Features & Appearance (continue)
Bottom and Rear Views
11. Rubber foot
12. Reset hole
13. MicroUSB (UART)*
14. USB 2.0*
15. DC-in power connector
16. Stand
*under the sticker
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
10
Product Brief
The Compal Jupiter II, the all-in-one Smart Assistant, is the rst
oered as a completed system for the development on audio/
image intelligence and home automation control.
It is equipped with a Intel® Atom™ processor that gives you Intel
level performance you’ve come to expect and quality you can
count on. It includes 8GB (upgradable to 16GB) of on-board
storage for programing your application.
The Jupiter II features a far-eld microphone array of 8
microphones capturing individual voice several meters away. It
hears your requests and questions from any direction across the
room. Incorporate with 2.1 channels high quality speakers giving
rich and crystal clear sound for both voice AI interaction and
streaming music.
The intelligence could be implemented on Jupiter II is not only for
Virtual Personal Assistant (VPA), but also image one. The Jupiter II
installs a wide angle camera, up to 130 degrees on horizontal
view, allowing capturing clear images or high-denition video
further image and video analytics, such as facial recognition,
behavior observation, event detection, etc.
With plenty of wirelesses, include WiFi, Bluetooth, Zigbee, and
Z-wave, you can connect with various smart home edge products,
and interact and control among dierent types of wireless edge
devices to customize your experience.
Detecting the status of surrounding is also essential for the home
automation. The Jupiter II contains six types of environmental
sensors: temperature, relative humidity, pressure, ambient light,
air quality (VOC), PIR motion, delivering diverse and full-range of
information you need for the rule setting.
The system is preinstalled with Linux Ostro. It is compatible with
Intel® Smart Home Development Acceleration Platform (SHDAP)
SDK. For the Intel SHDAP detail information, please contact
regional Intel representative.
Features & Appearance
Top and Front Views
1. Ambient sensor
2. LEDs indication ring
3. Microphone
4. Volume up/ down buttons
5. Camera
6. PIR sensor
7. Thermal holes
8. Speaker (Woofer)
9. Speaker (Tweeter)
10. Sound reection corn
Technical Specications
Processor
• Intel® Atom™ processor x5-E8000
• 2M Cache, up to 2.00 GHz
System Memory
• DDR3L 2G
• Upgradable to 8GB
Storage Capability
• 8GB eMMC soldered-down
• Upgradable to 16GB
Peripheral Connectivity
• AzureWave AW-CBN178NF Dual
Band Wireless 802.11a/b/g/n/ac,
2x2
• Bluetooth 4.2 +EDR/ BLE
• SigmaDesign Z-wave
• MMBNet Zigbee/ Zigbee Pro (2.0)
• TELIT 4G LTE Module (optional)
System BIOS
• 128MB Flash EEPROM
Hardware Management Feature
• Voltage and temperature sensing
• ACPI-compliant power
management control
Microphone
• 6+2 microphone array
• Far eld >5m, 98%
Speaker
• 1 x Tweeter, 5W
• 1 x Woofer, 10W
Camera
• 2 Megapixel
• FOV (H): 130 degrees
Top Panel Control
• 1 x Volume Up
• 1 x Volume Down
Environmental Sensor
• 1 x 3-in-1 Temperature,
Relative Humidity, Pressure
• 1 x Ambient light
• 1 x Air quality (VOC)
• 1 x PIR motion
Expansion Capabilities
(for code development)
• 1 x MicroUSB (UART)
• 1 x USB 2.0
Mechanical Chassis Size
• 281.18 mm x Ф 95.04~106.5 mm
Pre-loaded OS
• Linux Ostro
Baseboard Power Requirements
• 12V, 24W, wall-mount AC-DC power
adapter
• EU/ US AC adapter
Environment Operating Temperature
• 0ºC to +40ºC
Storage Temperature
• -20ºC to +70ºC
Product Safety Regulations and
Standards
• EN 60950-1
EMC Regulations and Standards
• FCC Part 15
• EN 55032/55024/301489
• ICES-003
This Class B digital apparatus complies
with Canadian ICES-003.
Cet appareil numérique de la classe B est
conforme à la norme NMB-003 du Canada
.
Environmental Regulation
• RoHS Directive 2011/65/EU
• WEEE Directive 2012/19/EU
COMPAL
SMART ASSISTANT
Jupiter II
6+2 PCS
MIC ARRAY
10W+5W
SPEAKERS
FOV(H) 130°
CAMERA
802.11ac
WIRELESS
Bluetooth
ZIGBEE
Z-WAVE
6
environmental
SENSORS
Hardware Installation Instructions
1. Connect the device with power and notebook or PC.
2. The indication LEDs rings start running around 1 minutes.
After the indication LEDs running o, the system boot up
ready.
3. Use Linux command to build up your own applications.
MicroUSB
(UART)
DC-in jack Power
Notebook/ PC
Federal Communication Commission
Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference
by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution:
Any changes or modications not expressly approved by the
party responsible for compliance could void the user's authority
to operate this equipment.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
FOR MOBILE DEVICE USAGE (>20cm)
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the
radiator & your body.
FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)
Note: The country code selection is for non-US model only and is
not available to all US model. Per FCC regulation, all WiFi product
marketed in US must xed to US operation channels only.
Federal Communication Commission
Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference
by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
FCC Caution:
Any changes or modications not expressly approved by the
party responsible for compliance could void the user's authority
to operate this equipment.
This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Industry Canada Statement
This device complies with Industry Canada license-exempt RSS
standard(s). Operation is subject to the following two
conditions:
1) this device may not cause interference, and
2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
Le présent appareil est conforme aux CNR d'Industrie Canada
applicables aux appareils radio exempts de licence.
L'exploitation est autorisée aux deux conditions suivantes:
1) l'appareil ne doit pas produire de brouillage, et
2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible
d'en compromettre le fonctionnement.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
This device and its antenna(s) must not be co-located or
operating in conjunction with any other antenna or transmitter,
except tested built-in radios.
Cet appareil et son antenne ne doivent pas être situés ou
fonctionner en conjonction avec une autre antenne ou un
autre émetteur, exception faites des radios intégrées qui ont
été testées.
The County Code Selection feature is disabled for products
marketed in the US/ Canada.
La fonction de sélection de l'indicatif du pays est désactivée
pour les produits commercialisés aux États-Unis et au Canada.
FCC ID: GKRA30EIH30B03
Contains TLZ-CM389NF and XFFZ357PA20
Model name: EIH3
Trade name: Compal
Trade Name: Compal
IC ID: 2533B-A30EIH30B03
Contains 6100A-CM389NF and 8365A-Z357PA20
Model Name: EIH3
Manufacturer: Compal Electronics Inc.
Manufacturer Address: No. 581, Ruiguang Rd., Neihu District,
Taipei City 11492, Taiwan.
FOR MOBILE DEVICE USAGE (>20cm)
Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set
forth for an uncontrolled environment. This equipment should be
installed and operated with minimum distance 20cm between the
radiator & your body.
FOR COUNTRY CODE SELECTION USAGE (WLAN DEVICES)
Note: The country code selection is for non-US model only and is
not available to all US model. Per FCC regulation, all WiFi product
marketed in US must xed to US operation channels only.
FOR MOBILE DEVICE (>20cm from body / low power)
Radiation Exposure Statement
This equipment complies with IC radiation exposure limits set
forth for an uncontrolled environment. This equipment should
be installed and operated with minimum distance 20cm
between the radiator & your body.
Déclaration d'exposition aux radiations:Cet équipement est
conforme aux limites d'exposition aux rayonnements IC
établies pour un environnement non contrôlé. Cet équipement
doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
FOR WLAN 5GHZ DEVICE
Caution:
1) the device for operation in the band 5150-5250 MHz is only
for indoor use to reduce the potential for harmful
interference to co-channel mobile satellite systems;
2) the maximum antenna gain permitted for devices in the
bands 5250-5350 MHz and 5470-5725 MHz shall comply
with the e.i.r.p. limit; and
3) the maximum antenna gain permitted for devices in the
band 5725-5825 MHz shall comply with the e.i.r.p. limits
specied for point-to-point and non point-to-point
operation as appropriate.
4) the worst-case tilt angle(s) necessary to remain compliant
with the e.i.r.p. elevation mask requirement set forth in
Section 6.2.2(3) shall be clearly indicated. <for 5G B2 with
DFS band only>
5) Users should also be advised that high-power radars are
allocated as primary users (i.e. priority users) of the bands
5250-5350 MHz and 5650-5850 MHz and that these radars
could cause interference and/or damage to LE-LAN devices.
Avertissement:
1) les dispositifs fonctionnant dans la bande 5150-5250 MHz
sont réservés uniquement pour une utilisation à l’intérieur
an de réduire les risques de brouillage préjudiciable aux
systèmes de satellites mobiles utilisant les mêmes canaux;
2) le gain maximal d’antenne permis pour les dispositifs
utilisant les bandes 5250-5350 MHz et 5470-5725 MHz doit
se conformer à la limite de p.i.r.e.;
3) le gain maximal d’antenne permis (pour les dispositifs
utilisant la bande 5725-5825 MHz) doit se conformer à la
limite de p.i.r.e. spéciée pour l’exploitation point à point et
non point à point, selon le cas.
4) les pires angles d’inclinaison nécessaires pour rester
conforme à l’exigence de la p.i.r.e. applicable au masque
d’élévation, et énoncée à la section 6.2.2 3), doivent être
clairement indiqués. <for 5G B2 with DFS devices only>
5) De plus, les utilisateurs devraient aussi être avisés que les
utilisateurs de radars de haute puissance sont désignés
utilisateurs principaux (c.-à-d., qu’ils ont la priorité) pour les
bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars
pourraient causer du brouillage et/ou des dommages aux
dispositifs LAN-EL.
This device complies with Directive 2014/53/EU issued by the
Commission of the European Community.
A minimum separation distance of 20 cm must be maintained
between the user’s body and the device, including the antenna
during body-worn operation to comply with the RF exposure
requirements in Europe.
• Frequency bands and Powers
a. Frequency band(s) in which the radio equipment operates:
• BT: 2.400 - 2.483 GHz
• WIFI: 2.412 - 2.472 GHz & 5.180 - 5.825 GHz
• Zigbee: 2.400 - 2.500 GHz
• Zwave: (EU)868.4 & 868.85 MHz
(US) 908.4 & 916 MHz
The full text of the complied standards are as below listed:
1. Health (Article 3.1(a) of Directive 2014/53/EU)
Applied Standard(s):
EN 62311 : 2008
EN 62479 : 2010
2. Safety (Article 3.1(a) of Directive 2014/53/EU)
Applied Standard(s):
EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A2: 2013
3. Electromagnetic compatibility (Article 3.1 (b) of Directive
2014/53/EU)
Applied Standard(s):
EN 301 489-1 V2.1.1 / -17 V3.1.1
Draft EN 301 489-3 V2.1.0
EN 55032: 2012/ AC: 2013 + EN 55024: 2010
4. Radio frequency spectrum usage (Article 3.2 of Directive
2014/53/EU)
Applied Standard(s):
EN 300 328 V2.1.1
Draft EN 301 893 V2.0.7
EN 300 220-1 V3.1.1/ -2 V3.1.1
b. Maximum radio-frequency power transmitted in the
frequency band(s) in which the radio equipment operates:
[Module]
• BT: 2 dBm +/- 2 dBm
• WIFI: [2.4 GHz radio band] (11b) 11M 16 dBm (11g) 54M 14
dBm (11n) HT40 11 dBm [5 GHz radio band] (11a) 54M
13 dBm (11n) HT40 10 dBm (11ac) VHT80 8 dBm
• Zigbee: 18 dBm
• Zwave: 4 dBm +/- 2 dBm
[Antenna gain]
• BT: 3.89 dBi
• WIFI: [2.4 GHz radio band] (Main) 5.29 dBi (Aux) 3.89 dBi [5
GHz radio band] (Main) Max. 5.27 dBi (Aux) Max. 3.46
dBi
• Zigbee: 0.5 dBi (ceramic chip antenna on module)
• Zwave: 0.4 dB
• WLAN 5GHz
Operations in the 5.15-5.35GHz band are restricted to indoor
usage only.
• Declaration of Conformity
We, Compal Electronics, INC.,
Address: No. 581, Ruiguang Rd., Neihu District, Taipei City 11492,
Taiwan (R.O.C.)
declare that the below mentioned radio equipment type is in
compliance with Directive 2014/53/EU.
Model Name: EIH3
Intended Use: Smart IOT
Software Version: 3401.R.4418.17040NB
Company Name: Telecation B.V.NB
Company Number: 0560
In the EU, this symbol means that this product must
not be disposed of with household waste. It is your
responsibility to bring it to a designated collection
point for the recycling of waste electrical and
electronic equipment. For more information, please
contact your local waste collection centre or your
point of purchase.
