PDA user manual

TOSHIBA Pocket PC e750/e755

User’s Guide

Introduction

Thank you very much for your purchase of this Toshiba Pocket PC.

Please be sure to read this user’s guide before using the Toshiba Pocket

PC, and ensure that you are aware of correct the handling procedures.

• Please be sure to read the “Safety precautions” section in this docu-

ment to learn about important safety issues.

• After reading this document, keep it in a convenient place for future

reference.

laws, this manual cannot be reproduced in any form without the prior

written permission of Toshiba. No patent liability is assumed, with re-

spect to the use of the information contained herein.

Toshiba Pocket PC e750/e755 User’s Guide

First edition March 2003

Trademarks

Microsoft, ActiveSync, Outlook, Pocket Outlook, Windows, Windows CE,

and the Windows logo are either registered trademarks or trademarks of

Microsoft Corporation in the United States and/or other countries. Microsoft

products are licensed to OEMs by Microsoft Licensing, Inc., a wholly owned

subsidiary of Microsoft Corporation.

Safety precautions

• Please carefully read “Safety precautions” before using the Toshiba

Pocket PC and ensure that you are aware of correct handling proce-

dures.

• The precautions provide essential information for the protection of

the user and others from possible injury and property damage. They

also provide information on the safe handling of this product.

• Please check that you fully understand the definition of the following

messages (signs and graphical symbols) before reading the text,

and always follow the instructions provided.

Safety instructions

Please carefully read “Safety precautions” before using the Toshiba

Pocket PC and ensure that you are aware of correct handling proce-

dures. The precautions provide essential information for the protection

of the user and others from possible injury and property damage. They

also provide information on the safe handling of this product. Please

check that you fully understand the definition of the following messages

(signs and graphical symbols) before reading the text, and always

follow the instructions provided.

There are two categories of Safety Instructions included in this manual:

Product Warnings, (i.e., what must never be done to assure avoiding

those hazards that could cause bodily injury or property damage); and

User Directions (i.e., what must always be done to assure the safe use of

your Pocket PC).

The Safety Instructions contained in this manual have been categorized

in accordance with the seriousness of the potential hazards through the

use of Signal Words.

Those Signal Words, and their intended meanings, are as follows:

Signal Word Meaning

DANGER Indicates that a failure to observe the Safety

Instructions could result in serious bodily in-

jury.

CAUTION Indicates that a failure to observe the Safety

Instructions could result in minor bodily injury

or property damage.

WARNING Designates important information that relates

to the safe use of your Pocket PC.

Your Pocket PC produces low levels of RF energy due to the generation of

digital timing pulses by its clock oscillator circuits. Your Pocket PC has

been equipped with internal shielding to minimize any stray emissions of

RF energy.

Airlines may nevertheless prohibit the on-board use of all portable PCs

(and all other portable electronic devices that could potentially emit stray

RF energy), particularly during take-offs and landings, to prevent any pos-

sible interference with the reception of signals by airborne electronic navi-

gational devices.

WARNING

Always request and obtain prior consent and approval of an authorized

airline representative before using your Pocket PC aboard an aircraft.

Always follow the instructions of the airline representative whenever us-

ing your Pocket PC aboard an aircraft, to prevent any possible interfer-

ence with airborne electronic equipment.

WARNING

Certain locations, such as hospitals, may restrict the use of Pocket PCs

and other devices that emit low-level RF energy.

Always comply was posted prohibitions of the use of RF-emitting de-

vices, such as in hospitals. Failure to follow such directives could result

in the interference with medical equipment and/or devices.

Never come closer than 16cm (6inches) to a person with a heart pace-

maker implant when using this Pocket PC in combination with a mobile

cellular telephone. Failure to do so could result in interference with the

function of the pacemaker.

WARNING

Never use a Pocket PC while driving an automobile or any other moving

vehicle. Always pull out of traffic and come to a stop in a legally permis-

sible and safe location before using your Pocket PC. Failure to do so

could result in serious bodily injury in a traffic accident.

Never use your Pocket PC while walking. Usage while walking could

result in bodily injury caused by inattention to automobile traffic or other

pedestrian hazards.

WARNING

Never allow metallic objects, such as staples and paper clips, to enter

inside your Pocket PC. Metallic objects, such as staples and paper clips,

if allowed to enter your Pocket PC, could cause the generation of excess

heat or fire.

Never connect terminals (metal parts) to metallic objects (such as wires).

Connecting terminals to metal objects could cause excessive heat or fire.

Always immediately turn the battery switch to the “off” position and dis-

connect the AC Adaptor from the power outlet in the event the Pocket PC

emits an unusual odor or sound or generates smoke.

WARNING

Never use or store your Pocket PC in the following locations:

Anywhere it may be exposed to water, such as a bathroom or sauna;

In conditions of high humidity, such as in the rain or fog; Where your

Pocket PC will be exposed to high temperatures, such as near a fire or

equipment that emits high temperatures; In direct sunlight; or In a sealed

automobile left in the sun and subject to high tem peratures.

Never drop your Pocket PC or subject it to severe shock. Dropping your

Pocket PC or subjecting it to severe shock could cause the removable

battery to leak, ignite and/or rupture.

Always immediately remove your Pocket PC and its battery from the vicin-

ity of any open flame in the event the removable battery leaks liquid or

emits an unusual odor. Continued use of your Pocket PC under either of

these conditions could cause ignition (i.e., fire) of the leaked battery liq-

uid, or rupture.

Never touch any fluid that might leak from the removable battery. Such

liquid when in contact with the eyes or skin, could cause injury to the skin

or eyes. Should the liquid come into contact with the eyes, irrigate the

eyes thoroughly with clean water and immediately seek medical atten-

tion. In the event the liquid comes into contact with the skin or clothing,

wash it away immediately with clean water.

Never attempt to disassemble, repair or make any modification to your

Pocket PC. Disassembly, modification or any attempt at repair could cause

bodily injury or property damage, as well as damage to the Pocket PC

itself.

Failure to follow the above directions concerning use and storage could

result in damage to your Pocket PC or bodily injury and property damage

due to battery liquid leakage, fire or rupture.

CAUTION

Never raise the sound volume level to high when using your Pocket PC

with earphones. An excessive sound volume level could cause damage

to your hearing.

Never touch the liquid that might leak from a broken liquid crystal display.

Contact with this liquid could cause a skin rash. If the crystal display liquid

should come into contact with the skin or clothing, wash it immediately

with clean water.

Never allow infants or small children within reach of your Pocket PC.

Infants or small children could injure themselves if allowed access to

your Pocket PC.

DANGER

Never attempt to disassemble or repair an AC Adaptor, and never alter

their Power Supply Cables or plugs as exposure to electric shock haz-

ards could result.

Always contact an authorized service provider, if repair or replacement is

required.

WARNING

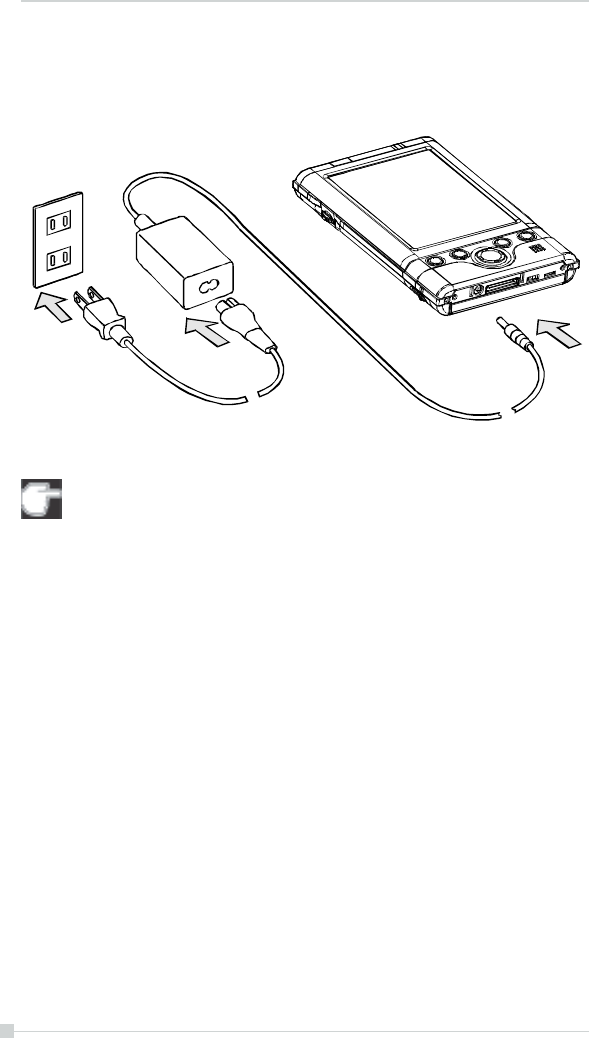

Always use the AC Adaptor that has been provided with your Pocket PC.

Bodily injury or property damage could occur as a result of the use of an

unauthorized and incompatible AC Adaptor in violation of this Warning.

Never connect or disconnect the AC Adaptor with wet hands. Connecting

or disconnecting the AC Adaptor to a power source with wet hands could

cause electric shock.

CAUTION

Never place an AC Adaptor on a wooden surface (or any other surface that

could be marred by exposure to heat) while it is in use, since its surface

temperature increases during normal use. Always rest it on a suitable

heat-insulating material.

Never cover the AC Adaptor with any object while it is in use, and never

place it adjacent to a heat source. An excessive temperature increase

could detrimentally affect its performance.

Never place a Power Supply Cable near a heat source, as damage to the

cord or to its insulation could result.

Always use a surge protector when utilizing the AC Adaptor during an

electrical storm. Otherwise, a power surge could result in the loss of

stored data.

Insert the power plug to a household electric outlet.

When travelling abroad, never plug the AC Adaptor into a power source

that does not correspond to both the voltage and the frequency specified

on the rating plate of the unit, as equipment damage will result.

Never attempt to connect or disconnect the power plug with damp or wet

hands. Connecting or disconnecting the power plug with damp or wet

hands could result in an electric shock.

Never leave an open container, such as a cup or glass, containing a liquid

near the AC Adaptor. Spilled liquid coming in contact with the AC Adaptor

could cause a fire or electric shock.

Always ensure the power plug pins are clean and free of dust or other

foreign material by wiping the pins with a clean dry cloth. Dust or other

foreign material accumulation on the power plug pins could cause fire.

Always unplug the power plug from an outlet by grasping the power plug

itself. Never pull on the Power Supply Cable to disconnect the Power

Supply Cable from an outlet. Pulling on the Power Supply Cable could

cause a fire or electric shock as a result of damage to the Power Supply

Cable.

Never use a worn or damaged AC Adaptor Power Supply Cable or plug, or

a worn or damaged extension cord or plug. The use of a worn or dam-

aged Power Supply Cable or plug could result in electric shock or fire.

Always contact an authorized service provider immediately to obtain a

suitable Power Supply Cable replacement.

Never bend or twist a Power Supply Cable, and never pull on a Power

Supply Cable in an attempt to remove a plug from an outlet. Always grasp

the plug directly when unplugging a Power Supply Cable to avoid causing

any damage to the cord.

Never plug the AC Adaptor into an overloaded multiple outlet, power strip

or surge protector to prevent blowing a fuse or tripping a circuit breaker.

Never place heavy objects on a Power Supply Cable, as that could result

in damage to the cord.

Always confirm that the AC Adaptor plug (and the extension cord and

plug, if any) have been fully inserted into the receptacle, to assure a

secure electrical connection.

NOTE

Under certain conditions, data may be lost, including:

Misuse of your Pocket PC; Subjecting the main unit of your Pocket PC to

static electricity and/or noise; Total loss of electric charge in the remov-

able battery; and Servicing of your Pocket PC.

Use your Pocket PC only in locations with the following ambient environ-

mental conditions:

Under normal operational use with temperatures between 0°C and 40°C

(32°F and 104°F); With humidity of 30% to 80%; and When charging the

battery with temperatures between 5°C and 40°C (41°F and 104°F).

Do not store or use your Pocket PC in the following locations:

Those subject to extremely high or low temperatures; Dusty locations;

and Locations or sites subject to strong vibration.

Use or storage in these location, sites or areas can result in product

failure, malfunction or loss of data.

Do not subject your Pocket PC to sudden and severe temperature

changes. This could result in moisture condensation in the Pocket PC

that could cause damage to your Pocket PC, computer function loss, and/

or the loss of data. In the event of moisture condensation, allow your

Pocket PC to dry out completely.

It is normal for the AC Adaptor to become warm when charging.

Disconnect the power plug from the outlet when not in use.

Take care not to sit on your Pocket PC when it is located in the back pocket

of trousers, etc. This could cause damage to your Pocket PC or malfunc-

tion of the Pocket PC functions.

Do not place objects on top of your Pocket PC or drop them on top of your

Pocket PC. This could cause damage to your Pocket PC and/or malfunc-

tion.

Clean terminals (metallic parts) on a regular basis with a cotton swab.

Dirty terminals could affect battery charging.

Never use organic solvents such as benzene or paint thinner to clean

your Pocket PC. Use of these solvents can cause deformation or discol-

oration.

Do not wipe the display with a damp or wet cloth or touch the display with

damp or wet hands. Wiping or touching the display under this condition

can cause product failure or malfunction. Always use a soft dry cloth to

wipe the display.

When using the “SD memory card” and/or “ (CF) compact flash card,”

be sure to read the relevant instruction manual and ensure that you

know the proper procedures for their use.

Never subject the card to any severe shock while connected to your Pocket

PC. Such a shock can cause damage to the card and a malfunction.

Do not carry your Pocket PC with the card connected to it. This can result

in the damage or loss of the card.

Never connect cradle terminals with metallic objects, such as wires. Con-

necting these terminals with metallic objects may cause the production

of excess heat, burns and damage to the charger and/or your Pocket PC.

Lithium ion batteries are recyclable. Never dispose of the battery with

ordinary waste.

Supplementary Information: “The product complies with the

requirements of the Low Voltage

Directive 73/23/EEC and the EMC

Directive 89/336/EEC.”

Weitere Informationen: “Das Produkt entspricht den

Anforderungender Niederspannungs

Richtlinie 73 23/EG und der EMC-

Richtlinie 89/336/EG.”

Informations complérnentaires: “Ce produit est conforme aux

exigences de la directive sur les

basses tensions 73/23/CEE et de la

directive EMC 89/336/CEE.”

Información complementaria: “El Producto cumple los requistos

de baja tensión de la Directiva 73/23/

CEE y la Directiva EMC 89/336/

CEE.”

Ulteriori informazioni: “Il prodotto é conforme ai requisiti

della direttiva sulla bassa tensione 73/

23/EG e la direttiva EMC 89/336/

EG.”

Ytteligare information: “Produkten uppfyller kraven enligt

lägspänningsdirektiver 73/23/EEC

och EMC-direktiv 89/336/EEC.”

Working environment

This product was designed to fulfill the EMC (electromagnetic compatibil-

ity) requirements for “residential, commercial and light industry environ-

ments”.

Toshiba does not approve the use of this product in working environ-

ments other than “residential, commercial and light industry environ-

ments”.

For example, the following environments are not approved:

• Industrial Environments (environments with a main voltage >230V~)

• Medical Environments

• Automotive Environments

• Aircraft Environments

Any consequences resulting from the use of this product in working envi-

ronments that are not approved are not the responsibility of Toshiba Cor-

poration.

The consequences of the use of this product in non-approved working

environments may be:

• Interference with other devices or machines in the nearby surround-

ing area

• Malfunction of, or data loss from, this product caused by disturbances

generated by other devices or machines in the nearby surrounding area

Therefore Toshiba strongly recommends that the electromagnetic com-

patibility of this product be suitably tested in all non-approved working

environments before use. In the case of automobiles or aircraft, the manu-

facturer or airline respectively should be asked for permission before use

of this product.

Furthermore, for general safety reasons, the use of this product in envi-

ronments with explosive atmospheres is not permitted.

CE compliance

This product and the original options are designed to observe the related

EMC (Electromagnetic compatibility) and safety standards. However,

Toshiba cannot guarantee that this product still observes these EMC

standards if options or cables not produced by Toshiba are connected or

implemented. In this case the persons who have connected / imple-

mented those options / cables have to make sure that the system (PC

plus options / cables) still fulfils the required standards. To avoid general

EMC problems, the following advice should be observed:

• Only CE marked options should be connected / implemented

• Only best shielded cables should be connected

FCC Notice

“Declaration of Conformity”

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accor-

dance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Only peripherals complying with the FCC class B limits

may be attached to this equipment. Operation with non-compliant

peripherals or peripherals not recommended by Toshiba is likely to

result in interference to radio and TV reception. Shielded cables

must be used between the external devices and the computer’s

USB ports, external monitor port, PS/2 keyboard port and PS/2

mouse port.Changes or modifications made to this equipment, not

expressly approved by Toshiba or parties authorized by Toshiba

could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions:

1. This device may not cause harmful interference

2. This device must accept any interference received, including interfer-

ence that may cause undesired operation.

Canadian Regulatory Information

(Canada Only)

This digital apparatus does not exceed the Class B limits for radio noise

emissions from digital apparatus as set out in the Radio Interference

Regulation of the Canadian Department of Communications.

Note that Canadian Department of Communications (DOC) regulations

provide, that changes or modifications not expressly approved by TOSHIBA

Corporation could void your authority to operate this equipment.

This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

Cet appareil numérique de la class B respecte toutes les exgences du

Règlement sur le matériel brouilleur du Canada.

BSMI Notice (Taiwan Only)

¤A

(VCCI graphic here, p12 of E740)

VCCI Notice

(Japan Only) Class BITE

The paragraph below in English should be translated into Japanese

here. (see pg. 12 of E740 u. manual for Japanese text.)

This is a Class B product based on the standard of the Voluntary

Control Council for Interference (VCCI) for information technology

equipment. If this equipment is used near a radio or television receiver

in a domestic environment, it may cause radio interference. Install and

use the equip-ment according to the instruction manual.

FCC Class B Digital Devices & Peripheral

Devices (Declaration of Conformity or

Certification Authorization)

Declaration of Conformity Label &

Marking Requirements

• User Manual must provide user information in accordance with

±15.19(a)(3), 15.21, 15.27 and 15.105(b):

Instruction Manual Federal

Communication Commission

Interference Statement

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interfer-

ence in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accor-

dance with the instructions, may cause harmful interference to radio com-

munications.

However, there is no guarantee that interference will not occur in a par-

ticular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interfer-

ence by one of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Assure continued compliance (for example, use only

shielded interface cables when connecting to computer or periph-

eral devices). Any changes or modifications not expressly approved

by the manufacturer of this device could void the user's authority to

operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interfer-

ence received, including interference that may cause undesired op-

eration.

Responsible Party:Toshiba America Information Systems, Inc.

9740 Irvine Blvd.

Irvine, CA 92618-1697

Telephone No: 1-800-Toshiba

Table of Contents

TABLE OF CONTENTS ..................................................

CHAPTER 1: GETTING STARTED .................................

CHAPTER 2: BASIC SKILLS .........................................

CHAPTER 3: MICROSOFT ACTIVESYNC ....................

CHAPTER 4: MICROSOFT POCKET OUTLOOK ..........

CHAPTER 5: COMPANION PROGRAMS ......................

CHAPTER 6: POCKET INTERNET EXPLORER .............

CHAPTER 7: GETTING CONNECTED ...........................

CHAPTER 8: IEEE 802.11B WLAN ...............................

CHAPTER 9: OPTIONAL FUNCTIONS .........................

CHAPTER 10: ADDITIONAL INFORMATION ...............

Chapter 1:

Getting Started

Welcome

Congratulations on purchasing your Toshiba Pocket PC. Due to the size

and capabilities of this device, you can keep your most important busi-

ness and personal information up-to-date and close at hand. Microsoft®

ActiveSync® increases the power of your device by allowing you to syn-

chronize the information on your desktop or laptop computer with your

device. Picture yourself in the following situations:

• While walking with a colleague, your cell phone rings and your

manager asks if you two are free this afternoon for an emergency

meeting. While your colleague fumbles through his paper

organizer, you press a button on your device and instantly see a

list of today’s appointments and meetings. You are quickly able

to tell your manager your available times. For more information

on scheduling appointments and meetings, see Chapter 4.

• You’re meeting your friends tonight for dinner and a movie. You down-

load the latest movie information from the Internet to your computer

and then synchronize it with your device. At dinner, you pull out your

Toshiba Pocket PC device and review your movie options with your

friends. For more information on downloading Web pages to your

device, see Chapter 6.

• A Calendar reminder alerts you that it is time to catch the bus. You

grab your Toshiba Pocket PC device and catch the bus just in time.

Because ActiveSync keeps the information on your device up-to-date,

you leisurely review your task list, make notes about the new books

and CDs you want to buy, and read and respond to e-mail mes-

sages. When you get back to the office, ActiveSync transfers any

task changes you made, your notes, and your e-mail message re-

sponses to your computer. For more information on ActiveSync, see

Chapter 3.

Toshiba Pocket PC e750/e755 User’s Guide

Where to Find Information

This book describes your Pocket PC hardware, provides an overview of

the programs on your Pocket PC, and explains how to connect your

Pocket PC to a desktop computer, a network, or the Internet. For instruc-

tions on setting up your Pocket PC and installing ActiveSync, see infor-

mation to help you use your Pocket PC.

For information on: See this source:

Programs on your Pocket PC This User’s Guide and device Help To view

Help, tap and then Help.

Additional programs that can be The Pocket PC Companion CD.

installed on the Pocket PC

Connecting to and synchronizing The Quick Start Card or Active Sync Help on

with a computer your computer. To view Help, click Help and

then Microsoft Active Sync Help.

Last-minute updates and detailed The Read Me files, located in the Microsoft

technical information Active Sync folder on the desktop computer

and on the Pocket PC Companion CD.

Up-to-date information on your http://www.pda.toshiba.com

Toshiba Pocket PC

STYLUS

PROGRAM BUTTON 1, 2, 3 & 4

( FROM THE LEFT )

SPEAKER

CURSOR BUTTON /

NAVIGATION BUTTON

TOUCH SCREEN

BATTERY / ALARM LED

RECORDING BUTTON

( PROGRAM BUTTON 5 )

LOCK

CRADLE CONNECTION PORT

GUIDE PIN

RELEASE BUTTON

WIRELESS COMMUNICATION

LED

CRADLE CONNECTION PORT

POWER BUTTON / SCREEN

LIGHT

Chapter 2:

Basic Skills

You can easily learn to use your Toshiba Pocket PC e750/e755. This

chapter describes the use and customization of your Toshiba Pocket PC

e750/e755.

Parts Names and Function

Main unit (front view)

STEREO HEADPHONE

OR MICROPHONE

INPUT

OPTIONAL EXPANSION PACK

Toshiba Pocket PC e750/e755 User’s Guide

DC-IN SOCKET

BATTERY SWITCH

CRADLE CONNECTION PORT

WIRELESS COMMUNICATION

SWITCH

(WIRELESS LAN MODEL ONLY)

RGB (MONITOR) PORT

USB PORT

CRADLE CONNECTION PORT

OPTIONAL EXPANSION PACK

Cradle

Initial Setting of Program Button

Program button 1 = Calendar

Program button 2 = Tasks

Program button 3 = Home

Program button 4 = Contacts

Program button 5 = Voice recorder

Chapter 2: Basic Skills

DC-IN SOCKET

MIC

STEREO HEADPHONE OR

MICROPHONE INPUT

TOSHIBA SCROLLER

SD CARD SLOT

CFII CARD SLOT

INFRARED PORT

BATTERY PACK LOCK OPTIONAL EXPANSION PACK

STYLUS

RESET BUTTON

CF RELEASE BUTTON (USE

STYLUS TO EJECT)

Power button When the power is off When the power is on

Press and hold. The power turns on. The screen light alternately

turns on/off.

Press it quickly. The power turns on. The power turns off.

Main unit ( back view )

Power Button

The power button turns the unit and the screen light on and off.

Toshiba Pocket PC e750/e755 User’s Guide

BATTERY SWITCH

SUPPLY STOP

Battery Switch

The battery switch supplies/cuts off the battery power to the Toshiba Pocket

PC e750/e755.

The setting of this switch at shipment is “stop”. When using the Toshiba

Pocket PC e750/e755 for the first time, slide this switch to the left (the

“supply” side) with the stylus.

Switching the battery switch to the “stop” position at any time will

lead to loss of data.

Flashing orange When the preset alarm time, which was set through

Calendar or Tasks, goes off, the lamp starts flashing.

Orange Indicates charging of the battery.

Yellow The battery charging process is stopped due to the

ambient temperature being too high or low. Charge

the batter

in an ambient temperature of approx. 41°F

to 104°F.

Green Indicates full charge of the battery.

Battery/Alarm LED

The Battery/Alarm LED indicates the machine condition.

Chapter 2: Basic Skills

Wireless Communication Switch

( Wireless LAN model only )

1. To enable Wireless module, make sure the Wireless Communica-

tion Switch is turned on. (The default setting is Power Off. Press the

switch to the left to turn the power on.)

2. Wireless LAN model only: If this is your first time turning on the

switch, the IP Address Page will pop up for you to set the IP address,

Subnet mask and Default gateway.

LED Descriptions

LED indicates the different status:

LED Status

Off Wireless Communication Switch is turned OFF

Orange Wireless Communication Switch is turned ON

ON OFF

WIRELESS COMMUNICATION

SWITCH

Toshiba Pocket PC e750/e755 User’s Guide

How to Use the Stylus

The stylus is used for menu selection or data input on the touch-screen of

the Toshiba Pocket PC e750/e755.

Tap: Touch the screen once with the stylus to open items and select

options.

Drag: Hold the stylus on the screen and drag it across to select text

and images. Drag in a list to select multiple items.

Tap and hold: Tap and hold the stylus on an item to see a list of

actions available for that item. On the pop-up menu that appears, tap

the action you want to perform.

When you operate the touch screen of the Toshiba Pocket PC e750/

e755, use the supplied stylus.

If the tip of the stylus is damaged, do not use it. If you operate the

touch screen with a damaged stylus or a ballpoint pen, the touch

screen may be damaged.

When the stylus is damaged, please purchase a new one.

About the Cursor Button

You can move a cursor (selection display) on the screen by pressing the

upper, lower, right or left part of the cursor button.

You can select a program to launch by pressing the center part of the

cursor button.

The cursor movement is different depending on the screen. When

the cursor is at the right or the left side of the screen, it may not

move.

About the Scroller

You can also move the cursor on the screen by moving the scroller up and

down.

You can select a program to launch by pressing the scroller.

Chapter 2: Basic Skills

Battery Charging

When using the Toshiba Pocket PC e750/e755 for the first time, set the

battery switch to the supply side, and then charge the removable battery

with the supplied AC adapter.

How to Charge the Battery

You can use two charging methods.

Turn the unit off before connecting the AC Adapter and Pocket PC.

Method1.: Connect the supplied AC adapter and the cradle as shown in

the figure below, and then insert the Toshiba Pocket PC e750/

e755 into the cradle.

Toshiba Pocket PC e750/e755 User’s Guide

Method 2 :Connect the supplied AC adapter and the Toshiba Pocket PC

e750/e755 as shown in the figure below.

For charging the battery, maintain an ambient temperature from

approx. 41°F to 104°F.

When the lamp is lit in orange during the battery charging, you can

use the Toshiba Pocket PC e750/e755.

When the battery is completely charged, the LED alarm lamp color

will change to green.

Chapter 2: Basic Skills

How to Attach / Detach Main Battery Pack

1. Turn off the power.

2. Switch Battery Pack Lock to release the battery pack.

3. Attach / Detach battery from the Pocket PC.

Switch to release battery pack

Battery Pack Lock

Detach

Attach

You cannot turn on the power if Battery Pack Lock is at the Release

side.

You can change the main battery without data loss because Toshiba

Pocket PC e750/e755 has the rechargeable backup battery. But

the capacity ot the backup battery is small. When you change the

main battery, please attach the new main battery and switch the

Battery Pack Lock to the lock side as soon as possible.

Release

Lock

Toshiba Pocket PC e750/e755 User’s Guide

3. Switch the Battery Pack Lock to lock the High Capacity Battery Pack.

You cannot turn on the power if Battery Pack Lock is at the Release

side.

You can replace the main battery with the High Capacity Battery

without data loss because Toshiba Pocket PC e750/e755 has the

rechargeable backup battery.

But the capacity of the backup battery is small. When you replace

the main battery, please attach the High Capacity Battery and switch

the Battery Pack Lock to the lock side as soon as possible.

Switch to Lock the High Capacity Battery

Pack.

How to Use Optional High Capacity

Battery Pack

1. Detach the Main Battery.

2. Attach the High Capacity Battery Pack to the Pocket PC.

Chapter 2: Basic Skills

How to Prolong Battery Life

Use the Toshiba Pocket PC e750/e755 with the AC adapter.

When you use the Toshiba Pocket PC e750/e755 under the following

conditions, the power consumption will be high. Please use the AC

adapter when:

The Toshiba Pocket PC e750/e755 is operated while connected to

your computer.

The Toshiba Pocket PC e750/e755 is operated with storage card or

with any other optional equipment.

Select the short power-off time in the setting menu. This will shorten

the time the unit will remain on if not used. For more information, see

“Customize Your Toshiba Pocket PC e750/e755” in Chapter 2-35.

Turn off the front light.

Set the screen brightness to power saving mode. Also shorten the

light turn-off time. For more information, see “Customize Your Toshiba

Pocket PC e750/e755” in Chapter 2-35.

Use the Toshiba Pocket PC e750/e755 with an ambient temperature

between 59°F and 77°F. This temperature range is the most effective

for the battery.

When you use the Toshiba Pocket PC e750/e755 in high or low tem-

perature environments, the operable time is shortened due to the

decrease of the battery capacity.

You can save power if wireless communication module is off.

Battery Life

The removable battery has a limited life. Repeated charging/discharging

of the battery gradually decreases operable time. When the operable

time has been extremely shortened, it is time to replace the removable

battery with a new one.

Do not leave the Toshiba Pocket PC e750/e755 in a place of high or

low temperature. It may shorten battery life.

If you have not used the Toshiba Pocket PC e750/e755 for several

days, its battery charge level reading may be inaccurate. Fully

recharge the battery before using.

Toshiba Pocket PC e750/e755 User’s Guide

Battery Charge Level and Stored Data Protection

If the battery charge level becomes extremely low, or is completely dis-

charged, the memory data stored in the Toshiba Pocket PC e750/e755

could be lost.

When the low battery status icon or the alarm message appears, imme-

diately connect the AC adapter to the Toshiba Pocket PC e750/e755 and

charge the battery.

The removable battery gradually discharges even if the device is not

being used. When the Toshiba Pocket PC e750/e755 is left for a long

time, the removable battery of the Toshiba Pocket PC e750/e755 may

completely discharge.

It is recommended to save the Toshiba Pocket PC e750/e755’s

memory data to your computer or to a storage card.

The manufacturer is not responsible for data change or clearance

due to battery discharge. Please acknowledge that.

Chapter 2: Basic Skills

DC-IN SOCKET

BATTERY SWITCH

CRADLE CONNECTION PORT

WIRELESS COMMUNI-

CATION SWITCH

(WIRELESS LAN/

BLUETOOTH MODEL

ONLY)

USB PORT

CRADLE CONNECTION

PORT RGB(MONITOR) PORT

OPTIONAL EXPANSION PACK

RELEASE BUTTON

How to Use the Optional Expansion Pack

You can use the Optional Toshiba Expansion Pack (see 2-2) together with

the Toshiba Pocket PC e750/e755 to additional peripherals.

Parts and Functions of the Expansion Pack

Cradle Connection Port: The Cradle Connection Port allows you to con-

nect the Expansion Pack to the Cradle.

RGB (Monitor) Port: The RGB (Monitor) Port is a standard 15-pin RGB

port for connecting an external display device such as a monitor or projec-

tor.

Only IA-Presenter and IA Screen Mirror (see page 10-18) can output

the image to the external monitor. Other applications cannot output

the image to the external monitor.

USB Port: The USB Port allows you to connect USB keyboard to the

Pocket PC.

Use only a Microsoft Pocket PC compatible keyboard.

Release Button: When being pressed, the Release Button releases the

Expansion Pack from the Toshiba Pocket PC e750/e755.

Connecting the Expansion Pack to the Pocket PC

1. Plug the Guide Pins into the corresponding jacks on the Toshiba Pocket PC

e750/e755.

Toshiba Pocket PC e750/e755 User’s Guide

2. The locks will give a light click when the Expansion Pack is in place.

The locks are based on foolproof design to help you connect the

Expansion Pack to the Pocket PC with the right face-up, i.e. the face

with the Release Button.

Releasing the Expansion Pack from the Pocket PC

Press the Release Button on the Expansion Pack and gently remove the

Pack from the Toshiba Pocket PC e750/e755.

Chapter 2: Basic Skills

How to use the Optional USB Host Cable

The optional USB Host Cable allows you to connect a USB keyboard to

the Pocket PC.

To connect a USB keyboard to the Pocket PC:

1. Turn off the power.

2. Plug the optional USB Host Cable to the Pocket PC.

3. Connect a USB keyboard to the USB Port of the optional USB Host

Cable.

Charging the battery or connect AC adapter if the battery power is

low. You cannot use a USB keyboard if the battery power is less than

15%.

Use only a Microsoft Pocket PC compatible keyboard.

This portion of

graphic to be

removed for

final

Toshiba Pocket PC e750/e755 User’s Guide

Initial Setup

When using the Toshiba Pocket PC e750/e755 for the first time, carry out

initial setup according to the procedures below after a battery has been

charged.

1. Move the battery switch to the “supply” position. The Toshiba Pocket

PC e750/e755 powers on automatically and the Welcome screen

appears. Tap the screen to start the following setup.

2. Execute touch screen correction.

When the align screen appears, tap the center of the cross target with

the stylus. The next target position changes upon tapping the target.

Five taps completes the positioning correction. The screen then

changes to the Stylus screen.

If a finger or any other object touches the screen during correc-

tion, the correction will be cancelled. Repeat the correction pro-

cedure.

3. Read how to use the stylus.

Read and understand the stylus operation, and then tap NEXT.

For more information on stylus operation, see “How to Use the Sty-

lus” in Chapter 2-5.

4. Learn the pop-up menu operation.

Read the on-screen explanation and then follow the instructions.

Display the pop-up menu, and cut and paste the data according

to the screen instructions.

After you finish the paste operation, this stage is completed. Tap

NEXT.

5. Set the TIME ZONE.

When tapping the right T mark, the city and the time zone lists

appear. Tap the desired city and time zone.

When the setup is completed, tap NEXT.

6. To complete the initial setup.

When the Complete screen appears, the initial setup is com-

pleted.

After tapping the screen, you can use the Toshiba Pocket PC

e750/e755.

When you tap the Complete screen, the Today screen appears. For

more information on the Today screen, see “Today screen” in Chap-

ter 2-19.

Chapter 2: Basic Skills

Inserting a CF II Card

1. Turn off the power.

2. Remove the dummy card.

3. Insert the CF II Card.

Toshiba Pocket PC e750/e755 User’s Guide

To remove a card:

1. Turn off the power.

2. Lightly press down the release button with the stylus. The button will

pop out. Press down on the release button again. The card will with-

draw slightly from the slot.

3. Pull the card straight up to remove.

Use stylus to release the CF card.

RELEASE BUTTON

Chapter 2: Basic Skills

Inserting an SD Card

1. Turn off the power.

2. Remove the dummy card.

3. Insert the card with its contact surface (metal contact surface) facing

the back of the Toshiba Pocket PC e750/e755.

4. Press down until it clicks.

Toshiba Pocket PC e750/e755 User’s Guide

To remove a card:

1. Turn off the power.

2. Lightly press down the card until a clicking sound is heard. The card

will pop out slightly from the slot.

3. Pull the card straight up to remove.

When storage cards are inserted in both the CF and SD card slots,

one of them may only be accessible depending on the application

or the Settings operation (typically, the first storage card inserted is

accessed).

Typical examples:

- Notes of Pocket Outlook.

- Saving the destination selection of the Options item of the Tools

menu of Pocket Word.

Chapter 2: Basic Skills

Connecting to a Computer

Before connecting your Toshiba Pocket PC e750/e755 to a computer,

check the following.

ActiveSync has been installed on your computer. (See Chapter 3.)

The position of connecting port on the computer may differ according

to the computer type.

To Connect Using The Supplied Cradle:

1. Connect the USB cradle to your computer as shown in the illustration

below.

Toshiba Pocket PC e750/e755 User’s Guide

2. Insert the Pocket PC into the cradle.

Chapter 2: Basic Skills

To connect directly using a connection cable:

Connect the Toshiba Pocket PC e750/e755 directly to your computer us-

ing an optional USB Sync Cable.

When the Toshiba Pocket PC e750/e755 is connected to another

device via a USB Sync Cable do not plug the AC adapter directly

into the Pocket PC as this may lead to interference. Instead, plug the

AC adapter into the port on the USB Client cable connector.

Toshiba Pocket PC e750/e755 User’s Guide

Today Screen

When you turn on your device for the first time each day (or after 4 hours of

inactivity), you’ll see the Today screen. You can also display it by tapping

and then Today. On the Today screen, you can see at a glance impor-

tant information for the day.

Following are some of the status icons you may see.

Tap to switch

to a program. Tap to change volume or mute all sounds.

Tap to change date and time.

Tap to open an item.

Your day at a

glance.

Tap to view connection

status.

Tap to create a new item.

Chapter 2: Basic Skills

If more notification icons need to be displayed than there is room to

display them, the Notification icon, , will display. Tap the icon to

view all notification icons.

Programs

You can switch from one program to another by selecting it from the

menu. (You can customize which programs you see on this menu. For

information, see “Adjusting Settings,” later in this chapter.) To access some

programs, you’ll need to tap , Programs, and then the program name.

You can also switch to some programs by pressing a program button. Your

device has one or more program buttons located on the front or side of the

device. The icons on the buttons identify the programs they switch to.

Some programs have abbreviated labels for check boxes and

drop-down menus. To see the full spelling of an abbreviated

label, tap and hold the stylus on the label. Drag the stylus off the

label so that the command is not carried out.

The following table contains a partial list of programs that are on your de-

vice. Look on the Toshiba Pocket PC Companion CD for additional pro-

grams that you can install onto your device.

Status Icon Meaning

Turns all sounds on and off

Backup battery is low

Main battery is charging

Main battery is low

Main battery is very low

Main battery is full

Connection is active

Synchronization is beginning or ending

Synchronization is occurring

Notification that one or more instant messages were

received

Notification that one or more e-mail messages were

received

Traffic Monitoring Utility(W-LAN model only)

Bluetooth Power Management Utility(BT model only)

Toshiba Pocket PC e750/e755 User’s Guide

Navigation Bar and Command Bar

The navigation bar is located at the top of the screen. It displays the active

program and current time, and allows you to switch to programs and close

screens.

Use the command bar at the bottom of the screen to perform tasks in

programs. The command bar includes menu names, buttons, and the In-

put Panel button. To create a new item in the current program, tap New. To

see the name of a button, tap and hold the stylus on the button. Drag the

stylus off the button so that the command is not carried out.

Icon Program Description

ActiveSync Synchronize information between your

device and computer.

Calendar Keep track of your appointments and create

meeting requests.

Contacts Keep track of your friends and colleagues.

Inbox Send and receive e-mail messages.

Pocket Internet Explorer Browse Web and WAP sites, and download

new programs and files from the Internet.

Notes Create handwritten or typed notes, drawings,

and recordings.

Tasks Keep track of your tasks.

Pocket Excel

Create new workbooks or view and edit

Excel workbooks created on your

computer.

MSN Messenger Send and receive instant messages with your

MSN Messenger contacts.

Pocket Word

Create new documents or view and edit

Word documents created on your

computer.

Chapter 2: Basic Skills

Tap to change volume to

mute the device.

Tap”Programs” to see

additional programs.

Tap to select a

program.

Tap “Settings” to

customize the device.

Input panel

button.

Newbutton.

names.

Buttons.

Pop-up Menus

With pop-up menus, you can quickly choose an action for an item. For

example, you can use the pop-up menu in the contact list to quickly delete

a contact, make a copy of a contact, or send an e-mail message to a

contact. The actions in the pop-up menus vary from program to program.

To access a pop-up menu, tap and hold the stylus on the item name that

you want to perform the action on. When the menu appears, lift the stylus,

and tap the action you want to perform. Or tap anywhere outside the menu

to close the menu without performing an action.

Toshiba Pocket PC e750/e755 User’s Guide

Tap and hold to display

the pop-up menu.

Lift the stylus and tap

the action you want.

Tap outside the menu

to close it without performing

an action.

Notifications

Your device reminds you in a variety of ways when you have something to

do. For example, if you’ve set up an appointment in Calendar, a task with a

due date in Tasks, or an alarm in Clock, you’ll be notified in any of the

following ways:

• A message box appears on the screen.

• A sound, which you can specify, is played.

• A light flashes on your device.

To choose reminder types and sounds for your device, tap and then

Settings. In the Personal tab, tap Sounds & Notifications. The options

you choose here apply throughout the device.

Chapter 2: Basic Skills

Input Panel button.

Tap to see your choices.

Select an input

method.

Enter Information on Your Toshiba Pocket PC

You have several options for entering new information:

• Use the input panel to enter typed text, either by using the soft key-

board or other input method.

• Write directly on the screen.

• Draw pictures on the screen.

• Speak into your device microphone to record a message.

• Use Microsoft® ActiveSync® to synchronize or copy information from

your computer to your device. For more information on ActiveSync,

see ActiveSync Help on your computer.

Entering Text Using the Input Panel

Use the input panel to enter information in any program on your device.

You can either type using the soft keyboard or write using Letter Recog-

nizer, Block Recognizer, or Transcriber. In either case, the characters

appear as typed text on the screen.

To show or hide the input panel, tap the Input Panel button. Tap the arrow

next to the Input Panel button to see your choices.

When you use the input panel, your device anticipates the word you are

typing or writing and displays it above the input panel. When you tap the

displayed word, it is inserted into your text at the insertion point. The more

you use your device, the more words it learns to anticipate.

Toshiba Pocket PC e750/e755 User’s Guide

Tap here if this is the

right word.

To change word suggestion options, such as the number of words

suggested at one time, tap ,Settings , Personal tab, Input , and

then the Word Completion tab.

To type with the soft keyboard:

1. Tap the arrow next to the Input Panel button and then Keyboard .

2. On the soft keyboard that is displayed, tap the keys with your stylus.

To use Letter Recognizer:

With Letter Recognizer you can write letters using the stylus just as you

would on paper.

1. Tap the arrow next to the Input Panel button and then Letter Recog-

nizer.

2. Write a letter in the box.

When you write a letter, it is converted to typed text that appears on the

screen. For specific instructions on using Letter Recognizer, with Letter

Recognizer open, tap the question mark next to the writing area.

Chapter 2: Basic Skills

To use Block Recognizer:

With Block Recognizer you can input character strokes using the stylus

that are similar to those used on other devices.

1. Tap the arrow next to the Input Panel button and then Block Recog-

nizer.

2. Write a letter in the box.

When you write a letter, it is converted to typed text that appears on the

screen. For specific instructions on using Block Recognizer, with Block

Recognizer open, tap the question mark next to the writing area.

To use Transcriber:

With Transcriber you can write anywhere on the screen using the stylus

just as you would on paper. Unlike Letter Recognizer and Block Recog-

nizer, you can write a sentence or more of information. Then, pause and let

Transcriber change the written characters to typed characters.

1. Tap the arrow next to the Input Panel button and then Transcriber.

2. Write anywhere on the screen.

For specific instructions on using Transcriber, with Transcriber open, tap

the question mark in the lower right hand corner of the screen.

To select typed text:

If you want to edit or format typed text, you must select it first.

• Drag the stylus across the text you want to select.

You can cut, copy, and paste text by tapping and holding the selected

words and then tapping an editing command on the pop-up menu, or by

tapping the command on the Edit menu.

Toshiba Pocket PC e750/e755 User’s Guide

Tap the Pen button and use your stylus like a

pen.

Writing on the Screen

In any program that accepts writing, such as the Notes program, and in

the Notes tab in Calendar, Contacts, and Tasks, you can use your stylus

to write directly on the screen. Write the way you do on paper. You can edit

and format what you’ve written and convert the information to text at a later

time.

To write on the screen:

• Tap the Pen button to switch to writing mode. This action displays lines

on the screen to help you write.

Some programs that accept writing may not have the Pen button.

See the documentation for that program to find out how to switch to

writing mode.

Chapter 2: Basic Skills

The writing is turned into

text.

Select the text you want to convert

and tap Recognize on the pop-up menu.

To select writing:

If you want to edit or format writing, you must select it first.

1. Tap and hold the stylus next to the text you want to select until the

insertion point appears.

2. Without lifting, drag the stylus across the text you want to select.

If you accidentally write on the screen, tap Tools, then Undo and try again.

You can also select text by tapping the Pen button to deselect it and then

dragging the stylus across the screen.

You can cut, copy, and paste written text in the same way you work with

typed text: tap and hold the selected words and then tap an editing com-

mand on the pop-up menu, or tap the command on the Edit menu.

To convert writing to text:

• Tap Tools and then Recognize.

If you want to convert only certain words, select them before tapping Rec-

ognize on the Tools menu (or tap and hold the selected words and then

tap Recognize on the pop-up menu). If a word is not recognized, it is left

as writing.

Toshiba Pocket PC e750/e755 User’s Guide

Tap to return to your original

writing.

Or, tap the word you want to use.

If the conversion is incorrect, you can select different words from a list of

alternates or return to the original writing. To do so, tap and hold the incor-

rect word (tap one word at a time). On the pop-up menu, tap Alternates. A

menu with a list of alternate words appears. Tap the word you want to use,

or tap the writing at the top of the menu to return to the original writing.

Tips for getting good recognition:

• Write neatly.

• Write on the lines and draw descenders below the line. Write the

cross of the “t” and apostrophes below the top line so that they are not

confused with the word above. Write periods and commas above the

line.

• For better recognition, try increasing the zoom level to 300% using

the Tools menu.

• Write the letters of a word closely and leave big gaps between words

so that the device can easily tell where words begin and end.

• Hyphenated words, foreign words that use special characters such

as accents, and some punctuation cannot be converted.

• If you add writing to a word to change it (such as changing a “3” to an

“8”) after you attempt to recognize the word, the writing you add will

not be included if you attempt to recognize the writing again.

Chapter 2: Basic Skills

The drawing box indicates

the boundaries of the

drawing.

Drawing on the Screen

You can draw on the screen in the same way that you write on the screen.

The difference between writing and drawing on the screen is how you

select items and how they can be edited. For example, selected drawings

can be resized, while writing cannot.

To create a drawing:

• Cross three ruled lines on your first stroke. A drawing box appears.

Subsequent strokes in or touching the drawing box become part of the

drawing. Drawings that do not cross three ruled lines will be treated as

writing.

You may want to change the zoom level so that you can more easily

work on or view your drawing. Tap Tools and then a zoom level.

Toshiba Pocket PC e750/e755 User’s Guide

To select a drawing:

If you want to edit or format a drawing, you must select it first.

• Tap and hold the stylus on the drawing until the selection handle

appears. To select multiple drawings, deselect the Pen button and

then drag to select the drawings you want.

You can cut, copy, and paste selected drawings by tapping and holding

the selected drawing and then tapping an editing command on the pop-

up menu, or by tapping the command on the Edit menu. To resize a

drawing, make sure the Pen button is not selected, and drag a selection

handle.

Chapter 2: Basic Skills

Indicates an embedded

recording.

Tap to show or hide the Recording toolbar.

Tap to begin

recording.

Recording a Message

In any program where you can write or draw on the screen, you can also

quickly capture thoughts, reminders, and phone numbers by recording a

message. In Calendar, Tasks, and Contacts, you can include a recording

in the Notes tab. In the Notes program, you can either create a stand-

alone recording or include a recording in a written note. If you want to

include the recording in a note, open the note first. In the Inbox program,

you can add a recording to an e-mail message.

To create a recording:

1. Hold your device’s microphone near your mouth or other source of

sound.

2. Press and hold the Record hardware button on your device until you

hear a beep.

3. While holding down the Record button, make your recording.

4. To stop recording, release the Record button. Two beeps will sound.

The new recording appears in the note list or as an embedded icon.

You can also make a recording by tapping the Record button on the

Recording toolbar.

To play a recording, tap it in the list or tap its icon in the note.

Toshiba Pocket PC e750/e755 User’s Guide

Tap to select a prewritten

message.

Using My Text

When using Inbox or MSN Messenger, use My Text to quickly insert preset

or frequently used messages into the text entry area. To insert a message,

tap My Text and tap a message.

You can add text after inserting a My Text message before sending

it.

To edit a My Text message, in the Tools menu, tap Edit and then tap My

Text Messages. Select the message you wish to edit and make desired

changes.

Chapter 2: Basic Skills

Tap to change folders.

Select the sort order for the

list.

Tap the folder name to open

it.

Tap and hold to create a new

folder.

Find and Organize Information

The Find feature on your device helps you quickly locate information.

• On the menu, tap Find. Enter the text you want to find, select a data

type, and then tap Go to start the search.

To quickly find information that is taking up storage space on your

device, select Larger than 64 KB in Type.

You can also use the File Explorer to find files on your device and to orga-

nize these files into folders. On the menu, tap Programs, and then

File Explorer.

You can move files in File Explorer by tapping and holding the item

you want to move, and then tapping Cut or Copy and Paste on

the pop-up menu.

Toshiba Pocket PC e750/e755 User’s Guide

Customize Your Toshiba Pocket PC

You can customize your device by adjusting device settings and installing

additional software.

Adjusting Settings

You can adjust device settings to suit the way you work. To see available

options, tap , Settings, then the Personal or System tab located at

the bottom of the screen.

You might want to adjust the following:

• Clock, to change the time or to set alarms

• Menus, to customize what appears on the menu, and to enable a

pop-up menu from the New button

• Owner Information, to enter your contact information

• Password, to limit access to your device

• Power, to maximize battery life

• Today, to customize the look and the information that is displayed on

the Today screen

Adding or Removing Programs

Programs added to your device at the factory are stored in ROM (read-

only memory). You cannot remove this software, and you’ll never acciden-

tally lose ROM contents. ROM programs can be updated using special

installation programs with a *.xip extension. All other programs and data

files added to your device after factory installation are stored in RAM (ran-

dom access memory).

You can install any program created for your device, as long as your

device has enough memory. The most popular place to find software for

your device is on the Pocket PC Web site (http://www.microsoft.com/mo-

bile/pocketpc).

Chapter 2: Basic Skills

To add programs using ActiveSync

You’ll need to install the appropriate software for your device on your

desktop computer before installing it on your device.

1. Determine your device and processor type so that you know which

version of the software to install.

Tap and then Settings. On the System tab, tap About. In the

Version tab, make a note of the information in Processor.

2. Download the program to your computer (or insert the CD or disk that

contains the program into your computer). You may see a single *.xip,

*.exe,, or *.zip file, a Setup.exe file, or several versions of files for

different device types and processors. Be sure to select the program

designed for the Toshiba Pocket PC and your device processor type.

3. Read any installation instructions, Read Me files, or documentation

that comes with the program.

Many programs provide special installation instructions.

4. Connect your device and computer.

5. Double-click the *.exe file.

• If the file is an installer, the installation wizard will begin. Follow

the directions on the screen.

Once the software has been installed on your computer, the in-

staller will automatically transfer the software to your device.

• If the file is not an installer, you will see an error message stating

that the program is valid but it is designed for a different type of

computer. You will need to move this file to your device. If you

cannot find any installation instructions for the program in the

Read Me file or documentation, use ActiveSync Explore to copy

the program file to the Program Files folder on your device. For

more information on copying files using ActiveSync, see

ActiveSync Help.

Once installation is complete, tap ,Programs, and then the program

icon to switch to it.

Toshiba Pocket PC e750/e755 User’s Guide

To add a program directly from the Internet

1. Determine your device and processor type so that you know which

version of the software to install.

Tap and then Settings. On the System tab, tap About. In the Ver-

sion tab, make a note of the information in Processor.

2. Download the program to your device straight from the Internet using

Pocket Internet Explorer. You may see a single *.xip, *.exe or *.zip file,

a Setup.exe file, or several versions of files for different device types

and processors. Be sure to select the program designed for the Toshiba

Pocket PC and your device processor type.

3. Read any installation instructions, Read Me files, or documentation

that comes with the program. Many programs provide special installa-

tion instructions.

4. Tap the file, such as a *.xip or *.exe file. The installation wizard will

begin. Follow the directions on the screen.

To add a program to the Start menu

Tap , Settings, Menus , the Start Menu tab, and then the check box for

the program. If you do not see the program listed, you can either use File

Explorer on the device to move the program to the Start Menu folder, or

use ActiveSync on the computer to create a shortcut to the program and

place the shortcut in the Start Menu folder.

•Using File Explorer on the device:Tap ,Programs,File Explorer,

and locate the program (tap the folder list, labeled My Documents by

default, and then My Device to see a list of all folders on the device).

Tap and hold the program and tap Cut on the pop-up menu. Open the

Start Menu folder located in the Windows folder, tap and hold a blank

area of the window, and tap Paste on the pop-up menu. The program

will now appear on the menu. For more information on using File Ex-

plorer, see “Find and Organize Information,” earlier in this chapter.

•Using ActiveSync on the computer:Use the Explorer in ActiveSync

to explore your device files and locate the program. Right-click the

program, and then click Create Shortcut. Move the shortcut to the

Start Menu folder in the Windows folder. The shortcut now appears on

the menu. For more information, see ActiveSync Help.

To remove programs

• Tap and then Settings. On the System tab, tap Remove Pro-

grams .

If the program does not appear in the list of installed programs, use File

Explorer on your device to locate the program, tap and hold the program,

and then tap Delete on the pop-up menu.

Chapter 2: Basic Skills

Setting Password

You can protect data or settings from a third person by setting a password

which is requested when turning power on.

1. Tap and then Settings. On the Personal tab, tap Password.

2. Select the type of password you would like to use.

3. Enter a password and tap OK.

4. Tap YES on the confirmation screen. The password is saved and the

screen returns to the Personal tab screen

If you tap YES on the confirmation screen to return to the Personal tab

screen, it becomes necessary to enter the password even for displaying

the Password setting screen.

In case you forget the password, it is necessary to initialize the Pocket

PC. Please note that when initialization is executed, data or settings stored

in the Pocket PC are all deleted.

Toshiba Pocket PC e750/e755 User’s Guide

To Set Screen Light

You can set the screen brightness for better sight according to a place of

use. You can also set the time that elapses until the screen light turns off

automatically after the last operation.

1. Tap and then Settings. On the System tab, tap Screen Light.

2. Set the Screen Light on battery power.

Check to active power save

mode.It will make the screen

light turn off automatically when

the Pocket PC has not been

used for a user-set mount of

time.

Set the time that elapses until

the screen light turns off

automatically.

Check to make thescreen light

turn on automatically when a

button is pressed or the screen

is tapped.

Chapter 2: Basic Skills

-or set the screen light on External power.

3. Set the Brightness level.

4. When finished, tap OK to return to the System tab screen.

Tap and set the screen light

brightness level by move the cursor

up or down. If Power Save is

activated, the screen light turns

off.

Toshiba Pocket PC e750/e755 User’s Guide

Setting Power

You can set to confirm the battery remaining power and the time that

elapses until the power turns off after the last operation.

1. Tap and then Settings. On the System tab, tap Power.

2. Set the Power.

3. Select Battery tab to adjust when battery alarm will come on, and to

enable/disable Record and Program button wake up.

4. Select CPU speed tab to set the CPU performance. To conserve bat-

tery power, select 200 MHz. Note: this will decrease performance.

5. When finished, tap OK to return to the System tab screen.

Options are 1, 2,3,4, and 5

minutes until device will turn off

in battery-powered mode if not

used. Check box to left to

engage this feature.

Options are 1, 2,3,4, and 5

minutes until device will turn off

in external-powered mode if not

used. Check box to left to

engage this feature.

Battery alarm can be adjusted to

go off from 10% to 50% of full

charge.

Enable or Disable Record and

Program Wake Up

Chapter 2: Basic Skills

Setting Memory

You can adjust the data storing memory and the program running memory.

You can also confirm the free space of a storage card and so on. Memory

for the Pocket PC is managed automatically.

To change Memory allocation:

1. Tap and then Settings. On the System tab, tap Memory to dis-

play the Memory setting screen.

2. Drag the knob widthwise to adjust the memory allocation between Stor-

age and Program.

3. When finished, tap OK to return to the System tab screen.

To confirm usage status of a storage card:

1. Tap Storage card tab on the Memory setting screen.

2. When finished, tap OK to return to the System tab screen.

Toshiba Pocket PC e750/e755 User’s Guide

Setting Volume

This program allows you to adjust the built-in volume and the headphone

volume on the Toshiba PC e750/e755.

I Tap and then Settings. On the System tab, tap Advanced

Sounds.

2 Select the Built-in tab and adjust the Volume as shown below.

3 If using headphones, select the Headphone tab and make adjust-

ments as shown below .

Chapter 2: Basic Skills

Setting Microphone

Tap and then Settings. On the System tab, tap Microphone.

• This program is setting Automatic Gain Control (AGC) auto or manual.

• If “Auto Gain Control” is chosen, Volume function is suspended.

• If “Auto Gain Control” is not chosen, Volume function is enabled.

Chapter 3:

Microsoft ActiveSync

Using Microsoft® ActiveSync® ,you can synchronize the information on

your desktop computer with the information on your device. Synchroniza-

tion compares the data on your device with your PC and updates both

computers with the most recent information. For example:

• Keep Pocket Outlook data up-to-date by synchronizing your device

with Microsoft Outlook data on your PC.

• Synchronize Microsoft Word and Microsoft Excel files between your

device and desktop computer.

Your files are automatically converted to the correct format.

By default, ActiveSync does not automatically synchronize all types

of information. Use ActiveSync options to turn synchronization on

and off for specific information types.

With ActiveSync, you can also:

• Back up and restore your device data.

• Copy (rather than synchronize) files between your device and desk-

top computer.

• Control when synchronization occurs by selecting a synchronization

mode. For example, you can synchronize continually while connected

to your desktop computer or only when you choose the synchronize

command.

• Select which information types are synchronized and control how

much data is synchronized. For example, you can choose how many

weeks of past appointments you want synchronized.

Before you begin synchronization, install ActiveSync on your PC from the

Toshiba Pocket PC Companion CD. For more information on installing

ActiveSync, see your Quick Start card. ActiveSync is already installed on

your device.

After installation is complete, the ActiveSync Setup Wizard helps you con-

nect your Pocket PC to your PC, set up a partnership so you can synchro-

nize information between your device and your desktop computer, and

Chapter 3: Microsoft ActiveSync

customize your synchronization settings. Your first synchronization pro-

cess will automatically begin when you finish using the wizard.

After your first synchronization, take a look at Calendar, Contacts, and

Tasks on your device. You’ll notice that information you’ve stored in

Microsoft Outlook on your PC has been copied to your device, and you

didn’t have to type a word. Disconnect your device from your PC and

you’re ready to go!

Once you have set up ActiveSync and completed the first synchronization

process, you can initiate synchronization from your device. To switch to

ActiveSync on your device, tap , and then tap ActiveSync.

For information about using ActiveSync on your PC, start ActiveSync on

your PC, and then see ActiveSync Help.

For more information about ActiveSync on your device, switch to ActiveSync,

tap , and then tap Help.

View connection

status.

Tap to connect and

synchronize.

Tap to stop synchronization.

Tap to synchronize via IR or

change synchronization

settings.

Chapter 4:

Microsoft® Pocket Outlook includes Calendar, Contacts, Tasks, Inbox, and

Notes. You can use these programs individually or together. For example,

e-mail addresses stored in Contacts can be used to address e-mail

messages in Inbox.

Using ActiveSync® you can synchronize information in Microsoft Outlook

or Microsoft Exchange on your desktop computer with your device. You

can also synchronize this information directly with a Microsoft Exchange

server. Each time you synchronize, ActiveSync compares the changes

you made on your device and desktop computer or server and updates

both computers with the latest information. For information on using

ActiveSync, see ActiveSync Help on the desktop computer.

You can switch to any of these programs by tapping them on the menu.

Microsoft Pocket Outlook

Chapter 4: Microsoft Pocket Outlook

Calendar: Scheduling Appointments and

Meetings

Use Calendar to schedule appointments, including meetings and other

events. You can check your appointments in one of several views (Agenda,

Day, Week, Month, and Year) and easily switch views by using the View

menu.

You can customize the Calendar display, such as changing the first

day of the week, by tapping Options on the Tools menu.

Tap to go to

today.

Tap to display or edit the

appointment details.

Toshiba Pocket PC e750/e755 User’s Guide

To create an appointment:

1. If you are in Day or Week view, tap the desired date and time for the

appointment.

2. Tap New.

3. Using the input panel, enter a description and a location. Tap first to

select the field.

4. If needed, tap the date and time to change them.

5. Enter other desired information. You will need to hide the input panel

to see all available fields.

6. To add notes, tap the Notes tab. You can enter text, draw, or create a

recording. For more information on creating notes, see “Notes: Cap-

turing Thoughts and Ideas,” later in this chapter.

7. When finished, tap OK to return to the calendar.

If you select Remind me in an appointment, your device will re-

mind you according to the options set in ,Settings,Personal tab,

Sounds & Notifications.

Tap to return to the calendar (the

appointment is saved automatically).

Tap to choose from predefined

text.

Tap to choose from previously

entered locations.

Tap to select a time.

Tap to select a date.

Notes is a good place for

maps and directions.

Chapter 4: Microsoft Pocket Outlook

Using the Summary Screen

When you tap an appointment in Calendar, a summary screen is dis-

played. To change the appointment, tap Edit.

Creating Meeting Requests

You can use Calendar to set up meetings with users of Outlook or Pocket

Outlook. The meeting request will be created automatically and sent either

when you synchronize Inbox or when you connect to your e-mail server.

Indicate how you want meeting requests sent by tapping Tools and then

Options. If you send and receive e-mail messages through ActiveSync,

select ActiveSync.

To schedule a meeting:

1. Create an appointment by tapping NEW.

2. In the appointment details, hide the input panel, and then tap Attendees.

3. From the list of e-mail addresses you’ve entered in Contacts, select

the meeting attendees.

The meeting notice is created automatically and placed in the Outbox

folder. For more information on sending and receiving meeting requests,

see Calendar Help and Inbox Help on the device.

View appointment

details.

View.

Tap to change appoint-

ment.

Toshiba Pocket PC e750/e755 User’s Guide

Contacts: Tracking Friends and Col-

leagues

Contacts maintains a list of your friends and colleagues so that you can

easily find the information you’re looking for, whether you’re at home or on

the road. Using the device infrared (IR) port, you can quickly share Con-

tacts information with other device users.

To change the way information is displayed in the list, tap Tools and

then Options.

Select the category of contacts you want displayed in

the list.

Tap and enter of a name

to quickly find it in the

list.

Tap and see additional phone

numbers and e-mail

addresses.

Tap to display or edit

the contact details.

Tap and hold to display

a pop-up menu of

actions.

Tap to create a newcontact.

Chapter 4: Microsoft Pocket Outlook

To create a contact:

1. Tap New.

2. Using the input panel, enter a name and other contact information.

You will need to scroll down to see all available fields.

3. To assign the contact to a category, scroll to and tap Categories and

select a category from the list. In the contact list, you can display

contacts by category.

4. To add notes, tap the Notes tab. You can enter text, draw, or create a

recording. For more information on creating notes, see “Notes: Cap-

turing Thoughts and Ideas,” later in this chapter.

5. When finished, tap OK to return to the contact list.

Tap to return to the contact list

( the contact is saved automatically).

Scroll to see more fields.

Notes is a good place for

maps and directions.

Toshiba Pocket PC e750/e755 User’s Guide

Finding a contact

There are four ways to find a contact:

• In the contact list, enter a contact name in the box under the naviga-

tion bar. To show all contacts again, clear text from the box or tap the

button to the right of the box.

• In the contact list, tap the category list (labeled All Contacts by

default) and select the type of contact that you want displayed. To

show all contacts again, select All Contacts. To view a contact not

assigned to a category, select None.

• To view the names of companies your contacts work for, in the contact

list, tap View > By Company. The number of contacts that work for

that company will be displayed to the right of the company name.

• Tap , Find, enter the contact name, select Contacts for the type,

and then tap Go.

Chapter 4: Microsoft Pocket Outlook

Using the Summary Screen

When you tap a contact in the contact list, a summary screen is displayed.

To change the contact information, tap Edit.

View contact details.

Tap to view notes.

Toshiba Pocket PC e750/e755 User’s Guide

Tasks: Keeping a To Do List

Use Tasks to keep track of what you have to do.

To change the way information is displayed in the list, tap Tools and

then Options.

Select the category of tasks you want displayed in

the list.

Select the sort order of the list.

Tap to display or edit the task

details.

Tap and hold to display a pop-up

menu of actions.

Tap to create a new task.

Chapter 4: Microsoft Pocket Outlook

To create a task:

1. Tap New.

2. Using the input panel, enter a description.

3. You can enter a start date and due date or enter other information by

first tapping the field. If the input panel is open, you will need to hide

it to see all available fields.

4. To assign the task to a category, tap Categories and select a cat-

egory from the list. In the task list, you can display tasks by category.

5. To add notes, tap the Notes tab. You can enter text, draw, or create a

recording. For more information on creating notes, see “Notes: Cap-

turing Thoughts and Ideas,” later in this chapter.

6. When finished, tap OK to return to the task list.

To quickly create a task with only a subject, tap Entry Bar on the

Tools menu. Then, tap Tap here to add a new task and enter your

task information.

Tap to return to the task list

( the task is saved automactically ).

Tap to choose from

predefined subjects.

Notes is a good place for

maps and drawings.

Toshiba Pocket PC e750/e755 User’s Guide

Using the Summary Screen

When you tap a task in the task list, a summary screen is displayed. To

change the task, tap Edit.

Tap to change task.

View task details.

Tap to show and hide additional

summary information.

View notes.

Chapter 4: Microsoft Pocket Outlook

Notes: Capturing Thoughts and Ideas

Quickly capture thoughts, reminders, ideas, drawings, and phone num-

bers with Notes. You can create a written note or a recording. You can also

include a recording in a note. If a note is open when you create the record-

ing, it will be included in the note as an icon. If the note list is displayed, it

will be created as a stand-alone recording.

Tap to create a new item.

Tap to show or hide the

Recording toolbar.

Tap to record.

Tap and hold to display a pop-up

menu of actions.

Tap to open a note or play a

recording.

Tap to change the sort order

of the list.

Toshiba Pocket PC e750/e755 User’s Guide

To create a note:

1. Tap New.

2. Create your note by writing, drawing, typing, and recording. For more

information about using the input panel, writing and drawing on the

screen, and creating recordings, see Chapter 2.

Tap to return to the note list

( the note is saved automatically ).

Tap to show or hide the input panel.

Tap to write on the screen.

Tap to add a recording to the note.

Chapter 4: Microsoft Pocket Outlook

Inbox: Sending and Receiving E-mail Mes-

sages

Use Inbox to send and receive e-mail messages in either of these ways:

• Synchronize e-mail messages with Microsoft Exchange or Microsoft

Outlook on your PC.

• Send and receive e-mail messages by connecting directly to an e-

mail server through an Internet Service Provider (ISP) or a network.

Synchronizing E-mail Messages

E-mail messages can be synchronized as part of the general synchroni-

zation process. You will need to enable Inbox synchronization in ActiveSync.

For information on enabling Inbox synchronization, see ActiveSync Help

on the PC.

During synchronization:

• Messages are copied from the mail folders of Exchange or Outlook

on your desktop computer to the ActiveSync folder in Inbox on your

device. By default, you will receive messages from the past three

days only, the first 100 lines of each message, and file attachments

of less than 100 KB in size.

• E-mail messages in the Outbox folder on your device are transferred

to Exchange or Outlook, and then sent from those programs.

• E-mail messages in subfolders must be selected in ActiveSync on

your desktop computer in order to be transferred.

Toshiba Pocket PC e750/e755 User’s Guide

Using the Message List

Messages you receive are displayed in the message list. By default, the

most recently received messages are displayed first in the list.

Select the service and folder you want to

display.

Select the sort order for

messages.

Tap to open a message.

Tap and hold to display a pop-up

menu of actions.

Tap to connect and to send and receive e-mail.

Tap to connect to the selected service.

Chapter 4: Microsoft Pocket Outlook

When you receive a message, tap it to open it. Unread messages are

displayed in bold.

When you connect to your e-mail server or synchronize with your desktop

computer, by default, you’ll receive messages from the last five days only,

the first 100 lines of each new message, and file attachments of less

than 100 KB in size. The original messages remain on the e-mail server

or your desktop computer.

You can mark the messages that you want to retrieve in full during your

next synchronization or e-mail server connection. In the message list, tap

and hold the message you want to retrieve. On the pop-up menu, tap

Mark for Download. The icons in the Inbox message list give you visual

indications of message status.

You specify your downloading preferences when you set up the service or

select your synchronization options. You can change them at any time:

• Change options for Inbox synchronization using ActiveSync options.

For more information, see ActiveSync Help.

• Change options for direct e-mail server connections in Inbox on your

device. Tap Tools and then tap Options. On the Service tab, tap the

service you want to change. Tap and hold the service and select

Delete to remove a service.

Tap to return to the message list.

Tap to delete this message.

Tap to view the previous or next

message.

Tap to reply to or forward this

message.

Toshiba Pocket PC e750/e755 User’s Guide

Composing Messages

To compose a message:

1. Tap New.

2. In the To field, enter an e-mail or SMS address of one or more

recipients, separating them with a semicolon, or select a name from

the contact list by tapping the Address Book button. All e-mail ad-

dresses entered in the e-mail fields in Contacts appear in the Ad-

dress Book.

Tap to send the message.

Tap to show or hide the complete

header.

Tap to show / hide the recording toolbar.

Tap to display the Address Book.

Tap to insert common messages.

Chapter 4: Microsoft Pocket Outlook

3. Compose your message. To enter preset or frequently used mes-

sages, tap My Text and select a message.

4. Tap Send when you’ve finished the message. If you are working

offline, the message is moved to the Outbox folder and will be sent

the next time you connect. If you are working online, it is sent immedi-

ately.

If you are sending an SMS message and want to know if it was received,

tap Edit,Options, and select Request SMS text message delivery noti-

fication before sending the message.

Toshiba Pocket PC e750/e755 User’s Guide

Managing E-mail Messages and Folders

By default, messages are displayed in one of five folders for each service

you have created: Inbox, Deleted Items, Drafts, Outbox, and Sent Items.

The Deleted Items folder contains messages that have been deleted on

the device. The behavior of the Deleted and Sent Items folders depends

on the options you have chosen. In the message list, tap Tools and then

Options. On the Message tab, select your options.

If you want to organize messages into additional folders, tap Tools, and

then Manage Folders to create new folders. To move a message to

another folder, in the message list, tap and hold the message and then

tap Move to on the pop-up menu.

Folder behavior with a direct connection to an e-mail server

The behavior of the folders you create depends on whether you are using

ActiveSync, SMS, POP3, or IMAP4.

• If you use ActiveSync, e-mail messages in the Inbox folder in Outlook

will automatically be synchronized with your device. You can select to

synchronize additional folders by designating them for ActiveSync.

The folders you create and the messages you move will then be

mirrored on the server. For example, if you move two messages from

the Inbox folder to a folder named Family, and you have designated

Family for synchronization, the server creates a copy of the Family

folder and copies the messages into that folder. You can then read

the messages while away from your desktop computer.

• If you use SMS, messages are stored in the Inbox folder.

• If you use POP3 and you move e-mail messages to a folder you

created, the link is broken between the messages on the device and

their copies on the mail server. The next time you connect, the mail

server will see that the messages are missing from the device Inbox

and delete them from the server. This prevents you from having dupli-

cate copies of a message, but it also means that you will no longer

have access to messages that you move to folders created from

anywhere except the device.

• If you use IMAP4, the folders you create and the e-mail messages

you move are mirrored on the server. Therefore, messages are avail-

able to you anytime you connect to your mail server, whether it is from

your device or desktop computer. This synchronization of folders oc-

curs whenever you connect to your mail server, create new folders, or

rename/delete folders when connected.

Chapter 5:

Companion Programs

The companion programs consist of Microsoft® Pocket Word, Microsoft®

Pocket Excel, Microsoft® Money, Windows Media™ Player for Toshiba

Pocket PC e750/e755, and Microsoft® Reader.

To switch to a companion program on your device, tap Programs on the

menu, and then tap the program name.

Pocket Word

Pocket Word works with Microsoft Word on your computer to give you

easy access to copies of your documents. You can create new documents

on your device, or you can copy documents from your computer to your

device. Synchronize documents between your computer and your device

so that you have the most up-to-date content in both locations.

Use Pocket Word to create documents, such as letters, meeting minutes,

and trip reports. To create a new file, tap ,Programs,Pocket Word,

and then New. A blank document appears. Or, if you’ve selected a tem-

plate for new documents in the Options dialog box, that template ap-

pears with appropriate text and formatting already provided. You can open

only one document at a time; when you open a second document, you’ll be

asked to save the first. You can save a document you create or edit in a

variety of formats, including Word (.doc), Pocket Word (.psw), Rich Text

Format (.rtf), and Plain Text (.txt).

Pocket Word contains a list of the files stored on your device. Tap a file in

the list to open it. To delete, make copies of, and send files, tap and hold a

file in the list. Then, select the appropriate action on the popup menu.

Toshiba Pocket PC e750/e755 User’s Guide

You can enter information in Pocket Word in one of four modes (typing,

writing, drawing, and recording), which are displayed on the View menu.

Each mode has its own toolbar, which you can show and hide by tapping

the Show/Hide Toolbar button on the command bar.

You can change the zoom magnification by tapping View and then

Zoom. Then select the percentage you want. Select a higher per-

centage to enter text and a lower one to see more of your document.

If you’re opening a Word document created on a computer, select

Wrap to Window on the View menu so that you can see the entire

document.

Select the type of folder you want displayed in the list.

Tap to change the sort order of

the list.

Tap to open a document.

Tap and hold an item to see a

pop-up menu of actions.

Tap to create a new document.

Chapter 5: Companion Programs

Typing Mode

Using the input panel, enter typed text into the document. For more infor-

mation on entering typed text, see Chapter 2.

To format existing text and to edit text, first select the text. You can select

text as you do in a Word document, using your stylus instead of the mouse

to drag through the text you want to select. You can search a document to

find text by tapping Edit and then Find/Replace.

Tap and hold to see a pop-up menu of actions.

Tap to return to the document

list ( changes are saved

automatically ).

Tap to change fromatting

options.

Tap to format text.

Tap to show or hide the toolbar.

Toshiba Pocket PC e750/e755 User’s Guide

Writing Mode

In writing mode, use your stylus to write directly on the screen. Ruled lines

are displayed as a guide, and the zoom magnification is greater than in

typing mode to allow you to write more easily. For more information on

writing and selecting writing, see Chapter 2.

If you cross three ruled lines in a single stylus stroke, the writing

becomes a drawing, and can be edited and manipulated as described

in the following section. Written words are converted to graphics

(metafiles) when a Pocket Word document is converted to a Word

document on your computer.

With Space button selected drag

to insert space.

An arrow appears showing the

space direction and size.

Tap to highlight selected text.

Tap to select formatting options,

such as pen weight and line color.

Space button.

Pen button.

Chapter 5: Companion Programs

Drawing Mode

In drawing mode, use your stylus to draw on the screen. Gridlines appear

as a guide. When you lift your stylus off the screen after the first stroke,

you’ll see a drawing box indicating the boundaries of the drawing. Every

subsequent stroke within or touching the drawing box becomes part of the

drawing. For more information on drawing and selecting drawings, see

Chapter 2.

Recording Mode

In recording mode, embed a recording into your document. Recordings

are saved as .wav files. For more information on recording, see Chapter 2.

For more information on using Pocket Word, tap and then Help.

Select Shape on the pop-up menu to convert objects to proper shapes.

Resize an object by dragging the

selection handles.

Tap to select formatting options,

such as pen weight, line/font

color, and fill color.

Tap an arrow to see your choices.

Pen button.

Toshiba Pocket PC e750/e755 User’s Guide

Pocket Excel

Pocket Excel works with Microsoft Excel on your computer to give you

easy access to copies of your workbooks. You can create new workbooks

on your device, or you can copy workbooks from your computer to your

device. Synchronize workbooks between your computer and your device

so that you have the most up-to-date content in both locations.

Use Pocket Excel to create workbooks, such as expense reports and mile-

age logs. To create a new file, tap , Programs,Pocket Excel, and

then New. A blank workbook appears. Or, if you’ve selected a template for

new workbooks in the Options dialog box, that template appears with

appropriate text and formatting already provided. You can open only one

workbook at a time; when you open a second workbook, you’ll be asked to

save the first. You can save a workbook you create or edit in a variety of

formats, including Pocket Excel (.pxl) and Excel (.xls).

Pocket Excel contains a list of the files stored on your device. Tap a file in

the list to open it. To delete, make copies of, and send files, tap and hold a

file in the list. Then select the appropriate action from the pop-up menu.

Pocket Excel provides fundamental spreadsheet tools, such as formulas,

functions, sorting, and filtering. To display the toolbar, tap View and then

Toolbar.

Chapter 5: Companion Programs

If your workbook contains sensitive information, you can protect it

with a password. To do so, open the workbook, tap Edit, and then

Password. Every time you open the workbook, you will need to en-

ter the password, so choose one that is easy for you to remember

but hard for others to guess.

Cell contents appear here as

you enter them.

Format button.

Auto Sum button.

Zoom button.

Toshiba Pocket PC e750/e755 User’s Guide

Tips for Working in Pocket Excel

Note the following when working in large worksheets in Pocket Excel:

• View in full-screen mode to see as much of your worksheet as pos-

sible. Tap View and then Full Screen. To exit full-screen mode, tap

Restore.

• Show and hide window elements. Tap View and then tap the elements

you want to show or hide.

• Freeze panes on a worksheet. First select the cell where you want to

freeze panes. Tap View and then Freeze Panes. You might want to

freeze the top and leftmost panes in a worksheet to keep row and

column labels visible as you scroll through a sheet.

• Split panes to view different areas of a large worksheet. Tap View

and then Split. Then drag the split bar to where you want it. To re-

move the split, tap View and then Remove Split.

• Show and hide rows and columns. To hide a hidden row or column,

select a cell in the row or column you want to hide. Then tap Format,

then Row or Column, and then Hide. To show a hidden row or col-

umn, tap Tools, then Go To, and then type a reference that is in the

hidden row or column. Then tap Format, then Row or Column, and

then Unhide.

For more information on using Pocket Excel, tap and then Help.

Chapter 5: Companion Programs

MSN Messenger

MSN® Messenger on your mobile device is an instant messaging pro-

gram that lets you:

• See who is online.

• Send and receive instant messages.

• Have instant message conversations with groups of contacts.

To use MSN Messenger, you must have a Microsoft Passport™ account

or a Microsoft Exchange e-mail account. You must have a Passport to use

MSN Messenger Service. If you have a Hotmail® or MSN account, you

already have a Passport. Once you have obtained either a Microsoft Pass-

port or a Microsoft Exchange account, you are ready to set up your ac-

count.

Get a free Microsoft Hotmail e-mail address at http://www.hotmail.com.

To switch to MSN Messenger, tap , Programs, and then tap MSN

Messenger.

Setting Up

Before you can connect, you must enter Passport or Exchange account

information.

To set up an account and sign in:

1. In the Tools menu, tap Options .

2. In the Accounts tab, enter your Passport or Exchange account infor-

mation.

3. To sign in, tap the sign-in screen and enter your e-mail address and

password.

If you already use MSN Messenger on your computer, your contacts

will show up on your device without being added again.

Toshiba Pocket PC e750/e755 User’s Guide

Working with Contacts

The MSN Messenger window shows all of your messenger contacts at a

glance, divided into Online and Not Online categories. From this view, while

connected, you can chat, send an e-mail, block the contact from chatting

with you, or delete contacts from your list using the pop-up menu.

To see others online without being seen, in the Tools menu , tap

My Status and select Appear Offline.

If you block a contact, you will appear offline but will remain on the

blocked contact’s list. To unblock a contact, tap and hold the contact,

then tap Unblock on the pop-up menu.

Tap a contact to start a chat.

Tap and hold to display a pop-

up menu of actions.

Chapter 5: Companion Programs

Chatting with Contacts

Tap a contact name to open a chat window. Enter your message in the text

entry area at the bottom of the screen, or tap My Text to enter a preset

message, and tap Send. To invite another contact to a multi-user chat, in

the Tools menu, tap Invite and tap the contact you want to invite.

To switch back to the main window without closing a chat, tap the

Contacts button. To revert back to your chat window, tap Chats and

select the person whom you were chatting with.

Enter message.

Tap to send message.

Toshiba Pocket PC e750/e755 User’s Guide

To know if the contact you are chatting with is responding, look for the

message under the text entry area.

For more information on using MSN Messenger, tap and then Help.

View full chat.

View status of the chat.

Chapter 5: Companion Programs

Windows Media Player

Use Microsoft Windows Media Player to play digital audio and video files

that are stored on your device or on a network. To switch to Windows

Media Player for Toshiba Pocket PC e750, tap and then tap Windows

Media.

Use Microsoft Windows Media Player on your computer to copy digital

audio and video files to your Toshiba Pocket PC e750. You can play Win-

dows Media and MP3 files on your Toshiba Pocket PC e750.

For more information about using Windows Media Player for Toshiba

Pocket PC e750, tap , and then tap Help.

Tap to play or pause.

Tap to stop.

Tap to play a previous song.

Tap to skip to the next song.

Tap to adjust volume.

Indicates the progress of the

current track.

Toshiba Pocket PC e750/e755 User’s Guide

100

Microsoft Reader

Use Microsoft Reader to read eBooks on your device. Download books

to your computer from your favorite eBook Web site. Then, use ActiveSync

to copy the book files to your activated device. The books appear in the

Reader Library, where you can tap them in the list to open them.

Each book consists of a cover page, an optional table of contents, and the

pages of the book. You can:

• Page through the book by using the Up/Down control on your device

or by tapping the page number on each page.

• Annotate the book with highlighting, bookmarks, notes, and drawings.

• Search for text and look up definitions for words.

The Guidebook contains all the information you'll need to use the soft-

ware. To open the Guidebook, tap Help on the Reader command bar. Or,

on a book page, tap and hold on the book title, and then tap Help on the

pop-up menu.

To switch to Microsoft Reader, tap , Programs, and then Microsoft

Reader.

Getting Books on Your Device

You can download book files from the Web. Just visit your favorite eBook

retailer and follow the instructions to download the book files.

Sample books and a dictionary are also included in the MSReader folder

in the Extras folder on the Toshiba Pocket PC e750 Companion CD.

Use ActiveSync to download the files from your computer to your activated

device as described in the Read Me file in the MSReader folder.

Chapter 5: Companion Programs

101

Using the Library

The Library is your Reader home page; it displays a list of all books

stored on your device or storage card.

To open the Library:

• On the Reader command bar, tap Library.

• On a book page, tap the book title, and then tap Library on the pop-

up menu.

To open a book, tap its title in the Library list.

Tap to select a sort order.

Tap to specify the books you

want to display in the list.

Tap here to navigate to other

parts of the Reader.

Tap to scroll through the Library list.

Toshiba Pocket PC e750/e755 User’s Guide

102

Reading a Book

Each book consists of a cover page, an optional table of contents, and the

pages of the book. Navigation options are listed in the bottom portion of

the cover page.

The first time you open a book, you’ll probably want to go to the first page

or to the table of contents, if there is one. Subsequently, whenever you

open the book, you’ll be automatically taken to the last page read.

In addition to the text, each book page includes a page number and book

title.

You can also page through a book by using the Up/Down control on your

device.

Tap to select a navigation option.

Drag to select text and then tap

an option.

Tap arrows to turn the page,

or tap and hold page # to bring up page riffle.

Chapter 5: Companion Programs

103

Using Reader Features

Reading a book electronically gives you several options not available with

paper books. These options are available from any book page.

Select text by dragging across the text on the page. Then, tap an option on

the pop-up menu, as described here:

• Search for Text. Find text in a book by tapping Find on the pop-up

menu. Enter the word you want to search for, and tap the desired Find

option. Reader highlights found text on the page. To close Find, tap

outside the box. To return to your original page, tap the title and then

tap Return on the pop-up menu.

• Copy Text. You can copy text from books that support this feature into

any program that accepts text. On a book page, select the text you

want to copy. Then, tap Copy Text on the pop-up menu. The text can

be pasted into the program of your choice.

• Bookmarks. When you add a bookmark to a book, a color-coded book-

mark icon appears in the right margin. You can add multiple book-

marks to a book. Then, from anywhere in the book, tap the bookmark

icon to go to the bookmarked page.

• Highlights. When you highlight text, it appears with a colored back-

ground.

• Notes. When you attach a note to text, you enter the text in a note pad

that appears on top of the book page. A Note icon will display in the

left margin. To show or hide the note, tap the icon.

• Drawings. When you add a drawing, a Drawing icon appears in the

bottom-left corner of the page, and drawing tools appear across the

bottom of the page. Draw by dragging your stylus.

• To see a list of a book’s annotations, including bookmarks, highlights,

text notes, and drawings, tap Annotations Index on the book’s cover

page. You can tap an entry in the list to go to the annotated page.

Toshiba Pocket PC e750/e755 User’s Guide

104

Removing a Book

When you finish reading a book, you can delete it to conserve space on

your device. If a copy of the book is stored on your computer, you can

download it again at any time.

To remove a book from your device, tap and hold the title in the Library list,

and then tap Delete on the pop-up menu.

Chapter 6:

Pocket Internet Explorer

Use Microsoft® Pocket Internet Explorer to view Web or WAP pages in

either of these ways:

• During synchronization with your desktop computer, download your

favorite links and mobile favorites that are stored in the Mobile Favor-

ites subfolder in Internet Explorer on the desktop computer.

• Connect to an Internet service provider (ISP) or network and browse

the Web. To do this, you’ll need to create the connection first, as

described in Chapter 7.

When connected to an ISP or network, you can also download files and

programs from the Internet or intranet.

To switch to Pocket Internet Explorer, tap and then Internet Explorer.

The Mobile Favorites Folder

Only items stored in the Mobile Favorites subfolder in the Favorites folder

in Internet Explorer on your desktop computer will be synchronized with

your device. This folder was created automatically when you installed

ActiveSync.

Favorite Links

During synchronization, the list of favorite links in the Mobile Favorites

folder on your desktop computer is synchronized with Pocket Internet

Explorer on your device. Both computers are updated with changes made

to either list each time you synchronize. Unless you mark the favorite link

as a mobile favorite, only the link will be downloaded to your device, and

you will need to connect to your ISP or network to view the content. For

more information on synchronization, see ActiveSync Help on the desk-

top computer.

106

Toshiba Pocket PC e750/e755 User’s Guide

Mobile Favorites

If you are using Microsoft Internet Explorer 5.0 or later on your desktop

computer, you can download mobile favorites to your device. Synchroniz-

ing mobile favorites downloads Web content to your device so that you

can view pages while you are disconnected from your ISP and desktop

computer.

Use the Internet Explorer plug-in installed with ActiveSync to create mo-

bile favorites quickly.

To create a mobile favorite:

1. In Internet Explorer on your desktop computer, click Tools and then

Create Mobile Favorite.

2. To change the link name, enter a new name in the Name box.

3. In Update, select a desired update schedule.

4. Click OK. Internet Explorer downloads the latest version of the page

to your desktop computer.

5. If you want to download the pages that are linked to the mobile favor-

ite you just created, in Internet Explorer on the your PC, right-click the

mobile favorite and then click Properties. In the Download tab,

specify the number of links deep you want to download. To conserve

device memory, go only one level deep.

6. Synchronize your device and desktop computer. Mobile favorites that

are stored in the Mobile Favorites folder in Internet Explorer are down-

loaded to your device.

If you did not specify an update schedule in step 3, you will need to

manually download content to keep the information updated on

your desktop computer and device. Before synchronizing with your

device, in Internet Explorer on your desktop computer, click Tools

and then Synchronize. You will see the last time content was down-

loaded to the desktop computer, and you can manually download

content if needed.

You can add a button to the Internet Explorer toolbar for creating

mobile favorites. In Internet Explorer on your desktop computer,

click View,Toolbars, and then Customize.

107

Chapter 6: Pocket Internet Explorer

To save device memory

Mobile favorites take up storage memory on your device. To minimize the

amount of memory used:

• In the settings for the Favorites information type in ActiveSync op-

tions, turn off pictures and sounds, or stop some mobile favorites

from being downloaded to the device. For more information, see

ActiveSync Help.

• Limit the number of downloaded linked pages. In Internet Explorer on

the desktop computer, right-click the mobile favorite you want to change

and then Properties. In the Download tab, specify 0 or 1 for the

number of linked pages you want to download.

Using AvantGo Channels

AvantGo is a free interactive service that gives you access to personalized

content and thousands of popular Web sites. You subscribe to AvantGo

channels directly from your device. Then, you synchronize your device and

desktop computer, or connect to the Internet to download the content. For

more information, visit the AvantGo Web site.

To sign up for AvantGo:

1. In ActiveSync options on the desktop computer, turn on synchroniza-

tion for the AvantGo information type.

2. In Pocket Internet Explorer on your device, tap the Favorites button to

display your list of favorites.

3. Tap the AvantGo Channels link.

4. Tap the Activate button.

5. Follow the directions on the screen. You will need to synchronize your

device with your desktop computer and then tap the My Channels

button to complete the AvantGo setup.

When synchronization is complete, tap the AvantGo Channels link in your

list of favorites to see a few of the most popular channels. To add or

remove channels, tap the Add or Remove link.

108

Toshiba Pocket PC e750/e755 User’s Guide

Using Pocket Internet Explorer

You can use Pocket Internet Explorer to browse mobile favorites and

channels that have been downloaded to your device without connecting

to the Internet. You can also connect to the Internet through an ISP or a

network connection and browse the Web.

Hide pictures button.

Favorites button.

Home button.

Refresh button.

109

Chapter 6: Pocket Internet Explorer

To view mobile favorites and channels:

1. Tap the Favorites button to display your list of favorites.

2. Tap the page you want to view.

You’ll see the page that was downloaded the last time you synchronized

with your desktop computer. If the page is not on your device, the favorite

will be dimmed. You will need to synchronize with your desktop computer

again to download the page to your device, or connect to the Internet to

view the page.

Tap to add or delete a folder or favorite link.

Tap the favorite you want to

view.

110

Toshiba Pocket PC e750/e755 User’s Guide

To browse the Internet:

1. Set up a connection to your ISP or corporate network using Connec-

tions, as described in Chapter 7.

2. To connect and start browsing, do one of the following:

• Tap the Favorites button, and then tap the favorite you want to

view.

• Tap View and then Address Bar. In the address bar that ap-

pears at the top of the screen, enter the Web address you want to

visit and then tap Go. Tap the arrow to choose from previously

entered addresses.

To add a favorite link while using the device, go to the page you want

to add, tap and hold on the page, and tap Add to Favorites.

111

Chapter 7:

Getting Connected

You can use your device to exchange information with other mobile de-

vices as well as your computer, a network, or the Internet. You have the

following connection options:

• Use the infrared (IR) port on your device to send and receive files

between two devices. If this is the method you want to use, see the

following section “Transfer Items Using Infrared.”

• Connect to your Internet service provider (ISP). Once connected, you

can send and receive e-mail messages by using Inbox and view Web

or WAP pages by using Microsoft® Pocket Internet Explorer. The com-

munication software for creating an ISP connection is already installed

on your device. Your service provider will provide software needed to

install other services, such as paging and fax services. If this is the

method you want to use, see “Connect to an Internet Service Pro-

vider” later in this chapter.

• Connect to the network at your company or organization where you

work. Once connected, you can send and receive e-mail messages by

using Inbox, view Web or WAP pages by using Pocket Internet Ex-

plorer, and synchronize with your computer. If this is the method you

want to use, see “Connect to Work” later in this chapter.

• Connect to your computer to synchronize remotely. Once connected,

you can synchronize information such as your Pocket Outlook infor-

mation. If this is the method you want to use, see ActiveSync Help on

your computer or Connections Help on the device.

Transfer Items Using Infrared

Using infrared (IR), you can send and receive information, such as con-

tacts and appointments, between two devices.

To send information:

1. Switch to the program where you created the item you want to send

and locate the item in the list.

2. Align the IR ports so that they are unobstructed and within a close

range.

3. Tap and hold the item, and tap Beam Item on the pop-up menu.

112

Toshiba Pocket PC e750/e755 User’s Guide

You can also send items, but not folders, from File Explorer. Tap and

hold the item you want to send, and then tap Beam File on the pop-

up menu.

To receive information:

1. Align the IR ports so that they are unobstructed and within a close

range.

2. Have the owner of the other device send the information to you. Your

device will automatically receive it.

Connect to the Internet

You can connect to your ISP, and use the connection to send and receive

e-mail messages and view Web or WAP pages.

You can connect to work in one of two ways:

• Create a modem connection. If this is the method you want to use, see

“To create a modem connection to an ISP.”

• Use an Ethernet card and a net tap to connect to the network. If this is

the method you want to use, see “To create an Ethernet connection to

an ISP.”

To create a modem connection to an ISP:

1. Obtain the following information from your ISP: ISP dial-up access tele-

phone number, user name, password, and TCP/IP settings. Some ISPs

require information in front of the user name, such as MSN/username.

2. If your device does not have a built-in modem, install a modem card,

or use or use a NULL modem cable and appropriate adapters to con-

nect an external modem to your device through the serial port.

3. Tap and then Settings. In the Connections tab, tap Connections.

Under The Internet settings, select Internet Settings and tap Modify.

4. In the Modem tab, tap New.

5. Enter a name for the connection, such as “ISP Connection.”

6. In the Select a modem list, select your modem type. If your modem

type does not appear, try reinserting the modem card. If you are using

an external modem that is connected to your device with a cable, se-

lect Hayes Compatible on COM1.

7. You should not need to change any settings in Advanced. Most ISPs

now use a dynamically-assigned address. If the ISP you are connect-

ing to does not use a dynamically-assigned address, tap Advanced

and then the TCP/IP tab, and enter the address. When finished, tap

OK and then Next.

113

Chapter 7: Getting Connected

8. Enter the access phone number, and tap Next.

9. Select other desired options, and tap Finish.

10. In the Dialing Locations tab, specify your current location and phone

type (most phone lines are tone). These settings will apply to all con-

nections you create.

To start the connection, simply start using one of the following programs.

Your device will automatically begin connecting. Once connected, you can:

• Send and receive e-mail messages by using Inbox. Before you can

use Inbox, you need to provide the information it needs to communi-

cate with the e-mail server. For specific instructions, see “Connect

Directly to an E-mail Server,” later in this chapter.

• Visit Web and WAP pages by using Pocket Internet Explorer. For more

information, see Chapter 6.

• Send and receive instant messages with MSN Messenger. For more

information, see “MSN Messenger” in Chapter 5.

To create an Ethernet connection to an ISP:

1. You do not need to create a new connection on your device. Instead,

you must purchase and configure an Ethernet card that is compatible

with your device.

2. Obtain the following information from your ISP: user name, password,

and domain name.

3. Insert the Ethernet card into your device. For instructions on inserting

and using the Ethernet card, see the owner’s manual for the card.

4. The first time you insert the card, Network Settings will appear auto-

matically so that you can configure the Ethernet card. Most networks

use DHCP, so you should not have to change these settings unless

your network administrator instructs you to do so. Tap OK. (If it does

not appear or to change settings later, tap and then Settings. In

the Connections tab, tap Network Adapters, tap the adapter you

want to change, and then tap Properties.)

5. Connect the Ethernet card to the network by using a network cable.

For information, see your owner's manual.

6. Tap , Settings,Connections tab, and then Connections. From

the My network card connects to list, select The Internet.

To start the connection, simply start using one of the programs listed in

the preceding section. Once connected, you can perform the same activi-

ties as listed in the preceding section.

114

Toshiba Pocket PC e750/e755 User’s Guide

Connect to Work

If you have access to a network at work, you can send e-mail messages,

view intranet pages, synchronize your device, and possibly access the

Internet. You can connect to work in one of two ways:

• Create a modem connection by using a RAS account. Before you can

create this modem connection, your network administrator will need to

set up a RAS account for you. If this is the method you want to use,

see “To create a modem connection to a network.” Your network ad-

ministrator may also give you VPN settings.

• Use an Ethernet card and a net tap to connect to the network. If this is

the method you want to use, see “To create an Ethernet connection to

a network.”

To create a modem connection to a network:

1. Get the following information from your network administrator: dial-up

access telephone number, user name, password, domain name, and

TCP/IP settings.

2. If your device does not have a built-in modem, install a modem card.

3. Tap and then Settings. In the Connections tab, tap Connections.

Under The Internet settings, select Internet Settings and tap Modify.

4. In the Modem tab, tap New.

5. Enter a name for the connection, such as “Company Connection.”

6. In the Select a modem list, select your modem type. If your modem

type does not appear, try reinserting the modem card. If you are using

an external modem that is connected to your device with a cable,

select Hayes Compatible on COM1.

7. You should not need to change any settings in Advanced. Most

servers now use a dynamically-assigned address. If the server you

are connecting to does not use a dynamically-assigned address, tap

Advanced and then the TCP/IP tab and enter the address. When

finished, tap OK and then Next.

8. Enter the access phone number, and tap Next.

9. Select other desired options, and tap Finish.

10. In the Dialing Locations tab, specify your current location and phone

type (most phone lines are tone). These settings will apply to all con-

nections you create.

To start the connection, simply start using one of the following programs.

Your device will automatically begin connecting. Once connected, you can:

115

Chapter 7: Getting Connected

• Send and receive e-mail messages by using Inbox. Before you can

use Inbox, you need to provide the information it needs to communi-

cate with the e-mail server. For specific instructions, see “Connect

Directly to an E-mail Server,” later in this chapter.

• Visit Internet or intranet Web or WAP pages by using Pocket Internet

Explorer.

• Send and receive instant messages with MSN Messenger. For more

information, see “MSN Messenger” in Chapter 5.

• Synchronize. For more information, see ActiveSync Help on the com-

puter.

To create an Ethernet connection to a network:

1. You do not need to create a new connection on your device. Instead,

you must purchase and configure an Ethernet card that is compatible

with your device.

2. Get the following information from your network administrator: user

name, password, and domain name.

3. Insert the Ethernet card into your device. For instructions on inserting

and using the Ethernet card, see the owner’s manual for the card.

4. The first time you insert the card, Network Settings will appear auto-

matically so that you can configure the Ethernet card. Most networks

use DHCP, so you should not have to change these settings unless

your network administrator instructs you to do so. Tap OK. (If it does

not appear or to change settings later, tap and then Settings. On

the Connections tab, tap Network Adapter, tap the adapter you want

to change, and then tap Properties.)

5. Connect the Ethernet card to the network by using a network cable.

For information, see your owner's manual.

6. Tap , Settings,Connections tab, and then Connections. From the

My network card connects to list, select Work.

7. If you want to synchronize your device, tap , and then ActiveSync.

In the Tools menu, tap Options. In the PC tab, select Include PC when

synchronizing remotely and connect to, and select your computer's

name. Remote synchronization with a computer will work only if you

have set up a partnership with that computer through ActiveSync and

have set ActiveSync to allow remote connections. Other restrictions

apply. For more information on synchronizing remotely, see ActiveSync

Help on the computer.

To start the connection, simply start using one of the programs listed in

the preceding section. Once connected, you can perform the same activi-

ties as listed in the preceding section.

116

Toshiba Pocket PC e750/e755 User’s Guide

End a Connection

To disconnect, do one of the following:

• When connected via dial-up or VPN, tap the Connection icon, , on

your navigation bar, and then tap End.

• When connected via cable or cradle, detach your device from the cable

or cradle.

• When connected via Infrared, move the device away from the PC.

• When connected via a network (Ethernet) card, remove the card from

your device.

Connect Directly to an E-mail Server

You can set up a connection to an e-mail server so that you can send and

receive e-mail messages by using a modem or network connection and

Inbox on your device.

The ISP or network must use a POP3 or IMAP4 e-mail server and an

SMTP gateway.

You can use multiple e-mail services to receive your messages. For each

e-mail service you intend to use, first set up and name the e-mail service.

If you use the same service to connect to different mailboxes, set up and

name each mailbox connection.

To set up an e-mail service:

• In Inbox on your device, tap Services, and then New Service. Follow

the directions in the New Service wizard.

For an explanation of a screen, tap and then Help. When finished, to

connect to your e-mail server, tap Services and then Connect. For more

information on using the Inbox program, see “Inbox: Sending and Receiv-

ing E-mail Messages” in Chapter 4.

Get Help on Connecting

More information on the procedures described here, as well as information

on additional procedures, can be found in the following locations:

• “Inbox: Sending and Receiving E-mail Messages” in Chapter 4.

• Online Help on the device. Tap and then Help. Tap View,All In-

stalled Help, and then Inbox or Connections.

• ActiveSync Help on the computer. In ActiveSync, click Microsoft

ActiveSync Help on the Help menu.

• For troubleshooting information, see the Pocket PC Web site at: http:/

/www.microsoft.com/mobile/pocketpc

Chapter 8:

Wi-Fi (IEEE 802.11b)

Wireless LAN

Overview

This chapter is valid for WLAN model only.

The IEEE 802.11b WLAN Adapter can connect your Toshiba Pocket PC

e750/e755 wirelessly to the existing IEEE 802.11b wireless networks or

form its own Wireless Network. Using the adapter in the Toshiba Pocket

PC e750/e755, you can enjoy the complete mobile and high-speed wire-

less Internet connectivity while in range of a Wi-Fi compatible access

point.

RF Exposure Warning Statement:

This device has been evaluated for FCC RF exposure compliance as

portable device for lap held position and with 1.5cm separation distance

from the transmitting antenna to the near by person. To comply with

FCC RF exposure compliance requirements, this device and its antenna

must not be co-located or operating in conjunction with any other

antenna or transmitter.

This device has not been investigated for FCC RF exposure compliance

for portable configuration with any other antenna or transmitter except for

the WLAN transmitter installed by Toshiba Corp. CF Card Slot or SD

Card Slot can not be used for adding any other transmitter.

Configuration

To configure your Wireless settings, click the Wireless LAN icon and tap

the “Config” button.

In order to Turn Off your Wireless LAN radio connection, click the Wireless

icon and tap the “Turn Off” button. If the connection is turned off the WLAN

icon will have a cross marked across the icon. Tap the icon to turn on and

configure the Wireless settings.

119

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

IP Address Page

Use IP Address Page to view and edit the IP address,Subnet mask and

Default gateway.

Click StartJSettingsJConnectionsJNetwork AdaptersJ “IEEE 802.11b

WLAN Adapter”JPropertiesJIP Address

yIP Address:

IP Address is Internet Protocol Address; a numeric address such as

10.37.238.100 that the domain name server translates into a domain

name. Each node on the IP network should have a unique IP address.

ySubnet mask:

A number used to identify a subnetwork when multiple networks share

an IP address. For example 255.255.255.0

yDefault gateway:

This is a device used to forward IP packets to and from a remote

destination.

Please check with your network administrator for these connection

settings.

120

Toshiba Pocket PC e750/e755 User’s Guide

Name Servers Page

Use Name Servers Page to view and edit DNS,Alt DNS,WINS and Alt

WINS.

StartJSettingsJConnectionsJNetwork AdaptersJ“IEEE 802.11b WLAN

Adapter” JPropertiesJName Servers

yDNS:

Domain Name System is a database system that translates ad-

dresses and domain names. For example, a numeric address like

232.245.021.54 can become something like cba.com. DNS can also

be used to control Internet email delivery.

yWINS:

In Toshiba Pocket PC e750/e755, Windows Internet Naming Ser-

vice has two functions; one is a Microsoft Net BIO name server that

eliminates the broadcasts needed to resolve computer names to IP

addresses by providing a cache or database of translations. The

other one is to set the IP address of the host computer that you

already construct the partnership for Network adapter Active sync

purpose.

Without setting the host computer’s IP address in the WINS, you

cannot wirelessly synchronize your Pocket PC with your host com-

puter.

yAlt DNS:

Alt DNS stands for Alternative Domain Name System. Used to sub-

stitute main DNS when necessary.

yAlt WINS:

Alt WINS stands for Alternative Windows Internet Naming Service.

Used to substitute main WINS when necessary.

121

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

Link Page

Use the Link page to view SSID,Channel,TxRate,BSSID,IP Address,

Subnet Mask and Gateway.

Click StartJSettingsJSystemJWireless LAN UtilityJLink

ySSID: Displays the SSID currently connected to the access point or

802.11 ad hoc network.

yChannel: Indicates the channel currently in use for Access Point or

802.11 Ad Hoc network.

yTxRate: Indicates the current data transmission rate in use.

yBSSID: Displays the BSSID set on the access point or 802.11 ad

hoc network.

122

Toshiba Pocket PC e750/e755 User’s Guide

yIP Address: Displays the IP address set.

ySubnet Mask: Displays the subnet mask set.

yGateway: Displays the gateway IP address set.

Configuration Page

Use the Configuration page to set the Mode,SSID,Channel and Country,

and to view Link Quality as well.

Click StartJSettingsJSystemJWireless LAN UtilityJConfig

yMode: Use the Mode pull-down menu to select the operating mode.

Infrastructure – can connect to an access point or a network con-

nected to an access point.

802.11 Ad Hoc – This mode allows Wireless LAN Module to form its

own local network where adapters communicate peer-to-peer with-

out Access Points using a shared SSID.

ySSID: Service Set Identifier is a group name given to the groups that

form the wireless LAN network, and up to 32 single-byte English

characters and symbols may be used. With the default setting “ANY”,

it will automatically connect to the highest performance access point

among those it was able to scan.

123

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

yStatus: shows whether or not the network is connected. If a connec-

tion has been successful, it shows “Authenticated”. If it has failed, it

displays the reason for this. This authentication concerns connec-

tion only, and does not necessarily indicate that the network is us-

able.

.yChannel: In France, only channel 10 and 11 are available. In USA,

Canada, Europe or Australia, you have 11 options: channel 1~11.

If you cannot connect with the APs or the 802.11 Ad Hoc Network

Stations, check if the channel been used is between 1~11. Using

channels other than 1~11 will not enable the connection.

The channel is set by the adapter, which starts the 802.11Ad Hoc

network. Under 802.11Ad Hoc mode, the first station forms the

802.11 Ad Hoc network should choose a proper SSID and the chan-

nel for use. Other stations will only have the same SSID set to join

the 802.11 Ad Hoc network automatically.

yRescan: Used to search the proper Access Point close to the adapter.

yLink Quality: An indicator of how clearly the adapter can hear the

Access Point.

124

Toshiba Pocket PC e750/e755 User’s Guide

yWired Equivalent Privacy (WEP)

Wired Equivalent Privacy. 802.1x validation configuration can be performed.

Mode:

The default WEP Mode setting is “Disable”. You can choose “64 bits

(ASCII)”, “128 bits (ASCII)”, “64 bits (HEX)” or “128 bits (HEX)” manu-

ally to enable the WEP or choose “Disable” to disable the WEP.



Disable:

When in this mode, WEP does not function. When WEP does not

function, there are risks relating to hacking or tapping by external

persons, data loss or destruction. We strongly recommend using

WEP.



64 bits (ASCII):

5-digit ASCII characters or symbols can be entered in “Key”.

Click to set WEP. Default is

“Disable.”

Select Key1 to key4. This

becomes active when WEP

Mode “enabled” is selected.

Enter ASCII characters and

symbols corresponding to the

selected WEP.

Check here if the 802.1 valida-

tion has been enabled.

Activates “Toshiba Enroller.”

Toshiba Enroller is a tool to ob-

tain certificate to allow use of

the 802.1 validation function.

Check here to enable server

validation of the 802.1 valida-

tion function.

Click Apply after completing

new settings

125

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter



128 bits (ASCII):

13-digit ASCII characters or symbols can be entered in “Key”.



64 bits (HEX):

Hexadecimal 10-digit English letters and numerals can be entered

in “Key”. Letters and numerals that can be entered are 0-9 and A(a)

- F(f).



128 bits (HEX):

Hexadecimal 26-digit English letters and numerals can be entered

in “Key”. Letters and numerals that can be entered are 0-9 and A(a)

- F(f).



Key ID:

This becomes enabled when WEP is selected. Select Key1 - Key4.



Key:

Enter the ASCII characters and symbols that correspond to the mode

selected. Different characters can be entered, depending on the

mode selected. Please refer to Wired Equivalent Privacy above.

If “64 bits (ASCII)” or “128 bits (ASCII)” have been selected, input of

letters or numerals above the upper limit is blocked. If “64 bits (HEX)”

or “128 bits (HEX)” have been selected, a warning prompt appears

if you enter anything other than the permitted numerals/letters.



Enable 802.1x authentication:

Check here to enable 802.1x validation function.



EAP type:

Select protocol for using 802.1x validation function.

TLS (EAP-TLS)

Protocol used by Windows 2000 Server, etc.

PEAP

Protocol use by Windows NET Server 2003, etc.



Enable server validation:

When 802.1x validation is performed, this confirms whether it is

connected to the right server. It should normally be checked for im-

proved security.

Please ask your network administrator for further details.

126

Toshiba Pocket PC e750/e755 User’s Guide

Scan Page

Use Scan page to scan and select scannable AP and Ad-hoc devices.

Click StartJSettingsJSystemJWireless LAN UtilityJScan

yRescan:

Rescan scannable Access Point(s) and Ad-hoc connectable

Device(s). If you double tab menu after scanning, you can try to

connect tapped AP or Ad-hoc device. If you are unable to see any

Access points in that menu, check your access point setting. Some

Access Points are set to refuse scanning.

yNetwork Selection:

Each Access Point is identified by its BSSID and SSID. Double-click

on the BSSID to choose the Access Point/802.11 Ad Hoc group you

want to connect with.

ySignal:

Indicates the signal strength of the Access Point.

Access point icon

802.11 Ad Hoc Network Icon

127

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

Manager Page

Click StartJSettingsJSystemJWireless LAN UtilityJManager

yTransmission Rate:

Select the transmission rate to be used from the pull-down menu. If

you select “Fully Auto”, the adapter is automatically set to the most

suitable transmission rate.

yEnable Wireless LAN Indicator:

If you check this, the wireless LAN indicator is displayed in the

navigation bar.

yEnable Power Saving Mode: Check to use power saving mode

Battery Power -- Check this to run in power saving mode when

on battery power. Power is turned off if no transmission occurs

during the specified time. Select time length from pull-down

menu.

External Power -- Check this to runin power-saving mode when

on external power. Power is turned off if no transmission

occurs during the specified time. Select time length from pull-

down menu.

128

Toshiba Pocket PC e750/e755 User’s Guide

Info Page

Use Info Page to view MAC Address,Utility version,Driver version and

Firmware version.

Click StartJSettingsJSystemJWireless LAN UtilityJInfo

yMAC Address:

Displays Wireless LAN MAC Address. MAC (Media Access Control)

Address is a hardware address that uniquely identifies each device

of network.

yVersions:

Firmware -- Display FW version that included Wireless LAN

hardware.

Driver -- Display Wireless LAN Driver version.

Utility -- Display Wireless LAN Driver version.

129

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

Toshiba Enroller

Configure the “Toshiba Enroller” tool for obtaining and administering

certificates used for 802.1x validation. Please ask your network

administrator for configuration details.

Enter user name of the person

obtaining the certificate.

Enter password of the user ob-

taining certificate. Maximum

length of password is 14 let-

ters.

Enter URL or IP address of the

certifying server (CA server) .

Click here to request a certifi-

cate from the certifying server

(CA server).

Click to activate the Wireless

LAN Utility.

130

Toshiba Pocket PC e750/e755 User’s Guide

Root Page

yOpen Certificate:

Opens the root certificate. When the root certificate is opened,the

person it has been issued to, the persons issued by, and the period

of validity will be displayed. The root certificate is provided by the cer

file.

yInstall Certificate:

Registers the open root certificate in the system. This button is en-

abled when the root certificate is opened.

131

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

Management Page

yProperty:

Displays Information on certificates obtained.

yDelete:

Deletes certificates. Please exercise caution when deleting certifi-

cates.

One client certificate and on root certificate are required at a minimum

when using EAP-TLS, and one root certificate is required at a mini-

mum when using PEAP.

132

Toshiba Pocket PC e750/e755 User’s Guide

Advanced Page

yRequested Page:

Portion of URL to be accessed when obtaining client certificates.

yCert Template:

Template used when obtaining client certificates.

yCert Attribute:

Attribute used when obtaining client certificates.

Under normal circumstances configuration is not needed unless re-

quested by your network administrator.

133

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

TMU-Traffic Monitoring Utility

TMU keeps users updated of current WLAN Module’s activity status.

Icon Specification

Wireless Communication Switch off:

Wireless Communication Switch, on the bottom of the PDA, is turned

off. Clicking on the icon gives you a warning message, “Please

turn on Wireless communication switch”. Click “OK” to close the

Message Box. Turn on the switch and you will see the icon turns

to or , depends on the original setting for the WLAN Module

Power.

134

Toshiba Pocket PC e750/e755 User’s Guide

Wireless Communication Power off:

The WLAN Module is at Power Off Status. Clicking on the icon

displays you 2 icons, “On” and “Off”. Click “On” to turn on the Wire-

less LAN Module, and then the icon turns to . Click “Off” to exit

without turning on the Wireless LAN Module.

135

Chapter 8: Wi-Fi (IEEE 802.11b) WLAN Adapter

Wireless LAN Power on:

The WLAN Module is at Power On Status. Clicking on the icon

displays you 2 icons, “On” and “Off”. Click “Off” to turn off the Wire-

less LAN Module, and then the icon turns to . Click “On” to exit

without turning off the Wireless LAN Module. To save power, the

WLAN module can automatically switches power off after a period of

inactivity ( turns to ).

Chapter 10:

Optional Functions

Home

You can launch the built-in or installed applications easily by tapping the

icon displayed on the Home screen. You can also set to display a desired

image on your screen background.

Launching an Application From the Home

1. Tap , Programs, and then Home to display the Home screen.

You can also launch the Home by pressing the Toshiba Pocket PC

e750/e755 Home button .

For initial setting, the

respective application icons are

registered on three tabs: Main,

Programs and Games. In the

Running tab, active

applications are displayed.

Tab.

Tap to select Tab Setting...or

About.

Tap to select Large Icon, Small Icon or Text color...

Tap to select Paste or Add.

137

Chapter 10: Optional Functions

2. Tap the desired tab, and then tap the application icon you want to

launch. The selected application starts up.

Also, you can launch an application by moving the cursor button or

scroller to select and pressing the center of the cursor button to

confirm.

You can add tabs up to a maximum of 10 kinds and icons up to 18

in a tab.

About Running

In the Running tab, the active application names are displayed.

The icons do not appear.

Application Activate/Stop:

Tap the application name you want to activate. You can also activate the

application from the pop-up menu displayed by tapping and holding the

application name.

You can show a pop-up menu by tapping and holding any portion

other than the application names displayed in the Running tab. In

this case, only the Stop All is selectable.

Tap to activate the selected

application.

Tap to quit the selected

application. When finished, the

application name disappears.

Tap to quit all running

applications displayed in the

Running tab.

You can select the View menu

or the Tools menu on the

Running tab screen. You can

select Text color... from the

View menu, the Tab

Setting...or About from the

Tools menu respectively.

138

Toshiba Pocket PC e750/e755 User’s Guide

Display Icon List

The following list shows the tabs and icons for the initial setup.

Tabs Icons Applications

Running — —

Main Pocket Internet Explorer

Windows Media Player

Notes

Tasks

Inbox

Calendar

Contacts

Pocket Word

Pocket Excel

Calculator

Programs File Explorer

DataBackup

Infrared Receive

Games Solitaire

139

Chapter 10: Optional Functions

Moving an Application Icon into Another Tab

The moved icon is placed next to the last icon on the tab screen. You

cannot move an icon into a tab which already contains 18 icons.

To move using pop-up menu:

1. Tap and hold the icon you want to move to display the pop-up menu.

2. Tap Cut on the pop-up menu.

3. Tap the destination tab, and then tap Paste on Edit menu. The se-

lected icon is pasted on the screen.

You can also select Paste from the pop-up menu displayed by tap-

ping and holding any portion other than the icon.

Deleting an Icon

1. Tap and hold the icon you want to delete to display the pop-up menu.

2. Tap Drop on the pop-up menu. The icon is deleted and the next icon

positioned after the deleted icon automatically shifts to fill the de-

leted icon position. And all icons after the deleted icon likewise shift

to fill the previous icon position.

140

Toshiba Pocket PC e750/e755 User’s Guide

Adding an Icon

You can add the application and your file icons to the Home screen.

1. Tap Edit and then Add to display the Add Application screen.

You can also select Add from the pop-up menu displayed by tapping

and holding any portion other than the icon.

2. Tap T of Application file to show the file list. If there is no desired file

on the file list, you can find it by tapping Browse. To refer to all folders

and files, tap Browse to show the Browse Dialog screen. When the

file is selected, its name is displayed in the Application file box.

Tap to designate a folder you want to

browse. When a storage card is inserted,

files or folders contained in the storage

card are displayed from the top directory.

Tap to move up to a directory

folder one level above the

currently displayed one.

Tap to select kinds of

application or file to be

browsed.

If a file is selected from the

list, the screen returns to the

Add Application screen.

141

Chapter 10: Optional Functions

3. Enter an icon name in the Application name box, which is to be dis-

played on the Home screen.

You can enter up to a maximum of 32 characters.

4. When finished, tap OK to close the Add Application screen, and the

new icon is added to the Home screen.

If the Application file is not designated, or if the Application name is

not entered, you cannot add a new icon.

You cannot launch the icon added from the storage card, if the same

card is not inserted in the Toshiba Pocket PC e750/e755.

Tab Setting

You can set to add, delete or rename the tab on the Tab Settings screen.

You can also set to display a desired image on your screen background.

To add a tab:

1. Tap Tools and then Tab Settings to display the Tab Settings screen.

2. Tap Tab Settings and then New to display a box to enter the new tab

name.

3. Enter a new tab name. When finished, tap OK to return to the Tab

Settings screen. You can enter up to a maximum of 10 characters.

4. Tap OK on the Tab Settings screen to return to the Home screen.

To delete a tab:

1. Tap Tools and then Tab Settings.

2. Select the tab name to delete, and then tap Delete, the Delete tab

dialog for confirming appears. Please note that all the icons con-

tained in the same tab will also be deleted.

3. Tap OK on the Delete tab dialog to delete the tab. When finished, the

screen returns to Tab Settings screen.

4. Tap OK on the Tab Settings screen to return to the Home screen.

You cannot delete the Running tab.

142

Toshiba Pocket PC e750/e755 User’s Guide

To change the name of a tab:

1. Tap Tools and then Tab Settings to display the Tab Settings screen.

2. Select the tab name you want to change, and then tap Rename.

3. Enter a new tab name. When finished, tap OK to return to the Tab

Settings screen. You can enter up to a maximum of 10 characters.

4. Tap OK on the Tab Settings screen to return to the Home screen.

You cannot rename the Running tab.

To change a background:

1. Select the background setup tab on the Tab Settings menu, and then

tap Browse to display the Browse Dialog screen.

2. Tap the desired file from the list to return to the Tab Settings screen.

3. Tap OK on the Tab Settings screen to return to the Home screen.

If the selected file is not a designated file type, you cannot set it on

your screen background. The displayable range of the image on

the Home screen is 240(W) x 246(H).

Text Color Setting:

You can set the color of application name for each tab using Text

Color.

1. Tap the tab whose color you want to set to display the selected tab

screen.

2. Tap View and then Text Color to display the color list.

You can set the color of the application name as desired.

3. Tap the color you want to set, and the color of the application name

changes.

143

Chapter 10: Optional Functions

Home Help

Tapping an icon displayed at “Home” launches that application. In addi-

tion to applications, it is also possible to register icons for associated

files here. The Home screen is divided into tabs. There are 4 tab types as

default, and up to 10 types of tab can be registered. As for the icons on the

tab, up to 18 icons per one tab can be registered.

An image can be used as the background for the tab screen.

(1).”Running” tab

The names of currently running applications are displayed at the “Run-

ning” tab.

Applications can be switched or quit here.

“Text Color” can be selected from the “View” menu, and “Tab Settings”

and “About” can be selected from the “Tools” menu.

• To activate applications, tap and hold the name of the application

you want to activate to, then tap “Activate” from the pop-up menu.

• To stop an application, tap and hold the name of the application

you want to stop, then choose “Stop” from the pop-up menu. If

“Stop all” is selected from the pop-up menu, all currently running

applications are stopped.

•“Stop all” can also be selected by tapping and holding on the

“Running” tab screen without selecting an application name.

(2).Launching applications

When an icon on the tab screen is tapped, the application or associated

file registered at the icon is launched.

• Applications can also be launched by selecting them with the

cursor button then pressing on the center of the cursor button.

(3).Switching the icon display

Tap on the “View” menu to display the current display settings. Current

display settings are indicated by check mark at the left. To switch the

display, select “Large Icon” or “Small Icon”.

144

Toshiba Pocket PC e750/e755 User’s Guide

(4).Icon settings

1. Moving icons (using the pop-up menu)

1. Tap and hold the icon you want to move on the tab screen.

2. When the pop-up menu appears, select “Cut” from the menu.

3. Tap on the tab to which you want to move the icon, then tap

“Paste” from the “Edit” menu to move the icon and display it on

the tab screen.

•“Paste” can also be selected from the pop-up menu displayed

when you tap and hold at a position on the screen other than on

icon.

• It is not possible to move icons to tabs already containing 18

icons. When an icon is moved, it is positioned at the very end of

the tab’s icons.

2. Deleting icons

1. Tap and hold the icon you want to delete. A pop-up menu ap-

pears.

2. Tap “Drop” from the pop-up menu to delete the selected icon

from the tab screen.

• When an icon is deleted, subsequent icons are all moved up one

place.

3. Adding icons

1. Tap the tab to which you want to add an icon to select that tab.

2. Tap “Add” from the “Edit” menu to display the “Add Application”

screen.

3. Tap the “Application file” box.

4. From the list, tap the application you want to add. To select a file

not on the list, tap the “Browse” button, then select the file from

the Browse Dialog.

5. Input the name of the icon you want to add (up to 32 characters)

in the “Application name” box.

6. Tap the “OK” button. The new icon is added.

145

Chapter 10: Optional Functions

• Associated files can be specified for added icons.

• If either one of “Application file” or “Application name” is not

filled in, an icon can not be added.

4. Browse Dialog

1. Tap the “Folder” box to select the folder to be browsed.

2. Tap the “Type” box to select the type of file to be browsed.

3. The list of the files of the specified type and in the specified folder

appears on the screen. Select the desired application or file or

the image to be used as the background and tap it. The original

screen reappears.

• If a storage card is inserted into the main unit when adding icons,

icons of applications and files on the storage card are also dis-

played on the browse screen. The folders and files on the stor-

age card can be displayed in the “Folder” box, beginning at the

topmost level.

• If an icon on a storage card is added, that storage card must be

inserted when the icon is tapped or the file will not be launched.

(5).Tab settings

1. Switching tabs

Tap on another tab to switch the tab screen.

Initially four tabs are registered: “Running”, “Main”, “Programs” and

“Games”.

2. Changing tab names

1. Select “Tab Settings” from the “Tools” menu. The “Tab Settings”

screen appears.

2. Tap the “Select tab” box to select the tab to be changed.

3. Tap the “Rename” button. The screen for inputting the new tab

name appears.

4. Input the new tab name (up to 10 characters) into the “Rename

to” box.

5. Tap the “OK” button. The tab name is changed and the “Tab

Settings”screen reappears.

6. Tap “OK” at the upper right to return to the Home screen.

146

Toshiba Pocket PC e750/e755 User’s Guide

3. Deleting tabs

1. Select “Tab Settings” from the “Tools” menu. The “Tab Settings”

screen appears.

2. Tap the “Select tab” box to select the tab to be deleted.

3. Tap the “Delete” button. A dialog asking you to confirm you want

to delete the tab appears.

4. Tap the “Yes” button. The tab is deleted and the “Tab Settings”

screen reappears.

5. Tap “OK” at the upper right to return to the Home screen.

• Note that when a tab is deleted, all the icons on that tab are also

deleted.

•“Delete” cannot be selected if there are only two tabs on the

Home screen.

4. Adding tabs

1. Select “Tab Settings” from the “Tools” menu. The “Tab Settings”

screen appears.

2. Tap the “New” button. An input screen appears.

3. Input the name you want to give the tab (up to 10 characters) into

the “New tab” box.

4. Tap the “OK” button. The new tab is added and the “Tab Settings”

screen reappears.

5. Tap “OK” at the upper right to return to the Home screen.

147

Chapter 10: Optional Functions

5. Setting the background bitmap

1. Select “Tab Settings” from the “Tools” menu. The “Tab Settings”

screen appears.

2. Select the tab whose background you want to set at the “Select

tab” box.

3. Tap the “Browse” button to display the Browse Dialog.

4. Select and tap the image to be used as the background. The “Tab

Settings” screen reappears.

5. Tap “OK” at the upper right to return to the Home screen.

6. Setting the text color

Different colors can be set for the application names at the different tabs.

1. Display the tab whose color you want to set, then select “Text

Color” from the “View” menu.

2. Tap the color you want to set from the list of display colors. That

color is set for the application names.

148

Toshiba Pocket PC e750/e755 User’s Guide

How to Make a Backup

You can make a backup of the Toshiba Pocket PC e750/e755 data in the

storage device. If you have backed up your data on the storage device, you

can restore that data in your Toshiba Pocket PC e750/e755. You can also

delete backup file data from the storage device. Periodical data backup is

recommended.

Data of the following three types can be backed up:

File: Includes a file created by Pocket Word, Pocket Excel, Notes, etc. or an

additionally installed program and so on.

Registry: Setting information on Pocket PC 2002 or Built-in Program.

Database: Database information of Microsoft Pocket Outlook.

1.If you update ROM programs using special installation programs

with a *.xip extension, do not use the backup data which you made

before updating ROM programs.

2.When using the DataBackup, beware of the remaining battery

charge.

3.If you make a backup to the CF/SD card by DataBackup

Utility,please DO NOT remove the CF/SD card nor DO NOT turn off

power of the device until the backup is completed.

4.If you restore the data from the CF/SD card by DataBackup Utility,

please DO NOT remove the CF/SD card nor DO NOT turn off the

power of the device until the restore is completed.

5.Before making a backup, disable the password protection. Tap

Start,Settings,Personal tab,Password, and select No pass-

word.

Failure to follow any of the above procedures may result in the loss

of data.

149

Chapter 10: Optional Functions

If the remaining storage device capacity becomes short during

backup, the backup process stops. Check the storage device ca-

pacity before starting the backup.

If the CF/SD card is write protected, you cannot save the backup

data. Cancel the write protection before starting the backup.

Making a Backup

1. If you make a backup to the CF/SD card, insert a CF Card or a SD

Card.

2. Tap Start,Programs, and then DataBackup to display the DataBackup

screen.

3. Setting Custom Name.

4. Select and tap The storage device.

5. Tap Backup to display the Prompt message screen.

6. Tap Yes. The Proceeding message is displayed during the backup

process. When the backup is completed, a backup finished mes-

sage appears.

7. Tap OK to return to the previous screen.

150

Toshiba Pocket PC e750/e755 User’s Guide

Carrying Out Restore Operation

To restore is to overwrite the backed up data from the storage device onto

the main memory of your Toshiba Pocket PC e750/e755.

If the same file name exists in the main memory of your Toshiba Pocket

PC e750/e755, the file data is replaced with the backup data from the

storage device. If files exist in the main memory but not in the backup file,

they will not be overwritten.

1. If you carry out restore from the CF/SD card, insert the CF/SD card,

which contains backup data into your Toshiba Pocket PC e750/e755.

2. Tap Start,Programs, and then DataBackup to display the

DataBackup screen.

3. Select Restore from tab, then select and tap The storage device.

4. Select backup file from restored files list.

5. Tap Delete if want to delete backup file.

6. Tap Refresh if want to refresh the storage device.

7. Tap Restore to display the Prompt message screen.

8. Tap Yes. The Proceeding message is displayed during the restore

process.

When the restore is completed, a restore finished message appears.

9. Tap OK. Your Toshiba Pocket PC e750/e755 is reset and restarts

automatically.

151

Chapter 10: Optional Functions

Data Backup Help

The backup function allows you to back up the data from the main unit to

a storage device. The backed up data can be restored and deleted.

Before performing the backup or restore operation, check that there is

enough space in the main unit’s memory and on the storage device. The

data is saved as a backup file (.dbk) in your storage device.

(1).If you make a backup to the CF/SD card, load the CF/SD

card

• Make sure the main unit’s power is off when loading and unload-

ing the CF/SD card.

• Insert the CF/SD card in the designated card slot, making sure to

do so in the proper direction.

• Save current data in the main unit’s memory before backing it up

on the CF/SD card.

(2).Making backups

1. Select “DataBackup” from “Programs” in the “Start” menu.

2. Once the backup screen appears, tap the “Backup” tab.

3. Select a Custom Name.

4. Select and tap The storage device.

5. Tap the “Backup” button.

Backup tab

Select “Flash ROM Disk”, “CF

Card” or “SD Card”

Enter custom name. Default is

“Backup”.

152

Toshiba Pocket PC e750/e755 User’s Guide

6. A message appears once backing up is completed.

7. Tap “OK” at the upper right to return to the previous screen.

(3).Restoring the data

Use this operation to restore the backup data stored on the storage de-

vice into the main unit. The data in the backup file is copied over the data

in the main unit’s memory.

• If a file with the same name already exists in the main unit’s

memory, its data is replaced with the data in the backup file.

• Files in the main unit’s memory not included in the backup file

remain in the main unit’s memory.

1. Select “DataBackup” from “Programs” in the “Start” menu.

2. Once the backup screen appears, tap the “Restore” tab.

3. Select and tap The storage device.

4. Select backup file from restored file list.

5. Tap the “Restore” button.

6. A message appears once the restore operation is completed.

7. Tap “OK” button. The main unit is reset and restarted.

Restore tab

Select “Flash ROM Disk”, “CF

Card” or “CD Card”

153

Chapter 10: Optional Functions

(4).Deleting the backup file

1. Select “DataBackup” from “Programs” in the “Start” menu.

2. Once the backup screen appears, tap the “Restore” tab.

3. Select and tap The Storage Device.

4. Select backup file from restored file list.

5. Tap the “Delete” button. A message screen asking you to confirm

that you want to delete the backup file appears.

6. Tap the “Yes” button.

The backup data is deleted from the storage device and the pre-

vious screen reappears.

Note: Pressing “About” in the Backup or Restore menus dis-

plays the version of the program being used.

Restore tab

154

Toshiba Pocket PC e750/e755 User’s Guide

System Information

The System Information program displays the system information

such as CPU clock, CPU stepping, Boot Loader Version, OS Version,

PIC Version, MAC address (WirlessLAN model only), and UUID. The

information is displayed by accessing the Identity, Memory, Drivers,

System, and Wireless tabs.

To launch the program, Click Start > Settings > System Information.

The opening menu presents identification information for product

service.

Tabs for accessing information

about Identity, Memory,

Drivers, System, and Wireless

settings.

155

Chapter 10: Optional Functions

Memory tab

The Memory tab presents information about the systems RAM, ROM,

and Flash ROM Disk.

Driver tab

The Driver tab displays the drivers used by the system’s software

applications.

156

Toshiba Pocket PC e750/e755 User’s Guide

System tab

The System tab displays CPU, operating system, and other system

information.

Wireless tab

The Wireless tab displays information about the Wireless LAN adapter.

157

Chapter 10: Optional Functions

Tools Menu

The Tools menu displays the system information and allows it to be

exported to a text (*.txt) file. “Export” exports all system information

parameters to a text (*.txt), and “About” displays the system information

version.

158

Toshiba Pocket PC e750/e755 User’s Guide

ATI Presentation Pack

Introduction

The Toshiba Expansion Pack with ATI IMAGEON Dual Display Solution

comes bundled with the ATI Presentation Pack, which includes the IA

Presenter and IA Screen Mirror modules.

IA Presenter

Take your Microsoft Windows PowerPoint slides and use IA Presenter to

run a smooth presentation directly from your Pocket PC. IA Presenter can

run as a standalone mobile PowerPoint player using your portable device’s

LCD screen. But with IA Presenter and the Toshiba Expansion Pack linked

to an LCD projector or a monitor, you can create powerful presentations

from your Pocket PC.

IA Screen Mirror

This module projects the current contents of your Pocket PC’s LCD screen

onto an external projector, or monitor. It can display up to nine different

images from your LCD output at the same time on the second display.

Installing the ATI Presentation Pack

All components of the ATI Presentation Pack are installed together by

doing as follows:

1. Make sure your Pocket PC is connected to your computer and

that an ActiveSync connection has been established.

2. Start the ATI Presentation Pack installation by running the Setup

program.

You can setup ATI Presentation Pack from Companion CD (En-

hance Your Pocket PC

Tools

AT Presentation Pack

Install)

3. After accepting the license agreement, choose the folder to which

you want the ATI Presentation Pack to be installed. Click Next to

accept the default destination folder; click Browse... to specify a

different folder.

4. Check your Pocket PC screen for any additional steps required to

complete the installation.

159

Chapter 10: Optional Functions

On-line Help

This Manual serves as a quick-reference guide. For more details about

any feature, consult the on-line Help. When using IA Presenter, select

ToolsJHelp for the main Help table of contents. In IA Screen Mirror, tap

the Help button in the About tab to access the main Help file. Context-

sensitive Help is also available. If, during some operations, you cannot

open the Tools Menu, you can access the context-sensitive Help mes-

sages via the Windows Start Menu.

A Note about Updates to the ATI Presentation Pack

Your copy of the ATI Presentation Pack contains the latest versions of IA

Presenter and IA Screen Mirror. For updates, please visit the IA Style web

site (www.iastyle.com).

160

Toshiba Pocket PC e750/e755 User’s Guide

ATI Presentation Pack

Introduction

The Toshiba Expansion Pack with ATI IMAGEON Dual Display Solution

comes bundled with the ATI Presentation Pack, which includes the IA

Presenter and IA Screen Mirror modules.

IA Presenter

Take your Microsoft Windows PowerPoint slides and use IA Presenter to

run a smooth presentation directly from your Pocket PC. IA Presenter can

run as a standalone mobile PowerPoint player using your portable device’s

LCD screen. But with IA Presenter and the Toshiba Expansion Pack linked

to an LCD projector or a monitor, you can create powerful presentations

from your Pocket PC.

IA Presenter

Getting Started

After you invoke IA Presenter, the screen lists all the converted PowerPoint

presentations currently in your \My Documents folder. A sample presenta-

tion file is included with the installation, so at least one file will be listed

when you initially invoke IA Presenter.

To receive a presentation file into the \My Documents folder of your Pocket

PC via Infrared beaming, tap Tools in the lower left corner of the screen,

then select Receive via InfraRed... from the menu shown above. To drag-

and-drop a PowerPoint file from your computer to your Pocket PC, see the

section Using IA Presenter’s Desktop Converter on the next page.

The Options... command on the Tools Menu opens the General,File,

Display, and VGA Output tabs. These tabs are explained in the on-line

Help file, which can be accessed from the Tools Menu by tapping Help....

Or, after opening one of the tabs, select Help from the Windows Start

Menu.

Using IA Presenter’s Desktop Converter

When you drag-and-drop a PowerPoint file from your PC to your Pocket

PC, the ActiveSync Converter in the IA Presenter will automatically convert

the PowerPoint file to a special IA Presenter format for your Pocket PC,

using the resolution you specify. The file will be placed in any folder on

your mobile device where you choose to drag-and-drop it.

PowerPoint 97 or PowerPoint 2000 (or greater) is necessary for us-

ing IA Presneter’s Desktop Converter.

161

Chapter 10: Optional Functions

There are two ways to open the “Set ActiveSync Conversion Options”

dialog box:

• 1) Select ATI Presentation Pack from the Start Menu, and then Set IA

Presenter ActiveSync Conversion Options from the submenu. The

dialog box will open, establishing it as your default PowerPoint filter

for your ActiveSync drag-and-drop operations. You can choose a di-

mension and then uncheck the Show this option dialog box next time

checkbox (it is checked by default as shown in the figure above). If you

uncheck it, the dialog box will not open whenever you drag-and-drop

a file from your computer to your mobile device. Instead, the dimen-

sion you specified will be used during each conversion.

• 2) You can set the dimension each time you drag-and-drop a

PowerPoint file from your computer to your mobile device. If the Show

this option dialog box next time checkbox has not been un-checked,

the IA Presenter “Set ActiveSync Conversion Options” dialog box will

open automatically every time you drag-drop a PowerPoint file to your

Pocket PC.

Choosing Dimensions for the Converted .IAP File

The conversion filter supports both PPT and PPS PowerPoint files. The

conversion options are:

¾Pocket PC LCD Size – 320 x 240: Select this option if you only

want to display the presentation on the LCD screen of your Pocket

PC. However, if you have tried the 320 x 240 button and then find

that images on the Pocket PC screen have been “stretched” to fit

the screen, and you do not want this effect, try converting again

using the User-defined button. After selecting User-defined, en-

ter 240 in the first box, and 320 in the second box.

If you want to prepare the file to project the presentation to a VGA screen

or video monitor, select one of these options:

¾VGA – 640 x 480

¾SVGA – 800 x 600

¾User-defined: If you do not want to use one of the pre-defined

dimensions listed above, select the User-defined option and

enter your own value in the fields.

XGA 1024 x768 is not supported.

162

Toshiba Pocket PC e750/e755 User’s Guide

Opening a Presentation and Using View Modes

When you invoke IA Presenter, the first screen that appears lists all the

converted PowerPoint presentations currently in your \My Documents

folder. Tap on the name of the file you want to load. You can then choose

from the following view modes.

Normal View

Normal view allows you to view the current slide in the upper pane, while

still able to navigate slides conveniently using the lower thumbnail pane.

You can drag the Splitter Bar that divides the two panes up or down, to

adjust the screen distribution above and below the splitter. The Normal

View icon is located at the leftmost side of the Toolbar, as shown below.

You can also use the stylus to pan the slide image in the upper pane to

show the part covered by the lower pane. The splitter position will auto-

matically be remembered across multiple application sessions, freeing

you from having to adjust the splitter position again during the current IA

Presenter session.

To display a different slide in the upper pane, simply tap on the desired

thumbnail in the lower pane, or use the Slide Title Bar (unnamed slides

will be represented by a number in the Slide Title Bar drop-down list). The

lower thumbnail pane in Normal view provides slide navigation. If you

want to select multiple slides for further operations, use the Slide Sorter

view, as explained in the next section.

You can project the currently selected slide to VGA Display by activating

the VGA Slide Toggle command on the View Menu, or by tapping the VGA

Slide Output Toggle icon at the rightmost side of the Toolbar. To end the

projection, select the command again to toggle it off.

Slide Sorter

Slide Sorter view fills the entire application space with either large or

small thumbnails, depending on whether Large Thumbnail or Small

Thumbnail is active on the View Menu. You can select:

• One slide by tapping on it, or

• Multiple adjacent slides by dragging your stylus over them, or

• If you select Multiple Select Mode on the Edit Menu, you can tap,

drag, or a combination thereof, to select multiple slides that are

separated.

Selected slides will be highlighted by a different border color.

163

Chapter 10: Optional Functions

You can project an individual slide to the VGA output by activating the VGA

Slide Toggle command on the View Menu, or by tapping the VGA Slide

Output Toggle icon at the rightmost side of the Toolbar. When you activate

this function:

• If one slide is selected at the time you toggle the VGA Slide Out-

put “on,” that slide will be output to the VGA Display.

• If multiple slides happen to be selected, the first selected slide in

the sequence will be output to the VGA Display.

• If no slides are selected, there is no change to the current status

of the VGA Display. That is, if an image is already displayed on

the VGA Display, that image remains until you select a slide on

your LCD screen for projection.

To end the projection and return to viewing the slide only on your mobile

device’s screen, just select the command again (or tap the icon a second

time) to toggle it off.

Indicator Icons under Thumbnails

Under each thumbnail in Slide Sorter view mode, there may be various

small icons displayed which indicate the status/attributes of the slide, as

follows:

- The transition icon indicates that a transition effect has been asso-

ciated with the slide, and tapping the icon will “demo” the transition

effect.

- The shape icon indicates that the slide contains animated shapes.

- If you assigned a transition delay-time to the slide in the Automati-

cally field of the Edit Menu > Slide Transition... screen, the delay-

time will be shown.

- The slide number is always shown at the right. If the slide has been

hidden using the Hide Slide command on the Edit Menu, the slide

number will be enclosed in a red box with a line crossing it out.

164

Toshiba Pocket PC e750/e755 User’s Guide

Notes Page

Notes Page view displays the current slide content in the upper pane,

with the lower pane displaying the speaker notes that were entered for

the original PowerPoint presentation, or entered/edited in IA Presenter.

The upper pane operation is the same as in Normal view. The lower pane

is both a Notes display window and an editing window. After editing a

Note, tap OK in the upper right corner to save it.

When in Notes Page view mode, you can project the currently-selected

slide to VGA output by activating the VGA Slide Toggle command on the

View Menu, or by tapping the VGA Slide Output Toggle icon at the rightmost

side of the Toolbar. To end the projection and return to viewing the slide

only on your mobile device screen, just select the command again to

toggle it off.

Quick Notes

The Quick Notes command on the View Menu (and the Quick Notes View

icon on the Toolbar) gives you a view mode that combines the thumbnail

images of Slide Sorter view with the Notes pane of the Notes Page view.

When you tap on a thumbnail, a border around it indicates it is selected.

You can also use the Up, Down, Left, or Right buttons on your mobile

device to move the selection focus (or the Slide Title Bar, if you chose to

display it).

The lower pane displays the Speaker Notes that were entered for the

original PowerPoint presentation, or entered/edited in IA Presenter. The

lower pane is both a Notes display window and an editing window. Tap in

the lower pane to start editing a Speaker Note. The editing functionality is

the same as for Notes Page view.

If the Cut/Copy/Paste/Clear/Undo/Select All commands are required for

editing the text, press your stylus within the Notes pane to activate the

pop-up editing menu. The Notes-editing operation can be undone by

selecting the multiple-steps Undo command on the Edit Menu, pop-up

menu, or Toolbar.

165

Chapter 10: Optional Functions

Slide Show

The Slide Show command on the View Menu starts a full screen Slide

Show on the Pocket PC’s LCD screen. (If you want to project the slide

show to VGA output, you must use the VGA Slide Show command.) Be-

fore selecting Slide Show or VGA Slide Show, you should select Set Up

Show... from the Tools Menu to set up the desired behavior for your slide

show.

If the Auto-Rotate option is checked in the Tools > Options > Display tab,

the slide will be automatically rotated according to the direction you choose

(Left or Right).

Depending on the slide advancement setting specified in the Slide Tran-

sition dialog box, you can tap to advance the slide (or the next animated

object); use the navigation (arrows) buttons of your Pocket PC to advance/

back play the slides; or, IA Presenter will automatically advance slides

based on the number of seconds (delaytime) you set. Sound effects will

also be played according to your assignment.

Pop-Up Menu for Slide Show Mode

If the Show Popup-Menu Button option is checked in the ToolsJOptions

JDisplay tab, a small transparent icon will be shown in the upper left

corner of the LCD screen. Tapping on the small icon will activate the Slide

Show mode’s pop-up control menu. If this option isn’t checked, you can

always tap-and-hold your stylus during Slide Show mode to activate the

pop-up menu. The commands on the menu are explained below.

Next / Previous

Displays the next or previous slide, or next or previous animated object (if

the animated object display was designed). Hidden slides won’t be

shown.

The Go submenu allows you to jump to the First Slide,Last Slide,Previ-

ously Viewed Slide, or jump to any slide using Navigate by Title.

Trigger

If the Trigger mode is selected, the slide show will advance according to

the mode you set using the ToolsJSet Up Show... command or Set Up

Show icon. For example, if you have specified to advance the slides manu-

ally, they will advance each time you tap on the screen. If the slide show is

set to play automatically, you can use the pop-up menu to put it on pause

or end it immediately. IA Presenter is set to Trigger mode by default.

166

Toshiba Pocket PC e750/e755 User’s Guide

Pen

Select the Pen command to enter Ink annotation mode. During the Ink

annotation mode, you can use the stylus to mark or highlight the presen-

tation elements on the screen. To exit the Ink annotation mode, select the

Trigger,VGA Pointer, or VGA Zoom mode from the pop-up menu.

Use the Pen Color submenu to choose the Ink color, and use the Pen

Width submenu to choose a thickness.

If Pen mode is active when you select Blank from the Screen submenu,

you will be able to draw or write Ink annotation on the projected black

screen. (The Screen submenu also lets you undo the most recent Ink

stroke, or erase all of the Ink strokes.)

VGA Pointer

This mode works only when IA Presenter is in VGA Slide Show view. After

you select the VGA Pointer command, your stylus movements on the

LCD screen will simulate a laser pen light on the VGA screen during

presentations. (To exit the VGA Pointer mode, select Trigger,Pen, or VGA

Zoom from the pop-up menu.)

VGA Zoom

This mode works only when IA Presenter is in VGA Slide Show view. After

you select the VGA Zoom mode, you will be able to specify a portion of the

screen which will be projected to the VGA screen, and also a zoom ratio

for that specific area. (To exit VGA Zoom mode, select Trigger,Pen, or

VGA Pointer from the pop-up menu.)

The message that appears on your screen when you invoke VGA Zoom

mode depends on the value that is currently selected on the VGA Zoom

Size submenu. The message will either tell you to tap-and-drag your

stylus to define an area yourself, or it will tell you to simply tap your stylus

to create a zoom area of pre-defined size. You can specify the zoom ratio

using the VGA Zoom Ratio submenu, accessed from the Slide Show

pop-up menu.

Pen Color

Tapping Pen Color opens a submenu of available colors to use for your

Ink annotation when in Pen mode. Select one of the available colors as

the new pen color. The Reset command resets the pen color to the de-

fault White color.

167

Chapter 10: Optional Functions

Pen Width

Tapping Pen Width opens a submenu of available pen widths to use for

your Ink annotation when in Pen mode. Select a thickness settings as the

new pen width to be used for Ink strokes on the LCD screen (and projec-

tion to VGA output, if desired). The 1 Unit option is the thinnest setting.

Higher values give you thicker widths.

VGA Zoom Size

The VGA Zoom Size command opens a submenu of “zoom area” op-

tions. When you invoke VGA Zoom mode by selecting it on the pop-up

menu, the current setting on the VGA Zoom Size submenu will be acti-

vated.

The Quarter,Large,Medium,Small, and Tiny settings on the submenu

represent pre-defined areas. For example, if Quarter is selected, tapping

on your LCD screen will automatically produce a rectangular area which

is the size of one-quarter of your LCD screen (centered around the spot

where you tapped).

The “zoom area” will be displayed on top of the already-existing projection

of the entire slide on the VGA screen.

After the rectangular zoom area exists on your screen, you can drag it to

any part of the screen you wish. It can also be converted to any of the other

pre-defined sizes by pressing your stylus on the LCD screen to open the

pop-up menu again, then selecting a different value from the VGA Zoom

Size submenu. The size of the existing area will then be changed accord-

ingly.

If you select Drag Select on the submenu, you will be able to drag your

stylus on the LCD screen and freely define any area for zooming. After the

desired area has been specified, you can drag it to any portion of the

screen. You can also resize it by dragging any of its corners. To specify the

zoom ratio for the projected zoom area, use the VGA Zoom Ratio com-

mand.

VGA Zoom Ratio

The VGA Zoom Ratio command opens a submenu of pre-defined “zoom

ratio” options. When you invoke VGA Zoom mode by selecting it on the

pop-up menu, the current setting on the VGA Zoom Ratio submenu will

be activated.

Screen

The Screen submenu contains commands that allow you to pause a

Slide Show (Pause Auto Play), project a blank screen (Blank), undo the

most recent Ink stroke (Clear Last Pen), or erase all Ink strokes (Clear All

Pen).

168

Toshiba Pocket PC e750/e755 User’s Guide

Pause Auto Play

If you have specified that you want slides to advance automatically after a

specified number of seconds (using the Set Up Show... command on the

Tools Menu or the Set Up Show icon on the Toolbar), you can select

Pause Auto Play during the playing of a slide show to pause the show.

When ready to continue the automatic progress of a slide show, tap Re-

sume Auto Play.

Blank

When you select Blank, your LCD screen will become completely black,

and the black screen will also be projected to your VGA screen. (After you

have selected Blank, the command name changes to Restore. Tap Re-

store when you are ready to return to the slide that was previously dis-

played.)

Using the Blank Option with Pen Mode:

When the Blank option is active and IA Presenter is in Pen mode, you can

write or draw digital Ink on the screen, and it will be output to the VGA

device. In effect, this allows you to project an “electronic blackboard” which

you might find useful when giving a presentation to an audience. Be

aware that any Ink strokes you draw on the Blank screen will be lost when

you exit Blank mode. They cannot be retained.

When IA Presenter is in VGA Zoom mode or VGA Pointer mode, the Blank

option is not available.

Clear Last Pen

Erases the last individual Ink stroke. This command can be applied re-

peatedly until there are no more Ink strokes in the current slide.

Clear All Pen

Erases all the pen strokes on the current slide.

Speaker Notes

This command displays the current slide’s Note text (if any) in a pop-up

window, with the slide number also shown, on top of the displayed slide.

To advance the slide or object when the Speaker Notes window is shown,

tap on the underlying slide. When you advance the slides, the Speaker

Notes window remains open and interactively displays the Note text of the

related slide. To close the Speaker Notes window, tap the “X” in the upper

right corner.

169

Chapter 10: Optional Functions

End Show

This command terminates the Slide Show playback mode and returns to

the mode you were using prior to entering Slide Show mode. The Action

button on your Pocket PC can also be used to exit Slide Show mode.

VGA Slide Show

VGA Slide Show mode operates almost identically to the Slide Show

mode, except for the following operational differences:

• You should use the VGA Output tab in the ToolsJOptions... com-

mand to set VGA output-related options. You can also elect to have IA

Presenter perform dithering for your slide if you project your slide to

an external VGA/video device with less color capability (such as only

256 colors available).

• During VGA Slide Show mode, the presentation output will be di-

rected to both the Pocket PC’s LCD screen and the external con-

nected VGA device or video device.

The Pocket PC will always show the reduced size version, while the

VGA/video device will view the original matching dimensions set dur-

ing ActiveSync conversion. Or if your current presentation has a di-

mension specified which is different from the exact dimension of

your selected output dimension, IA Presenter will automatically re-

size the slides to fit the output dimensions.

• The Ink annotation will be projected to both the VGA video device and

the LCD screen.

• You can use VGA Zoom on the pop-up menu to designate an area on

a slide during VGA Slide Show view, and project that specific area to

the VGA screen (on top of the already-existing projection of the entire

slide). Use the VGA Zoom Size command to specify an area of pre-

defined size, or manually drag your stylus on the LCD screen to specify

the desired area of the slide. Then use the VGA Zoom Ratio com-

mand to choose the ratio at which you want the zoomed area to be

projected. After the “zoom window” has been created, it can be dragged

to enclose other portions of the slide on your LCD screen, and this

movement will also be reflected in the projected image on the VGA

output.

• You can use the VGA Pointer command on the pop-up menu to en-

able movements of your stylus on the LCD screen to simulate a laser

pen light on the VGA screen during VGA Slide Show presentations.

• In addition to being able to draw digital Ink annotation on your slides,

you can project a black screen to the VGA output and write or draw

projected Ink on it. To use Ink on the blank screen, make sure you are

in Pen mode on the Slide Show pop-up menu before selecting Blank

from the Screen submenu.

170

Toshiba Pocket PC e750/e755 User’s Guide

In addition, before a VGA Slide Show can be projected to a VGA screen,

you must specify the appropriate settings. Select Options... from the Tools

Menu, then tap VGA Output.

More information about the General,File,Display, and VGA Output tabs

are included in the on-line Help.

Controlling Transition Effects

Any transition effects that were assigned in your original PowerPoint file

will be retained when the IA Presenter Converter converts it to an .iap file

on your Pocket PC.

However, IA Presenter also furnishes many attractive transition effects

that can be assigned to the .iap file. You can assign a particular transition

effect to an individual selected slide, or to all slides in the current file.

After you select one or more slides, tap Slide Transition... on the Edit

Menu or the icon on the Toolbar.

The Slide Transition screen will appear. In it, you can select a transition

effect, a speed for the transition effect, method of slide advancement

during a slide show, and associate a sound (.wav file) to a slide.

Merging Presentations

You can merge the slides of two different presentations into one file. The

new inserted slides will adopt the Master Slide style of the current file.

Therefore, you should first open the presentation whose Master Slide

style you want to adopt to.

The next thing you should do is select Options... from the Tools Menu and

open the File tab. Tap OK to close the tab and save the settings.

If you selected To Current Selection in the File tab as the insertion posi-

tion, use your stylus to tap the desired insertion point in the current file (in

Slide Sorter view). Or, select the slide after which you want the imported

slides to be inserted.

Select the Insert Slides From Files... command from the Tools Menu. A

listing of files will appear. Tap the name of the file whose slides you want

to merge with the current file, and it will be done immediately. This com-

mand can be undone or redone (Edit Menu). You can also use Save

Presentation As... (Tools Menu) if you wish to save a backup copy before

you start the merge operation, if desired.

More information about the General,File,Display, and VGA Output tabs

are included in the on-line Help.

171

Chapter 10: Optional Functions

IA Screen Mirror

IA Screen Mirror projects an exact emulation of your mobile device’s

screen contents (LCD display) onto a connected external VGA output

device or television monitor via the Composite video or S-video terminals.

It allows you to project and display multiple LCD screens on the VGA

screen simultaneously, “freeze” them in the desired state, and maintain

one as the active viewport. Flexible output control options let you control

the allocation of CPU utilization, orientation, resolution, and color optimi-

zation/dithering of projected images.

Getting Started

Tap the IA Screen Mirror icon in your Programs group to start the IA Screen

Mirror program.

1. Use the Layout tab to set up the viewports to which you will project

images.

2. Use the Switch tab to assign a “switching” button on your mobile

device.

3. Use the Refresh tab and VGA tab to customize other parameters

as desired.

4. Tap OK to project the LCD screen contents onto the active viewport.

5. Start and operate the application you want to project (“foreground

application”).

6. To make adjustments to the settings, use the “switching” button

on your mobile device to freeze the active viewport and return to

the IA Screen Mirror control screens. Tap OK to continue the pro-

jecting.

7. Use the Exit Program button to terminate IA Screen Mirror en-

tirely and stop projection to the VGA screen.

For more information please refer to the on-line Help.

172

Toshiba Pocket PC e750/e755 User’s Guide

ATI® and IMAGEON® are registered trademarks of ATI Technologies, Inc.

Microsoft®, MS-Windows®, and PowerPoint® are registered trademarks,

and Windows CE™ is a trademark, of Microsoft Corporation in the United

States and other countries.

IA Album®, IA Presenter®, and IA Screen Mirror® are registered trademarks

of IA Style, Inc., and Information In Action™ is a trademark of IA Style, Inc.

The names of other actual companies, products, and brand names men-

tioned herein may be trade names, service marks, trademarks, or regis-

tered trademarks of their respective owners.

This User’s Manual and the programs in the ATI Presentation Pack are

copyrighted. All rights are reserved. Reproduction, adaptation, or trans-

lation of these programs and documents without prior written permission

of IA Style, Inc. is also prohibited.

First Edition March 2002

Web sites: http://www.iastyle.com

Product support: supportE@iastyle.com

Chapter 11:

Additional Information

Troubleshooting

Check the following guide for the possible cause of a problem and how to

correct it.

Symptom Cause Correction

Even if the power button

is pressed and the power

does not turn on.

The battery power is

exhausted.

Charge the battery.

The main battery or the

High Capacity Battery is

not attached.

Attach the main battery /

High Capacity Battery and

switch Battery Pack Lock to

the Lock side.

Battery Pack Lock is at

the Release side.

Switch Battery Pack Lock to

the Lock side.

The power was suddenly

cut off.

The battery power is

exhausted.

Charge the battery.

Automatic suspend is

active.

Select ,Settings,

System,Power to set to

alter the power shut down

time.

Even if the battery is

completely charged, it

discharges after a short

period of time.

The battery is extinct. Replace the main battery

with a new one.

174

Toshiba Pocket PC e750/e755 User’s Guide

Symptom Cause Correction

The screen was tapped,

but the correct action

was not executed.

Touch screen

adjustment is incorrect.

Select ,Settings,

System,Screen, Align

Screen to adjust the touch

screen.

The operation is slow in

response.

Insufficient memory Secure the free memory.

Quit the application if it is

not in use.

Some malfunction.

Reset the system. If no

action is observed after

resetting the system,

initialize the system.

(However, the data will be

deleted.)

The screen was tapped,

but there is no response.

The operation button

does not work either.

Some malfunction. Reset the system. If no

action is observed after

resetting the system,

initialize the system.

(However, the data will be

deleted.)

The screen is dark. The front light is off. Press and hold the power

button until the front light is

turned on.

The screen is hard to

see.

Brightness setting is

incorrect.

Select ,Settings,

System,Front Light to

adjust the screen brightness

for better sight.

Cannot connect to your

computer.

— See Help of ActiveSync.

ActiveSync does not

function when your

Toshiba Pocket PC is

connected to your

computer with a cradle or

USB cable.

The USB driver of your

computer may not be

compatible.

Reselect the USB driver.

175

Chapter 11: Additional Information

Symptom Cause Correction

Cannot access the

Internet.

The connecting using a

specified cellular phone

connection cable was

not correct.

Check whether the

connecting using a specified

cellular phone connection

cable is correct.

Radio waves of a

connected cellular

phone are getting

worse.

Carry out communications

where radio wave conditions

are satisfactory.

Setting is incorrect. Carry out correct setting.

The Battery power is

too low to use USB

devices.

Charge the battery or

connect AC adapter.

Following message is

displayed.

“Not Enough Battery

Power.

There is not enough

battery power to use

USB Device”

The total power

consumption of

connected USB devices

is too large.

This USB port supports total

500mA USB device.

Confirm connected USB

device.

Following message is

displayed.

“USB OVER CURRENT

DETECT USB device is

turned off. Please

disconnect USB device.”

The total power

consumption of

connected USB devices

is too large.

This USB port supports total

500mA USB device.

Confirm connected USB

device.

To enable USB port again,

turn off the power of Pocket

PC and push Reset Switch.

176

Toshiba Pocket PC e750/e755 User’s Guide

Resetting

Reset is equivalent to "Restarting" a computer. Reset the Pocket PC

e750/e755 when a button or tapping the screen does not respond. When

your Toshiba Pocket PC e750/e755 is reset, all data that was not stored

during operation will be deleted.

If the function cannot be restored even if the reset button is pressed,

initialize your Toshiba Pocket PC e750/e755.

When the power is on, press the reset switch with the stylus, then

release.

177

Chapter 11: Additional Information

Clear Memory

When you initialize your Toshiba Pocket PC e750/e755, it returns to the

status when it was purchased.

When you initialize your Toshiba Pocket PC e750/e755, all data

stored in the memory is deleted. Your Toshiba Pocket PC e750/

e755's initially installed programs are not deleted.

Before initialization, remove all CF/SD cards.

1. Turn off the power.

2. Press the power button while pressing and holding the reset switch

with the stylus, and then release the power button.

3. When a screen appears, release the reset switch. When initialization

is completed, the Welcome screen appears. Set up the system ac-

cording to the screen as in the case of startup procedure.

178

Toshiba Pocket PC e750/e755 User’s Guide

Problems Solutions

Cannot connect to the

network

 Make sure the Wireless

Communication Switch is turned on.

 Check if the SSID is correct (note that

it is case-sensitive)

 Check Link Quality in Configuration

Page. If the link quality is poor,

rescan and find another Access Point.

 Check if the operating mode is set

properly. See Chapter 4.4

Configuration Page.

 Check if the WEP key is correctly

entered.

 Be sure you are in the range of a

working Access Point.

 Make sure the channel been set is in

the range of 1~11.

The host computer cannot

wirelessly connect with my

Toshiba Pocket PC e740

 Make sure you have setup the

partnership for your Toshiba Pocket

PC e740 and your host computer.

 Make sure you are within the range of

a working network.

 Make sure you have entered the IP

address of the host computer as the

WINS server on your Toshiba Pocket

PC e740.

 Reset your Handheld PC or Toshiba

Pocket PC e740 to make the TCP/IP

settings take effect.

 Make sure the SSID, WEP keys and

channel for all devices in the network

are set the same.

 Make sure the channel been set is in

the range of 1~11.

Cannot edit the "Channel"

and "Country" field in

"Infrastructure" Mode?

In Infrastructure mode, country and channel

are decided by the Access Point. You can

only join the existing network formed by the

working Access Point, not to create a new

Wireless Network.

The Toshiba Pocket PC

e740 freezes

 Reset the Toshiba Pocket PC e740.

Troubleshooting for Wi-Fi

If you encounter some problems while using our product, please refer to

this troubleshooting section.

179

Chapter 11: Additional Information

FAQ for Wi-Fi

A. Compatibility

A1: Should I use equipment with the same brand as the IEEE802.11b

WLAN Adapter’s to enable the wireless communication?

This is not necessary. IEEE802.11b WLAN Adapter is Wi-Fi certified

which means that it will work well with different branded equipments

as long as the equipment is also Wi-Fi certified.

A2: Can I connect IEEE802.11b WLAN Adapter to other devices using

Bluetooth?

No, you can only connect the IEEE802.11b WLAN Adapter to other

IEEE802.11b equipment.

B. Wireless LAN Connectivity

B1: How do I form a wireless network?

Typically, you can form a wireless network by connecting Access Points.

Different Access Points should have different channels. Every de-

vices connected to the network should have the same SSID. When

you are using Access Points, set the mode to “Infrastructure” mode.

Without Access Points, you can still build a network where adapters

communicate peer-to-peer using a shared SSID. When you are not

using Access Points, change the operating mode to be “802.11Ad

Hoc”. To set the operating mode, click

StartJSettingsJSystemJWireless LAN UtilityJConfig.

B2: How can I connect my Toshiba Pocket PC e750/e755 to the usable

Wireless Network?

Please click StartJSettingsJSystemJWireless LAN UtilityJScan

to view Scan Page where you can find the usable Wireless Network.

If you cannot see all the networks you are expecting, please click

“Rescan” to see the list of usable Wireless Networks. Choose one

Wireless Network you want and double click the BSSID to connect to

the network. Once the network is chosen, you need to configure the

IEEE802.11b WLAN adapter.

Click StartJSettingsJConnectionsJNetwork AdaptersJIEEE802.11b

WLAN AdapterJPropertiesJIP Address to set IP address, Subnet mask

and Default gateway settings. Click StartJSettingsJSystemJWireless

LAN Utility to edit other settings, such as Mode and SSID etc. If the

WEP Mode of the Wireless Network you selected is enabled (64bit or

128bit WEP Mode), please choose the proper WEP KeyID and the

proper WEP Key value network.

180

Toshiba Pocket PC e750/e755 User’s Guide

More Information

B4. What is 802.11 Ad Hoc Network? What should I do to form an

802.11 Ad Hoc Network?

B5. What is the difference between “Infrastructure” and “802.11 Ad

Hoc” Network Mode?

How do I choose?

B6. Could I use the 802.11 Ad Hoc Mode to access the LAN re-

sources? How can I access the

LAN resource without an Access Point?

B7. What should I do if my host computer cannot wirelessly connect

with my Toshiba Pocket PC e750/e755?

E1. What is WEP?

E2. How many WEP security service mode does Wireless LAN sup-

port?

E3. How to set the WEP security service?

B3: How do I know whether or not my Pocket PC has already con-

nected to an AP successfully?

1. Check BSSID. When there is a link, the current Basic Service

Set ID of the Access Point been used will be shown in the BSSID

field in Link Page. When the adapter is disconnected with the

Access Point, “Non-associated” will appear in the BSSID field.

To view BSSID, from your Toshiba Pocket PC e750/e755, click

StartJSettingsJJSystemJWireless LAN UtilityJLink.

2. Check Link Quality. Link Quality shows how clearly the adapter

can hear the Access Point. If the quality is poor, it’s better to

rescan and find a better performance Access Point or re-arrange

the AP’s position for better performance. To view Link Quality,

from your Toshiba Pocket PC e750/e755, click

StartJSettingsJSystemJWireless LAN UtilityJConfig.

B4: What is 802.11 Ad Hoc Network? What should I do to form an 802.11

Ad Hoc Network?

802.11 Ad Hoc Mode is used to create a peer-to-peer connection

without an Access Point. The SSID must be the same among sta-

tions to enable the wireless communication within the local area

network.

You need to choose a proper SSID and channel for the first 802.11

Ad Hoc station. For other stations want to join the same SSID group,

you could only choose the same SSID as the first station for connec-

tion. The Channel setting for the 802.11 Ad Hoc Network stations to

join the existing 802.11 Ad Hoc Network will automatically be set as

the channel number of the network.

181

Chapter 11: Additional Information

More Information

B5. What is the difference between “Infrastructure” and “802.11 Ad

Hoc” Network Mode?

How do I choose?

B6. Could I use the 802.11 Ad Hoc Mode to access the LAN resources?

How can I access the LAN resource without an Access Point?

B7. What should I do if my host computer cannot wirelessly connect

with my Toshiba Pocket PC e750/e755?

B5: What is the difference between “Infrastructure” and “802.11 Ad

Hoc” Network Mode?

How do I choose?

Infrastructure Mode is used to connect yourToshiba Pocket PC e750/

e755 with the Access Point. Usually, to form a Wireless Network, you

can connect your Access Point to the ADSL, Cable Model or LAN

Ethernet and then configure the Access Point base on the User Guide

for the Access Point to set the proper SSID, Channel and WEP secu-

rity service. After that, configure the IEEE 802.11b WLAN adapter. Set

the same SSID, Channel and WEP as the Access Point’s. 802.11 Ad

Hoc Mode allows your Toshiba Pocket PC e750/e755 to form its own

local network where devices communicate peer-to-peer, using a

shared SSID, without Access Points. Under 802.11 Ad Hoc mode, the

SSID must be the same among stations so that the devices can

communicate properly within the Wireless Network. If you want to

form your network without any Access Points, you should choose

802.11 Ad Hoc mode.

B6: Could I use the 802.11 Ad Hoc Mode to access the LAN resources?

How can I access the LAN resource without an Access Point?

Yes , you can access the LAN resources without an Access Point .

Follow the steps shown below:

(1) Make sure your host computer already successfully connect to

the LAN or Internet through the LAN Adapter or the Modem.

(2) Install the Wireless LAN Adapter into your Host computer suc-

cessfully and set 802.11 Ad Hoc Mode and the proper SSID to

form the 802.11 Ad Hoc Network. Install and enable the ICS

(Internet Sharing Software, such as “SyGate”...) function in your

host computer. (Note that the Windows 2K or later version, OS,

supports the ICS function in Local Area Connection Properties?

Sharing)

(3) Set your Toshiba Pocket PC e750/e755 as 802.11 Ad Hoc Mode

and choose the same SSID to join the 802.11 Ad Hoc Network

(choose the DHCP to get the IP assigned).

182

Toshiba Pocket PC e750/e755 User’s Guide

(4) Check and make sure the Wireless LAN Adapter in the 802.11 Ad

Hoc Network have the same IP group. (Please Ping each other to

make sure the connection is successful)

(5) Now you can access the LAN resource successfully.

B7: What should I do if my host computer cannot wirelessly connect

with my Toshiba Pocket PC e750/e755?

(1) Make sure you have setup the partnership for your Toshiba Pocket

PC e750/e755 and your host computer.

(2) Make sure you are within the range of a working network.

(3) Make sure you have entered the IP address of the host computer

as the WINS server on your Toshiba Pocket PC e750/e755.

(4) Reset your Handheld PC or Toshiba Pocket PC e750/e755 to

make the TCP/IP settings take effect

(5) Make sure the SSID, WEP keys and channel for all devices in the

network are set the same.

(6) Make sure the channel been set is in the range of 1~11.

C. Application

C1: What should I do to use the ActiveSync Function through Wireless

Network?

(1) Make sure you have already setup the partnership for your Toshiba

Pocket PC e750/e755 and your host computer through USB In-

terface and the ActiveSync can work properly. (The ActiveSync

connection Interface should also choose the Ethernet interface

for Wireless LAN ActiveSync Connection)

(2) Make sure you are within the range of a working Wireless Net-

work.

(3) Make sure you can Ping your Toshiba Pocket PC e750/e755 from

your Host Computer. (Make sure the SSID, WEP keys and chan-

nel for all devices in the network are set the same.)

(4) Make sure you have entered the IP address of the host computer

as the WINS server on your Toshiba Pocket PC e750/e755.

(5) Reset your Toshiba Pocket PC e750/e755 to make the TCP/IP

settings take effect and execute the ActiveSync function in the

Toshiba Pocket PC e750/e755 to enjoy the high speed ActiveSync

Wirelessly.

C2: How do I wirelessly browse the Internet?

(1) If your network uses DHCP (Dynamic Host Configuration Proto-

col), an IP address and DNS (or WINS) will be assigned auto-

matically. On your Toshiba Pocket PC e750/e755, simply click

Start

Setting

Connections

Network Adapters

IEEE802.11b

WLAN Adapter

Properties to set the proper setting for Internet

183

Chapter 11: Additional Information

connection.

(2) If your network does not use DHCP, you should enter the IP ad-

dress, subnet mask, gateway and DNS (or WINS).

IP Address is Internet Protocol Address; a numeric address such

as 10.37.238.100 that the domain name server translates into a

domain name. Each node on the IP network should have a unique

IP address.

Subnet mask is a number used to identify a subnetwork when

multiple networks share one IP address. For example

255.255.255.0Gateway is a device used to forward IP packets to

and from a remote destination.

DNS stands for Domain Name System, a database system, which

translates addresses and domain names. For example, a nu-

meric address like 232.245.021.54 can become something like

cba.com.

WINS stands for Windows Internet Naming Service which has

two functions; one is a Microsoft Net BIO name server that elimi-

nates the broadcasts needed to resolve computer names to IP

addresses by providing a cache or database of translations. The

other one is to set the IP address of the host computer that you

already construct the partnership for Network adapter Active sync

purpose.

To set IP address, Subnet mask and Gateway, click

Start

Settings

Connections

Network

Adapters

IEEE802.11b WLAN Adapter

Properties

IP Ad-

dress. To set DNS or WINS (Windows Internet Naming

Service),click Start

Settings

Connections

Network

Adapters

IEEE802.11b WLAN Adapter

Properties

Name

Servers.

(3) To ping your Toshiba Pocket PC e750/e755 from your host com-

puter. In the Host Computer, open the DOS command mode

window, type the command “Ping” followed by the IP address,

such as “Ping 140.124.40.112”. If you can see the reply from this

IP address, the connection is complete. You are now ready to

browse the Internet using Internet Explorer on your Toshiba Pocket

PC e750/e755.

C3: How do I wirelessly check my e-mail?

(1) Please make sure that you can use the ActiveSync function through

USB Interface at first, and make sure you can use the ActiveSync

to receive and send e-mail successfully. For corporate e-mail

received and sent, please check with your network administrator

for necessary connection settings.

(2) Make sure you have entered the IP address of the host computer

as the WINS server on your Toshiba Pocket PC e750/e755.

(3) Reset your Toshiba Pocket PC e750/e755 to make the TCP/IP

settings take effect and execute the ActiveSync function in Toshiba

Pocket PC e750/e755 to enjoy the high speed ActiveSync

Wirelessly to receive and send e-mail.

184

Toshiba Pocket PC e750/e755 User’s Guide

D. Settings

D1: What is SSID? What should I set in the SSID field?

SSID stands for Service Set Identification, which is the ID to form the

Wireless Network. You can set up to 32 characters in the SSID field.

For the Infrastructure Mode, you should set the SSID the same as the

Access Point been connected with. To create a 802.11 Ad Hoc Net-

work, the SSID must be the same among stations to enable the

wireless communication within the local area network.

You need to choose a proper SSID and channel for the first 802.11

Ad Hoc station. For other stations want to join the same SSID group,

you could only choose the same SSID as the first station, but the

channel will not take effect. The 802.11 Ad Hoc must enter the proper

SSID. Blank SSID for the 802.11 Ad Hoc Mode is not allowed. The

stations want to join the 802.11 Ad Hoc Network must have the same

SSID and are suggested to have the same IP Address in the Net-

work group.

D2: Why can’t I choose the “Channel” and “Country” field in “Infra-

structure” Mode?

For the Infrastructure Mode, the Country and Channel are decided by

the Access Point. You can only join the existing Access Point formed

Wireless Network but not create a new Wireless Network. That is the

reason why you can’t set the “Channel” and “Country” settings.

D3: When should I set the IP address, Subnet mask and Default gate-

way settings?

When the Wireless Network does not have the DHCP server, you

should set your own IP address, Submask and Default gateway for

Wireless Network connection. Otherwise, the OS might set the differ-

ent Network group IP address for you, which will cause the discon-

nection for the Wireless Network.

D4: How can I set the IP address, Subnet mask and Default gateway

settings?

Simply click StartJSettingsJConnectionsJNetwork

adapterJIEEE802.11b WLAN AdapterJPropertiesJIP Address

to set IP address, Subnet mask and Default gateway settings.

D5: What Transmit Rate should I choose for Wireless Connection?

Suggest you to use the “Fully Auto” option in the “Transmission Rate”

field for full Transmission Data Rate range to automatically adjust

the Best Communication Data Rate and to be compatible with other

Low speed 802.11 Wireless Device.

185

Chapter 11: Additional Information

E. Security

E1: What is WEP?

WEP stands for Wired Equivalent Privacy, a security service, used to

prevent the unauthorized access to your wireless network.

E2: How many WEP security service modes does my Wireless LAN

support?

WEP stands for Wired Equivalent Privacy that is the security service

for the Wireless Network. There are three WEP security service modes

available for “IEEE 802.11b WLAN Adapter” formed Wireless Net-

work. The first is “Disable” which will disable the WEP security ser-

vice; the second is “64bit” which will support 5 bytes Hexadecimal

value WEP security service; the third is “128bit” which will support 13

bytes Hexadecimal value WEP security service.

E3: How do I set the WEP security service?

Please click Start?Settings?System?Wireless LAN Utility?Advanced

to view Advanced page where you can set the WEP security service.

Please choose the proper WEP Key Mode, WEP KeyID and WEP Key

value for the Wireless Network.

The WEP Mode, WEP KeyID and WEP Key value must be exactly

the same as your Wireless Network’s to enable the connection.

Example of setting the WEP:

You can choose

1. WEP Mode “64bit”, KeyID “1” and Key “1234567890”, or

2. WEP Mode “128bit”, KeyID “1” and Key

“12345678901234567890123456”, or

3. WEP Mode “Disable” for connection

F. Performance

F1: Will IEEE802.11b WLAN Adapter work in the environment where

Bluetooth network is employed?

Yes, IEEE802.11b WLAN Adapter can coexist with Bluetooth environ-

ment.

F2: How far is the working range of IEEE802.11b WLAN Adapter?

It depends on the data transmission rate and the condition of the envi-

ronments. The higher the data rate, the smaller the range it could cover.

At 11 Mbps, the adapter can go up to 300 meter in an outdoor environ-

ment; however, in an indoor environment, it can only go up to 100 meter.

Because of the ceilings, higher RF interference, interior walls and re-

flected signals, indoor range is usually shorter than outdoor range.

186

Toshiba Pocket PC e750/e755 User’s Guide

F3: How does the data transmission rate work?

IEEE802.11b WLAN Adapter allows you to choose one of the six data

rate options: Fixed 1Mbps, Fixed 2Mbps, Fixed 5.5Mbps, Fixed 11

Mbps, Auto Select 1 or 2 Mbps, and Fully Auto.

The farther the distance between two communicating devices, the

slower the data rate should be used. Basically, with slower data rate,

the data delivery will be more reliable. If you don’t know which data

rate should be used, simply choose “Fully Auto”, and the data rate will

automatically step down from 11 Mbps, 5.5 Mbps, 2 Mbps, to 1 Mbps

if you move farther your Toshiba Pocket PC e750/e755 away from the

Access Point or other connected mobile device.

F4: The Wireless LAN uses lots of power. What should I do to save

power?

(1) Please turn off the WirelessLAN Switch if you are not using the

Wireless Network currently, or

(2) You can click the “Radio Off” button on

StartJSettingsJSystemJWireless LAN UtilityJConfig page to

temperately disable the RF function , or

(3) You can click StartJSettingsJSystemJWireless LAN

UtilityJAdvanced to get into Advanced Page and tick the “En-

able Power Saving Mode” to enter the Power Saving Mode.

(1) Turn off the WirelessLAN Switch will cause the disconnection

of the Wireless Network, please make sure to close all the

Wireless Connection before you execute this function.

(2) “Radio Off” function will cause the disconnection of the Wire-

less Network , please make sure to close all the Wireless Con-

nection before you execute this function.

(3) Enable “Power Saving Mode” will keep the connectivity but will

lower down the average throughput due to longer connection

period for the Wireless Network.

(4) If you are in 802.11 Ad Hoc Mode, you are not allowed to en-

able “Power Saving Mode”, because Ad Hoc Mode doesn’t sup-

port this function.

187

Chapter 11: Additional Information

F5: How do I make sure that the Wireless LAN SW has been installed

successfully and that Wireless LAN already work properly?

(1) Please check if the “IEEE 802.11b WLAN Adapter” already exist in

StartJSettingsJConnectionsJNetwork Adapters; if not , the Wire-

less LAN Driver is not Installed successfully.

(2) Please check if the Wireless LAN Utility already exist and could be

opened successfully by simply click

StartJSettingsJSystemJWireless LAN Utility.

(3) Click Start?Settings?System?Wireless LAN Utility?Link to check

the current Link information in the Link Page.

188

Toshiba Pocket PC e750/e755 User’s Guide

Although the display is manufactured using an extremely high order of

technology, there may be a case that some dots do not light or always

light. It is not a malfunction.

Specifications

External dimensions 125 x 80 x16mm

Weight 180g.

Operating conditions Temperature: 32 F to 104 F, Humidity: 30 to 80% when

only the Toshiba Pocket e750/e755 is operating. Temperature

capable of charging 41 F to 104 F.

Battery Type 1050mAh Li-ion battery

Processor Intel (R) PXA 255 processor at 400 MHz

Memory RAM: 64 MB mobile ram with 32 MB Flash ROM

Display Sharp 3.8”, Trans-reflective LCD screen

Interfaces

RGB

USB Host/Client

SIR

DC-in

Headphone (4 rings)

Microphone (4 rings)

CF card slot Flash type II slot

SD card slot SD slot x 1

cradle connection port

Audio AC 97 Codec, Mono record, Stereo playback, 8.0, 11.025, 22.025,

and 44.1 KHz sample rate. Full Duplex record and playback. On

board microphone. on board speaker. Stereo earphone jack x 1.

software volume control.

Accessories Ac Adaptor, USB client cable, stylus pen, cradle, USB host

cable, battery pack, high capacity battery pack, battery charger.

The security finctionof the SD memory card is not usable.

Data encrypted by the SD memory card security function

- compatible equipment is not usable.

Compal Electronics PA3275U-1BTM PDA With 2.4GHz Bluetooth Module User Manual PDA

Compal Electronics Inc PDA With 2.4GHz Bluetooth Module PDA

Contents

PDA user manual

Navigation menu

Namespaces

Views

Navigation
