Compal Electronics VC-5D Dual Mode AMPS/CDMA Cellular Phone User Manual
Compal Electronics Inc Dual Mode AMPS/CDMA Cellular Phone
User Manual
1
USER MANUAL
VC-5D
Version 0.1
VACOM WIRELESS, INC.
2
CONTENTS
IMPORTANT SAFETY INFORMATION
GETTING TO KNOW YOUR PHONE
DISPLAY INDICATORS
BATTERY INFORMATION
BASIC FUNCTIONS
1. Making Calls
2. Ending Calls
3. Answering Calls
4. Correcting Entry Errors
5. Storing Phone Numbers
6. Adjusting In-Call Mic Volume
7. Volume
8. Redialing Last Dialed, Received, or Missed Number
9. Speed Dial
10. Using Caller ID
11. Etiquette Mode
12. Camera
13. Shortcut
MENUS
I. INTERACTIVO
1. WAP
2. BREW
3. MMS
4. SMS
II. PHONEBOOK
1. Adding Entries in the Phonebook
3
2. Phonebook Search
3. Call List
4. Editing Groups
5. Memory Check
6. My Number
III. VOLUME & ALERT
1. Bell Select
2. Ring Type
3. Volume
4. Alert Settings
5. Beep Length
6. Roam Ringer
IV. PERSONAL INFORMATION MANAGEMENT
1. Alarm
2. Schedule
3. Memo
4. Calculator
5. World Time View
6. Calendar View
V. PHONE SETTINGS MENU
1. Wallpaper
2. Greeting Edit
3. Backlight
4. LCD Contrast
5. Languages
6. Auto Keylock
7. Power Saving
8. Current Time Setting
VI. CALL INFORMATION
1. Call Function
- Auto Answer
- Auto Redial
2. Call Restrict
4
3. Call Answer
4. Call Time
5. Voice Privacy
VII. SECURITY FUNCTIONS
1. Lock Mode
2. New Password
3. Memory Clear
4. Initialize
5. Privacy Information
6. Network Changes
VIII. VALUE ADDED SERVICE (VAS)
1. Data Service
2. Games
- Black Jack
- Othello
- Lottery
3. Memory Manager
USING MENU DURING CALLS
1. Phonebook Search
2. Mute
3. DTMF Mute
4. Mic Volume
5. Voice Privacy
6. Beep Length
ENTERING LETTERS & NUMBERS
1. Prediction Text Input
2. ABC/123 Mode
3. Inserting Punctuations & Special Characters
5
IMPORTANT SAFETY INFORMATION
Some of the following information may not apply specifically to your phone. However, as with
any electronic product, these safety precautions should be observed when using this product.
◈ Please keep this manual in a safe place, for it contains important safety information and
operating instructions.
◈ Please follow and adhere to all warning, safety, and operating instructions indicated on both
the phone and in this manual before use.
◈ Do Not expose the phone to water or moisture.
◈ Do Not expose the phone to extreme heat or cold.
◈ Do Not expose the phone to open flame.
◈ Do Not allow objects to fall or liquids to spill on the product.
◈ Use Original Accessories only. Any damage incurred from the use of non-approved
accessories will void the warranty.
◈ Use approved chargers only and connect to a power source designated on the product.
◈ To reduce the risk of injury, remove the electrical cord from an outlet by pulling on the
charger, rather than the cord.
◈ Ensure that the electrical cord is positioned accordingly so that it will not be vulnerable to
damage.
◈ To reduce the risk of electrical shock, unplug the phone from the power source before
cleaning. Once unplugged, use a soft cloth dampened with water to clean.
◈ DANGER: Do Not modify the cord or the plug. If the plug does not fit into an outlet,
have a proper outlet installed by a qualified electrician. Improper connection can result in
electrical shock.
◈ Do Not attempt to disassemble the product – doing so will void the warranty. This product
does not contain consumer-serviceable components. Service should be performed only by
authorized service centers.
◈ Do Not remove the antenna. A detached antenna can be a choking hazard for children.
◈ Do Not place the battery inside the mouth. The battery contains toxic electrolytes that are
harmful for your health.
6
GETTING TO KNOW YOUR PHONE
Volume/Scroll Key
These keys are used to set volume levels, to shot a camera and to help you
navigate through menus and the Phonebook.
Use the volume keys to:
- Access the Etiquette mode, then press the ▲ key while the folder is
closed.
- Press ▼ to enlarge characters on Sub-LCD display.
- Adjust call volume.
- Adjust key tone volume.
- Answer incoming calls.
- Scroll through menu options.
- Scroll through the Phonebook.
Color LCD Display
The LCD screen is divided into two sections:
- The top line displays your phone status indicators.
- The lower portion displays currently in-use information, such as
Caller ID (if available), Mute, Call Waiting, etc. Menus are also
displayed in the lower portion.
Menu Keys ( / )
These keys perform several useful functions:
- Use these keys to answer incoming calls.
- Use these keys from Standby mode to briefly access Main and Select
menus.
- Use these keys to select a highlighted selection when navigating
through a menu.
SMS Key ( /)
From Standby mode, press this key to access a text message menu items.
- Press this key to answer incoming calls.
Navigation Keys
These keys allow you to navigate the phone’s various features and useful
shortcuts including a camera, BREW, WAP, phone number list, etc.
Camera ( ) Key
From Standby mode, press this key to access a camera. Then you can take a
phone with your phone.
Microphone
Your typical conversational microphone. Mute the microphone during
conversation by pressing “MENU” “2”.
Accessory Port
Connect your charger here.
7
CLR Key
This key is used to erase incorrect numeric or character entries or to return to a
previous screen.
- To erase a single character from the screen, briefly press the CLR key
once.
- To erase the entire entry field, hold down the CLR key for one
second.
- To back up one menu level, press the CLR key once.
- To return to standby, hold the CLR key for one second.
- During a call, press the CLR key to adjust the earpiece volume.
(END) Key
Press this key to end calls or to return to Standby mode from any menu. Press
and hold to turn the phone On or Off.
(SEND) Key
This key performs several useful functions:
- Press the Send key to dial an entered number.
- Press the Send key once to redial the last outgoing number.
Numeric Keypad
These keys are used to input numbers and characters.
◀*
This key performs several useful functions:
- Toggle between ring and vibrate.
- Use as a navigation key.
#▶
This key performs several useful functions:
- Use to lock the keypad. To unlock, press MENU ( ) and “#▶”.
- Use as a navigation key.
Antenna
8

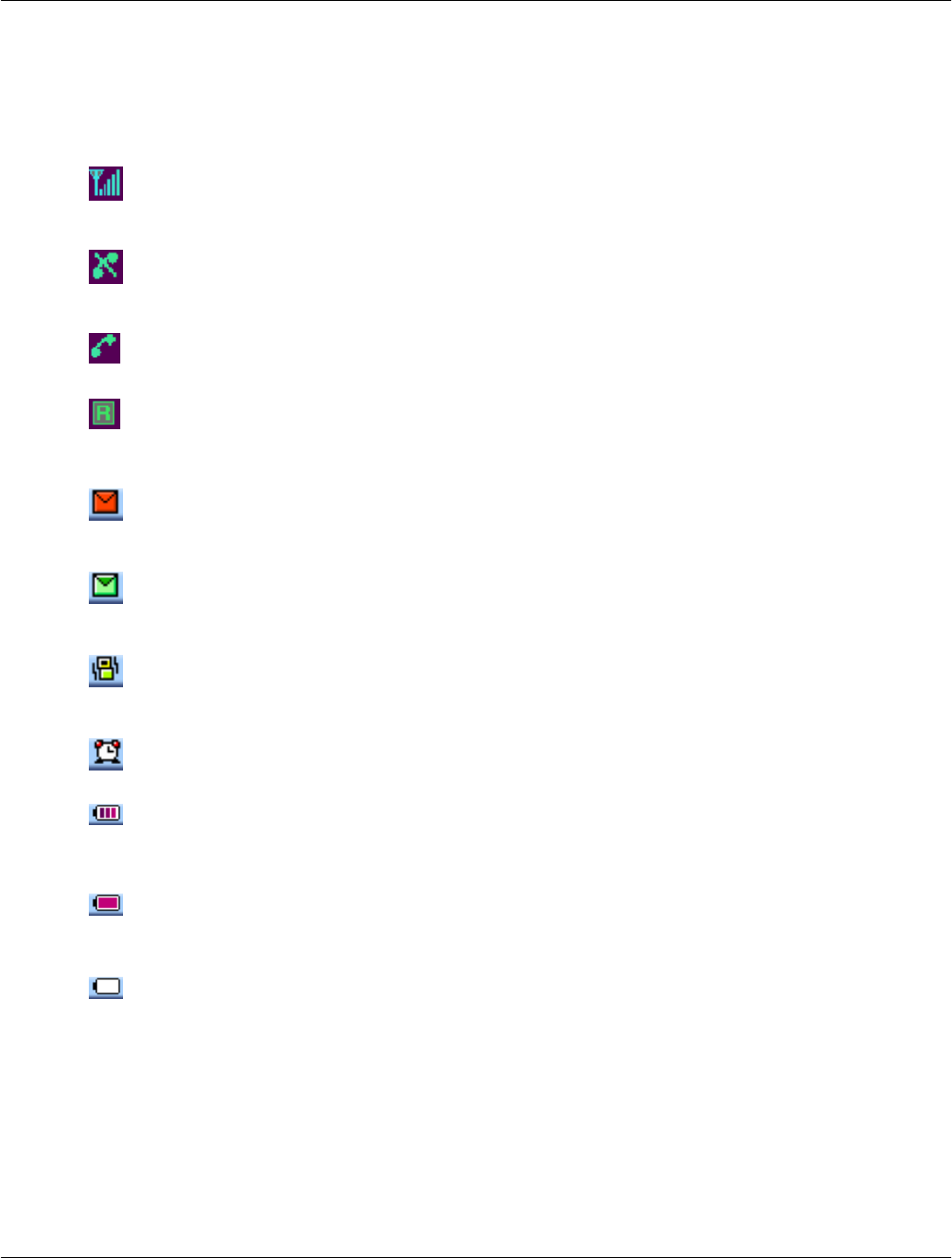

DISPLAY INDICATORS
Display indicators appear across the bottom of your phone’s LCD screen. Combination of
displayed indicators, or icons, will vary based on your phone’s operating status.
Signal Strength: This icon displays the current signal strength. Each additional
line indicates greater signal strength, where five lines indicate the maximum
signal strength.
Out of Service: This icon indicates an absence of signal and that you may be
outside the service area. If this icon is shown, calls cannot be either received or
made until a signal is found.
In Service
Roaming: This icon indicates you are “roaming” in another carrier’s service
area. However, you must register for roaming services.
SMS Message Box Full
New SMS Message: This icon indicates unchecked message(s) in your Message
Box. Press the SMS Menu key to view the Message menu or press and hold
the key to access the Voicemail Box.
Etiquette Mode: This icon indicates that the phone will vibrate instead of ringing
when an incoming call is received. This feature is convenient for situations
when you don’t want your ringer to disturb anyone.
Alarm On: This icon indicates that the alarm has been set.
Battery Strength: This icon displays the current level of the battery. The more
bars you see, the greater the charge. Zero bars indicate critically low battery
status, as additionally indicated by a flashing alert.
Full Charge
Empty Charge
9
BATTERY INFORMATION
The rechargeable Lithium-polymer battery included in your kit is partially charged so that you
can use the phone immediately once it has been activated.
Attaching the Battery
To attach the battery to your phone:
1. Lineup the metallic contacts on the base of the battery to the base of the phone.
2. Place the battery on the back of the phone, with the top of the battery about a quarter of
an inch from the latch.
3. Gently slide the battery towards the top of the phone until it snaps into place.
Charging the Battery
You can tell whether your battery needs to be recharged or not by checking the upper-right
corner of your phone’s display.
When the battery charge level becomes low, the battery sensor will alert you by blinking the
battery icon and making an audible warning tone. The phone will automatically power itself
off if the battery level becomes critically low, and any incoming or outgoing call will disconnect.
To avoid such disconnection, be mindful of the battery strength indicator and make sure your
battery is sufficiently charged.
Charging with a Travel Charger
Using an unauthorized accessory may be dangerous and will void the warranty if it causes
damage to the phone.
To charge the Battery using a Travel Charger:
- Plug the power cord of the charger into a wall outlet.
- Insert the charger’s connector to the bottom of the phone.
Note) Ensure a proper connection of the charger and the phone. Incomplete connection may
cause damage to the phone.
10
A completely discharged standard sized battery charges full in approximately tbd hours.
Extended battery charges in approximately tbd hours. Leaving your phone powered on during
charging or charging two batteries simultaneously will increase charge times. Leaving the
battery connected to the charger after it has been fully charged will not harm the battery.
Turning your phone on and off.
When you’re ready to turn on your phone, press and hold “END/ ” until the display is turned
on and the phone makes the sound. When the phone has found a signal, the “ ” icon appears.
Once the phone is turned on, it enters Standby mode and you are able to make and receive calls.
To turn your phone off, press and hold “END/ ” until the display is turned off and the phone
makes the sounds. Then the display will go blank. When the phone is turned off, nothing is
displayed on screen.
Note: If “END/ ” is pressed for less than one second, the phone will not be turned off. This
function prevents your phone from being turned off accidentally.
Standby Mode.
Standby is the most basic state of your phone. The phone goes into standby mode soon after you
turn it on, or whenever you briefly press “END/ ”. When your phone is in Standby Mode, you
will typically see the banner (that’s the message displayed when you turn on your phone). If you
enter a phone number, you press “SEND” to complete the call, or press “STO (‥)” to save it in
the internal phone book.
Power Save Mode
Your phone comes with a Power Save feature that will automatically be activated if your phone
is unable to find a signal after 15 minutes of searching. While this feature is active, the phone’s
battery power is conserved.
The phone will automatically recheck for a signal periodically. To manually force the phone to
recheck for a signal, press any key. A message on the display will let you know when the phone
is operating in Power Save Mode.
Conversation Mode.
11
You can place and answer calls only when your phone is turned on. During a call, the phone is
in Conversation Mode.
12
BASIC FUNCTIONS
1. Making Calls
To place a call:
Press and hold to power your phone on, as indicated by icons that appear on screen.
Enter the phone number (up to 32 digits) using the keypad. The phone number is displayed from
left to right.
Press . The phone attempts to connect to the entered phone number (if service is available).
You can also make calls from:
Your Phonebook or by using Speed Dial keys (see “II. Phonebook”).
2. Ending Calls
To end a call, close the folder or press . Call time for the just ended call will display, along
with the name and number of the connected party (if available). The phone will then
automatically revert back to Standby.
3. Answering Calls
To answer an incoming call, press any key. If your phone is registered for Caller ID service,
the caller’s phone number will display on screen, and that caller’s name will also appear if the
caller’s number recognized in the Phonebook.
4. Correcting Entry Errors
Press CLR to erase one character at a time. You can erase the entire entry field by pressing and
holding down CLR for one second.
5. Storing Phone Numbers
Phone numbers for frequently used services are pre-programmed into your phone. To store a
number:
- Press the STO (…) key after entering the number to store.
- Select a type of a phone number by scrolling “◀▶” and press “OK (‥)”.
- Press “EDIT (…)” and designate a name. Press “OK (‥)” to complete. Scroll “▲/
▼” to edit the location number. Once you’ve finish editing, press “OK (‥)” to save.
- For more information, see “II. Phone Book”.
6. Adjusting In-Call Mic Volume
To adjust the in-call mic volume:
13
- Press MENU (‥) and “2. MIC Volume”.
- Press “▲” to increase and “▼” to decrease the mic volume.
- Once a call has ended, the mic volume reverts back to factory set level.
7. Volume
You can adjust volume of the earpiece by using the volume keys on the side of the phone.
Briefly press the volume key once to display your current earpiece volume setting. Repeatedly
press the volume key to adjust.
8. Redialing Last Dialed, Received, or Missed Number
Up to 20 dialed, received, or missed can be redialed directly. Simply press SEND to:
- Access the call log of 20 call entries in chronological order.
- Then, press the “VIEW (‥)” key to see the time and number of the selected call.
- Simply press SEND to redial that number.
9. Speed Dial
Once a phone number is stored in your Phonebook, you can access and dial that number using
assigned speed dial keys.
Enter the location number of a stored number. The phone will then automatically connect to
that number.
10. Using Caller ID.
This feature informs you of the caller’s identification by displaying their number when the
phone rings.
If the corresponding caller’s information is already available in your Phonebook, that caller’s
name will appear on screen. Conversely, calling someone who has this feature will disclose
your number on their phone. To access the call log, press SEND.
11. Etiquette Mode
In social situations where audible rings, bells, or tones are inappropriate, such as in a movie
theater, at a museum, play, etc, your phone can be set on Etiquette mode. All incoming calls
under this mode will be notified by inaudible vibration. Press and hold “* ” to set the
Etiquette mode and once more to cancel.
12. Shortcut
There are several shortcuts that can be used to directly access useful functions.
14
a. CAMERA: Press “ ” key to access a camera.
b. WAP: Press “◀” key to access WAP.
c. BREW: Press “▶” key to access WAP.
d. Phonebook Entry: Press the “▼” key to view all the phone numbers stored in your
Phonebook alphabetically.
e. Short Messaging Service: Press the SMS (…) button to send or receive messages.
15
MENUS
I. Interactivo
1. WAP
2. BREW
3. MMS
4. SMS
Your phone can send and receive two types of message services – text (SMS: Short Messaging
Service) and voice - if the services are available from your carrier. If you subscribe to either or
both services, callers can leave you text messages or voice mail. Your service provider then
transmits the text messages and voice mail notifications to your phone.
a. Text Messages
The actual tagging of text messages is dependent on the system used by your carrier. Once
your carrier transmits messages to your phone while it is powered on, the phone will receive the
messages as described below. If your phone is powered off, your carrier stores the messages
and transmits them again at a later time.
When a new text message is received, your phone sounds an alert or vibrates, and is shown
on the display. After you read the new message, disappears from the display.
Note) Your phone can store up to TBD text messages or TBD KB.
i) Reading Text Messages
If your phone is turned ON when it receives a text message, it will sound an alert or vibrate and
display on the display. You have a choice of reading the message then by pressing the SMS
key or leave it for later. To read new messages:
- Press “SMS”, “1. View MSG” and “1. Inbox”.
- All messages you’ve received since the latest delivery will then be displayed. Choose
a message to read and press “SEL (‥)”.
- You can read the text message by scrolling “▲▼” keys.
- To call to a sender, simply press SEND twice while reading his/her message.
While reading a message, you can directly reply and transfer mail, store the phone number or
16
return to the sender’s phone number.
- Reply MSG : While you read a message, press “OPT (‥)” and “Reply”. You can then
reply a message back. On sending messages, refer to “ii. Sending a Text Message”.
- Transfer MSG : While you read a message, press “OPT (‥)” and “Trans”. You can
then transfer this message to others. On sending messages, refer to “ii. Sending a Text
Message”.
- Store Number : While you read a message, press “OPT (‥)” and “SaveN”. You will
then see the same display shown when storing phone numbers. On storing phone
numbers, refer to “II. Phone Book”.
- Return Call : While you read a message, press “ ”. The phone will then display the
call back number. Press “OK (‥)” to connect.
If you want to read messages that you already sent out, press “SMS” and “2. Outbox”. Then the
phone will show you all the phone numbers you sent to. Press “SEL (‥)” to choose a message.
While you read a message, press “OPT (‥)” to resend a message or store the phone number.
ii) Sending a Text Message (SMS : Short Messaging Service)
You can send text messages through your phone. To edit and send text messages:
- Press “SMS” and “2. Send MSG”.
- Choose “1. Create MSG”, “2. Recent MSG” or “3. Canned MSG”. You can then write a
new message or edit sent/canned messages. Press “OK (‥)” to complete.
- Enter a phone number you want to send to. Or press “◀” to choose from numbers that
you already sent to. Or press “▶” to choose from Phone Book.
- Scroll “▲/▼” and press “◀▶” to set message priority, message save, or delivery
ACK.
- Press “OK (‥)” to send the message.
b. Voice Mail Service
Your phone can receive voice mail notifications while it is powered ON. If your carrier
transmits a notification while your phone is powered OFF, the notification the next time the
phone is powered ON.
When a voice mail notification is received, your phone sounds an alert or vibrates and displays
on the display. Once the voice message is checked, the icon disappears from the display.
Either listen to the new message right away by pressing the SMS key or listen to it at a later
time. To listen to new voice messages:
17
- Press “SMS”, “1. View MSG” and “3. Voice”.
- The time the message was received, the sender’s name, and the sender’s phone number
will then appear on the display.
- To listen a voice message, press SEND while reading a message and dial *** (carrier’s
voice mail service number).
- To delete a message, press “DEL (…)” key while you are reading a voice mail list.
- To call to the sender, simply press SEND while accessing to the voice mail.
c. SMS Setting
i) Alert Type
You can select message alerts from 5 different settings (Lamp Only, Bells, and Vibrate).
- Press “SMS”, “3. Setting”, and “1. Alert Type”.
- Select from “Vibrator” “ Melody 1”, “Melody 2” or “Melody 3”.
- Press “OK (‥)” to set.
ii) Direct View
To view received messages as soon as they are transmitted:
- Press “SMS”, “3. Setting”, and “2. Direct View”.
- Choose “On” and press “OK (‥)” to save.
iii) Priority
You can assign different priority levels for your messages. To do so:
- Press “SMS”, “3. Setting”, and “3. Priority”.
- Choose from Normal or Urgent and press “OK (‥)” to save.
iv) Delivery ACK
To set Delivery ACK, press “SMS”, “3. Setting”, and “4. Delivery ACK”. Then, choose
between “On” and “Off” and press “OK” to set.
v) Save Message
To save the read message in the phone:
- Press “SMS”, “3. Setting”, and “5. Save MSG”.
- Choose from Always or None and press “OK (‥)” to save.
18
II. Phonebook
1. Adding Entries in the Phonebook
After selecting “MENU (‥)”, “2. Phone Book” and “1. PB Add” to add a phone number;
- Choose a type of the phone number among the image of Mobile, Home, Office and Etc
by scrolling “◀ ▶”.
- Scroll “▲/▼” to edit the name, location number, and phone number.
- Assign the phone number as a Mobile, Home, Office, or Etc by scrolling “◀/▶”.
※ Note) A yellow frame outlining characters indicates that you can edit or type. For example,
if “No Name” has a yellow frame outside of each character, you can enter the name. Or if [001]
has a yellow frame outside of each number, you can change the location number.
To add Group, E-mail Address, Memo, or Bell Type for CID incoming rings, scroll “◀/▶”
before you press “OK (‥)”.
- Group: Scroll “◀/▶” to choose Group and press “NEXT (…)” to scroll through
Family, Friends, Business, and No Group.
- E-mail: Press “EDIT (…)” to enter an e-mail address. Press “OK (‥)” to complete.
- Memo: Press “EDIT (…)” to write a memo. Press “OK (‥)” to complete. For more
information on writing memos, refer to ‘ENTERING LETTERS & NUMBERS’ on
page ___.
- Caller Identified Ring: If you are receiving Caller ID service and would like to set a
distinctive ring for a recognized phone number, press “NEXT (…)” and choose a
desired incoming bell type.
- Photo : If you are receiving Caller ID service and would like to show a photo for a
recognized phone number, press “NEXT (…)” and choose a desired incoming bell type.
- Once finished registering all information for the entry, press “OK (‥)” to store.
- Then you can see a total number of used and empty locations and a message that the
number you wanted to store was stored successfully. And it goes to stand-by mode.
2. Phonebook Search
Access the Phonebook by pressing “▼” and view the list of all stored entries. Here, phone
number can also be searched by name, number, location number, or group.
a. Search by name
Search numbers stored in the Phonebook by entering a name.
- Press “MENU (‥)” , “2. Phone Book”, “2. PB Search” and “1. Name”.
- Enter the name to search for.
19
- If you don’t remember the full name, just enter the first letter. Your phone will
display a list of all similar names.
- Press SEND to dial.
- Or press “VIEW (‥)” to edit or “DEL(…)” to delete.
b. Search by Number
Search numbers stored in the Phonebook by entering a phone number.
- Press “MENU (‥)” , “2. Phone Book”, “2. PB Search” and “2. Number”.
- Enter the number to search for and press “OK (‥)”. Then, the name and location
assigned to that number will be displayed.
- Press SEND to dial.
- Or press “VIEW (‥)” to edit or “DEL(…)” to delete.
- If the entered number is not stored in the Phonebook, a warning tone will sound and
“No Number Match” will appear on the display.
c. Search by location
Search numbers stored in the Phonebook by entering a location number.
- Press “MENU (‥)”, “2. Phone Book”, “2. PB Search” and “3. Speed Key”.
- Enter the location number and press “OK (‥)”.
- Press “SEND” to dial. “VIEW(‥)” to edit or “DEL(…)” to delete.
- If a number is not stored in the location, “Empty Location” will appear on the display.
d. Search by group
Search numbers stored in the Phonebook by a group.
- Press “MENU (‥)”, “2. Phone Book”, “2. PB Search”, and “4. Group” to access
“Choose Group” on the display.
- Scroll “◀▶” or “▲▼” to select from “Bussiness”, “Friends”, “Family” and “No
Group”
- Choose a group to view all the numbers associated to that group.
- Place the cursor on the number you want to dial by scrolling ▲/▼ and press SEND.
- Press “VIEW(‥)” to edit or “DEL(…)” to delete.
e. Phonebook List Search
- Press “MENU (‥)”, “2. Phone Book”, “2. PB Search”, and “5. PB List”.
- Your phone will then display all numbers stored in the phone in alphabetical order.
- Choose a number and press SEND to dial.
- Press “VIEW (‥)” to edit or “DEL(…)” to delete.
※ Note) You can also access Phonebook Search by pressing “SRCH(…)” from Standby mode.
3. Call List
20
Call history, including number, time, and duration, can be referenced by:
- Pressing “MENU (‥)”, “2. Phone Book”, and “3. Call List”.
- A log of dialed, received, and missed calls will be displayed.
4. Editing Groups
Three types of groups - Family, Friend, and Business - are available.
To change the name of groups or to add/remove groups, press “MENU (‥)”, “2. Phone Book”,
and “4. Group Edit”.
- Select a group type and press “Add” and enter the name of group. Then press “OK
(‥)” to save.
- Press “Edit” to edit or “Remove” to remove.
5. Phonebook Information
You can check how many entries are stored in both your phone.
- Press “MENU (‥)”, “2. Phone Book”, and “5. Check Memory”.
- The total number of entries stored in your phone will then be displayed.
6. My Number
View your phone number. Press “MENU (‥)”, “II. Phone Book”, and “6. My Number”.
III. VOLUME & ALERT
1. Bell Select
This option allows you to set an incoming call alert from a selection of bells and 40-poly MIDI
To set a bell, press “MENU (‥)” and “3. Vol/Alert”, and “1. Bell Select”.
a. Melody
- Press “1. Melody” and scroll ▲/▼ to select a bell type.
- Press “OK (‥)” to set.
b. My Bell
- Press “2. My Bell” and scroll ▲/▼ to select a melody type.
- Press “OK (‥)” to set.
c. WAP Ringer
d. BREW Ringer
e. MMS Ringer
2. Ring Type
21
You can choose from six incoming call alert settings.
- Press “MENU (‥)”, “3. Vol/Alert”, and “2. Ring Type”.
- Select “Bell”, “Vibration”, “Lamp”, “Bell Æ Vib” and “Vib Æ Bell”.
- Press “OK (‥)” to set.
3. Volume
a. Bell Volume
This option allows you to set the bell volume level.
- Press “MENU (‥)”, “3. Vol/Alert”, “3. Volume”, and “1. Bell Volume”.
- Scroll “▲/▼” to increase or decrease the volume level.
- Press “OK (‥)” to set.
b. Key Volume
This option allows you to set the key volume level.
- Press “MENU (‥)”, “3. Vol/Alert”, “3. Volume”, and “2. Key Volume”.
- Scroll “▲/▼” to increase or decrease the volume level.
- Press “OK (‥)” to set.
c. Call Volume
This option allows you to set the earpiece volume level.
- Press “MENU (‥)”, “3. Vol/Alert”, “3. Volume”, and “3. Call Volume”.
- Scroll “▲/▼” to increase or decrease the volume level.
- Press “OK (‥)” to set.
4. Alert Settings
a. Connect Beep
This option allows you to be audibly notified when a call is connected.
- Press “MENU (‥)”, “3. Vol/Alert”, “4. Alert Setting”, and “1. Connection”.
- Select between On and Off and press “OK (‥)” to set.
b. Call Drop
This option allows you to be audibly notified when a call is disconnected or the other party
hangs up the phone.
- Press “MENU (‥)”, “3. Vol/Alert”, “4. Alert Setting”, and “2. Drop”.
- Select between On and Off and press “OK (‥)” to set.
c. 1 Minute Alert
This option allows you to be audibly warned when a call reaches the 1 minute mark.
- Press “MENU (‥)”, “3. Vol/Alert”, “4. Alert Setting”, and “3. Minute”.
- Select between On and Off and press “OK (‥)” to set.
d. Service
22
This option allows you to be audibly warned when you move into other base stations during
a call.
- Press “MENU (‥)”, “3. Vol/Alert”, “4. Alert Setting”, and “4. Service”.
- Select between On or Off and press “OK (‥)” to set.
5. Beep Length
DTMF tone length can be set at normal or long.
- Press “MENU (‥)”, “3. Vol/Alert”, and “5. Beep Length”.
- Set the beep length “Normal” or “Long” and press “OK (‥)” to set.
6. Roam Ringer
This option allows you to be audibly warned when the phone is roaming.
- Press “MENU (‥)”, “3. Vol/Alert”, and “6. Roam Ringer”.
- Choose “OFF”, “RoamRing 1” or “RoamRing 2” and press “OK (‥)” to set.
IV. PERSONAL INFORMATION MANAGEMENT
Your phone supports various additional functions, including Alarm, Schedule, Memo, Calculator,
World Time and Calendar.
1. Alarm
The 24-hour alarm can be set to go off at a set time while your phone is on. If the phone is
powered off at the set time, the alarm will not sound. To set the alarm, press “MENU (‥)”, “4.
PIM”, and “1. Alarm”.
- Choose “Alarm 1” or “Alarm 2” and press “SEL (‥)”.
- Choose from Disable, Everyday, Mon~Sat, Mon~Fri, and Once Alarm by scrolling “◀/
▶”.
- Use “▼” to choose a Bell type and select the bell type by scrolling “◀▶”.
- Press “▼” and enter the time, and then select AM or PM by pressing “(…)”
- Press “STO (‥)” to set.
Note 1) You can set up to 2 different alarms.
Note 2)
- Disable: Once you’ve chosen Disable, the alarm will not sound even if you’ve set a
time for it.
- Everyday: Once you’ve chosen Daily, the alarm will sound at the set time everyday.
- Mon~Sat: Once you’ve chosen Mon~Sat, the alarm will sound at the set time from
23
Monday to Saturday.
- Mon~Fri: Once you’ve chosen Mon~Fri, the alarm will sound at the set time from
Monday to Friday.
- Once Alarm: Once you’ve chosen Once, the alarm will only sound at the set time once.
2. Schedule
The Schedule Manager option helps to manage your schedule using the phone. To set or edit a
schedule, press “MENU (‥)”, “4. PIM”, and “2. Schedule”.
a. Add Schedule :
- Select “1. Add”. Calendar of the current month will then appear on the display.
- Use “▲/▼” to scroll through the days, the side keys on left side of the phone (volume
keys) to scroll through the months, and * and # keys to scroll through the years.
- Enter the time (hour, minute and AM/PM).
- Press “▼” and press any numeric keys to enter a memo under “Input Schedule”. Once
you finish entering a memo, press “OK (‥)”.
- Press “▼” and scroll “◀/▶” to choose the bell type.
- Press “STO (‥)” to save.
- The display will then show an animation and prompt “Add Other Schedule?” To add
more, press “OK (‥)” or to finish, press “QUIT (…)”.
b. Schedule List : You can see the schedule list you stored.
- Select “2. List”. Then you can see the schedule list orderly.
- To edit a schedule, choose a list by scrolling “▲/▼” and pressing “OK (‥)”. You can
then edit a schedule in the same manner as above.
- Or delete a schedule by simply pressing “DEL (…)”. Press “OK (‥)” to erase once
the display prompts “Erase?”
c. Schedule Delete : You can delete all schedules.
- Select “3. Delete”.
- The phone will then prompt “All Schedule Erase?”
- Press “OK (‥)” to erase.
3. Memo
The Memo option helps you to manage your daily tasks. To create or edit a Memo, press
“MENU (‥)”, “4. PIM”, and “3. Memo”.
24
a. Add Memo :
- Choose “1. Add”.
- Enter or edit your task and press “OK (‥)”.
- Press “STO (‥)” to store or “EDIT (…)” to edit.
b. Memo List :
- Choose “2. List”. The phone will then display a list of all stored memos.
- Select by scrolling “▲” and “▼” and press “VIEW (‥)”.
- The memo and stored time will then be displayed.
- To edit, press “EDIT (…)”.
c. Delete :
- Select “3. Delete”. The phone will then prompt “All Memo Erase?”.
- Press “OK (‥)” to delete all memos.
- Or if you would like to delete individual memos, choose a memo entry and press
“DEL(…)”.
4. Calculator
Your phone can double as a calculator. Press “MENU (‥)”, “4. PIM”, and “4 Calculator”.
5. World Time View
Your phone is capable of displaying current times of 77 different cities. To access the world time
view;
- Press “MENU (‥)”, “4. PIM”, and “5. World Time”.
- Use “▲▼” or “*” and “#” keys to find cities.
6. Calendar View
Your phone can show you a calendar by pressing “MENU (‥)”, “4. PIM”, and “6. Calendar”.
V. PHONE SETTINGS MENU
1. Wallpaper
Your phone is capable of displaying various welcome greetings in standby mode. To edit this
greeting:
- Press “MENU (‥)”, “5. Phone Setting”, and “1. Wallpaper”.
- Choose from “1. Fixed”, “2. User”, “3. WAP Image” or “4. BREW Image” and press
“SEL (‥)”.
- Scroll “◀▶” to choose wallpapers and press “OK (‥)” to save.
25
2. Greeting Edit
To edit the greeting banner:
- Press “MENU (‥)”, “5. Phone Setting” and “2. Greeting Edit”.
- Compose the banner you want displayed and press “OK (‥)” to save.
3. Backlight
You can set the LCD and Keypad backlight separately to stay on or automatically turn off in 10,
20, or 30 seconds.
- Press “MENU (‥)”, “5. Phone Setting”, “3. Backlight” and “1. LCD Light” or “2.
Keypad Light”.
- Select “10 Sec”, “20 Sec”, “30 Sec” or “Always Off”.
- Press “OK (‥)” to set.
4. LCD Contrast
To adjust LCD contrast:
- Press “MENU (‥)”, “5. Phone Setting”, and “4. Contrast”.
- Choose between “1. Main LCD” and “2. Sub LCD”.
- Scroll “▲/▼” to set the contrast levels and press “OK (‥)” to set.
5. Languages
Spanish and English are available for your phone’s display. To change the language:
- Press “MENU (‥)”, “5. Phone Setting”, and “5. Language”.
- Select “Spanish” or “English”.
- Press “OK (‥)” to set.
6. Auto Keylock
To lock the phone automatically,
- Press “MENU (‥)”, “5. Phone Setting”, and “6. Auto Keylock”.
- Select “Auto” or “Off”.
- Press “OK (‥)” to set.
7. Power Saving
If you want save a power consumption, so that if you want to have longer battery life time, you
can set the phone in Power Saving mode.
- Press “MENU (‥)”, “5. Phone Setting”, and “7. Power Saving”.
- Select “On” or “Off”.
26
- Press “OK (‥)” to set.
8. Current Time Setting
If you are within the service areas, your phone will indicate the current time received from the
Base Station. If you are out of the service areas or in AMPS areas, you can set the time as
below:
- Press “MENU (‥)”, “5. Phone Setting”, and “8. Time Set”.
- Enter the month, day, year, time, minute and AM/PM in a order.
- Press “OK (‥)” to set.
VI. Call Information
1. Call Function
a. Auto Answer
- “MENU (‥)” Æ “6. Call Info” Æ “1. Call Function” Æ “1. Auto Answer”.
- Choose between On and Off and press “OK (‥)” to save.
b. Auto Redial
- “MENU (‥)” Æ “6. Call Info” Æ “1. Call Function” Æ “2. Auto Redial”.
- Choose between On and Off and press “OK (‥)” to save.
2. Call Restrict
- “MENU (‥)” Æ “6. Call Info” Æ “2. Call Restrict” Æ “1. Send Call”.
- Choose between “Restrict” or “Clear” and press “OK (‥)” to save.
3. Call Answer
Calls can be answered either by pressing a key or by opening the folder.
- “MENU (‥)” Æ “6. Call Info” Æ “3. Call Answer”.
- Choose “Any key” or “Send Key” and press “OK (‥)” to save.
4. Call Time
The Call Time option shows approximate duration of the last call, the total call time in hours
and minutes and the total number of calls made under the current phone number.
a. Last Call : Press “MENU (‥), “6. Call Info”, “4. Call Time”, and “1. Last Call”. Your
phone will then indicate an approximate duration of the last call made in minutes and
seconds.
b. Home Calls : Press “MENU (‥), “6. Call Info”, “4. Call Time”, and “2. Home Call”.
27
Your phone will then indicate an approximate total time in hours and minutes that the
phone has been used in your provider’s service area.
c. Roam Calls : Press “MENU (‥), “6. Call Info”, “4. Call Time”, and “3. Roam Call”.
Your phone will then indicate an approximate total time in hours and minutes that the
phone has been used in roaming areas.
d. All Calls : Press “MENU (‥), “6. Call Info”, “4. Call Time”, and “4. All”. Your phone
will then indicate an approximate total time in hours and minutes that the phone has
been used in home and roaming areas.
5. Voice Privacy
You can set “Voice Privacy” on or off.
- Press “MENU (‥)”, “6. Call Info” and “5. Voice privacy”.
- Choose between “standard” and “enhanced”.
- Press “OK (‥)” to save.
VII. SECURITY FUNCTIONS
Your phone is equipped with many security features, including a user-programmable lock code
and call restrictions. To access the Security menu from Standby mode, press “MENU (‥)”
and “7. Security”. And enter the four-digit password.
Note : The password is “0000” if you don’t have your phone number yet. Or the last 4 digits of
your number if you already have you phone number. If you want to change the password, see
below;
1. Lock Mode
Locking the phone limits all outgoing calls except calls to the three hard-coded emergency
numbers (***).
The phone can be manually locked during use or the automatic lock option can be set. When
the phone is in Lock mode, you can answer incoming calls but must unlock the phone to place
outgoing calls (except to designated emergency numbers).
- Press “MENU (‥)”, “7. Security”, and “1. Lock Mode”.
- Enter the password.
- Choose “Never”, “Power up” or “Now” and press “OK (‥)” to set.
Note 1) Never – The phone is unlocked.
28
Power Up – The phone is locked automatically when it is turned on.
Always – The phone must be unlocked to place outgoing calls.
Note 2) You can also lock the phone by pressing and holding # from Standby mode. This will
lock the phone in the Always state. To release the lock, press and hold # and enter the 4 digit
password.
2. Changing Password
To change the password,
- Press “MENU (‥)”, “7. Security”, and “2. New Password”.
- Enter the password.
- Enter the new password and press “OK (‥)”.
- Then you can see “RE-ENTER NEWCODE” on top of the display.
- Enter the new password again and press “OK (‥)” to save.
3. Memory Clear
The Memory Clear option allows you to clear the call list, schedules, and all other stored
information from memory.
- Press “MENU (‥)”, “7. Security”, and “3. Memory Clear”.
- Enter the password.
- Choose “1. Call list”, “2. PhoneBook”, “3. Schedule”, “4. Memo”, “5. Alarm” or “6.
All”.
- Choose “Clear” and press “OK (‥)” to erase the memory.
4. Initialize
Phone Initialize allows you to reset the phone.
- Press “MENU (‥)”, “7. Security”, and “4. Initialize”.
- Enter the password.
- Choose “Yes” and press “OK (‥)”. Then your phone display “Initializing”.
- The phone will automatically restart to apply the change.
5. Privacy Information
To stop disclosing private information to other people, set the phone to show the information
only when the correct PIN has been entered. To set privacy information:
- Press “MENU (‥)”, “7. Security”, and “5. Hide Info”.
- Enter the password.
- Choose “1. Phonebook”, “2. Schedule/Memo”, “3. SMS”, “4. Call List” or “5. Camera”.
- Choose between “On” and “Off” and press “OK (‥)” to set.
29
6. Network Set
To set the network:
- Press “MENU (‥)”, “7. Security” and “6. Network Set”.
- Enter the password.
- Choose between “CDMA only”, “Analog only”, “Temp analog” or “Automatic” and
press “OK (‥)” to set.
Note) If you are not aware of Network Set function, please leave as it is. If you change, the
phone may not work in your network.
VIII. VALUE ADDED SERVICE (VAS)
1. Data Service
Please refer to “Data/Fax” on page ___.
2. Games
You can enjoy such entertaining games as Blackjack, Othello and Lottery with your phone. To
access games:
- Press “MENU (‥)”, “8. VAS”, and “2. Games”.
- Choose “1. Black Jack” or “2. Othello” and enjoy your games!
To set the phone in silent mode while playing games, press “MENU (‥)”, “8. VAS”, “2.
Games” and “3. Game Sound”. Set “Game Volume Off” and press “OK (‥)”.
To see the game result you played, press “MENU (‥)”, “8. VAS”, “2. Games” and “4. Game
Result”. Choose “1. Blackjack” or “2. Othello”. The phone will then display the high scores of
the selected game.
To view play keys of Othello, press “MENU (‥)”, “8. VAS”, “2. Games”, “2. Othello” and “4.
Key Help”. Key functions will show and press any keys to return to the previous menu.
3. Memory Manager
To see the total size of memory you are using for Camera, BREW, PCSync and WAP, Press
“MENU (‥)”, “8. VAS” and “3. Memory Manager”. And choose “1. Album”, “2. BREW”, “3.
PCSync” or “4. WAP” and press “SEL (‥)”. Then the phone will show you the total size of
30
memory capacity and total size of memory that you are using.
31
USING MENU During a Call
1. Phonebook Search
Find phone numbers during calls by pressing “MENU (‥)” and “1. PB Search”.
2. Tx Voice Mute
To mute the microphone, press “MENU (‥)” and “2. Tx Voice Mute”. To unmute the
microphone, press “MENU (‥)” and “2. Tx Voice Mute” again.
3. DTMF Mute
To mute key tone, press “MENU (‥)” and “3. DTMF Mute”. To unmute DTMF, press “MENU
(‥)” and “3. DTMF Mute” again.
4. Mic Volume
To increase microphone volume, press “MENU (‥)” and “4. MIC Volume”. Scroll “▲/▼” to
adjust.
5. Voice Privacy
To set Voice Privacy, press “MENU (‥)” and “5. Voice Privacy”. Choose between “standard”
and “enhanced” and press “OK (‥)” to save.
6. Beep Length
To set a beep length, press “MENU (‥)” and “6. Beep Length”.
32
ENTERING LETTERS & NUMBERS
You can enter letters, as well as numbers, with your phone’s keypad when storing information
into your phone, writing a memo, or sending text messages (Short Messaging Service). To
enter letters, press the key associated with the letter you wish to enter until it appears on the
screen (numbers also appear).
1. Prediction Text Input
To enter a word by Prediction Text Input,
- Press “MODE (…)” until “ ” appears on the display.
- Press buttons once for each letter of a word you want to write.
- Then the phone shows predicted words that you may want to write on both sides of the
bottom.
- Press “◀*” to write a word on the left side or press “#▶” to write one on the right side.
- Or press “0” to see the next predicted words.
eg). If you want to write “manual”, press “6”, “2”, “6”, “8”, “2”, “5” and “◀*”. Then
“manual” is written on the display.
Or you may press buttons for first few letters and “0” to find "manual".
2. ABC/123 Mode
- To enter a capitalized character, press “MODE (…)” until appears on the top right
corner of the display. Now you can enter capitalized characters.
- To enter a small character, press “MODE (…)” until appears on the top right
corner of the display. Now you can enter small characters.
- To enter a numeric character, press “MODE (…)” until appears on the top right
corner of the display. Now you can enter numeric characters.
3. Inserting Punctuation & Special Characters
To enter punctuations or special characters:
- Press “MODE (…)” until appears on the display.
- Scroll “◀/▶/▲/▼” to choose a characters and press “OK (‥)” to insert.
33
BATTERY LIFETIME
Bateria
Tiempo de
conversacion Tiempo de reserva
Cellular
digital 3.7V Li-ion 900mAh Desde TBD min
hasta TBD min
TBD hrs hasta TBD
hrs
PCS 3.7V Li-ion 900mAh Desde TBD min
hasta TBD min
TBD hrs hasta TBD
hrs
Analogo 3.7V Li-ion 900mAh Desde TBD min
hasta TBD min
TBD hrs con TBD
min hasta TBD hrs
con TBD min
34
FCC RF EXPOSURE INFORMATION
Read this information before using your handset
In August 1996 the Federal Communication Commission (FCC) of the United States with its
action in Report and Order FCC 96-326 adopted an updated safety standard for human exposure
to radio frequency (RF) electromagnetic energy emitted by FCC regulated transmitters. Those
guidelines are consistent with the safety standard previously set by both U.S and international
standards bodies. The design of this phone complies with the FCC guidelines and these
international standards. Use only the supplied or an approved antenna. Unauthorized antennas,
modifications, or attachment s could impair call quality, damage the phone, or result in violation
of FCC regulations.
Do not use the phone with a damaged antenna. If a damaged antenna comes into contact with
the skin, a minor burn may result. Please contact your local dealer for replacement antenna.
Body-worn Operation
This device was tested for typical body-worn operations. To comply with FCC RF exposure
requirements, a minimum separation distance of 0.6 inches (1.5 cm) must be maintained
between the user ’s body and the handset, including the antenna. Third-party belt-clips, holsters,
and similar accessories used by this device should not contain any metallic components.
Bodyworn accessories that do not meet these requirements may not comply with FCC RF
exposure requirements and should be avoided.
For more information about RF exposure, please visit the FCC website at www.fcc.gov
