hp ProLiant DL580 Generation 2 (G2)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 1

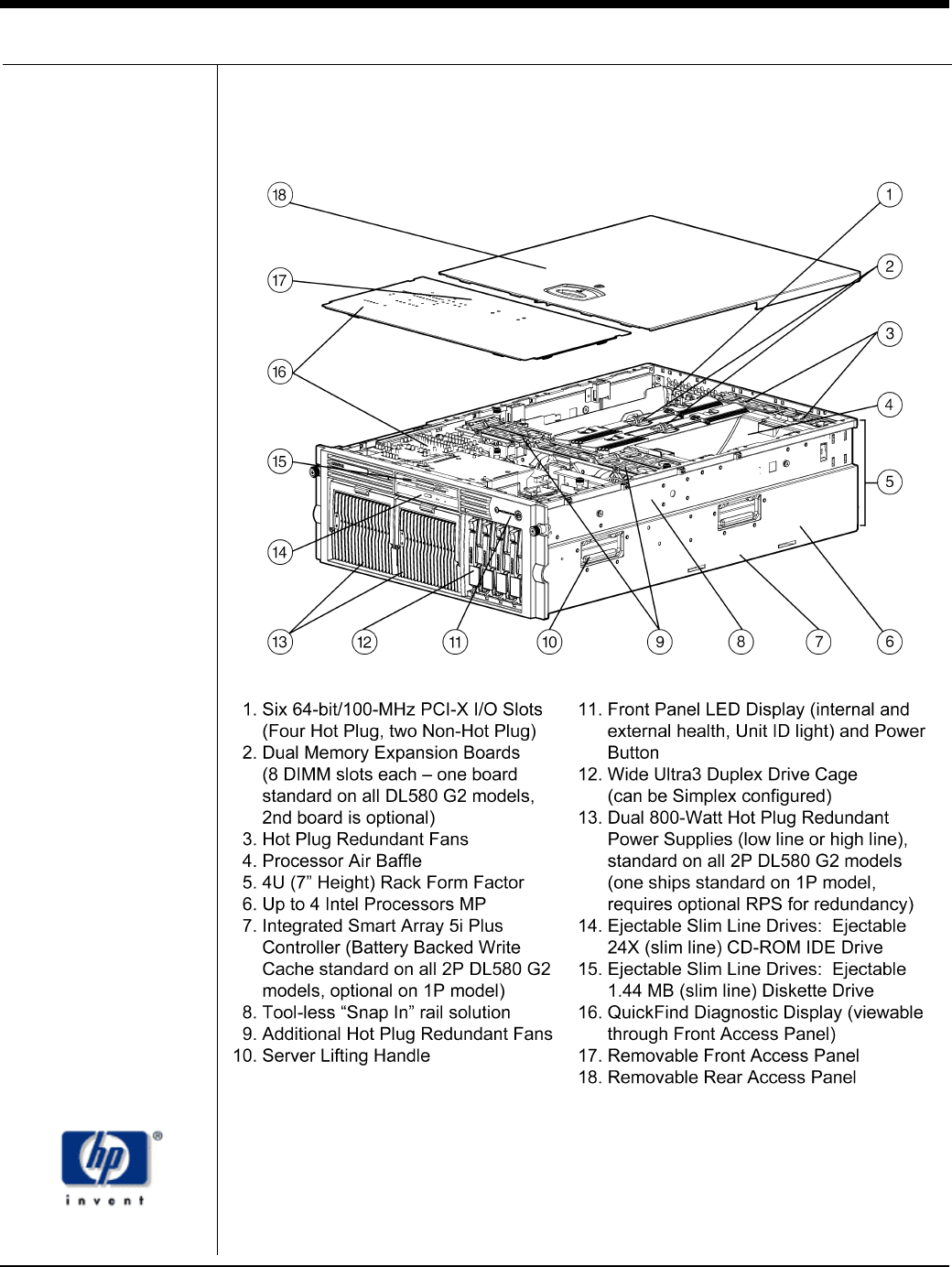

Overview

What's New

•

Intel



Xeon™ Processors MP at

2.0 GHz/2MB or 1.5 GHz/1MB.

At A Glance

•

Next generation DL580 G2

delivers

maximum performance and

unprecedented availability in a

flexible, rack optimized form factor

•

Intel Xeon Processors MP at 2.0

GHz/2M, 1.9GHz/1M, 1.5GHz/1M,

1.60 GHz/1MB or 1.40 GHz/512KB

•

ServerWorks Grand Champion-

HE chipset

•

4x1 interleaved memory, 200MHz

DDR SDRAM Memory (PC1600

Registered SDRAM with

Advanced ECC functionality)

•

2048 MB (2P Models) or 1024 MB

(1P Model) standard memory,

expandable to 32 GB

•

HP Advanced Memory Protection

(Online Spare, Single Board

Mirrored Memory, Hot Plug

Mirrored Memory)

•

Six, full length 64-bit/100 MHz

PCI-X slots, 4 Hot Pluggable

•

Integrated Lights-Out Standard

Management (iLO) on system

board

•

Integrated Compaq NC7770 PCI-

X Gigabit Server Adapter in a slot

•

Integrated Smart Array 5i Plus

Controller (Dual Channel, Ultra3)

with 64-MB total memory on 5i

Plus Memory Module

•

Battery-Backed Write Cache

Enabler module on all 2P models

(optional on 1P model)

•

Internal Hot Plug Drive Storage of

up to 587.2 GB (4 x 146.8-GB 1″

Wide Ultra3 SCSI hard drives)

•

Redundant Cooling Zones for

major subsystems (Memory, I/O,

CPUs) assure 7x24 cooling

•

Toolless and virtually cable-less

internal design

•

Innovative diagnostic lighting

(QuickFind Diagnostic Display) for

rapid response to service events

•

Rapid Deployment racking

solution (rack rails and cable

management)

•

Protected by HP Services,

including a three-year, Next

Business Day on-site, limited,

Global warranty and extended

Pre-Failure Warranty that covers

processors, memory and disk

drives — Certain restrictions and

exclusions apply. Consult the HP

Customer Support Center at

1-800-345-1518 for details.

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 2

Standard Features

Intel Xeon Processor MP at 2.00 GHz\2MB

Intel Xeon Processor MP 1.90 GHz\1MB

Processor

One or more of the following depending

on Model Intel Xeon Processor MP at 1.50 GHz\1MB

Intel Xeon Processor MP at 1.60 GHz\1MB

Intel Xeon Processor MP at 1.40 GHz\512KB

2-MB Integrated Level 3 Cache

NOTE: 2.0 GHz Models only.

1-MB Integrated Level 3 Cache

NOTE: 1.9GHz, 1.6GHz and 1.5GHz Models only.

Cache Memory

One of the following depending

on Model

512-KB Integrated Level 3 Cache

NOTE: 1.40 MHz Models only.

Upgradability Upgradable to quad processing

ServerWorks Grand Champion-HE chipset

Chipset NOTE: For more information regarding ServerWorks, please see the following URL:

http://www.serverworks.com/products/overview.html.

Standard 2048 MB 200-MHz Double Data Rate (DDR) SDRAM (PC1600 Registered

SDRAM Memory with Advanced ECC functionality) (2P Models)

Maximum 32 GB

Memory

One of the following depending

on Model Standard 1024 MB 200-MHz Double Data Rate (DDR) SDRAM (PC1600-MHz Registered

SDRAM Memory with Advanced ECC functionality) (1P Model)

Maximum 32 GB

NOTE: Advanced ECC Memory Technology protects the data even in the event of an entire SDRAM component

failure. Embedded in the chipset design, this feature allows the use of Industry-Standard Registered

DIMMs.

NOTE: 32 GB achieved with use of 2nd, optional memory board and 2GB Registered DIMM sticks.

Network Controller Integrated Compaq NC7770 PCI-X Gigabit Server Adapter in a slot

Expansion Slots I/O (6 Total, 5 Available) PCI Voltage:

64-bit/100-MHz PCI-X

Hot Plug 3, 4, 5 and 6 available 3.3 Volt or Universal cards (3.3/5.0V) only

64-bit/100-MHz PCI-X

Non-Hot Plug 1, 2 (NIC in slot 1) 3.3 Volt or Universal (3.3/5.0V) cards only

Manageability Integrated Lights-Out (iLO) Standard Management (ASIC on the System Board)

Storage Controller Smart Arra

5i Plus Controller

(

inte

rated on s

stem board

)

, Dual Channel, Ultra3

(

supports RAID 0, 1, 1+0, and 5

across internal hard disk drives) with 64 MB of memory.

• 64-MB total memory for code, transfer buffers, and read/write cache on the 5i Plus Memory Module

• Connector for Battery Backed Write Cache (BBWC) Enabler

NOTE: The Smart Array 5i Plus Controller is integrated on the system board and is designed to support the

duplex/simplex drive cage. An external SCSI port is not available on the DL580 G2. External SCSI

solutions require the addition of a PCI or PCI-X option card.

NOTE: For complete list of devices supported the Smart Array 5i Controller see the following:

http://www5.hp.com/products/quickspecs/10890_div/10890_div.HTML (Division/World Wide)

http://www5.hp.com/products/quickspecs/10890_na/10890_na.HTML (North America)

Storage Data Protection The Battery-Backed Write Cache (BBWC) Enabler protects up to 64-MB write cache memory from hard boot,

power, controller, or system board failures.

• Standard on DL580 G2 2P Models, optional on DL580 G2 1P Models

• Battery charge/life: Up to 72 hours/ 3 years

• Transportable data protection

• Increases overall controller performance

NOTE: Safely transport your write cache data to another DL580 G2 in the data center be removing the BBWC

Enabler and 5i Plus Memory Module simultaneously (connected by short cable).

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 3

Standard Features

Storage Diskette Drive 1.44 MB (slim line) – ejectable for security and serviceability

CD-ROM 24x IDE CD-ROM Drive (slim line) – ejectable for security and serviceability

Hard Drives None

Maximum Internal Storage 587.2 GB (4 x 146.8 GB Wide Ultra 320 1″ drives) (internal hot plug Ultra3 drive

cage)

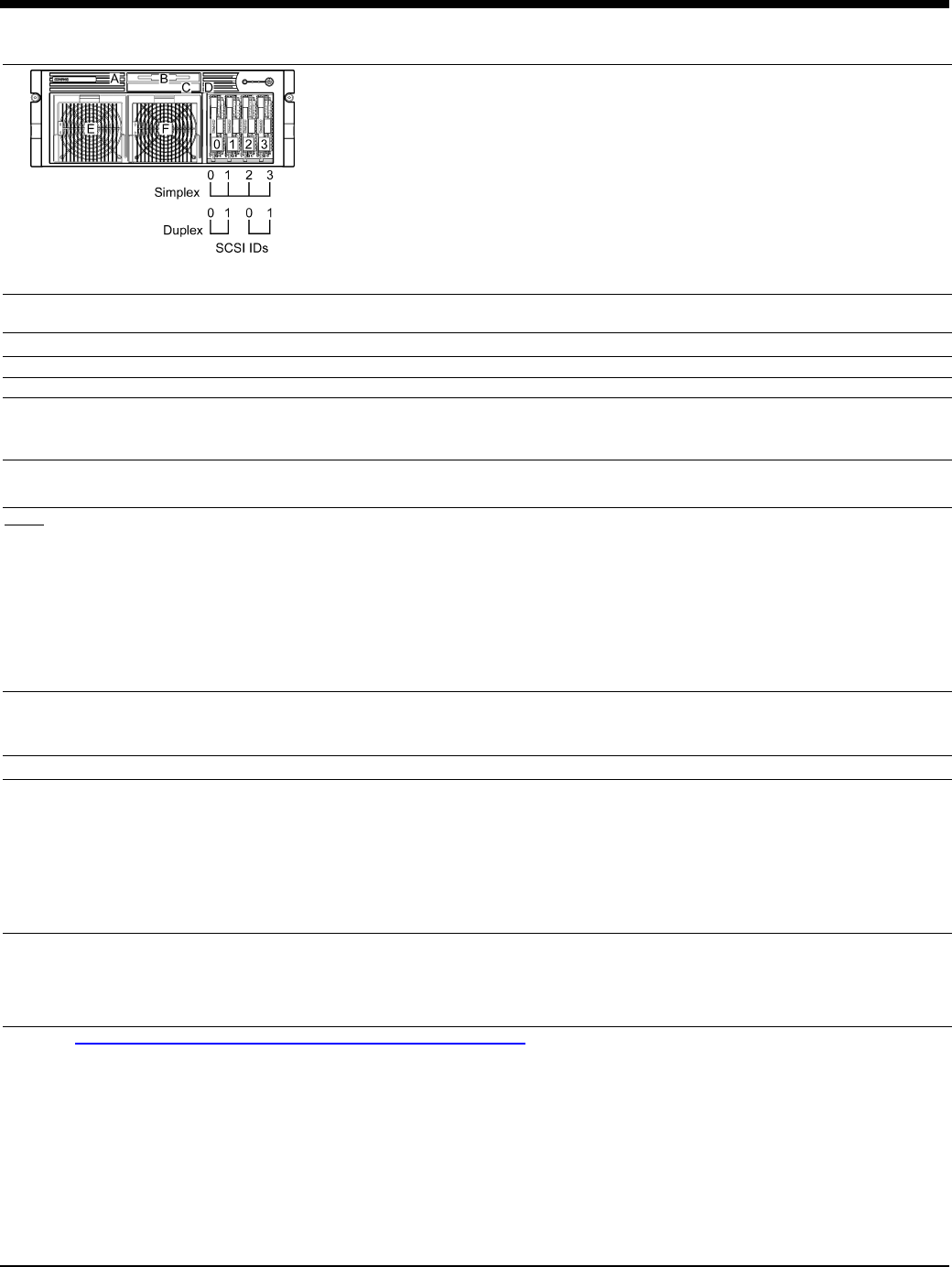

Hard Disk Drive Backplane Internal Wide Ultra3 backplane supports up to four 1″ hard disk drives and is

easily configurable to support simplex (4x1) or duplex mode (2x2) Standard

shipping configuration is the duplex mode.

NOTE: Optional SCSI cable assembly 288874-B21 is required for connecting

Smart Array Controller in a PCI slot to internal hard drive backplane.

Duplex configuration requires two such kits.

Interfaces Serial 1

Pointing Device (Mouse) 1

Graphics 1

Keyboard 1

Rear USB Ports 2

iLO Remote Management 1

Network RJ-45 1

Graphics Integrated 1280 x 1024, 16M color on PCI local bus, 8-MB of SDRAM video memory

Form Factor Rack (4U = 7 inches), ships with sliding rails and cable management system

Space saving form factor (4U) provides space efficiencies while providing maximum deployment flexibility

ProLiant™ Essentials

Foundation Pack Software Insight Manager™ 7 Insight Manager 7 helps maximize system uptime and performance and reduces

the cost of maintaining the IT infrastructure by providing proactive notification of

problems before those problems result in costly downtime and reduced

productivity. Insight Manager 7 is easy to set up and provides rapid access to

detailed fault and performance information

athered b

the Mana

ement A

ents.

One-click-access to the Remote Insight Lights Out Edition board allows systems

administrators to take full graphical control of ProLiant servers in remote

locations or li

hts-out data centers. Finall

, Insi

ht Mana

er 7 in concert with the

Version Control Agents and Version Control Repository Manager enables

systems administrators to version manage and update system software across

groups of ProLiant servers.

SmartStart™ SmartStart is a tool that simplifies server setup, providing a rapid way to deploy

reliable and consistent server configurations. For more information, please visit

the SmartStart website at http://www.hp.com/servers/smartstart.

SmartStart version supported (minimum): SmartStart 5.40.

Management Agents The Management Agents form the foundation for HP’s Intelligent Manageability

strategy. They provide direct, browser-based access to in-depth instrumentation

built into HP servers, workstations, desktops, and portables, and send alerts to

Insight Manager 7 and other enterprise management applications in case of

subsystem or environmental failures. For additional information about the

Management Agents and other management products from HP, please visit the

management website at http://www.hp.com/servers/manage.

ActiveUpdateActiveUpdate is a web-based application that keeps IT managers directly

connected to HP for proactive notification and delivery of the latest software

updates.

ROMPaq, support software,

and configuration utilities The latest software, drivers, and firmware fully optimized and tested for your

ProLiant server and options.

Survey Utility and diagnostics

utilities The most advanced configuration analysis, reporting and troubleshooting utilities

used by HP and at your fingertips.

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 4

Standard Features

ProLiant Essentials Foundation

Pack Software (continued) Optional ProLiant Essentials

Value Packs Optional software offerin

s that selectivel

extend the functionalit

of an Adaptive

Infrastructure to address specific business problems and needs:

• Rapid Deployment Pack – an automated solution for multi-server

deployment and provisioning, enabling companies to quickly and easily

adapt to changing business demands.

• Workload Management Pack – provides easier management of complex

environments, improving overall server utilization and enabling Windows



2000 customers for the first time to confidently deploy multiple applications

on a single multiprocessor ProLiant Server.

• Integrated Lights-Out Advanced Pack – upgrades the Integrated Lights-Out

processor to full virtual presence and control with graphical console and

virtual media.

• Integrated Lights-Out Advanced Pack – upgrades the Integrated Lights-Out

processor to full virtual presence and control with graphical console and

virtual media

• Recovery Server Option Pack – entry-level high availability software that

will provide reliable protection and increased uptime against server

hardware and operating system failures.

• Performance Management Pack – a performance management solution

that identifies and explains hardware performance bottlenecks on ProLiant

servers and attached options enabling users to better utilize their valuable

resources.

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials Value Packs. Refer to

http://www.hp.com/servers/proliantessentials or the various ProLiant Essentials Value Pack product

QuickSpecs for more information.

NOTE: For more information regarding ProLiant Essentials Software, please see the following URL:

http://www.hp.com/servers/proliantessentials.

NOTE: These Web sites are available in English only.

ACPI 2.0 Compliant

Industry Standard

Compliance PCI 2.2 Compliant

PXE Support

WOL Support

Physical Address Extension (PAE) Support

Microsoft



Logo certifications

Intelligent Manageability Integrated Lights-Out (iLO) Standard Management

• Virtual Text Remote Console

• Virtual Power Button Control

• Dedicated LAN Connectivity

• Automatic IP Configuration via DHCP/DNS/WINS

• Industry Standard 128-bit Secure Sockets Layer (SSL) Security

• IML and iLO Event Logging

• Support for 12 user accounts with customizable access privileges

Integrated Lights-Out (iLO) Advanced Pack (supports Advanced features such as Graphical Remote Console and

Virtual Floppy − available as a separate option)

Automatic Server Recovery-2 (ASR-2)

Insight Manager 7

Redundant ROM

Remote Flash ROM

ROM-Based Setup Utility (RBSU)

Integrated Management Log (IML)

Hot Spare Boot (NOTE: Upon the event of a failed processor or VRM in a multi-processing environment, the

system will automatically reboot and use the remaining good processor(s).)

Dynamic sector repairing and drive parameter tracking (with Smart Array controllers)

Redundant/adaptive load balancing NIC Support

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 5

Standard Features

Availability • Standard Advanced ECC functionality detects and corrects single bit and specific multi-bit memory errors

(4bit and 8bit) while using industry standard registered DIMMS. Functionality is embedded in the chipset

design.

• HP Advanced Memory Protection Technology – delivers unsurpassed memory protection and server

availability:

• Online Spare Memory

Offers a higher level of memory protection than Advanced ECC alone. If the number of single-bit

correctable errors on a bank exceeds the pre-defined error threshold, that bank will fail over to the

online spare bank without intervention or server interruption. Online spare memory can be configured

across one or two memory cards. The failed memory can then be replaced at the user’s convenience

during a scheduled maintenance window.

• Single-Board Mirrored Memory

Single-board mirrored memory provides a higher level of availability than Advanced ECC and Online

Spare Memory because it protects against multi-bit errors. Single-board Mirrored Memory uses

mirrored banks on a single memory board that is configured with one redundant bank of memory. The

system writes to both banks, but reads from one. If a DIMM(s) has a multi-bit error, the system simply

reads from the mirrored bank instead. This process occurs without intervention or server interruption,

and the failed DIMM can be replaced during a regularly scheduled shutdown.

• Hot Plug Mirrored Memory

Hot Plug Mirrored Memory is a fault-tolerant memory feature that provides a higher level of availability

than Advanced ECC, Online Spare Memory, or Single-Board Mirrored Memory because it protects

against multi-bit errors and does not require any server downtime to replace failed DIMMs. Hot Plug

Mirrored Memor

requires that two memor

boards be installed, one an exact mirror of the other, which

run in parallel and provide protection against multi-bit memory errors. When configured for Hot Plug

Mirrored Memory, the system writes to both memory boards, but reads from one. If a read error

occurs, the system fails over to the redundant memory board. At that point the memory board

containing the failed DIMMs can be hot replaced. Once the failed DIMMs are replaced and the

memory board re-installed into the server, the system goes back to full mirrored status. All this occurs

without bringing the server down.

NOTE: Hot Plug Mirrored Memory and Dual-Board Online Spare Memory require the use of two

memory cards. All DL580 G2 servers ship standard with a single memory board. The second memory

board is optional (P/N 203320-B21).

NOTE: All HP Advanced Memory Protection modes are user configurable through the ROM-Based

Setup Utility (RBSU) and viewable through Insight Manager 7 and the Integrated Management Log

(IML.).

• PCI-X Hot Plug Technology (Four 64bit/100-MHz PCI-X hot plug slots available)

• Smart Array 5i Plus Controller with standard Battery Backed Write Cache (BBWC) Enabler provides

transportable data protection and increases overall controller performance. Up to 64MB Battery Backed

Write Cache protection available on 2P DL580 G2 models (BBWC Enabler is optional on 1P model.)

• Redundant Cooling Zones across major server subsystems (Memory, I/O, CPU) provide 7x24 cooling. Each

zone is independent of each other and is able to support n+1 redundancy, as indicated below:

• PCI-X expansion zone is 1+1 redundant (fans 1 and 2)

• Memory zone is 1+1 redundant (fans 3 and 4)

• CPU zone is 2+1 redundant (fans 5, 6, and 7)

This zone configuration enables the server to withstand up to three fan failures, provided that they are not

within the same zone. Each fan is hot plug redundant and individually removable.

• Up to four Hot Plug Ultra3 Drive Bays

• Duplex or Simplex SCSI Backplane (Duplex configuration is standard)

• Dual Hot Plug Redundant Power Supplies (standard on 2P Models, one ships standard on 1P Models.)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 6

Standard Features

Serviceability • Innovative Diagnostic Lighting

• QuickFind Diagnostic Display – precisely depicts all major subsystems of the server (PCI-X I/O, Memory,

CPU, Redundant Cooling, Interlock, Thermtrip) and gives instant visual indication of fault status. Located on

top front of server.

• LED display on front panel indicates power, internal health, external health, Unit ID light.

• LED display on Memory board indicates Memory status, health, and protection mode.

• Tool-less, virtually cable-less interior design

• Tool-less access to interior of server

• Two ejectable, slim line media drives (diskette and CD-ROM standard with support for optional DVD-

ROM drives) are removable without the use of tools

• Front access power supplies

• Spring-loaded memory board release latches prevent unseating incidents

• PCI Card Guides locks full length PCI cards in place during transit

• SCSI Duplex/Simplex Drive Cage connects directly to system board – no cables.

NOTE: Confi

ure

our SCSI Duplex/Simplex Drive Ca

e b

means of simple switch

(

duplex to simplex

)

located on the cage itself. System ships standard in Duplex mode.

• Seven individually removable fans connect without cables to the system board

• Processor/VRM Retention Cage securely locks both processor and VRM into their respective sockets

• Tool-less removal of system board

• Quick Deploy Rails

• Tool-less design “snap in” rail

Security Power-on password

Keyboard password

Diskette drive control

Diskette boot control

Network Server Mode

Security Provision

Serial interface control

Administrator’s password

Disk configuration lock

Hot plug access security

Removable Diskette drive

Removable CD-ROM drive

Power Supply 800-Watt (low line or high line) Hot Plug Power Supply

NOTE: One 800-Watt Hot Plug Power Supply ships standard with 1P Models (optional Redundant Hot Plug

Power Supply Option Kit).

NOTE: Two 800-Watt Hot Plug Power Supplies ship standard with 2P Models.

System Fans Standard 7 Hot plug, redundant fans (individually removable)

Maximum 7 Hot plug, redundant fans (individually removable)

• Redundant Cooling Zones across major server subsystems (Memory, I/O, CPU) provide 7x24 cooling. Each

zone is independent of each other and is able to support n+1 redundancy, as indicated below:

- PCI-X expansion zone is 1+1 redundant (fans 1 and 2)

- Memory zone is 1+1 redundant (fans 3 and 4)

- CPU zone is 2+1 redundant (fans 5, 6, and 7)

• This zone configuration enables the server to withstand up to three fan failures, provided that they are not

within the same zone. Each fan is hot plug redundant and individually removable.

Required Cabling For required cabling information, refer to the HP Web site at

http://www.compaq.com/products/servers/proliantDL580/.

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 7

Standard Features

OS Support Microsoft Windows NT



Server

Microsoft Windows 2000

Novell



NetWare



LINUX



(Red Hat



, SuSE



)

Sun Solaris 8 Intel Platform Edition

NOTE: For a more complete and up-to-date listing of supported OSs and versions, please visit our OS Support

Matrix at: ftp://ftp.HP.com/pub/products/servers/os-support-matrix-310.pdf.

NOTE: For an up-to-date listing of the latest drivers available for the HP ProLiant DL580 G2, please see:

http://www.HP.com/support/files/server/us/index.html.

Rack Airflow Requirements • Rack 9000 and 10000 series Cabinets

The increasing power of new high-performance processor technology requires increased cooling efficiency

for rack-mounted servers. The Compaq 9000 Series Rack and the 10000 Series Racks provides enhanced

airflow for maximum cooling, allowing these racks to be fully loaded with servers using the latest processors.

• Rack 7000 series Cabinets

When installing a server with processors running at speeds of 550 MHz or greater in Compaq Rack 7000

series racks with glass doors (165753-001 (42U), and 163747-001 (22U)), the new processor technology

requires the installation of Compaq’s High Airflow Rack Door Inserts (327281-B21 (42U), 327281-B22 (42U

6 pack), or 157847-B21 (22U)) to promote enhanced airflow for maximum cooling.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure adequate airflow

and to prevent damage to the equipment:

- Front and rear doors: If your 42U server rack includes closing front and rear doors, you must

allow 5,350 sq cm (830 square inches) of hole evenly distributed from top to bottom to permit

adequate airflow (equivalent to the required 64 percent open area for ventilation).

- Side: The clearance between the installed rack component and the side panels of the rack must

be a minimum of 7 cm (2.75 inches).

CAUTION: Always use blanking panels to fill all remaining empty front panel U-spaces in the rack. This

arrangement ensures proper airflow. Using a rack without blanking panels results in improper cooling

that can lead to thermal damage.

NOTE: For additional information, refer to the Setup and Installation Guide or the Documentation CD provided with

the server, or to the server documentation located in the Support section at the following URL:

http://www5.HP.com/products/servers/proliantdl580/index.html.

Rack Kit DL580 G2 rack models provide tool-free support for square hole racks (including Compaq/HP 7000, 9000, 10000

and H9 series) with an adjustment range from 28″ – 29″ in depth

Service and Support HP Services provides a three-year, limited warranty, including Pre-Failure Warranty (coverage of hard drives,

memory and processors) fully supported by a worldwide network of resellers and service providers. HP technical

assistance is available 7x24, toll free in the United States and Canada. Telephone support services may be

covered under warranty or available for an additional fee.

NOTE: Limited Warranty includes 3 year Parts, 3 year Labor, 3-year on-site support.

A full range of CarePaq packaged hardware and software services:

• Installation and start up

• Extended coverage hours and enhanced response times

• System management and performance services

• Availability and recovery services

NOTE: For more information, customer/resellers can contact http://www.compaq.com/services.

Please see the following URL regarding Warranty Information For Your HP Products:

http://www.compaq.com/support/warranty_upgrades/web_statements/176738.html

For additional information regarding Worldwide Limited Warranty and Technical Support, please see the following

URL: ftp://ftp.compaq.com/pub/supportinformation/ejourney/176738.pdf

NOTE: Certain restrictions and exclusions apply. Consult the Customer Support Center at 1-800-345-1518 for

details.

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 8

Models

Processor (2) Intel Xeon Processors MP at 2.0 GHz standard (up to 4 supported)

Cache Memory 2-MB Integrated Level 3 Cache

Memory 2048 MB PC1600 registered ECC SDRAM (Standard) to 32 GB (Maximum)

(4x1 interleaved memory and HP Advanced Memory Protection Technology)

DL580R02 X2.0 GHz-2MB,

2048MB (2P)

202176-xx1

Network Controller Integrated Compaq NC7770 PCI-X Gigabit Server Adapter in a slot

Storage Controller Smart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write

Cache Enabler (integrated on system board)

Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)

Hard Drive None ship standard

Internal Storage 587.2 GB maximum (with optional hard drives)

Power Supply Two 800W Hot Plug Redundant Power Supplies (low line or high line)

Optical Drive 24x IDE slim-line CD-ROM Drive

Form Factor Rack 4U

Processor (2) Intel Xeon Processors MP at 1.90 GHz standard (up to 4 supported)

Cache Memory 1-MB Integrated Level 3 Cache

Memory 2048 MB PC1600 registered ECC SDRAM (Standard) to 32 GB (Maximum)

(4x1 interleaved memory and HP Advanced Memory Protection Technology)

DL580R02 X1900-1MB, 2048MB

(2P)

202175-xx1

Network Controller Integrated Compaq NC7770 PCI-X Gigabit Server Adapter in a slot

Storage Controller Smart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write

Cache Enabler (integrated on system board)

Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)

Hard Drive None ship standard

Internal Storage 587.2 GB maximum (with optional hard drives)

Power Supply Two 800W Hot Plug Redundant Power Supplies (low line or high line)

Optical Drive 24x IDE slim-line CD-ROM Drive

Form Factor Rack 4U

Processor (2) Intel Xeon Processors MP at 1.60 GHz standard (up to 4 supported)

Cache Memory 1-MB Integrated Level 3 Cache

Memory 2048 MB PC1600 registered ECC SDRAM (Standard) to 32 GB (Maximum)

(4x1 interleaved memory and HP Advanced Memory Protection Technology)

DL580R02 X1600-1MB, 2048MB

(2P)

201203-xx1

Network Controller Integrated Compaq NC7770 PCI-X Gigabit Server Adapter in a slot

Storage Controller Smart Array 5i Plus Controller (Dual Channel, Ultra3) with Battery-Backed Write

Cache Enabler (integrated on system board)

Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)

Hard Drive None ship standard

Internal Storage 587.2 GB maximum (with optional hard drives)

Power Supply Two 800W Hot Plug Redundant Power Supplies (low line or high line)

Optical Drive 24x IDE slim-line CD-ROM Drive

Form Factor Rack 4U

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 9

Models

Processor (2) Intel Xeon Processors MP at 1.40 GHz standard (up to 4 supported)

Cache Memory 512-KB Integrated Level 3 Cache

Memory 2048 MB PC1600 registered ECC SDRAM (Standard) to 32 GB (Maximum)

(4x1 interleaved memory and HP Advanced Memory Protection Technology)

DL580R02 X1400-512KB,

2048MB (2P)

201202-xx1

Network Controller Integrated Compaq NC7770 PCI-X Gigabit Server Adapter in a slot

Storage Controller Smart Array 5i Plus Controller (Dual channel, Ultra3) with Battery-Backed Write

Cache Enabler (integrated on system board)

Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)

Hard Drive None ship standard

Internal Storage 587.2 GB maximum (with optional hard drives)

Power Supply Two 800W Hot Plug Power Supplies (low line or high line)

Optical Drive 24x IDE slim-line CD-ROM Drive

Form Factor Rack 4U

Processor (1) Intel Xeon Processor MP at 1.50 GHz standard (up to 4 supported)

Cache Memory 1MB Integrated Level 3 Cache

Memory 1024 MB PC1600 registered ECC SDRAM (Standard) to 32 GB (Maximum)

(4x1 interleaved memory and HP Advanced Memory Protection Technology)

DL580R02 X1500-1MB, 1024MB

(1P)

202174-xx1

Network Controller Integrated Compaq NC7770 PCI-X Gigabit Server Adapter in a slot

Storage Controller Smart Array 5i Plus Controller (Dual channel, Ultra3) (integrated on system

board)

Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)

Hard Drive None ship standard

Internal Storage 587.2 GB maximum (with optional hard drives)

Power Supply One 800W Power Supply (low line or high line)

Optical Drive 24x IDE slim-line CD-ROM Drive

Form Factor Rack 4U

Processor (1) Intel Xeon Processor MP at 1.40 GHz standard (up to 4 supported)

Cache Memory 512-KB Integrated Level 3 Cache

Memory 1024 MB PC1600 registered ECC SDRAM (Standard) to 32 GB (Maximum)

(4x1 interleaved memory and HP Advanced Memory Protection Technology)

DL580R02 X1400-512KB,

1024MB (1P)

201201-xx1

Network Controller Integrated Compaq NC7770 PCI-X Gigabit Server Adapter in a slot

Storage Controller Smart Array 5i Plus Controller (Dual channel, Ultra3) (integrated on system

board)

Manageability Integrated Lights-Out (iLO) Standard management (integrated on system board)

Hard Drive None ship standard

Internal Storage 587.2 GB maximum (with optional hard drives)

Power Supply One 800W Power Supply (low line or high line)

Optical Drive 24x IDE slim-line CD-ROM Drive

Form Factor Rack 4U

Country Code Key XX=00 U.S.

XX=01 Australia

XX=42 Int’l, Europe, Germany, France

XX=03 UK

XX=37 APD

XX=29 Japan

XX=AA PRC

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 10

Options

8192MB PC1600 Registered ECC SDRAM Memory Kit (4 x 2048 MB) 202173-B21

ProLiant DL580 Unique Options 4096MB PC1600 Registered ECC SDRAM Memory Kit (4 x 1024 MB) 202172-B21

2048MB PC1600 Registered ECC SDRAM Memory Kit (4 x 512 MB) 202171-B21

1024MB PC1600 Registered ECC SDRAM Memory Kit (4 x 256 MB) 202170-B21

Hot Plug Memory Expansion Board

NOTE: The Hot Plug Memory Expansion Board provides 8 additional DIMM slots for

powering memory-intensive applications.

203320-B21

800W Hot Plug Redundant Power Supply US 278535-001

800W Hot Plug Redundant Power Supply AUST 278535-011

800W Hot Plug Redundant Power Supply EURO 278535-021

800W Hot Plug Redundant Power Supply UK 278535-031

800W Hot Plug Redundant Power Supply JPN2 278535-291

800W Hot Plug Redundant Power Supply -inc IEC 278535-B21

DL580 G2 Third Party Racking Kit 287528-B21

DL580 G2 Folding Cable Management Arm 289294-B21

DL580 G2 Cable Assembly, SCSI, Ultra3, LVDS

NOTE: All DL580 G2 models ship standard with the integrated Smart Array 5i Plus

Controller, which has been designed to deliver maximum performance and

availability across the internal SCSI Duplex backplane.

• The Ultra3 SCSI cable is required onl

if the customer chooses to b

pass the

Smart Array 5i Plus Controller and connect slot-based SCSI adapters or

RAID controllers to the internal SCSI Duplex backplane.

• Two cables are required to maintain the standard, duplexed configuration of

the backplane.

• One cable is required if the simplex configuration is chosen.

The backplane is easily configured to simplex mode by means of a simple switch

duplex to simplex) located on the top of the backplane itself.

288874-B21

Cord, AC Line, 20A, 250V, US 235604-001

Cable, 16A, IEC320-C20 to IEC320-C19

NOTE: Power cord (295633-B21) connects ProLiant servers to PDUs or UPSs with

IEC320-C19 output connections.

295633-B21

Cable, 10A, IEC320-C14 to IEC320-C19

NOTE: Power cord (291034-B21) connects ProLiant DL580 G2 servers to PDUs or

UPSs with IEC320-C13 output connections. This power cord has been

specifically designed to work with the ProLiant DL580 G2 server. Please NOTE

the following important precautions when deploying this power cord:

• Use the cord only in conjunction with the ProLiant DL580 G2 server.

• Use the cord to connect the ProLiant DL580 G2 server only to PDUs or

UPSs with IEC320-C13 output connections.

• Do not use the cord with any other ProLiant or third party server.

• Do not use the cord with any other office equipment or computers.

• Do not use the cord as an extension cord.

• Do not plug the cord into a wall outlet.

Failure to adhere to these precautions may invalidate the server warranty.

291034-B21

ProLiant Essentials Value Pack

Software Rapid Deployment Pack, 1 User, V1.x

NOTE: This license allows 1 server to be managed and deployed via the Deployment

Server.

267196-B21

Rapid Deployment Pack, 1 User, V1.x (Japan)

NOTE: This license allows 1 server to be managed and deployed via the Deployment

Server.

267196-291

Rapid Deployment Pack, 10 Users, V1.x

NOTE: This license allows 10 servers to be managed and deployed via the Deployment

Server.

269817-B21

Rapid Deployment Pack, 10 Users, V1.x (Japan)

NOTE: This license allows 10 servers to be managed and deployed via the Deployment

Server.

269817-291

ProLiant Essentials Workload Management Pack (Featuring HP Resource Partitioning

Manager version 2.0) 303284-B21

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 11

Options

ProLiant Essentials Recovery Server Option Pack 280189-B21

ProLiant Essentials Value Pack

Software (continued) Integrated Lights-Out (iLO) Advanced Pack 263825-B21

ProLiant Essentials Performance Management Pack v2.0, Single License 306696-B21

NOTE: Flexible and volume quantity license kits are available for ProLiant Essentials

Value Packs. Refer to http://www.hp.com/servers/proliantessentials or the

various ProLiant Essentials Value Pack product QuickSpecs for more

information.

NOTE: For more information regarding ProLiant Essentials Software, please see the

following URL: http://www.hp.com/servers/proliantessentials.

NOTE: These Web sites are available in English only.

Software HP digital asset protection 302316-001

Processor Intel Xeon MP X2.0 GHz-2MB Processor Option Kit

NOTE: This processor option kit

(

PN 307276-B21

)

supports the ProLiant ML570 G2 and

the DL580 G2.

307276-B21

Intel Xeon MP X1.9 GHz-1MB Processor Option Kit

NOTE: This processor option kit

(

PN 311228-B21

)

supports the ProLiant ML570 G2 and

the ProLiant DL580 G2.

311228-B21

Intel Xeon MP X1.50 GHz-1MB Processor Option Kit

NOTE: This processor option kit

(

PN 191220-B21

)

supports the ProLiant ML570 G2 and

the ProLiant DL580 G2.

191220-B21

Intel Xeon MP X1.60 GHz-1MB Processor Option Kit

NOTE: This processor option kit (PN 226776-B21) supports the ProLiant DL580 G2

only.

226776-B21

Intel Xeon MP X1.40 GHz-512KB Processor Option Kit

NOTE: This processor option kit

(

PN 226775-B21

)

supports the ProLiant ML570 G2 and

the ProLiant DL580 G2.

226775-B21

Memory (DIMMs) 8192 MB PC1600 Registered ECC SDRAM Memory Kit (4 x 2048 MB) 202173-B21

4096 MB PC1600 Registered ECC SDRAM Memory Kit (4 x 1024 MB) 202172-B21

2048 MB PC1600 Registered ECC SDRAM Memory Kit (4 x 512 MB) 202171-B21

1024 MB PC1600 Registered ECC SDRAM Memory Kit (4 x 256 MB) 202170-B21

Hot Plug Memory Expansion Board

NOTE: The Hot Plug Memory Expansion Board provides 8 additional DIMM slots for

powering memory-intensive applications.

203320-B21

Optical Drives Slimline DVD-ROM Drive (8X/24X) Option Kit 264007-B21

Hard Drives Ultra320 – Universal Hot Plug

146.8-GB 10,000 rpm U320 Universal Hard Drive (1″)286716-B22

72.8-GB 10,000 rpm U320 Universal Hard Drive (1″)286714-B22

36.4-GB 10,000 rpm U320 Universal Hard Drive (1″)286713-B22

72.8-GB 15,000 rpm U320 Universal Hard Drive (1″)286778-B22

36.4-GB 15,000 rpm U320 Universal Hard Drive (1″)286776-B22

18.2-GB 15,000 rpm U320 Universal Hard Drive (1″)286775-B22

NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds.

U320 drives require an optional U320 Smart Array Controller or U320 SCSI

HBA to support U320 transfer rates.

NOTE: Please see the Hard Drive QuickSpecs for Technical Specifications such as capacity, height, width,

interface, transfer rate, seek time, physical configuration, and operating temperature:

U320 Hard Drive QS:

http://www5.compaq.com/products/quickspecs/11531_div/11531_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11531_na/11531_na.HTML (North America)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 12

Options

Storage Controllers Smart Array 532 Controller 225338-B21

Smart Array 532 Controller (Japan) 225338-291

Smart Array 5302/128 Controller 283552-B21

Smart Array 5302/128 Controller (Japan) 283552-291

Smart Array 5304/256 Controller 283551-B21

Smart Array 5304/256 Controller (Japan) 283551-291

Smart Array 5312 Controller 238633-B21

Smart Array 5312 Controller (Japan) 238633-291

Smart Array 641 Controller 291966-B21

Smart Array 642 Controller 291967-B21

Ultra3 Channel Expansion Module for Smart Array 5300 Controller 153507-B21

128-MB Cache Module for Smart Array 5302 Controller 153506-B21

256-MB Battery-Backed Cache Module

NOTE: This 256-MB Battery-Backed Cache Module supports the Smart Array 5300

series controllers, MSA 1000 and the Smart Array Cluster Storage.

254786-B21

RAID ADG Upgrade for Smart Array 5302 288601-B21

Battery-Backed Write Cache Enabler Option Kit

NOTE: This Batter

-Backed Write Cache Enable Option Kit

(

PN 255514-xx1

)

is optional

for the DL580 G2 1P Model only.

255514-B21

Battery-Backed Write Cache Enabler Option Kit (Japan)

NOTE: This Batter

-Backed Write Cache Enable Option Kit

(

PN 255514-xx1

)

is optional

for the DL580 G2 1P Model only.

255514-291

64 MB Battery Backed Write Cache Enabler

NOTE: This 64 MB BBWC supports the Smart Array 641 Controller and Smart Array

642 Controller.

291969-B21

DL580 G2 Cable Assembly, SCSI, Ultra3, LVDS

NOTE: All DL580 G2 models ship standard with the integrated Smart Array 5i Plus

Controller, which has been designed to deliver maximum performance and

availability across the internal SCSI Duplex backplane.

• The Ultra3 SCSI cable is required onl

if the customer chooses to b

pass the

Smart Array 5i Plus Controller and connect slot-based SCSI adapters or

RAID controllers to the internal SCSI Duplex backplane.

• Two cables are required to maintain the standard, duplexed configuration of

the backplane.

• One cable is required if the simplex configuration is chosen.

The backplane is easily configured to simplex mode by means of a simple switch

duplex to simplex) located on the top of the backplane itself.

288874-B21

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter 154457-B21

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter 129803-B21

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter 268351-B21

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter, Alternate OS 284688-B21

NOTE: Please see the following Controller or SCSI Adapter QuickSpecs for Technical Specifications such as PCI

Bus, PCI Peak Data Transfer Rate, SCSI Protocols supported, SCSI Peak Data Transfer Rate, Channels,

SCSI Ports, Drives supported, Cache, RAID support, and additional information:

http://www5.compaq.com/products/quickspecs/11063_div/11063_div.HTML (Smart Array 5i Plus)

http://www5.compaq.com/products/quickspecs/10851_div/10851_div.HTML (Smart Array 532)

http://www5.compaq.com/products/quickspecs/10640_div/10640_div.HTML (Smart Array 5300 Series)

http://www5.compaq.com/products/quickspecs/11328_div/11328_div.HTML (Smart Array 5312)

http://www5.compaq.com/products/quickspecs/11563_div/11563_div.HTML (Smart Array 641)

http://www5.compaq.com/products/quickspecs/11563_div/11563_div.HTML (Smart Array 642)

http://www5.compaq.com/products/quickspecs/10429_div/10429_div.HTML (SCSI Adapter)

http://www5.compaq.com/products/quickspecs/11555_div/11555_div.HTML (U320 Adapter)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 13

Options

Communications Compaq NC3134 Fast Ethernet NIC 64 PCI Dual Port 10/100 138603-B21

Compaq NC3135 Fast Ethernet Module Dual 10/100 Upgrade Module for NC3134 138604-B21

Compaq NC6132 Gigabit Module 1000 SX Upgrade Module for NC3134 338456-B23

Compaq NC6136 Gigabit Server Adapter, 64-bit/66-MHz, PCI, 1000 SX 203539-B21

Compaq NC7131 Gigabit Server Adapter, 64-bit/66-MHz, PCI, 10/100/1000-T 158575-B21

Compaq NC7132 10/100/1000-T Upgrade Module for NC3134 and NC3131 153543-B21

Compaq NC7770 PCI-X Gigabit Server Adapter 244948-B21

Redundant Options 800W Hot Plug Redundant Power Supply US 278535-001

800W Hot Plug Redundant Power Supply AUST 278535-011

800W Hot Plug Redundant Power Supply EURO 278535-021

800W Hot Plug Redundant Power Supply UK 278535-031

800W Hot Plug Redundant Power Supply JPN2 278535-291

800W Hot Plug Redundant Power Supply -inc IEC 278535-B21

Management Options Remote Insight Lights-Out Edition II (NA, LA) 227251-001

Remote Insight Lights-Out Edition II (EMEA) 227251-021

Remote Insight Lights-Out Edition II (ROW) 227251-371

Security HP/Atalla AXL600L SSL Accelerator Card for ProLiant Servers 524545-B21

Compaq AXL300 Accelerator PCI Card for ProLiant Servers 227933-B21

Monitors Essential Series

Compaq S9500 CRT Monitor (19-inch, Carbon/Silver) 261615-XX

Compaq S7500 CRT Monitor (17-inch, Carbon/Silver) 261606-XX

Compaq S5500 CRT Monitor (15-inch Carbon/Silver) 261602-XX

Compaq TFT1501 Flat Panel Monitor (15-inch, Carbon/Silver, North America) 301042-003

Compaq TFT1501 Flat Panel Monitor (15-inch, Carbon/Silver, Outside North America) P4825D-XX

Compaq TFT1701 Flat Panel Monitor (17-inch, Carbon/Silver, North America) 292847-003

Compaq TFT1701 Flat Panel Monitor (17-inch, Carbon/Silver, Outside North America) P9019A-XX

Advantage Series

Compaq V7550 CRT Color Monitor (17-inch, Carbon/Silver) 261611-XX

Compaq TFT1720 Flat Panel Monitor (17-inch, Carbon/Silver, North America) 295926-003

Compaq TFT1720 Flat Panel Monitor (17-inch, Carbon/Silver, outside North America) D5064D-XX

Compaq FT1720M Flat Panel Monitor (17-inch, (Carbon/Silver, includes speaker, USB

port, headphone, North America) 301958-003

Compaq TFT1720M Flat Panel Monitor (17-inch, (Carbon/Silver, includes speaker, USB

port, headphone, outside North America) D5064P-XX

Compaq TFT1520 Flat Panel Monitor (15-inch, Carbon/Silver, North America) 295925-003

Compaq TFT1520 Flat Panel Monitor (15-inch, Carbon/Silver, outside North America) D5063D-XX

Compaq TFT1520M Flat Panel Monitor (15-inch, (Carbon/Silver includes speaker, USB

port, headphone, North America) 301957-003

Compaq TFT1520M Flat Panel Monitor (15-inch, (Carbon/Silver includes speaker, USB

port, headphone, outside North America) D5063P-XX

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 14

Options

Monitors (continued) Performance Series

HP P930 CRT Monitor (19-inch, Flat-screen, Carbon/Silver, North America) 302268-003

HP P930 CRT Monitor (19-inch, Flat-screen, Carbon/Silver, Outside North America) P909W-XX

HP P1130 CRT Monitor (21-inch, Flat-screen, Carbon/Silver, North America) 302270-003

HP P1130 CRT Monitor (21-inch, Flat-screen, Carbon/Silver, Outside North America) P4819-XX

HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, North America) 303486-003

HP L1825 Flat Panel Monitor (18-inch, Carbon/Silver, Outside North America) P9021W-XX

HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, North America) 303102-003

HP L2025 Flat Panel Monitor (20-inch, Carbon/Silver, Outside North America) P4831W-XX

Compaq TFT1825 Flat Panel Monitor (18-inch, Carbon/Silver, North America) 296751-003

Compaq TFT1825 Flat Panel Monitor (18-inch, Carbon/Silver, Outside North America) P9021A-XX

Compaq TFT2025 Flat Panel Monitor (20-inch, Carbon/Silver, North America) 285550-003

Compaq TFT2025 Flat Panel Monitor (20-inch, Carbon/Silver, Outside North America) P4831D-XX

Rackmount Flat Panel Monitors

TFT5110R Flat Panel Monitor (Carbon) 281683-B21

TFT5010R Flat Panel Monitor (NA) 217248-001

TFT5010R Flat Panel Monitor (Int’l) 217248-B31

TFT5010R Flat Panel Monitor (Japan) 217248-291

Tape Drives Internal and External DAT Tape Drives

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Carbon) (NA) 157770-002

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Int’l) (Carbon) 157770-B32

HP StorageWorks 20/40-GB DAT DDS-4 Tape Drive, External (Japan) (Carbon) 157770-292

HP StorageWorks Internal 20/40-GB DAT, Hot Plug (Carbon) 215488-B21

HP StorageWorks 3U Rackmount Tape Drive Kit 274338-B21

NOTE: Please see the 20/40-GB DAT Tape Drive QuickSpecs for additional options such as host bus adapters,

controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10426_div/10426_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10426_na/10426_na.HTML (North America)

Internal and External AIT Tape Drives

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) 216885-001

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) (Int’l) 216885-B31

HP StorageWorks External AIT 35-GB, LVD Tape Drive (Carbon) (Japan) 216885-291

HP StorageWorks Internal AIT 35-GB, LVD, Hot Plug (Carbon) 216886-B21

NOTE: Please see the AIT 35 GB, LVD Tape Drive QuickSpecs for additional options such as adapters,

controllers, and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10712_div/10712_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10712_na/10712_na.HTML (North America)

HP StorageWorks AIT 50-GB Tape Drive, External (Carbon) (NA) 157767-002

HP StorageWorks AIT 50-GB Tape Drive, External (Int’l) (Carbon) 157767-B32

HP StorageWorks AIT 50-GB Tape Drive, External (Japan) (Carbon) 157767-292

Internal AIT 50-GB, Hot Plug (Carbon) 215487-B21

HP StorageWorks Rackmount AIT 50-GB, 3U (Single Drive) 274333-B21

HP StorageWorks 3U Rackmount Tape Drive Kit 274338-B21

NOTE: Please see the AIT 50-GB Tape Drive QuickSpecs for additional options such as adapters, controllers, and

cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10425_div/10425_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10425_na/10425_na.HTML (North America)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 15

Options

Tape Drives (continued) Internal and External AIT Tape Drives (continued)

HP StorageWorks External AIT 100-GB Tape Drive (Carbon) 249160-001

HP StorageWorks External AIT 100-GB Tape Drive (Carbon) (Int’l) 249160-B31

HP StorageWorks Internal AIT 100-GB, Hot-Plug (Carbon) 249161-B21

NOTE: Please see the AIT 100-GB Tape Drive QuickSpecs for additional options such as adapters, controllers,

and cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11062_div/11062_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11062_na/11062_na.HTML (North America)

NOTE: Internal Hot Plug AIT drives can be supported by the integrated Smart Array 5i Plus Controller.

External DLT Tape Drives

HP StorageWorks External 20/40-GB DLT Drive (opal) (WW) 340744-B22

HP StorageWorks External 20/40-GB DLT Drive (opal) (Japan) 340744-292

NOTE: Please see the 20/40-GB DLT Drive QuickSpecs for additional options such as data and cleaning

cartridges, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/10234_div/10234_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10234_na/10234_na.HTML (North America)

HP StorageWorks 40/80-GB DLT Tape Drive, External (Carbon) (NA) 146197-B22

HP StorageWorks 40/80-GB DLT Tape Drive, External (Carbon) (Japan) 146197-293

HP StorageWorks Rackmount DLT 40/80, 3U (Single Drive) 274332-B21

HP StorageWorks Rackmount DLT 40/80, Dual-Drive, 3U (Two Drives) 274335-B21

HP StorageWorks Rackmount DLT 40/80 Tape Array III, 5U (Four Drives) 274337-B21

NOTE: Please see the 40/80-GB DLT Drive QuickSpecs for additional options such as host bus adapters,

controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10658_div/10658_div.HTML (Division/World Wide)

http://www5.compaqcom/products/quickspecs/10658_na/10658_na.HTML (North America)

External DLT VS Tape Drives

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) All 280129-B22

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (WW) 280129-B31

HP StorageWorks DLT VS 40/80 Tape Drive, External (Carbon) (Japan) 280129-291

NOTE: Please see the DLT VS 40/80 Tape Drive QuickSpecs for additional options such as host bus adapters,

controllers, cassettes, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/11403_div/11403_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11403_na/11403_na.HTML (North America)

External SDLT Tape Drives

HP StorageWorks SDLT 110/220, External NA (carbon) 192103-002

HP StorageWorks SDLT 110/220, External WW (carbon) 192103-B32

HP StorageWorks SDLT 110/220, External Japan (carbon) 192103-292

NOTE: Please see the SDLT 110/220-GB Tape Drive QuickSpecs for additional options such as adapters,

controllers, and media, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10772_div/10772_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10772_na/10772_na.HTML (North America)

HP StorageWorks SDLT 160/320, External NA (carbon) 257319-001

HP StorageWorks SDLT 160/320, External WW (carbon) 257319-B31

HP StorageWorks SDLT 160/320, External Japan (carbon) 257319-291

NOTE: Please see the SDLT 160/320-GB Tape Drive QuickSpecs for additional options such as adapters,

controllers, and media, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/11406_div/11406_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11406_na/11406_na.HTML (North America)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 16

Options

Tape Drives (continued) External SDLT Tape Drives (continued)

HP StorageWorks Rackmount SDLT 110/220, 3U (Single Drive) 274331-B21

HP StorageWorks Rackmount SDLT 110/220, Dual-Drive, 3U (Two Drives) 274334-B21

HP StorageWorks Rackmount SDLT 110/220 Tape Array III, 5U (Four Drives) 274336-B21

NOTE: Please see the SDLT 110/220-GB Tape Drive QuickSpecs for additional options such as adapters,

controllers, and media, and for an up-to-date listing of the latest O/S Support details, please see the

following:

http://www5.compaq.com/products/quickspecs/10772_div/10772_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10772_na/10772_na.HTML (North America)

External SuperLoader

DLT1 1280 SuperLoader 268664-B21

NOTE: Please see the StorageWorks DLT1 1280 SuperLoader QuickSpecs for additional options and for an up-

to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11330_div/11330_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11330_na/11330_na.HTML (North America)

External LTO Ultrium Tape Drives

HP StorageWorks LTO Ultrium 230 Tape Drive, External (Carbon) NA Q1516A

HP StorageWorks LTO Ultrium 230 Tape Drive, External (Carbon) Int’l Q1517A

NOTE: Please see the HP StorageWorks LTO Ultrium Tape Drive QuickSpecs for additional options such as

controllers, and other related items, and for an up-to-date listing of the latest O/S Support details, please

see the following:

http://www5.compaq.com/products/quickspecs/11415_div/11415_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11415_na/11415_na.HTML (North America)

External HP StorageWorks Ultrium 460 tape drive for ProLiant

HP StorageWorks Ultrium 460 tape drive for ProLiant, external (Carbon) NA Q1519

HP StorageWorks Ultrium 460 tape drive for ProLiant, external (Carbon) Int’l Q1520

NOTE: Please see the HP StorageWorks Ultrium 460 Tape Drive QuickSpecs for additional options such as

controllers, and other related items, and for an up-to-date listing of the latest O/S Support details, please

see the following:

http://www5.compaq.com/products/quickspecs/11530_div/11530_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11530_na/11530_na.HTML (North America)

1/8 Autoloader

HP Storage Works 1/8 Autoloader, DLT vs 80 C9264CB

HP Storage Works 1/8 Autoloader, Ultrium 230 C9572CB

Rackmount Kit for 1/8 Autoloader C9268R

NOTE: Please see the 1/8 Autoloader QuickSpecs for additional options such as adapters, controllers, and

cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11496_div/11496_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11496_na/11496_na.HTML (North America)

Internal and External AIT Autoloader

HP StorageWorks AIT 35 GB Autoloader, Rackmount (Carbon) (NA) 280349-001

HP StorageWorks AIT 35 GB Autoloader, Rackmount (Carbon) (Int’l) 280349-B31

NOTE: Please see the AIT 35-GB Autoloader QuickSpecs for additional options such as adapters, controllers, and

cassettes, and for an up-to-date listing of the latest O/S Support details, please see the following:

http://www5.compaq.com/products/quickspecs/11404_div/11404_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/11404_na/11404_na.HTML (North America)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 17

Options

Tape Drives (continued) Rackmount Tape Drive Kits

3U Rackmount Kit

NOTE: The 3U Rackmount Kit (PN 274338-B21) can support up to (2) full-height or (4)

half-height tape drives and compatible with multiple Single-Ended and LVD

SCSI Tape Drives including the 12/24-GB DAT, 20/40-GB DAT, 20/40-GB DAT

DDS-4 8 Cassette Autoloader, AIT 35-GB LVD, AIT 50 GB, 20/40-GB DLT,

40/80-GB DLT, SDLT 110/220-GB, and Ultrium 230 Tape Drives.

274338-B21

5U Rackmount Kit

NOTE: The 5U Rackmount Kit (PN 274339-B21) can support up to (4) full-height tape

drives and is compatible with all DLT/SDLT tape drives including the 20/40-GB

DLT, 35/70-GB DLT, 40/80-GB DLT, and SDLT 110/220-GB, and Ultrium 230

Tape Drives.

274339-B21

NOTE: Please see the Rackmount Tape Drive Kits QuickSpecs for additional information regarding these kits,

please see the following:

http://www5.compaq.com/products/quickspecs/10854_div/10854_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10854_na/10854_na.HTML (North America)

Rackmount Tape Drive Cable Kits

LVD Cable Kit, VHDCI/HD68

NOTE: For use with the 3U RM Storage Enclosure and DLT Tape Array III only. 168048-B21

LVD Cable Kit, HD68/HD68

NOTE: For use with the 3U RM Storage Enclosure and DLT Tape Array III only. 242381-B21

Tape Automation StorageWorks ESL9000 Enterprise System Library

ESL9322L1 – LTO Ultrium based enterprise library with up to 8 drives and 222, 322 slots

ESL9322L1 222 slot 2 DRV LTO1 301927-B22

ESL9322L1 222 slot 8 DRV LTO1 301927-B28

ESL9322L1 322 slot 2 DRV LTO1 301928-B22

ESL9322L1 322 slot 8 DRV LTO1 301928-B28

ESL9322S2 – SDLT160 based enterprise library with up to 8 drives and 222, 322 slots

ESL9322S2 222 slot 2 DRV SDLT2 293409-B22

ESL9322S2 222 slot 8 DRV SDLT2 293409-B28

ESL9322S2 322 slot 2 DRV SDLT2 293410-B22

ESL9322S2 322 slot 8 DRV SDLT2 293410-B28

NOTE: Please see the StorageWorks ESL9322S2 Enterprise Library QuickSpecs for additional information

including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a

complete solution at:

http://www5.compaq.com/proudcts/quickspecs/11437_na/11437_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11437_div/11437_div.HTML (World Wide)

ESL9322: Common Options

ESL9322, slot upgrade 222 to 322 slots 293588-B21

ESL9595L1 – LTO Ultrium based enterprise library with up to 16 drives and 400, 500, 595 slots

ESL9595L1 400 slot 2 DRV LTO1 301929-B22

ESL9595L1 400 slot 16 DRV LTO1 301929-B28

ESL9595L1 500 slot 2 DRV LTO1 301931-B22

ESL9595L1 500 slot 16 DRV LTO1 301931-B28

ESL9595L1 595 slot 2 DRV LTO1 301932-B22

ESL9595L1 595 slot 16 DRV LTO1 301932-B28

NOTE: Please see the StorageWorks ESL9595L1 Enterprise Library QuickSpecs for additional information

including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a

complete solution at:

http://www5.compaq.com/products/quickspecs/11435_na/11435_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11435_div/11435_div.HTML (World Wide)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 18

Options

Tape Automation (continued) StorageWorks ESL9000 Enterprise System Library (continued)

ESL9595S2 – SDLT160 based enterprise library with up to 16 drives and 400, 500, 595 slots

ESL9595S2 400 slot 2 DRV SDLT 160/320 293411-B22

ESL9595S2 400 slot 16 DRV SDLT 160/320 293411-B28

ESL9595S2 500 slot 2 DRV SDLT 160/320 293412-B22

ESL9595S2 500 slot 16 DRV SDLT 160/320 293412-B28

ESL9595S2 595 slot 2 DRV SDLT 160/320 293413-B22

ESL9595S2 595 slot 16 DRV SDLT 160/320 293413-B28

NOTE: Please see the StorageWorks ESL9595S2 Enterprise Library QuickSpecs for additional information

including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a

complete solution at:

http://www5.compaq.com/products/quickspecs/11436_na/11436_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11436_div/11436_div.HTML (World Wide)

ESL9595SL – SDLT110 based enterprise library with up to 16 drives and 400, 500, 595 slots

ESL9595SL 400 slots, 2 DRV SDLT110/220 274672-B22

ESL9595SL 400 slots, 16 DRV SDLT110/220 274672-B28

ESL9595SL 500 slots, 2 DRV SDLT110/220 281627-B22

ESL9595SL 500 slots, 16 DRV SDLT110/220 281627-B28

ESL9595SL 595 slots, 2 DRV SDLT110/220 281628-B22

ESL9595SL 595 slots, 16 DRV SDLT110/220 281628-B28

NOTE: Please see the StorageWorks ESL9595SL Enterprise Library QuickSpecs for additional information

including Tape Drives, Cartridges, Controllers, and SCSI Cables and additional options needed for a

complete solution at:

http://www5.compaq.com/products/quickspecs/11332_na/11332_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11332_div/11332_div.HTML (World Wide)

ESL9595: Common Options

ESL9595SL 400 to 500 slot upgrade 274674-B21

ESL9595SL 500 to 595 slot upgrade 274674-B22

ESL9595SL 400 to 595 slot upgrade 274674-B23

Add-on drives & Accessories

ESL9000 LVD SDLT 160/320 Drive upgrade (ESL9595S2 and ESL9322S2 only) 293414-B21

ESL9000 LTO1 drive upgrade (ESL9322L1 and ESL9595L1 only) 301930-B21

ESL9000 Universal Load Port (support both LTO & SDLT cartridges) Not removable 302254-B21

ESL9000 Pass-thru kit (graphite) 161268-B23

Add-on drives & Accessories

ESL9000 Field Upgrade SDLT 110/220, LVD Drive (ESL9198SL, ESL9326SL,

ESL9595SL only) 234617-B21

ESL9000 Field Upgrade SDLT 110/220, HVD Drive (for existing ESL9326D/DX

customers) 234617-B22

LVD Extender Kit for ESL9198DLX, ESL9198SL, ESL9326SL 221249-B21

ESL 9000 Pass Through Kit for Multi Unit Connectivity 161268-B21

64-Bit/66Mhz Dual Channel Wide Ultra3 SCSI Adapter

NOTE: 64-Bit/66Mhz Dual Channel Wide Ultra3 SCSI Adapter is required to support

the LVD based libraries.

129803-B21

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 19

Options

Tape Automation (continued) StorageWorks MSL5000 departmental libraries

MSL5060L1 – LTO Ultrium 1 based departmental library up to 4 drives and 60 slots

MSL5060L1, 0 DRV LTO1 RM Library 301899-B21

MSL5060L1, 2 DRV LTO1 RM Library 301899-B22

MSL5060L1, 2 DRV LTO1 TT Library 301900-B21

MSL5060L1FC, 2 DRV LTO1 RM-with integrated FC router 301899-B23

NOTE: Please see the StorageWorks MSL5060 LTO Library QuickSpecs for additional information including

rade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11438_na/11438_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11438_div/11438_div.HTML (Division/World Wide)

MSL5052S2 – SDLT160 based departmental library up to 4 drives and 52 slots

MSL5052S2, RM 0 DRV SDLT ALL 255102-B21

MSL5052S2, 2 DRV SDLT2 TT LIB 293476-B21

MSL5052S2, 2 DRV SDLT2 RM LIB 293474-B21

MSL5052S2FC 2 DRV SDLT2 RM- with integrated FC router 293474-B24

NOTE: Please see the StorageWorks MSL5052S2 Library QuickSpecs for additional information including

rade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11442_na/11442_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11442_div/11442_div.HTML (Division/World Wide)

MSL5030L1 – LTO Ultrium 1 mid-range library up to 2 drives and 30 slots

MSL5030L1, 0 DRV LTO1 RM Library 301897-B21

MSL5030L1, 1 DRV LTO1 RM Library 301897-B22

MSL5030L1, 2 DRV LTO1 RM Library 301897-B23

MSL5030L1, 1 DRV LTO1 TT Library 301898-B21

MSL5030L1, 2 DRV LTO1 TT Library 301898-B22

MSL5030L1FC, 1 DRV LTO1 RM- with integrated FC router 301897-B24

MSL5030L1FC, 2 DRV LTO1 RM- with integrated FC router 301897-B25

NOTE: Please see the StorageWorks MSL5030 LTO Library QuickSpecs for additional information including

rade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11439_na/11439_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11439_div/11439_div.HTML (Division/World Wide)

MSL5026S2 – SDLT160 based mid-range library up to 2 drives and 26 slots

MSL5026S2, 0 DRV SDLT2 RM Library 293472-B21

MSL5026S2, 1 DRV SDLT2 RM Library 293472-B22

MSL5026S2, 2 DRV SDLT2 RM Library 293472-B23

MSL5026S2, 1 DRV SDLT2 TT Library 293473-B21

MSL5026S2, 2 DRV SDLT2 TT Library 293473-B22

MSL5026S2FC, 1 DRV SDLT2 RM- with integrated FC router 293472-B24

MSL5026S2FC, 2 DRV SDLT2 RM- with integrated FC router 293472-B25

NOTE: Please see the StorageWorks MSL5026SL Library QuickSpecs for additional information including

rade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/11453_na/11453_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11453_div/11453_div.HTML (Division/World Wide)

MSL5026SL Graphite – SDLT110 based mid-range library up to 2 drives and 26 slots

MSL5026SL, 1 DRV SDLT TT, graphite 302511-B21

MSL5026SL, 2 DRV SDLT TT, graphite 302511-B22

MSL5026SL, 1 DRV SDLT RM, graphite 302512-B21

MSL5026SL, 2 DRV SDLT RM, graphite 302512-B22

NOTE: Please see the StorageWorks MSL5026SL Graphite Library QuickSpecs for additional information

including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete

solution at:

http://www5.compaq.com/products/quickspecs/11440_na/11440_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11440_div/11440_div.HTML (Division/World Wide)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 20

Options

Tape Automation (continued) StorageWorks MSL5000 departmental libraries (continued)

MSL5026SL Opal – SDLT110 based mid-range library up to 2 drives and 26 slots

MSL5026, 0 DR, LVD, RM 231979-B21

MSL5026DLX– 40/80GB DLT based mid-range library up to 2 drives and 26 slots

MSL5026DLX, 1 40/80GB DLT, LVD, TT 231821-B21

MSL5026DLX, 2 40/80GB DLT, LVD, TT 231821-B22

MSL5026DLX, 1 40/80GB DLT, LVD, RM 231891-B21

MSL5026DLX, 2 40/80GB DLT, LVD, RM 231891-B22

NOTE: Please see the StorageWorks MSL5026DLX Library QuickSpecs for additional information including

rade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete solution at:

http://www5.compaq.com/products/quickspecs/10860_na/10860_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/10860_div/10860_div.HTML (Division/World Wide)

MSL5000 Add-on drives & accessories

MSL5000 SDLT 160/320 Upgrade DRV (MSL5052S2 & MSL5026S2 only) 293475-B21

MSL5000 LTO Ultrium 1 Upgrade DRV (MSL5060L1 & MSL5030L1 only) 301901-B21

MSL5000 SDLT 110/220 Upgrade DRV 231823-B22

MSL5000 40/80GB DLT Upgrade DRV 231823-B21

MSL5000 Dual Magazine LTO (2 X 15 slot magazines) 301902-B21

MSL5000 Dual Magazine DLT (2 X 13 slot magazines) 232136-B21

MSL5000 pass through mechanism 10 U (required for multi-unit scalability) 231824-B21

MSL5000, Pass through mechanism 10U (includes elevator mechanism and router,

required to connect first two units in a stack) 231824-B21

MSL5026, 5U Pass through extender (required one for each unit connected to the

stack, for third and additional units) – for MSL5026 & MSL5030 231824-B22

MSL5052, 10U Pass-Through Extender (required one for each unit connected to the

stack, for third and additional units) – for MSL5052 & MSL5060 231824-B23

StorageWorks SSL2000 small system library

SSL2020 – AIT50 based library with up to 2 drives and 20 slots

SSL2020 AIT Mini-Library 1 drive, 20 slot Table Top 175195-B21

SSL2020 AIT Mini-Library 2 drive, 20 slot Table Top 175195-B22

SSL2020 AIT Mini-Library 1 drive, 20 slot Rackmount 175196-B21

SSL2020 AIT Mini-Library 2 drive, 20 slot Rackmount 175196-B22

SSL2020 AIT Library Pass Thru with Transport 175312-B21

Add-on drives and accessories

SSL2020 AIT Library Pass Thru Extender 175312-B22

AIT 50GB Drive Add-On LVD Drive for SSL2020 AIT Library 175197-B21

19 Slot Magazine for SSL2020 AIT Library 175198-B21

AIT 50-GB Data Cassette (5 pack) 152841-001

AIT Cleaning Cassette 402374-B21

NOTE: Please see the SSL2020 Automated AIT Tape Library Solution QuickSpecs for additional information

including Upgrade Kits, Accessories, and SCSI Cable Kits and additional options needed for a complete

solution at:

http://www5.compaq.com/products/quickspecs/10580_na/10580_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/10580_div/10580_div.HTML (Division/World Wide)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 21

Options

Cluster Options ProLiant Cluster HA/F100 for MSA1000 v2 252408-B22

ProLiant Cluster HA/F100 for MSA1000 v2 (Japan) 252408-292

ProLiant Cluster HA/F200 for MSA1000 v2 252409-B22

ProLiant Cluster HA/F200 for MSA1000 v2 (Japan) 252409-292

NOTE: For additional information regarding the ProLiant Cluster for HA/F100, HA/F200 for MSA1000 please see

the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11035_na/11035_na.html (North America)

http://www5.compaq.com/products/quickspecs/11035_div/11035_div.html (Division/World Wide)

ProLiant Cluster HA/F100 for Windows NT and 2000 Advanced Server 309816-B21

ProLiant Cluster HA/F200 Upgrade Kit (NT 4.0EE to W2K AS) 176848-B22

ProLiant Cluster HA/F200 for Windows NT and 2000 Advanced Server 380357-B23

ProLiant Cluster HA/F200 for Windows NT and 2000 Advanced Server (Japan) 380357-293

NOTE: For additional information regarding the ProLiant Cluster for HA/F100, HA/F200 for Windows NT and 2000

Advanced Server please see the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/10777_na/10777_na.html (North America)

http://www5.compaq.com/products/quickspecs/10777_div/10777_div.html (Division/World Wide)

ProLiant Cluster HA/F500 Basic Kit 103250-B24

ProLiant Cluster HA/F500 Enhanced Kit 379937-B24

ProLiant Cluster HA/F500 Enhanced DT Kit 164227-B22

NOTE: For additional information re

ardin

the ProLiant Cluster for HA/F500 please see the followin

QuickSpecs

at:

http://www5.compaq.com/products/quickspecs/10232_na/10232_na.html (North America)

http://www5.compaq.com/products/quickspecs/10232_div/10232_div.html (Division/World Wide)

ProLiant Cluster HA/F500 for Enterprise Virtual Array 254623-B21

NOTE: For additional information regarding the ProLiant Cluster HA/F500 for Enterprise Virtual Array please see

the following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11055_na/11055_na.html (North America)

http://www5.HP.com/products/quickspecs/11055_div/11055_div.html (Division/World Wide)

ProLiant Cluster HA/L100 LifeKeeper for Linux 303523-B21

NOTE: For additional information regarding the ProLiant Cluster HA/L100 LifeKeeper for Linux, please see the

following QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11533_na/11533_na.html (North America)

http://www5.compaq.com/products/quickspecs/11533_div/11533_div.html (Division/World Wide)

HP Serviceguard for Linux ProLiant Cluster

NOTE: Kit includes 2 licenses, documentation and an Ethernet crossover cable. 305199-B21

HP Serviceguard for Linux License

NOTE: Kit includes single license version and documentation. 307554-B21

NOTE: For additional information regarding the HP Serviceguard for Linux License, please see the following

QuickSpecs at:

http://www5.compaq.com/products/quickspecs/11518_na/11518_na.html (North America)

http://www5.compaq.com/products/quickspecs/11518_div/11518_div.html (Division/World Wide)

External Storage - Rack StorageWorks Enclosure Model 4314R (rack-mountable) 190209-001

StorageWorks Enclosure Model 4314R (rack-mountable) (Int’l) 190209-B31

StorageWorks Enclosure Model 4314R (rack-mountable) (Japan) 190209-291

StorageWorks Enclosure Model 4354R (rack-mountable) 190211-001

StorageWorks Enclosure Model 4354R (rack-mountable) (Int’l) 190211-B31

StorageWorks Enclosure Model 4354R (rack-mountable) (Japan) 190211-291

NOTE: The StorageWorks Enclosure 4300 Family supports the Wide Ultra3, Ultra320 1″ Hot Plug Hard Drives.

StorageWorks Enclosure 4200 Redundant Power Supply Option 119826-B21

StorageWorks Enclosure 4200 Ultra3 Single Bus I/O Module Option 190212-B21

StorageWorks Enclosure 4200 Ultra3 Dual Bus I/O Module Option 190213-B21

StorageWorks Enclosure Tower to Rack Conversion Kit 150213-B21

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 22

Options

MSA1000 MSA 1000 201723-B22

MSA 1000 Controller 218231-B22

MSA Fibre Channel I/O Module 218960-B21

MSA1000 Fabric Switch 218232-B21

MSA 1000 Fibre Channel Adapter (FCA) 2101 245299-B21

HP StorageWorks msa hub 2/3 286763-B21

NOTE: Please see the HP StorageWorks modular SAN array 1000 QuickSpecs for additional

options and configuration information at:

http://www5.compaq.com/products/quickspecs/11033_na/11033_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11033_div/11033_div.HTML (Division/World Wide)

EMA12000 D14 60 Hz 175990-B21

EMA12000 D14 50 Hz 175990-B22

StorageWorks Modular Array

8000/Enterprise Modular Array

12000 EMA12000 S14 60 Hz 175991-B21

EMA12000 S14 50 Hz 175991-B22

MA8000 60 Hz 175992-B21

MA8000 50 Hz 175992-B22

EMA12000 Blue 60 Hz 175993-B21

EMA12000 Blue 50 Hz 175993-B22

NOTE: Options include controller, solution kits, ACS. MA8000/EMA12000 includes controller shelf, drive shelves

and cabinet. Packaging upgrade to RA8000/ESA12000.

NOTE: Please see the StorageWorks MA8000/EMA12000 QuickSpecs for FC Hubs, FC switches, platform

software, host adapters, disks and options for complete solutions at:

http://www5.compaq.com/products/quickspecs/10545_na/10545_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/10545_div/10545_div.HTML (Division/World Wide)

EMA16000 D14 50Hz (opal) 238792-B22

EMA16000 D14 60Hz (opal) 238792-B21

StorageWorks Enterprise Modular

Array 16000 FC

EMA16000 S14 50Hz (opal) 238791-B22

EMA16000 S14 60Hz (opal) 238791-B21

NOTE: Models include: Dual HSG80 controllers in each Model 2200 enclosure (2 pairs per single bus

configuration, 4 pairs per dual bus configuration) with 1GB cache per controller pair, and 12 14-bay drive

enclosures with redundant power supplies. Confi

ure-to-Order

(

CTO

)

builds are available. Options include

ACS, platform kits and software by HP.

NOTE: Please see the StorageWorks EMA16000 QuickSpecs for FC switches, platform software, host adapters,

disks and options for complete solutions at:

http://www5.compaq.com/products/quickspecs/10812_na/10812_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/10812_div/10812_div.HTML (Division/World Wide)

StorageWorks Options StorageWorks SAN Switch 2/8-EL 258707-B21

StorageWorks SAN Switch 2/16-EL 283056-B21

StorageWorks SAN Switch 2/8-EL Upgrade Kit 288162-B21

StorageWorks SAN Switch 2/16-EL Upgrade Kit 288250-B21

StorageWorks SAN Director 64 254512-B21

NOTE: Please see the StorageWorks SAN Director 64 QuickSpecs for additional information:

http://www5.compaq.com/products/quickspecs/11003_na/11003_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11003_div/11003_div.HTML (Division/World Wide)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 23

Options

UPS and PDU Power Cord Matrix Please see the UPS and PDU cable matrix that lists cable descriptions, requirements, and specifications

for UPS and PDU units.that lists cable descriptions, requirements, and specifications for UPS units.

ftp://ftp.compaq.com/pub/products/servers/ProLiantstorage/power-protection/powercordmatrix.pdf.

Compaq UPS R1500 XR (1440VA, 1340 Watt), Low Voltage (NA) 204404-001

Uninterruptible Power Systems –

Rack Compaq UPS R1500 XR (1500VA, 1340 Watt), High Voltage (Int’l) 204404-B31

Compaq UPS R1500 XR (1500VA, 1340 Watt), Low Voltage (Japan) 204404-291

Compaq UPS R3000 XR (2880VA, 2700 Watt), Low Voltage (NA) 192186-001

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (NA) 192186-002

Compaq UPS R3000 XR (2400VA, 2250 Watt), Low Voltage (Japan) 192186-291

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Japan) 192186-292

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (Int’l - detachable cord) 192186-B31

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A IEC309 Plug) 192186-B32

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A CEE 7/7 SCHUKO

Plug) 192186-B33

Compaq UPS R3000 XR (3000VA, 2700 Watt), High Voltage (16A BS-546 Plug) 192186-AR1

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (NA) 347207-001

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Int'l) 347207-B31

Rack-Mountable UPS R6000 (6000VA, 6000 Watt) High Voltage (Japan) 347207-291

Compaq UPS R12000 XR, N+x (12KVA, 12KW) High Voltage (WW) 207552-B22

NOTE: UPS R6000 has a hardwired input; and the UPS R12000 XR has a hardwired

input and output connection.

UPS Options SNMP Serial Port Card

NOTE: Supports tower and rack UPS XR models ranging from 1000 – 3000VA. 192189-B21

Six Port Card

NOTE: Supports tower and rack UPS XR models ranging from 1000 – 3000VA. 192185-B21

High to Low Voltage Transformer (250VA)

NOTE: Supports R6000 UPS series onl

. 2.5 amps

125 Volts max output across two

NEMA 5-15.

388643-B21

Extended Runtime Module, R1500 XR

NOTE: 2U each, two ERM maximum. 218971-B21

Extended Runtime Module, R3000 XR

NOTE: 2U each, one ERM maximum. 192188-B21

Extended Runtime Module, R6000

NOTE: 3U each, two ERM maximum. 347224-B21

Extended Runtime Module, R12000 XR, 4U

NOTE: 4U each, two ERM maximum. 217800-B21

SNMP-EN Adapter

NOTE: Supports R6000 UPS series only. 347225-B21

Multi-Server UPS Card

NOTE: Supports R6000 UPS series only. 123508-B21

Scalable UPS Card

NOTE: Supports R6000 UPS series only. 123509-B21

Cable, 16A, IEC320-C20 to IEC320-C19

NOTE: Power cord (295633-B21) connects ProLiant servers to PDUs or UPSs with

IEC320-C19 output connections.

295633-B21

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 24

Options

UPS Options (continued) Cable, 10A, IEC320-C14 to IEC320-C19

NOTE: Power cord (291034-B21) connects ProLiant DL580 G2 servers to PDUs or

UPSs with IEC320-C13 output connections. This power cord has been

specifically designed to work with the ProLiant DL580 G2 server. Please NOTE

the following important precautions when deploying this power cord:

• Use the cord only in conjunction with the ProLiant DL580 G2 server.

• Use the cord to connect the ProLiant DL580 G2 server only to PDUs or

UPSs with IEC320-C13 output connections.

• Do not use the cord with any other ProLiant or third party server.

• Do not use the cord with any other office equipment or computers.

• Do not use the cord as an extension cord.

• Do not plug the cord into a wall outlet.

Failure to adhere to these precautions may invalidate the server warranty.

291034-B21

Compaq Power Distribution Unit-16A (200 to 240V) (WW)

NOTE: The 16A PDU also connects to the high volt models of the UPS R3000 XR

(need cable P/N 340653-001 for North America) and the UPS R6000 models.

Cable P/N 340653-001 required if connecting to UPS R3000 XR (192186-002

NA-High Volt model only).

207590-B21

Rack-Mountable PDUs – 1U/0U

(Up to 12 outlets)

NOTE: 0U mounting brackets shipped with

the unit (separate option kit for 1U

mounting). Compaq Power Distribution Unit-24A (200 to 240V) (NA, Japan, LA)

NOTE: This PDU may also be used to connect to the low volt UPS R3000 XR model. 207590-D72

Compaq Power Distribution Unit-32A (200 to 240V) (Int’l) 207590-B31

Compaq Power Distribution Unit-40A (200 to 240V) (WW)

NOTE: Hardwire input required. 207590-B23

Compaq Power Distribution Unit-24A (100 to 127V) (NA, Japan, LA)

NOTE: L5-30 input. 207590-D71

1U PDU Mounting Brackets Kit 215852-B21

NOTE: Please see the following Power Distribution Unit (Zero-U/1U PDU) QuickSpecs for additional options

including cables:

http://www5.compaq.com/products/quickspecs/10838_na/10838_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/10838_div/10838_div.HTML (Division/World Wide)

Modular PDUs 1U/0U

(Up to 32 outlets)

NOTE: 1U/0U mounting brackets shipped

with the unit (optimized for 10000

and 9000 series racks)

Modular Power Distribution Units (mPDU), High Volt Model, 16A (200-240 VAC) (WW)

NOTE: This model has a detachable input power cord and is adaptable to country

specific requirements. The 16A PDU also connects to the high volt models of

the UPS R3000 XR and R6000 models. Cable P/N 340653-001 required if

connecting to UPS R3000 XR (192186-002 NA -High Volt model only).

252663-B24

Modular Power Distribution Units (mPDU), Low Volt Model, 24A (100-127 VAC)

(NA, Japan)

NOTE: This model has a detachable input power cord and is adaptable to country

specific requirements. The 16A PDU also connects to the high volt models of

the UPS R3000 XR and R6000 models. Cable P/N 340653-001 required if

connecting to UPS R3000 XR (192186-002 NA -High Volt model only).

252663-D71

Modular Power Distribution Units (mPDU), High Volt Model, 24A (200-240 VAC)

(NA, Japan)

NOTE: L6-30 input.

252663-D72

Modular Power Distribution Units (mPDU), High Volt Model, 32A (200-240 VAC) (Int'l) 252663-B31

Modular Power Distribution Units (mPDU), High Volt Model, 40A (200-240 VAC) (WW)

NOTE: The 40A model has a hardwired input. 252663-B21

NOTE: Please see the following Modular Power Distribution Unit (Zero-U/1U Modular PDUs) QuickSpecs for

additional options including cables:

http://www5.compaq.com/products/quickspecs/11041_na/11041_na.HTML (North America)

http://www5.compaq.com/products/quickspecs/11041_div/11041_div.HTML (Division/World Wide)

Rack Builder Rack Builder for configuration assistance at

http://www.compaq.com/rackbuilder/.

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 25

Options

Third Party Rack Kit DL580 G2 rack model support:

The DL580 G2 Third Party rack kit 287528-B21 provides support for any rack, square

hole or round hole, (including HP Rack System /E and HP Systems), with an adjustment

range from 23 1/2″– 34″ deep.

NOTE: The Third party rack kit is required for round hole racks or for square hole racks

that do not conform to the adjustment range of the standard rail that ships with

the server.

287528-B21

Telco Rack Support DL580 G2 rack model support:

Support for all 2-post Telco racks requires the Third Party option kit 287528-B21, plus

an additional option kit from Rack Solutions. The Rack Solutions brackets can be

purchased at:

http://www.racksolutions.com/hp

287528-B21

HP Rack 10842 (42U, 800mm wide) – Pallet 257415-B21

HP Rack 10000 Series

(Graphite Metallic) HP Rack 10842 (42U, 800mm wide) – Shock Pallet 257415-B22

HP Rack 10647 (47U) – Pallet 245160-B21

HP Rack 10647 (47U) – Shock Pallet 245160-B23

HP Rack 10642 (42U) – Pallet 245161-B21

HP Rack 10642 (42U) – Shock Pallet 245161-B22

HP Rack 10642 (42U) – Crated 245161-B23

HP Rack 10636 (36U) – Pallet 245162-B21

HP Rack 10636 (36U) - Shock Pallet 245162-B22

HP Rack 10636 (36U) – Crated 245162-B23

HP Rack 10622 (22U) – Pallet 245163-B21

HP Rack 10622 (22U) – Shock Pallet 245163-B22

HP Rack 10622 (22U) – Crated 245163-B23

NOTE: -B21 (pallet) used to ship empty racks shipped on a truck

-B22

(

shock pallet

)

used to ship racks with equipment installed

(

custom s

stems, VARs and Channels

)

-B23 (crated) used for air shipments of empty racks

NOTE: Please see the Rack 10000 QuickSpecs for Technical Specifications such as height, width, depth, weight,

and color:

http://www5.compaq.com/products/quickspecs/10995_div/10995_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10995_na/10995_na.HTML (North America)

NOTE: For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/racks

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 26

Options

Compaq Rack 9142 (42U) – Pallet 120663-B21

Compaq Rack 9000 Series (opal) Compaq Rack 9142 (42U) – Shock Pallet 120663-B22

Compaq Rack 9142 (42U) – Crated 120663-B23

Compaq Rack 9136 (36U) – Pallet 120664-B21

Compaq Rack 9136 (36U) – Shock Pallet 120664-B22

Compaq Rack 9136 (36U) – Crated 120664-B23

Compaq Rack 9122 (22U) – Pallet 120665-B21

Compaq Rack 9122 (22U) – Shock Pallet 120665-B22

Compaq Rack 9122 (22U) – Crated 120665-B23

Compaq Rack 9842 (800mm wide, 42U) – Pallet 222192-B21

NOTE: -B21 (pallet) used to ship empty racks shipped on a truck

-B22

(

shock pallet

)

used to ship racks with equipment installed

(

custom s

stems, VARs and Channels

)

-B23 (crated) used for air shipments of empty racks

NOTE: Please see the Rack 9000 QuickSpecs for Technical Specifications such as height, width, depth, weight,

and color:

http://www5.compaq.com/products/quickspecs/10366_div/10366_div.HTML (Division/World Wide)

http://www5.compaq.com/products/quickspecs/10366_na/10366_na.HTML (North America)

NOTE: For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/racks

Rack Blanking Panels – Graphite (Multi)

NOTE: Contains one each of 1U, 2U, 3U, and 4U panel. 253214-B26Rack Options for HP Rack 10000

Series

Rack Blanking Panels – Graphite (1U)

NOTE: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (1U). 253214-B21

Rack Blanking Panels – Graphite (2U)

NOTE: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (2U). 253214-B22

Rack Blanking Panels – Graphite (3U)

NOTE: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (3U). 253214-B23

Rack Blanking Panels – Graphite (4U)

NOTE: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (4U). 253214-B24

Rack Blanking Panels – Graphite (5U)

NOTE: The Rack Blanking Panels (PN 253214-B21) contains 10 each of (5U). 253214-B25

800mm Wide Stabilizer Kit (Graphite)

NOTE: Supported by the Rack 10842 cabinet only. 255488-B21

600mm Stabilizer Kit – Graphite 246107-B21

Baying Kit for Rack 10000 series (Carbon) 248929-B21

42U Side Panel – Graphite Metallic 246099-B21

110V Fan Kit (Graphite)

NOTE: Roof Mount Includes power cord with IEC320-C13 to Nema 5-15P. 257413-B21

220V Fan Kit (Graphite)

NOTE: Roof Mount Includes power cord with IEC320-C13 to Nema 6-15P. 257414-B21

36U Side Panel - Graphite Metallic (for 10636 Rack only) 246102-B21

47U Side Panel - Graphite Metallic (for 10647 Rack only) 255486-B21

9000/10000 Series 42U Offset Baying Kit

NOTE: This kit can be used to connect 9000 and 10000 series racks of the same U

hei

ht to

ether. Kit contents include hardware for connectin

racks and a panel

to cover the 100mm gap at the rear of the two racks.

248931-B21

NOTE: For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/rackoptions

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 27

Options

Baying/Coupling Kit 120669-B21

Rack Options for Compaq Rack

9000 Series 42U Side Panel

NOTE: The 42U Side Panel (PN 120670-B21) supports the Compaq Rack 9142 and

Compaq Rack 9842.

120670-B21

36U Side Panel

NOTE: The 36U Side Panel (PN 120671-B21) supports the Compaq Rack 9136. 120671-B21

9142 Extension Kit

NOTE: The 9142 Extension Kit (PN 120679-B21) supports the Compaq Rack 9142

only.

120679-B21

9142 Split Rear Door

NOTE: The 9142 Split Rear Door (PN 254045-B21) supports the 600 mm wide, 42U

9000 series rack.

254045-B21

9136 Extension Kit 218216-B21

9142 Short Rear Door

NOTE: The 9142 Short Rear Door (PN 218217-B21) supports the Compaq Rack 9142

only.

218217-B21

9136 Short Rear Door 218218-B21

9122 Short Rear Door (Opal) 218219-B21

800mm Stabilizer Option Kit (Opal)

NOTE: The 800mm Stabilizer Kit (PN 234493-B21) supports the Rack 9842 only. 234493-B21

600mm Stabilizer Option Kit 120673-B21

Rack Blanking Panel (Multi)

NOTE: Kit includes four panels in 1U, 2U, 4U, and 8U. 169940-B21

Rack Blanking Panels (1U)

NOTE: The Rack Blanking Panels (PN 189453-B21) contains 10 each of (1U). 189453-B21

Rack Blanking Panels (2U)

NOTE: The Rack Blanking Panels (PN 189453-B22) contains 10 each of (2U). 189453-B22

Rack Blanking Panels (3U)

NOTE: The Rack Blanking Panels (PN 189453-B23) contains 10 each of (3U). 189453-B23

Rack Blanking Panels (4U)

NOTE: The Rack Blanking Panels (PN 189453-B24) contains 10 each of (4U). 189453-B24

Rack Blanking Panels (5U)

NOTE: The Rack Blanking Panels (PN 189453-B25) contains 10 each of (5U). 189453-B25

9000/10000 Series 42U Offset Baying Kit

NOTE: This kit can be used to connect 9000 and 10000 series racks of the same U

hei

ht to

ether. Kit contents include hardware for connectin

racks and a panel

to cover the 100mm gap at the rear of the two racks.

248931-B21

NOTE: For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/rackoptions

High Air Flow Rack Door Insert for 7122 157847-B21

Rack Options for Compaq Rack

7000 Series High Air Flow Rack Door Insert for 7142 327281-B21

High Air Flow Rack Door Insert for 7142 (six pack) 327281-B22

Compaq Networking Cable Management Kit 292407-B21

Compaq Rack Extension Kit for 7142 154392-B21

NOTE: For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/rackoptions

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 28

Options

Ballast Option Kit 120672-B21

Rack Options for Rack 7000, 9000

and 100000 Series Rack Rail Adapter Kit (25-inch depth) 120675-B21

Cable Management D-Rings Kit 168233-B21

Monitor/Utility Shelf - Graphite 253449-B21

Depth Adjustable Fixed Rail 332558-B21

Input Device Adjustable Rails

NOTE: Input Device Adjustable Rails (287139-B21) are for use ONLY with the

TFT5110R, TFT5600RKM and integrated keyboard/drawer which is used in

mounting into third party racks.

287139-B21

Input Device Telco Rails

NOTE: Input Device Telco Rails (287138-B21) are for use ONLY with the TFT5110R,

TFT5600RKM and integrated keyboard/drawer which is used in mounting into

third party racks.

287138-B21

Console Management Controller (CMC) Option Kit 203039-B21

Console Management Controller (CMC) Sensors Option Kit 203039-B22

Console Management Controller (CMC) Locking Option Kit 203039-B23

Console Management Controller (CMC) Smoke Sensors Option Kit 203039-B24

Server Console Switch 1 x 2 port (100 to 230 VAC) 120206-001

Server Console Switch 1 x 2 port (100 to 230 VAC) (Int’l) 120206-B31

Server Console Switch 1 x 2 port (100 to 230 VAC) (Japan) 120206-291

Server Console Switch 1 x 4 port (100 to 230 VAC) 400336-001

Server Console Switch 1 x 4 port (100 to 230 VAC) (Int’l) 400336-B31

Server Console Switch 1 x 4 port (100 to 230 VAC) (Japan) 400336-291

Server Console Switch 1 x 8 port (100 to 230 VAC) 400337-001

Server Console Switch 1 x 8 port (100 to 230 VAC) (Int’l) 400337-B31

Server Console Switch 1 x 8 port (100 to 230 VAC) (Japan) 400337-291

Server Console Switch 1 x 2 port (100 to 230 VAC) 400338-001

Server Console Switch 1 x 2 port (100 to 230 VAC) (Int’l) 400338-B31

Server Console Switch 1 x 2 port (100 to 230 VAC) (Japan) 400338-291

Server Console Switch 2 x 8 port (48 VDC) 400542-B21

KVM 9 PIN Adapter (4 Pack) 149361-B21

CPU to Server Console Cable, 12′110936-B21

CPU to Server Console Cable, 20′110936-B22

CPU to Server Console Cable, 40′110936-B23

CPU to Server Console Cable, 3′110936-B24

CPU to Server Console Cable, 7′110936-B25

CPU to Server Console Cable (Plenum Rated) 20′149363-B21

CPU to Server Console Cable (Plenum Rated) 40′149364-B21

Switch Box Connector Kit (115 V) 144007-001

Switch Box Connector Kit (230 V) 144007-002

Switch Box Connector Kit (high voltage) (Int’l) 144007-B33

TFT5600 RKM (Rack-mount Keyboard Monitor) 221546-xx1

Country Code Key (for TFT5600 RKM Rack Keyboard Monitor (PN 221546-xx1))

XX = 001 US XX = 091 Norway

XX = 031 UK XX = 101 Sweden/Finland

XX = 041 Germany XX = 111 Switzerland

XX = 051 France XX = 131 Portugal

XX = 061 Italy XX = 181 Belgium

XX = 071 Spain XX = 291 Japan

XX = 081 Denmark XX = B31 International

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 29

Options

Keyboard with Hot Keys and Trackball 158649-xx1

Rack Options for Rack 7000, 9000

and 10000 Series (continued) Country Code Key (for 1U Rack Keyboard & Drawer (PN 257054-xxx))

XX = 001 US XX = 091 Norway

XX = 031 UK XX = 101 Sweden/Finland

XX = 041 Germany XX = 111 Switzerland

XX = 051 France XX = 131 Portugal

XX = 061 Italy XX = 181 Belgium

XX = 071 Spain XX = 291 Japan

XX = 081 Denmark XX = B31 International

NOTE: For additional information regarding Rack Cabinets, please see the following URL:

http://www.compaq.com/rackoptions

Hardware Services 4-Hour On-site Service

Service and Support Offerings

(CarePaq Services) 4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for U.S.) 401783-002

4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for

Canada) 401783-122

4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for

EMEA) 324418-002

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for U.S.) 401782-002

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for

Canada) 401782-122

4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years (6-3 Part Number for

EMEA) 376911-022

4-Hour On-site Service, 5-Day x 9-Hour Coverage, 3 Years (6-3 Part Number for U.S.) 401783-002

Installation & Start-up Services

Hardware Installation (2-5-2 Part Number for Canada) FP-MIINS-IN

Hardware Installation (6-3 Part Number for US) 401793-002

Hardware Installation (6-3 Part Number for EMEA) Quote

Pre-installation planning; unpack equipment, install most current Compaq HW options

internal to server at same time of server installation; assemble & test; basic user

information provided; Install & configure basic functionality of Win NT Operating System

plus up to I day start-up activity, configure print & network access services, and

orientation (2-5-2 Part Number for Canada.)

FM-MSTEC-03

Pre-installation planning; unpack equipment, install most current Compaq HW options

internal to server at same time of server installation; assemble & test; basic user

information provided; Install & configure basic functionality of Win NT Operating System

plus up to I day start-up activity, configure print & network access services, and

orientation (6-3 Part Number for U.S.)

240015-002

Pre-installation planning; unpack equipment, install most current Compaq HW options

internal to server at same time of server installation; assemble & test; basic user

information provided; Install & configure basic functionality of Novell NetWare Operating

System plus up to I day start-up activity, configure print & network access services, and

orientation (2-5-2 Part Number for Canada)

FM-NSTEC-03

Pre-installation planning; unpack equipment, install most current Compaq HW options

internal to server at same time of server installation; assemble & test; basic user

information provided; Install & configure basic functionality of Novell NetWare Operating

System plus up to I day start-up activity, configure print & network access services, and

orientation (6-3 Part Number for U.S.)

240010-002

Server Installation and Set-Up (Installation of the server, installation of the appropriate

service tools, check to ensure device SW and firmware is loaded and installation of the

operating system software (6-3 Part Number for EMEA.)

204564-022

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 30

Options

CarePaq Priority Services for ProLiant Servers – Priority Level

Service and Support Offerings

(CarePaq Services) (continued) 9x5 4-hour H/W, 9x5 2-hour O/S (NT & NetWare), 3 Years (6-3 Part Number for EMEA) 179836-022

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support

2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced

Server Operating System, Next Available Specialist (2-5-2 Part Number for Canada)

FM-M01E3-36

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support

2-hr response for Windows NT, Windows 2000, Professional, Server or Advanced

Server Operating System, Next Available Specialist (6-3 Part Number for U.S.)

239936-002

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support

2-hr response for Novell NetWare Operating System, Next Available Specialist

(2-5-2 Part Number for Canada)

FM-N01E3-36

9 x 5 HW, 4-hr response, Next Available HW engineer; 9 x 5 Bronze Software Support

2-hr response for Novell NetWare Operating System, Next Available Specialist

(6-3 Part Number for U.S.)

239976-002

CarePaq Priority Services for ProLiant Servers – Priority 24 Level

24x7 4-hour H/W, 24x7 2-hour O/S (NT & NetWare), 3 years

(6-3 Part Number for EMEA) 179841-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr

response for Windows NT, Windows 2000, Professional, Server or Advanced Server

Operating System, Next Available Specialist (6-3 Part Number for U.S.)

239938-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Bronze Software Support, 2-hr

response for Novell NetWare Operating System, Next Available Specialist

(6-3 Part Number for U.S.)

239978-002

CarePaq Priority Services for ProLiant Servers - Priority Silver

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr

response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for

Windows NT, Windows 2000, Professional, Server or Advanced Server Operating

System, Technical Account Manager, Technical Newsletter, SW activity review (2-5-2

Part Number for Canada)

FM-M04E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr

response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for

Windows NT, Windows 2000, Professional, Server or Advanced Server Operating

System Operating System, Technical Account Manager, Technical Newsletter, SW

activity review (6-3 Part Number for U.S.)

239940-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System

Support for Windows NT, Windows 2000, Professional, Server or Advanced Server

Operating System (6-3 Part Number for U.S.)

239942-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System

Support for Windows NT, Windows 2000, Professional, Server or Advanced Server

Operating System (2-5-2 Part Number for Canada)

FM-M24E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr

response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Novell

NetWare Operating System, Technical Account Manager, Technical Newsletter, SW

activity review (2-5-2 Part Number for Canada)

FM-N04E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Software Support, 1-hr

response, Monday – Friday, 8AM – 5PM local time, 2-hr response after hours for Novell

NetWare Operating System, Technical Account Manager, Technical Newsletter, SW

activity review (6-3 Part Number for U.S.)

239980-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System

Support for Novell NetWare Operating System (2-5-2 Part Number for Canada.) FM-N24E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Silver Subsequent System

Support for Novell NetWare Operating System (6-3 Part Number for U.S.) 239982-002

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 31

Options

CarePaq Priority Services for ProLiant Servers – Priority Gold

Service and Support Offerings

(CarePaq Services) (continued) 24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Windows NT, Windows 2000,

Professional, Server or Advanced Server Operating System, Technical Account

Manager, Technical Newsletter, SW activity review, proactive revision management,

Upgrade impact planning, 2 System Healthcheck per year

(2-5-2 Part Number for Canada)

FM-M08E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Windows NT, Windows 2000,

Professional, Server or Advanced Server Operating System, Technical Account

Manager, Technical Newsletter, SW activity review, proactive revision management,

Upgrade impact planning, 2 System Healthcheck per year (6-3 Part Number for U.S.)

239944-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Windows NT, Windows 2000, Professional, Server or Advanced Server

Operating System (2-5-2 Part Number for Canada)

FM-M28E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Windows NT, Windows 2000, Professional, Server or Advanced Server

Operating System (6-3 Part Number for U.S.)

239946-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating

System, Technical Account Manager, Technical Newsletter, SW activity review,

Upgrade impact planning (2-5-2 Part Number for Canada)

FM-N08E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating

System, Technical Account Manager, Technical Newsletter, SW activity review,

Upgrade impact planning (6-3 Part Number for U.S.)

239984-002

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Novell NetWare Operating System (2-5-2 Part Number for Canada) FM-N28E3-36

24 x 7 HW, 4-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Novell NetWare Operating System (6-3 Part Number for U.S.) 239986-002

CarePaq Priority Services for ProLiant Servers – Priority Gold Executive

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Windows NT, Windows 2000,

Professional, Server or Advanced Server Operating System, Technical Account

Manager, Technical Newsletter, SW activity review, proactive revision management,

Upgrade impact planning, 2 System Healthcheck per year

(2-5-2 Part Number for Canada)

FM-M09E3-36

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Windows NT, Windows 2000,

Professional, Server or Advanced Server Operating System, Technical Account

Manager, Technical Newsletter, SW activity review, proactive revision management,

Upgrade impact planning, 2 System Healthcheck per year (6-3 Part Number for U.S.)

239948-002

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Windows NT, Windows 2000, Professional, Server or Advanced Server

Operating System (2-5-2 Part Number for Canada)

FM-M29E3-36

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Windows NT, Windows 2000, Professional, Server or Advanced Server

Operating System (6-3 Part Number for U.S.)

239950-002

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating

System, Technical Account Manager, Technical Newsletter, SW activity review,

Upgrade impact planning (2-5-2 Part Number for Canada.)

FM-N09E3-36

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Software Support, 30

minute response (critical), 1-hr response (non-critical), for Novell NetWare Operating

System, Technical Account Manager, Technical Newsletter, SW activity review,

Upgrade impact planning (6-3 Part Number for U.S.)

239988-002

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Novell NetWare Operating System (2-5-2 Part Number for Canada) FM-N29E3-36

24 x 7 HW, 2-hr response, Named HW engineer; 24 x 7 Gold Subsequent System

Support for Novell NetWare Operating System (6-3 Part Number for U.S.) 239990-002

NOTE: For more information, customer/resellers can contact http://www.compaq.com/services.

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 32

Memory

HP ProLiant DL580 G2 1.60 GHz 2P Models and 1.40 GHz 2P Models

TANDARD

EMORY

2048 MB 200MHz Double Data Rate (DDR) SDRAM (PC1600 Registered SDRAM Memory with Advanced ECC functionality)

TANDARD

EMORY

LUS

PTIONAL

EMORY AND

PTIONAL

EMORY BOARD

Up to 26,624-MB memory is available with the optional installation of PC1600 Registered ECC SDRAM Memory kits and a second, optional

memory board.

TANDARD

EMORY

EPLACED WITH

PTIONAL

EMORY AND

PTIONAL MEMORY BOARD

Up to 32,768-MB of memory is available with the removal of the standard 2048-MB of memory, the optional installation of PC1600 Registered

ECC SDRAM Memory kits, and a second, optional memory board.

NOTE: Memory must be added in banks of four DIMMS. This chart does not represent all possible memory configurations.

Memory Standard Memory Board (Slots) Optional 2

Memory Board (Slots)

1234567812345678

Standard 2048MB

512 MB 512 MB 512 MB 512 MB Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty

tional 26,624 MB

512 MB 512 MB 512 MB 512 MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB

Maximum 32,768 MB

048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB

The following memory options are available from HP:

 1024-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 256 MB) 202170-B21

 2048-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 512 MB) 202171-B21

 4096-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 1024 MB) 202172-B21

 8192-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 2048 MB) 202173-B21

Expand your memory capacity with the DL580 G2 Hot Plug Memory Expansion Board. Provides 8 additional DIMM slots for powering memory-

intensive applications.

 Hot Plug Memory Expansion Board 203320-B21

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 33

Memory

HP ProLiant DL580 G2 1.40 GHz 1P Model

TANDARD

EMORY

1024 MB 200MHz Double Data Rate (DDR) SDRAM (PC1600 Registered SDRAM Memory with Advanced ECC functionality

TANDARD

EMORY

LUS

PTIONAL

EMORY AND

PTIONAL MEMORY BOARD

Up to 25,600-MB memory is available with the optional installation of PC1600 Registered ECC SDRAM Memory kits and a second, optional memory board.

TANDARD

EMORY

EPLACED WITH

PTIONAL

EMORY AND OPTIONAL MEMORY BOARD

Up to 32,768-MB of memory is available with the removal of the standard 1024-MB of memory, the optional installation PC1600 Registered ECC SDRAM

Memory kits, and a second, optional memory board.

NOTE: Memory must be added in banks of four DIMMS. This chart does not represent all possible memory configurations.

Memory Standard Memory Board (Slots) Optional 2

Memory Board (Slots)

1234567812345678

Standard 1024MB

256 MB 256 MB 256 MB 256 MB Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty Empty

tional 25,600 MB

256 MB 256 MB 256 MB 256 MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB

Maximum 32,768 MB

048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB 2048MB

The following memory options are available from HP:

 1024-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 256 MB) 202170-B21

 2048-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 512 MB) 202171-B21

 4096-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 1024 MB) 202172-B21

 8192-MB PC1600 Registered ECC SDRAM Memory Kit (4 x 2048 MB) 202173-B21

Expand your memory capacity with the DL580 G2 Hot Plug Memory Expansion Board. Provides 8 additional DIMM slots for powering memory-

intensive applications.

 Hot Plug Memory Expansion Board 203320-B21

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 34

Storage

A Diskette Drive eject button

B Ejectable: 24x IDE CD-ROM (Slimline)

C Ejectable: 1.44-MB Diskette Drive (Slimline)

DCD-ROM Drive eject button

E 800-Watt (low line or high line) Redundant Hot Plug Power Supply

F 800-Watt (low line or high line) Primary Hot Plug Power Supply

0-3 Wide Ultra3 Drive Cage (Duplex or Simplex configurable). Duplex is standard

shipping configuration

DRIVE SUPPORT

Quantity

Supported Position

Supported Controller

Ejectable Slim Line Drives

1.44-MB slim-line Diskette Drive Up to 1 C Integrated

IDE slim-line CD-ROM Drive Up to 1 B Integrated IDE

Slimline DVD-ROM Drive (8X/24X) Option

Kit Up to 1 B or C Integrated IDE

Hard Drives

Ultra320 Hot Pluggable Drives

1-inch

146.8-GB 10,000 rpm

72.8-GB 10,000 rpm

36.4-GB 10,000 rpm

72.8-GB 15,000 rpm

36.4-GB 15,000 rpm

18.2-GB 15,000 rpm

Up to 4 0-3 Smart Array 5i Controller (integrated on system board)

Smart Array 532 Controller

Smart Array 5302/128 Controller

Smart Array 5304/256 Controller

Smart Array 5312 Controller

Smart Array 641 Controller

Smart Array 642 Controller

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

NOTE: All U320 Universal Hard Drives are backward compatible to U2 or U3 speeds. U320 drives require an optional U320 Smart Array Controller or U320

SCSI HBA to support U320 transfer rates.

External Storage

StorageWorks Enclosure 4300 Family

(supports Ultra2/Ultra3 drives only) Up to 20

(using Smart Array

5300 Controller)

External Smart Array 532 Controller

Smart Array 5302/128 Controller

Smart Array 5304/256 Controller

Smart Array 5312 Controller

Smart Array 642 Controller

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

MSA 1000 Please see the MSA

1000 QuickSpecs

below to determine

configuration

requirements

External Please see the MSA 1000 QuickSpecs (URL below) for the latest list

of supported HBAs

MSA 1000: http://www5.compaq.com/products/quickspecs/11033_div/11033_div.HTML

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 35

Storage

DRIVE SUPPORT

(continued)

Maximum Storage Capacity – (External StorageWorks Enclosure Attached)

Internal 587.2 GB (4 x 146.8-GB Ultra320 SCSI 1″ Drives)

External 41.104 TB (20 x (14 x 146.8-GB 1″ Ultra320 SCSI Drives))

Total 41.691 TB

Quantity

Supported Position

Supported Controller

Tape Drives

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Drives listed below, please see the following:

http://www5.compaq.com/products/quickspecs/North_America/10233.html (North America)

http://www5.compaq.com/products/quickspecs/Division/10233.html (Division/World Wide)

NOTE: For an up-to-date listing of the latest O/S Support details for each of the Tape Storage Systems listed below, please see the following:

http://www5.compaq.com/products/quickspecs/North_America/10809.html (North America)

http://www5.compaq.com/products/quickspecs/Division/10809.html (Division/World Wide)

Internal AIT 100-GB, Hot Plug

Internal AIT 50-GB, Hot Plug

Internal AIT 35-GB, LVD, Hot Plug

Internal 20/40-GB DAT, Hot Plug

Up to 1 0 & 1 or 2 & 3 Smart Array 5i Controller (integrated on system board)

Smart Array 532

*NOTE: The Smart Array 532 Controller does not support the AIT

100-GB Hot Plug Tape Drive.

Smart Array 5302/128 Controller

Smart Array 5304/256 Controller

Smart Array 5312 Controller

Smart Array 641 Controller

Smart Array 642 Controller

64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

External AIT 50-GB Tape Drive

External AIT 35-GB, LVD Tape Drive Up to 2 External 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

SDLT 110/220-GB, External

SDLT 160/320-GB, External Up to 2 External 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

DLT VS 40/80-GB, External

External 40/80-GB DLT Enhanced

External 20/40-GB DLT

Up to 3 External 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-Bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

HP StorageWorks AIT 35 GB Autoloader Up to 1 (for a single

HBA)

Up to 2 (for a dual

HBA)

External 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

64-bit/66-MHz Single Channel Wide Ultra3 SCSI Adapter

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

SSL2020 AIT Mini-Library 2 drives per SCSI

channel External 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

SAN Access Module for Smart Array 5302 Controller

64-Bit/133-MHz Dual Channel Ultra320 SCSI Adapter

MSL5026DLX (40/80-GB DLT-based) and

MSL5026SL (SDLT-based) Library 2 drives per SCSI

channel External 64-Bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

ESL9198SL

ESL9326SL

ESL9595SL

Please see the ESL

Library QuickSpecs

below to determine

configuration

requirements

External 64-bit/66-MHz Dual Channel Wide Ultra3 SCSI Adapter

ESL9198SL: http://www5.compaq.com/products/quickspecs/10867_div/10867_div.HTML

ESL9326SL: http://www5.compaq.com/products/quickspecs/10868_div/10868_div.HTML

ESL9595SL: http://www5.compaq.com/products/quickspecs/11332_div/11332_div.HTML

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 36

Power Specifications

POWER SPECIFICATIONS

Part Number 278535-001

Spare Kit 192201-001

Operational Input Voltage Range (V rms) 90 to 264

Frequency Range (Nominal) (Hz) 47 to 63 (50/60)

Nominal Input Voltage (Vrms) 100 115 208 220 230 240

Max Rated Output Wattage Rating 800 800 800 800 800 800

Nominal Input Current (A rms) 11.7 9.9 5.2 4.9 4.7 4.5

Max Rated Input Wattage Rating (Watts) 1143 1111 1067 1067 1067 1053

Max. Rated VA (Volt-Amp) 1166 1134 1088 1088 1088 1074

Efficiency (%) 70 72 75 75 75 76

Power Factor 0.98 0.98 0.98 0.98 0.98 0.98

Leakage Current (mA) 0.43 0.50 .90 .96 1.00 1.04

Maximum Inrush Current (A peak) 25 25 25 25 25 25

Maximum Inrush Current duration (mS) 20 20 20 20 20 20

SYSTEM SPECIFICATIONS

DL580 G2 Fully Configured

Up to 4 Processors, 16 Memory Slots, 4 Hard Drives, 6 PCI Slots, and 2 Hot Plug Power Supplies

Nominal Input Voltage (Vrms) 100 115 208 220 230 240

Fully Loaded System Input Wattage (W) 954 928 890 890 890 879

Fully Loaded System Input AMPs (A rms) 10 8.5 4.4 4.1 4.0 3.7

Fully Loaded System Thermal (BTU-Hr) 3253 3163 3063 3063 3063 2996

Fully Loaded System VA (Volt-Amp) 1004 976 909 909 909 897

System Leakage with all power supplies loaded (mA) .87 1.00 1.81 1.91 2.00 2.09

System Inrush Current with all power supplies

loaded (A) 50 50 50 50 50 50

Power cord requirements Nema 5-15P to IEC320-C19 Option no./Spare no: 235603-001/237457-001

PDU Jumper Cord IEC320-C19 to

IEC320-C20 Option no./Spare no: 295633-B21/295508-001

PDU Jumper Cord IEC320-C14 to

IEC320-C19 Option no./Spare no: 291034-B21/ 292241-001

NOTES:

ActiveAnswers Power Calculation

Power calculator is LIVE on ActiveAnswers website. This is an external link.

Follow this link:

http://activeanswers.HP.com/aaconfiguratorcode/configurationUi.asp?HTMLFilename=Mainselections&UiLocalization=

UnitedStates&DisplayCountry=United%20States

To drill down to calculators:

- Click on: “ProLiant Servers”

- Click on the Server of interest. Example: DL580 G2

- Click on: “Power Calculator” link (You may need to scroll down to see it.)

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 37

Technical Specifications

Chassis Footprint (HxWxD) 6.94 x 19 x 26.5 in/17.6 x 48.3 x 67.3 cm

System Unit Rack Weight 66 lb/29.9 kg

No hard drives installed,

one power supply

Input Requirements Rated Input Voltage 100 to 120 VAC/200 to 240 VAC

Rated Input Frequency 50 to 60 Hz

Input Power 1135W @ 110 VAC/1125W @ 220 VAC

Rated Input Current 12A (100 VAC), 9.8A (120 VAC), 4.9A (220

VAC)

Max BTU Rating 4000 BTU

Rated Steady-State Power 800W/800W (lowline/highline)Power Supply Output Power

(per power supply) Maximum Peak Power 800W/800W (lowline/highline)

Temperature Range Operating 50° to 95° F/10° to 35° C

Non-operating -20° to 140° F/-29° to 60° C

Shipping -22° to 122° F/-30° to 50° C

Operating 10% to 70%

Relative Humidity

(non-condensing) Non-operating 5% to 95%

Maximum Wet Bulb

Temperature 101.7°F/38.7°C

Acoustic Noise NOTE: Listed are the declared A-weighted sound power levels LWAd and the

declared average bystander position sound pressure levels LpAm when

operating in a 23° C ambient environment. Noise emissions were

measured in accordance with ECMA 74 and declared in accordance with

ECMA 109.

Idle

(Steady State)

WAd

(BELS) 7.0

pAm

(dBA) 54

NOTE: These values apply to 4U rack configuration. Configuration tested

included 2 processors, one 10, 000 rpm hard drive, 2 power supplies, 4

memory/IO fans and 3 CPU fans.

Diskette Size 3.5 in

1.44-MB Diskette Drive LED Indicators (front panel) Green

Read/Write Capacity per

Diskette (high/low density) 1.44 MB/720 KB

Drive Supported One

Drive Height One-third

Drive Rotation 300 rpm

Transfer Rate (high/low) 500/250 Kb/s

Bytes/Sector 512

Sectors/Track (high/low) 18/9

Tracks/Side (high/low) 80/80

Access Times Track-to-Track (high/low) 3/6 ms

Average (high/low) 169/94 ms

Settling Time 15 ms

Latency Average 100 ms

Cylinders (high/low) 80/80

Read/Write Heads Two

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 38

Technical Specifications

Applicable Disk CD-ROM (Mode 1 and 2)

CD-DA, CD-XA (Mode 2, Form 1 and 2)

24X Max (or higher) IDE

CD-ROM Drive Slim Line Disk

Photo CD (Single and Multi-session)

Mixed Mode (Audio and Data combined)

Capacity 540 MB (Mode 1, 12 cm)

650 MB (Mode 2, 12 cm)

Diameter 4.7 in, 3.15 in/12 cm, 8 cm

Rotational Speed 4200 rpm maximum

Center Hole 0.6 in/15 mm diameter

Thickness 1.2 mm

Track Pitch 1.6 µm

Block Size Mode 1 2,048

Mode 2 2,340, 2,336, 1,024 bytes

CD-DA 2,352 bytes

CD-XA 2,328 bytes

Interface IDE (ATAPI)

Access Times (typical) Random 100 ms

Full-Stroke 2000 ms

Audio Output Level Line-Out 0.7 VRMS at 47 kOhms

Headphone 0.6 VRMS at 32 kOhms (maximum volume)

Data Transfer Rate Sustained 150 KB/s (single)

Burst 2100 to 3600 KB/s

Cache Buffer 128 KB

Start-up Time (typical) < 7 seconds

Stop Time < 4 seconds

Laser Parameters Type Semiconductor Laser GaA1As

Wave Length 780 ± 25 nm

Divergence Angle 53.5° ± 1.5°

Output Power 0.14 mW

Operating Conditions Temperature 41° to 113°F/5° to 45°C

Humidity 10% to 80%

Dimensions (HxWxD, maximum) 1.69 x 5.75 x 8.19 in/4.29 x 15 x 20.8 cm

Weight 2.66 lb/1.2 kg

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 39

Technical Specifications

Architecture 32-bit PCI-based health and remote management ASIC (Application Specific

Integrated Circuit)

Integrated Lights-Out Standard

(integrated on system board) Processor 32-bit RISC processor core running at 66 MHz

Upgradability Option firmware upgradable via flash ROM.

Video Support Utilizes the host server’s embedded video chip. Supports VGA/SVGA, 640 x 480

(256 to 16.7M colors), 800 x 600 (256 to 16.7M colors), 1024 x 768 (256 to 65K

colors), 1280 x 1024 (256 colors)

Interfaces One Ethernet network connection (10/100 Mb/s)

2-MB Flash ROMMemory 8-MB SDRAM

Microsoft Windows NT 4.0 Server

Windows NT 4.0 Enterprise Edition

Windows 2000 Server

Windows 2000 Advanced Server

Red Hat 7.x,

SuSE 7.0,

Operating System Support

Novell NetWare 5.x, 6.x

Client Browser Support Microsoft Internet Explorer 5.5 or later.

Virtual Text Remote Console

Virtual Power Button Control

Dedicated LAN Connectivity

Automatic IP Configuration via DHCP/DNS/WINS

Industry Standard 128-bit Secure Sockets Layer (SSL) Security

IML and iLO Event Logging

iLO Standard Features

Support for up to 12 user accounts with customizable access privileges

Virtual Graphical Remote Console

iLO Advanced Features

(optional) Virtual Floppy Drive

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 40

Technical Specifications

Data Compatible with all

Smart Array Controllers Yes

Instant Upgrades to other

Smart Array Controllers Yes

Integrated Smart Array 5i Plus

Controller

Consistent Software

Manageability Tools Yes

PCI-X Bus 64-bit, 100 MHz (integrated on system board)

PCI-X Peak Data Transfer Rate800 MB/s

SCSI Protocols Supported Ultra3, Ultra2

SCSI Peak Data Transfer Rate 160 MB/s per channel

NOTE: For ProLiant servers having TWO internal drive bays on separate SCSI ports: SCSI Peak Data Transfer

Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.

Channels 2

NOTE: For ProLiant servers having two internal drive bays on separate SCSI ports: SCSI Peak Data Transfer

Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.

SCSI Ports (external/internal) 0/2

NOTE: For ProLiant servers having two internal drive bays on separate SCSI ports: SCSI Peak Data Transfer

Rate is 320 MB/s total; 160 MB/s per channel and Channels is 2.

Drives Supported (maximum) Maximum = total number of drives

NOTE: Maximum is the total number of internal drives on each specific ProLiant server.

Cache 64 MB Read and/or Write Cache

Battery-Backed Write Cache Yes, with installation of Battery-Backed Write Cache Enabler, up to 64MB

RAID Support 0, 1, 1+0, 5

Logical Drives (maximum) Maximum = total number of drives

Online Configuration Yes

Online Capacity Expansion Yes

Logical Drive Capacity

Extension Yes

Online Stripe Size Migration Yes

Online RAID Level Migration Yes

Online Spare Support Yes

Automatic Data Recovery Yes

Drive Roaming Yes

Redundant Controllers No

QuickSpecs hp ProLiant DL580 Generation 2 (G2)

DA-11372 World Wide — Version 25 — March 20, 2003 41

Technical Specifications

Network Interface 10/100/1000-TCompaq NC7770 PCI-X Gigabit

Server Adapter Compatibility IEEE 802.3 10Base-T

IEEE 802.3ab 1000Base-T

IEEE 802.3u 100Base-TX

Data Transfer Method 64-bit/133MHz PCI-X

Network Transfer Rate 10Base-T (Half-Duplex) 10 Mb/s

10Base-T (Full-Duplex) 20 Mb/s

100Base-TX (Half-Duplex) 100 Mb/s

100Base-TX (Full-Duplex) 200 Mb/s

1000Base-T (Half-Duplex) 1000 Mb/s

1000Base-T (Full-Duplex) 2000 Mb/s

Connector RJ-45

Cable Support 10Base-T Category 3,4 or 5 UTP up to 328 ft/100 m

10/100/1000Base-T Category 5 UTP (2 pair); up to 328 ft/100 m

Hewlett-Packard, the Hewlett-Packard logo, CarePaq, Insight Manager, OpenVMS, ProLiant, StorageWorks, SmartStart and Tru64 are trademarks of

Hewlett-Packard Company in the U.S. and/or other countries. Microsoft and Windows NT are registered trademarks or trademarks of Microsoft Corporation in

the U.S. and/or other countries. Novell and NetWare are registered trademarks or trademarks of Novell, Inc in the U.S. and/or other countries. Intel and Xeon

are registered trademarks or trademarks of the Intel Corporation in the U.S. and/or other countries. Solaris is a registered trademark or trademark of Sun

Microsystems, Inc., in the U.S. and/or other countries. Linux is a registered trademark or trademark of Linus Torvalds in the U.S. and/or other countries. Red

Hat is a registered trademark or trademark of Red Hat, Inc., in the U.S. and/or other countries. SuSE and its logo are registered trademarks or trademarks of

SuSE AG in the U.S. and/or other countries. UNIX is a registered trademark of The Open Group in the U.S. and other countries. All other product names

mentioned herein may be trademarks of their respective companies.

Hewlett-Packard shall not be liable for technical or editorial errors or omissions contained herein. The information is provided "as is" without warranty of any

kind and is subject to change without notice. The warranties for Hewlett-Packard products are set forth in the express limited warranty statements

accompanying such products. Nothing herein should be construed as constituting an additional warranty.

Compaq DL580 DA 11372 Worldwide User Manual To The 8b23407c 2cf0 42df Ae15 4574e266f546

Navigation menu

Versions of this User Manual:

Views

Navigation
