QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 1
Overview
What's New
•
Three-Year Onsite Warranty
(select models)
•
1.2 GHz-M Mobile Intel
Pentium
III processor, 14.1-inch
color TFT SXGA+ or XGA
•
Microsoft Windows XP
Professional or Windows 2000
single install
At A Glance
•
Mobile Intel Pentium
III-M 1.2
GHz processors
•
14.1-inch SXGA+ or 14.1-inch
XGA display
•
Configurations as light as
4.8 lb/2.2 kg weight
•
1.2 in/3.048 cm thin
•
256-MB, and 128-MB SDRAM
(133 MHz), upgradeable to
1024 MB
•
Up to 30-GB SMART hard drives
•
User removable hard drive
•
Mini PCI modem and integrated
NIC
•
Full-size keyboard
•
Microsoft Windows XP
Professional or Microsoft
Windows 2000
•
Includes a Three-Year Carry In,
or Onsite Limited Warranty
(model dependent)—Certain
restrictions and exclusions apply.
Consult the Compaq Customer
Support Center for details.
What’s Special
•
From 4.8 lb/2.2 kg light
•
1.2 in/3.05 cm thin
•
Over four hours of battery life
•
Magnesium display enclosure
•
Common docking solutions
across Armada E and M and
most Evo series notebooks
•
Integrated MultiBay
•
Dual battery support
•
Industry leading PC lifecycle
solutions
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 2
Standard Features
Processor and Panel 1.2 GHz-M Mobile Intel Pentium III with 512-KB L2 cache
One of the following: 14.1-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)
14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
NOTE: Mobile Intel Pentium III-M processors support enhanced Intel SpeedStep™ technology.
Memory Standard 256 MB (133 MHz SDRAM) – 128-MB SODIMM in slot 1576
Maximum
1
024 MB (133 MHz SDRAM) – 512-MB SODIMMs in slots 1 and 2
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend Compaq
branded memory to ensure compatibility.
Communications 10/100 NIC integrated on system board
Type III Mini PCI 56K (V.90) modem
Optional Compaq 56K (V.90) modem plus Intel PRO/100+ NIC with IPSec (Internet Protocol Security)
NOTE: Designed only to allow faster downloads from V.90 compliant sources. Maximum achievable download
transmission rates currently do not reach 56 KB/s, and will vary with line conditions.
Keyboard 102-key compatible keyboard with isolated, inverted-T cursor control keys, and right-control key, special feature
hotkeys for instant access to power conservation, QuickLock/QuickBlank (ex: FN+F6), toggle between internal
and external, or simultaneous displays, battery gauge, speaker volume control, brightness and contrast. The
keyboard has full size keys, 19.05 mm key pitch (center-to-center spacing), and 2.5 mm stroke.
Easy Access Internet
Buttons The Evo Notebook N600c comes with four Easy Access Buttons designed to increase user productivity by
providing one-touch access to helpful Compaq information, favorite Internet destinations, files or applications.
Pointing Device Dual pointing devices (both Pointstick and Touchpad)
PC Card Slots Two Type II, One Type III PC Card Slots which support both 32-bit CardBus
and 16-bit PC Cards
Storage Diskette Drives Diskette Drive (optional)
USB Diskette Drive (optional)
Optical Drives One of the following:
DVD/CD-RW Combo Drive
CD-RW Drive
DVD-ROM Drive or
CD-ROM Drive
Hard Drives One of the following:
30-GB SMART Hard Drive
20-GB SMART Hard Drive
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 3
Standard Features
Multimedia Compaq Premier•Sound™ for enhanced stereo audio
Integrated 16-bit Sound Blaster Pro compatible stereo audio
Integrated stereo speakers and microphone
External Hardware volume controls
Headphone-out
Microphone in
Software MPEG1 support, MPEG2 and DVD
8X DVD-ROM Drive with movie playback software (on select models)
24X CD-ROM Drive (on select models)
RCA composite video/TV-out port
4X AGP graphics
32-MB or 16-MB of DDR (Double Date Rate) SDRAM
Interfaces PC Card Two Type II/One Type III
Enhanced Parallel EPP/ECP 1 (can be used to connect external diskette drive)
Serial Port 1
TV-out connector NTSC/PAL 1
External Monitor 1
PPS/2 1
External Keyboard/Pointing
Device Supports Y-cable in order to attach both Keyboard and Mouse simultaneously
Expansion Base 1
Headphone/Line-out 1
Microphone in 1
DC Power 1
RJ-11 (modem) 1
RJ-45 (NIC) 1
Infrared Port 1 (4 Mb/s support)
(IrDA 4 MB compliant. IR performance will vary depending on performance of IR
peripherals and application used.)
USB Port 2 (left side)
LED status indicators 7
Graphics ATI Mobility Radeon, 64-bit video graphics with 16-MB or 32-MB DDR SDRAM for increased color depth and
graphics performance
Display (External) Up to 32-bit per pixel color depth
Supports 640 x 480, 800 x 600, 1024 x 768, 1280 x 1024, 1400 x 1050, 1600 x 1200, or 2048 x 1536 resolutions
up to 160-Hz refresh rate, dependent upon monitor capability, resolution and color depth settings
Display (Internal) 14.1-inch color TFT SXGA+ with 1400 x 1050 resolution (up to 16.7M colors internal)
14.1-inch color TFT XGA with 1024 x 768 resolution (up to 16.7M colors internal)
Operating Systems Microsoft Windows XP Professional or
Microsoft Windows 2000
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 4
Standard Features
Software Compaq Insight Management Agents
Diagnostics for Windows
DVD Playback Software
Compaq Power Management
Compaq Security Management
Safety and Comfort Guide
Acrobat Reader
Reference Guide
Compaq Easy Access Button Software
Altiris eXpress Client Software
Intel SpeedStep Applet
System Recovery Each unit is shipped with a CD kit for quick recovery (erases hard disk and restores manufacturer installed image)
and software recovery (installs only selected standard software)
Intelligent Manageability Compaq Intelligent Manageability, a key component of PC Lifecycle Solutions, is the broad set of manageability
features found on Compaq Deskpro EN desktops, Armada notebooks, Evo Clients, Professional Workstations,
and iPAQ Desksides and ProLiant server products. These best-in-class features on PC clients comply with
industry standards, such as DMI and Wired for Management, while pioneering new ground in client manageability.
Compaq introduced the industry’s first line of manageable clients in 1995 and has been driving the industry ever
since. With Compaq’s lifecycle management philosophy, enterprises have all of the pieces for end-to-end
management and proven tools for hassle-free management of PCs. The combination of these tools will
significantly lower the Total Cost of Ownership of managing the computing environment. Intelligent Manageability
offers solutions in the areas of Initial Configuration and Deployment, Asset Tracking and Security, Software
Updating and Management, and Fault Notification and Recovery. For more information, visit these Compaq Web
sites: http://www.compaq.com/im; http://www.compaq.com/easydeploy;
http://www.compaq.com/solutions/pcsolutions
Security Configuration Control Hardware
Memory Change Alert
Ownership Tag
Set-up Password
Power-On Password
DriveLock
Enabled for PC SmartCard options
Kensington Lock
Power Supply External AC adapter, 6-foot/1.82-meter power cord included. Total length including External AC adapter is
12-feet/3.66-meter.
Battery The Evo N600c provides over four hours of battery life using the standard 8-cell Lithium-Ion battery.
NOTE: Actual results may vary with product model, configuration, and individual usage. Compaq results of 3:44
(hr:min) were achieved running the eTesting Labs Inc.'s BatteryMark Test version 4.0.1 on an N600c with
an Intel Pentium III-M 1.20 GHz CPU, 14.1-inch SXGA+ panel, 256 MB RAM, 30-GB HDD, DVD/CD-RW,
8-cell primary Lithium-Ion battery, and NIC/modem. System parameters were set according to eTesting
Labs’ recommendations: panel brightness 50%, hard drive standby and video idle time three minutes,
Intel Speedstep battery optimized mode.
NOTE: These tests were performed without independent verification by eTesting Labs Inc. eTesting Labs Inc.
makes no representations or warranties as to the result of the test. BatteryMark is a trademark of Ziff
Davis Publishing Holdings Inc., and affiliate of eTesting Labs Inc., in the U.S. and other countries.
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 5
Standard Features
Power Conservation Supports enhanced Intel SpeedStep technology (allows a Battery Optimized Mode, Maximum Performance Mode
or Automatic mode)
Hibernation
Instant-on via Standby
Pop-ups with three presets
One custom level of power conservation
ACPI compliant

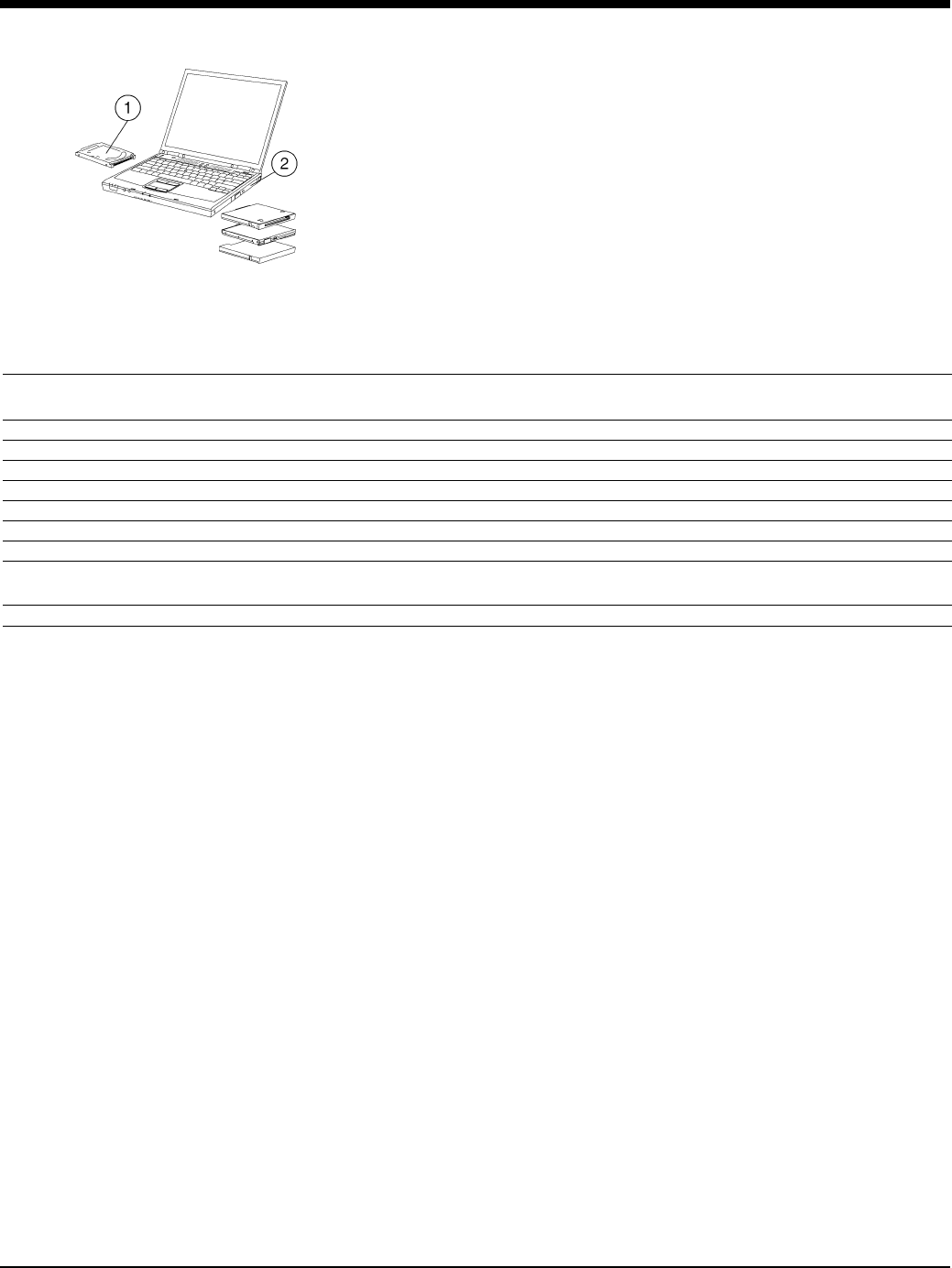

MultiBay Devices MultiBay devices may be swapped with the system powered on (hot) or in suspend mode (warm) under Windows
2000 or Windows XP Professional (except MultiBay secondary hard drive). MultiBay devices can be swapped
with system power off under any supported operating system.
MultiPort
Integrated MultiPort expands functionality via user removable MultiPort Modules. MultiPort modules can provide
integrated wireless communications and enhanced security features. MultiPort can be hot swapped with the
system powered on (hot) or in suspend mode (warm) under any supported operating system. The MultiPort
interface is based on the USB 1.1 Standard Specification
Service and Support Compaq Services includes a Three-Year, Limited Warranty, carry-in or pick-up, upgrade to On-site Warranty or
additional Two-Year Warranty available, and toll-free 7 x 24 hardware technical phone support. Certain
restrictions and exclusions apply. Consult the Compaq Customer Support Center for details.
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 6
Standard Features

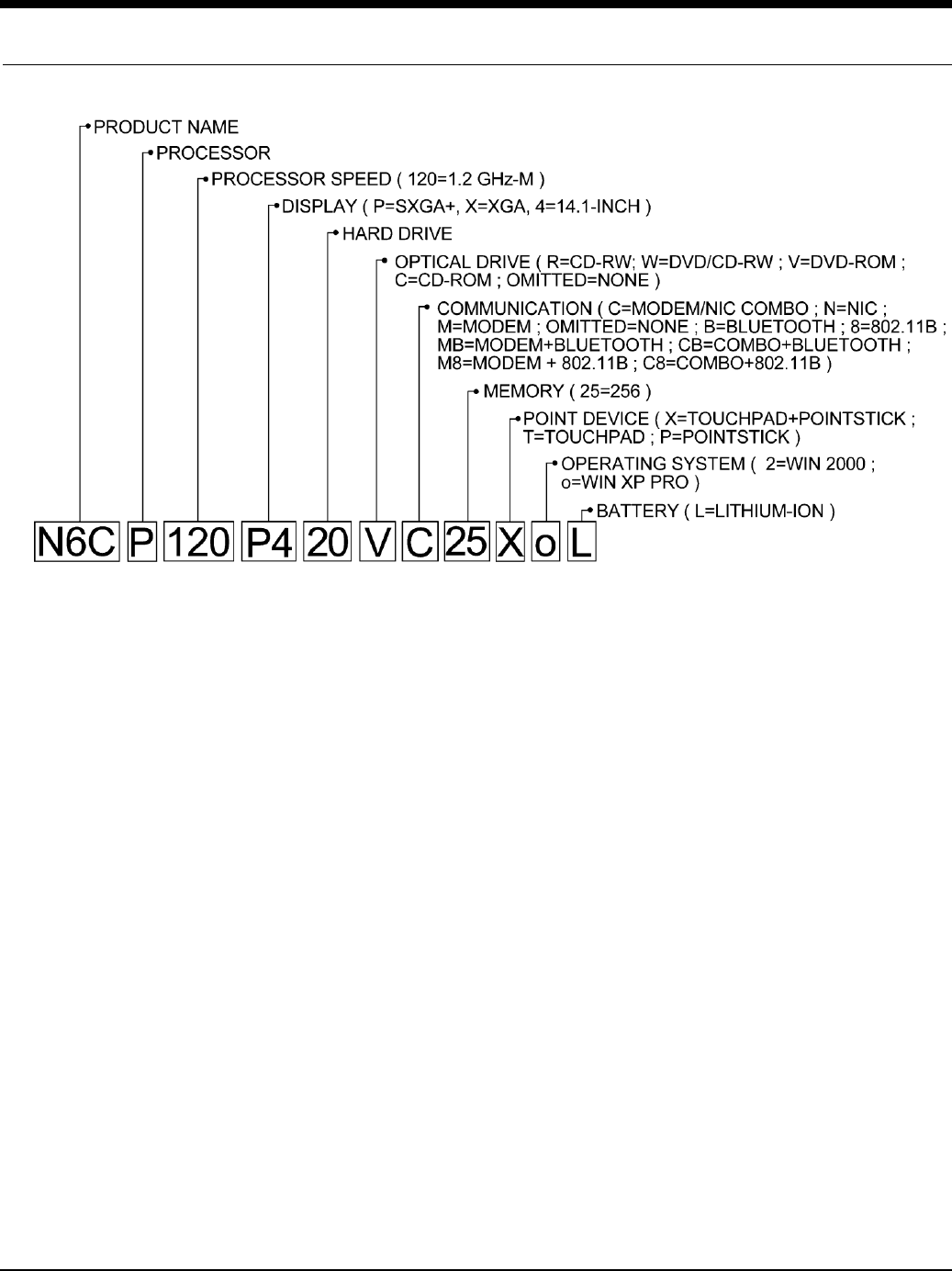

Naming Convention The Etymology of a Model name:
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 7
Standard Features
MODELS
Display 14.1-inch color TFT XGA
Processor 1.2 GHz-M Mobile Intel Pentium III with SpeedStep technology
Cache Memory 512-KB, L2 Cache
N6CP120X430VC25XoL
P/N 470053-558
Memory Standard 256-MB (133 MHz) DDR SDRAM
Maximum1024-MB (133 MHz) DDR SDRAM
Optical Drive DVD-ROM
Hard Drive 30-GB SMART
Communications Type III Mini PCI 56K (V.90) modem, integrated 10/100 NIC
Graphics ATI Mobility Radeon, 64-bit video graphics with 16-MB DDR SDRAM
Audio Compaq Premier•Sound
Operating System Microsoft Windows XP Pro
Pointing Device Dual Pointing Device
MultiPort Module Cover Standard – Multiport 802.11b or Bluetooth Modules (optional)
Warranty 3 Year Parts, 3 Years Labor, 0 Years On-Site (3-3-0)
Display 14.1-inch color TFT XGA
Processor 1.2 GHz-M Mobile Intel Pentium III with SpeedStep technology
Cache Memory 512-KB, L2 Cache
N6CP120X430VC25X2L
P/N 470053-607
Memory Standard 256-MB (133 MHz) DDR SDRAM
Maximum1024-MB (133 MHz) DDR SDRAM
Optical Drive DVD-ROM
Hard Drive 30-GB SMART
Communications Type III Mini PCI 56K (V.90) modem, integrated 10/100 NIC
Graphics ATI Mobility Radeon, 64-bit video graphics with 16-MB DDR SDRAM
Audio Compaq Premier•Sound
Operating System Microsoft Windows 2000
Pointing Device Dual Pointing Device
MultiPort Module Cover Standard – Multiport 802.11b or Bluetooth Modules (optional)
Warranty 3 Year Parts, 3 Years Labor, 0 Years On-Site (3-3-0)
Display 14.1-inch color TFT XGA
Processor 1.2 GHz-M Mobile Intel Pentium III with SpeedStep technology
Cache Memory 512-KB, L2 Cache
N6CP120X430VC25XoL
P/N 470053-832
Memory Standard 256-MB (133 MHz) DDR SDRAM
Maximum1024-MB (133 MHz) DDR SDRAM
Optical Drive DVD-ROM
Hard Drive 30-GB SMART
Communications Type III Mini PCI 56K (V.90) modem, integrated 10/100 NIC
Graphics ATI Mobility Radeon, 64-bit video graphics with 32-MB DDR SDRAM
Audio Compaq Premier•Sound
Operating System Microsoft Windows XP Pro
Pointing Device Dual Pointing Device
MultiPort Module Cover Standard – Multiport 802.11b or Bluetooth Modules (optional)
Warranty 3 Year Parts, 3 Years Labor, 3 Years On-Site (3-3-3)
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 8
Standard Features
MODELS
(continued)
Display 14.1-inch color TFT XGA
Processor 1.2 GHz-M Mobile Intel Pentium III with SpeedStep technology
Cache Memory 512-KB, L2 Cache
N6CP120X430VC25X2L
P/N 470053-840
Memory Standard 256-MB (133 MHz) DDR SDRAM
Maximum1024-MB (133 MHz) DDR SDRAM
Optical Drive DVD-ROM
Hard Drive 30-GB SMART
Communications Type III Mini PCI 56K (V.90) modem, integrated 10/100 NIC
Graphics ATI Mobility Radeon, 64-bit video graphics with 16-MB DDR SDRAM
Audio Compaq Premier•Sound
Operating System Microsoft Windows 2000
Pointing Device Dual Pointing Device
MultiPort Module Cover Standard – Multiport 802.11b or Bluetooth Modules (optional)
Warranty 3 Year Parts, 3 Years Labor, 3 Years On-Site (3-3-3)
Display 14.1-inch color TFT SXGA+
Processor 1.2 GHz-M Mobile Intel Pentium III with SpeedStep technology
Cache Memory 512-KB, L2 Cache
N6CP120P430WC25XoL
P/N 470053-613
Memory Standard 256-MB (133 MHz) DDR SDRAM
Maximum1024-MB (133 MHz) DDR SDRAM
Optical Drive DVD/CD-RW Combo Drive
Hard Drive 30-GB SMART
Communications Type III Mini PCI 56K (V.90) modem, integrated 10/100 NIC
Graphics ATI Mobility Radeon, 64-bit video graphics with 16-MB DDR SDRAM
Audio Compaq Premier•Sound
Operating System Microsoft Windows XP Pro
Pointing Device Dual Pointing Device
MultiPort Module Cover Standard – Multiport 802.11b or Bluetooth Modules (optional)
Warranty 3 Year Parts, 3 Years Labor, 0 Years On-Site (3-3-0)
Display 14.1-inch color TFT SXGA+
Processor 1.2 GHz-M Mobile Intel Pentium III with SpeedStep technology
N6CP120P430WC25X2L
P/N 470023-406
Cache Memory 512-KB, L2 Cache
Memory Standard 256-MB (133 MHz) DDR SDRAM
Maximum1024-MB (133 MHz) DDR SDRAM
Optical Drive DVD/CD-RW Combo Drive
Hard Drive 30-GB SMART
Communications Type III Mini PCI 56K (V.90) modem, integrated 10/100 NIC
Graphics ATI Mobility Radeon, 64-bit video graphics with 32-MB DDR SDRAM
Audio Compaq Premier•Sound
Operating System Microsoft Windows 2000
Pointing Device Dual Pointing Device
MultiPort Module Cover Standard – Multiport 802.11b or Bluetooth Modules (optional)
Warranty 3 Year Parts, 3 Years Labor, 0 Years On-Site (3-3-0)
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 9
Options
Memory 512-MB (133 MHz) DDR SDRAM Memory Upgrade 238830-B25
256-MB (133 MHz) DDR SDRAM Memory Upgrade 197898-B25
128-MB (133 MHz) DDR SDRAM Memory Upgrade 197897-B25
64-MB (133 MHz) DDR SDRAM Memory Upgrade 197896-B25
Monitors TFT8020 Flat Panel Color 18-inch (carbon) 159244-001
TFT7010 Flat Panel Color 17-inch (carbon) 222401-001
TFT5010 Flat Panel Color 15-inch (carbon) 154486-001
TFT5015 Flat Panel Color 15-inch (carbon/silver) 234044-001
TFT5030 Flat Panel Color 15-inch (carbon/silver) 228134-001
V720 17-inch CRT (carbon/silver) 232944-001
S720 17-inch CRT (carbon/silver) 239287-001
V570 15-inch CRT (carbon/silver) 228113-001
MultiBay Hard Drives 30-GB SMART Hard Drive 212791-B25
20-GB SMART Hard Drive 212790-B25
MultiBay Storage Devices DVD/CD-RW Combo Drive 260472-B25
CD-RW Drive 136186-B25
DVD-ROM Drive 138230-B25
CD-ROM Drive 298452-B25
Diskette Drive 226935-B25
Other Storage Devices IBM 1-GB Microdrive (PC card Device) 217390-B25
USB Disk-on-Key (8 MB) 249552-B25
USB Diskette Drive 230330-B25
Connectivity Compaq Type III Mini PCI 56K (V.90) Modem and 10/100 IPSEC NIC 225638-B31
Compaq M420 56K Global Modem 317900-001
10/100 TX PC Card UTP Controller 335506-B21
100 BaseTX Ethernet Upgrade 225435-001
NOTE: For additional compatible PC Cards, view the Compaq PC Card Solutions List
on the Compaq website at: http://www.compaq.com/support/techpubs/pcmcia/
NOTE: Designed only to allow faster downloads from V.90 compliant sources. Maximum
achievable download transmission rates currently do not reach 56 KB/s, and will
vary with line conditions.
Wireless Connectivity MultiPort 802.11b Wireless LAN W200 Module 283836-001
Bluetooth MultiPort module 228057-B21
Compaq WL110 Wireless LAN PC Card 191808-002
Expansion Bases Expansion Base 383500-001
Expansion Base with Intel NIC 120266-001
Expansion Base Tower Stand 123129-B25
Convenience Base 382500-001
Convenience Base with Intel NIC 120971-001
Convenience Base Monitor Cover 122931-001
Power 8 Cell Li-Ion Primary Battery 301857-B25
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 10
Options
Common Power Solutions MultiBay Battery (6-cell) 387937-B25
External Battery Charger 135555-001
AC Adapter 65W 265602-001
Auto Power Adapter/Charger 401043-B25
Aircraft Power Adapter 386504-B21
AC Line Cord (10 ft/3.1 m) 217932-002
NOTE: The Universal Battery Charger (P/N 135555-001) will charge the N600c, M700
and E500 internal primary batteries and the N400c and M300 external handle
batteries. It will not charge the N400c internal primary battery.
Wireless Keyboard and Mouse (carbon) 251385-008
Input Devices External Enhanced III Keyboard (carbon) 118003-008
Compaq 2 Button Mouse (carbon) 103180-B21
USB 2 Button Scroll Mouse (carbon) 195255-B25
External 10-Key Numeric Keypad (carbon) 294317-B21
USB EZ Access Keyboard (carbon) 222726-008
Security Biometric PC Card 146805-B25
Security Cable Lock 294316-B21
Compaq Smart Card PC Card Reader 135646-B25
Invaluable Accessories Compaq iPAQ Microportable Projector MP1200 261966-001
Compaq iPAQ Microportable Projector MP3800 262839-001
Compaq iPAQ Microportable Projector MP4800 257524-001
Lamp Module L20 for MP1200 266631-B24
Lamp Module L30 for MP3800 266633-B24
Home Theatre Kit HT150 for MP3800 292187-B24
Carrying Case for MP1200 295731-B24
Lamp Replacement Kit for MP1600 118052-001
Lamp Module for MP1800, MP1400 189789-001
Lamp Module for MP2800, MP2810 215464-001
Home Theater Kit HT110 for MP1410 246161-001
Multimedia Adapter & Remote Control Kit MMA110 for MP1410 246162-001
Multimedia Adapter & Remote Control Kit for MP1400, MP1800 174963-001
Deluxe Carrying Case for MP Series projectors 253364-001
Lamp Module for MP1410, MP1810 253365-001
Lamp Module L90 for MP4800 257892-001
Home Theater Kit HT180 for MP1200, MP4800 281729-001
CeilingMount Kit CM10 for MP1200, MP4800 281730-001
hp digital projector sb21 L1510A
hp digital projector xb31 L1511A
Ceiling Mount Kit for xb31 L1513A
M1-A to component/USB video cable for sb21, xb31 L1523A
M1-D to DVI/USB cable for sb21, xb31 L1529A
Lamp Module for sb21 L1515A
Lamp Module for xb31 L1516A
Carrying Cases Compaq Ultralite Case (nylon) 167336-B21
Compaq Ultralite Case (leather) 242359-B25
Compaq Plus Case 242360-B25
Compaq Professional Case (nylon) 242361-B25
Compaq Professional Case (leather) 242362-B25
Armada M300, Evo Notebook N600c and Evo Notebook N400c specific
Compaq M Series Portfolio Case 167337-B21
NOTE: For additional information visit http://www.compaq.com/products/notebooks/
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 11
Memory
Compaq Evo N600C
S
TANDARD
M
EMORY
P
LUS
O
PTIONAL
M
EMORY
Support for up to 1024 MB of DDR SDRAM memory is available with the installation of optional DDR SDRAM Memory Kits.
Memory Slot 1 Slot 2
64 MB 64 MB --
128 MB 128 MB --
192 MB 128 MB 64 MB
256 MB 256 MB --
384 MB 256 MB 128 MB
512 MB 512 MB --
768 MB 512 MB 256 MB
1024 MB 512 MB 512 MB
NOTE: This chart does not represent all possible memory configurations. Due to the non-industry standard nature of some third-party memory
modules, we strongly recommend using only Compaq branded memory modules to ensure compatibility.
Following are memory options available from Compaq:
• 512-MB (133 MHz) DDR SDRAM Memory Upgrade 238830-B25
• 256-MB (133 MHz) DDR SDRAM Memory Upgrade 197898-B25
• 128-MB (133 MHz) DDR SDRAM Memory Upgrade 197987-B25
• 64-MB (133 MHz) DDR SDRAM Memory Upgrade 197986-B25
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 12
Storage
1. Primary Hard drive
2. MultiBay
DRIVE SUPPORT
System Drive Support Quantity Supported Drive Bay Supported
Removable Media
1.44-MB Diskette Drive 1 MultiBay or parallel port cable
DVD/CD-RW Combo Drive 1 MultiBa
y
CD-RW Drive 1 MultiBa
y
DVD-ROM Drive 1 MultiBa
y
CD-ROM Drive 1 MultiBa
y
Zi
p
250 Drive 1 MultiBa
y
Su
p
er Disk 2X LS-120 Drive 1 MultiBa
y
Hard Drives
30-GB SMART Hard Drive 2 Dedicated hard drive bay and/or MultiBay
20-GB SMART Hard Drive 2 Dedicated hard drive bay and/or MultiBay
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 13
Technical Specifications
System Unit Dimensions (H x W x D) 14.1-inch TFT panel display 1.2 x 12.1 x 9.8 in/3.1 x 30.7 x 25 cm
Weight 14.1-inch LCD, weight saver, 1
SODIMM 4.8 lb/2.1 kg *
14.1-inch LCD, CD-RW, DVD or
CD-ROM, 1 SODIMM 5.5 lb/2.5 kg *
NOTE: * = Weight varies by configuration.
Stand-Alone Power
Requirements Nominal Operating Voltage
(Li-Ion) 14.4V (8-cell)
Average Operating Power 15.8W
Peak Operating Power 38W
Power in suspend mode < 800 mW
Power in hibernation mode < 100 mW
Power Supply Rated Input Voltage 90 to 264 VAC (auto-switching)
Rated Input Current < 60W
Rated Frequency 47 to 63 Hz
Temperature Operating 50° to 95°F/10° to 35°C
Non-operating –4° to 140°F/–20° to 60°C
Relative Humidity Operating 10% to 90% relative humidity, non-condensing
Non-operating 5% to 95% relative humidity, 101.6°F/38.7°C
maximum wet-bulb temperature
Shock Operating 10 G, 11 ms, half-sine
Non-operating 60 G, 11 ms, half-sine
Vibration Operating 0.5 G zero-to-peak, 10 to 500 Hz, 0.25 oct/min
sweep rate
Non-operating 1.0 G, zero-to-peak, 10 to 500 Hz, 0.5 oct/min
sweep rate
Operating 0 to 10,000 ft/0 to 3,048 m
Maximum Altitude
(unpressurized) Non-operating 0 to 30,000 ft/0 to 9,144 m
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 14
Technical Specifications
Dimensions (H x W) 11.22 x 8.46 in/28.5 x 21.5 cm
14.1-Inch Color TFT SXGA+
Display Diagonal Size 14.1 in/35.81 cm
Mounting Internal Panel Supports, Side Mounted
Number of Colors Up to 16.8M
Contrast Ratio 150:1
Brightness 130 nt typ
Pixel Resolution Pitch 0.204 x 0.204 mm
Format 1400 x 1050
Configuration RGB stripe
Backlight Edge Lit
Character Display 80 x 25
Total Power Consumption 5.1W
Dimensions (H x W) 11.22 x 8.46 in/28.5 x 21.5 cm
14.1-Inch Color TFT XGA Display
Diagonal Size 14.1 in/35.81 cm
Mounting Internal Panel Supports, Side Mounted
Number of Colors Up to 16.8M
Contrast Ratio 150:1
Brightness 130 nt typ
Pixel Resolution Pitch 0.264 x 0.264 mm
Format 1024 x 768
Configuration RGB stripe
Backlight Edge Lit
Character Display 80 x 25
Total Power Consumption 4.2W
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 15
Technical Specifications
Hard Drives
MultiBay Drive Adapter Dimensions (H x W x D) 1.27 x 13.25 x 12.61 cm (0.5 x 5.21 x 4.97 in)
Weight 0.15 lb/70 g
Drive Weight 0.21 lb/95 g
Capacity 40 GB
Height 9.5 mm
40 GB
Width 70 mm
Interface ATA-5
Transfer Rate Synchronous (maximum) 100 MB/s (Drive Capability)
Security ATA Security
Single Track 3.0 ms
Seek Time
(typical reads, including settling) Average 13 ms
Maximum 25 ms
Rotational Speed 4200 rpm
Logical Blocks 78,140,160
Operating Temperature 41° to 131°F/5° to 55°C
Features Security ATA Security
MultiBay Drive Adapter Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.15 lb/70 g
Drive Weight 0.22 lb/99 g
Capacity 30 GB
Height 9.5 mm
30 GB
Width 70 mm
Interface ATA-5
Transfer Rate Synchronous (maximum) 66.6 MB/s (Drive Capability)
Security ATA Security
Single Track 2.5 ms
Seek Time
(typical reads, including settling) Average 12 ms
Maximum 23 ms
Rotational Speed 4200 rpm
Logical Blocks 58,605,120
Operating Temperature 41° to 131°F/5° to 55°C
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 16
Technical Specifications
Hard Drives (continued)
MultiBay Drive Adapter Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.15 lb/70 g
Drive Weight 0.21 lb/95 g
Capacity 20 GB
Height 9.5 mm
20 GB
Width 70 mm
Interface ATA-5
Transfer Rate Synchronous (maximum) 66.6 MB/s (Drive Capability)
Security ATA Security
Single Track 2.5 ms
Seek Time
(typical reads, including settling) Average 12 ms
Maximum 23 ms
Rotational Speed 4200 rpm
Logical Blocks ~ 39,070,080
Operating Temperature 41° to 131°F/5° to 55°C
MultiBay Drive Adapter Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.15 lb/70 g
Drive Weight 0.21 lb/95 g
Capacity 15 GB
Height 9.5 mm
15 GB
Width 70 mm
Interface ATA-4
Transfer Rate Synchronous (maximum) 66.6 MB/s (Drive Capability)
Security ATA Security
Single Track 2.5 ms
Seek Time
(typical reads, including settling) Average 12 ms
Maximum 23 ms
Rotational Speed 4200 rpm
Logical Blocks ~23,579,136
Operating Temperature 41° to 131°F/5° to 55°C
Features Security ATA Security
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 17
Technical Specifications
MultiBay Drive Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.51 lb/230 g
Diskette Size 3.5 in
Activity Indicator On system
Diskette Drive
Height 12.7 mm
Bytes per Sector 512
Sectors per track High density 18 (1.44 MB)/15 (1.2 MB)
Low density 9
Tracks per side High density 80 (1.44 MB)/80 (1.2 MB)
Low density 80
Read/Write heads 2
Access Times Track-to track (high/low) 3 ms/6 ms
Average (high/low) 94 ms/174 ms
Settling time 15 ms
Latency average 100 ms
External AC Adapter Weight 0.39 lb/0.18 kg
Power Supply (Input) Operating Voltage 90 to 260 VAC RMS
Operating Current 1.3 A RMS
Operating Frequency Range 47 to 63 Hz AC
Maximum Transient 4/50 kV
Dimensions (L x W x D) 4.95 x 3.46 x 0.80 in/12.5 x 8.8 x 2 cm
Lithium-Ion Battery Pack (8-cell)
(Internal) Weight 0.96 lb/0.43 kg
Energy Voltage 14.8 V
Minimum 3.7 Ah
Amp-hour capacity
Typical 3.9 Ah
Watt-hour capacity Minimum 53.2 Ah
Typical 56.1 Ah
Temperature Operating 32° to 108°F/0° to 42°C
Non-operating 32° to 140°F/0° to 60°C
Battery Re-Charge Time System in OFF mode or
Standby 2 hours
System ON (depending of
system power consumption) 2 to 5 hours
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 18
Technical Specifications
Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
MultiBay Lithium-Ion Battery Pack
(6-cell) Weight 0.81 lb/0.36 kg
Energy Voltage 10.8 V
Amp-hour capacity 2.8 Ah
Watt-hour capacity 30.2 Wh
Temperature Operating 32° to 122°F/0° to 50°C
Non-operating 32° to 140°F/0° to 60°C
Battery Re-Charge Time System in OFF mode or
Standby 2 hours
System ON 2 to 5 hours
DVD/CD-RW Combo Drive MultiBay Drive Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.74 lb/0.33 kg
Center Hole Diameter 15 mm
Disk Diameter 12 cm/8 cm
Disk Thickness 1.2 mm
Track Pitch 0.74 µm
Random CD < 150 ms
Access Times
(typical reads, including settling) Full-Stroke CD < 225 ms
Audio Output Level Line out 0.7 Vrms
Cache Buffer 128 KB/s (minimum)
CD-R (8X) 1200 KB/s (150 KB/s at 1X CD rate)
Data Transfer Rate
(typical, including settling) CD-RW (8X) 1200 KB/s (150 KB/s at 1X CD rate)
CD-ROM (24X) 3600 KB/s (150 KB/s at 1X CD rate)
DVD (8X) 10,800 KB/s (1352 KB/s at 1X DVD rate)
Normal PIO Mode 4
(single burst) 16.6 MB/s
Start-up Time < 15 seconds
Stop Time < 6 seconds
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 19
Technical Specifications
CD-RW Drive MultiBay Drive Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.74 lb/0.33 kg
Center Hole Diameter 15 mm
Disk Diameter 12 cm/8 cm
Disk Thickness 1.2 mm
Track Pitch 0.74 µm
Random < 150 ms
Access Times
(typical reads, including settling) Full-Stroke < 225 ms
Audio Output Level Line-out 0.7 Vrms
Cache Buffer 128 KB/s (minimum)
Sustained (16X) 150 KB/s
Sustained 4X CD-RW 5,520 KB/s
Data Transfer Rate
(typical, including settling)
Normal PIO Mode 4
(single burst) 16.6 MB/s
Start-up Time < 15 seconds
Stop Time < 6 seconds
MultiBay Drive Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.66 lb/0.3 kg
Center Hole Diameter 15 mm
DVD-ROM Drive
Disc Diameter 12 cm/8 cm
Disc Thickness 1.2 mm
Track Pitch 0.74 µm
Random (typical) < 150 ms DVD Media
Access Times
(typical reads, including settling) Full-Stroke (typical) < 225 ms DVD Media
Random (typical) < 110 ms CD Media
Full-Stroke (typical) < 200 ms CD Media
Cache Buffer 512 KB/s (minimum)
Max 24X CD 3600 KB/s (150 KB/s at 1X CD rate)
Data Transfer Rate
(typical, including settling) Max 8X DVD 10,800 KB/s (1352 KB/s at 1X DVD rate)
Normal PIO Mode 4
(single burst) 16.6 MB/s
Start-up Time < 10 seconds Single Session CD-ROM
Stop Time < 3 seconds
Supported DVD RAM formats FAT32, UDF1.02, UDF 1.5, UDF
2.0, UDF 2.01
NOTE: Not all formats may be supported by your operating system and/or
software application. For a whitepaper discussing DVD RAM-read
software support go to <http://www.compaq.com/support/>.
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 20
Technical Specifications
24X CD-ROM Drive MultiBay Drive Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.50 lb/0.22 kg
Applicable Disk CD-ROM (Mode 1, 2 and 3), CD-XA ready (Mode 2, Form 1 and 2), CD-I ready
(Mode 2, Form 1 and 2), CD-R (read only), CD Plus, Photo CD (Single and Multi-
session), CD-Extra, Video CD, CD-WO (fixed packets only), CD-Bridge
Center Hole Diameter 15 mm
Disk Diameter 12 cm/8 cm
Disk Thickness 1.2 mm
Track Pitch 1.6 µm
Random < 150 ms
Access Times
(typical reads, including settling) Full-Stroke < 300 ms
Audio Output Level Line-out 0.7 Vrms
Cache Buffer 128 KB
Sustained (16X) 150 KB/s (sustained 1X)
Data Transfer Rate
(typical, including settling) Variable 1500 to 3600 KB/s (10X to 24X)
Normal PIO Mode 4 (single
burst) 16.66 MB/s
Start-up Time < 8 seconds
Stop Time < 4 seconds
SuperDisk 2X LS-120 Drive MultiBay Drive Dimensions (H x W x D) 0.5 x 5.21 x 4.97 in/1.27 x 13.25 x 12.61 cm
Weight 0.6 lb/0.27 kg
Maximum Transfer Rate From Disk 896 KB/s
Sustained: 375 to 900 KB/s
120 MB Physical Format Number of Heads: 2
Bytes per Sector: 512
Sectors per Track: 51 to 92
Zones/Side: 55
Data Tracks per Side: 1736
Servo Tracks: 900
Sector Interleave: 1:1
Track–to–track: 20 ms
Access Times
(including setting) Average: 70 ms
Latency Average: 41.67
Operating Conditions Temperature: 41° to 131°F/5° to 55°C
Humidity: 10% to 80% RH
Operating System Support Microsoft Windows 95, Windows NT 4.0
Option Kit Contents LS-120 Drive, 17 mm MultiBay Adapter, Software, Documentation
NOTE: Drivers for the LS-120 Drive are standard in Windows 95/OSR2,
Windows NT 3.51/SP5, and Windows NT 4.0. Use the LS-120 Option
Support Diskette (included in option kit) with earlier releases of Windows
95 and NT 3.51.
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 21
Technical Specifications
Iomega Zip 250 Drive MultiBay Drive Dimensions (H x W x D) 5.26 x 5.24 x 5.71 in/13.35 x 13.3 x 14.5 cm
Weight 9.8 oz (0.27 kg) or Xg
Transfer Rates 250 Media: 1200 to 2400 KB/s
100 Media: 138 to 1400 KB/s
Track–to–track: 5 ms
Access Times
(including setting) Average: 40 ms
Latency Average: 10 ms
Maximum: 70 ms
Operating Conditions Temperature: 41° to 124.7°F/5° to 51.5°C
Humidity: 10% to 80% RH
Operating System Support Microsoft Windows 95, 98, Windows NT 4.0, Windows 2000, Windows Me
Option Kit Contents Zip 250 Drive, Documentation
Form Factor Compaq ″MultiPort″
Weight 0.22 lb/100 g (maximum)
Operating Temperature Operating 14° to 149°F/–10° to 65°C
Storage Temperature Non-operating –40° to 176°F/–40° to 80°C
Humidity Operating 10 to 90%
Non-operating 5 to 95%
Altitude Operating 0 to 15,000 ft/0 to 4,572 m
Non-operating 0 to 40,000 ft/0 to 12,192 m
Plug and Play USB 1.1 compliant
Windows Plug and Play compliant
RF Network Standard IEEE 802 Part 11b (802.11b)
Frequency Band 2,4000 to 2.4835 GHz
Number of Selectable Sub-
channels 11
Data Rates 1, 2, 5.5, 11 Mbps
Antenna type Internally integrated within module (with special polarization diversity)
WEP Security 64-bit encryption keys compliant to IEEE 802.11
128-bit encryption key compliant to IEEE 802.11
Ability to enter keys manually or via pass-phrase
Network Architecture Models Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)
802.11b MultiPort Module
Modulation Technique Direct Sequence Spread Spectrum:
DBPSK, DQPSK, CCK
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 22
Technical Specifications
11 Mbps: -85 dBm
802.11b MultiPort Module
(continued) Receiver Sensitivity – Bit
Error Rate (1E-5) 5.5 Mbps: -87 dBm
2 Mbps: -91 dBm
1 Mbps: -94 dBm
Maximum Receive Level –4 dBm
Output Power (approximately) 18 dBM
Operating Voltage 5V power operation
Power Management Keystroke Fn+F2 Power On/Off control
Power Consumption Transfer mode: < 600 mA, maximum
Receive mode: > 400 mA, maximum
Standby: 1 mA, maximum
Transmit Power 10 to 100mW
It is preferable to have the user configurable output power to save battery life for
laptop users or in high AP coverage areas.
Power Saving Option 802.11 Compliant Power Saving
Power Saving Mode selectable through the configuration utility
ACPI compliant power management
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
OS Support Microsoft Windows XP Professional and Home Editions
Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Protocols Supported TCP/IP
IPX/SPX
UDP
LED Activity Flashing LED – AP Search Mode
Solid LED – On
LED Off – Power Off
Throughput, Data Rate and
Operating Distance Throughput Data Rate Operating Distance
> 4.5 Mbps 11 Mbps 1000 feet – Open sight
100 feet – Closed space (Steel Space)
> 2 Mbps 5.5 Mbps 1100 feet – Open sight
200 feet – Closed space (Steel Space)
> 700 Kbps 1 Mbps 1200 feet – Open sight
300 feet – Closed space (Steel Space)
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 23
Technical Specifications
Form Factor Compaq ″MultiPort″
Bluetooth 1.1 Compliant
Dimensions 2.2 x 6.6 x 0.55 in/5.6 x 16.7 x 1.4 cm
Weight 0.22 lb/100 g (maximum)
Temperature Operating 50° to 104°F/10° to 40°C
Non-operating –4° to 140°F/–20° to 60°C
Humidity Operating 10 to 90%
Non-operating 5 to 95%
Altitude Operating 0 to 10,000 ft/0 to 3,048 m
Non-operating 0 to 30,000 ft/0 to 9,144 m
Plug and Play USB 1.1 compliant
Windows Plug and Play compliant
Frequency Band 2,4000 to 2.4835 GHz
Number of Available Channels79 (1 MHz) available channels
Data Rates and throughput 1 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice channels
Asynchronous Connection Less links 723.2 kbps/57.6 kbps asymmetric or 433.9
kbps symmetric
Antenna type Internally integrated within module (with special polarization diversity)
Range 328 ft/100 m
Profile Support General Access Profile
Service Discovery Application Profile
Serial Port Profile
Generic Object Exchange Profile
File Transfer Profile
Synchronization Profile
Dial-Up Networking Profile
LAN Access Profile
Bluetooth MultiPort Module
Object Push Profile
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 24
Technical Specifications
Bluetooth MultiPort Module
(continued) Usage Models Service Discovery (determine what Bluetooth devices are within range and
support authorization).
Synchronization:
PDAs to PCs
Portable to Desktop
File Transfer:
File and directory browsing and navigation on another Bluetooth device.
File copying
Object manipulation – including add, delete, create new folders etc.
Wireless link to Corporate LAN using several Bluetooth devices sharing the
same
Access Point:
Corporate email, network neighborhood, access to LAN applications, file
transfer, ftp, Internet browsing, etc, using TCP/IP
Wireless link to WAN thru cell phone
GSM/SMS, PCS, PHS, DECT, RAM, ARDIS, CDPD, etc.
Agnostic to WAN technology
Send/receive SMS messages
Wireless link to Printer
Adhoc peer to peer networking (two computers) or Personal Area Networking
(PAN) using NDIS (< 7 computers).
Adhoc Bluetooth Pico-networking (point to multi-point)
Object Push – Business card or appointment exchange
Transmit Power < 20 dBM (Bluetooth Class 1)
Receive Sensitivity Better than –70 dBM at 0.1% raw bit error rate
Link Topology Point to Point, Multipoint Pico Nets up to 7 slaves
Security Full support of Bluetooth Security Provisions
Network Architecture Models Ad-hoc (Peer to Peer)
Infrastructure (Access Points Required)
Power Requirement Peak < 1500 mW
Average < 500 mW
Standby < 250 mW
Power Management Windows ACPI, and USB Bus Support
Keystrokes Fn+F2 Power On/Off control
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
OS Support Microsoft Windows XP Professional and Home Editions
Microsoft Windows 98/98SE
Microsoft Windows 2000
Microsoft Windows Millennium
Protocols Supported TCP/IP
IPX/SPX
UDP
LED Activity Solid Blue LED – On
LED Off – Power Off
Certifications All necessary regulatory approvals for countries we support including
FCC (47 CFR) Part 15C, Section 15.247&15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 25
Technical Specifications
Modem Device Driver Name Lucent Win Modem
Type III Mini PCI 56K (V.90)
Modem Form Factor Mini-PCI Type III per Specification
OS Support
(with all released Service Packs)Microsoft Windows XP Professional and Home Editions, Microsoft Windows 98
(Gold, SE), Windows NT4.0, Windows 2000, Windows Millennium Edition, DOS
Application Support under Windows
Power Management Support APM Revision 1.2, ACPI, Compaq Power Management Extensions for Windows
NT
Approvals/Certifications UL, CSA, NEMKO, CCIB, Industry Canada, FCC Part 68, CTR21, FCC Part 15
Class B, Canadian ICES-003 Class B, C.I.S.P.R.22, Australian ACA, CE Mark,
Other Countries
Data Mode Capabilities V.90 (a-law, mu-law)
K56 flex (a-law, mu-law)
V.8 bis
V.80
V42 bis, MNP5 (Compression)
V.42 (LAPM, MNP2-4) (Error Correction)
V.34 (file date: 10/96)
Optional symbol rates:
2800, 3429
Asymmetric Symbol rates
Synchronous primary channel data signaling rates:
3600, 31200
Automatic rate re-negotiation
V.32bis
V.32
V.23
V.22bis
V.22
V.21
Bell 212A
Bell 103J
Fax Mode Capabilities TIA-578-S (Class 1)
T.30, T.4 (Group 3)
V.17
V.29
V.27ter
V.21 Channel 2
Command Set V.250 (Partial)
TIA-602
Identification: +GMI, +GMM, +GMR
Port control: +IPR, +ICF, +IFC, +LIRR
Modulation: +MS, +MR, +MA
Error control: +ES, +ER, +EB, +ESR, +ETBM
Data compression: +DS, +DR
V.251
QuickSpecs Compaq Evo Notebook N600c
DA-10886 North America — Version 18 — December 16, 2002 26
Technical Specifications
NIC Device Driver Name Intel PRO/100 P Mobile Combo Adapter
Integrated 10/100 NIC
NIC Device Driver Name Intel PRO/100 P Mobile Combo Adapter
Data Link Layers IEEE 802.2 LLC
SNAP
Ethernet Features 10 Mbps Ethernet: IEEE 802.3 standard 10BASE-T
100 Mbps Ethernet: IEEE 802.3u standard 100BASE-TX
Full Duplex at 10 and 100Mbps
Auto-Negotiation
Wake on LAN from all power managed states, including soft off (S5)
Boot on LAN from OFF
Lower Power State on Link Loss
Software support IBM LAN Server Version 1.2, 1.3, 2.0, 4.0
Microsoft Windows XP Professional and Home Editions, Microsoft NT 3.51, NT
4.0, Windows 2000
Novell Netware 3.1x, 4.x, 5.x
Protocol support TCP/IP
Novell IPX/SPX and Microsoft compatible
Novel IPX ODI
Microsoft NetBEUI
IBM DLC
Compaq PCs use genuine Microsoft
Windows
http://www.microsoft.com/piracy/howtotell
©2002 Compaq Information Technologies Group, L.P. All rights reserved. Compaq, the Compaq logo, Evo, Armada, Deskpro, iPAQ, ProLiant, and
Premier•Sound are trademarks of Compaq Information Technologies Group, L.P. in the U.S. and/or other countries. Windows NT is a trademark of Microsoft
Corporation in the U.S. and/or other countries. Pentium, the Intel Inside Logo, and SpeedStep are trademarks of Intel Corporation in the U.S. and/or other
countries. BatteryMark is a trademark of Ziff Davis Publishing Holdings Inc., and affiliate of eTesting Labs Inc., in the U.S. and other countries. All other
product names mentioned herein may be trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions contained herein. The information is provided ″as is″ without warranty of any kind and
is subject to change without notice. The warranties for Compaq products are set forth in the express limited warranty statements accompanying such
products. Nothing herein should be construed as constituting an additional warranty.

Navigation menu
