Compass Systems 3039 GPS Bluetooth Receiver User Manual
Compass Systems Corp. GPS Bluetooth Receiver
user manual
GB735
GB735
Bluetooth GPS Receiver User manual
Version 1.0
Tel: +886-2-8751-8598 Fax: +886-2-8797-3898
Email: service@cpss.com.tw Web: http://www.cpss.com.tw
No part of this User’s Manual may be reproduced or transmitted in any form or by any means,
electronic or mechanical, including photocopying recording ,for any purpose other than the
purchaser’s personal use, without the written permission of Compass Systems Corp.
Information in this User’s Manual is subject to change without notice. Compass Systems
Corp. reserves the right to change or improve or modify its products and to make changes to
the content without obligation to notify any person or organization of such changes.
©Copy right 2006 by Compass Systems Corp. All rights reserved.
Printed in Taiwan
Introduction
i
Introduction
WARNINGS
Some certain knowledge is required to be well known by the user for proper and safe use
of Navibe Bluetooth GPS receiver. Please read this User’s Manual first before operation.
Because Navibe Bluetooth GPS receiver is an assistant device, it will NOT undertake any
legal responsibility for any accident or damage caused by the user’s wrong operation
and/or wrong judgement in navigating with Navibe.
WARNINGS
Some certain knowledge is required to be well known by the user for proper and safe use
of Navibe Bluetooth GPS receiver. Please read this User’s Manual first before operation.
Because Navibe Bluetooth GPS receiver is an assistant device, it will NOT undertake any
legal responsibility for any accident or damage caused by the user’s wrong operation
and/or wrong judgement in navigating with Navibe.
ii
Introduction
CAUTION
The Global Positioning System(GPS) is a system of 24 satellites which circle the earth
twice a day in a very precise orbit and transmit information to earth. The Navibe unit
must continuously find at least three of these satellites to calculate your position and
your movement.
This GPS system is operated by the government of the United States, which is solely
responsible for its accuracy and maintenance. Any changes of the system could affect
the accuracy and performance of all GPS equipment.
PLEASE CHARGE BATTERY FULLY BEFORE INITIAL USE.
(When fully charged, red color-LED2 will automatically switch off.)
CAUTION
The Global Positioning System(GPS) is a system of 24 satellites which circle the earth
twice a day in a very precise orbit and transmit information to earth. The Navibe unit
must continuously find at least three of these satellites to calculate your position and
your movement.
This GPS system is operated by the government of the United States, which is solely
responsible for its accuracy and maintenance. Any changes of the system could affect
the accuracy and performance of all GPS equipment.
PLEASE CHARGE BATTERY FULLY BEFORE INITIAL USE.
PLEASE CHARGE BATTERY FULLY BEFORE INITIAL USE.
(When fully charged, red co
(When fully charged, red color
lor-
-LED2 will automatically switch off.)
LED2 will automatically switch off.)
iii
Introduction
Thank you for choosing
Thank you for choosing Navibe Bluetooth GPS Receiver
Navibe Bluetooth GPS Receiver!
!
Take it now
Take it now ------
------it can be your best friend!
it can be your best friend!
Application Conditions:
Navibe is designed for outdoors navigation in the temperature range of -20°C~ 70°C.
Introduction section gives you a general overview of Navibe features.
Reference section tells how to operate the unit correctly and how to connect this unit to
your pocket PC step-by-step.
If you find something missing or damaged with the reference to the standard package,
please contact the local dealer or retailer.
iv
Introduction
Chapter I Introduction
Section 1 Announcement
i
Section 2 Warnings ii
Section 3 Caution iii
Section 4 Welcome to Navibe iv
Section 5 Table of Contents v
Chapter II Reference
Section 1 Hardware Description 1
Section 2 State Table of LED 2
Section 3 Packet PC Setup 5-8
v
Low Power (red)
& Battery
Charging (Yellow)
–LED2
Reference
1

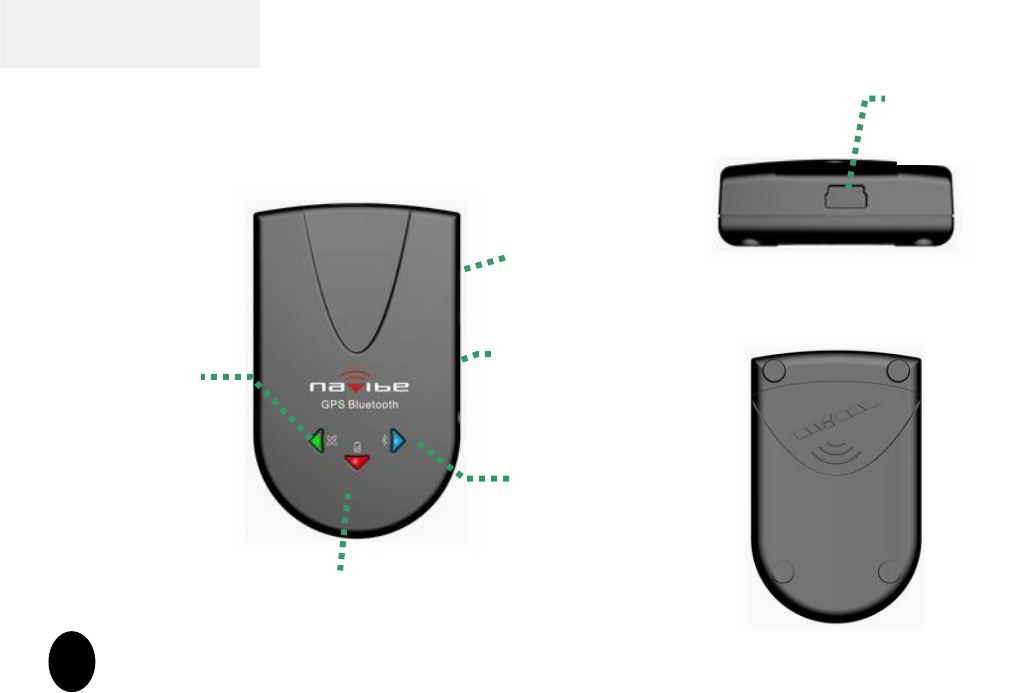

Hardware Description
Hardware Description
Hardware Description
DC
Charging
Jack
Battery
Cover
GPS External
Antenna Connector
(MMCX type)
Power
Switch
GPS
(Green –LED1)
Bluetooth
(Blue –LED3)
Reference
2
State Table of LED
State Table of LED
Blue ON
Blue ON
Blue Flash
Blue Flashing
ing
Yellow OFF
Yellow OFF
Yellow ON
Yellow ON
Red ON
Red ON
Green Flashing
Green Flashing
Green ON
Green ON
Connected
Low Power
Charging
Battery Charged
Bluetooth LED
LED 3
(Right) Pairing
Low Power & Battery Charging LED
LED 2
(Middle)
Signal Acquiring
Position Locked
GPS Status
LED 1
(Left)
Reference
Usage
Usage
3
The second LED (LED 2) indicator will turn RED when battery power becomes
low. Connect the receiver to a power source to recharge the battery. When the
battery is being charging, LED2 will turn YELLOW. When fully charged, the
YELLOW indicator will switch OFF. Please charge the battery fully before first
use.
To turn off the receiver, push the power switch to “OFF” position. All of the
LED indicators will turn off.
To turn on the receiver, first, make sure that the battery is loaded securely then
push the power switch to “ON” position. The green LED (LED 1) indicator will
be flashing for searching GPS satellites. The blue LED (LED 3) indicator will
start flashing for searching Bluetooth device.
Low Power & Charging
Turn off
Turn on
Reference
4
The first LED (LED 1) green indicator will be flashing when searching satellites.
When fixed, the LED green indicator (LED1) will become to steady on.
The right LED (LED 3) blue indicator will flash for pairing Bluetooth signals.
When connected, the LED blue indicator (LED3) will become to steady on.
GPS Status
Bluetooth Device
Usage
Usage
Reference
Pocket PC Setup

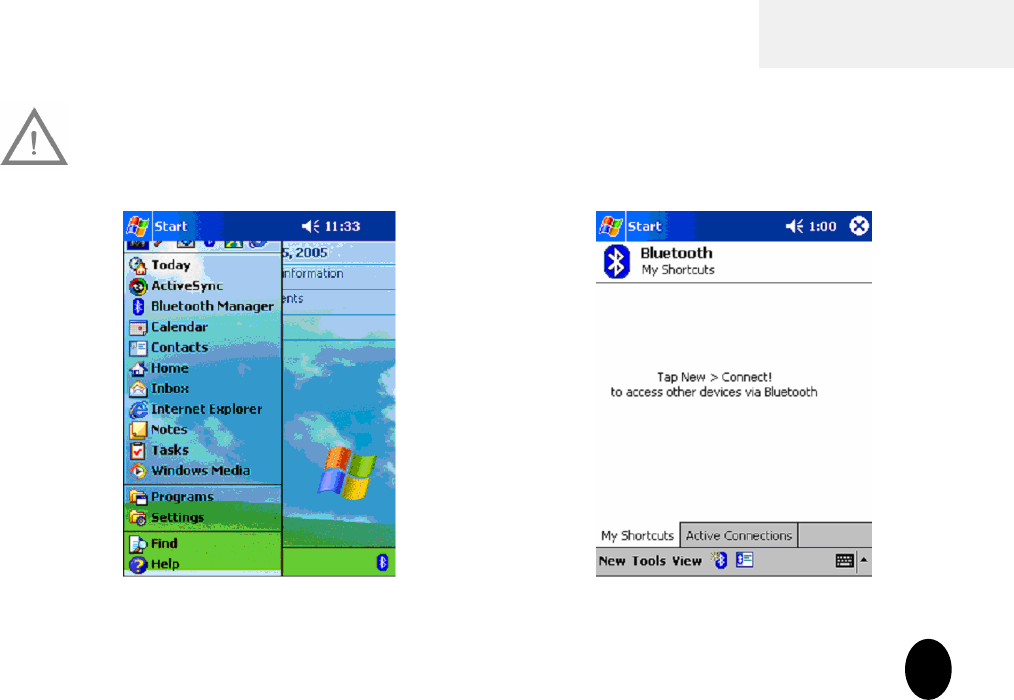

1. Tap “Bluetooth Manager” from Start Menu 2.Tap New > Connect
5
Pocket PC Setup
Pocket PC Setup
Note
Note: In
: In “
“Bluetooth: Device Pairing
Bluetooth: Device Pairing”
”window you will required to enter
window you will required to enter
the Passkey number
the Passkey number 0000
0000 when opening the port in your GPS program.
when opening the port in your GPS program.
Reference

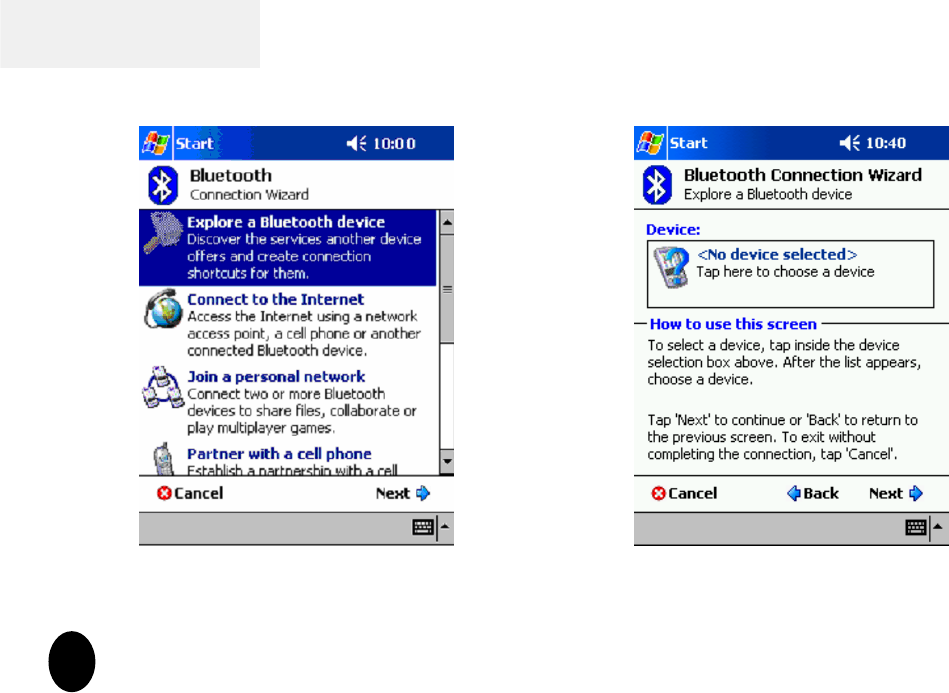

3. Tap Explore a Bluetooth device, then tap Next 4. Tap where indicated to choose a device.
And select the ID “BT GPS” or “BT GPS Vx0” to
continue. (“x” =1~9)
6
Reference

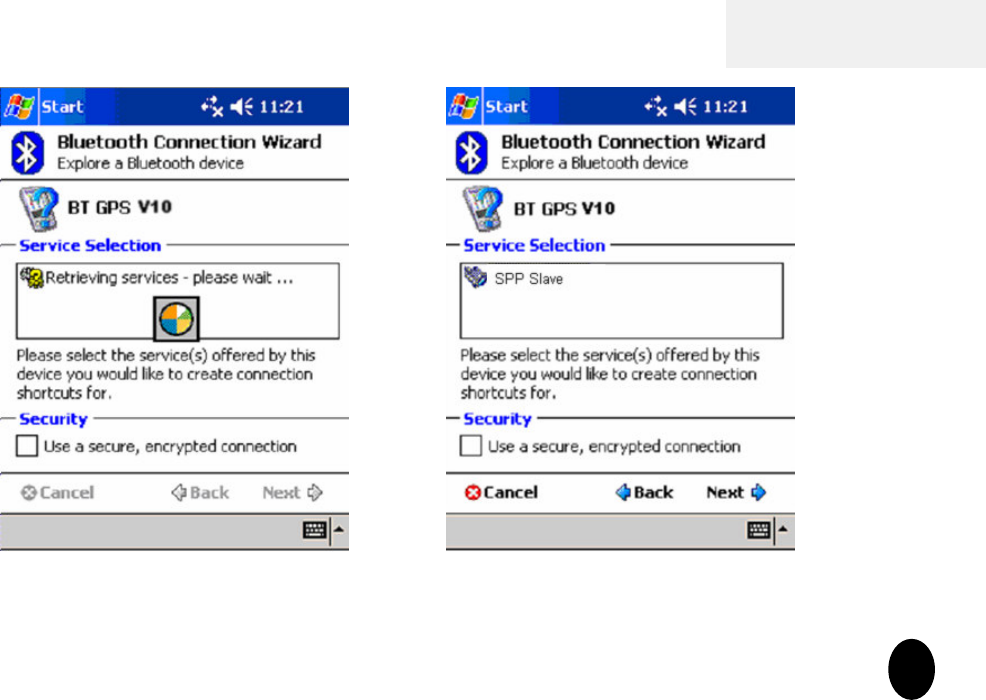

5. The PDA will begin retrieving services
as shown above 6. Select “SPP Slave” and tap Next
7
Reference

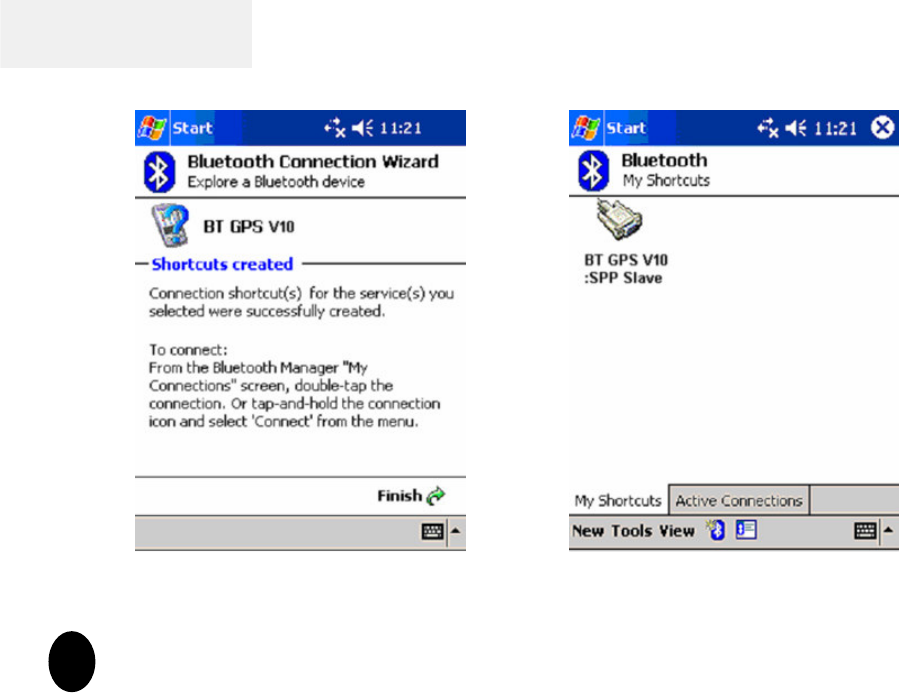

7. Tap Finish to establish the BT
GPS. .. Bluetooth GPS connection
8. In the future, you may establish the
connection from the shortcut, “BT GPS:SPP
Slave” or “BT GPS Vx0: SPP Slave”
8
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the
equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating
instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
