Comper Chuangxiang BBTX1001 Comper Smart Fertility Tracker User Manual BBTX 85x109 160203
Comper Chuangxiang (Beijing) Technology Co., Ltd. Comper Smart Fertility Tracker BBTX 85x109 160203
Users Manual
Hao-Hao Intelligent Pregnant Preparation Instrument TM
Product Name: Comper Smart Fertility Tracker
Product Model: BBTX
COMPER TM
1
Content
Basic Function and Working Principle
Composition
Safety Precautions
Application Method
Instructions for use
Disinfection function
Charging function
Prompt function
Voice Prompt
Cleaning and maintenance
Problems and Troubleshooting
Storage and Shipping Condition
Basic Parameters and Specifications
The Registration Certificate Number and Production License Number
Service Agencies and Information
2
Basic Function and Working Principle
Dear customers,
Thank you for purchasing Comper Intelligent Pregnant Preparation
Instrument TM (Product Name: Medical electronic thermometer, hereinafter
referred to as Pregnant Preparation Instrument). For appropriate application
of the product, please read the operating manual before using. Keep it
safely after reading for reference. Illustrations in the Manual are effect
pictures.
Basic function of the product
Pregnant Preparation Instrument is a mouth-contained basal body
temperature monitoring device for women. Body temperature can be
accurately measured by electronic sensors, satisfying the demand of daily
basal body temperature monitoring of women, and is satisfied the
requirement of daily monitoring by laypersons, nursing staff and care givers in
obstetrical department in hospital, clinics and pregnant women at home.
Application scope: monitor the ovulation cycle
Working principle
A temperature sensor outputs electric signals and then electric signals will
be converted into digital signals that can be identified by internal
integrated circuit. Temperature value will be obtained by the processing
and computing of digital signals by internal chips.
3
Manual Qualification
certificate
Composition
1 2
4 5 6

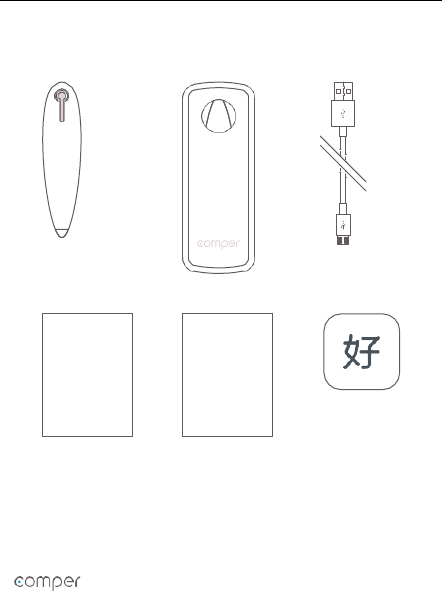

Parts list:
1. One pregnant
preparation instrument
(thermometer)
2. One disinfection
charging box
3. One USB charging cable
4. One manual
5. One qualification certificate
6. “Hao-Hao Health” APP
3
4
1 3
4
2
Instruction of parts:
1. Pregnant
preparation
instrument indicator
lamp
2. Heat probe
3. Contact-based
charging interface
4. The anti-skid
particles
5. Disinfection charging box
interface
6. Charging indicator
7. Contact-based charging
connector
8. UV disinfection lamp
7
6
5
8
5
Safety Precautions
In the Manual, all possible harms or damages caused by operation not according to
instructions have been indicated and explained in accordance to the following classification.
Please be aware and understanding that, for all death, injury or damage to goods due to
operations not according to instructions specified in the Manual or deviating from the
designed purpose of the product, the Company shall not bear any responsibility.
Refer to instruction manual/ booklet
Prohibition
It represents absolutely not allowed
There is death or injury risk caused by operation that is out of the
performance of the product or appropriate.
Warning
Represent matters that require special attention
Represent matters that require special attention, which may cause death
or serious disease even in normal operation.
Caution
Represent general considerations in using
If misused, it may cause personal injury or property damage
Prohibition
Do not use the product in flammable environment to protect from fire or
explosion.
Do not dismount, dismantle or repair the product voluntarily.
* There is possibility of causing serious body injury, measurement error
and damages to the product.
6
Warning:
Keep the product out of the reach of infants and young children, and
do not let it use the product alone.
* If misused, there is the possibility of causing damages
When the electronic device is limited in hospital or aircraft cabin,
please do not turn on the product.
Prohibition:
It is dangerous to conduct self-diagnosis or self-treatment in
accordance to measurement results, please follow the guidance of a
doctor
* Self-diagnosis may cause possibility of deterioration of diseases
This product is an oral dedicated thermometer, and is not allowed to
use in any parts other than the mouth (especially the parts of the ear)
to measure body temperature.
* It is unable to correctly measure the temperature, and there is
possibility of causing harm to the ears
Do not share this product with others
* There is possibility of causing a bacterial infection or transmission
of the virus.
Do not damage the battery, heat the battery or throw it in the fire
* There is possibility of a battery explosion.
7
Do not vigorously bite the product.
* May cause product breakdown. Please contact your physician if
the condition of swallowing occurs.
Do not place the product 22cm within the scope closely proximity to
other medical instruments (such as heart pacemakers)
Caution:
Make sure the positive and negative side of prepare pregnant
preparation instrument when putting into the disinfection box
* Incorrect placement may cause possibility of damages to product.
Do not use the product closely to strong electromagnetic fields,
electromagnetic wave and magnetic environment
* There is possibility of measurement errors or damage to the
product
Avoid severe shock, falling from the height or stomping after
putting into the disinfection box
* There is possibility of causing damage to the product.
Do not make the charging part getting wet
* There is possibility of causing damage to the product.
Do not look directly at disinfection lamp
* There is possibility of causing damage to eyes
8
Safety Precautions
Do not place the product into boiling water for sterilization
* There is possibility of causing damage to product breakdown or product failure.
Dismantlement is prohibited.
Do not dismount, dismantle or repair the product voluntarily.
* There is possibility of causing serious body injury, measurement error and
damages to the product
Do not take out the magnet from disinfection charging box.
* Magnet damage may cause possibility of damage to product.
At the end of product life, please deal with the product according to the relevant local
environmental protection laws and regulations.
Scope of application and contraindications
Contraindications: Not found
Application scope: monitor the ovulation cycle
9
Application Method
Pregnant preparation instrument should be
used with APP.
1. Download by scanning QR code.
2. Download from the
application store: search
“Hao-Hao Health”
Note:
Piggyback Bluetooth 4.0 and above module
IOS7.0 and above operating system
Piggyback Bluetooth 4.0 and above module
Android 4.3 and above operating system
9
Instructions for Use
Note: The instrument should be charged for at least 3 hours in first use.
1. Open the Bluetooth of mobile phone.
2. Open the “Hao-Hao Health” APP and create an account.
3. Select device of “Hao-Hao Health Intelligent Pregnant Preparation
Instrument”, and conduct subsequent operations according to APP tips.
For questions, please contact customer service.
10
Disinfection function
When putting the pregnant preparation instrument back into
disinfection charging box
after measurement, pregnant preparation instrument will automatically shut down.
Please connect with the power and close the disinfection charging box
, the function of
disinfection will turns on automatically.
11
Charging Function

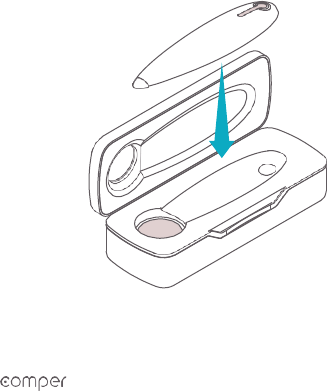

1. Put the pregnant preparation instrument in the disinfection charging box.
12

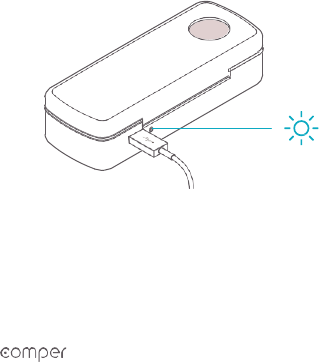

2. Insert the USB charging cable into the charging interface of disinfection charging box.
13
3. Lamp displays orange light when it is in charging. Lamp displays white
light when charging is completed.
15
Prompt function
Charging indicator lamp
Long white light
Charging is completed.
Long orange light
In charging
Pregnant preparation instrument
indicator lamp
Long white light & one time of beep
The main body turns on.
Flicker white light
Successful connection of Blueteeth.
Long white light & three times of beep
No measurement/temperature is too low or too
high, or abnormal measurement
Light turned down
Electric quantity exhaustion
Orange light
Period of easy pregnancy
Blue light
Period of non-easy pregnancy
White light
No measurement/results
16
Voice Prompt
1
x
1. One time of “beep” after measurement represents completion
of measurement.
3
x
2. Three times of “beep” after measurement represent abnormal
measurement temperature.
.
17
Cleaning and maintenance
Please keep the cleaning of pregnant preparation instrument.
Wipe the heat detector probe with a dry, soft cloth
If there is a lot of dirt on the heat detector probe, please wipe the probe with a
wringed cloth with neutral detergent or water, and then use a soft cloth to wipe it
dry.
After connecting with the power, put the instrument into the disinfection charging
box and automatic disinfection of ultraviolet ray will begin and last about 5
minutes.
Please comply with the following precautions to avoid breakdown or failure
Do not remove dirt by using volatile agents, diluent or gasoline, etc.
The disinfection charging box is not waterproof; please avoid water flowing into
the box.
Do not immerse the heat detector probe in alcohol for a long time.
Do not use hot water to conduct sterilization of pregnant preparation instrument
(over 50 ˚C water).
17
Problems and Troubleshooting
Problem/failure
Possible reason
Long white light & three times of beep
The measured value is too high due to
activity or eating before measurement.
The measured value is too low due to
incorrect measurement position.
The measured value is too low due to open
mouth measurement.
Artificial interruption of the measurement.
The measured value is too high due to a
long time placement in hot environment.
No flicker of white light after startup
Bluetooth is not connected with the phone.
No indicator lamp is turned on after
taking out of the disinfection charging box.
Electric quantity exhaustion
18
Adopted measures
Please conduct measurement in bed immediately after waking up in the morning.
Please conduct measurement in correct measurement position.
Please close the lips during the measurement and do not breathe by mouth.
Please conduct measurement according to correct instructions.
Please use the product in the environment of +5 ˚C to +40˚C
Please check whether the “Hao-Hao Health” APP is in operation.
Please check whether your phone Bluetooth is turned on in operation
Please charge.
19
Storage and Shipping Condition
Special storage
Do not store the product in the following
environments, or otherwise it will cause a
breakdown or failure
Humid environment
High temperature, direct sunlight, dusty
environment, or salt environment
Environment with chemicals or corrosive gas
Storage environment
Temperature: -10°C to +40°C Humidity: ≤85%
Ventilated room without corrosive gases
Transportation environment
Temperature: -40°C to + 55°C
Humidity: ≤90% RH
Atmospheric pressure: 50 to 101.3 kPa
Method: air, sea, rail transport or coach transport
20
Basic Parameters and Specifications
Model: BBTX
Power of the product
Battery: Rechargeable lithium battery (3.7 V)
Battery life: continuous use of 12 hours, more than 300 times of charge-discharge
Charging power supply: Micro USB (DC 5.0 V; 100 mA)
(This product should be charged with the charging power supply of medical products
comply with GB 9706.1/IEC 60601-1 for two MOPP insulation system. The charging
power supply should be checked or replaced regularly.)
Category of product Electric shock protection type: internal power supply
Electric shock protection type: BF product
Level of anti-liquid: IPX6 (main body of pregnant preparation instrument)
Anti-level liquid feed: IPX6 (prepared pregnant instrument body)
The degree of safety of combustible gas: not suitable for using in environment with
flammable gas
Operating mode: Single measurement
Size of product: 95 x 23 x 12 mm
Shape of disinfection box: 117 x 44 x 30 mm
Net weight: Disinfection charging box of 69 g; pregnant preparation instrument of 14 g
Communication: Ultra-low-power consumption Bluetooth 4.0
Compliance:
IEC 60601-1
21
Working environment
Temperature: + 5°C to + 40°C
Humidity: ≤85%
Atmospheric pressure: 70 to 101.3 kPa
Product performance
Sensor: Rapid response thermistor
Measurement: High-speed precision Found
Measuring range: 35.00°C to 42.00°C
Accuracy: 35.00°C to 39.00°C, ± 0.05°C
39.1°C to 42.0°C, ± 0.1°C
Measurement accuracy: 0.01 °C (displayed on the “Hao-Hao Health” APP)
Life: 4 years
22
National hotline
：
400 900 1020
The Registration Certificate Number and Production License Number
Product registration certificate number:
Product production license number:
Service Agencies and Information
Production company name: Comper (Beijing) Technology Co., Ltd.
Manufacturer address: Floor 3 Unit 712, 713 Building 1, No. 3
Yongchang North Road, Economic and Technological Development
Zone, Beijing
Manufacturer Tel.: +86 01057480968
Manual version: BT-M-01-15 Rev.02
Date of formulation / revision:
September 2015
23
COMPER TM
How the best is done
Copyright
Copyright is owned by Comper (Beijing) Technology Co., Ltd., the Company shall enjoy and reserve all exclusive authority
of copyright. No part of the Manual shall be increased or decreased, excerpted, reproduced, altered or imitated without the
prior written consent of the Company.
For the content of this Manual, the Company is not responsible for any explicit or implied warranty or guarantee liability.
The content change caused by product improvements and technology updates could occur at any time without prior notice.
The power of interpretation is vested by the Company.
Federal Communications Commission (FCC) Statement
15.21
You are cautioned that changes or modifications not expressly approved
by the part responsible for compliance could void the user’s authority to
operate the equipment.
15.105(b)
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that
may cause undesired operation of the device.
FCC RF Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. End users must follow the specific
operating instructions for satisfying RF exposure compliance. This
transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
