1. Introduction
This mini PCI adapter, Compex WLM54AG contains a dual-mode
single chip MAC/BB/Radio for IEEE 802.11a, 11g and 11b Wireless
LAN. It can support high-speed data transmission of up to 54Mbps in
the 2.4GHz and 5GHz frequency bands based on 802.11b/g and
802.11a mode respectively.
Based on the latest industry standard Wi-Fi Certified IEEE
802.11a/b/g specification, the Compex WLM54AG offers maximum
channel speeds of up to 54 Mbps. It supports key security features
like Wi-Fi Protected Access (WPA), WPA2, WEP and 802.1x.
You can find this adapter that is seated inside the wireless products
such as the WPE54AG. WLM54AG can be removed from or inserted
onto the PCBA of the WPE54AG.
2. Package Content
Compex WPE54AG retail package contains the following items:
•1 x Compex WPE54AG
•1 x External Power Adapter
•1 x 3dBi SMA Antenna
•1 x Base Stand
•1 x RJ45 MDIX cross-over Ethernet cable
•1 x Quick Install Guide with Warranty Registration Form
•1 x Product CD (including Quick Install Guide, User’s Manual,
Firmware Recovery Tool & Utilities)
3. Hardware Installation
1. Connect one end of the RJ45 crossover Ethernet cable to your
PC and another end to the Ethernet port of your Compex
WPE54AG.
2. Next, attach the power adapter supplied in the packaging to the
power point.
3. Connect the power plug onto the socket on your Compex
WPE54AG.
4. Power ON your Compex WPE54AG and your PC. Notice that
the LAN Link/ACT and Power LEDs have lighted up. This
indicates that the connection has established successfully
between your Compex WPE54AG and your PC.
NETPASSAGE
PC
Power Point
RJ45
Ethernet cable
Compex
WPE54AG
4. Access to Web-based Interface
Compex has developed a powerful uConfig utility which provides
you hassle-free access to the web-based configuration page. To do so,
simply
1. Insert your Product CD into your CD-ROM drive. Go to
Utilities section and select uConfig to run the program.
2. The following screen shot will appear. Select NetPassage
WPE54AG and click on OpenWeb button to access to the
authentication page.
3. The password is pre-configured as password in the field
provided. Click on Log On! button to access to the main page.
After accessing to the main page of your Compex WPE54AG, you
can start doing your configuration
5. Basic Configuration for Compex WPE54AG
1. To handle automatic IP addressing, go to Management Port
under CONFIGURATION section.
2. Go to DHCP Server option and select Enable radio button.
Click on Apply button to update the changes.
Now, your Compex WPE54AG acts as a DHCP Server which can
assign IP address to your PC/clients.
6. WLAN Basic Setup for Compex WPE54AG
1. To configure your Compex WPE54AG for your wireless user,
go to WLAN Basic Setup from the CONFIGURATION
section.
2. From your Access Point Setup window, key in the ESSID that
you intend to use for your wireless network.
3. You may leave the frequency channel as SmartSelect. This
allows your access point to select the channel automatically.
4. Leave the remaining settings as default and click Apply button
to update the changes.
7. TCP/IP Configuration for wireless clients

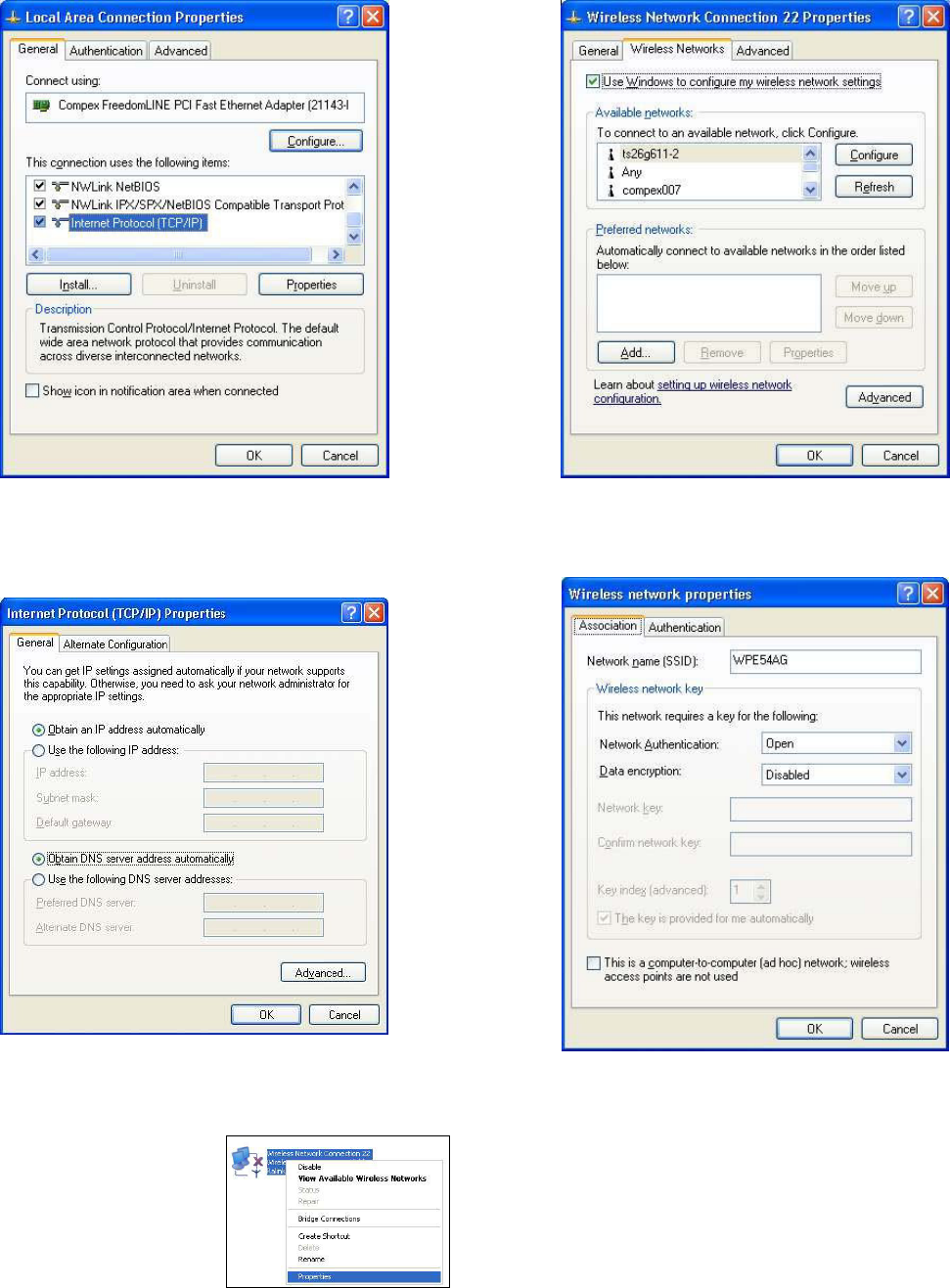

Generally, automatic IP addressing should be configured for your
wireless client PCs or notebooks. You may configure the TCP/IP
settings of Microsoft windows XP as follows:
1. From your desktop, right click on My Network Places and
select Properties.
2. Next, right click on your Ethernet Adapter go to Properties.
3. Highlight Internet Protocol (TCP/IP) and click on Properties
button.
4. Select the radio buttons for Obtain an IP address
automatically and Obtain DNS server address automatically.
Click OK button to update the changes.
Next, you may set up Windows XP’s Wireless Network Connection
as follows:
5. Right click on Wireless
Network Connection
corresponding to the Wireless
Ethernet Adapter you wish to
connect to your Compex
WPE54AG, and click on
Properties.
6. Go to Wireless Networks tab and click on Add.. button.
7. Next, enter the Network name (SSID) which must be the same
as the ESSID that you input earlier for your access point.
Ensure that the Network name (SSID) value is the same for all
wireless clients in the same wireless network.
For now, you may leave the other information as its default settings.
Network Authentication: Open
Data encryption: Disabled
For details in configuring your Compex WPE54AG, kindly refer to
the User’s Manual stored in the Product CD.

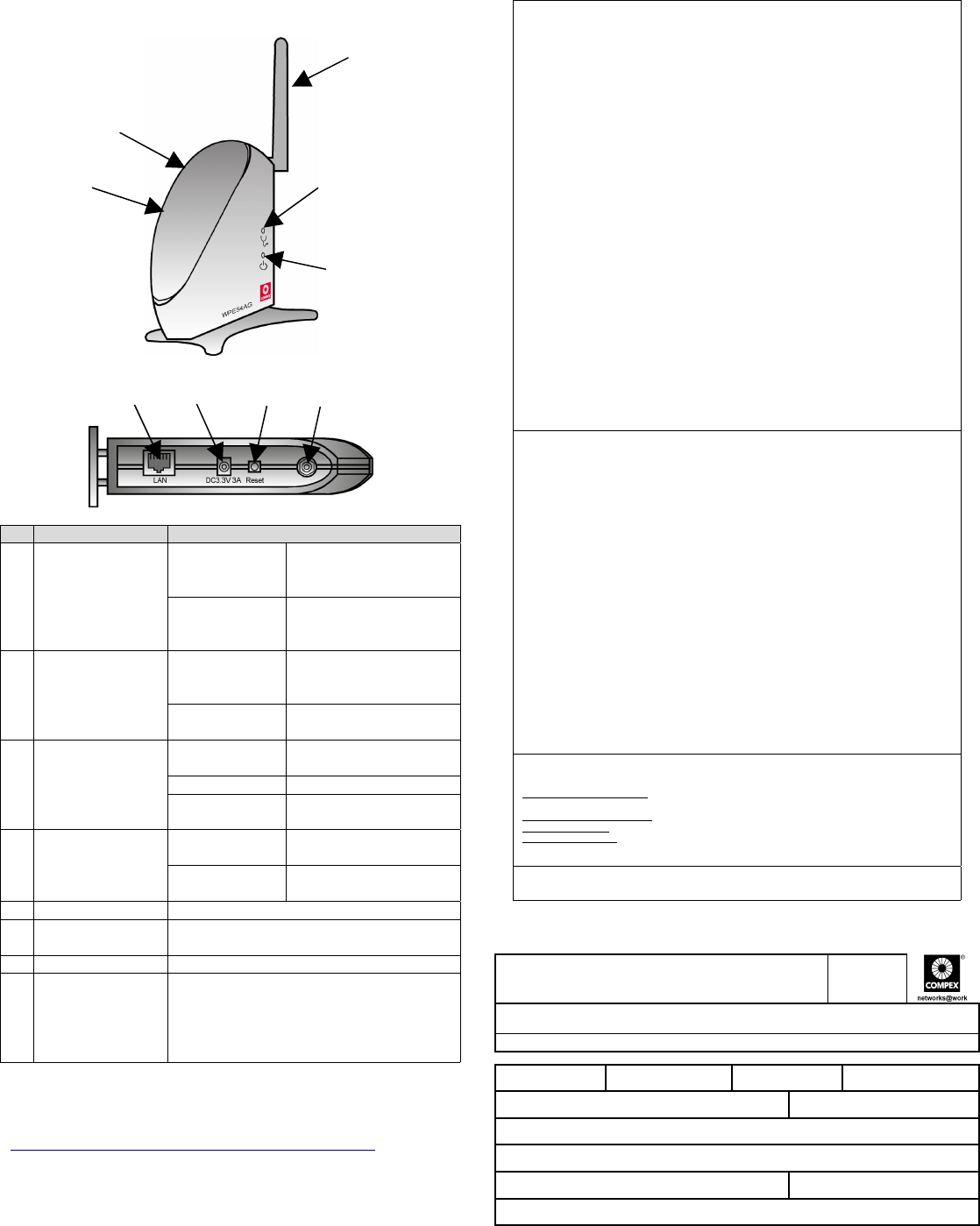

8. Panel Views and Descriptions
Features Status and Indications
1 LAN Link/Act
LED Steady Yellow Compex WPE54AG is
operating at the speed
of 10Mbps.
Steady Green Compex WPE54AG is
operating at the speed
of 100Mbps.
2 WLAN Link/Act
LED Steady Green More than 1 wireless
client is present in the
wireless network.
Blinking Green Activity is detected in
the wireless network.
3 Diagnostic LED Steady Green The device is in access
point or gateway mode.
Blinking Green The device is booting.
Off The device is in Client
mode.
4 Power LED Steady Blue Power is supplied to the
device.
Off No power is supplied to
the device.
5 External Antenna Rotatable antenna
6 LAN RJ45
Ethernet Port Using RJ45 Ethernet cable for connection.
7 DC 3.3V 3A Power input of 3.3VDC
8 Reset button Push button:
2s to reboot your device
between 2s to 10s to restore to its
factory default
> 10s for operating mode switch
