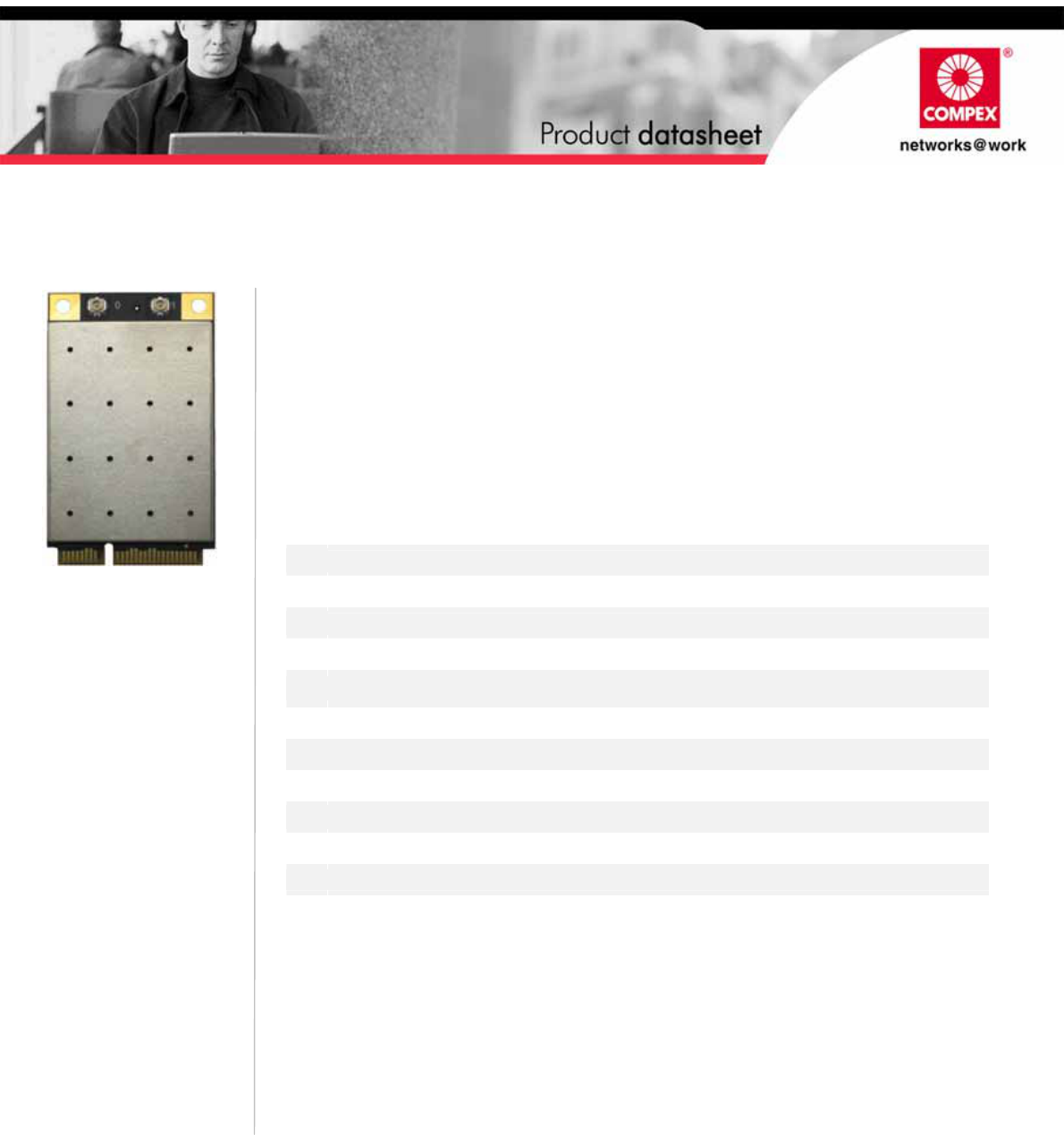

Compex Systems WLE200N2-23 WIRELESS-BGN 23DBM 2X2 NETWORK MINI PCIE ADAPTER User Manual
Compex Systems Pte Ltd WIRELESS-BGN 23DBM 2X2 NETWORK MINI PCIE ADAPTER
(WLE200N2-23) User Manual 0620
PCIe MINI CARD
WLE200N2-23
WIRELESS-BGN 23DBM 2X2 NETWORK MINI PCIE ADAPTER
Features
• Atheros XSPAN family chipset
• IEEE 802.11n compliant and backward compatible with 802.11b/g
• 2.4GHz Single-band 2 x 2 MIMO spatial multiplexing technique
• Maximum output power 23dBm@802.11b/g -26dBm MIMO aggregate
• Supports up to 300Mbps physical data rates
• Delivers up to 10 times the throughput and nearly twice the range of legacy 802.11b/
g
networks
•
T
ransmission Power Control (IEEE 802.11h TPC)
• Supports spatial multiplexing and maximal ratio combining (MRC)
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• 2 x U.FL Antenna Connector
• Complaint with PCI-Express Mini Card 1.1 Standard
• Supports 802.11x authentication, 64/128/152Bit WEP,IEEE802.11i encryption
WLE200N2-23 PCIe Mini CARD RADIO
TX SPECIFICATIONS
DataRate TX Power
(per chain) TX Power
(2 chains) Tolerance DataRate TX Power
(per chain) TX Power
(2 chains) Tolerance
802.11b
11Mbps 23dBm 26dBm ±2dB
802.11g
6-24Mbps 23dBm 26dBm ±2dB
5.5Mbps 23dBm 26dBm ±2dB 36Mbps 22dBm 25dBm ±2dB
2Mbps 23dBm 26dBm ±2dB 48Mbps 21dBm 24dBm ±2dB
1Mbps 23dBm 26dBm ±2dB 54Mbps 19dBm 22dBm ±2dB
DataRate
TX Power
(per chain) TX Power
(2 chains) Tolerance DataRate TX Power
(per chain) TX Power
(2 chains) Tolerance
2.4GHz
11n
HT20
MCS 0/8 23dBm 26dBm ±2dB
2.4GHz
11n
HT40
MCS 0/8 20dBm 23dBm ±2dB
MCS 1/9 23dBm 26dBm ±2dB MCS 1/9 18dBm 21dBm ±2dB
MCS 2/10 23dBm 26dBm ±2dB MCS 2/10 18dBm 21dBm ±2dB
MCS 3/11 23dBm 26dBm ±2dB MCS 3/11 18dBm 21dBm ±2dB
MCS 4/12 20dBm 23dBm ±2dB MCS 4/12 18dBm 21dBm ±2dB
MCS 5/13 19dBm 22dBm ±2dB MCS 5/13 18dBm 21dBm ±2dB
MCS 6/14 18dBm 21dBm ±2dB MCS 6/14 17dBm 20dBm ±2dB
MCS 7/15 15dBm 18dBm ±2dB MCS 7/15 14dBm 17dBm ±2dB
RX SPECIFICATIONS
DataRate Sensitivity
(2 chains) Tolerance DataRate Sensitivity
(2 chains) Tolerance
802.11g
6 Mbps -96dBm ±2dB
802.11g
24Mbps -90dBm ±2dB
9 Mbps -96dBm ±2dB 38Mbps -87dBm ±2dB
12 Mbps -95dBm ±2dB 48Mbps -83dBm ±2dB
18 Mbps -93dBm ±2dB 54Mbps -81dBm ±2dB
2.4GHz
11n
HT20
MCS0 -96dBm ±2dB
2.4GHz
11n
HT40
MCS0 -92dBm ±2dB
MCS1 -94dBm ±2dB MCS1 -90dBm ±2dB
MCS2 -91dBm ±2dB MCS2 -87dBm ±2dB
MCS3 -87dBm ±2dB MCS3 -86dBm ±2dB
MCS4 -85dBm ±2dB MCS4 -84dBm ±2dB
MCS5 -82dBm ±2dB MCS5 -82dBm ±2dB
MCS6 -81dBm ±2dB MCS6 -81dBm ±2dB
MCS7 -79dBm ±2dB MCS7 -77dBm ±2dB
Technical Specifications
Chipset AR9283
Host Interface PCI –Express 1.1 Standard
Operating
Voltage 3.3 VDC
Power
Consumption 2.6W
Antenna
Connector 2 x U.FL Antenna Connector
Standards
IEEE 802.11b : 11Mbps 5.5Mbps 2Mbps 1Mbps
IEEE 802.11g : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps automatically
Fallback to 5.5Mbps, 2Mbps, 1Mbps
IEEE 802.11n : 20MHZ 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
40MHz 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Frequency
Range IEEE 802.11b/g/n: 2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
2.412GHz ~ 2.484GHz (Japan)
Modulation
Techniques OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
ROHS
Compliance Yes
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity 5% to 95% (non-condensing)
Dimension 50.95mm x 30 mm x 3.2 mm (H x W x D)
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC
ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or
transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function
FCC ID: TK4WLE200N2-23
Ordering Informaion①
Model Code Form Factor CARD INFORMATIONS
WLE200N2-23 7A0000 Full Size 802.11 b/g/n PCIe mini card
Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations
DIMENSIONS DRAWING
WLM FAMILY SERIES OF MINIPCI
WLM54 series miniPCI
(legacy a/b/g card)
MODEL WLM 54G-20dBm WLM 54G-23dBm WLM 54G-23 ESD WLM 54G-26dBm WLM54G-30 ESD WLM 54AG – 20dBm WLM 54AG – 23dBm WLM 54A – 26 ESD
CHIPSET AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 5413/5414
(AR5006X/XS) AR 5413/5414
(AR5006X/XS) AR5414
(AR5006XS)
SPEED UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO 108Mbps
OUTPUT POWE
R
802.11a - - - - -
20dBm@6-24Mb
p
s23dBm@6-24Mb
p
s 26dBm@6-24Mb
p
s
17dBm@36Mbps 21dBm@36Mbps 24dBm@36Mbps
16dBm@48Mbps 19dBm@48Mbps 22Bm@48Mbps
13dBm@54Mbps 17dBm@54Mbps 20dBm@54Mbps
802.11b 20dBm@1-11Mb
p
s 23dBm@1-11Mb
p
s 23dBm@1-11Mb
p
s26dBm@1-11Mb
p
s 30Bm@1-11Mb
p
s 20dBm@1-11Mb
p
s23dBm@1-11Mb
p
s -
802.11g
20dBm@6-24Mbps 23dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps 30dBm@6-24Mbps 20dBm@6-24Mbps 23dBm@6-24Mbps -
19dBm@36Mbps 22dBm@36Mbps 22dBm@36Mbps 25dBm@36Mbps 28dBm@36Mbps 18dBm@36Mbps 21dBm@36Mbps -
17dBm@48Mbps 19dBm@48Mbps 19dBm@48Mbps 24dBm@48Mbps 27dBm@48Mbps 17dBm@48Mbps 19dBm@48Mbps -
16dBm@54Mbps 17dBm@54Mbps 17dBm@54Mbps 23dBm@54Mbps 25dBm@54Mbps 15dBm@54Mbps 17dBm@54Mbps -
Receiver Sensitivity
802.11a
-93dBm @ 6Mbps -93dBm @ 6Mbps -96dBm @ 6Mbps
-72dBm @ 54Mb
p
s-72dBm @ 54Mb
p
s -76dBm @ 54Mb
p
s
802.11b -96dBm@ 6Mbps -96dBm@ 6Mbps -93dBm@ 6Mbps -93dBm@ 6Mbps -96dBm@ 6Mbps -96dBm@ 6Mbps -96dBm@ 6Mbps
-90dBm @11Mbps -90dBm @11Mbps -90dBm @11Mbps -90dBm @11Mbps -90dBm @11Mbps -90dBm @11Mbps -90dBm @11Mbps
802.11g -93dBm @ 6Mbps -93dBm @ 6Mbps -93dBm @ 6Mbps -93dBm @ 6Mbps -93dBm @ 6Mbps -93dBm @ 6Mbps -93dBm @ 6Mbps
-74dBm @ 54Mbps -74dBm @ 54Mbps <-72dBm @ 54Mbps <-72dBm @ 54Mbps -74dBm @ 54Mbps -96dBm@ 6Mbps -96dBm@ 6Mbps
Operating
Channels
IEEE 802.11g:
11 Channel (US & Canada)
13 Channel (Europe)
14 Channel (Japan)
IEEE 802.11a:
13 Channel (US & Canada)
19 Channel (Europe)
10 Channel (Japan)
Interface PCI Interface v2.3 (Type III-B Mini PCI Form Factor) 32-bit mini-PCI Type IIIA+
(
1.85mm lon
g
er than IIIA t
yp
e
)
Input Power 3.3V DC
Operatin
g
Temperature -20ºC to 70ºC
WLM200 series miniPCI (11n MIMO 2*2
card)
MODEL WLM200N2 WLM200N2-26dBm WLM200N
X
WLM200N5-23 ESD WLM200N5-26 ESD
CHIPSET AR9223 AR9223 AR9220 AR9220 AR9220
SPEED UP TO 300Mbps physical data rates UP TO 300Mbps physical data rates UP TO 300Mbps physical data rates UP TO 300Mbps physical data rates UP TO 300Mbps physical data rates
OUTPUT POWER
802.11a - -
18dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps
18dBm@36Mbps 22dBm@36Mbps 24dBm@36Mbps
17dBm@48Mbps 21dBm@48Mbps 23dBm@48Mbps
16dBm@54Mb
p
s 20dBm@54Mb
p
s 21dBm@54Mb
p
s
5G HT20 - - 18dBm @MCS0 23dBm @MCS0 25dBm @MCS0
- - 12dBm @MCS7 17dBm @MCS7 20dBm @MCS7
5G HT40 - - 16.5dBm @MCS0 21dBm @MCS0 24dBm @MCS0
- - 9dBm @MCS7 14dBm @MCS7 19dBm @MCS7
802.11b 20dBm@1-11Mbps 26dBm@1-11Mbps 20dBm@1-11Mbps - -
802.11g
20dBm@6-24Mbps 26dBm@6-24Mbps
20dBm@6-24Mbps - -
20dBm@36Mb
p
s 26dBm@36Mb
p
s19.5dBm@36Mb
p
s- -
16dBm@48Mb
p
s 22dBm@48Mb
p
s18.5dBm@48Mb
p
s- -
15dBm@54Mbps 21dBm@54Mbps 17dBm@54Mbps - -
2.4G HT20 17dBm @MCS0 23dBm @MCS0 18dBm @MCS0 - -
14dBm @MCS7 20dBm @MCS7 15dBm @MCS7 - -
2.4G HT40 16dBm @MCS0 22dBm @MCS0 18dBm @MCS0 - -
14dBm @MCS7 20dBm @MCS7 14.5dBm @MCS7 - -
Receiver Sensitivity
802.11a - - -94dBm@6M -97dBm@6M -96dBm@6M
- - -77dBm@54M -80dBm@54M -79dBm@54M
5G HT20 - - -93dBm@MCS0 -97dBm@MCS0 -95dBm@MCS0
- - -74dBm@MCS7 -77dBm@MCS7 -75dBm@MCS7
5G HT40 - - -90dBm@MCS0 -92dBm@MCS0 -92dBm@MCS0
- - -72dBm@MCS7 -74dBm@MCS7 -74dBm@MCS7
802.11b -94dBm@1M -94dBm@1M -94dBm@1M - -
-92dBm@11M -92dBm@11M -94dBm@11M - -
802.11g -94dBm@6M -94dBm@6M -94dBm@6M - -
-78dBm@54M -74dBm@54M -78dBm@54M - -
2.4G HT20 -93dBm@MCS0 -92dBm@MCS0 -93dBm@MCS0 - -
-76dBm@MCS7 -73dBm@MCS7 -74dBm@MCS7 - -
2.4G HT40 -90dBm@MCS0 -90dBm@MCS0 -90dBm@MCS0 - -
-73dBm@MCS7 -71dBm@MCS7 -72dBm@MCS7 - -
Operating
Channels
IEEE 802.11g:
11 Channel (US & Canada)
13 Channel (Europe)
14 Channel (Japan)
IEEE 802.11a:
13 Channel (US & Canada)
19 Channel (Europe)
10 Channel (Japan)
Interface PCI Interface v2.3 (Type III-A Mini PCI form factor) 32-bit mini-PCI Type IIIA+
(6.55mm longer than IIIA type)
In
p
ut Power 3.3V DC
Operating
Temperature -20ºC to 70ºC
Compex Systems Pte Ltd Compex (Suzhou) Co. Ltd
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
T
el: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
No. 12, ChuangTou Industrial Square, LouFeng North, Suzhou
Industrial Park, Suzhou, Jiangsu Province, China 21122
T
el: (86)-512-62950031
Fax: (86)-512-62950032
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc.
Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may
arise. All specification is subject to change without notice. DS: V1.0.2 GH 111027
