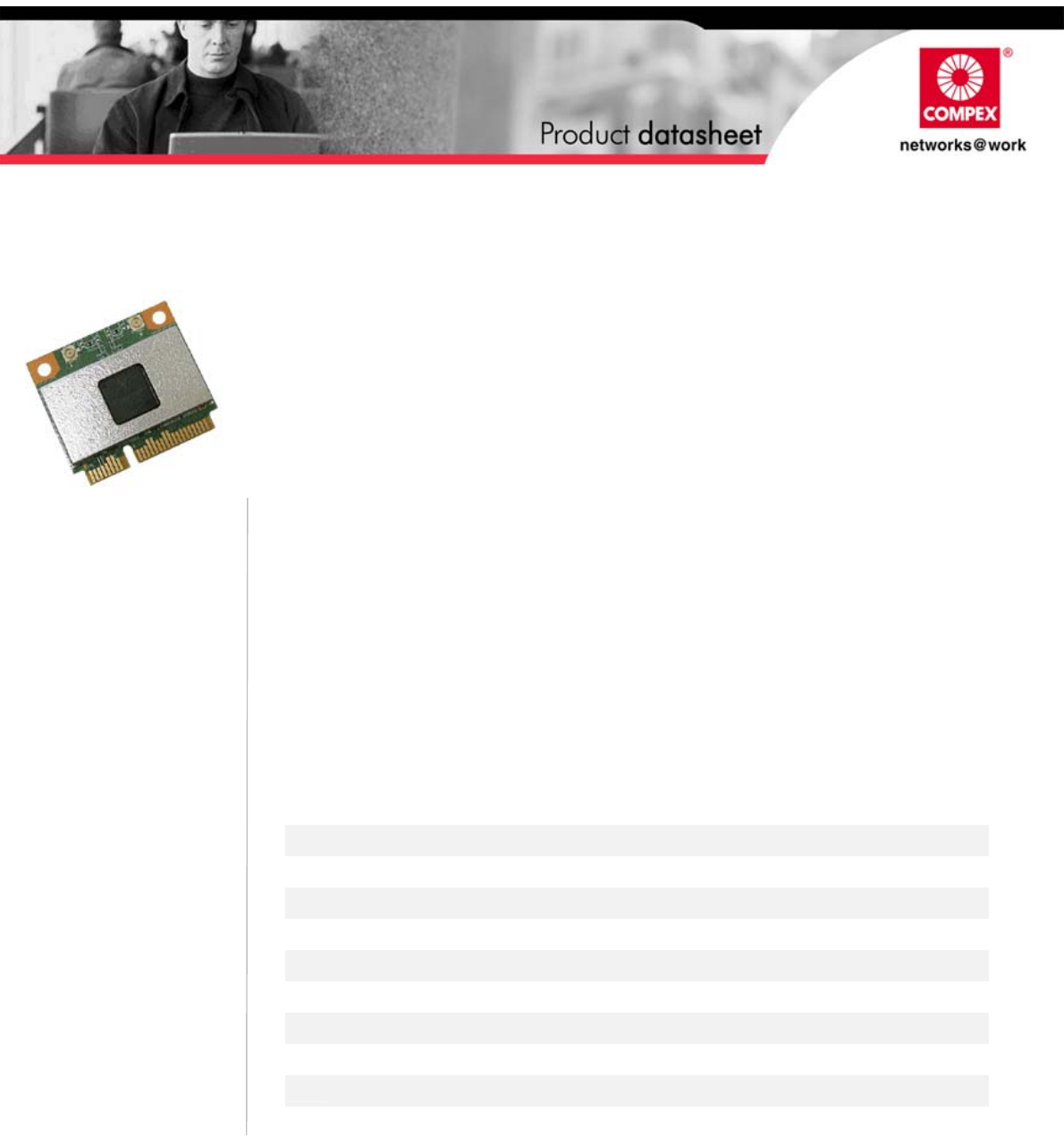

Compex Systems WLE200N2 WIRELESS-BGN 2X2 NETWORK MINI PCIE ADAPTER User Manual WLE200N2 DSv1 0 1
Compex Systems Pte Ltd WIRELESS-BGN 2X2 NETWORK MINI PCIE ADAPTER WLE200N2 DSv1 0 1
(WLE200N2) manual update 20130327
Superior Performance for Multimedia Networking
WLE200N2 is an 802.11n Single-Band wireless mini pci express Half
Mini Card based on Atheros AR9287 chipset. It supports 2T2R (2-
stream) function, which provides maximum data rate up to
300Mbps and improves the overall Wi-Fi coverage area.
Secure Wireless Connection
This Mini PCIe wireless card, WLE200N2, incorporated advanced
security encryption, such as WPA, and WPA2, to help prevent users’
devices from malicious attacks.
Half PCIe MINI CARD
WLE200N2
WIRELESS-BGN 2 x 2 NETWORK MINIPCIE ADAPTER
Features
• Atheros HB97 reference design
• IEEE 802.11n compliant and backward compatible with 802.11b/g
• 2.4GHz Single-band 2 x 2 MIMO spatial multiplexing technique
• Output Power up to 16dBm
• Supports up to 300Mbps physical data rates
• Multi-Country Roaming Supported
• 2 x U.FL Antenna Connector
• Complaint with PCI-Express Mini Card 1.1 Standard
• Enhanced wireless security: WEP, WPA, WPA2
• Support Windows XP/ Vista, Win 7, Android by request
Ordering Informaion①
Model Code Chipset Form Factor CARD INFORMATIONS
WLE200N2 6A0000 AR9287 Half Size 802.11 b/g/n PCIe mini card
c Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations
Technical Specifications
Chipset AR9287
Host Interface PCI–Express 1.1 Standard
Operating
Voltage DC 3.3 V±9%
Power
Consumption Continue TX 570mA
Continue Rx 530mA
Antenna
Connector 2 x U.FL Antenna Connector
Output Power
(2T)
802.11b: 16dBm ± 1.5dBm@11Mbps
802.11g: 11dBm ± 1.5dBm@54Mbps
802.11gn HT20: 12dBm ± 1.5dBm@MCS7
802.11gn HT40: 11dBm ± 1.5dBm@MCS7
Receive Sensitivity
(2R)
802.11b: -88dBm ± 2dBm@11Mbps
802.11g: -70dBm ± 2dBm@54Mbps
802.11gn HT20: -67dBm ± 2dBm@MCS7
802.11gn HT40: -65dBm ± 2dBm@MCS7
IEEE 802.11b : 11Mbps 5.5Mbps 2Mbps 1Mbps
54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps automatically
IEEE 802.11g : Fallback to 5.5Mbps, 2Mbps, 1Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
20MHZ 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Standards
IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
Frequency
Range IEEE 802.11b/g/n: 2.412GHz ~ 2.484GHz (Japan)
Modulation
Techniques OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity 5% to 95% (non-condensing)
Weight ≤9g
Dimension 30mm x 26.8mm x 3.45mm
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC
ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or
transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
(5) Outdoor Operations in the 5.15~5.25GHz band is prohibited.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function
FCC ID: TK4WLE200N2
End Product Labeling
This transmitter module is authorized only for use in device where the antenna may be installed
such that 20 cm may be maintained between the antenna and users.
The final end product must be labeled in a visible area with the following:
Contains FCC ID: TK4WLE200N2
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding how to
install or remove this RF module in the user manual of the end product which integrates this module.
The end user manual shall include all required regulatory information/warning as show in this manual.

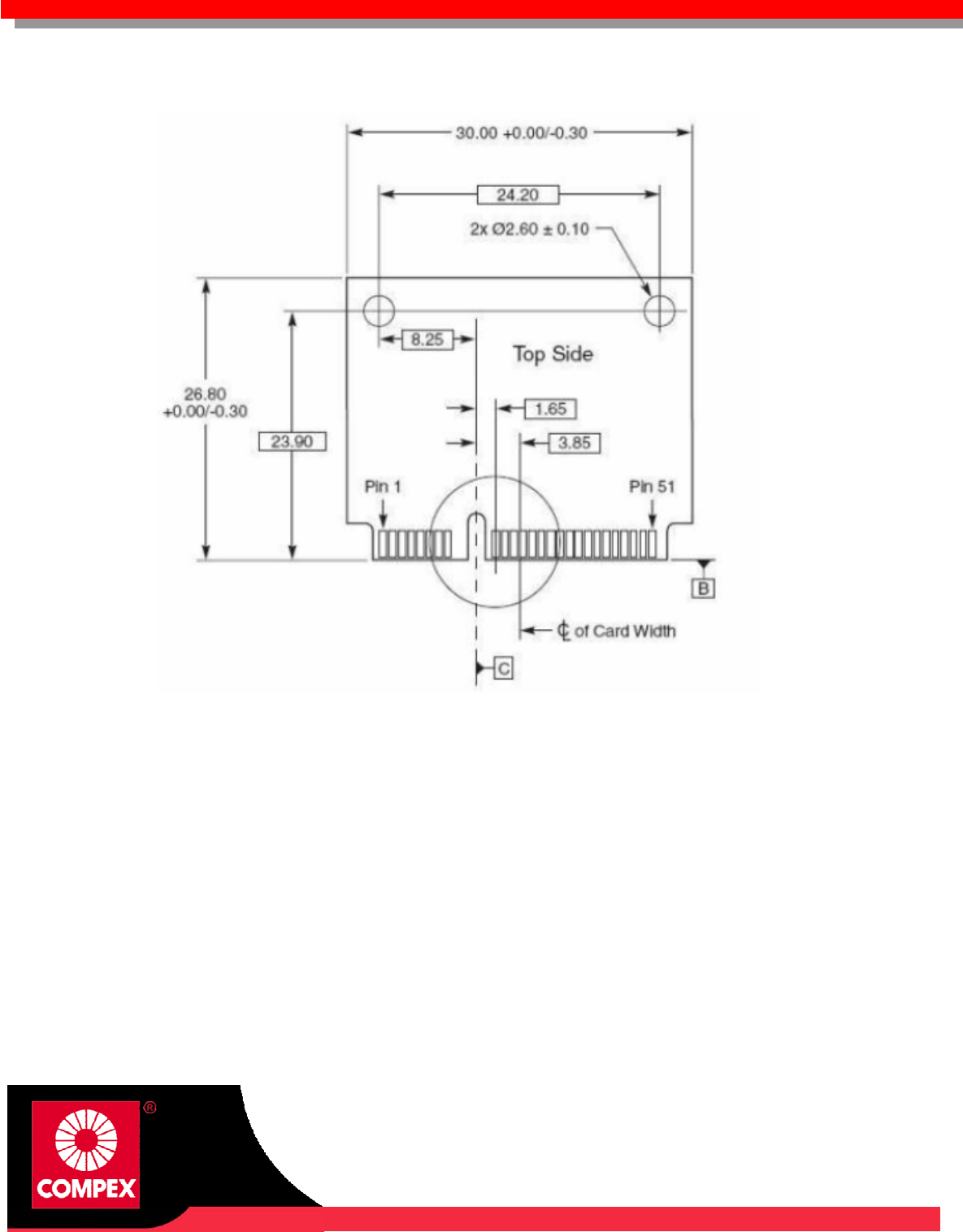

DIMENSIONS DRAWING
Compex Systems Pte Ltd Compex (Suzhou) Co. Ltd
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
No. 12, ChuangTou Industrial Square, LouFeng North, Suzhou
Industrial Park, Suzhou, Jiangsu Province, China 21122
Tel: (86)-512-62950031
Fax: (86)-512-62950032
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc.
Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may
arise. All specification is subject to change without notice. DS: V1.0.1 Alex 120823
For more information, visit www.compex.com.sg
