(WLE250NX) User Manual 2013.5.24

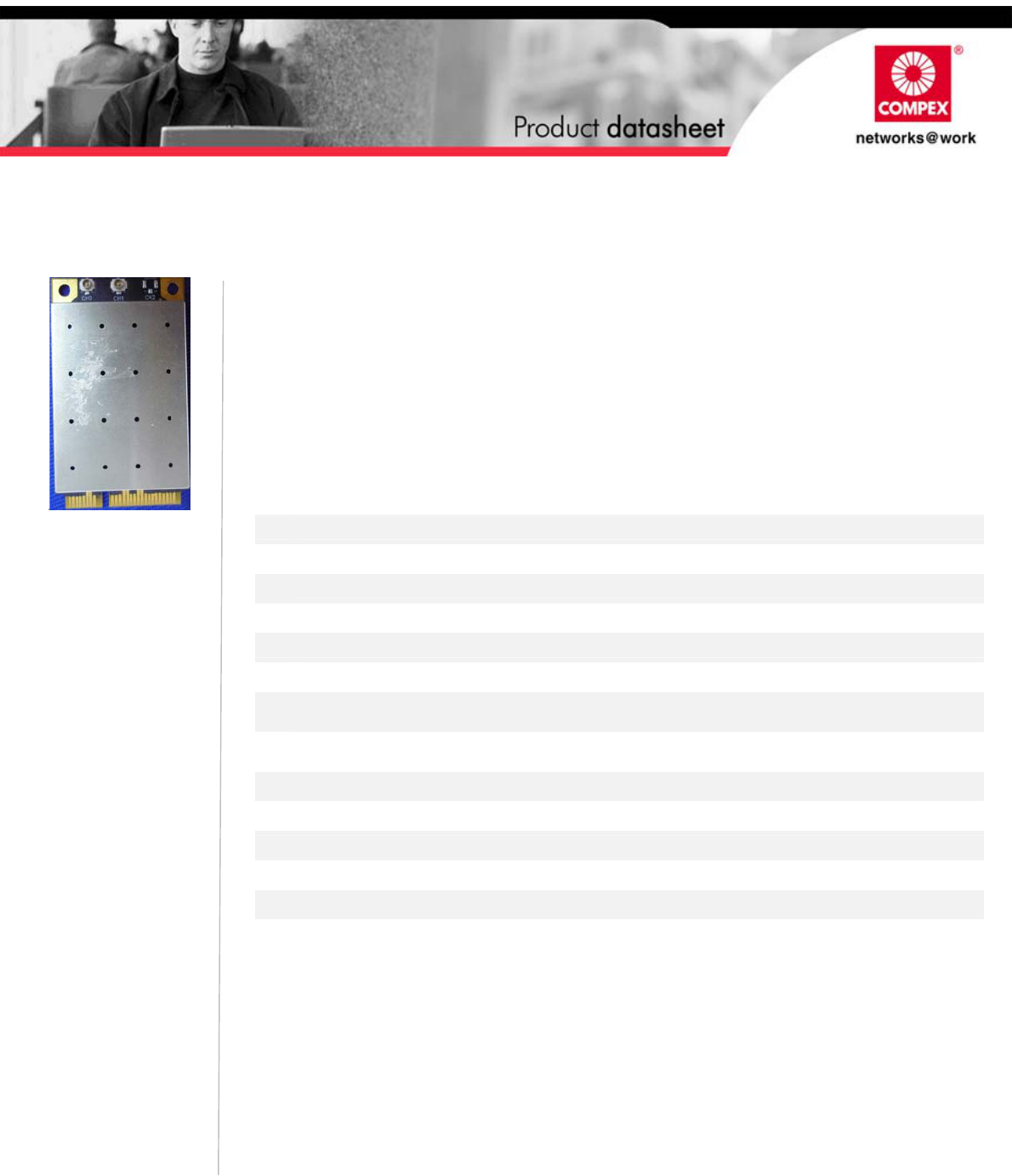

Full-size PCIe MINI CARD
WLE250NX
WIRELESS-ABGN 2X2 NETWORK MINI PCIE ADAPTER
Features
• Atheros XB116 reference design
• Maximum 20dBm output power(per chain)/ 25dBm(aggregate)
• Single 3.3V power
• IEEE 802.11n compliant and backward compatible with 802.11a/b/g
• Dual-band 2 x 2 MIMO spatial multiplexing technique
• Supports up to 450Mbps physical data rates
• Atheros XSPAN family chipset with SST3™, which increase the link rate by ~100% at short
range, ~50% at mid range and ~25% at long range
• Supports Spatial Multiplexing, cyclic-delay diversity (CDD), low-density parity check (LDPC),
maximum ratio combining (MRC), space time block code (STBC) and Tx beamforming (TxBF)
• Dynamic Frequency Selection (DFS)
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• 2 x U.FL Antenna Connector
• Supports 802.11x authentication, 64/128/152Bit WEP, IEEE802.11i encryption
• Supports Windows 7, Windows Vista, Windows XP operating system
Technical Specifications
Chipset AR9582/AR9592
Host Interface PCI-Express 1.1 Standard
Operating
Voltage 3.3 VDC
Power
Consumption 3.5W
Antenna
Connector 2 x U.FL Antenna Connector
IEEE 802.11a : 54Mbps48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
IEEE 802.11b : 11Mbps5.5Mbps 2Mbps 1Mbps
54Mbps48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps automatically
IEEE 802.11g : Fallback to 5.5Mbps, 2Mbps, 1Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
20MHZ
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Data Rate
IEEE 802.11n :
40MHz
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
IEEE802.11b/g/n: 2.412GHz ~ 2.484GHz (Japan)
5.150 ~ 5.350 GHz,5.470 ~ 5.725GHz, 5.725 ~ 5.850 GHz (US & Canada)
5.150 ~ 5.350 GHz,5.470 ~ 5.725GHz, 5.725 ~ 5.875 GHz (Europe)
Frequency
Range IEEE 802.11a/n: 5.150 ~ 5.250 GHz,5.250 ~ 5.350GHz, 5.470 ~ 5.725GHz(Japan)
Modulation
Techniques OFDM: BPSK, QPSK, 16-QAM, 64-QAM
DSSS: DBPSK, DQPSK, CCK
RoHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimensions 50.95mm x 30 mm x 3.2 mm (H x W x D)
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to
the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept
any interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC
ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or
transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
(5) Outdoor Operations in the 5.15~5.25GHz band is prohibited.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function
FCC ID: TK4WLE250NX

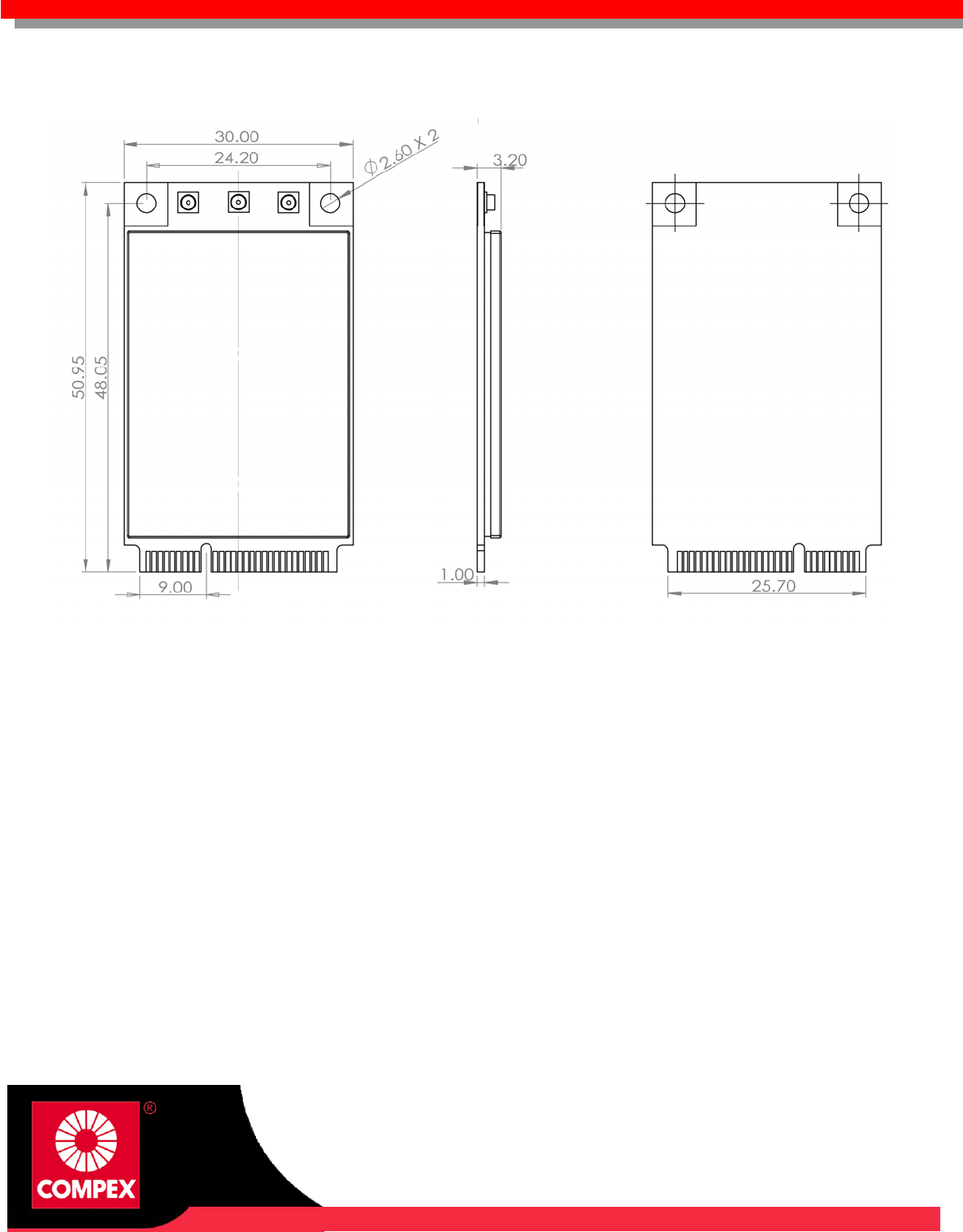

DIMENSIONS DRAWING
Compex Systems Pte Ltd Compex (Suzhou) Co Ltd
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
NO.12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou, Jiangsu Province, China 215122
Tel: (86)-512-62950050
Fax: (86)-512-62950026
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc.
Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may
arise. All specification is subject to change without notice. DS: V1.0.8 Alex 120807
For more information, visit www.compex.com.sg
(1) The modules FCC ID is not visible when installed in the host, or
(2) If the host is marketed so that end users do not have straight forward commonly
used methods for access to remove the module so that the FCC ID of the module is
visible; then an additional permanent label referring to the enclosed module: Contains
Transmitter Module FCC ID: TK4WLE250NX or Contains FCC ID: TK4WLE250NX
must be used.
