Compex Systems WLE350N5-25H Wireless-AN 25DBM 3X3 Network MINI PCIE Adapter User Manual

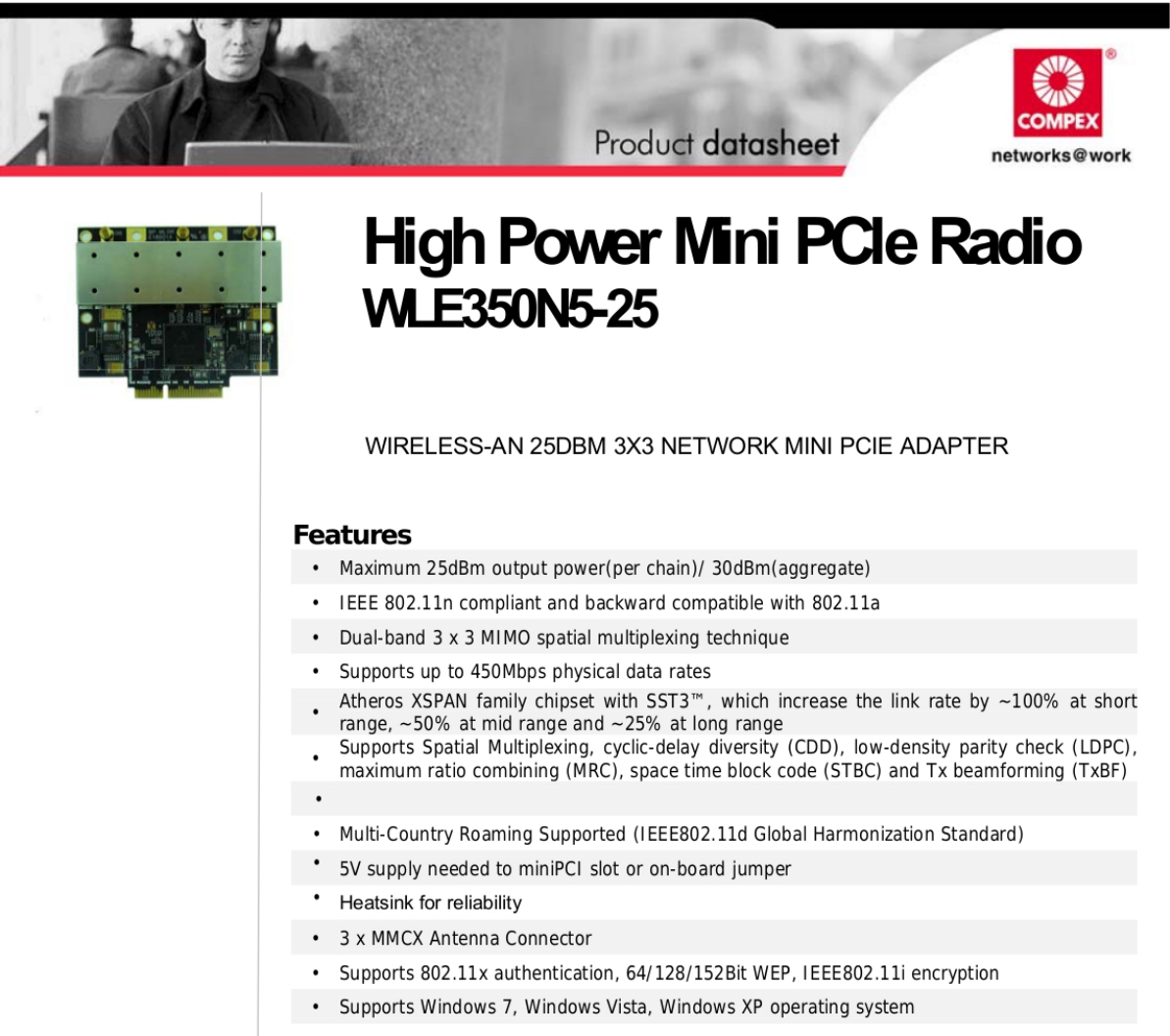

Compex Systems Pte Ltd Wireless-AN 25DBM 3X3 Network MINI PCIE Adapter
user manual

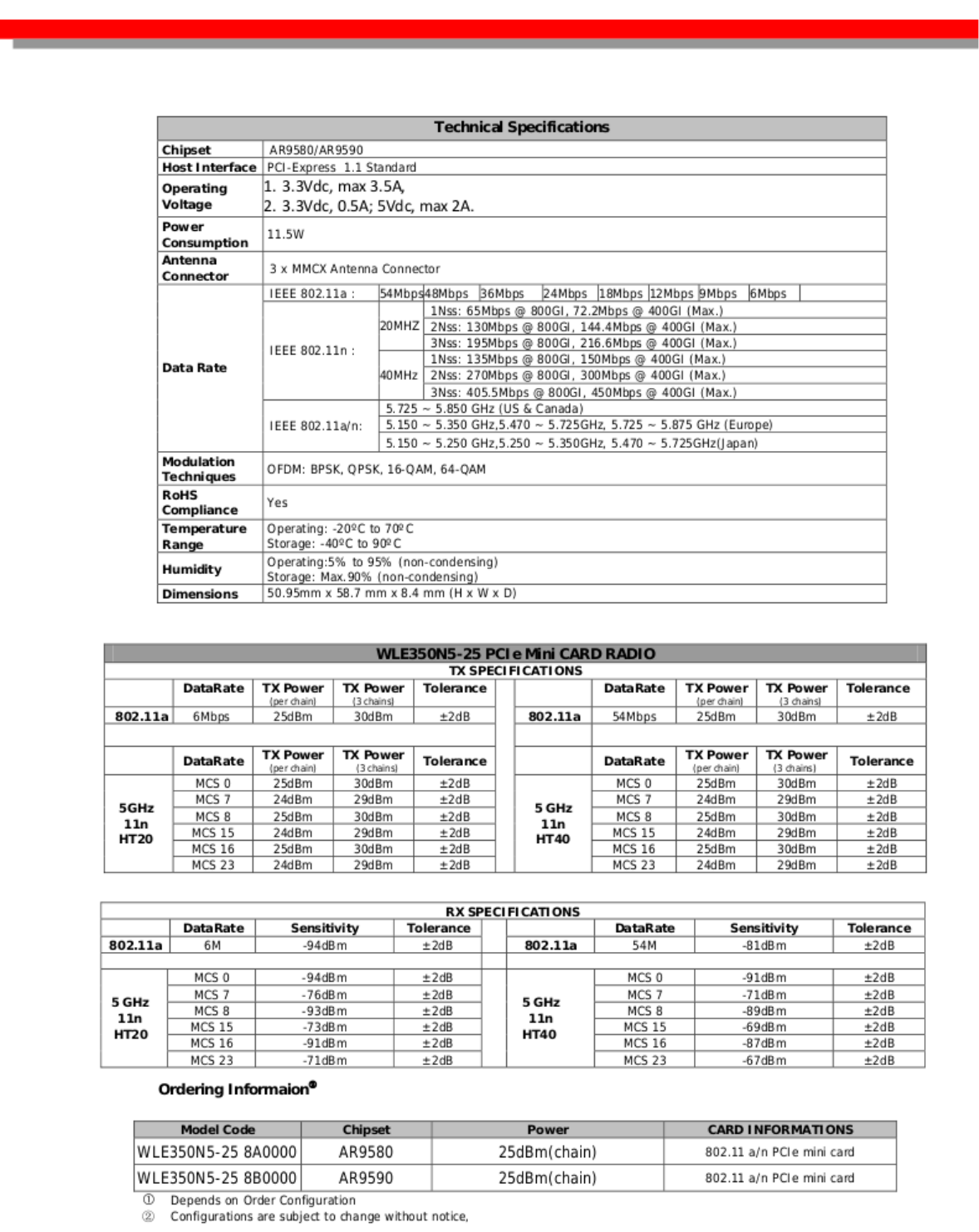

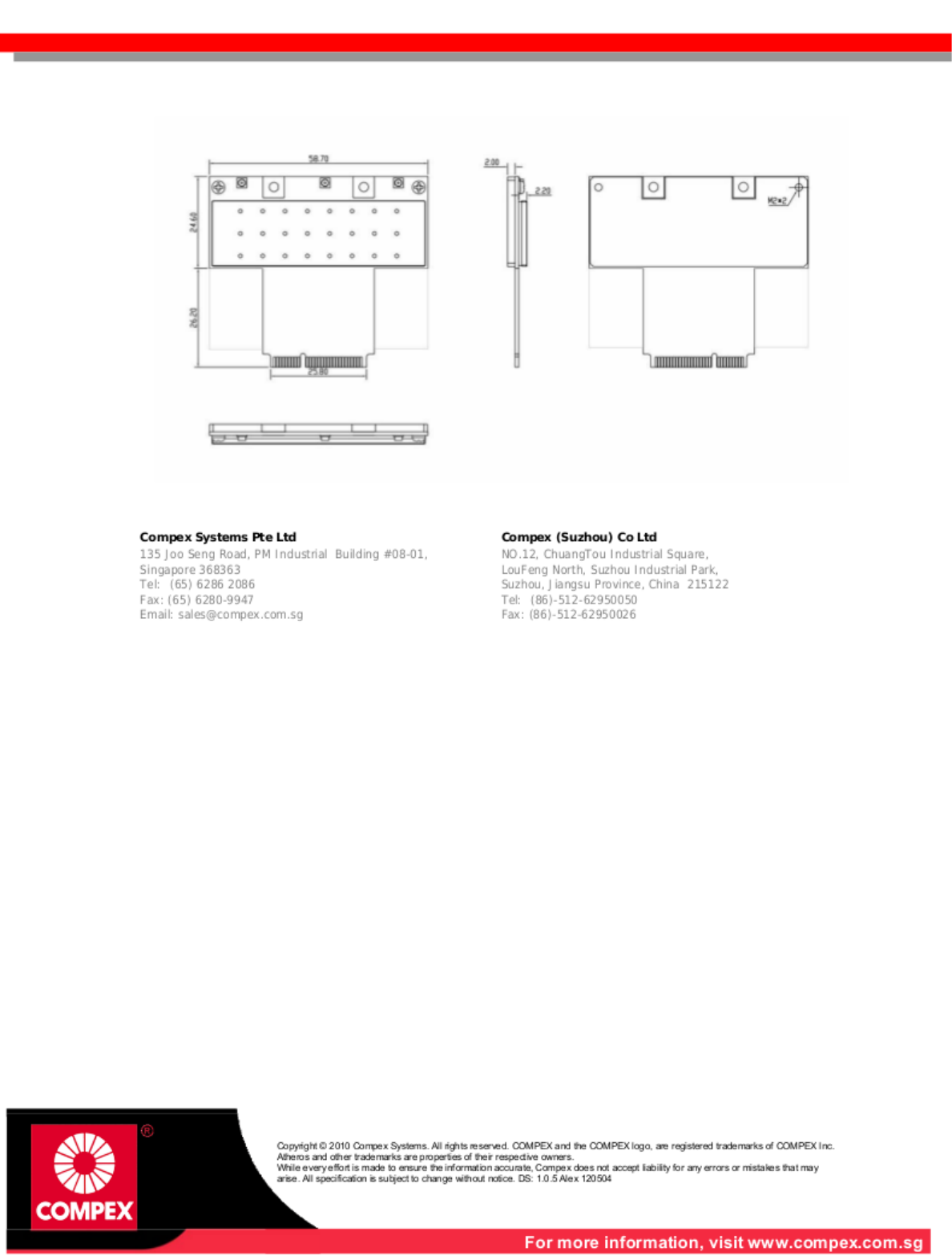

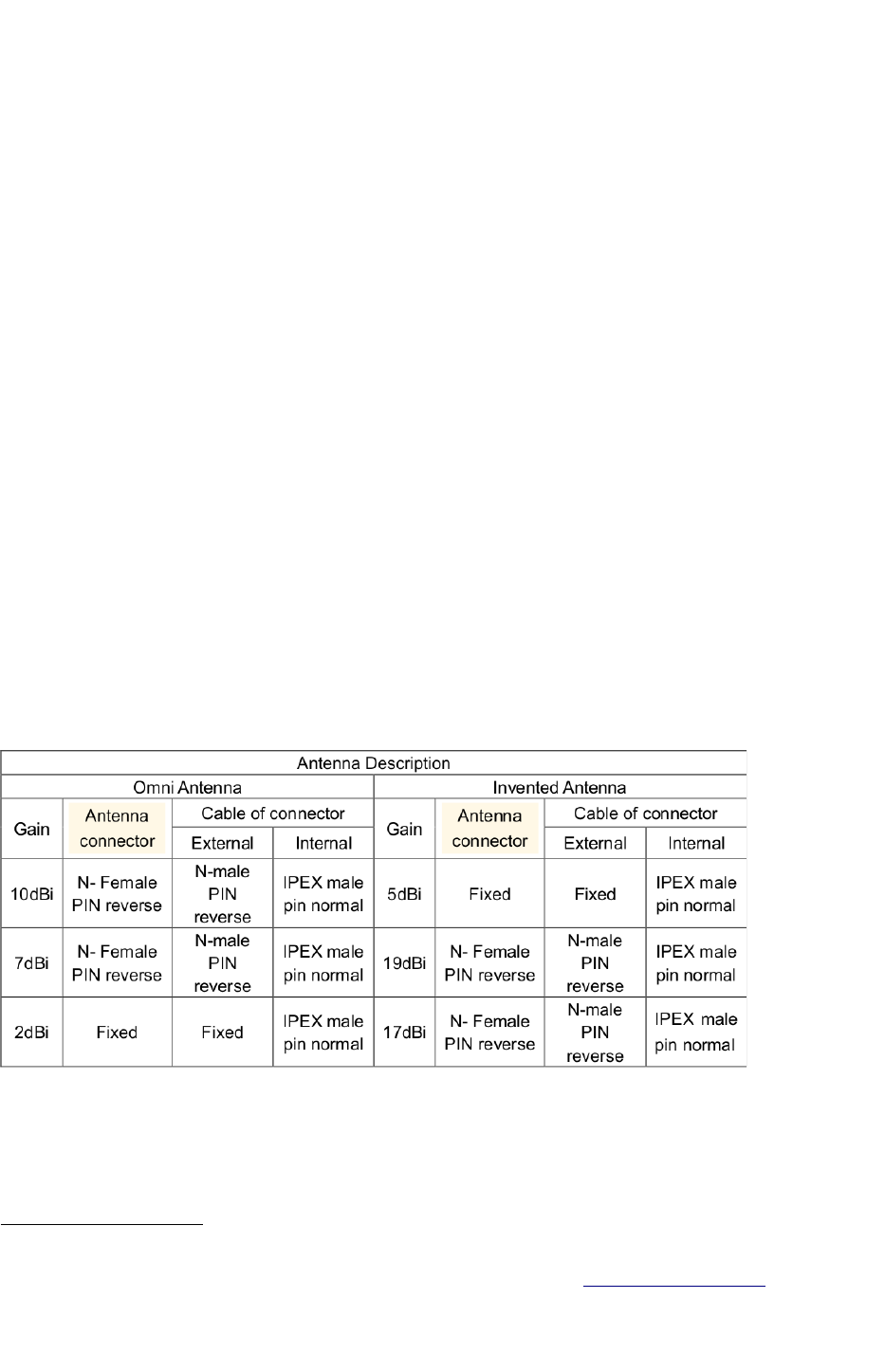

List of Antennas
The following antennas are certified with this MiniPCIe Radio module:
Antenna type 1: Panel Antenna
Antenna Gain: 19 dBi
Manufacturer : Compex
Model name: MME-5N19
Antenna type 2: Panel Antenna
Antenna Gain: 17 dBi
Connector Type: N-Female
Manufacturer : Compex
Model name: MJE-5N17
Antenna type 3: Omni Antenna
Antenna Gain: 10 dBi
Manufacturer : Foshan Lanbowan Communications Ltd.
Model name: ANT5158Q10V
Antenna type 4: Omni Antenna
Antenna Gain: 7 dBi
Manufacturer : SmartANT Telecom Co.,Ltd
Model name: SAA04-22008A
Antenna type 5: Invented Antenna (with Omni Directional behavior)
Antenna Gain: 5 dBi
onnector Type: MHF-Female
Manufacturer : A*STAR
Model name: IP-TDF V2.0
Antenna type 6: Omni Antenna (swivel)
Antenna Gain: 2 dBi
Connector Type: SMA-reverse Female
Manufacturer: Kunshan Wavelink Electronic Co., Ltd
Model name: WD12020258G
Both separate RF adapter cables supplied with this product provide 1dBi loss.
The Inverted antenna does not need to use any RF adapter cable, it directly connects to the RF module.
How to integrate this device (Driver and Hardware information):
MiniPCIe Radio module shall be installed by a professional with antennas listed above, hence it is for
professional installation only. The host device must be equipped with a MiniPCIe slot for inserting this
MiniPCIe Radio module. The device can be accessed by the host device by programming the MiniPCIe
Radio module address over the MiniPCIe interface by means. Depending on the CPU platform, an
Atheros AR9582/AR9592 driver for this may may be available from www.compex.com.sg or on
request by contacting Compex. It is not possible to program/change the power or channels as
certified in this filing. The antennas shall be installed in such a was, that a minimum distance of 20cm
is maintained between the antennas of the device and the user, as such this module is only suitable
for integration in end-user devices classified by the FCC as ¨Mobile Device¨.
COMPLIANCE INFORMATION
FCC NOTICE
This device has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This device generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this device does cause harmful interference to radio or
television reception, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Connect the computer to an outlet on a circuit different from that to which the receiver is connected.
• Increase the separation between the computer and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device could
void the user's authority to operate the equipment.
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired
operation.
This device is approved for OEM installation with specified antennas as listed in this Manual. It is the
responsibility of the Installer to comply with the separation distance for satisfying RF exposure
compliance. Integrating this module does not mean that the host device is compliant: The integrator
is fully responsible for any additional compliance testing of the complete host device, and shall be
tested for line conducted emissions and radiated spurious emissions, whereas additional equipment
authorization procedures may be necessary. In case other antennas construction types or antennas
with higher gains than listed are used, FCC class 2 change testing/certification on this module will be
necessary.
This device only could work when being installed into “client devices” which could not transmit
automatically, such as Notebook P.C. , with the software driver limit.
Exposure to Radio Frequency Radiation. This equipment must be installed and operated in
accordance with provided instructions and the antenna(s) used for this transmitter must be installed
to provide a separation distance of at least 20 cm from all persons and must not be collocated or
operating in conjunction with any other antenna or transmitter. End-users and installers must be
provided with antenna installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization is no longer
considered valid and the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product (including the transmitter)
and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode Function
The end device integrating this module must be labeled:
Contains transmitter module FCC ID: TK4WLE350N5-25H
RF Exposure warning
The equipment must not be co-located or operating in conjunction with any other antenna or
transmitter.
The users manual or instruction manual for an intentional or unintentional radiator shall caution
the user that changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment. In cases where the
manual is provided only in a form other than paper, such as on a computer disk or over the
Internet, the information required by this section may be included in the manual in that
alternative form, provided the user can reasonably be expected to have the capability to access
information in that form.

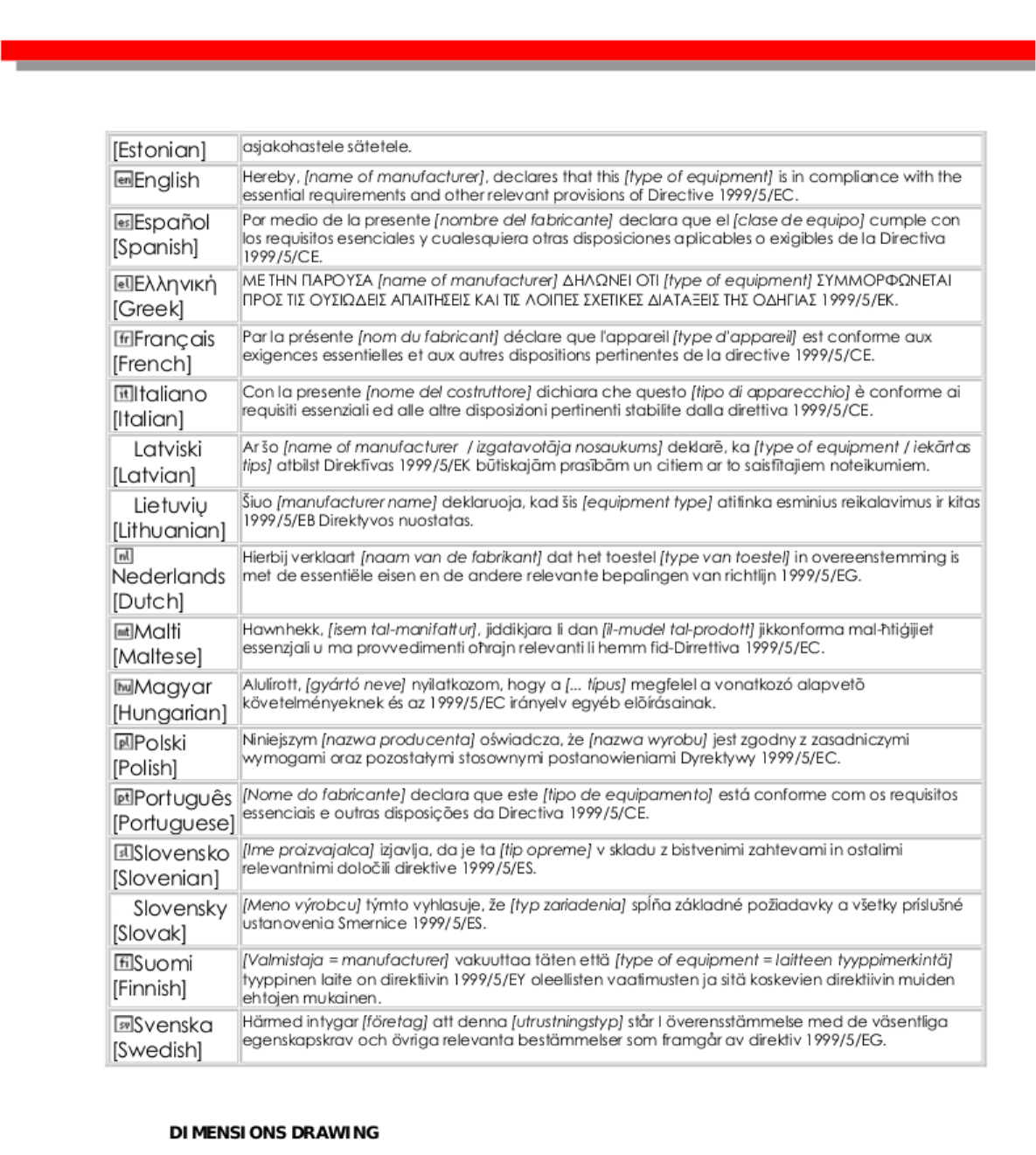

Europe – EU Declaration of Conformity
This device complies with the essential requirements of the R&TTE Directive
1999/5/EC. The following test methods have been applied in order to prove
presumption of conformity with the essential requirements of the R&TTE Directive
1999/5/EC:
EN 60950-1/A1: 2010+A12:2012
Warning
Installation and removal of the unit and its accessories must be carried out by qualified
personnel. You must read all of the Safety Instructions supplied with your equipment
before installation and operation.
Note
Before any operation is performed, please read the operation instructions and
precautions carefully to minimize the possibility of accidents.
The Note, Caution, Warning and Danger items in other manuals do not cover all safety
precautions that should be followed.
They are only the supplements to the safety precautions for operations as a whole.
Therefore,the personnel in charge of the installation and maintenance of the products
are required to understand these basics of safety operation.
In performing various operations, please follow the local safety regulations. The safety
precautions introduced in the product manuals are supplementary and subject to the
local safety regulations.
When various operations are executed on the products, the precautions and special
safety instructions provided with the products must be followed to the full.
The personnel in charge of the installation and maintenance of the products must be
trained as professionals to master the proper operating methods and all safety
precautions. Only the trained and qualified personnel can perform operations such as
equipment installation and maintenance.
