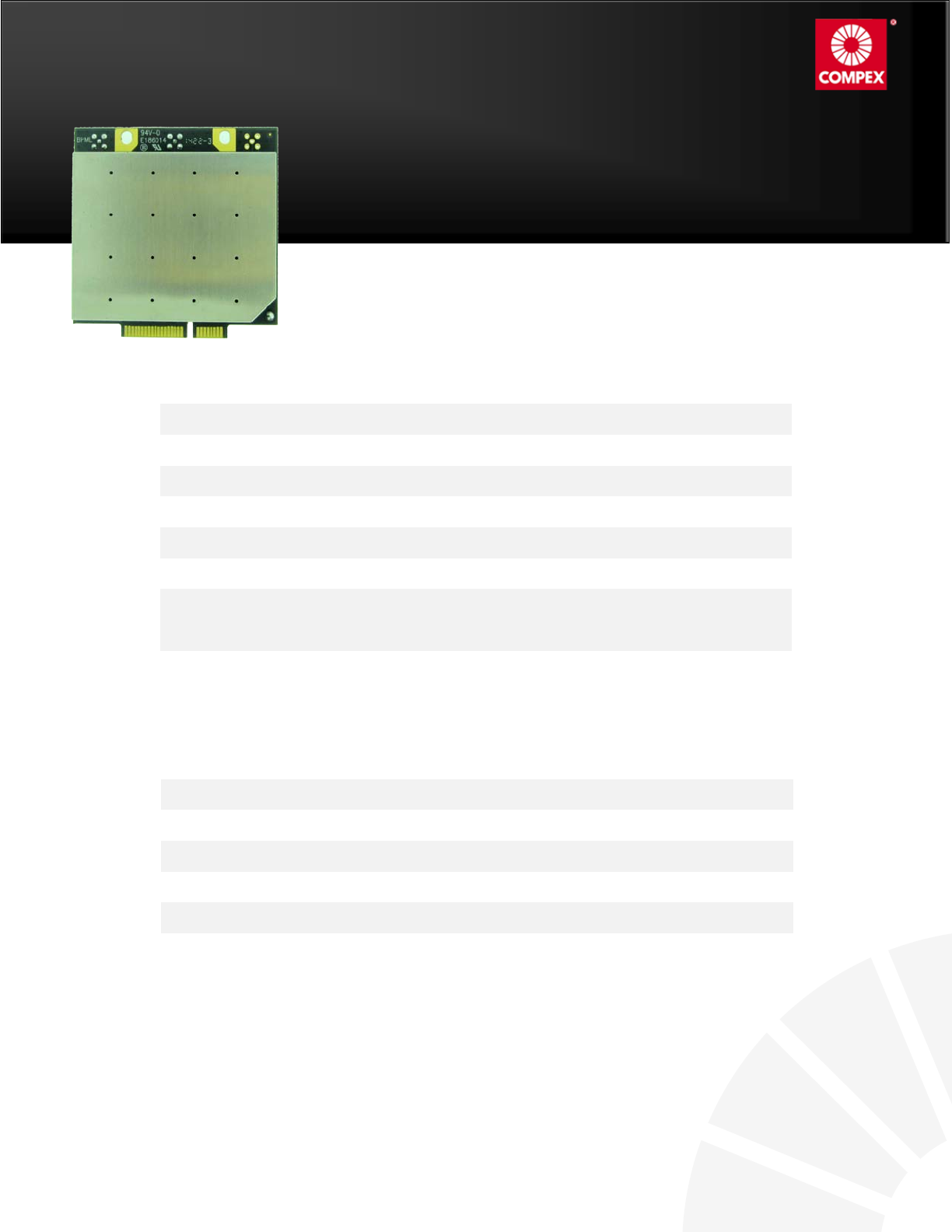

Compex Systems WLE600V5-27ESD WIRELESS-AC 2X2 27DBM NETWORK MINI PCIE ADAPTER User Manual ah
Compex Systems Pte Ltd WIRELESS-AC 2X2 27DBM NETWORK MINI PCIE ADAPTER ah
Users Manual
• Qualcomm-Atheros QCA9882,Peregrine Series
• Maximum 27dBm output power (per chain), 30dBm (aggregate)
• IEEE 802.11ac complaint & backward compatible with 802.11a/n
• 2X2 MIMO Technology & up to 867Mbps
• MiniPCI Express 1.1 interface
• Supports Spatial Multiplexing, low-density parity check (LDPC),
Maximal Ratio Combining (MRC), Space Time Block Code (STBC)
• Supports IEEE 802.11d, e, h, I, k, RO, v time stamp, and w standards
• Cards are individually calibrated for Quality Assurance
• Supported by either CompexWRT with Atheros Reference Wireless Driver OR
OpenWRT with ath10k Wireless Driver on WPJ344
WIRELESS-AC 2X2 27DBM
NETWORK MINI PCIE ADAPTER
Model: WLE600V5-27ESD
Applications
(combined with WPJ344)
• Indoor AP
• Outdoor AP
• 802.11ac/an CPE
• 802.11ac/an Point to Point
• Base Station
ac wave series
Features
Technical Specifications
System Information
Chipset QCA9882,Peregrine Series
Host Interface PCI-Express 1.1 Standard
Operating Voltage
3.3 VDC, 5V (compulsory and external)
1
Power Consumption 7.4W
Antenna Connector 2 x MMCX Antenna Connector
Frequency Range 5.150 ~ 5.250, 5.725 ~ 5.850 GHz
Modulation Techniques OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
RoHS Compliance Yes
Temperature Range Operating: -20ºC to 70ºC;
Storage: -40ºC to 90ºC
Humidity
Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimensions (mm) 50.95 x 50 x 3.2 (H x W x D)
TX Specifications
Data
Rate
TX
Power
(per chain)
TX
Power
(2 chains)
Tolerance Data
Rate
TX
Power
(per chain)
TX
Power
(2 chains)
Tolerance
802.11a
6Mbps
27dBm
30dBm
±2dB
5GHz
11n/ac
HT20
MCS 0
27dBm
30dBm
±2dB
9Mbps
27dBm
30dBm
±2dB
MCS 1
26dBm
29dBm
±2dB
12Mbps
27dBm
30dBm
±2dB
MCS 2
26dBm
29dBm
±2dB
18Mbps
27dBm
30dBm
±2dB
MCS 3
25dBm
28dBm
±2dB
24Mbps
27dBm
30dBm
±2dB
MCS 4
25dBm
28dBm
±2dB
36Mbps
25dBm
28dBm
±2dB
MCS 5
25dBm
28dBm
±2dB
48Mbps
25dBm
28dBm
±2dB
MCS 6
24dBm
27dBm
±2dB
54Mbps
24dBm
27dBm
±2dB
MCS 7
23dBm
26dBm
±2dB
MCS 8
23dBm
26dBm
±2dB
MCS 9
22dBm
25dBm
±2dB
5GHz
11n/ac
HT40
MCS 0
27dBm
30dBm
±2dB
5GHz
11ac
HT80
MCS 0
27dBm
30dBm
±2dB
MCS 1
26dBm
29dBm
±2dB
MCS 1
26dBm
29dBm
±2dB
MCS 2
26dBm
29dBm
±2dB
MCS 2
26dBm
29dBm
±2dB
MCS 3
25dBm
28dBm
±2dB
MCS 3
26dBm
29dBm
±2dB
MCS 4
25dBm
28dBm
±2dB
MCS 4
26dBm
29dBm
±2dB
MCS 5
25dBm
28dBm
±2dB
MCS 5
25dBm
28dBm
±2dB
MCS 6
24dBm
27dBm
±2dB
MCS 6
25dBm
28dBm
±2dB
MCS 7
23dBm
26dBm
±2dB
MCS 7
24dBm
27dBm
±2dB
MCS 8
23dBm
26dBm
±2dB
MCS 8
23dBm
26dBm
±2dB
MCS 9
22dBm
25dBm
±2dB
MCS 9
22dBm
25dBm
±2dB
RX Specifications
DataRate
Sensitivity
Tolerance
DataRate
Sensitivity
Tolerance
802.11a
6Mbps
-94dBm
±2dB
5GHz
11n/ac
HT20
MCS 0
-94dBm
±2dB
9Mbps
-94dBm
±2dB
MCS 1
-94dBm
±2dB
12Mbps
-94dBm
±2dB
MCS 2
-92dBm
±2dB
18Mbps
-92dBm
±2dB
MCS 3
-88dBm
±2dB
24Mbps
-89dBm
±2dB
MCS 4
-84dBm
±2dB
36Mbps
-86dBm
±2dB
MCS 5
-81dBm
±2dB
48Mbps
-82dBm
±2dB
MCS 6
-78dBm
±2dB
54Mbps
-80dBm
±2dB
MCS 7
-77dBm
±2dB
MCS 8
-74dBm
±2dB
MCS 9
-71dBm
±2dB
5GHz
11n/ac
HT40
MCS 0
-93dBm
±2dB
5GHz
11ac
HT80
MCS 0
-89dBm
±2dB
MCS 1
-91dBm
±2dB
MCS 1
-88dBm
±2dB
MCS 2
-90dBm
±2dB
MCS 2
-85dBm
±2dB
MCS 3
-85dBm
±2dB
MCS 3
-81dBm
±2dB
MCS 4
-82dBm
±2dB
MCS 4
-79dBm
±2dB
MCS 5
-78dBm
±2dB
MCS 5
-75dBm
±2dB
MCS 6
-77dBm
±2dB
MCS 6
-74dBm
±2dB
MCS 7
-75dBm
±2dB
MCS 7
-72dBm
±2dB
MCS 8
-73dBm
±2dB
MCS 8
-70dBm
±2dB
MCS 9
-71dBm
±2dB
MCS 9
-68dBm
±2dB
1 Customers have to connect a 5V power supply to the pin on WLE600V5-27
Instruction procedure
Plug the module into the hosts and update the driver in the system of the hosts.
Get the proper driver from the website http://www.compex.com.sg/.
Ordering Information
Item Code Chipset Form factor Card Informations
WLE600V5-27 8AB000ESD
Atheros 9882
Wide size
2x2 11ac 5GHz High Power miniPCIe Radio
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
This device must accept any interference received, including interference that may cause undesired operation. Product that is a
radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed and operated in accordance with provided
instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 28.37 cm
from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter. End-users and
installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate
the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user
authority to operate the equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example certain laptop configurations or co-
location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID cannot be used on
the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including
the transmitter) and obtaining a separate FCC authorization.
The antenna gain which being use as below:
Antenna Type
Frequency
Band
(GHz)
Manufacturer
Tx
Paths
Max
Directional Gain
(dBi)
Panel Antenna 1# 5.1 ~ 5.8 Lanbowan Communications Ltd. 2 25
Panel Antenna 2# 5.1 ~ 5.8 Kenbotong Communication LTD 2 19
Panel Antenna 3# 5.1 ~ 5.8 Compex Systems Pte Ltd 2 17
Panel Antenna 4# 5.1 ~ 5.8 Compex Systems Pte Ltd 2 15
Panel Antenna 5# 5.1 ~ 5.8 Kenbotong Communication LTD 2 10
Panel Antenna 6# 5.1 ~ 5.8 Smart Ant Inc 2 7
Panel Antenna 7# 5.1 ~ 5.8 Compex Systems Pte Ltd 2 5
Panel Antenna 8# 5.1 ~ 5.8 Compex Systems Pte Ltd 2 5
Dipole Antenna 1# 5.1 ~ 5.8 Kunshan Wavelink Electronic Co., Ltd. 2 2
(1) The modules FCC ID is not visible when installed in the host, or
(2) If the host is marketed so that end users do not have straight forward commonly used methods for access to remove the
module so that the FCC ID of the module is visible; then an additional permanent
(3) 5.2GHz frequency band support the max antenna gain 25dBi, 5.8GHz frequency band support the max antenna gain 7dBi.
OEM integration instructions：
This device is intended only for OEM integrators under the following conditions：
The module is only limited to installation in mobile or fixed applications. The antenna must be installed such that 28.37 cm is
maintained between the antenna and users，and the transmitter module may not be co-located with any other transmit or
antenna. The module shall be only used with the integral antenna(s) that has been originally tested and certified with this
module.
As long as 3 conditions above are met，further transmitter test will not be required.
However，the OEM integrator is still responsible for testing their end-product for any additional compliance requirement with
this module installed (for example，digital device emission，PC peripheral requirements，etc.)
OEM integration instructions：
In the event that these conditions cannot be met (for example certain laptop configuration or co-location with another
transmitter), then the FCC authorization for this module in combination with the host equipment is no longer considered valid
and the FCC ID of the module cannot be used on the final product. In these and circumstance，the OEM integrator will be
responsible for re-evaluating. The end product (including the transmitter) and obtaining a separate FCC authorization
End product labeling：
This transmitter module is authorization only for use in device where the antenna may be installed such that 28.37 cm may be
maintained between the antenna and users. The final end product must be labeled in a visible area with the following：
“Contains Transmitter Module FCC ID: TK4WLE600V5-27ESD or Contains FCC ID: TK4WLE600V5-27ESD”
Information that must be placed in the end user manual：
The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF
module in the user’s manual of the end product which integrates this module. The end user manual shall include all required
regulatory information/warning as show in this manual.
Compex (Suzhou) Co Ltd
No.12 ChuangTou Industrial Square
LouFeng North, Suzhou Industrial Park
Suzhou, Jiangsu Province China 215122
Tel: +86 512 62950050
Fax: +86 512 62950026
