Compex Systems WLM200N2-26 WIRELESS-B/G/N 26DBM NETWORK MINI PCI ADAPTER User Manual ah
Compex Systems Pte Ltd WIRELESS-B/G/N 26DBM NETWORK MINI PCI ADAPTER ah
User Manual
Features
• 2.4GHz IEEE 802.11n draft compliant and backward compatible with 802.11b/g
• Single-band 2x2 MIMO spatial multiplexing technique
• Atheros XSPAN family chipset
• Deliver 10 times the throughput and widen twice the range of legacy 802.11b/g
• Support up to 300Mbps physical data rates
• Transmission Power Control (TPC)
• Multi-Country Roaming Support (IEEE802.11d)
• 2 X MMCX Antenna Connector
• Maximum 26dBm output Power
• Support Linux OS
• Wireless Encryption and Authentication are supported
2 x 2 802.11N Single-band MIMO mini-PCI
Radio module
WLM200N2-26 MINIPCI
Technical Specifications
Chipset AR9223
Host Interface PCI Interface v2.3 (Type III-A Mini PCI form factor)
Operating
Voltage 3.3 VDC
Power
Consumption 6.0 W
Antenna
Connector 2 x MMCX Antenna Connector
IEEE 802.11b: 11Mbps 5.5Mbps 2Mbps 1Mbps
54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
IEEE 802.11g: Automatically fallback to 5.5Mbps, 2Mbps, 1Mbps
Max. 65Mbps(72.2Mbps physical) @ MCS7:1Nss 20MHZ Max. 130Mbps(144.4Mbps physical) @MCS15:2Nss
Max. 135Mbps( 150Mbps physical) @MCS7:1Nss
Standards
IEEE 802.11n: 40MHz Max. 270Mbps( 300Mbps physical)@MCS15:2Nss
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
IEEE
802.11b/g 2.412GHz ~ 2.484GHz (Japan)
Frequency
Range
IEEE 802.11n: Please refer to 802.11b/g
Modulation
Techniques OFDM: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Security 64/128-bit WEP, TKIP, AES, IEEE802.1x authentication
Radio & EMC
Certificate FCC Part 15.247 (2.400 ~ 2.4835GHz),
FCC CFR Title 47 Part 15 Subpart C: Section 15.207
FCC CFR Title 47 Part 15 Subpart C: Section 15.209
FCC CFR Title 47 Part 15 Subpart C: 15.215(c)
FCC OET 65
Limited module level approval
ETSI, EN 300 328, EN 301 489- 1/17, EN 50392, EN 55022, EN 55024, EN 61000-3-2/3, EN 61000-4-
3/4/5/6/11
ROHS
Compliance Yes
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -20ºC to 90º
Humidity 5% to 95% (non-condensing)
Dimension 59.6 x 51 x 8 mm
WLM 200N2 MIMO MINIPCI CARD RADIO OPERATING FREQUENCE 2.412-2.484GHz
TX SPECIFICATIONS TX SPECIFICATIONS
DataRate TX Power Tolerance DataRate TX Power Tolerance
11Mbps 26dBm ±2dB 6-24Mbps 26dBm ±2dB
5.5Mbps 26dBm ±2dB 36Mbps 26dBm ±2dB
2Mbps 26dBm ±2dB 48Mbps 22dBm ±2dB
802.11b
1Mbps 26dBm ±2dB
802.11g
54Mbps 21dBm ±2dB
MCS 0 23dBm ±2dB MCS 0 22dBm ±2dB
MCS 1 23dBm ±2dB MCS 1 22dBm ±2dB
MCS 2 23dBm ±2dB MCS 2 22dBm ±2dB
MCS 3 23dBm ±2dB MCS 3 22dBm ±2dB
MCS 4 23dBm ±2dB MCS 4 22dBm ±2dB
MCS 5 22dBm ±2dB MCS 5 22dBm ±2dB
MCS 6 21dBm ±2dB MCS 6 21dBm ±2dB
MCS 7 20dBm ±2dB MCS 7 20dBm ±2dB
MCS 8 23dBm ±2dB MCS 8 22dBm ±2dB
MCS 9 23dBm ±2dB MCS 9 22dBm ±2dB
MCS 10 23dBm ±2dB MCS 10 22dBm ±2dB
MCS 11 23dBm ±2dB MCS 11 22dBm ±2dB
MCS 12 23dBm ±2dB MCS 12 22dBm ±2dB
MCS 13 22dBm ±2dB MCS 13 22dBm ±2dB
MCS 14 21dBm ±2dB MCS 14 21dBm ±2dB
2.4Ghz
11n
HT20
MCS 15 20dBm ±2dB
2.4Ghz
11n
HT40
MCS 15 20dBm ±2dB
RX SPECIFICATIONS RX SPECIFICATIONS
DataRate Sensitivity
（Maximum/Typical 2Rx） Tolerance DataRate Sensitivity
（Maximum/Typical 2Rx） Tolerance
6 Mbps -96/-92dBm ±2dB 1 Mbps -96/-92dBm ±2dB
9 Mbps -96/-92dBm ±2dB 5.5Mbps 94/-90dBm ±2dB
12 Mbps -96/-92dBm ±2dB 11 Mbps -91/-87dBm ±2dB
18 Mbps -95/-91dBm ±2dB
24Mbps -92/-88dBm ±2dB
38Mbps -89/-85dBm ±2dB
48Mbps -85/-81dBm ±2dB
802.11g
54Mbps -83/-79dBm ±2dB
802.11b
MCS0 -96/-92dBm ±2dB MCS0 -90/-86dBm ±2dB
MCS1 -95/-91dBm ±2dB MCS1 -90/-86dBm ±2dB
MCS2 -93/-89dBm ±2dB MCS2 -89/-85dBm ±2dB
MCS3 -90/-86dBm ±2dB MCS3 -87/-82dBm ±2dB
MCS4 -87/-81dBm ±2dB MCS4 -84/-79dBm ±2dB
MCS5 -83/-76dBm ±2dB MCS5 -79/-75dBm ±2dB
MCS6 -81/-76dBm ±2dB MCS6 -78/-74dBm ±2dB
MCS7 -79/-73dBm ±2dB MCS7 -75/-71dBm ±2dB
MCS8 -95/-91dBm ±2dB MCS8 -90/-86dBm ±2dB
MCS9 -93/-89dBm ±2dB MCS9 -89/-85dBm ±2dB
MCS10 -90/-86dBm ±2dB MCS10 -87/-83dBm ±2dB
MCS11 -87/-83dBm ±2dB MCS11 -84/-80dBm ±2dB
MCS12 -84/-80dBm ±2dB MCS12 -81/-77dBm ±2dB
MCS13 -79/-75dBm ±2dB MCS13 -76/-72dBm ±2dB
MCS14 -77/-73dBm ±2dB MCS14 -74/-68dBm ±2dB
802.11
b/g/n H20
MCS15 -75/-71dBm ±2dB
802.11
b/g/n H40
MCS15 -71/-67dBm ±2dB
DRIVER INFORMATION
Driver Linux Madwifi, WindowsXP , Windows 2000,Windwos Vista
ORDERING CONFIGURATIONS
CODES SPEED Carton Dimension
WLM200N2-26 6AA1100 Up to 300 Mbps
physical data rates
WLM200N2-26 6AA1300 Up to 300 Mbps
physical data rates
For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG
c Configurations are subjected to change without notice
COMPLIANCE INFORMATION
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules . Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation. This device must accept any
interference received, including interference that may cause
undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be
installed and operated in accordance with provided instructions and the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 20 cm from all persons and must not be
collocated or operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna installation
instructions and transmitter operating conditions for satisfying RF exposure
compliance.
(2) Any changes or modifications not expressly approved by the grantee
of this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user authority to operate
the equipment.
NOTE:
(1) This device is approved for OEM installation with specified antennas as
listed in this Manual. It is the responsibility of the Installer to comply with the
separation distance for satisfying RF exposure compliance.
(2) This device only could work when being installed into “client devices”
which could not transmit automatically, such as Notebook P.C. , with the
software driver limit.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and
the FCC ID can not be used on the final product. In these circumstances,
the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function
FCC ID: TK4-WLM200N2-26
IMPORTANT NOTE: EQUIPMENT MANUFACTURERS
COMPEX FOR DISPLAYING WLM200N2-26 MODULAR
FCC ID ON FINAL INTEGRATED
IMPORTANT NOTE REGARDING ANTENNA USE
Antenna Use (Point to Multipoint)
2x2 Operation
Chain1 Chain2

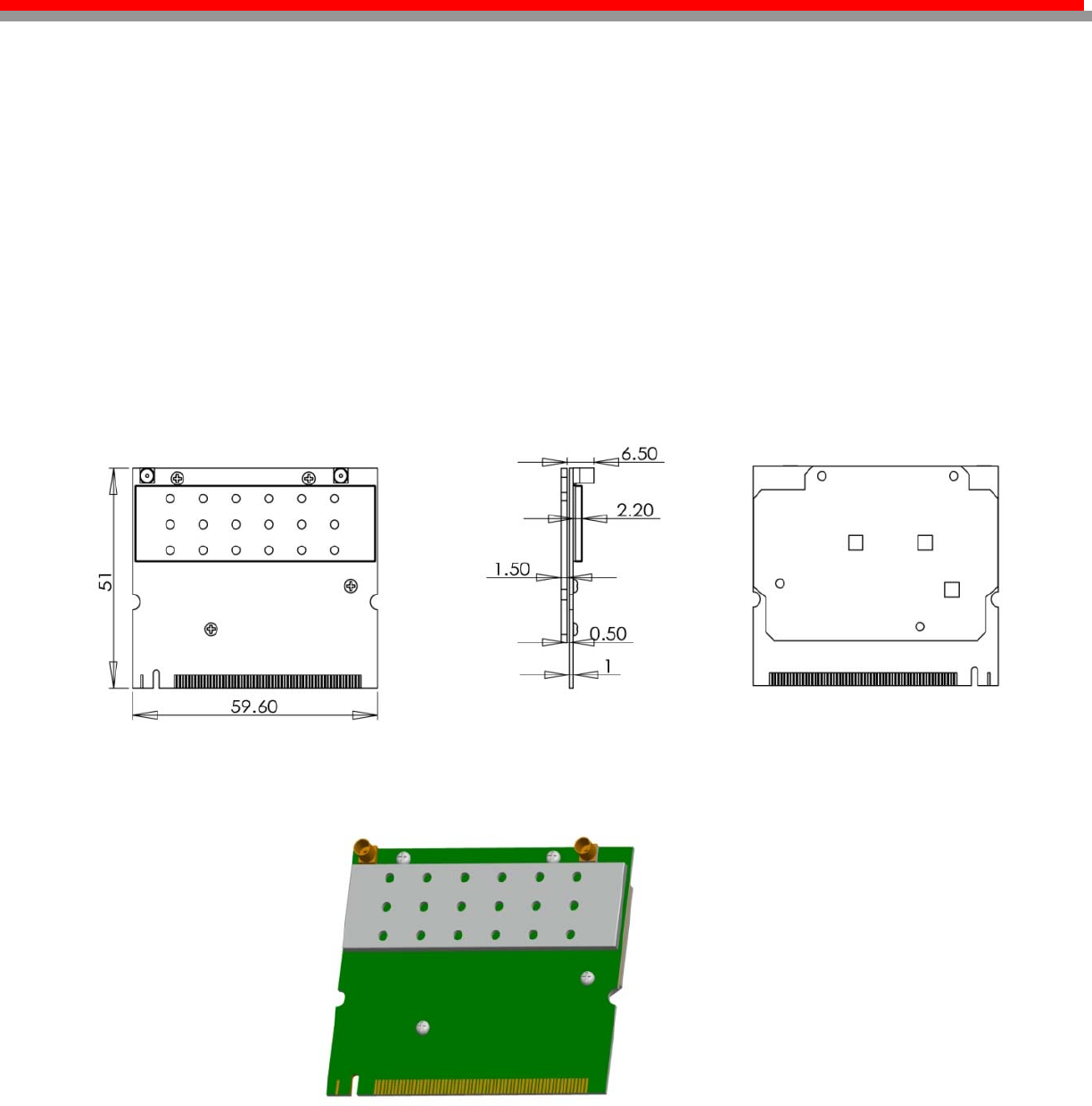

DIMENSIONS DRAWING
WLM FAMILY SERIES OF MINIPCI
b / g (2.4GHz) a / b / g (2.4/5GHz)
MODEL WLM 54G-20dBM WLM 54G-23dBm WLM 54G-26dBm WLM 54G-28dBm WLM200N2 WLM 54AG –
20dBm WLM 54 AG –
23dBm WLM 54A – 26dBm WLM200NX WLM200N5-24 WLM200N5-26
CHIPSET AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR9223 AR 5413/5414
(AR5006X/XS) AR 5413/5414
(AR5006X/XS) AR5414(AR5006XS) AR9220 AR9220 AR9220
SPEED UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO 300Mbps
physical data rates UP TO
54/108Mbps UP TO
54/108Mbps UP TO 108Mbps UP TO 300Mbps
physical data
rates
UP TO 300Mbps
physical data rates UP TO 300Mbps
physical data rates
OUTPUT POWER (Average)
- 23dBm@6-
24Mbps 26dBm@6-24Mbps 20dBm@6-24Mbps 24dBm@6-24Mbps 26dBm@6-24Mbps
17dBm@36Mbps 21dBm@36Mbps 24dBm@36Mbps 17dBm@36Mbps 24dBm@36Mbps 26dBm@36Mbps
16dBm@48Mbps 19dBm@48Mbps 22Bm@48Mbps 16dBm@48Mbps 23Bm@48Mbps 25Bm@48Mbps
802.11a - - - - -
13dBm@54Mbps 17dBm@54Mbps 20dBm@54Mbps 13dBm@54Mbps 17dBm@54Mbps 19dBm@54Mbps
802.11b 20dBm@1-
11Mbps 23dBm@1-
11Mbps 26dBm@1-
11Mbps 28dBm@1-
11Mbps 20dBm@1-11Mbps 20dBm@1-
11Mbps 23dBm@1-
11Mbps 20dBm@1-
11Mbps
20dBm@6-
24Mbps 23dBm@6-
24Mbps 26dBm@6-
24Mbps 28dBm@6-
24Mbps 20dBm@6-24Mbps 20dBm@6-
24Mbps 23dBm@6-
24Mbps 20dBm@6-
24Mbps
19dBm@36Mbps 22dBm@36Mbps 25dBm@36Mbps 26dBm@36Mbps 20dBm@36Mbps 18dBm@36Mbps 21dBm@36Mbps 18dBm@36Mbps
17dBm@48Mbps 19dBm@48Mbps 24dBm@48Mbps 25dBm@48Mbps 16dBm@48Mbps 17dBm@48Mbps 19dBm@48Mbps 17dBm@48Mbps
802.11g
16dBm@54Mbps 17dBm@54Mbps 22dBm@54Mbps 23dBm@54Mbps 15dBm@54Mbps 15dBm@54Mbps 17dBm@54Mbps 15dBm@54Mbps
Interface PCI Interface v2.3 (Type III-A/B Mini PCI Form Factor)
Receiver
Sensitivity 802.11g < -90dBm @ 6Mbps 802.11b < -92dBm@ 6Mbps 802.11a < -90dBm @ 6Mbps
< -70dBm @ 54Mbps < -87dBm @11Mbps < -70dBm @ 54Mbps
Operating
Channels IEEE 802.11g:
11 Channel (US & Canada)
13 Channel (Europe)
14 Channel (Japan)
IEEE 802.11a:
13 Channel (US & Canada)
19 Channel (Europe)
10 Channel (Japan)
Power 3.3VDC
Operating
Temperature -20ºC to 70ºC
Compex Systems Pte Ltd Compex (Changshu) Co. Ltd Compex (Suzhou) Co. Ltd
135 Joo Seng Road, PM Industrial
Building #08-01,Singapore 368363
Tel: (65) 6288 8220
Fax: (65) 6280-9947
Email: sales@compex.com.sg
Block 8, Haicheng Industrial Square
Changshu Economic Development Zone,
Jiangsu Province, China 215513
Tel: (86)-512-52297891
Fax: (86)-512-52698858
No. 12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou, Jiangsu Province, China 215122
Tel: (86)-512-62950031
Fax: (86)-512-62950032
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX
Inc. Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that
may arise. All specification is subject to change without notice. DS: V 2 Phil 2009-03
