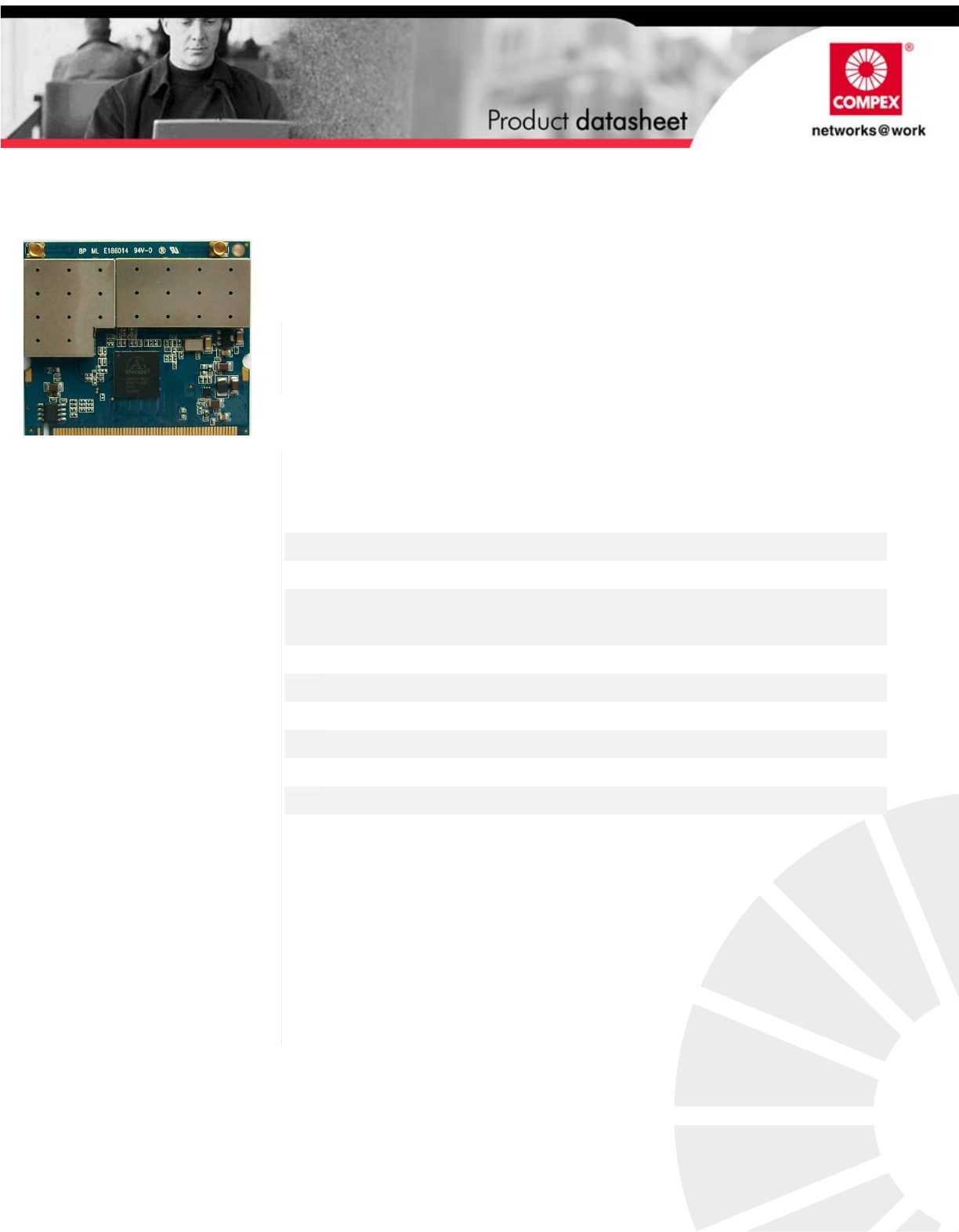

Compex Systems WLM200N5-23ESD WIRELESS-A/N 23DBM NETWORK MINI PCI ADAPTER WITH ESD User Manual ah
Compex Systems Pte Ltd WIRELESS-A/N 23DBM NETWORK MINI PCI ADAPTER WITH ESD ah
(WLM200N5-23ESD) User Manual_20100831
Features
• Atheros XSPAN family chipset
• 5GHz IEEE 802.11n compliant and backward compatible with 802.11a
• 5GHz Single-band MIMO 2x2 spatial multiplexing technique
• Maximum 20.0dBm output (per chain)/23.0dBm aggregate for 5.7G
Maximum 23.5dBm output (per chain)/26.5dBm aggregate for 5.8G.
• Built-in ESD Protection with ESD/EMP Immunity Threshold: 15KeV ①
• Supports up to 300Mbps physical data rates
• Delivers 10 times the throughput and nearly twice the range of legacy 802.11a network
• Transmission Power Control (IEEE 802.11h TPC)
• Dynamic Frequency Selection (DFS)
• Multi-Country Roaming Supported (IEEE802.11d Global Harmonization Standard)
• 2 x MMCX or 2 x U.FL Antenna Connectors②
2 x 2 802.11N MIMO mini-PCI Modules
Radio module
WLM200N5-23 ESD MINIPCI
Single-Band 5GHz 802.11n MIMO 2 x 2 miniPCI
Technical Specifications
Chipset Atheros AR9220
Host Interface PCI Interface v2.3 (Type III-A Mini PCI form factor)
Operating
Voltage 3.3 VDC
11a Cont. Tx @6M 3.5W
11na Cont. Tx@HT20 MCS0 3W
11na Cont. Tx@HT40 MCS0 3W
11a Cont. Rx
ESD CABLE SPECIFICATION
Cable Dimensions 26cm length
Terminal Material Copper
Attachment Procedure End of ESD Cable tied to Earth Ground
Ordering Information③
CODES Antenna Connectors type Carton Dimension
WLM200N5-23 6AA1300ESD U.FL
WLM200N5-23 6BA1300ESD MMCX
For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 = 1.5KG
For 250pc (pcs/ctn), 0.45m * 0.45m * 0.24m / 0.006 = 8.1KG
Module grounding cable included
Depends on your order configuration
Configurations are subject to change without notice
Please contact Compex sales representatives for other available configurations
0.9W
Power
Consumption
Standby 0.7W
Antenna
Connector 2 x MMCX or 2 x U.FL ②
IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
20MHz 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Data Rate IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
5.470 ~ 5.725GHz, 5.725 ~ 5.850 GHz (US & Canada)
5.470 ~ 5.725GHz, 5.725 ~ 5.875 GHz (Europe)
Frequency
Range IEEE 802.11a/n: 5.150 ~ 5.250 GHz, 5.250 ~ 5.350GHz, 5.470 ~ 5.725GHz(Japan)
Modulation
Techniques OFDM: BPSK, QPSK, 16QAM, 64QAM
Radio & EMC
Certification CE, FCC
RoHS
Compliance Yes
Temperature
Range Operating: -20ºC to 70ºC
Storage: -40ºC to 90ºC
Humidity Operating:5% to 95% (non-condensing)
Storage: Max.90% (non-condensing)
Dimension 59.6mm x 51.5mm x 6mm
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation. This device must accept any
interference received, including interference that may cause undesired
operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed
and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to provide a separation distance
which shown as following table from all persons and must not be collocated
or operating in conjunction with any other antenna or transmitter.
Antenna Used Frequency
Range (MHz)
Maximum
Conducted Power
(dBm)
Limit of Power
Density
S(W/m2)
Safety
Distance
r (cm)
Dipole Antenna
(C0053-ANG0003)
2dBi 5470 ~ 5850 26.51 10 7.5
Panel Antenna
(MJE2-5N17)
17dBi 5725 ~ 5850 26.51 10 42.3
Panel Antenna
(MME2-5N19)
19dBi 5725 ~ 5850 26.51 10 51.9
Dual Polarized Wide-
Band Antenna (58DP)
26dBi 5725 ~ 5850 26.51 10 119.1
End-users and installers must be provided with antenna installation instructions
and transmitter operating conditions for satisfying RF exposure compliance.
Note: this device is used exclusively for fixed, point to point operation, and it
will be installed professionally. According to the above antenna list, if dipole
antenna (C0053-ANG0003) is used, the operation frequency range will cover
from 5500 to 5825MHz; if the left three antennae are used, the operation
frequency will just cover from 5745 to 5825MHz. The proper operation
frequency band shall be controlled by the professional installer through
changing the software.
(2) Any changes or modifications not expressly approved by the grantee of
this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
(5) Outdoor Operations in the 5.15~5.25GHz band is prohibited.
IMPORTANT NOTE: In the event that these conditions cannot be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and the
FCC ID cannot be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the
transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function
FCC ID: TK4WLM200N5-23ESD

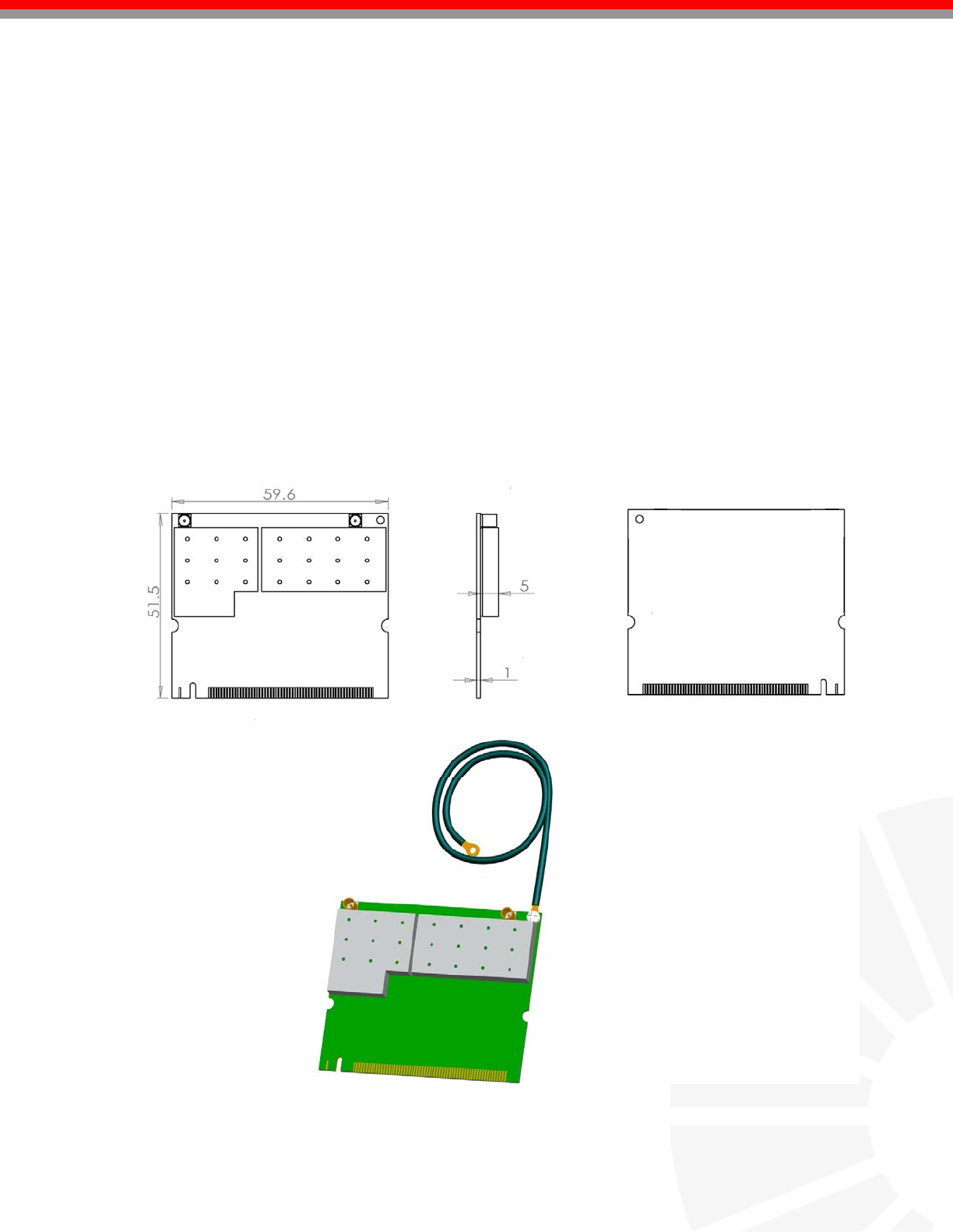

Dimensions Drawing
WLM SERIES MINIPCI
b / g (2.4GHz) a / b / g (2.4/5GHz)
MODEL WLM 54G-20dBM WLM 54G-23dBm WLM 54G-26dBm WLM 54G-28dBm WLM54G-30dBm WLM200N2 WLM200N2-26dBm WLM 54AG – 20dBm WLM 54AG – 23dBm WLM 54A – 26dBm WLM200NX WLM200N5-26
CHIPSET AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR9223 AR9223
AR 5413/5414
(AR5006X/XS) AR 5413/5414
(AR5006X/XS) AR5414
(AR5006XS) AR9220 AR9220
SPEED UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO
54/108Mbps UP TO 300Mbps
physical data rates UP TO 300Mbps
physical data rates UP TO
54/108Mbps UP TO
54/108Mbps UP TO 108Mbps UP TO 300Mbps
physical data rates UP TO 300Mbps
physical data rates
OUTPUT POWER (Average)
20dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps 20dBm@6-24Mbps
26dBm@6-24Mbps
17dBm@36Mbps 21dBm@36Mbps 24dBm@36Mbps 17dBm@36Mbps 26dBm@36Mbps
16dBm@48Mbps 19dBm@48Mbps 22Bm@48Mbps 16dBm@48Mbps 25Bm@48Mbps
802.11a - - - - - - -
13dBm@54Mbps 17dBm@54Mbps 20dBm@54Mbps 13dBm@54Mbps 19dBm@54Mbps
802.11b 20dBm@1-11Mbps 23dBm@1-11Mbps 26dBm@1-11Mbps 28dBm@1-11Mbps 30Bm@1-11Mbps 20dBm@1-11Mbps 26dBm@1-11Mbps 20dBm@1-11Mbps 23dBm@1-11Mbps - 20dBm@1-11Mbps -
20dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps 28dBm@6-24Mbps 30dBm@6-24Mbps 20dBm@6-24Mbps 26dBm@6-24Mbps 20dBm@6-24Mbps 23dBm@6-24Mbps - 20dBm@6-24Mbps -
19dBm@36Mbps 22dBm@36Mbps 25dBm@36Mbps 26dBm@36Mbps 28dBm@36Mbps 19.5dBm@36Mbps 26dBm@36Mbps 18dBm@36Mbps 21dBm@36Mbps - 18dBm@36Mbp
s -
17dBm@48Mbps 19dBm@48Mbps 24dBm@48Mbps 25dBm@48Mbps 27dBm@48Mbps 18.5dBm@48Mbps 22dBm@48Mbps 17dBm@48Mbps 19dBm@48Mbps - 17dBm@48Mbp
s -
802.11g
16dBm@54Mbps 17dBm@54Mbps 22dBm@54Mbps 23dBm@54Mbps 25dBm@54Mbps 17dBm@54Mbps 21dBm@54Mbps 15dBm@54Mbps 17dBm@54Mbps - 15dBm@54Mbp
s -
Interface PCI Interface v2.3 (Type III-B Mini PCI Form Factor) PCI Interface v2.3 (Type III-A Mini PCI
Form Factor) PCI Interface v2.3 (Type III-B Mini PCI Form Factor) PCI Interface v2.3 (Type III/A Mini
PCI Form Factor)
Receiver
Sensitivity
802.11g -94dBm @ 6Mbps
< -73dBm @ 54Mbps
802.11b -94dBm@ 6Mbps
-91dBm @11Mbps
802.11g -96dBm @ 6Mbps
< -83dBm @ 54Mbps
802.11b -96dBm@ 6Mbps
-91dBm @11Mbps
802.11g -96dBm @ 6Mbps
< -83dBm @ 54Mbps
802.11b -96dBm@ 6Mbps
-91dBm @11Mbps
802.11g -94dBm @ 6Mbps
<-73dBm @ 54Mbps
802.11b -94dBm@ 6Mbps
-91dBm @11Mbps
802.11a -94dBm @ 6Mbps
< -73dBm @ 54Mbps
-94dBm @6Mbps
-73dBm @54Mbps Refer to
datasheet Refer to
datasheet
Operating
Channels
IEEE 802.11g:
11 Channel (US & Canada)
13 Channel (Europe)
14 Channel (Japan)
IEEE 802.11a:
13 Channel (US & Canada)
19 Channel (Europe)
10 Channel (Japan)
Input Power 3.3V DC
Operating
Temperature -20ºC to 70ºC
Compex Systems Pte Ltd Compex (Suzhou) Co Ltd
135 Joo Seng Road, PM Industrial Building #08-01,
Singapore 368363
Tel: (65) 6286 2086
Fax: (65) 6280-9947
Email: sales@compex.com.sg
NO.12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou, Jiangsu Province, China 215122
Tel: (86)-512-62950050
Fax: (86)-512-62950026
For more information, visit www.compex.com.sg
Copyright © 2010 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc.
Atheros and other trademarks are properties of their respective owners.
While every effort is made to ensure the information accurate, Compex does not accept liability for any errors or mistakes that may arise.
Specification is subject to change without notice. DS V: 2.2.1 Rocky100526
