Compex Systems WLM200N5-26 WIRELESS-A/N 26DBM NETWORK MINI PCI ADAPTER User Manual
Compex Systems Pte Ltd WIRELESS-A/N 26DBM NETWORK MINI PCI ADAPTER
User Manual
WLM200N5-26dBm MiniPCI network adapter provides leading 802.11a/n
performance
, supporting up to 300Mbps physical data rates and 200Mbps
of actual user throughput on both the uplink and downlink. Adding
Wireless N to your Wireless device, it provides higher efficiency for
everyday activities such as file transfers, Internet browsing, and media
streaming.
Compex WLM200N5-26dBm miniPCI network adapter offers
high output power of 400 mW, allowing an extended range of wireless
coverage. Combined with excellent receiver sensitivity, WLM200N5-
26dBm is the miniPCI choice for long distance links, or those where signal
levels are reduced due to minor obstructions such as trees or building.
Built on Atheros chipset, it can be used with all draft IEEE 802.11n
compatible WLANs, and is ideally suited to be integrated into a wide
range of OEM devices.
Features
• 5GHz IEEE 802.11a/n standard
• Output Power of up to 26dBm @ a Band
• Support for up to 2x2 MIMO with spatial multiplexing
• Four times the throughput of 802.11a and 802.11n
• Wireless Encryption and Authentication Supported
• Transmission Power Control (TPC)
• Enhanced performance with Atheros XSPAN technology Optimized for higher throughput
at long range
• Hi
g
h Performance (up to 300Mbps physical data rates and 200Mbps of actual throu
g
hput)
with Low Power Consumption
• Dynamic Frequency Selection (DFS)
• Multi-Country Roaming Support (IEEE802.11d)
• 2 X MMCX Antenna Connector
• Suitable for Embedded System or OEM Project
• Affordable and Ideal for a Variety of Applications
WLM200N5-26MINIPCI
2 x 2 802.11N MIMO mini-PCI Modules
For more information, visit www.compex.com.sg
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.0.0
Technical Specifications
Chipset AR9220
Host Interface PCI Interface v2.3 (Type III-B Mini PCI form factor)
Operating
Voltage 3.3/5.0 VDC
Power
Consumption 7W
Antenna
Connector 2 x MMCX Antenna Connector
IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.) 20MHZ 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Data Rate IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Modulation
Techniques OFMD: BPSK, QPSK, 16 QAM, 64QAM
Security 64/128-bit WEP, TKIP, AES, IEEE802.1x authentication
Certificate FCC, CE
ROHS
Compliance Yes
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -65ºC to 100º
Humidity 5% to 95% (non-condensing)
Dimension 59.6 x 51 x 6.2mm
WLM200NX MIMO MINIPCI CARD RADIO
TX SPECIFICATIONS TX SPECIFICATIONS
DataRate TX Power Tolerance DataRate TX Power
6-24Mbps 26dBm ±2dB
36Mbps 24dBm ±2dB
48Mbps 23dBm ±2dB
802.11a
54Mbps 22dBm ±2dB 802.11n 5GHz HT20 @800GI(400GI): +16 ~
+24dBm
RX SPECIFICATIONS(802.11a)
Data Rate Sensitivity
(Typical/Maximum 2Rx)
Tolerance Data Rate Sensitivity
(Typical/Maximum 2Rx)
Tolerance
6M -95/-91dBm ±2dB
9M -95/-91dBm ±2dB
12M -95/-91dBm ±2dB
18M -94/-90dBm ±2dB
24M -90/-86dBm ±2dB
36M -87/-83dBm ±2dB
48M -83/-79dBm ±2dB
802.11a
54M -82/-78dBm ±2dB
MCS0 -95/-91dBm ±2dB MCS0 -91/-87dBm ±2dB
MCS1 -94/-90dBm ±2dB MCS1 -90/-86dBm ±2dB
MCS2 -92/-88dBm ±2dB MCS2 -88/-84dBm ±2dB
MCS3 -88/-84dBm ±2dB MCS3 -85/-81dBm ±2dB
MCS4 -85/-81dBm ±2dB MCS4 -82/-78dBm ±2dB
MCS5 -81/-77dBm ±2dB MCS5 -78/-74dBm ±2dB
MCS6 -80/-76dBm ±2dB MCS6 -77/-73dBm ±2dB
MCS7 -77/-73dBm ±2dB MCS7 -74/-70dBm ±2dB
MCS8 -94/-90dBm ±2dB MCS8 -91/-87dBm ±2dB
MCS9 -92/-87dBm ±2dB MCS9 -88/-84dBm ±2dB
MCS10 -89/-85dBm ±2dB MCS10 -86/-82dBm ±2dB
MCS11 -86/-82dBm ±2dB MCS11 -83/-79dBm ±2dB
MCS12 -83/-79dBm ±2dB MCS12 -80/-76dBm ±2dB
MCS13 -78/-74dBm ±2dB MCS13 -75/-71dBm ±2dB
MCS14 -77/-73dBm ±2dB MCS14 -73/-69dBm ±2dB
802.11
a/n
HT20
MCS15 -74/-69dBm ±2dB
802.11a/
n HT40
MCS15 -70/-66dBm ±2dB
For more information, visit www.compex.com.sg
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.0.0
DRIVER INFORMATION
Driver Linux Madwifi, WindowsXP , Windows 2000,Windwos Vista
ORDERING CONFIGURATIONS
①
CODES SPEED Carton Dimension
WLM200NX 6AA1100 Up to 300 Mbps
physical data rates
WLM200NX 6AA1300 Up to 300 Mbps
physical data rates
Configurations are subjected to change without notice
COMPLIANCE INFORMATION
FCC Compliance Statement: This device complies with Part 15 of the FCC
Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference
that may cause undesired operation. This device must accept any
interference received, including interference that may cause undesired
operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed
and operated in accordance with provided instructions and the antenna(s)
used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be collocated or operating in
conjunction with any other antenna or transmitter. End-users and installers
must be provided with antenna installation instructions and transmitter
operating conditions for satisfying RF exposure compliance.
(2) Any changes or modifications not expressly approved by the grantee of
this device could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with
any other antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the
equipment.
(
5) Outdoor Operations in the 5.15~5.25GHz band is prohibited.
For more information, visit www.compex.com.sg
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.0.0
NOTE:
(1) This device is approved for OEM installation with specified antennas as
listed in this Manual. It is the responsibility of the Installer to comply with the
separation distance for satisfying RF exposure compliance.
(2) This device only could work when being installed into “client devices”
which could not transmit automatically, such as Notebook P.C. , with the
software driver limit.
IMPORTANT NOTE: In the event that these conditions can not be met (for
example certain laptop configurations or co-location with another
transmitter), then the FCC authorization is no longer considered valid and the
FCC ID can not be used on the final product. In these circumstances, the
OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
WARNING: This Wireless Mini PCI Adapter does not support ad-hoc mode
Function

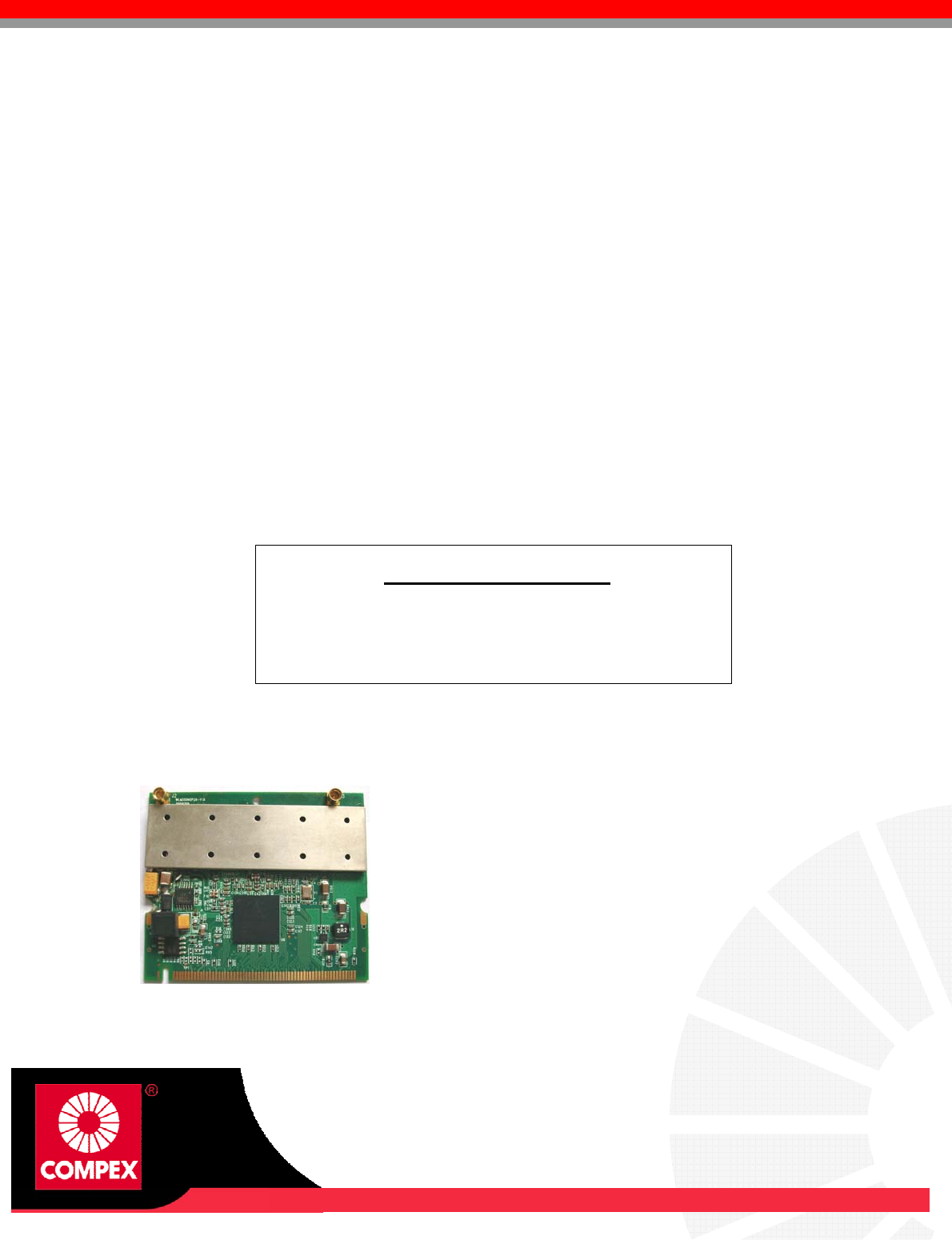

IMPORTANT NOTE REGARDING ANTENNA USE
Antenna Use (Point to Multipoint)
2x2 Operation
Chain1 Chain2

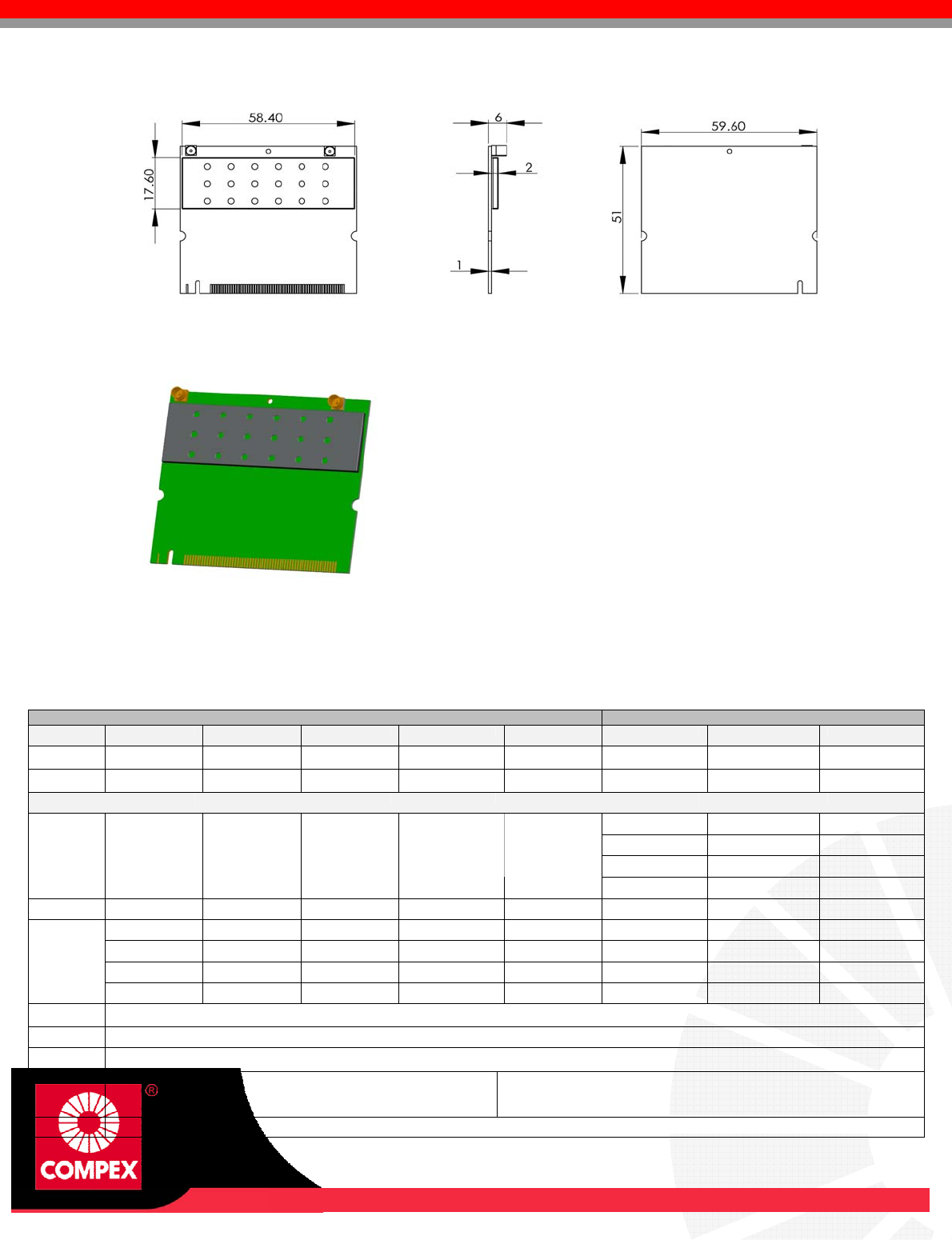

DIMENSIONS DRAWING
FCC ID: TK4-WLM200N5-26
IMPORTANT NOTE: EQUIPMENT MANUFACTURERS
COMPEX FOR DISPLAYING WLM200N5-26 MODULAR
FCC ID ON FINAL INTEGRATED
For more information, visit www.compex.com.sg
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.0.0
WLM FAMILY SERIES OF MINIPCI b / g (2.4GHz) a / b / g (2.4/5GHz)
MODEL WLM 54G-20dBM WLM 54G-23dBm WLM 54G-26dBm WLM 54G – 28dBm WLM200N2 WLM 54AG – 20dBm WLM 54 AG – 23dBm WLM 54A – 26dBm
CHIPSET AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR 2413/2414
(AR5005G/GS) AR9223 AR 5413/5414
(AR5006X/XS) AR 5413/5414
(AR5006X/XS) AR5414(AR5006XS)
SPEED UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 54/108Mbps UP TO 300Mbps
physical data rates UP TO 54/108Mbps UP TO 54/108Mbps UP TO 108Mbps
OUTPUT POWER (Average)
- 23dBm@6-24Mbps 26dBm@6-24Mbps
17dBm@36Mbps 21dBm@36Mbps 24dBm@36Mbps
16dBm@48Mbps 19dBm@48Mbps 22Bm@48Mbps
802.11a - - - - -
13dBm@54Mbps 17dBm@54Mbps 20dBm@54Mbps
802.11b 20dBm@1-11Mbps 23dBm@1-11Mbps 26dBm@1-11Mbps 28dBm@1-11Mbps 20dBm@1-11Mbps 20dBm@1-11Mbps 23dBm@1-11Mbps
20dBm@6-24Mbps 23dBm@6-24Mbps 26dBm@6-24Mbps 28dBm@6-24Mbps 20dBm@6-24Mbps 20dBm@6-24Mbps 23dBm@6-24Mbps
19dBm@36Mbps 22dBm@36Mbps 25dBm@36Mbps 26dBm@36Mbps 19.5dBm@36Mbps 18dBm@36Mbps 21dBm@36Mbps
17dBm@48Mbps 19dBm@48Mbps 24dBm@48Mbps 25dBm@48Mbps 18.5dBm@48Mbps 17dBm@48Mbps 19dBm@48Mbps
802.11g
16dBm@54Mbps 17dBm@54Mbps 22dBm@54Mbps 23dBm@54Mbps 17dBm@54Mbps 15dBm@54Mbps 17dBm@54Mbps
Modulation
Techniques OFDM and DSSS OFDM: BPSK, QPSK, 16QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Interface PCI Interface v2.3 (Type III-B Mini PCI Form Factor)
Receiver
Sensitivity 802.11g < -90dBm @ 6Mbps 802.11b < -92dBm@ 6Mbps 802.11a < -90dBm @ 6Mbps
< -70dBm @ 54Mbps < -87dBm @11Mbps < -70dBm @ 54Mbps
Operating
Channels IEEE 802.11g:
11 Channel (US & Canada)
13 Channel (Europe)
14 Channel (Japan)
IEEE 802.11a:
13 Channel (US & Canada)
19 Channel (Europe)
10 Channel (Japan)
Power 3.3VDC
For more information, visit www.compex.com.sg
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 1.0.0
Operating
Temperature -20ºC to 70ºC
Dimensions 6.0cm x 4.5cm
High Power Cards (26dBm/30dBm) has bigger dimensions.
