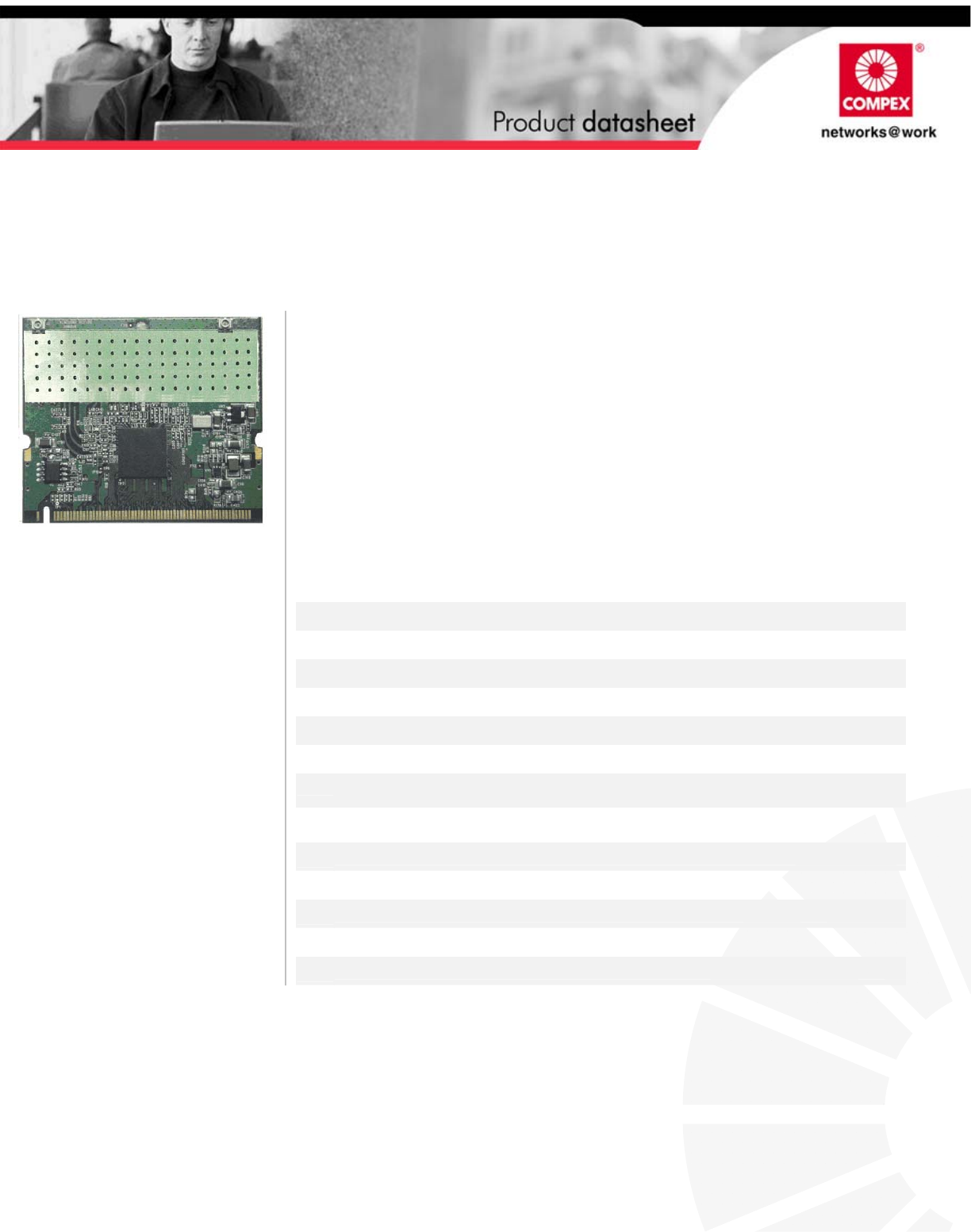

WLM200NX MiniPCI network adapter provides leading 802.11a/b/
g
/n
performance
, supporting up to 300Mbps physical data rates and 200Mbps
of actual user throughput on both the uplink and downlink. With the dual-
band desi
g
n you will en
j
oy universal connectivity to any 802.11 device
through your wireless AP or wireless Router.
Built on Atheros chipset, it can be used with all draft IEEE 802.11n
compatible WLANs, and is ideally suited to be inte
g
rated into a wide
range of OEM devices.
Features
• 2.4/5GHz IEEE 802.11a/b/g/n standard
• Output Power of up to 20dBm @ a/b/g/n Band
• Support for up to 2x2 MIMO with spatial multiplexing
• Four times the throughput of 802.11b/g and 802.11a
• Wireless Encryption and Authentication Supported
• Transmission Power Control (TPC)
• Enhanced performance with Atheros XSPAN technology Optimized for higher throughput
at long range
• High Performance (up to 300Mbps physical data rates and 200Mbps of actual throughput)
with Low Power Consumption
• Multi-Country Roaming Support (IEEE802.11d)
• 2 X U.FL Antenna Connector
• Suitable for Embedded System or OEM Project
• Affordable and Ideal for a Variety of Applications
•
WLM200NX MINIPCI
2 x 2 802.11N MIMO mini-PCI Modules
Technical Specifications
Chipset AR9220
Host Interface PCI Interface v2.3 (Type III-B Mini PCI form factor)
Operating
Voltage 3.3 VDC
Power
Consumption 2.4W
Antenna
Connector 2 x U.FL Antenna Connector
IEEE 802.11a : 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
IEEE 802.11b : 11Mbps 5.5Mbps 2Mbps 1Mbps
54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
automatically
IEEE 802.11g : Fallback to 5.5Mbps, 2Mbps, 1Mbps
1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.) 20MHZ 2Nss: 130Mbps @ 800GI, 144.4Mbps @ 400GI (Max.)
1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Data Rate
IEEE 802.11n : 40MHz 2Nss: 270Mbps @ 800GI, 300Mbps @ 400GI (Max.)
Modulation
Techniques OFMD: BPSK, QPSK, 16 QAM, 64QAM
DSSS: DBPSK, DQPSK, CCK
Security 64/128-bit WEP, TKIP, AES, IEEE802.1x authentication
Certificate FCC, CE
ROHS
Compliance Yes
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -65ºC to 100º
Humidity 5% to 95% (non-condensing)
Dimension 59.6 x 51 x 3 mm
WLM200NX MIMO MINIPCI CARD RADIO
TX SPECIFICATIONS TX SPECIFICATIONS
DataRate TX Power Tolerance DataRate TX Power Tolerance
6-24Mbps 18dBm ±2dB 1Mbps 20dBm ±2dB
36Mbps 18dBm ±2dB 2Mbps 20dBm ±2dB
48Mbps 17dBm ±2dB 5.5Mbps 20dBm ±2dB
802.11a
54Mbps 16dBm ±2dB 802.11b
11Mbps 20dBm ±2dB
6-24Mbps 20dBm ±2dB HT20 @800GI(400GI): +16 ~ +20dBm
36Mbps 19.5dBm ±2dB 2.4GHz HT40 @800GI(400GI): +14 ~ +18dBm
48Mbps 18.5dBm ±2dB 5GHz HT20 @800GI(400GI): +10 ~ +18dBm
802.11g
54Mbps 17dBm ±2dB 802.11n
RX SPECIFICATIONS（802.11b）
Data Rate Sensitivity (Typical/Maximum 2Rx) Tolerance
1M -96/-92Bm ±2dB
5.5M -94/-90dBm ±2dB
802.11b 11M -91/-87dBm ±2dB
RX SPECIFICATIONS(802.11a) RX SPECIFICATIONS（802.11g）
Data Rate Sensitivity
(Typical/Maximum 2Rx) Tolerance Data Rate Sensitivity
(Typical/Maximum 2Rx) Tolerance
6M -95/-91dBm ±2dB 6M -96/-92dBm ±2dB
9M -95/-91dBm ±2dB 9M -96/-92dBm ±2dB
12M -95/-91dBm ±2dB 12M -96/-92dBm ±2dB
18M -94/-90dBm ±2dB 18M -95/-91dBm ±2dB
24M -90/-86dBm ±2dB 24M -92/-88dBm ±2dB
36M -87/-83dBm ±2dB 36M -89/-85dBm ±2dB
48M -83/-79dBm ±2dB 48M -85/-81dBm ±2dB
802.11a
54M -82/-78dBm ±2dB
802.11g
54M -83/-79dBm ±2dB
MCS0 -95/-91dBm ±2dB MCS0 -96/-92dBm ±2dB
MCS1 -94/-90dBm ±2dB MCS1 -95/-91dBm ±2dB
MCS2 -92/-88dBm ±2dB MCS2 -93/-89dBm ±2dB
MCS3 -88/-84dBm ±2dB MCS3 -90/-86dBm ±2dB
MCS4 -85/-81dBm ±2dB MCS4 -87/-81dBm ±2dB
MCS5 -81/-77dBm ±2dB MCS5 -83/-76dBm ±2dB
MCS6 -80/-76dBm ±2dB MCS6 -81/-76dBm ±2dB
MCS7 -77/-73dBm ±2dB MCS7 -79/-73dBm ±2dB
MCS8 -94/-90dBm ±2dB MCS8 -95/-91dBm ±2dB
MCS9 -92/-87dBm ±2dB MCS9 -93/-89dBm ±2dB
MCS10 -89/-85dBm ±2dB MCS10 -90/-86dBm ±2dB
MCS11 -86/-82dBm ±2dB MCS11 -87/-83dBm ±2dB
MCS12 -83/-79dBm ±2dB MCS12 -84/-80dBm ±2dB
MCS13 -78/-74dBm ±2dB MCS13 -79/-75dBm ±2dB
MCS14 -77/-73dBm ±2dB MCS14 -77/-73dBm ±2dB
802.11
a/n
HT20
MCS15 -74/-69dBm ±2dB
802.11
b/g/n
HT20
MCS15 -75/-71dBm ±2dB
MCS0 -91/-87dBm ±2dB MCS0 -90/-86dBm ±2dB
MCS1 -90/-86dBm ±2dB MCS1 -90/-86dBm ±2dB
MCS2 -88/-84dBm ±2dB MCS2 -89/-85dBm ±2dB
MCS3 -85/-81dBm ±2dB MCS3 -87/-82dBm ±2dB
MCS4 -82/-78dBm ±2dB MCS4 -84/-79dBm ±2dB
MCS5 -78/-74dBm ±2dB MCS5 -79/-75dBm ±2dB
MCS6 -77/-73dBm ±2dB MCS6 -78/-74dBm ±2dB
MCS7 -74/-70dBm ±2dB MCS7 -75/-71dBm ±2dB
MCS8 -91/-87dBm ±2dB MCS8 -90/-86dBm ±2dB
MCS9 -88/-84dBm ±2dB MCS9 -89/-85dBm ±2dB
MCS10 -86/-82dBm ±2dB MCS10 -87/-83dBm ±2dB
MCS11 -83/-79dBm ±2dB MCS11 -84/-80dBm ±2dB
MCS12 -80/-76dBm ±2dB MCS12 -81/-77dBm ±2dB
MCS13 -75/-71dBm ±2dB MCS13 -76/-72dBm ±2dB
MCS14 -73/-69dBm ±2dB MCS14 -74/-68dBm ±2dB
802.11
a/n
HT40
MCS15 -70/-66dBm ±2dB
802.11
b/g/n
HT40
MCS15 -71/-67dBm ±2dB
DRIVER INFORMATION
Driver Linux Madwifi, WindowsXP , Windows 2000,Windwos Vista
c Configurations are subjected to change without notice
COMPLIANCE INFORMATION
FCC NOTICE
This device has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this device does cause
harmful interference to radio or television reception, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Connect the computer into an outlet on a circuit different from that to which the receiver is connected.
• Increase the separation between the computer and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
FCC Compliance Statement: This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
This device must accept any interference received, including interference that may cause
undesired operation.
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
RF exposure warning
The equipment complies with FCC RF exposure limits set forth for an uncontrolled
environment.
The equipment must not be co-located or operating in conjunction with any other antenna or
transmitter.
FCC ID: TK4WLM200NX
IMPORTANT NOTE: EQUIPMENT MANUFACTURERS
COMPEX FOR DISPLAYING WLM200NX MODULAR FCC
ID ON FINAL INTEGRATED
FCC ID: TK4WLM200NX
IMPORTANT NOTE: EQUIPMENT MANUFACTURERS
COMPEX FOR DISPLAYING WLM200NX MODULAR FCC
ID ON FINAL INTEGRATED
OEM integration instructions:
This device is intended only for OEM integrators under the following conditions：
The module is only limited to installation in mobile applications. The antenna must be installed
such that 20 cm is maintained between the antenna and users, and the transmitter module may
not be co-located with any other transmit or antenna. The module shall be only used with the
integral antenna(s) that has been originally tested and certified with this module.
As long as 3 conditions above are met，further transmitter test will not be required.
However, the OEM integrator is still responsible for testing their end-product for any additional
compliance requirement with this module installed (for example，digital device emission，PC
peripheral requirements，etc.)
End product labeling:
This transmitter module is authorization only for use in device where the antenna may be
installed such that 20cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: “Contains Transmitter Module FCC ID:
TK4WLM200NX or Contains FCC ID: TK4WLM200NX”.
