WLM54AG_User Manual

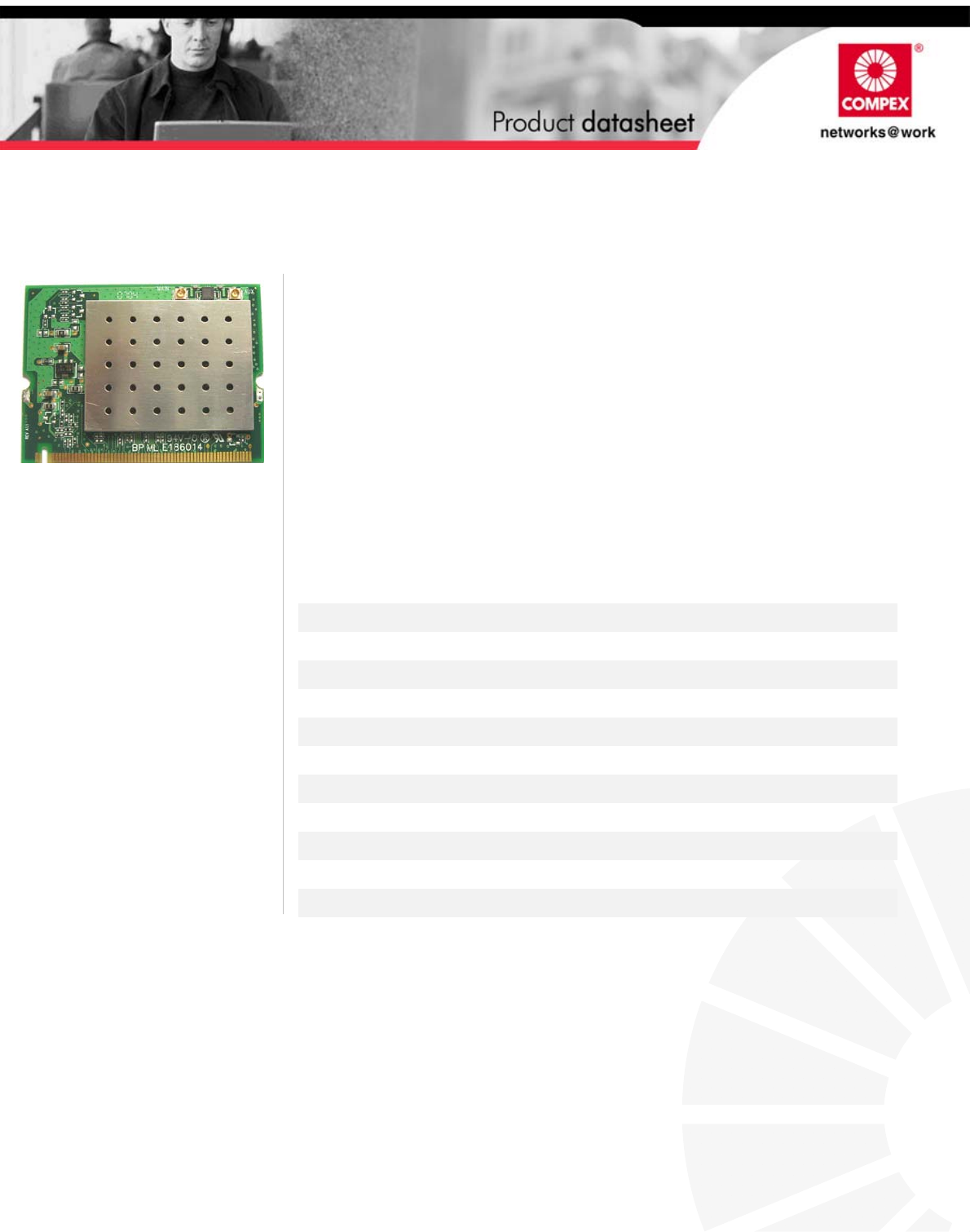

Compex WLM54AG 6A MiniPCI is a high-performance, compact,
lightweight and low power consumption network adapter. Built on
Atheros AR5414 chipset, it can be used for all IEEE802.11 b/g
compatible WLAN and is ideally suited for integration in a wide range o
f
OEM devices.
WLM54AG 6A MiniPCI network adapter offers an output power of up to
20dBm on b/g band, and also supports a variety of security features such
as WEP, AES,TKIP, receive and transmit filtering, error recovery, quality o
f
service (QoS) as well as IEEE802.1x standard, thus providing security to
the wireless network and increase WLAN performance.
Features
• 2.4GHz IEEE 802.11b/g standard
• Output power of up to 20dBm @ b/g Band
• Wireless Encryption and Authentication Supported
• Extended Distances and High Speeds Due to Better Output Signal Power
• High Performance with Low Power Consumption
• Multi-Country Roaming Support (IEEE802.11d)
• Suitable for Embedded System or OEM Project
• 2 x U.FL(Main & Aux) Antenna Connector
• Affordable and Ideal for a Variety of Applications
WLM54AG 6A MINI PCI
Atheros AR5414 Chipset
Technical Specifications
Chipset Atheros AR5414
Host Interface PCI Interface v2.3 (Type III-B Mini PCI form factor)
Operating
Voltage 3.3 VDC
Power
Consumption 1.8W
Antenna
Connector 2 x U.FL Antenna Connector
Standards
IEEE 802.11b: 11Mbps 5.5Mbps 2Mbps 1Mbps
IEEE 802.11g: 54Mbps 48Mbps 36Mbps 24Mbps 18Mbps 12Mbps 9Mbps 6Mbps
Automatically fallback to 5.5Mbps, 2Mbps, 1Mbps
Frequency
Range IEEE 802.11b/g:
2.412GHz ~ 2.462GHz (US & Canada)
2.412GHz ~ 2.472GHz (Europe)
2.412GHz ~ 2.484GHz (Japan)
Modulation
Techniques OFMD: BPSK, QPSK, 16 QAM, 64QAM
Security 64/128-bit WEP, TKIP, AES, IEEE802.1x authentication
Certificate FCC, CE
ROHS
Compliance Yes
Environment
Specifications Operating: -20ºC to 70ºC
Storage: -65ºC to 100º
Humidity 5% to 95% (non-condensing)
Dimension 59.6 x 46 x 3.8 (mm)
Weight 15 grams
WLM54AG 6A MINIPCI CARD RADIO
TX SPECIFICATIONS RX SPECIFICATIONS
DataRate TX Power Tolerance DataRate Sensitivity
802.11b
1Mbps 20dBm +1.0/-1.5 dB 802.11b
1Mbps <-90dBm
2Mbps 20dBm +1.0/-1.5 dB 11Mbps <-70dBm 5.5Mbps 20dBm +1.0/-1.5 dB
11Mbps 20dBm +1.0/-1.5 dB
802.11g
6Mbps 20dBm +1.0/-1.5 dB
802.11g
6Mbps <-90dBm 9Mbps 20dBm +1.0/-1.5 dB
12Mbps 20dBm +1.0/-1.5 dB
18Mbps 20dBm +1.0/-1.5 dB
54Mbps <-70dBm
24Mbps 20dBm +1.0/-1.5 dB
36Mbps 18dBm +1.0/-1.5 dB
48Mbps 17dBm +1.0/-1.5 dB
54Mbps 15dBm +1.0/-1.5 dB
DRIVER INFORMATION
Driver Linux Madwifi, WindowsXP , Windows 2000
ORDERING CONFIGURATIONS①
CODES SPEED CARTON DIMENSION
WLM54AG 6AA1300P20 Up to 54 Mbps For 50pcs (pcs/ctn), 0.40m * 0.22m * 0.085m / 0.006 =1.5KG
c Configurations are subjected to change without notice

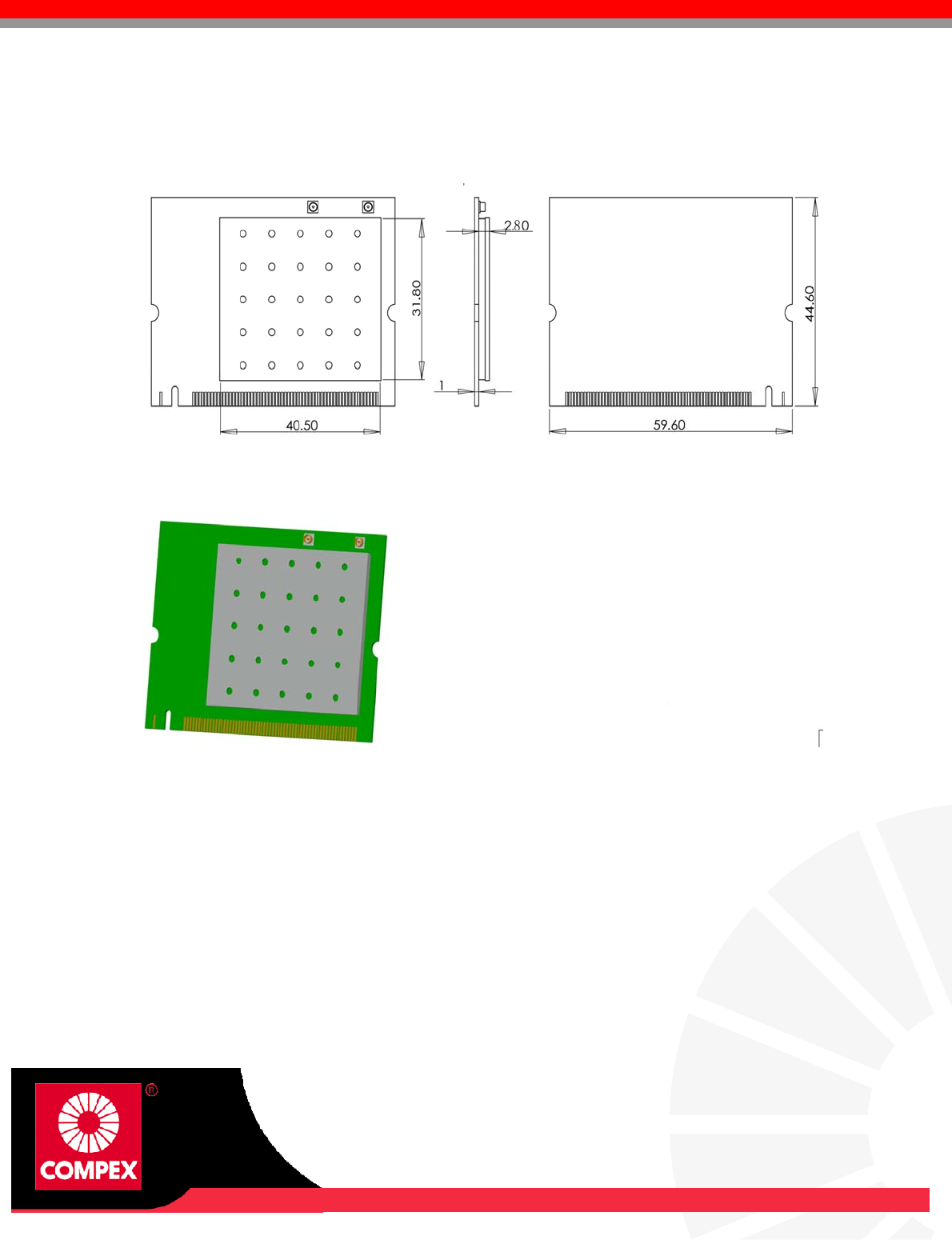

DIMENSIONS DRAWING
Compex Systems Pte Ltd Compex (Suzhou) CO. Ltd
No:9 Harrison Road, Harrison
Industrial Building, #05-01,
Singapore 369651
T
el: +65 6286 2086
Fax: +65 6280 9947
No. 12, ChuangTou Industrial Square,
LouFeng North, Suzhou Industrial Park,
Suzhou City, Jiangsu Province, China
T
el: (86)-512-62950050
Fax: (86)-512-62950026
Copyright © 2008 Compex Systems. All rights reserved. COMPEX and the COMPEX logo, are registered trademarks of COMPEX Inc. While every effort
is made to ensure the information is accurate, Compex does not accept liability for any errors or mistakes that may arise. All specification is subject to
change without notice. Datasheet Version: V 3.0.2
For more information, visit www.compex.com.sg
Compliance Information
FCC Compliance Statement:
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may
cause undesired operation.
This device must accept any interference received, including interference that may
cause undesired operation. Product that is a radio transmitter is labeled with FCC ID.
FCC Caution:
(1) Exposure to Radio Frequency Radiation. This equipment must be installed and
operated in accordance with provided instructions and the antenna(s) used for this
transmitter must be installed to provide a separation distance of at least 20 cm from all
persons and must not be collocated or operating in conjunction with any other
antenna or transmitter. End-users and installers must be provided with antenna
installation instructions and transmitter operating conditions for satisfying RF
exposure compliance.
(2) Any changes or modifications not expressly approved by the grantee of this device
could void the user's authority to operate the equipment.
(3) This Transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
(4) Changes or modifications to this unit not expressly approved by the party
responsible for compliance could void the user authority to operate the equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
The equipment must not be co-located or operating in conjunction with any other
antenna or transmitter.
IMPORTANT NOTE: In the event that these conditions cannot be met (for example
certain laptop configurations or co-location with another transmitter), then the FCC
authorization is no longer considered valid and the FCC ID cannot be used on
the final product. In these circumstances, the OEM integrator will be responsible for
re-evaluating the end product (including the transmitter) and obtaining a separate
FCC authorization.
OEM integration instructions：
This device is intended only for OEM integrators under the following conditions：
The module is only limited to installation in mobile applications. The antenna must be
installed such that 20 cm is maintained between the antenna and users，and the
transmitter module may not be co-located with any other transmit or antenna. The
module shall be only used with the integral antenna(s) that has been originally tested
and certified with this module.
As long as 3 conditions above are met，further transmitter test will not be required.
However，the OEM integrator is still responsible for testing their end-product for any
additional compliance requirement with this module installed (for example，digital
device emission，PC peripheral requirements，etc.)
End product labeling
This transmitter module is authorization only for use in device where the antenna may
be installed such that 20 cm may be maintained between the antenna and users. The
final end product must be labeled in a visible area with the following：“Contains
Transmitter Module FCC ID: TK4-WLM54AG or Contains FCC ID: TK4-WLM54AG”
Information that must be placed in the end user manual：
The OEM integrator has to be aware not to provide information to the end user
regarding how to install or remove this RF module in the user’s manual of the end
product which integrates this module. The end user manual shall include all required
regulatory information/warning as show in this manual.
