Compoka Electronic Technology KBJ-261N Bluetooth Headphone User Manual

Shenzhen Compoka Electronic Technology Co., Ltd Bluetooth Headphone

User Manual

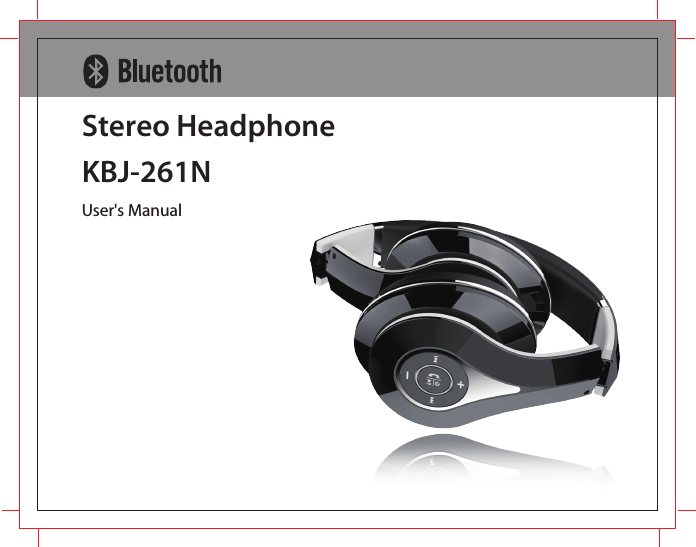

User's ManualKBJ-261NStereo Headphone

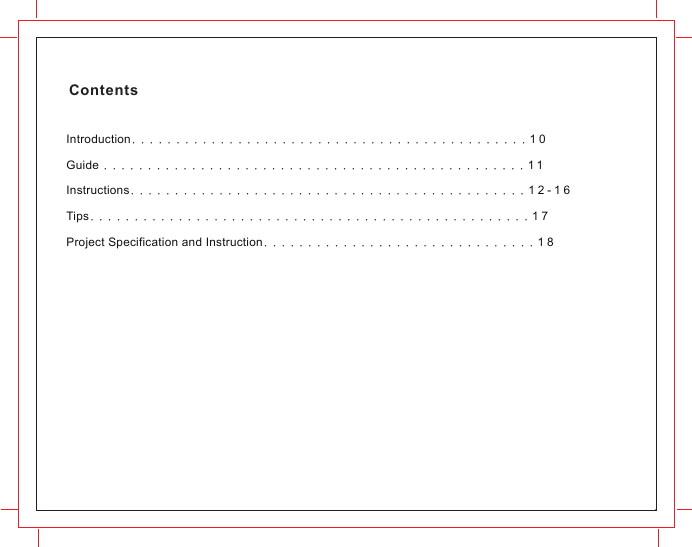

Introduction.............................................10Guide ................................................11Instructions.............................................12-16Tips..................................................17Project Specification and Instruction...............................18Contents

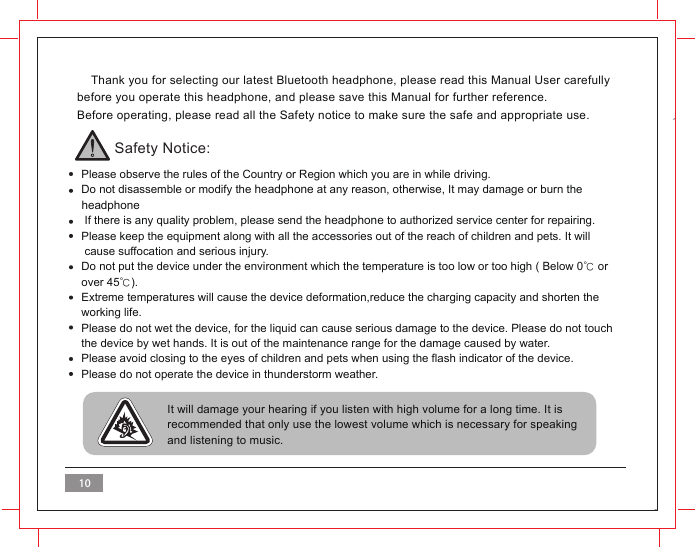

Thank you for selecting our latest Bluetooth headphone, please read this Manual User carefully before you operate this headphone, and please save this Manual for further reference.Before operating, please read all the Safety notice to make sure the safe and appropriate use.Safety Notice: Please observe the rules of the Country or Region which you are in while driving. Do not disassemble or modify the headphone at any reason, otherwise, It may damage or burn the headphone If there is any quality problem, please send the headphone to authorized service center for repairing. Please keep the equipment along with all the accessories out of the reach of children and pets. It will cause suffocation and serious injury. Do not put the device under the environment which the temperature is too low or too high ( Below 0℃ or over 45℃). Extreme temperatures will cause the device deformation,reduce the charging capacity and shorten the working life. Please do not wet the device, for the liquid can cause serious damage to the device. Please do not touch the device by wet hands. It is out of the maintenance range for the damage caused by water. Please avoid closing to the eyes of children and pets when using the flash indicator of the device. Please do not operate the device in thunderstorm weather. It will damage your hearing if you listen with high volume for a long time. It is recommended that only use the lowest volume which is necessary for speaking and listening to music. 10

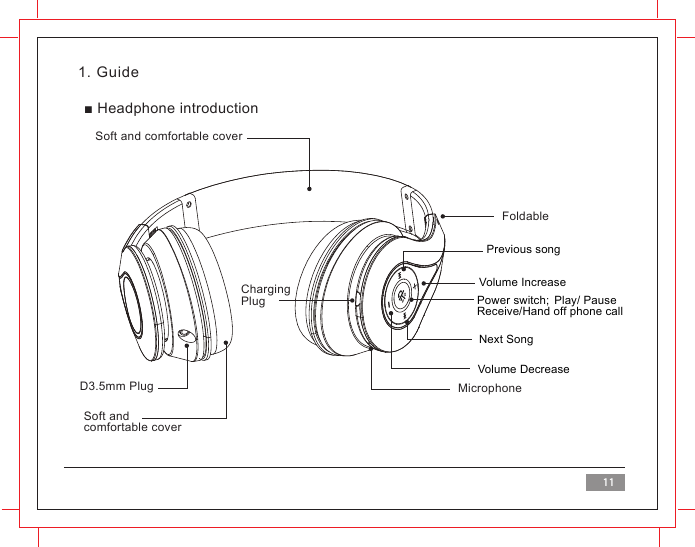

11Power switch;Receive/Hand off phone callPlay/ PausePrevious songNext SongVolume IncreaseVolume Decrease1. Guide■ Headphone introductionSoft and comfortable coverSoft and comfortable coverD3.5mm PlugFoldableMicrophone Charging Plug

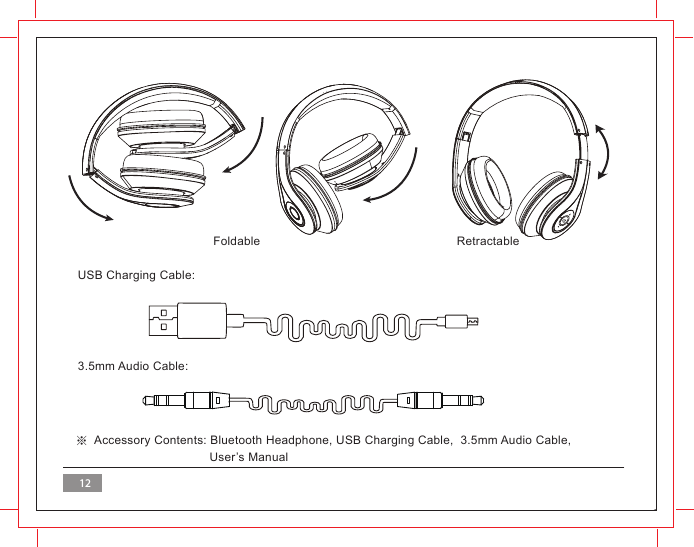

Foldable Retractable※ Accessory Contents: Bluetooth Headphone, USB Charging Cable, 3.5mm Audio Cable, User’s Manual12USB Charging Cable:3.5mm Audio Cable:

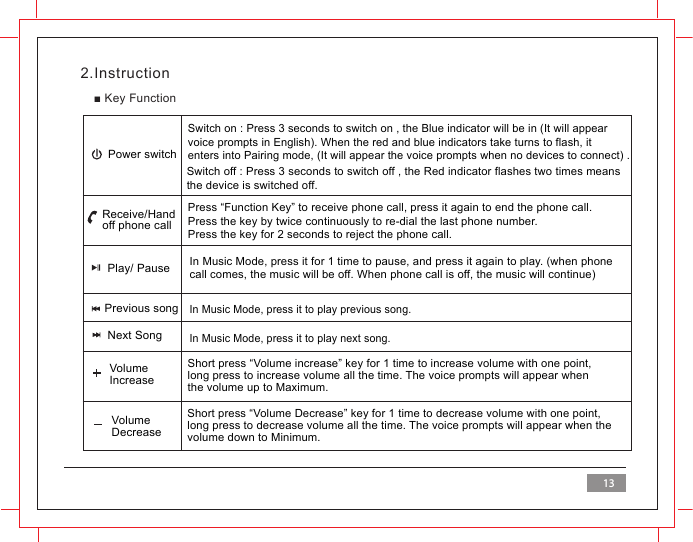

2.Instruction■ Key FunctionPower switchReceive/Hand off phone callSwitch on : Press 3 seconds to switch on , the Blue indicator will be in (It will appearvoice prompts in English). When the red and blue indicators take turns to flash, it enters into Pairing mode, (It will appear the voice prompts when no devices to connect) .Switch off : Press 3 seconds to switch off , the Red indicator flashes two times means the device is switched off. Press “Function Key” to receive phone call, press it again to end the phone call.Press the key by twice continuously to re-dial the last phone number.Press the key for 2 seconds to reject the phone call.In Music Mode, press it for 1 time to pause, and press it again to play. (when phone call comes, the music will be off. When phone call is off, the music will continue)In Music Mode, press it to play previous song.In Music Mode, press it to play next song.Short press “Volume increase” key for 1 time to increase volume with one point,long press to increase volume all the time. The voice prompts will appear whenthe volume up to Maximum.Short press “Volume Decrease” key for 1 time to decrease volume with one point, long press to decrease volume all the time. The voice prompts will appear when thevolume down to Minimum.Previous songNext SongVolume IncreaseVolume DecreasePlay/ Pause13

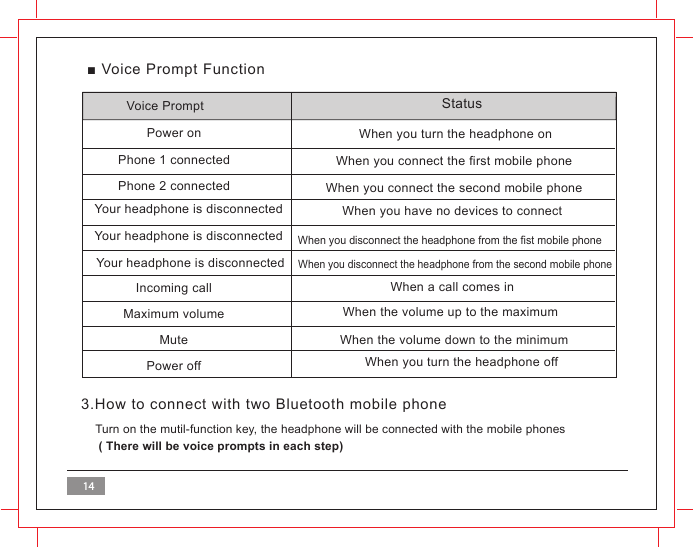

Turn on the mutil-function key, the headphone will be connected with the mobile phones ( There will be voice prompts in each step)14■ Voice Prompt Function Voice Prompt StatusPower onPhone 1 connectedPhone 2 connectedIncoming callMaximum volumeMutePower offYour headphone is disconnectedYour headphone is disconnectedYour headphone is disconnectedWhen you turn the headphone off When you turn the headphone onWhen you connect the first mobile phoneWhen you connect the second mobile phoneWhen you have no devices to connect When you disconnect the headphone from the fist mobile phoneWhen you disconnect the headphone from the second mobile phoneWhen a call comes in When the volume up to the maximum When the volume down to the minimum3.How to connect with two Bluetooth mobile phone

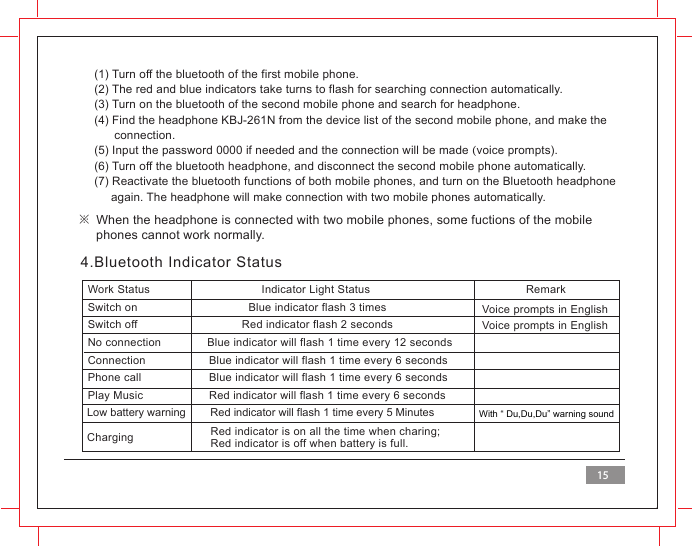

4.Bluetooth Indicator StatusWork Status Indicator Light Status RemarkSwitch on Blue indicator flash 3 times 　Switch off Red indicator flash 2 seconds　No connection Blue indicator will flash 1 time every 12 seconds 　Connection Blue indicator will flash 1 time every 6 seconds　Phone call Blue indicator will flash 1 time every 6 secondsPlay Music Red indicator will flash 1 time every 6 seconds 　15※ When the headphone is connected with two mobile phones, some fuctions of the mobile phones cannot work normally.Low battery warning Red indicator will flash 1 time every 5 Minutes Red indicator is on all the time when charing; Red indicator is off when battery is full.　With “ Du,Du,Du” warning soundCharging Voice prompts in EnglishVoice prompts in English(1) Turn off the bluetooth of the first mobile phone. (2) The red and blue indicators take turns to flash for searching connection automatically.(3) Turn on the bluetooth of the second mobile phone and search for headphone.(4) Find the headphone KBJ-261N from the device list of the second mobile phone, and make the connection.(5) Input the password 0000 if needed and the connection will be made (voice prompts).(6) Turn off the bluetooth headphone, and disconnect the second mobile phone automatically.(7) Reactivate the bluetooth functions of both mobile phones, and turn on the Bluetooth headphone again. The headphone will make connection with two mobile phones automatically.

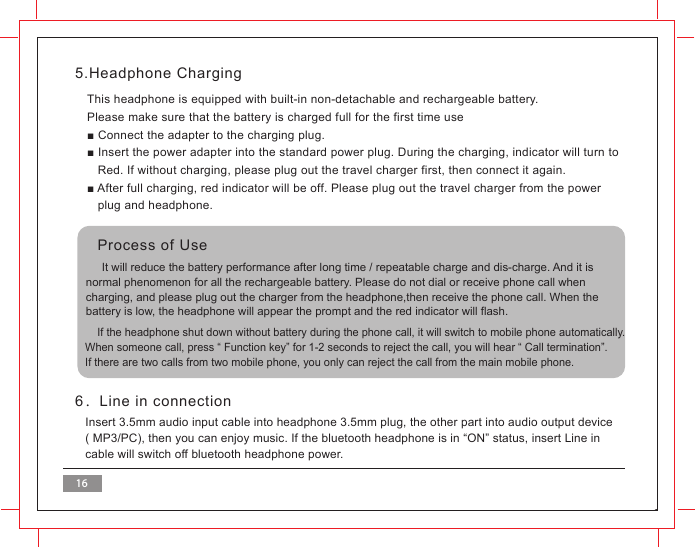

5.Headphone Charging6．Line in connectionThis headphone is equipped with built-in non-detachable and rechargeable battery.Please make sure that the battery is charged full for the first time use■ Connect the adapter to the charging plug.■ Insert the power adapter into the standard power plug. During the charging, indicator will turn to Red. If without charging, please plug out the travel charger first, then connect it again. ■ After full charging, red indicator will be off. Please plug out the travel charger from the power plug and headphone. Insert 3.5mm audio input cable into headphone 3.5mm plug, the other part into audio output device( MP3/PC), then you can enjoy music. If the bluetooth headphone is in “ON” status, insert Line in cable will switch off bluetooth headphone power. It will reduce the battery performance after long time / repeatable charge and dis-charge. And it is normal phenomenon for all the rechargeable battery. Please do not dial or receive phone call whencharging, and please plug out the charger from the headphone,then receive the phone call. When the battery is low, the headphone will appear the prompt and the red indicator will flash. If the headphone shut down without battery during the phone call, it will switch to mobile phone automatically.When someone call, press “ Function key” for 1-2 seconds to reject the call, you will hear “ Call termination”.If there are two calls from two mobile phone, you only can reject the call from the main mobile phone. Process of Use16

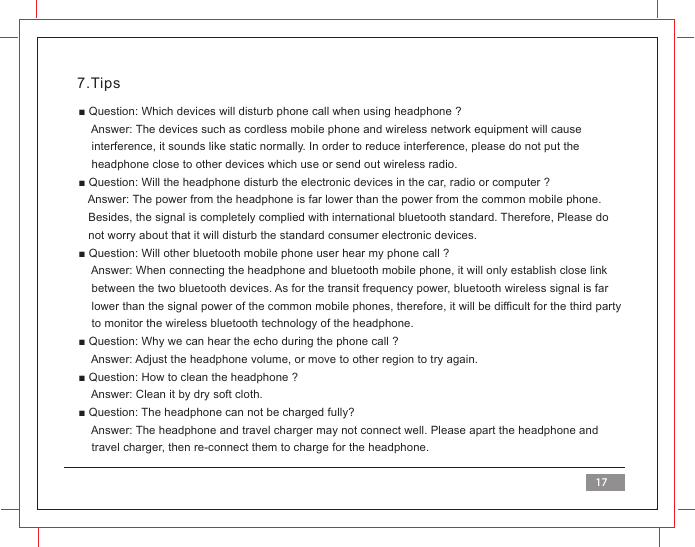

7.Tips■ Question: Which devices will disturb phone call when using headphone ? Answer: The devices such as cordless mobile phone and wireless network equipment will cause interference, it sounds like static normally. In order to reduce interference, please do not put the headphone close to other devices which use or send out wireless radio.■ Question: Will the headphone disturb the electronic devices in the car, radio or computer ? Answer: The power from the headphone is far lower than the power from the common mobile phone. Besides, the signal is completely complied with international bluetooth standard. Therefore, Please do not worry about that it will disturb the standard consumer electronic devices.■ Question: Will other bluetooth mobile phone user hear my phone call ? Answer: When connecting the headphone and bluetooth mobile phone, it will only establish close link between the two bluetooth devices. As for the transit frequency power, bluetooth wireless signal is far lower than the signal power of the common mobile phones, therefore, it will be difficult for the third party to monitor the wireless bluetooth technology of the headphone.■ Question: Why we can hear the echo during the phone call ? Answer: Adjust the headphone volume, or move to other region to try again.■ Question: How to clean the headphone ? Answer: Clean it by dry soft cloth.■ Question: The headphone can not be charged fully? Answer: The headphone and travel charger may not connect well. Please apart the headphone and travel charger, then re-connect them to charge for the headphone.17

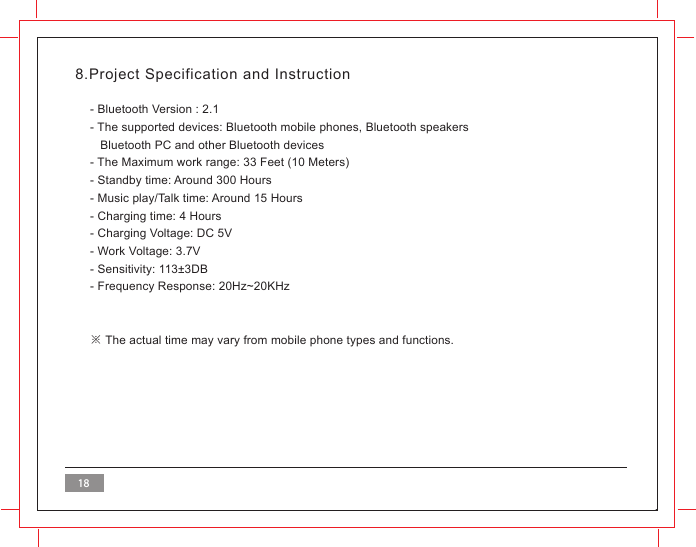

188.Project Specification and Instruction- Bluetooth Version : 2.1- The supported devices: Bluetooth mobile phones, Bluetooth speakers Bluetooth PC and other Bluetooth devices- The Maximum work range: 33 Feet (10 Meters)- Standby time: Around 300 Hours- Music play/Talk time: Around 15 Hours- Charging time: 4 Hours- Charging Voltage: DC 5V- Work Voltage: 3.7V- Sensitivity: 113±3DB - Frequency Response: 20Hz~20KHz※ The actual time may vary from mobile phone types and functions.

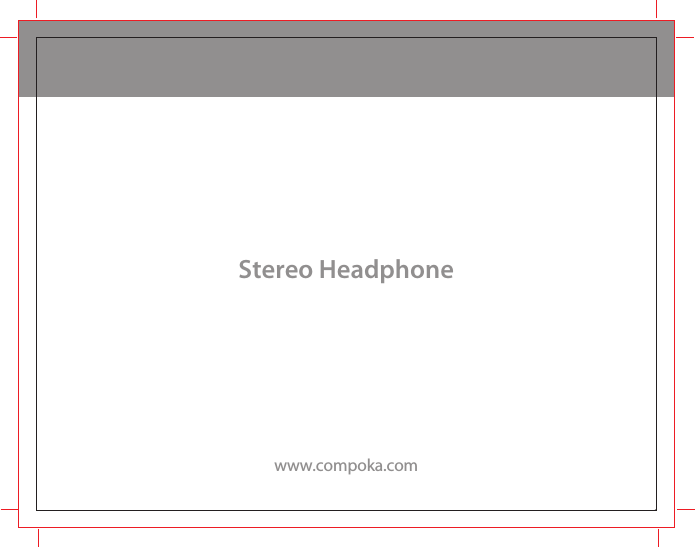

www.compoka.comStereo Headphone

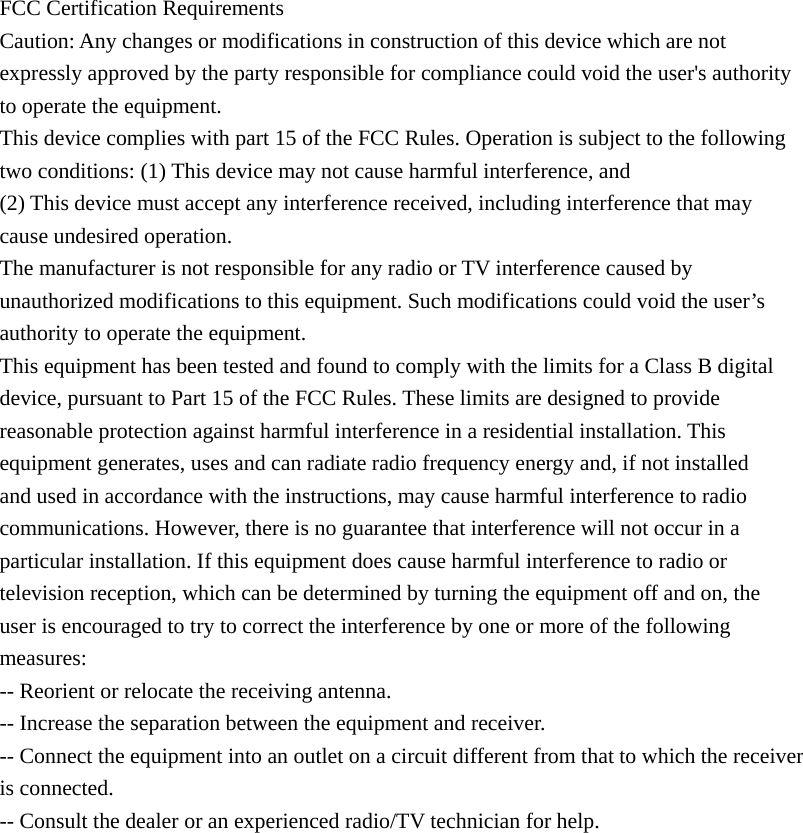

FCC Certification Requirements Caution: Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.
