CAUTION: Ambient temperature of more than 35°C~40°C

or less than 5°C

Regulations Information

 CE compliance

This device is classed as a technical information equipment

(ITE) in class B and is intended for use in living room and office.

approves the conformity by the EU-guidelines:

- EMC Directive 2004/108/EC,

- Low Voltage Directive 2006/95/EC,

- R&TTE Directive 1999/5/EC

 PREVENTION OF HEARING LOSS

Listening to music at high volume levels and for extended durations

can damage one’s hearing. In order to reduce the risk of damage to

hearing, one should lower the volume to a safe, comfortable level,

and reduce the amount of time listening at high levels. Headsets

should comply with EN 50332-2 requirements.

CAUTION: Any changes or modifications not expressly

approved by the guarantee of this device could

void the user’s authority to operate the equipment.

Tablet Blue TW10Pro Series

Bogotá Colombia

Safety Instructions

1- Do not apply heavy pressure to the tablet or subject it to any form

of strong impact as this can damage the tablet's components or

otherwise cause it to malfunction.

2- Never cover or block the air vents including those located at the base

of the tablet. Never cover your tablet or AC adaptor with any object.

3- To keep your tablet in prime operating condition, protect your work

area from direct sunlight.

4- Do NOT expose to or use near liquid, rain, or moisture. Do

NOT use the modem during electrical storms.

5- Do not use or expose this device around magnetic fields as

magnetic interference may affect the performance of the device.

Tablet Blue TW10Pro Series

Bogotá Colombia

CAUTION: RISK OF EXPLOSION IF BATTERY IS

REPLACED BY AN INCORRECT TYPE DISPOSE OF

USED BATTERIES ACCORDING TO THE

INSTRUCTIONS.

Replace only with the same or equivalent type

recommended by the manufacturer.

Conventions for this Manual

Dispose of used batteries according to the manufacturer’s

instructions.

CAUTION : This message contains important information

that must be followed for safe operation.

NOTE: This message contains information for special situations.

Tablet Blue TW10Pro Series

Bogotá Colombia

Getting to know the basics

Tablet Blue TW10Pro Series

Bogotá Colombia

Product Specification

This User’s Manual provides technical information of instructions and

illustrations on how to operate this device for the customer. Please read

this manual carefully before using this Pad.

System Specification

 Physical Outline

263,02mm x 177,73mm x 12.45mm

 Weight

695g (w/o ) 715g (w)

CPU

 Support Processor

Cherry Trail CR Z8300

Memory

 DDR3L

DDR3L memories

Storage

 Follow AVL

EMMC 32GB/64GB

Tablet Blue TW10Pro Series

Bogotá Colombia

I/O Port

DC-in (2.5mm) x 1

USB3.0

Audio (3.5mm)

Card Reader

HDMI

x 1 x 1 x 1

(Micro SD) x 1

(Micro HDMI)

Home key back to home page

Audio

 Audio Codec

I2S interface, D3 mode support

 Speaker/MIC

Build-in two speakers

Digitial Microphone support

Speaker: 1.5W * 2

Display

 Panel Type

10"LED,800*1280

 Panel Type

IPS: 2.6mm(Max)

Tablet Blue TW10Pro Series

Bogotá Colombia

Communication Port

 Wireless LAN

IEEE 802.11 b/g/n + Bluetooth v4.0

Webcam

 CCD

 Front 1.9M + Rear 5M

Power

 AC Adapter

- Automatics Voltage adjustment between 100 and 240VAC

50/60Hz,

- 5V/2A, 10 Watts, 2Pin US

 Battery

Li-ion Battery

Tablet Blue TW10Pro Series

Bogotá Colombia

Optional

• Stylus

• Macro-lens (For rear camera)

• Battery (1S2P, 3.8V, 7500mah, 28.50W)

• Wireless (IEEE 802.11 b/g/n + Bluetooth v4.0)

• GPS (BCM4752 ( GPS)

• CCD (Front 1.9M + Rear 5M)

• Thermal Probe (For Temperature Sensor)

• Sensor (G-Sensor+E-compass+Light-sensor+GYRO)

Product Overview

Please become familiar with each component before you operate the

Tablet Blue TW10Pro.

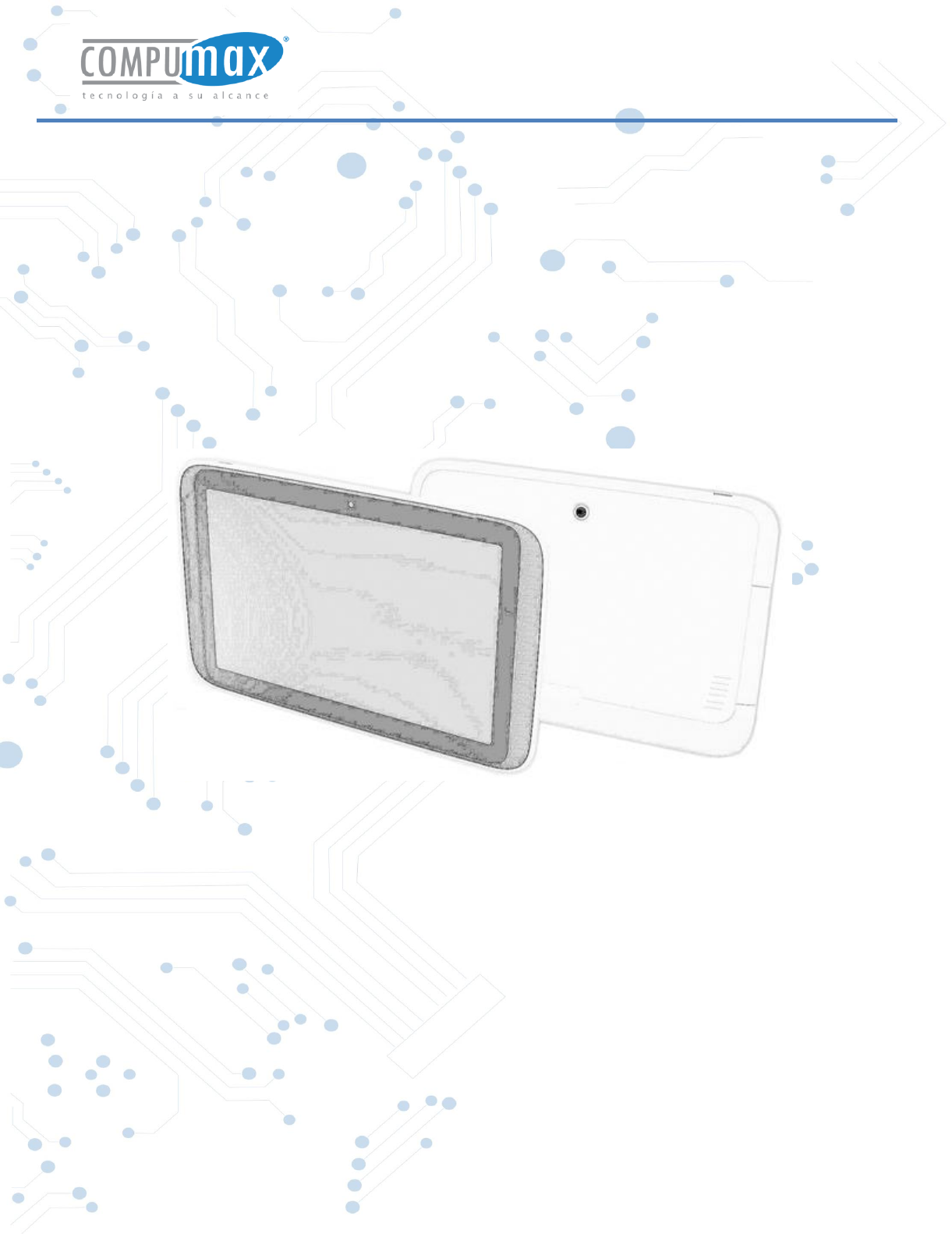

Tablet Part

NOTE: The product’s color, I/O port, indicator location,

and specification will depend upon the actually

shipping product.

Tablet Blue TW10Pro Series

Bogotá Colombia

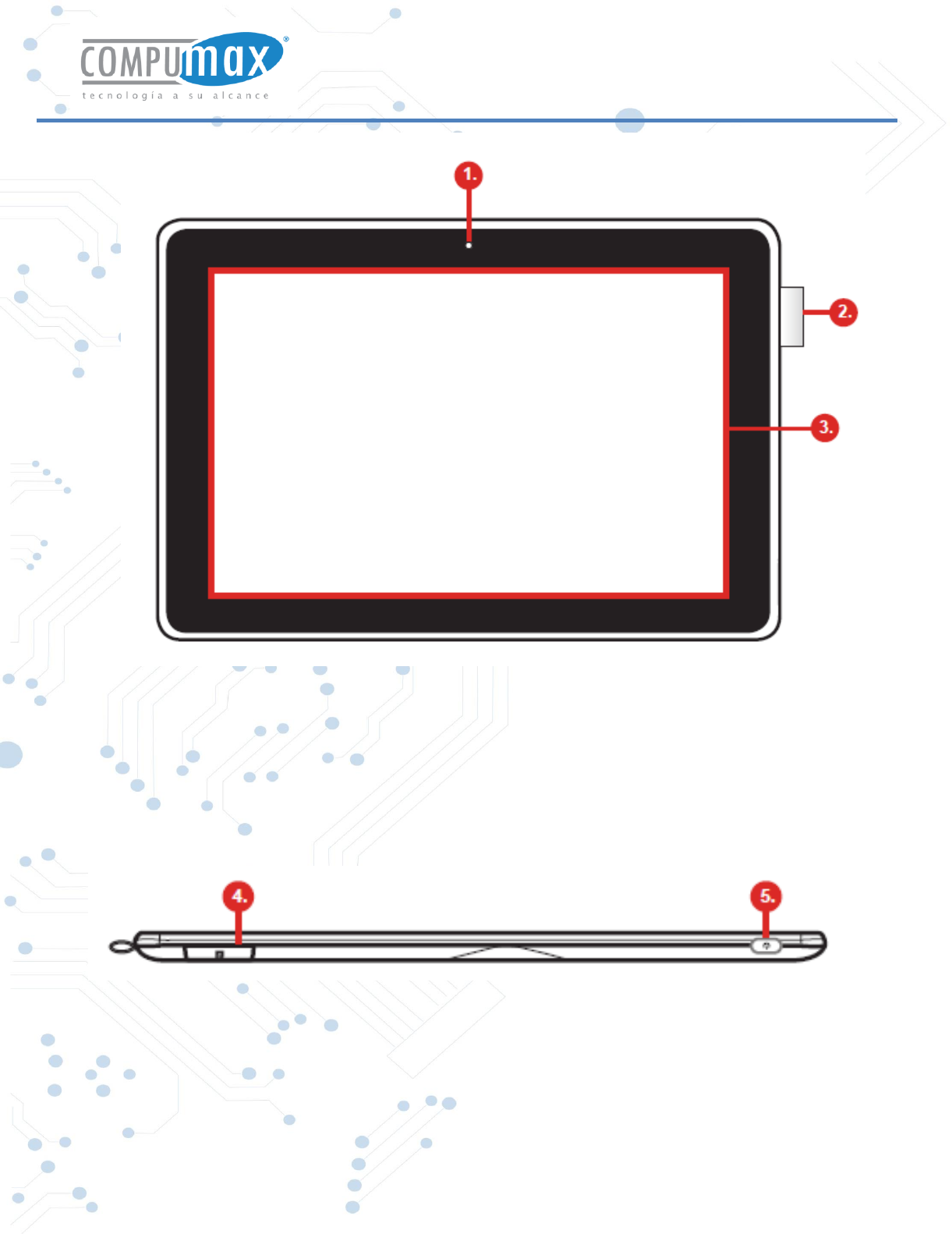

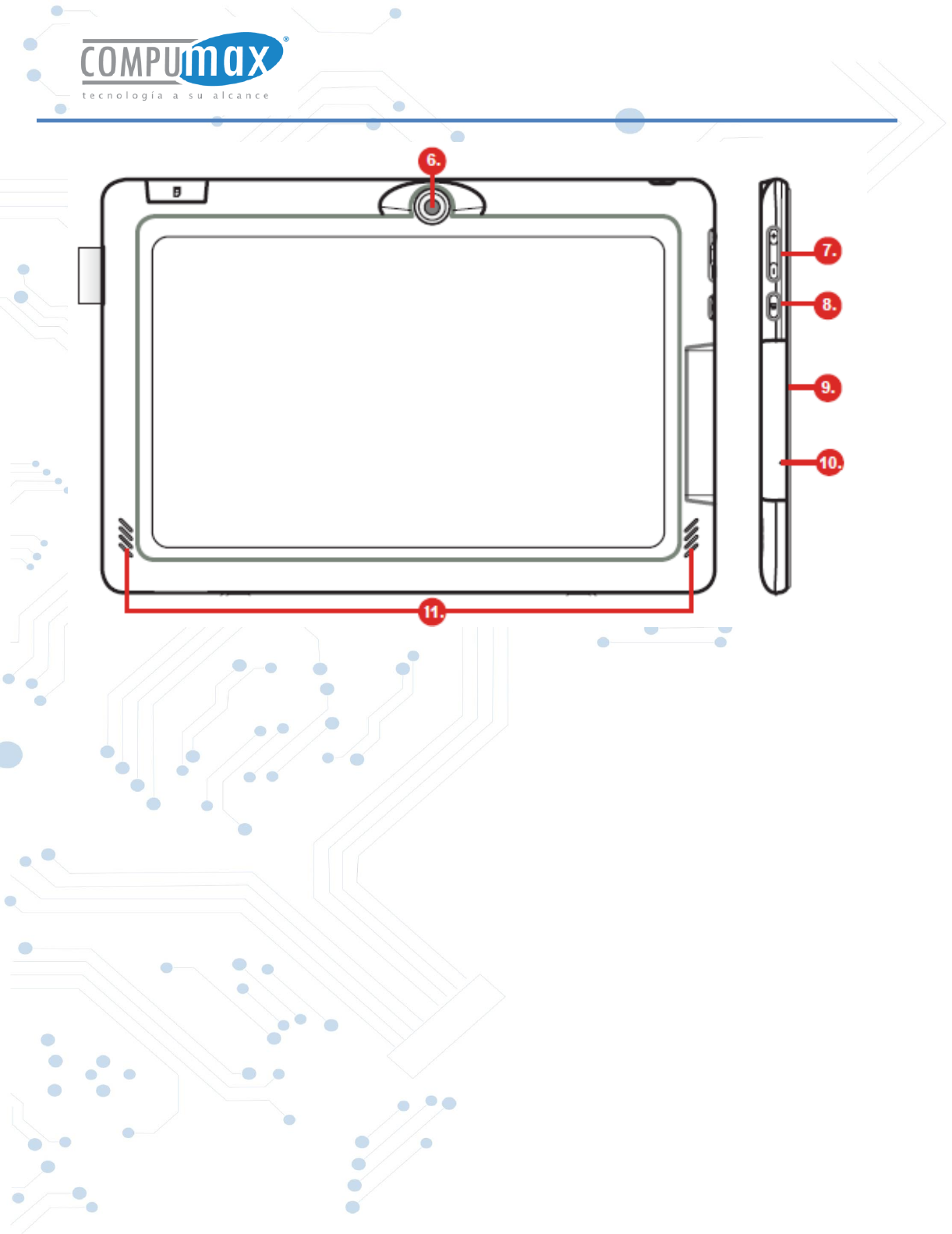

1- Front Camera (1.9 Mpx)

A device that allows you to record video or take photographs with your

Tablet.

2- Pen Cap

To hang the Stylus pen.

3- LCD Screen

Displays of your tablet.

4- Power Button

Press this button to turn the computer's power on or off.

Tablet Blue TW10Pro Series

Bogotá Colombia

5- Back Camera.

A device that allows you to record video or take photographs with

your computer.

6- Volume Button.

Press the - volume button to decrease volume or the + to increase

volume.

7- Windows Button

Press once to open the Start menu.

8- I/O Door

The door covers the I/O ports inside.

9- Microphone

Built-in microphone.

10- Stereo speakers

Produce stereo sound.

Tablet Blue TW10Pro Series

Bogotá Colombia

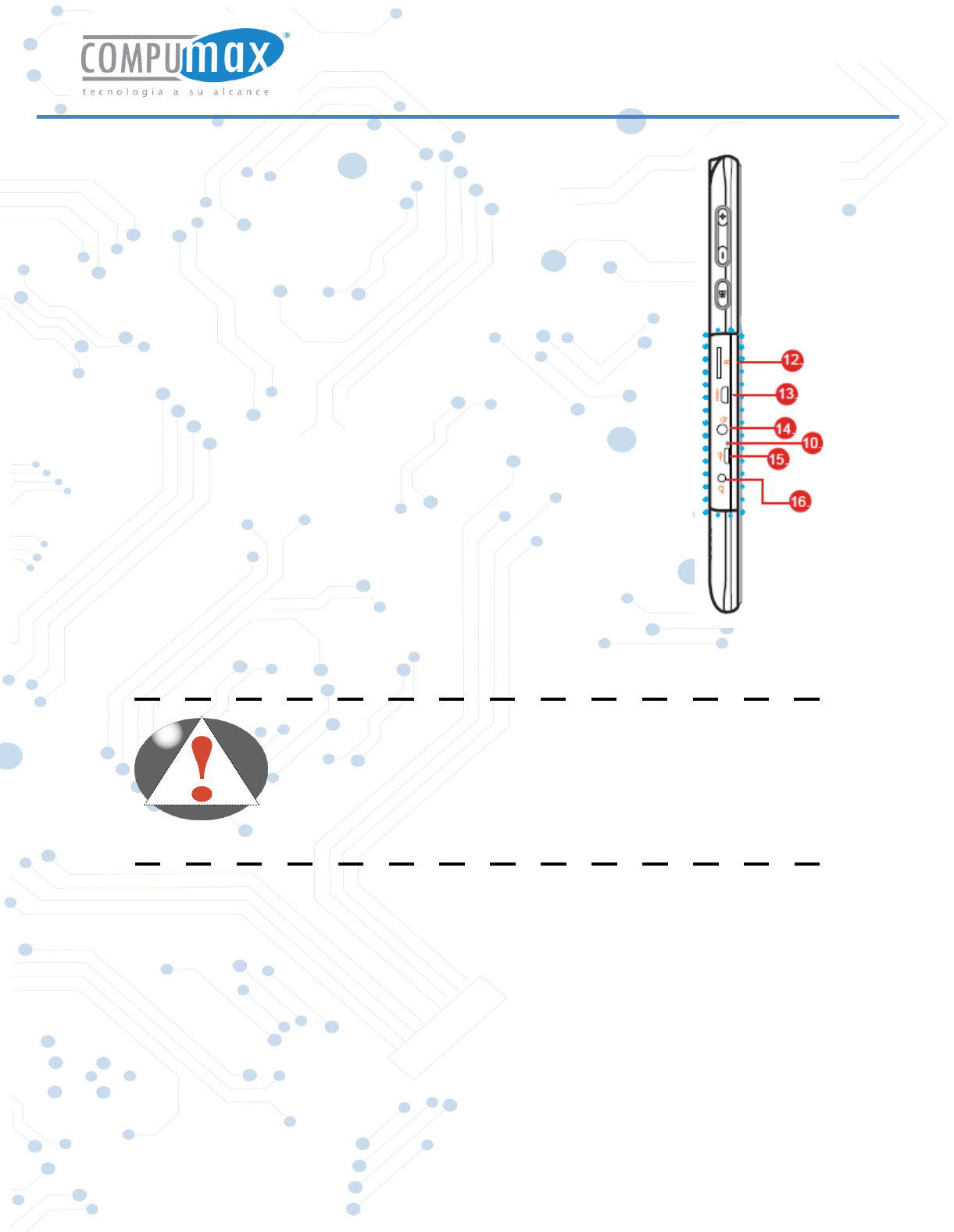

11- Micro SD Card

Insert a microSD card into this slot.

12- Micro HDMI

Supports high-definition digital video connections.

13- Audio jack

Connects to audio devices.

14- Micro USB 3.0(type B)

Connects to USB devices. A Micro USB to USB

adapter is needed to connect to USB devices.

15- DC in jack

Connects the AC adapter into this connector.

CAUTION: Do not put the Tablet on your LAP or

other Parts of the body to avoid injury from the heat.

The embedded battery can neither be taken

down nor be replaced.

Tablet Blue TW10Pro Series

Bogotá Colombia

Getting started

Tablet Blue TW10Pro Series

Bogotá Colombia

Preparing your CMPC

Note that the DC in adapter included in the package is approved

for your CMPC; using other adapter may damage either the

CMPC or other devices attached to it.

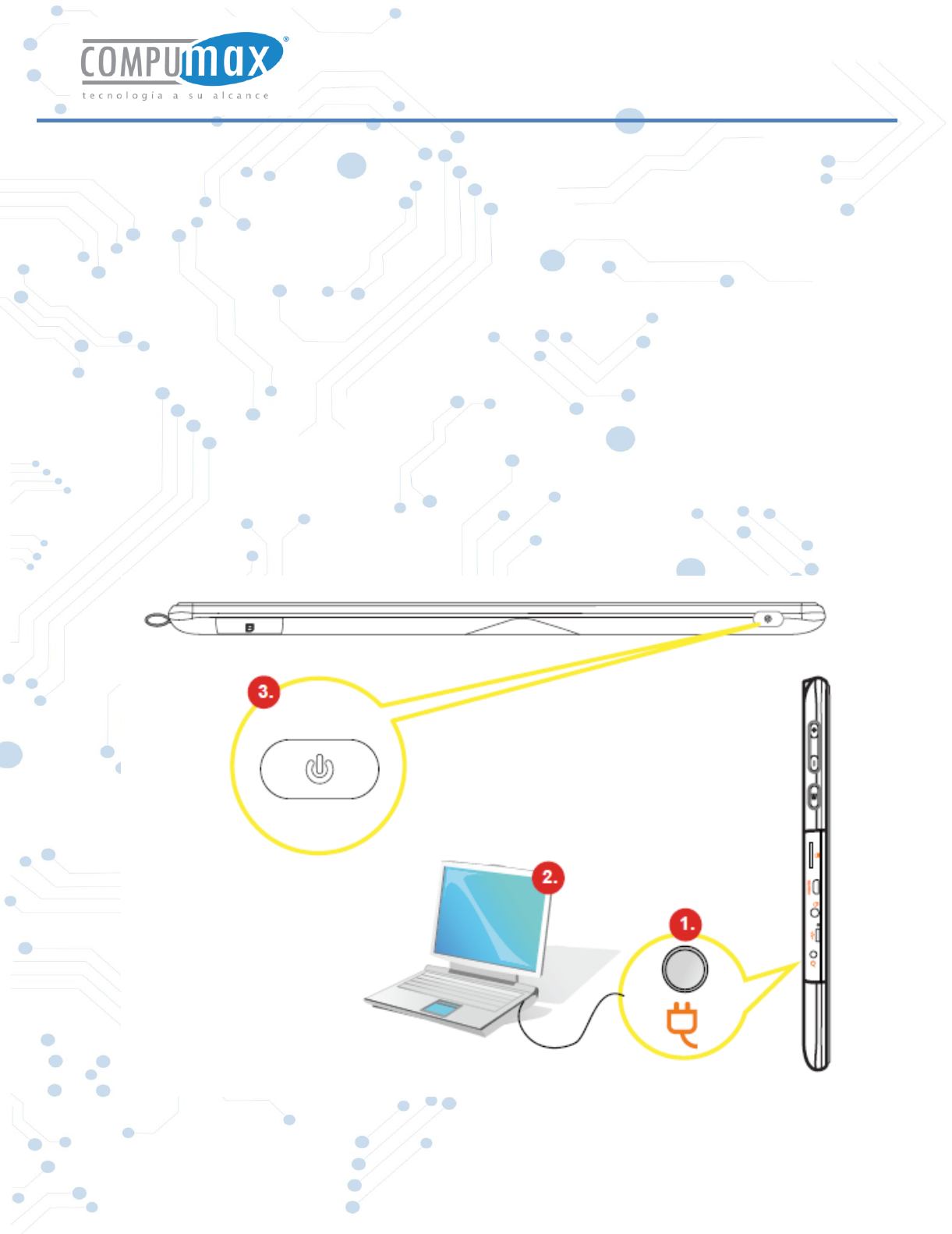

1. Plug the DC in adapter into the DC in port of your Blue

TW10pro.

2. Start charging the battery.

(For first-time use, you need to turn your Blue TW10pro off and

charge it for 6 hours. After that you can recharge the battery as

needed.)

3. Power on: Press the power button to turn on your Blue

TW10pro.

Tablet Blue TW10Pro Series

Bogotá Colombia

When power on mode:

 Sleep mode: Briefly press the power button to turn off the

display and switch to Sleep mode.

 Waking up from Sleep mode: To wake up the Blue TW10pro from

sleep mode, press the power button again. You’ll need to unlock

the screen.

 Power off: Long press the power button and hold it until a menu

appears on the screen.

CAUTION: Do not use inferior extension cords as this may

result in damage to your Blue TW10pro. If the Blue

TW10pro comes with its own AC adapter, do not use a

different adapter to power the tablet and other electrical

devices.

How to insert/remove the Micro SD card

Inserting the micro SD card:

1. Insert the Micro SD card into the Micro SD card slot, pushing

gently until it clicks into place.

2. Wait for Blue TW10pro to recognize the Micro SD card.

Removing the Micro SD card:

1. Push the Micro SD card in to eject it from its slot.

2. Slide the Micro SD card out from its slot.

CAUTION: To prevent damage to information stored on

the memory card, unmount the card before removing it

from the device.

Tablet Blue TW10Pro Series

Bogotá Colombia

Cleaning the screen

Follow these rules for cleaning the outside and handling your

screen on the computer:

1- Turn off the system and disconnect all cables.

2- Use a damp, or cleaning cloth, soft, lint-free cloth with gentle

water only and gently wipe the screen surface.

3- Do not spray liquid directly on the screen.

ENERGY SAVER MODES

This section contains information about computer power system, including

the AC Adapter, the battery system, recharging the battery, and tips for

conserving battery power.

The feed system consists of two parts, the AC Adapter and the battery

system. The AC Adapter converts AC power from a wall outlet to the DC

power required by the computer.

Currently, virtually all Tablets incorporate a power-saving mode. To achieve

the reduction of energy consumption in tablets, we have established two

Tablet Blue TW10Pro Series

Bogotá Colombia

operation modes, Sleep and Standby, which must be incorporated as

required practices in public offices. Then these concepts defined.

Standby Mode Standby.

The system automatically enters this mode after a period of inactivity, which

is set in the dialog box Power System. In standby mode, hardware devices,

such as display panel and hard disk, are turned off to conserve power.

Inactivity.

Defined as the time period in which the computer or monitor receives no

input signal activation. In the computer these signals are given by peripheral

input device, for example, keyboard, mouse movements, etc.)

Hibernate Suspend.

In this mode, all system data are saved on the hard disk before powering

down. When this mode is activated, all system state and contents are saved

to the hard drive after a period of inactivity defined by the user.

No power or very little power is drawn from the battery module in this mode.

However, depending on the amount of RAM that has been installed on your

Tablet, the amount of time the system requires to restore all its previous

contents can range from five to 20 seconds.

Power button action.

The Tablet power button can be set to turn off the system or activate the

suspend mode under an environment of operating systems.

Sleep mode (sleep).

Defined as the state of derating used by the computer or monitor after

entering or moving to a period of inactivity (To monitor these signals are

given by the computer). In practice, the computer keeps on consuming less

energy and with the monitor in black. This mode is deactivated when it

receives a signal from the mouse or keyboard.

Standby mode (off).

Defined as a state of "off" on tablets energy consumption (passive power)

as still connected to the mains. In practice the tablet is off, but consumes

very little power. It has two modes, one in which all programs are closed

and relight the tablets returns zero and the hibernation state in which is

stored on the hard disk the current state of Windows, that is, when you turn

on the tablet again It lights up with programs and windows that were active.

Tablet Blue TW10Pro Series

Bogotá Colombia

To activate these energy saving modes follow the instructions presented

below. If you cannot do this, ask your network administrator computer that

you configure this mode. Remember that there are several combinations

for configuration and energy saving, select the one best suits you.

The Power System Battery.

Before using the computer on battery 1st time, check the status icon battery

in the Toolbar Windows or Linux to make sure the battery is fully charged.

See Battery Status later in this section for a description and explanation of

the Windows Battery icon. Charging the battery takes about 2.5 hours when

the system is off. If possible, always charge the battery completely.

NOTE:

If you use the battery so frequently that it exceeds more than 20

times with download / upload completely in one month, we

recommend performing the process "Battery Calibration" every 3

months to maintain battery life.

In general, using the battery until the battery-warning indicator appears and

fully recharges the battery each time (cycle discharge / charge) ensure the

exact status report cell or battery.

Automatic battery charging.

To charge the battery when it is in the tablets, plug the AC adapter into the

computer and an electrical outlet. The charging time is approximately 3-4

hours when the Tablet is turned off and approximately 6 to 7 hours is on.

When the battery is fully charged, the charge indicator turns off the battery.

NOTE:

If the system works with high load or high ambient

temperature, the battery cannot charge fully. It is

necessary to continue to charge it with the AC adapter

plugged in until the charging LED turns off.

productos mencionados pueden ser marcas registradas de sus respectivas empresas. La información aquí contenida está sujeta a cambios sin previo aviso y se proporciona "tal cual"

sin garantía de ningún tipo. Las garantías para los productos de Compumax Computer S.A.S. se establecen en las declaraciones de garantía limitada expresa que acompaña a dichos

productos. Nada en este documento debe interpretarse como que constituyen una garantía adicional. Compumax Computer S.A.S no será responsable por errores técnicos o editoriales

u omisiones en el presente documento.

FCC Caution:

This device complies with part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device

must accept any interference received, including interference that may cause undesired

operation.

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment .

This transmitter must not be co-located or operating in conjunction with any other

antenna or transmitter.

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

—Consult the dealer or an experienced radio/TV technician for help.

Compumax Computer TW10PRO COMPUMAX TW10PRO User Manual

Compumax Computer S.A.S COMPUMAX TW10PRO Users Manual

Contents

Users Manual

Navigation menu

Namespaces

Views

Navigation
