Users Manual
created by: Impala Services Ltd.Page size: 139.7 x 107.95 mm
B071Y6Y83W
Wi-Fi 11N USB Adapter, Black, 300 Mbps
Adaptateur USB Wifi 11 N, Noir, 300 Mbps
Wi-Fi 11N USB-Adapter, Schwarz, 300 Mbps
Adattattore USB Wi-Fi 11N, Nero, 300 Mbps
Adaptador USB Wi-Fi 11N, Negro, 300 Mbps
Wi-fi 11N USB アダプター、黒、300メ ガ バ イト
11无线 USB 适配器，黑色，300 Mbps
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 1 17/10/2017 2:13 PM
3
Wi-Fi 11N USB Adapter, Black,
300Mbps

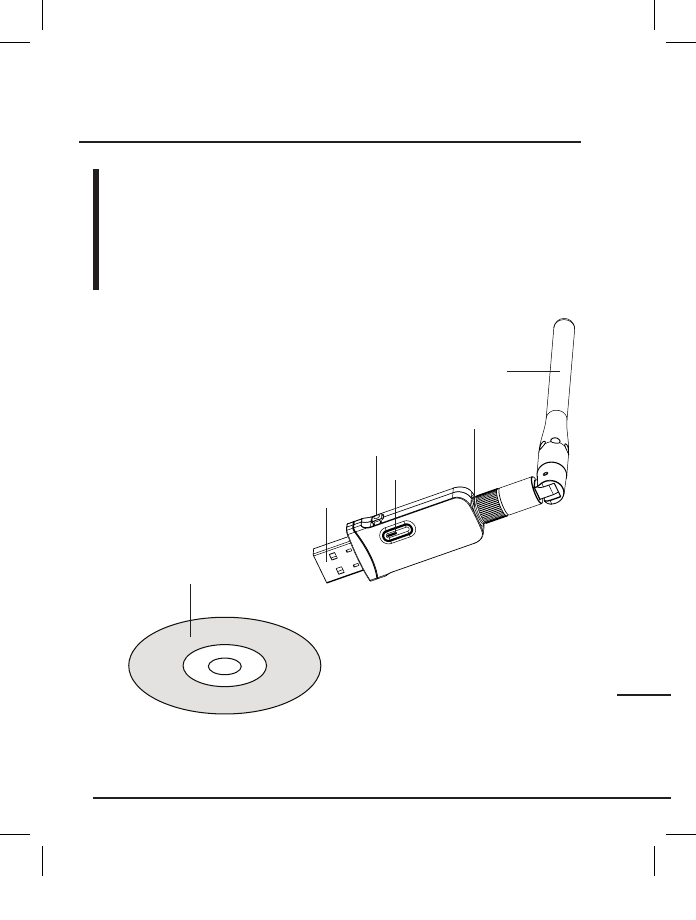

Contents:
Before getting started, ensure the package contains the following components:
Welcome Guide • English
1USB plug
2WPS button
3LED indicator
4Antenna connection
5Antenna
6Software CD
1
2
3
4
5
6
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 3 17/10/2017 2:13 PM
RF exposure requirements, use accessories that maintain a 0.5 cm separation distance between
components, to maintain a separation of 5 mm between this device and your body. RF exposure
use when properly worn on the body is 0.249 W/kg. This device was tested for typical body-worn
lors de la certification du produit lorsqu’il est correctement porté sur la tête est de 0.495/ kg.
properly worn on head is 0.495/kg.
For this device, the highest reported SAR value for usage for usage near the body is 0.495 W/kg.
54
USA: Federal Communications
Commission (FCC) Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
FCC Note:
While there may be differences between the SAR levels of various phones and at various positions,
they all meet the government requirements. SAR compliance for body-worn operation is based on
a separation distance of 5 mm between the unit and the human body. Carry this device at least
5 mm away from your body to ensure RF exposure level compliant or lower to the reported level.
To support body-worn operation, choose the belt clips or holsters, which do not contain metallic
compliance with any body-worn accessory, which contains metal, was not tested and certified,
and use such body-worn accessory should be avoided.
IC NOTICE TO CANADIAN USERS
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject
to the following two conditions: (1) This device may not cause interference, and (2) This device
must accept any interference, including interference that may cause undesired operation of the
device. This device complies
with RSS-247 of Industry Canada. Operation is subject to the condition that this device does not
cause harmful interference. This Class B digital apparatus complies with Canadian ICES-003 (Cet
appareil numérique de la Classe B conforme à la norme NMB-003 du Canada).
The SAR limit of CANADA (IC) is 1.6 W/kg averaged over one gram of tissue. Device types
AmazonBasics Wi-Fi Adapter (IC:10828A-B071Y6Y83W) has also been tested against this SAR
limit. The highest SAR value reported under this standard during product certification when
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio
exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil
ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
La limite SAR du CANADA (IC) est de 1,6 W / kg en moyenne sur un gramme de tissu. Types de
périphériques L’adaptateur Wi-Fi de AmazonBasics (IC: 10828A-B071Y6Y83W) a également été
testé en fonction de cette limite SAR. La valeur SAR la plus élevée rapportée selon cette norme
Max RF power level: Wifi (2412-2472MHz):12.8dBm
The SAR limit of Europe is 2.0 W/kg. Device types Wi-Fi Adapter has also been tested against
this SAR limit. The highest SAR value reported under this standard during product certification for
operations with the back of the handset kept 5 mm from the body. To maintain compliance with
the user’s body and the back of the handset. The use of belt clips, holsters and similar accessories
should not contain metallic components in its assembly. The use of accessories that do not satisfy
these requirements may not comply with RF exposure requirements, and should be avoided.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 4-5 17/10/2017 2:13 PM
76
Low Voltage Directive (2014/35/EU)
• EN 60950-1:2006/A11:2009/A1:2010/A12:2011/ A2:2013
The Radio Equipment Directive (2014/53/EU):
• ETSI EN 300 328 V2.1.1(2016-11)
• ETSI EN 301 489-1 V2.2.0(2017-03)/ETSI EN 301 489-17 V3.2.0(2017-03)SI EN301 908-13
V11.1.1(2016-07)
Hereby, Compupal (Group) Corporation declares that the radio equipment type (AmazonBasics
Wi-Fi Adapter, B071Y6Y83W, WA02) is in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address:
www.amazon.com
Disposal
Electronic adapters are recyclable waste and must not be disposed of in the household
waste. Dispose of this equipment using a designated collection point for the recycling of
lectrical and electronic equipment.
Safety
• Read this instruction manual carefully before using the adapter. It contains important information
for your safety as well as operating and maintenance advice.
• Keep this instruction manual for future use. Should this adapter be passed on to a third party,
then this instruction manual must be included.
• No liability will be accepted for damage resulting from improper use or non-compliance with
these instructions.
• This adapter contains no user serviceable parts and requires little maintenance. Leave any
servicing or repairs to qualified personnel only.
• The appliance is not suitable for commercial use. This appliance is only suitable for household
use.
• This appliance is intended for indoor use only.
• Keep this adapter and its accessories away from small children. This adapter is not a toy and
may be hazardous to small children. A choking hazard may exist for small, detachable parts.
Introduction
Thank you for purchasing the Wi-Fi 11N USB Adapter, Black, 300 Mbps. This wireless adapter is
easy to use and easy to setup. If you are tired of dealing with all those messy wires to connect a
laptop or PC to office or home network this wireless adapter is an ideal access solution for wireless
Internet connection.

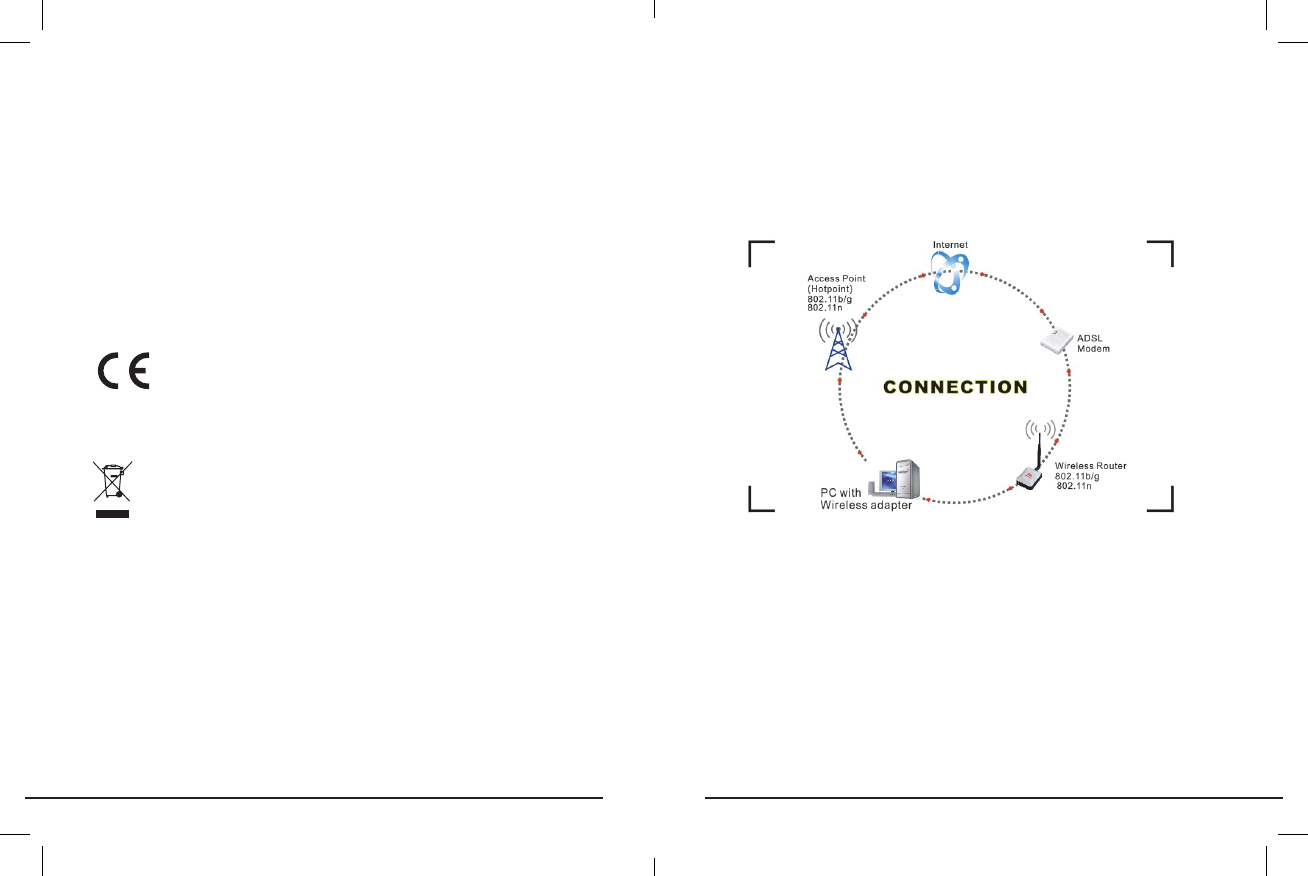

A typical internet access application for the USB wireless adapter is shown on the following figure:
There are two different ways to access Internet:
• With a wireless adapter, receiving and transferring signal via a wireless router/AP, then passed
to an ADSL modem, then to local ISP (Internet service provider) through a pair of telephone
lines, or connected by fiber cable.
• With a wireless adapter, receiving and transferring signal via local router/AP (Access Point) or so
called Hotpoint directly.
Tip: An 802.11 WLAN is based on a cellular architecture where the system is subdivided into cells,
where each cell (called Basic Service Set or BSS) is controlled by a Base Station (called Access
Point, or in short AP).
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 6-7 17/10/2017 2:13 PM
98

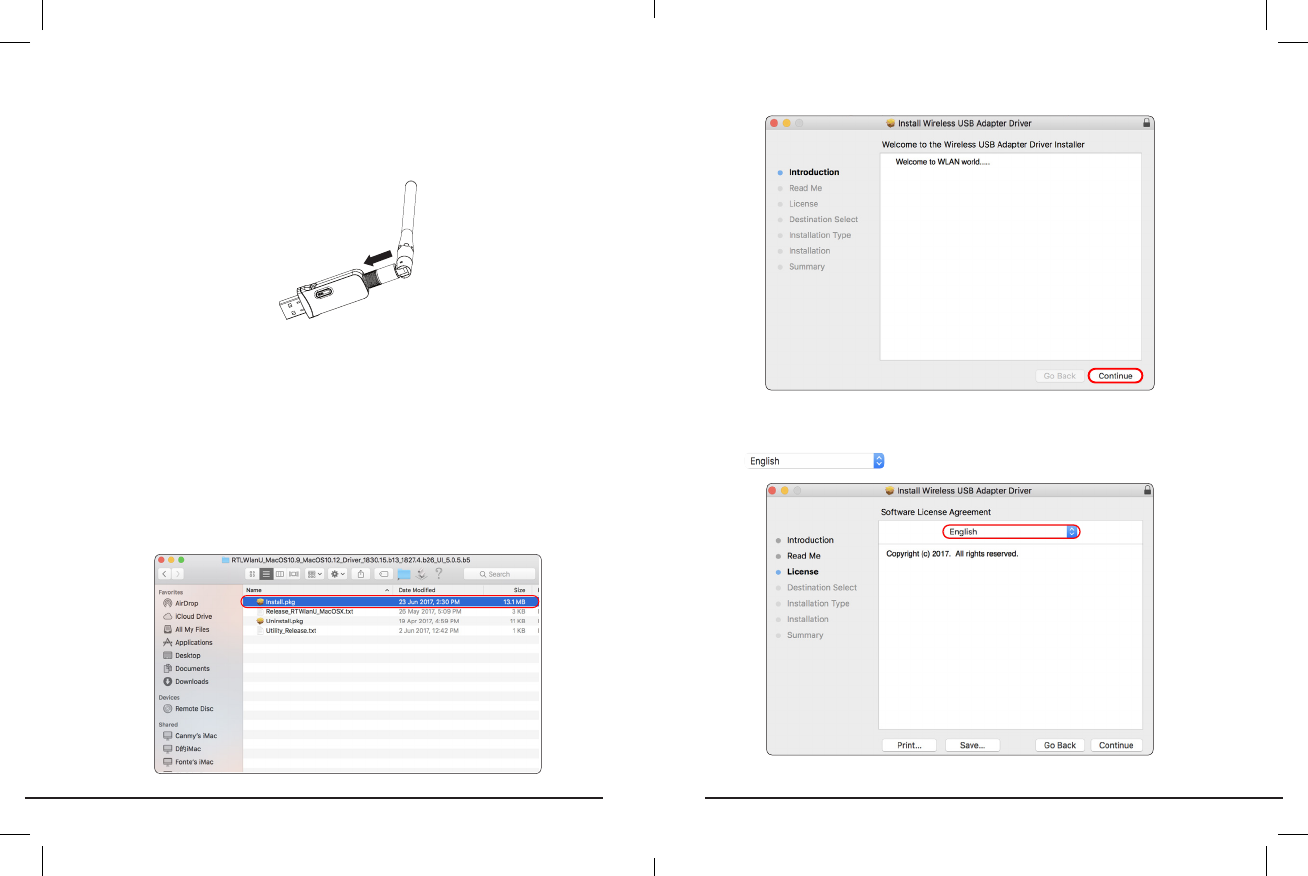

Installing Driver And Utility On MacOS
Connecting the Antenna
Mount the antenna to the USB adapter by screwing it on the antenna connection.
Installing Software Utility
Note 1: The installation was carried out on a machine running MacOS Sierra 10.12.6.
Note 2: If you have installed the WLAN Adapter driver & utility before, please uninstall the previous
version first.
A Insert the software CD to the CD-ROM Drive.
B Plug in the adapter into the USB 2.0 port.
C Open the “Install.pkg” file.
D Click "Continue" and follow the on-screen instructions.
E In the License section, select the desired language from the drop down menu
. Click “Continue”.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 8-9 17/10/2017 2:13 PM
1110

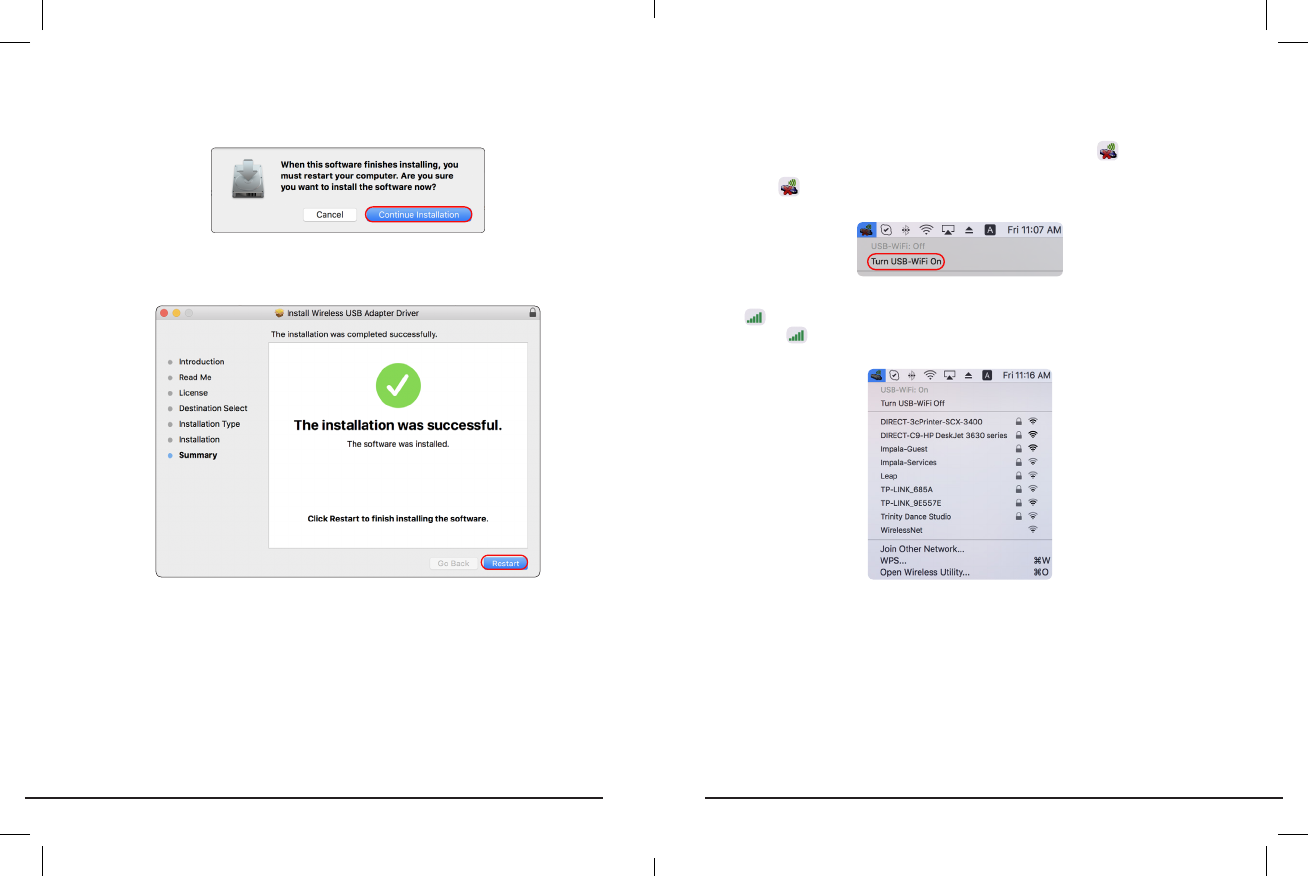

F After the installation is complete, the computer needs to restart. Click “Continue
installation”.
G After the installation is complete, click “Restart”.
Network Connection

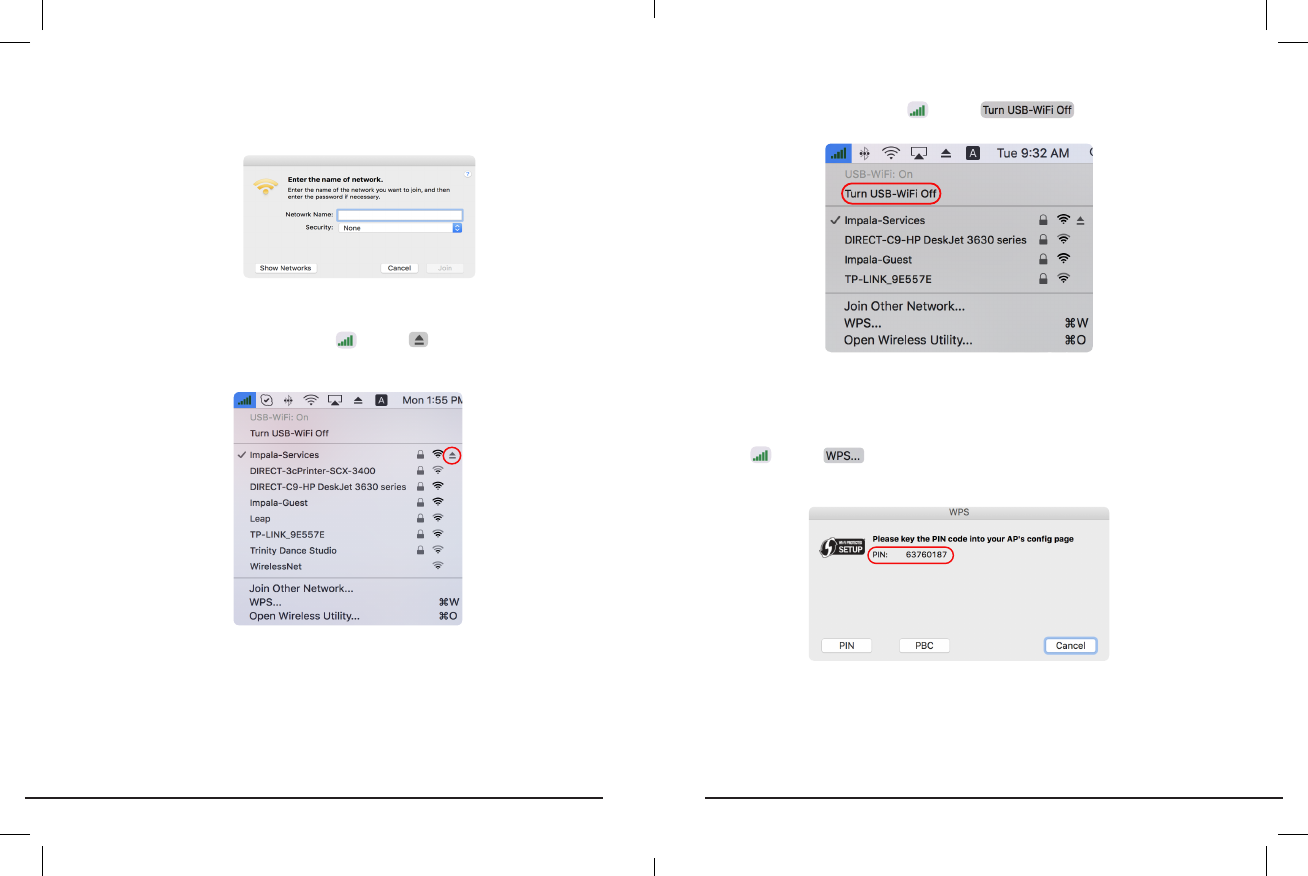

Connecting to the Network
• After the installation is completed, a Wireless Configuration Utility icon appears on the
taskbar.
• Right click icon and click “Turn USB-WiFi On”.
• The icon appears on the taskbar.
• Click on the icon and choose the Wi-Fi network you want to connect to.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 10-11 17/10/2017 2:13 PM
1312
Joining Other Network
• If the desired Wi-Fi network is not on the list, click “Join Other Network”. Enter the name of the
network and choose security type. Click “Join”.
Disconnecting From The Network
• To disconnect from the Wi-Fi network, click and then next to the Wi-Fi network you
want to disconnect from.
Turning the Wi-Fi Off
• To turn off the Wi-Fi reception, click and then .
WPS (Wi-Fi Protected Setup)
• Click and then .
• PIN number appears in the PIN section.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 12-13 17/10/2017 2:13 PM
1514
PIN Method
• PIN method is a connection method, where PIN code must be entered at the network’s access
point.
• Click to scan active WPS AP with the PIN method.
• Enter the PIN code at the network’s access point.

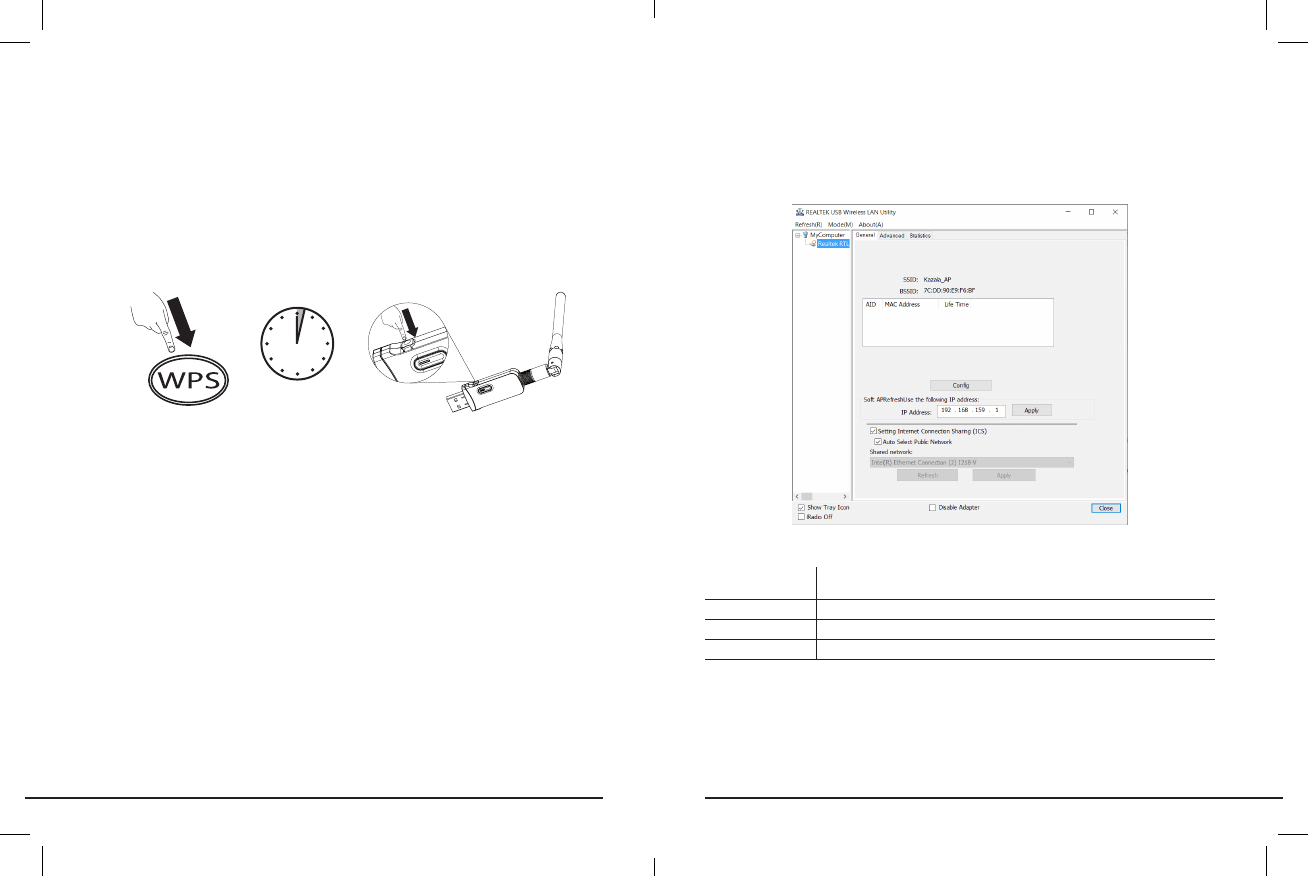

Push Button Configuration (PBC)
• PBC is a connection method, in which the user has to push a button on both the access point
and the new wireless client device. It works only for wireless networks that have WPA Personal
or WPA2 Personal security.
• Click to scan active WPS AP with the push button method.
• Push a button on your home router.
• Within 2 minutes push the button on the side of your Wi-Fi adapter.
<2 min.
1. 2.
Wireless Utility
Opening Wireless Utility
• Click and then .
Changing The Password / Security Protocol
• Click on the Wi-Fi network from the list.
• Click on next to the “Security” settings to choose the appropriate security protocol.
• Type in the new password in the “Password” section.
• Click to save the changes and connect to the Wi-Fi network.
Removing The Wi-Fi Network
• Click on the Wi-Fi network from the list.
• Click and then click on the Wi-Fi network.
• Click and then .
Wireless Utility Information
• Click and then .
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 14-15 17/10/2017 2:13 PM
1716
Installing Driver And Utility On Windows

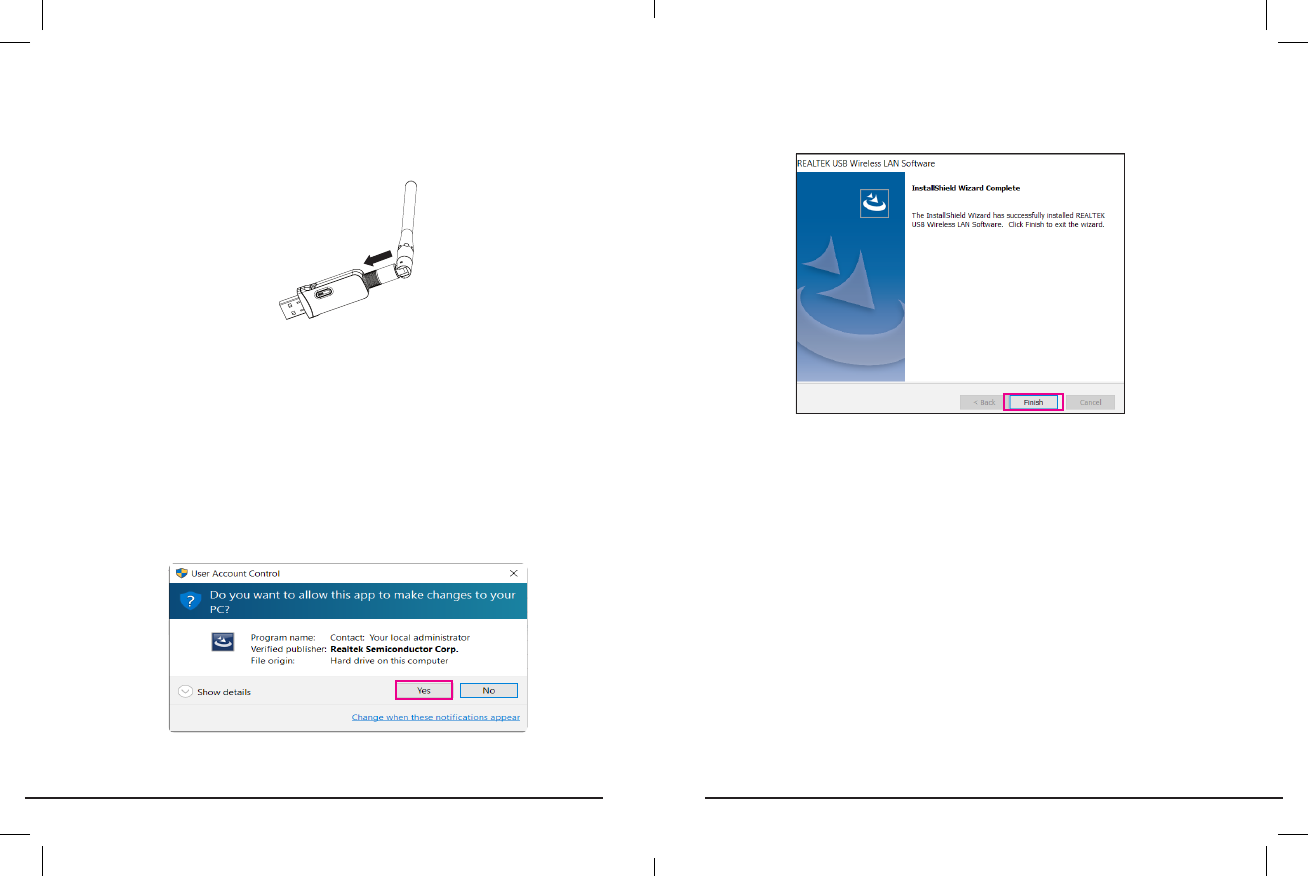

Connecting The Antenna
Mount the antenna to the USB adapter by screwing it on the antenna connection.
Installing Software Utility
A The following installation was done under Windows 10 x 64 operating system.
NOTICE: If the desired network is not on the list, click “Refresh”.
B Plug in the adapter into the USB 2.0 port.
C Open the “Setup.exe” file.
D The User Account Control window pops up, click "Yes".
D2
REALTEK USB Wireless LAN Software window shows the installation is complete. Click
on “Finish”.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 16-17 17/10/2017 2:13 PM
1918

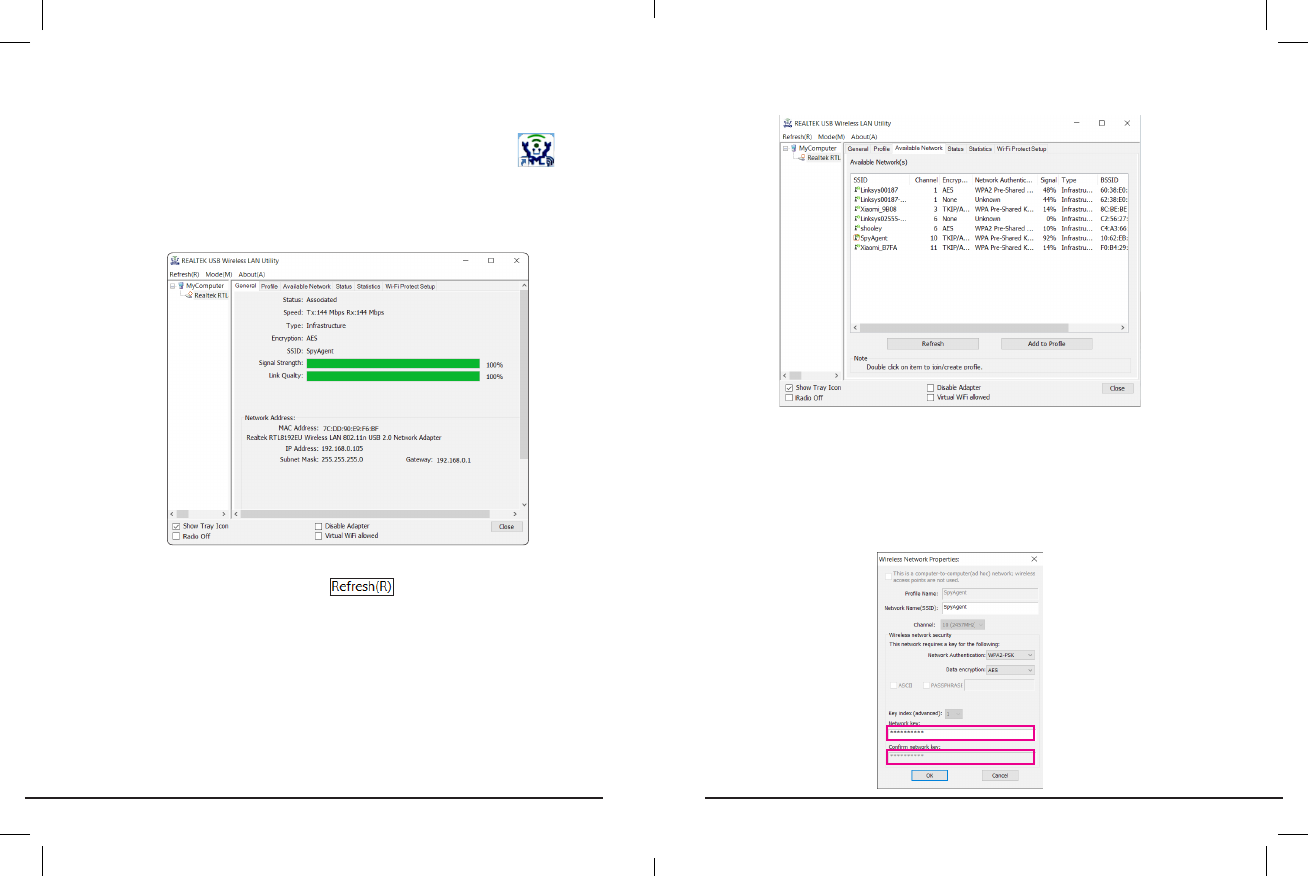

Network Connection
Connecting To The Network
• After the installation is completed, a REALTEK USB Wireless LAN Utility icon appears
on the desktop.
• Plug in the adapter into the USB 2.0 port.
• After plugging in, the blue LED indicator on the adapter flashes.
• Double click on the REALTEK USB Wireless LAN Utility icon.
NOTICE: If the connection is not stable, click at the top of the Wireless Utility
Window.

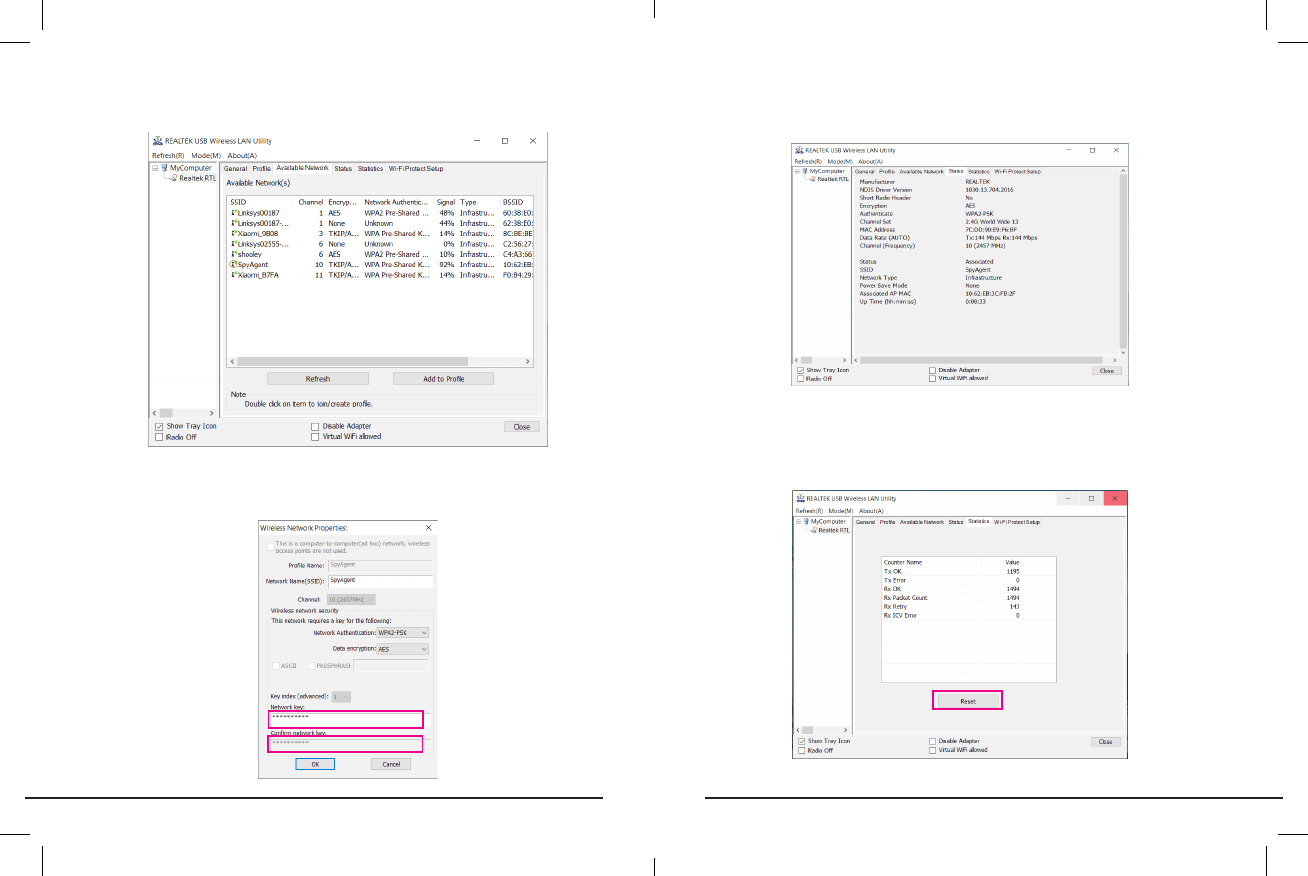

• Click on “Available Network”. The list of currently available networks is shown in the window.
NOTICE: If the desired network is not on the list, click “Refresh”.
• Double click on the desired network.
• Type in the network password in the “Network Key” and “Confirm network key” tabs and
click “OK”.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 18-19 17/10/2017 2:13 PM
2120

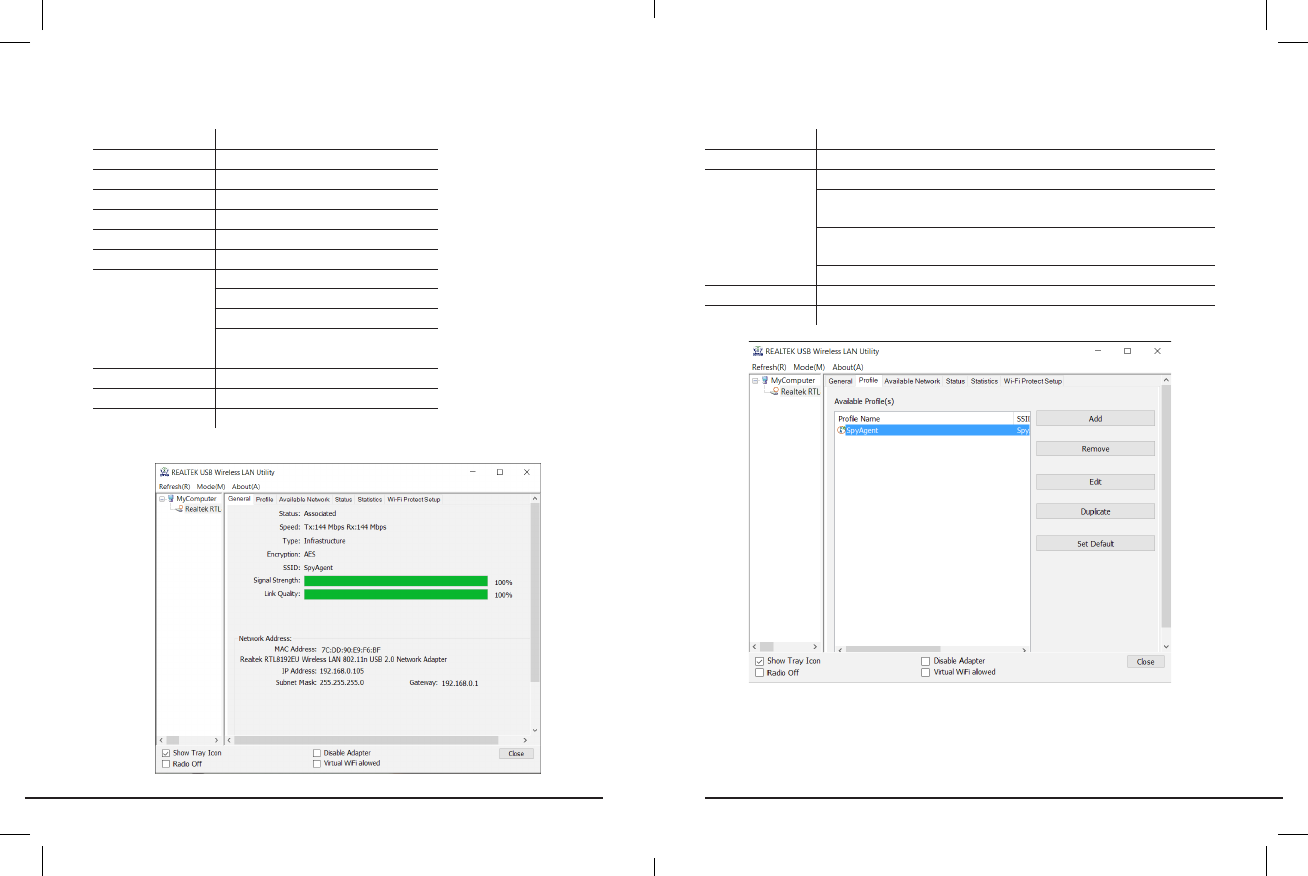

General
In the “General” section, you can find the following information:
• Status Status of the network connection
• Speed The speed of the network connection
• Type Type of the network connection
• Encryption Type of the network encryption
• SSID Name of the network connection
• Signal strength Strength of the network connection signal
• Quality Quality of the link
• Network Address
• MAC Address
• IP Address
• Subnet Mask
• Gateway
• Show Tray Icon Show the icon in the system tray
• Disable adapter Disable or enable the adapter.
• Radio OFF Turn off or turn on adapter’s radio.
• Virtual Wi-Fi allowed Allows virtual Wi-Fi
Profile
After connecting to the network, it will be added to the Profile section. In this section you can:
• Add Add a network to the profile list
• Remove Remove the network from the profile list
• Edit
Edit the network connection profile. Here you can:
• Network authentication - click on the X icon and choose the appropriate
authentication type
• Data encryption - click on the X icon and choose the appropriate data
encryption type
• Network key - type in the network connection password
• Duplicate Duplicate a network connection profile
• Set default Set the network connection profile as default
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 20-21 17/10/2017 2:13 PM
2322
Available Network
This section allows you to see/connect to the available networks.
• Double click on the particular network to enter the Wireless Network Properties window.
Status
This section allows you to see the network connection status detailed information
Statistics
This section presents the network connection statistics. To reset the statistics press X
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 22-23 17/10/2017 2:13 PM
2524
Wi-Fi Protected Setup
Wi-Fi Protected Setup (WPS) section allows to connect to the Wi-Fi network’s access point by:
• Pin Input Config (PIN) Connection method, where a PIN code must be
entered at the network's access point.
• Push Button Config (PBC) Connection method, in which the user has to push
a button on both the access point and the wireless
client device. It works only for wireless networks
that have WPA Personal or WPA2 Personal
Security.
<2 min.
1. 2.
Software AP Connection
General Tab
The Wi-Fi adapter can also be used as a software AP. Click “Mode(M)” and then “Access Point”. It
can take up to few minutes to switch from the “Station” to the “Access Point” mode.
• SSID The SSID (up to 32 characters) is the unique name to identify an AP.
The default SSID of the AP is Full Computer Name plus “AP“.
• BSSID MAC address of the adapter.
• Association table A list of all the wireless adapters connected to the software AP.
• Config Configuration of the software AP.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 24-25 17/10/2017 2:13 PM
2726
Advanced Tab
• Beacon interval Beacon Interval specifies the interval between beacon packets
(milliseconds). The range for the beacon period is between 20-1000
milliseconds with a typical value of 100.
• DTIM period Determines the interval at which the Access Point will send its broadcast
traffic. Default value is 3 beacons.
• Preamble mode
The preamble defines the length of the CRC block for communication
among the wireless stations. There are two mode including Long and Short.
High network traffic areas should use the shorter preamble type.
• Set defaults Set the settings to default.
• Apply Confirm the changes
AP Statistics Tab
This tab gives you information about the data transmission and receiving status. Click “Reset” to
restart the counting.
• Beacon interval Beacon Interval specifies the duration between beacon packets (milliseconds).
The range for the beacon period is between 20-1000 milliseconds with a
typical value of 100.
• DTIM period Determines the interval that the Access Point will send its broadcast traffic.
Default value is 3 beacons.
• Preamble mode
The preamble defines the length of the CRC block for communication among
the wireless stations. There are two mode including Long and Short. High
network traffic areas should use the shorter preamble type.
• Set defaults Set the settings to default.
• Apply Confirm the changes
Soft AP Statistics AP
Here you can find real time information about the data transmission and receiving status. Click
“Reset” to restart the counting.
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 26-27 17/10/2017 2:13 PM
2928
Internet Connection Sharing (Ics)
Internet Connection Sharing (ICS) is the use of the 3G cellular service, broadband network or other
Internet gateway as an access point for other devices.
If you want to connect to the internet through Soft_AP, select the network connection and press
the “Apply” button.
Your internet connection is then internally shared with the Soft_AP, other devices can be connected
to the (AP) access point and then get access to the internet.
Notice
Wi-Fi offers greater speed and range than Bluetooth®, but it drains your portable adapter batteries
faster than Bluetooth® does. To preserve battery life (i.e. while travelling), turn off your Wi-Fi
connection.
Security
Because wireless networks rely on radio signals to transmit data, they are not as secure as wire
networks are susceptible to viruses and breaches like eavesdropping and need to be protected in
order to be secure.
There are many security measures to safeguard wireless networks, protect the data, and keep
unauthorized users out.
Hotspots, on the other hand, are often free of standard security practices in an effort to make it
easy for anyone to connect. It may be found that some paid hotspots administered by service
providers offer have some level of security, however, when using a hotspot, it’s always a good idea
to be proactive and to employ security measures of your own.
Glossary
Wi-Fi: Short for “wireless fidelity”, a generic label that refers to wireless networks or networking.
Hotspot: A specific geographic location in which an access point provides public wireless
broadband network services to mobile visitors through a WLAN.
Throughput: The amount of data transmitted in a set amount of time.
Bandwidth: the amount of data that can be carried from one point to another in a given time
period (usually a second).
Specication
Main Chipset RTL8192
Interface USB 2.0
Protocol and standard 802.11b: CCK, QPSK, BPSK;
802.11g/n: OFDM
Frequency 2412 MHz — 2484 MHz ISM band
Antenna 2 output internal antenna
Security WFA, WPA, WPA2, WAPI
TX POWER 802.11b (CCK) 11 Mbps: 18+/-1 dBm
802.11g (OFDM) 54 Mbps: 14.5+/-1 dBm
802.11n (HT20@MCS7): 14.5+/-1 dBm; (HT40@MCS7): 14.5+/-1
dBm
RF Receiving sensitivity 802.11b: -86+/-1 dBm
802.11g: -73+/-1 dBm
802.11n (HT20), -70+/-1 dBm; 802.11n (HT40), -64+/-1 dBm
Voltage 5 V DC ± 5%; <300 mA @802.11g
Power
consumption
TX and RX status: 220 mA (max)
TX status: 220 mA (max)
RX status: 180 mA (max)
Physical Specification
Operating conditions -10 to +50 °C, 20 - 80 % RH
Storage conditions -20 to +85 °C, 20 - 90 % RH
Size 92.7 x 92 x 11 mm
Net weight 18.2 g
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 28-29 17/10/2017 2:13 PM
3130
Disclaimers
THESE MATERIALS AND INFORMATION ARE PROVIDED “AS IS” WITHOUT WARRANTY OF
ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NON-
INFRINGEMENT.
We uses reasonable efforts to include accurate and up-to-date information on this document;
it does not, however, make any representations as to its accuracy or completeness of the
information, text, graphics, links or other items contained within these materials. Your use of this
Document is at your own risk. Its suppliers, and other parties involved in creating and delivering
this Document’s contents shall not be liable for any special, indirect, incidental, or consequential
damages, including without limitation, lost revenues or lost profits.
Warranty Information
To obtain a copy of the warranty for this adapter:
Visit amazon.com/AmazonBasics/Warranty
— or —
Contact Customer Service at 1-866-216-1072
Feedback
Love it? Hate it?
Let us know with a customer review.
AmazonBasics is committed to delivering customer-driven adapters that live up to your high
standards. We encourage you to write a review sharing your experiences with the adapter.
Please visit: amazon.com/review/review-your-purchases#
For further services:
Visit amazon.com/gp/help/customer/contact-us
— or —
Contact Customer Service at 1-866-216-1072
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 30-31 17/10/2017 2:13 PM
MADE IN CHINA
amazon.com/AmazonBasics
B071Y6Y83W-Amazonbasics-Wi-Fi 11n 300 Mbps USB Adapter-Detailed-V03.indb 33 17/10/2017 2:13 PM
