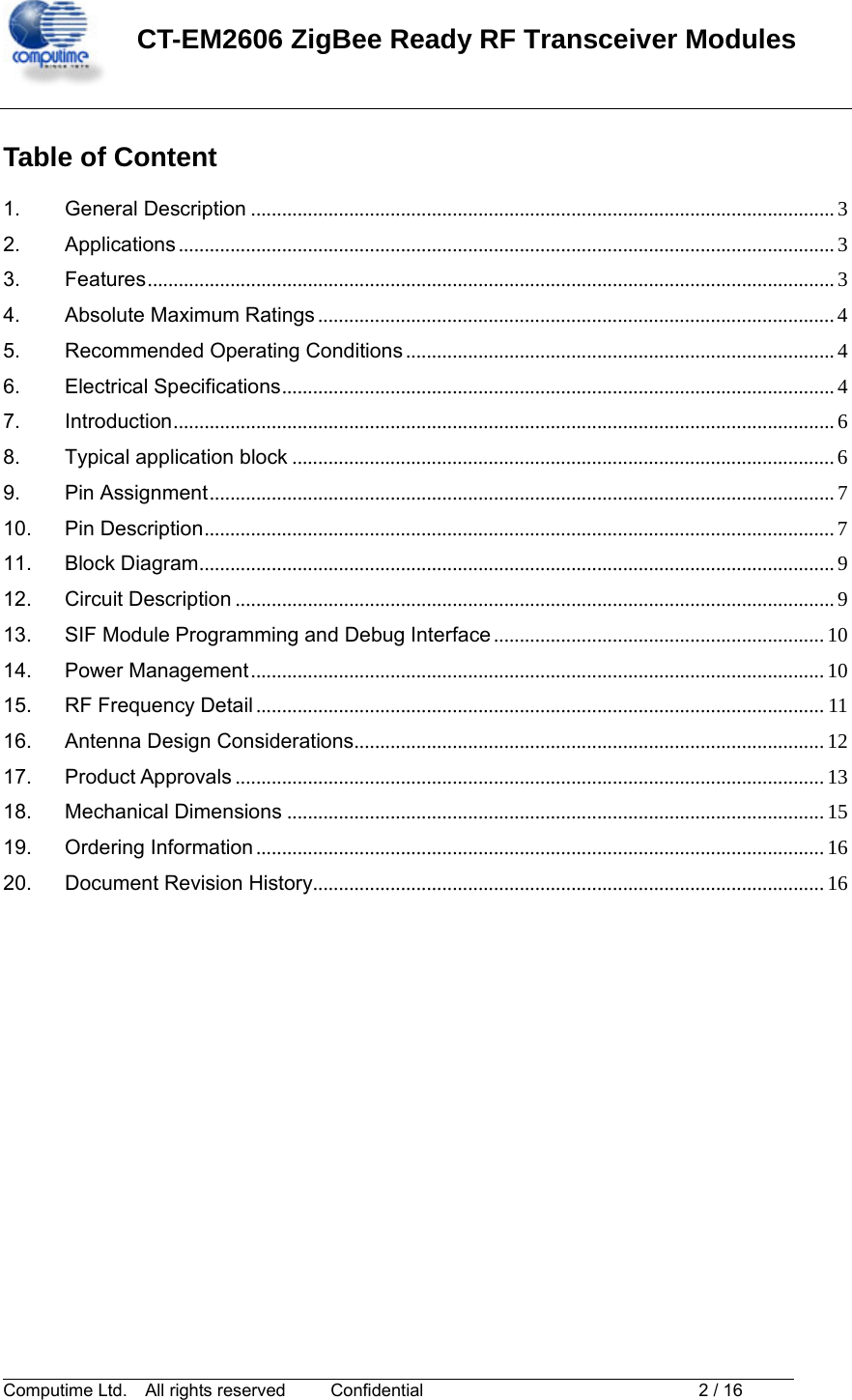

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              2 / 16    Table of Content  1. General Description .................................................................................................................3 2. Applications ...............................................................................................................................3 3. Features.....................................................................................................................................3 4. Absolute Maximum Ratings ....................................................................................................4 5. Recommended Operating Conditions...................................................................................4 6. Electrical Specifications...........................................................................................................4 7. Introduction................................................................................................................................6 8. Typical application block .........................................................................................................6 9. Pin Assignment.........................................................................................................................7 10. Pin Description..........................................................................................................................7 11. Block Diagram...........................................................................................................................9 12. Circuit Description ....................................................................................................................9 13. SIF Module Programming and Debug Interface ................................................................10 14. Power Management ...............................................................................................................10 15. RF Frequency Detail .............................................................................................................. 11 16. Antenna Design Considerations...........................................................................................12 17. Product Approvals ..................................................................................................................13 18. Mechanical Dimensions ........................................................................................................15 19. Ordering Information .............................................................................................................. 16 20. Document Revision History...................................................................................................16

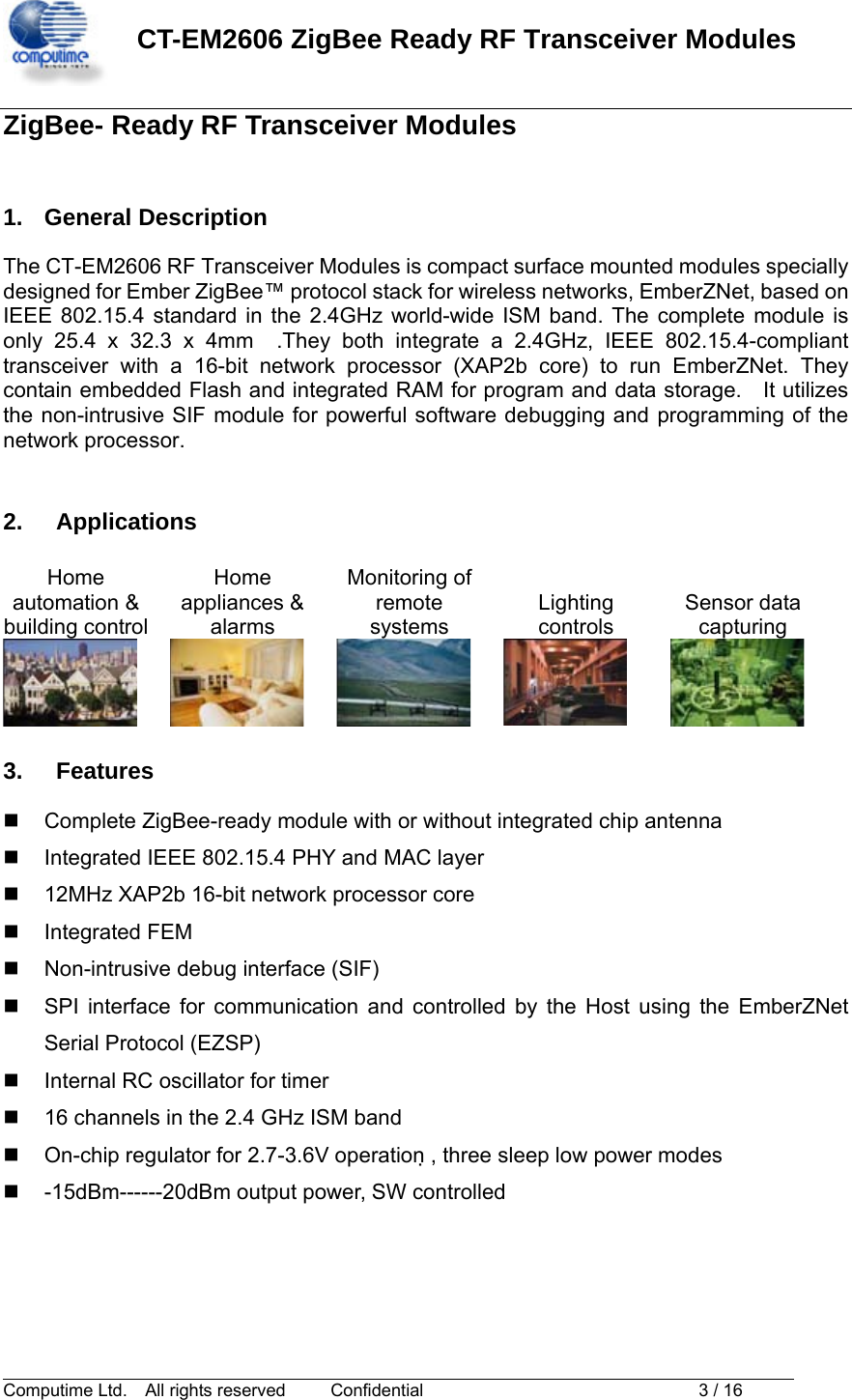

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              3 / 16   ZigBee- Ready RF Transceiver Modules  1. General Description The CT-EM2606 RF Transceiver Modules is compact surface mounted modules specially designed for Ember ZigBee™ protocol stack for wireless networks, EmberZNet, based on IEEE 802.15.4 standard in the 2.4GHz world-wide ISM band. The complete module is only 25.4 x 32.3 x 4mm  .They both integrate a 2.4GHz, IEEE 802.15.4-compliant transceiver with a 16-bit network processor (XAP2b core) to run EmberZNet. They contain embedded Flash and integrated RAM for program and data storage.    It utilizes the non-intrusive SIF module for powerful software debugging and programming of the network processor.  2.  Applications Home automation & building control Home appliances & alarms Monitoring of remote systems Lighting controls Sensor data capturing      3.  Features   Complete ZigBee-ready module with or without integrated chip antenna   Integrated IEEE 802.15.4 PHY and MAC layer   12MHz XAP2b 16-bit network processor core  Integrated FEM   Non-intrusive debug interface (SIF)     SPI interface for communication and controlled by the Host using the EmberZNet Serial Protocol (EZSP)     Internal RC oscillator for timer   16 channels in the 2.4 GHz ISM band   On-chip regulator for 2.7-3.6V operation , three sleep low power modes   -15dBm------20dBm output power, SW controlled

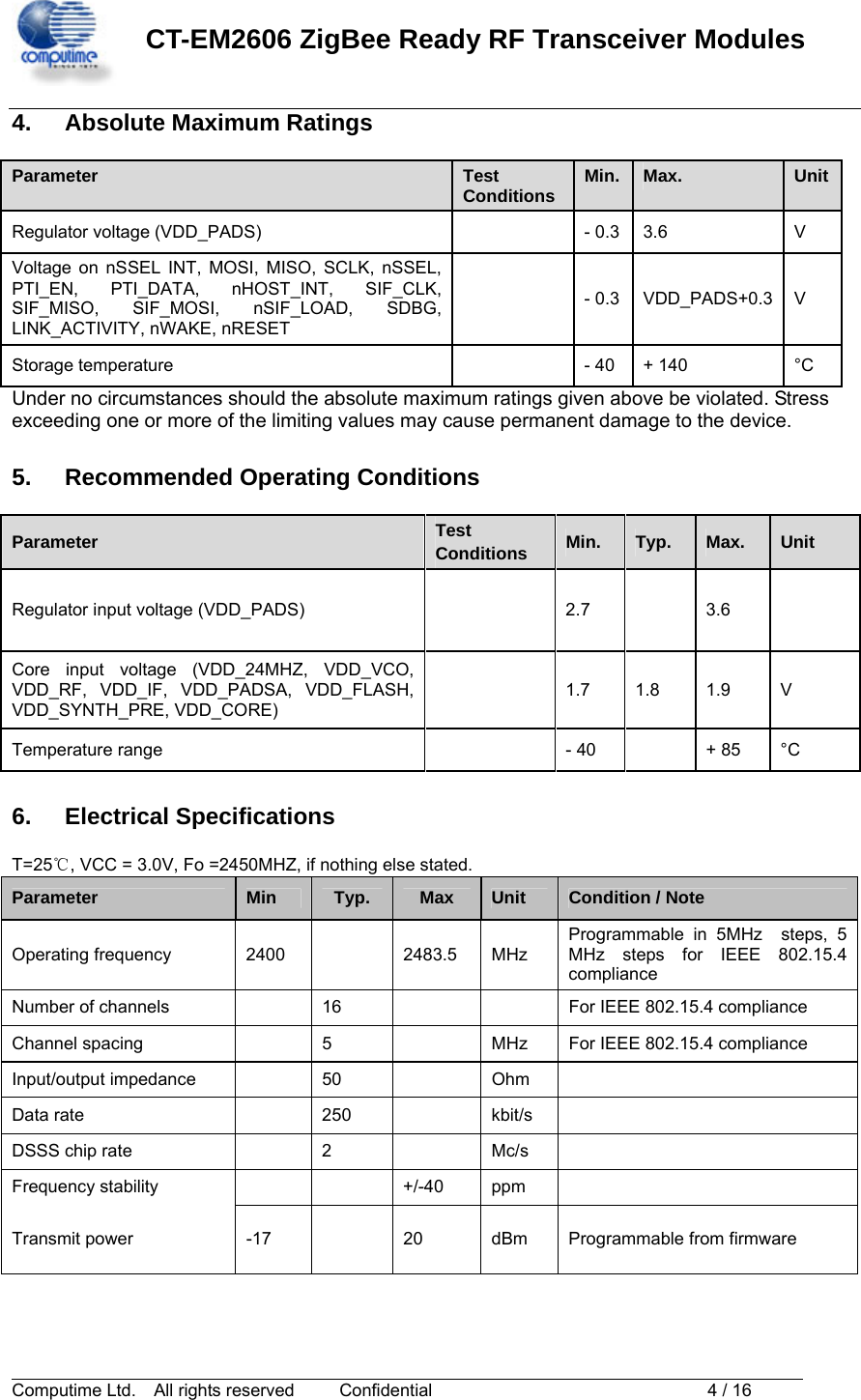

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              4 / 16   4.    Absolute Maximum Ratings Parameter   Test Conditions  Min.  Max.   UnitRegulator voltage (VDD_PADS)     - 0.3  3.6   V  Voltage on nSSEL INT, MOSI, MISO, SCLK, nSSEL, PTI_EN, PTI_DATA, nHOST_INT, SIF_CLK, SIF_MISO, SIF_MOSI, nSIF_LOAD, SDBG, LINK_ACTIVITY, nWAKE, nRESET    - 0.3  VDD_PADS+0.3   V  Storage temperature     - 40  + 140   °C  Under no circumstances should the absolute maximum ratings given above be violated. Stress exceeding one or more of the limiting values may cause permanent damage to the device. 5.  Recommended Operating Conditions Parameter   Test  Conditions   Min.  Typ.  Max.   Unit Regulator input voltage (VDD_PADS)     2.7   3.6  Core input voltage (VDD_24MHZ, VDD_VCO, VDD_RF, VDD_IF, VDD_PADSA, VDD_FLASH, VDD_SYNTH_PRE, VDD_CORE)    1.7   1.8   1.9   V  Temperature range     - 40     + 85   °C  6.  Electrical Specifications T=25℃, VCC = 3.0V, Fo =2450MHZ, if nothing else stated. Parameter   Min   Typ.  Max  Unit   Condition / Note   Operating frequency   2400     2483.5  MHz  Programmable in 5MHz  steps, 5 MHz steps for IEEE 802.15.4 compliance  Number of channels      16        For IEEE 802.15.4 compliance   Channel spacing      5      MHz    For IEEE 802.15.4 compliance   Input/output impedance     50     Ohm    Data rate     250     kbit/s   DSSS chip rate     2     Mc/s    Frequency stability       +/-40   ppm    Transmit power   -17    20  dBm   Programmable from firmware

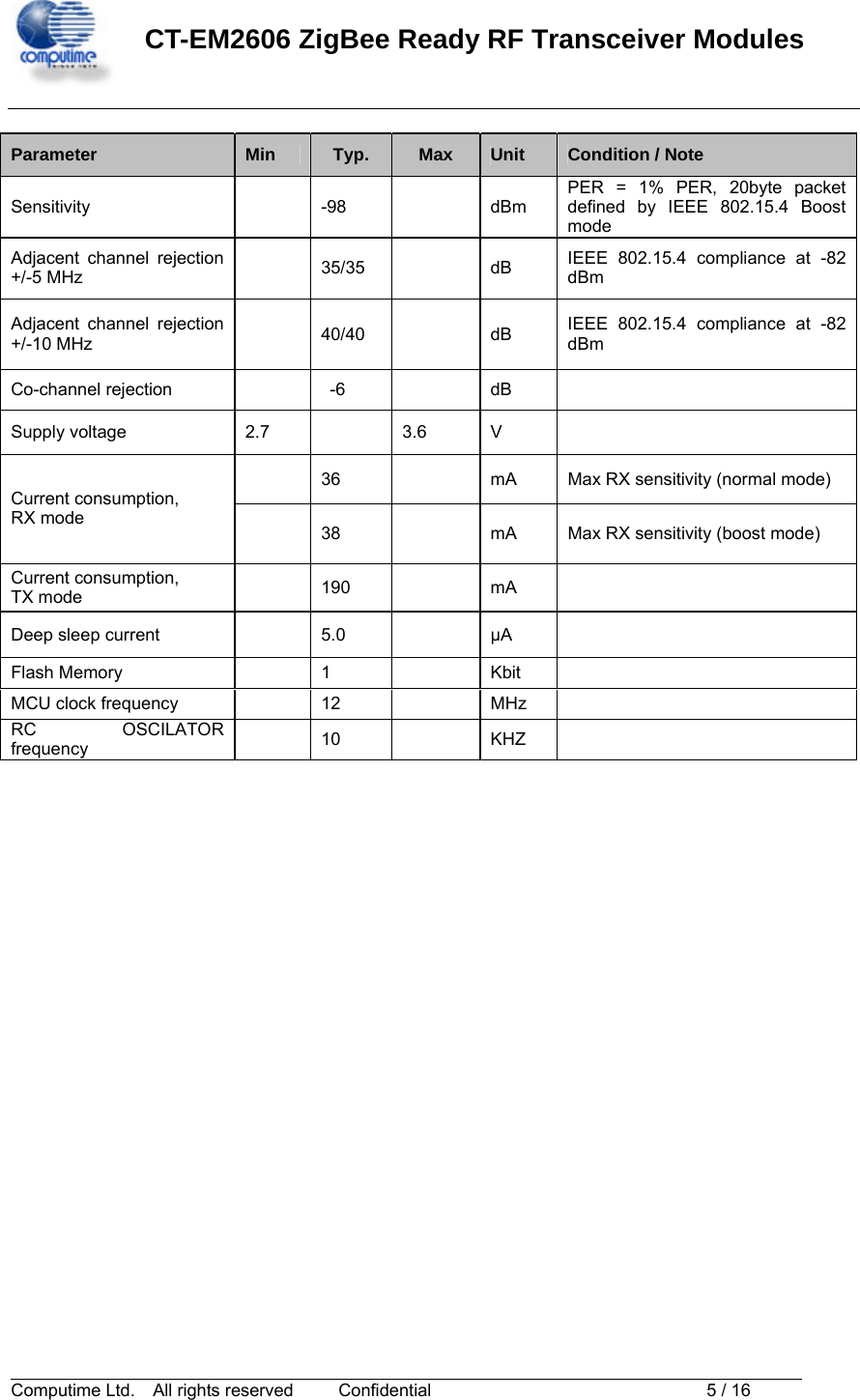

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              5 / 16    Parameter   Min   Typ.  Max  Unit   Condition / Note   Sensitivity     -98    dBm  PER = 1% PER, 20byte packet defined by IEEE 802.15.4 Boost mode Adjacent channel rejection  +/-5 MHz     35/35   dB  IEEE 802.15.4 compliance at -82 dBm Adjacent channel rejection +/-10 MHz     40/40   dB  IEEE 802.15.4 compliance at -82 dBm Co-channel rejection      -6    dB  Supply voltage   2.7     3.6   V      36    mA    Max RX sensitivity (normal mode) Current consumption,   RX mode    38    mA    Max RX sensitivity (boost mode) Current consumption, TX mode   190   mA   Deep sleep current    5.0    μA   Flash Memory    1    Kbit   MCU clock frequency      12    MHz     RC OSCILATOR frequency   10   KHZ

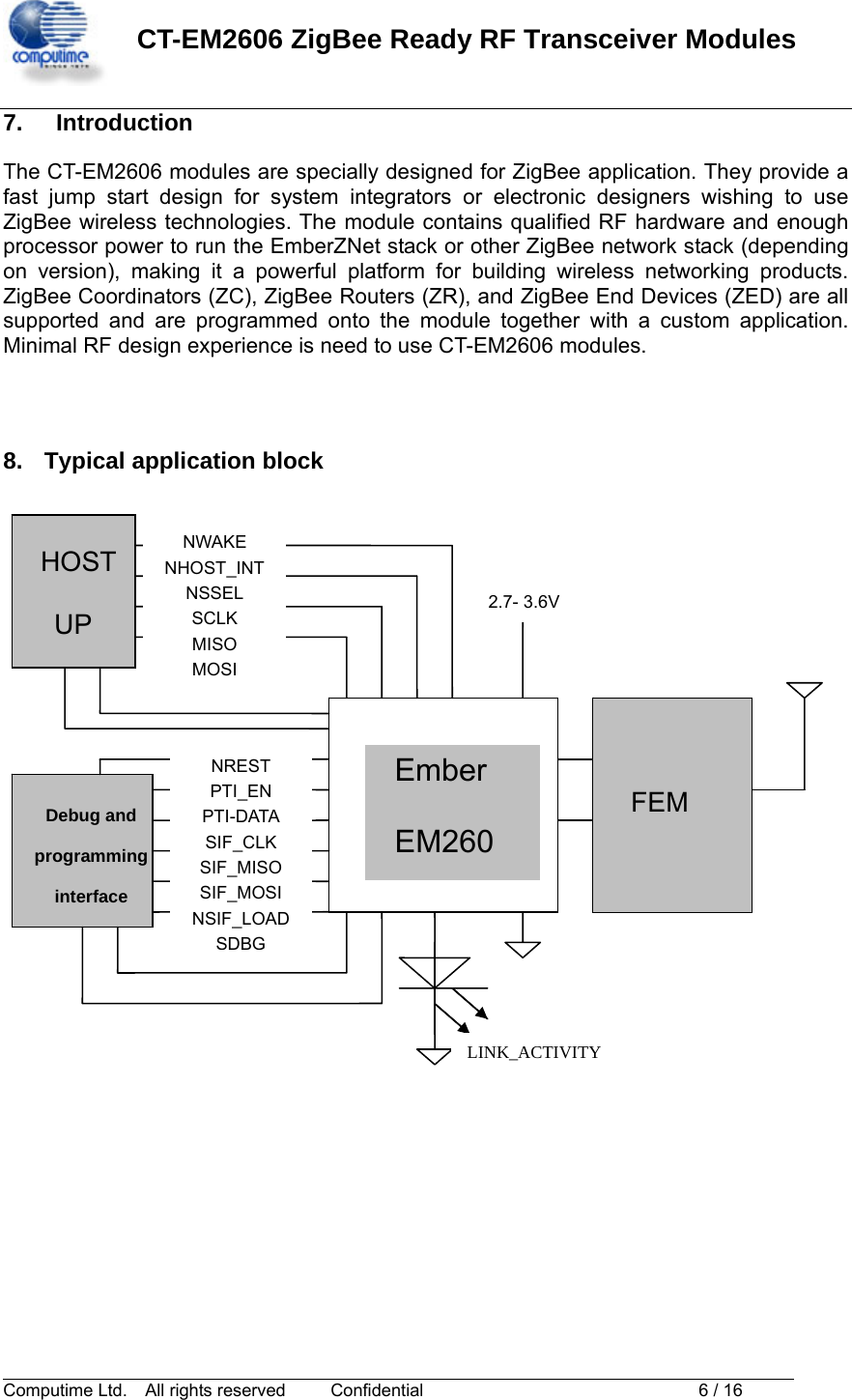

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              6 / 16   7.  Introduction The CT-EM2606 modules are specially designed for ZigBee application. They provide a fast jump start design for system integrators or electronic designers wishing to use ZigBee wireless technologies. The module contains qualified RF hardware and enough processor power to run the EmberZNet stack or other ZigBee network stack (depending on version), making it a powerful platform for building wireless networking products. ZigBee Coordinators (ZC), ZigBee Routers (ZR), and ZigBee End Devices (ZED) are all supported and are programmed onto the module together with a custom application. Minimal RF design experience is need to use CT-EM2606 modules.  8. Typical application block         Ember   EM260 2.7- 3.6V  Debug and programming interface  HOST   UP NREST PTI_EN PTI-DATA SIF_CLK SIF_MISO SIF_MOSI NSIF_LOAD SDBGLINK_ACTIVITY      FEM   NWAKE NHOST_INT NSSEL SCLK MISO MOSI

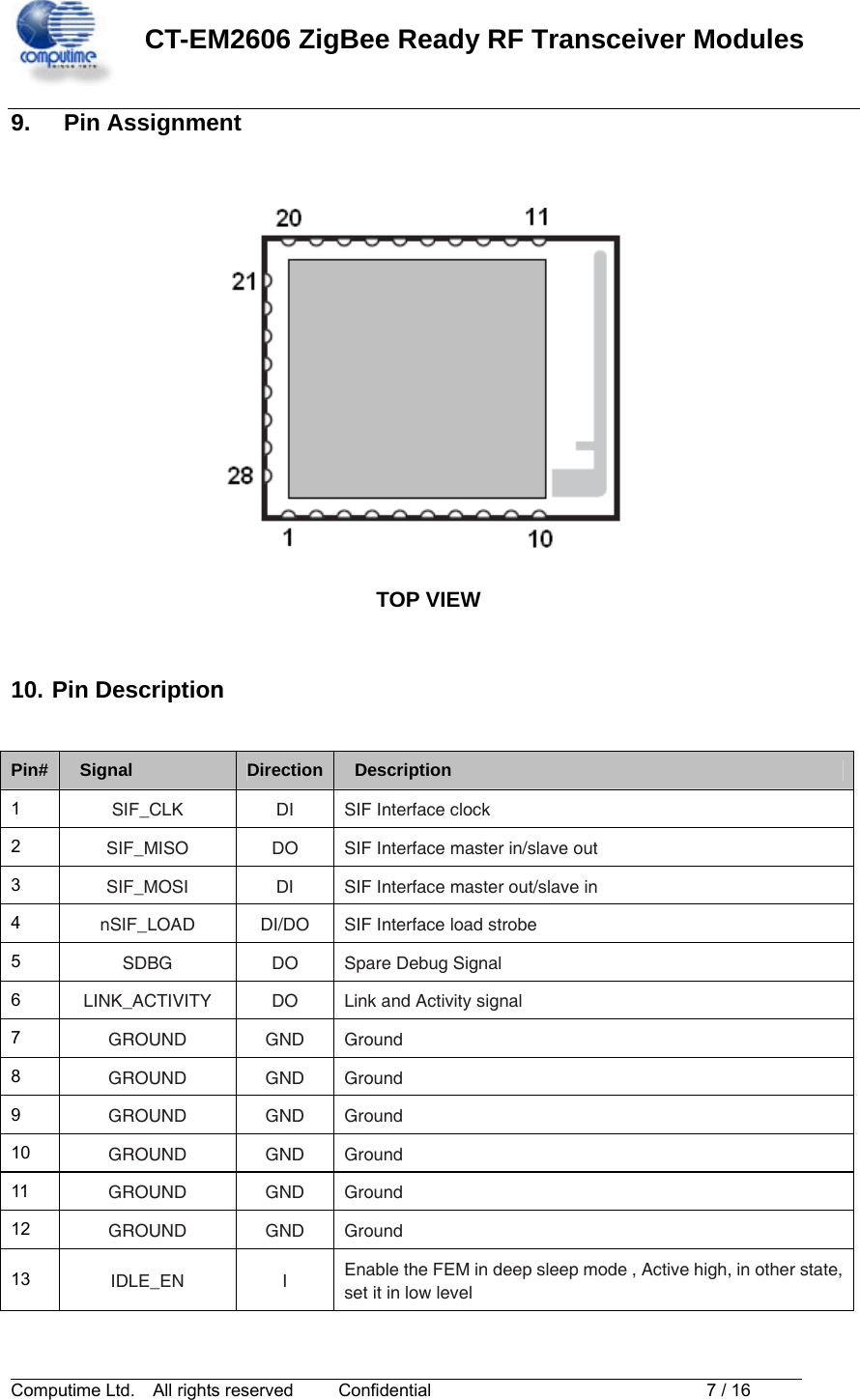

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              7 / 16   9.  Pin Assignment     TOP VIEW  10. Pin Description  Pin#  Signal  Direction  Description 1  SIF_CLK  DI  SIF Interface clock 2  SIF_MISO  DO  SIF Interface master in/slave out 3  SIF_MOSI  DI  SIF Interface master out/slave in 4  nSIF_LOAD  DI/DO  SIF Interface load strobe 5  SDBG DO Spare Debug Signal 6  LINK_ACTIVITY  DO  Link and Activity signal 7  GROUND GND Ground 8  GROUND GND Ground 9  GROUND GND Ground 10  GROUND GND Ground 11  GROUND GND Ground 12  GROUND GND Ground 13  IDLE_EN I  Enable the FEM in deep sleep mode , Active high, in other state, set it in low level

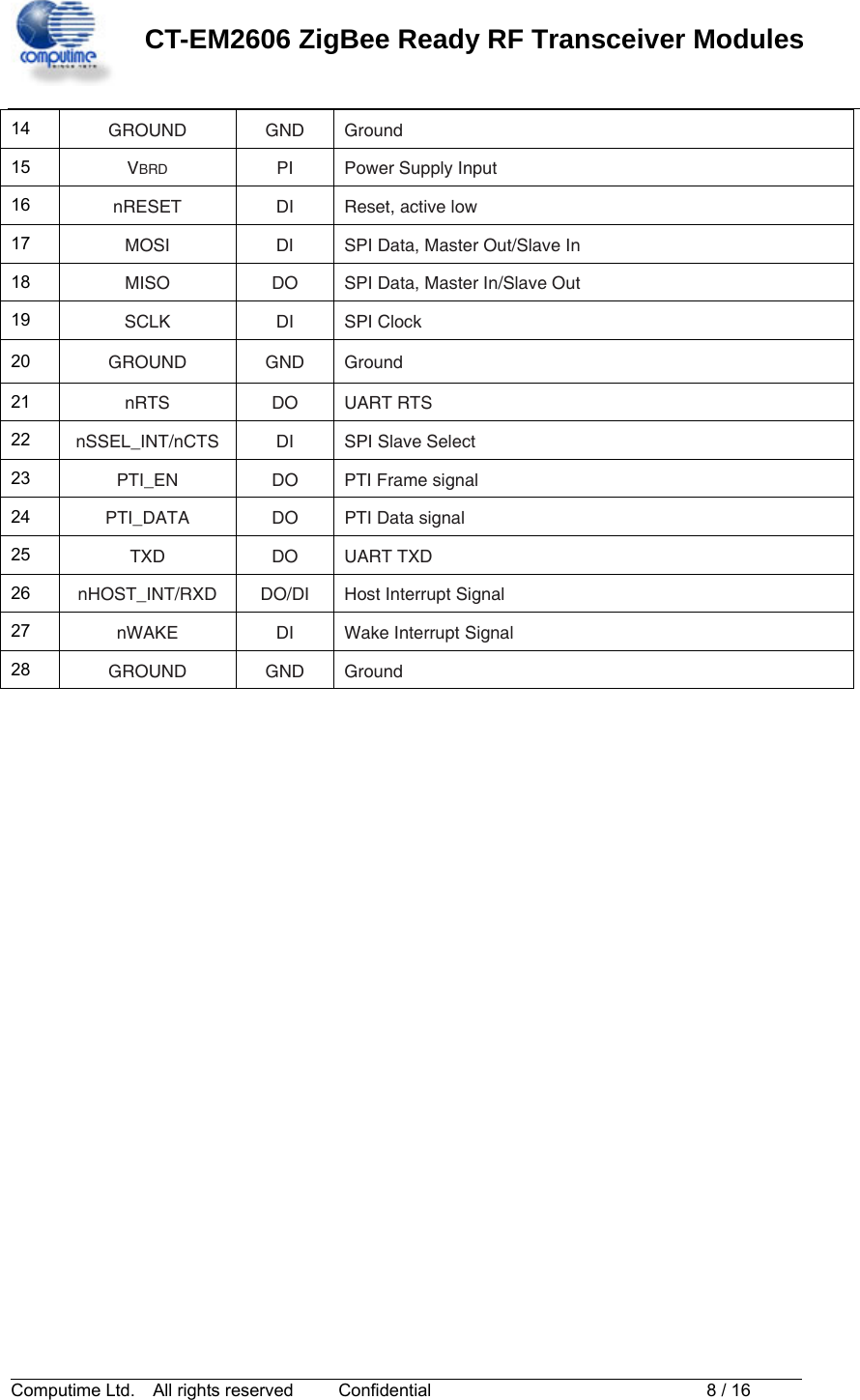

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              8 / 16   14  GROUND GND  Ground 15  VBRD  PI  Power Supply Input 16  nRESET  DI  Reset, active low 17  MOSI  DI  SPI Data, Master Out/Slave In   18  MISO  DO  SPI Data, Master In/Slave Out   19  SCLK DI SPI Clock  20  GROUND GND  Ground 21  nRTS DO UART RTS 22  nSSEL_INT/nCTS DI SPI Slave Select 23  PTI_EN  DO  PTI Frame signal 24  PTI_DATA  DO  PTI Data signal 25  TXD DO UART TXD 26  nHOST_INT/RXD DO/DI Host Interrupt Signal   27  nWAKE  DI  Wake Interrupt Signal   28  GROUND GND Ground

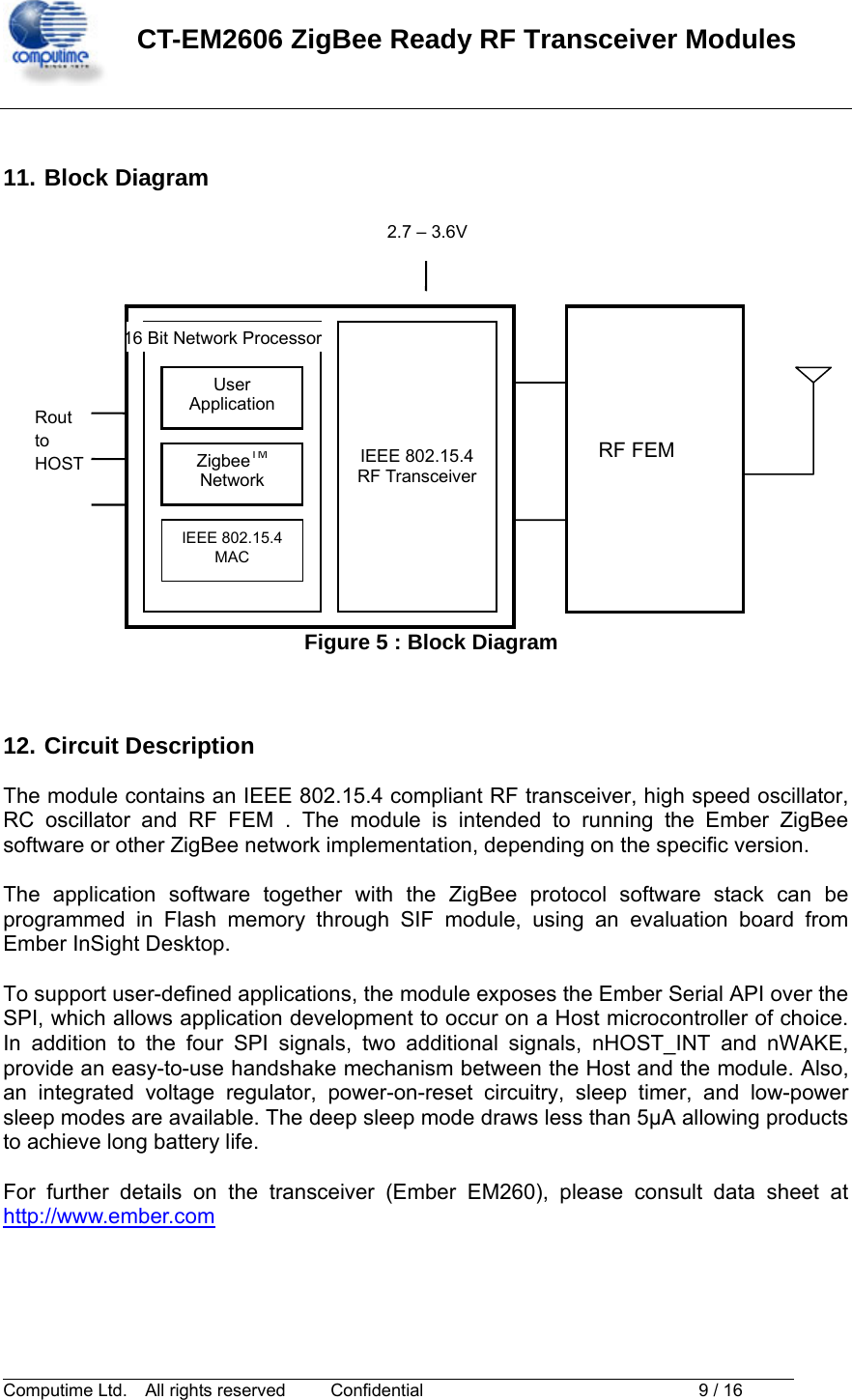

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              9 / 16    11. Block Diagram   Figure 5 : Block Diagram   12. Circuit Description The module contains an IEEE 802.15.4 compliant RF transceiver, high speed oscillator, RC oscillator and RF FEM . The module is intended to running the Ember ZigBee software or other ZigBee network implementation, depending on the specific version.  The application software together with the ZigBee protocol software stack can be programmed in Flash memory through SIF module, using an evaluation board from Ember InSight Desktop.  To support user-defined applications, the module exposes the Ember Serial API over the SPI, which allows application development to occur on a Host microcontroller of choice. In addition to the four SPI signals, two additional signals, nHOST_INT and nWAKE, provide an easy-to-use handshake mechanism between the Host and the module. Also, an integrated voltage regulator, power-on-reset circuitry, sleep timer, and low-power sleep modes are available. The deep sleep mode draws less than 5μA allowing products to achieve long battery life.  For further details on the transceiver (Ember EM260), please consult data sheet at http://www.ember.com    Rout   to  HOST   16 Bit Network ProcessorUser Application ZigbeeTM Network IEEE 802.15.4 MAC       IEEE 802.15.4 RF Transceiver 2.7 – 3.6V     RF FEM

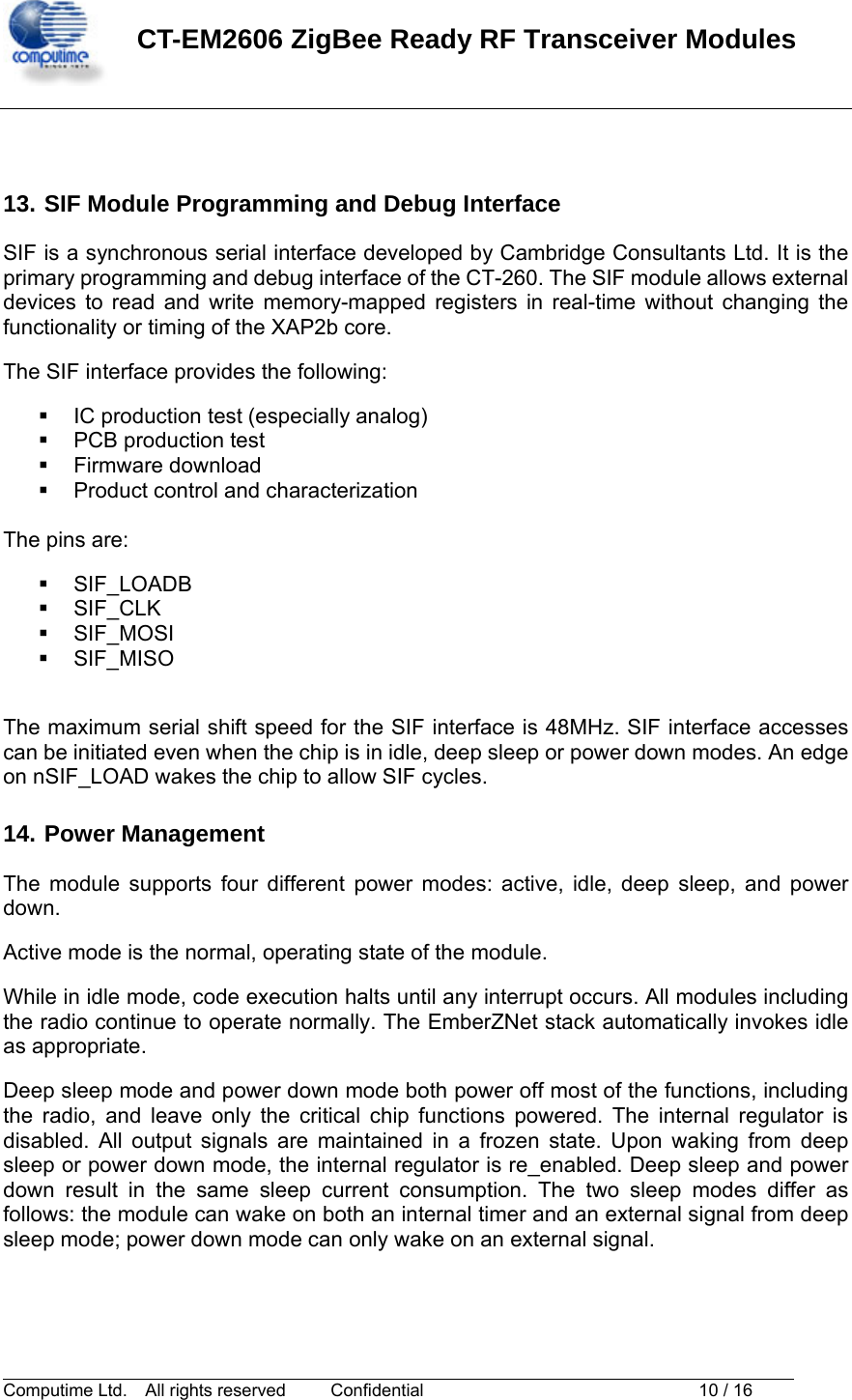

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              10 / 16     13. SIF Module Programming and Debug Interface SIF is a synchronous serial interface developed by Cambridge Consultants Ltd. It is the primary programming and debug interface of the CT-260. The SIF module allows external devices to read and write memory-mapped registers in real-time without changing the functionality or timing of the XAP2b core.   The SIF interface provides the following:     IC production test (especially analog)   PCB production test    Firmware download    Product control and characterization    The pins are:    SIF_LOADB  SIF_CLK  SIF_MOSI  SIF_MISO  The maximum serial shift speed for the SIF interface is 48MHz. SIF interface accesses can be initiated even when the chip is in idle, deep sleep or power down modes. An edge on nSIF_LOAD wakes the chip to allow SIF cycles.   14. Power Management The module supports four different power modes: active, idle, deep sleep, and power down.  Active mode is the normal, operating state of the module. While in idle mode, code execution halts until any interrupt occurs. All modules including the radio continue to operate normally. The EmberZNet stack automatically invokes idle as appropriate.   Deep sleep mode and power down mode both power off most of the functions, including the radio, and leave only the critical chip functions powered. The internal regulator is disabled. All output signals are maintained in a frozen state. Upon waking from deep sleep or power down mode, the internal regulator is re_enabled. Deep sleep and power down result in the same sleep current consumption. The two sleep modes differ as follows: the module can wake on both an internal timer and an external signal from deep sleep mode; power down mode can only wake on an external signal.

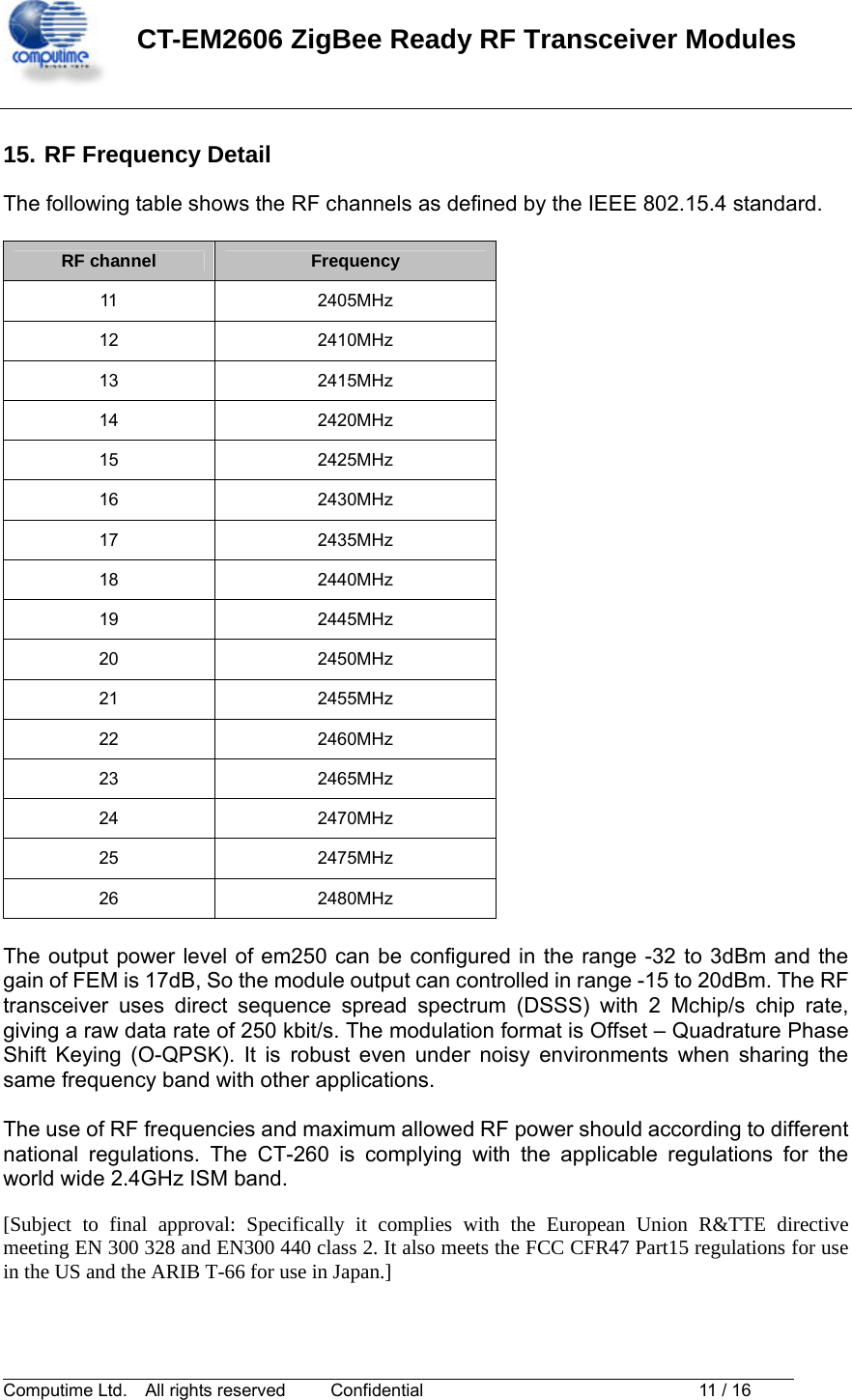

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              11 / 16   15. RF Frequency Detail The following table shows the RF channels as defined by the IEEE 802.15.4 standard.  RF channel  Frequency 11 2405MHz 12 2410MHz 13 2415MHz 14 2420MHz 15 2425MHz 16 2430MHz 17 2435MHz 18 2440MHz 19 2445MHz 20 2450MHz 21 2455MHz 22 2460MHz 23 2465MHz 24 2470MHz 25 2475MHz 26 2480MHz  The output power level of em250 can be configured in the range -32 to 3dBm and the gain of FEM is 17dB, So the module output can controlled in range -15 to 20dBm. The RF transceiver uses direct sequence spread spectrum (DSSS) with 2 Mchip/s chip rate, giving a raw data rate of 250 kbit/s. The modulation format is Offset – Quadrature Phase Shift Keying (O-QPSK). It is robust even under noisy environments when sharing the same frequency band with other applications.  The use of RF frequencies and maximum allowed RF power should according to different national regulations. The CT-260 is complying with the applicable regulations for the world wide 2.4GHz ISM band.  [Subject to final approval: Specifically it complies with the European Union R&TTE directive meeting EN 300 328 and EN300 440 class 2. It also meets the FCC CFR47 Part15 regulations for use in the US and the ARIB T-66 for use in Japan.]

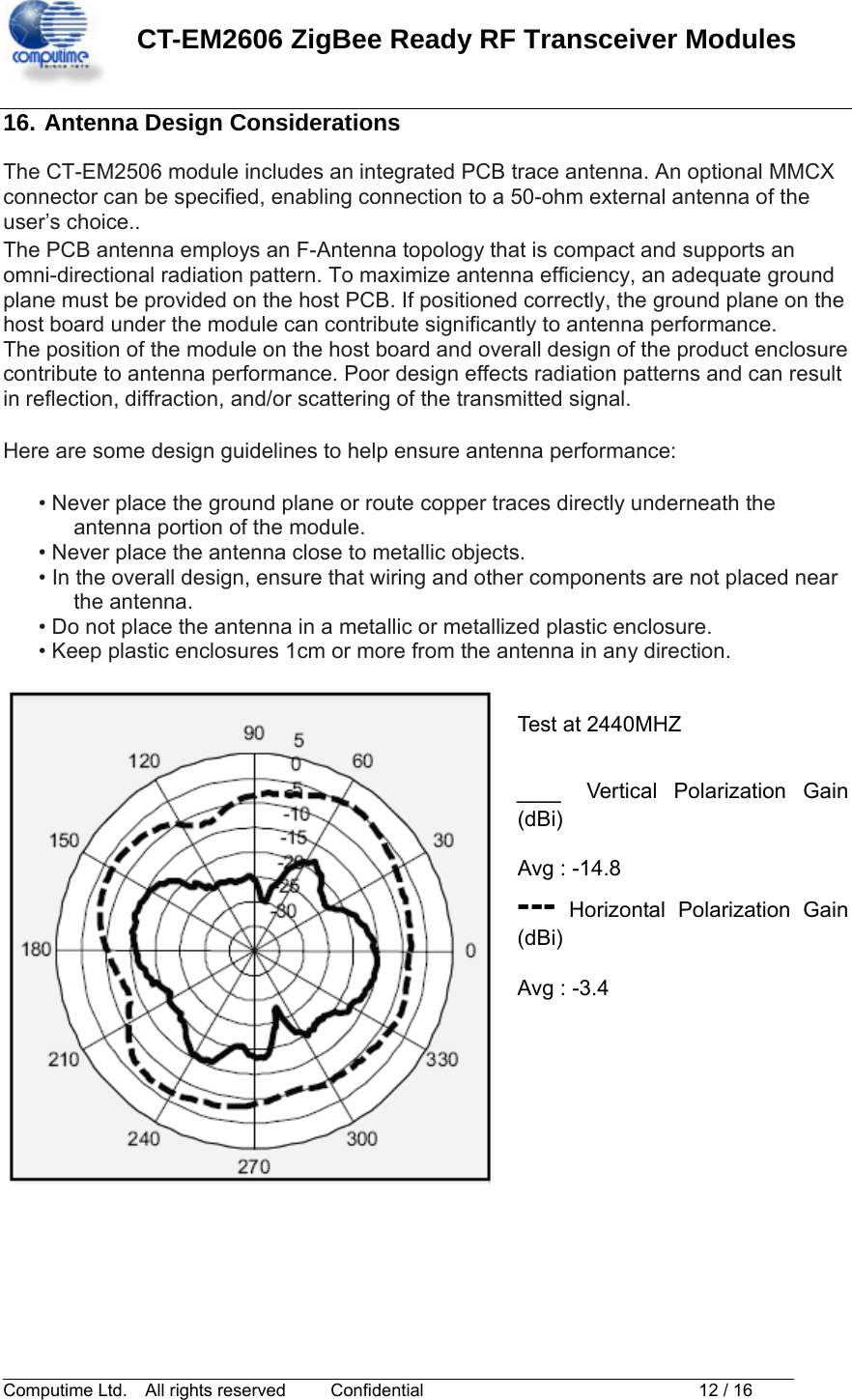

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              12 / 16   16. Antenna Design Considerations The CT-EM2506 module includes an integrated PCB trace antenna. An optional MMCX connector can be specified, enabling connection to a 50-ohm external antenna of the user’s choice..   The PCB antenna employs an F-Antenna topology that is compact and supports an omni-directional radiation pattern. To maximize antenna efficiency, an adequate ground plane must be provided on the host PCB. If positioned correctly, the ground plane on the host board under the module can contribute significantly to antenna performance.   The position of the module on the host board and overall design of the product enclosure contribute to antenna performance. Poor design effects radiation patterns and can result in reflection, diffraction, and/or scattering of the transmitted signal.    Here are some design guidelines to help ensure antenna performance:  • Never place the ground plane or route copper traces directly underneath the antenna portion of the module. • Never place the antenna close to metallic objects. • In the overall design, ensure that wiring and other components are not placed near the antenna. • Do not place the antenna in a metallic or metallized plastic enclosure. • Keep plastic enclosures 1cm or more from the antenna in any direction.   Test at 2440MHZ    __  Vertical Polarization Gain (dBi)  Avg : -14.8 --- Horizontal Polarization Gain (dBi)  Avg : -3.4

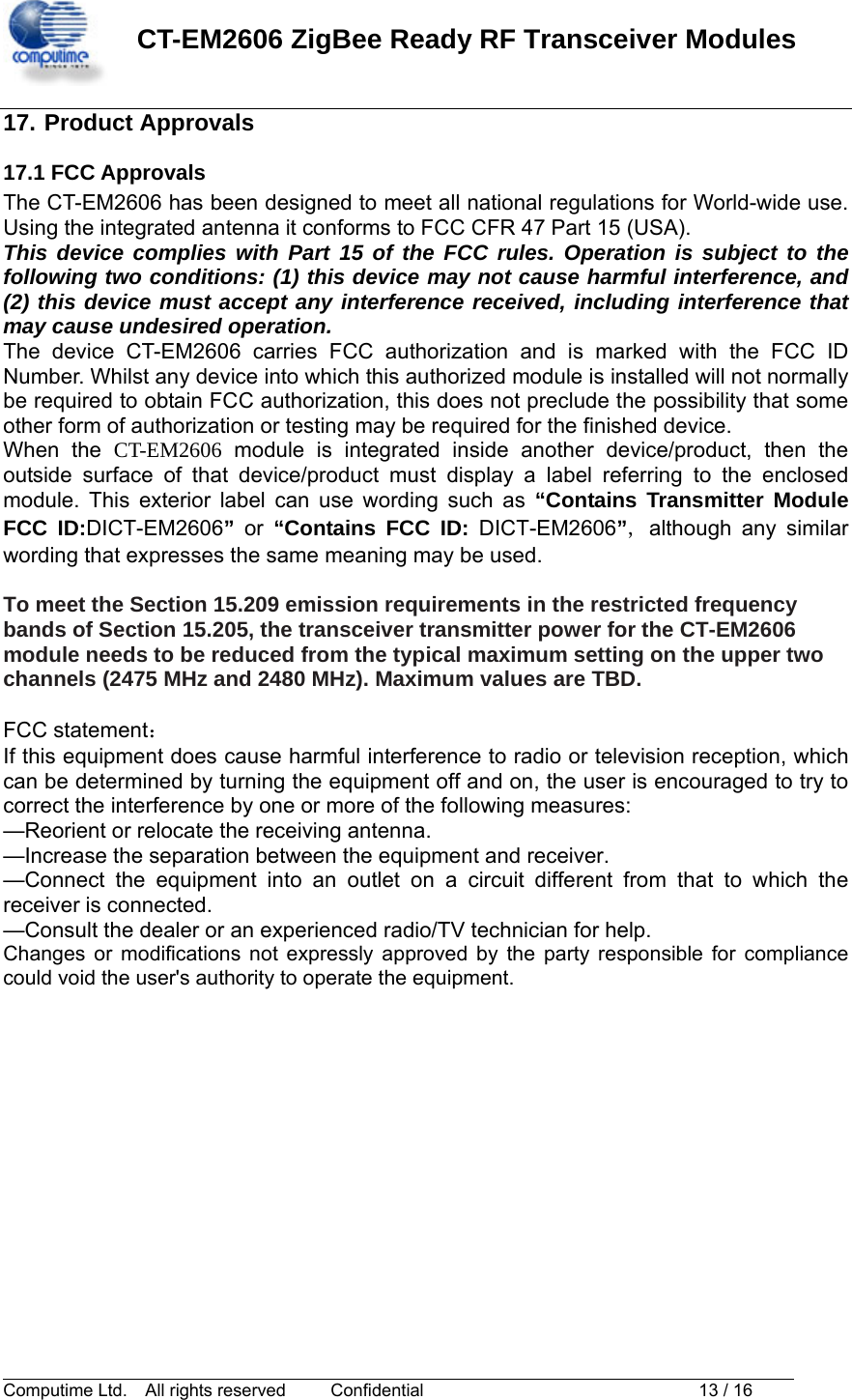

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              13 / 16   17. Product Approvals 17.1 FCC Approvals The CT-EM2606 has been designed to meet all national regulations for World-wide use. Using the integrated antenna it conforms to FCC CFR 47 Part 15 (USA).   This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.   The device CT-EM2606 carries FCC authorization and is marked with the FCC ID Number. Whilst any device into which this authorized module is installed will not normally be required to obtain FCC authorization, this does not preclude the possibility that some other form of authorization or testing may be required for the finished device.   When the CT-EM2606  module is integrated inside another device/product, then the outside surface of that device/product must display a label referring to the enclosed module. This exterior label can use wording such as “Contains Transmitter Module FCC ID:DICT-EM2606” or  “Contains FCC ID: DICT-EM2606”, although any similar wording that expresses the same meaning may be used.    To meet the Section 15.209 emission requirements in the restricted frequency bands of Section 15.205, the transceiver transmitter power for the CT-EM2606 module needs to be reduced from the typical maximum setting on the upper two channels (2475 MHz and 2480 MHz). Maximum values are TBD.  FCC statement: If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

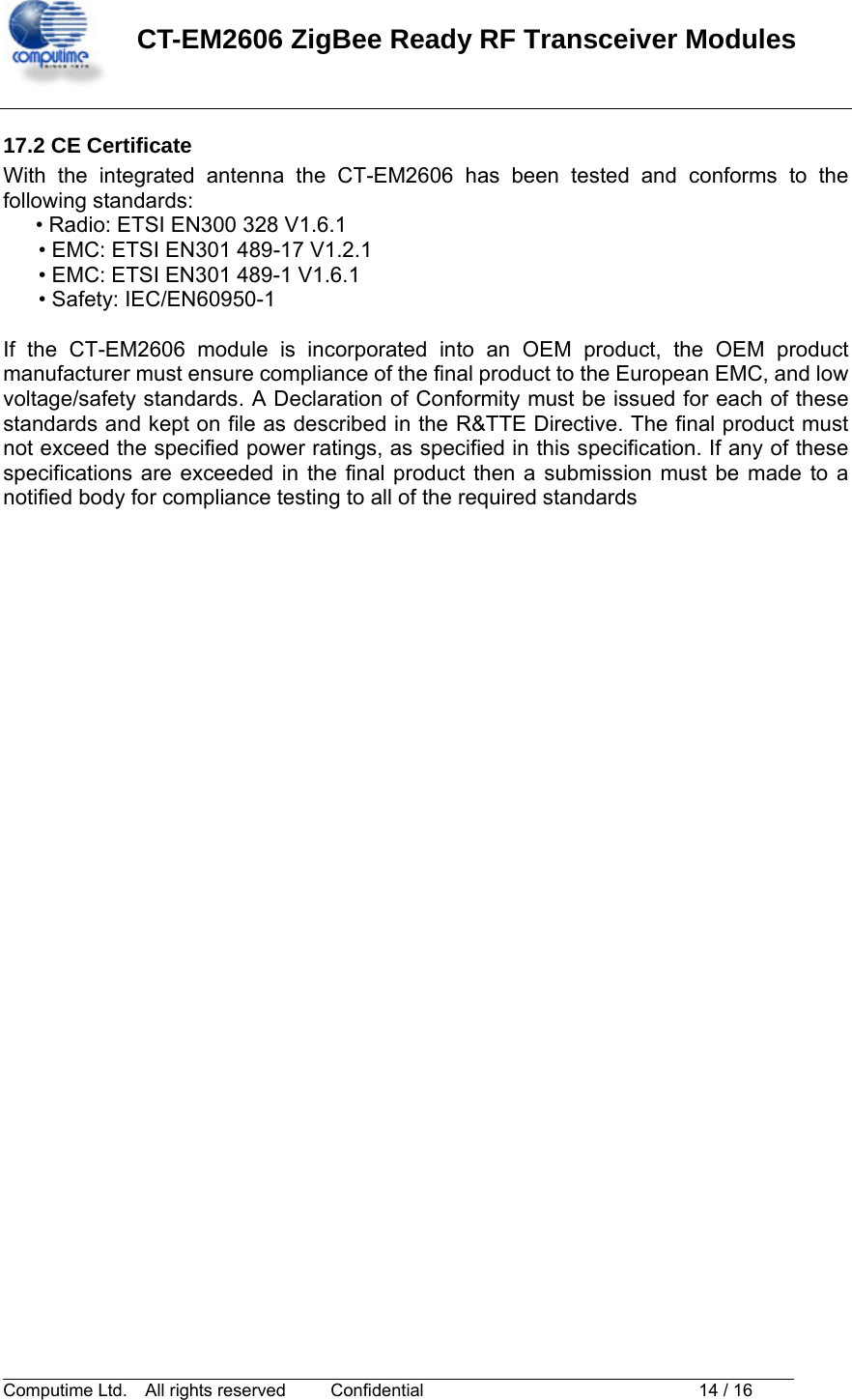

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              14 / 16   17.2 CE Certificate With the integrated antenna the CT-EM2606 has been tested and conforms to the following standards:   • Radio: ETSI EN300 328 V1.6.1 • EMC: ETSI EN301 489-17 V1.2.1   • EMC: ETSI EN301 489-1 V1.6.1 • Safety: IEC/EN60950-1    If the CT-EM2606 module is incorporated into an OEM product, the OEM product manufacturer must ensure compliance of the final product to the European EMC, and low voltage/safety standards. A Declaration of Conformity must be issued for each of these standards and kept on file as described in the R&TTE Directive. The final product must not exceed the specified power ratings, as specified in this specification. If any of these specifications are exceeded in the final product then a submission must be made to a notified body for compliance testing to all of the required standards

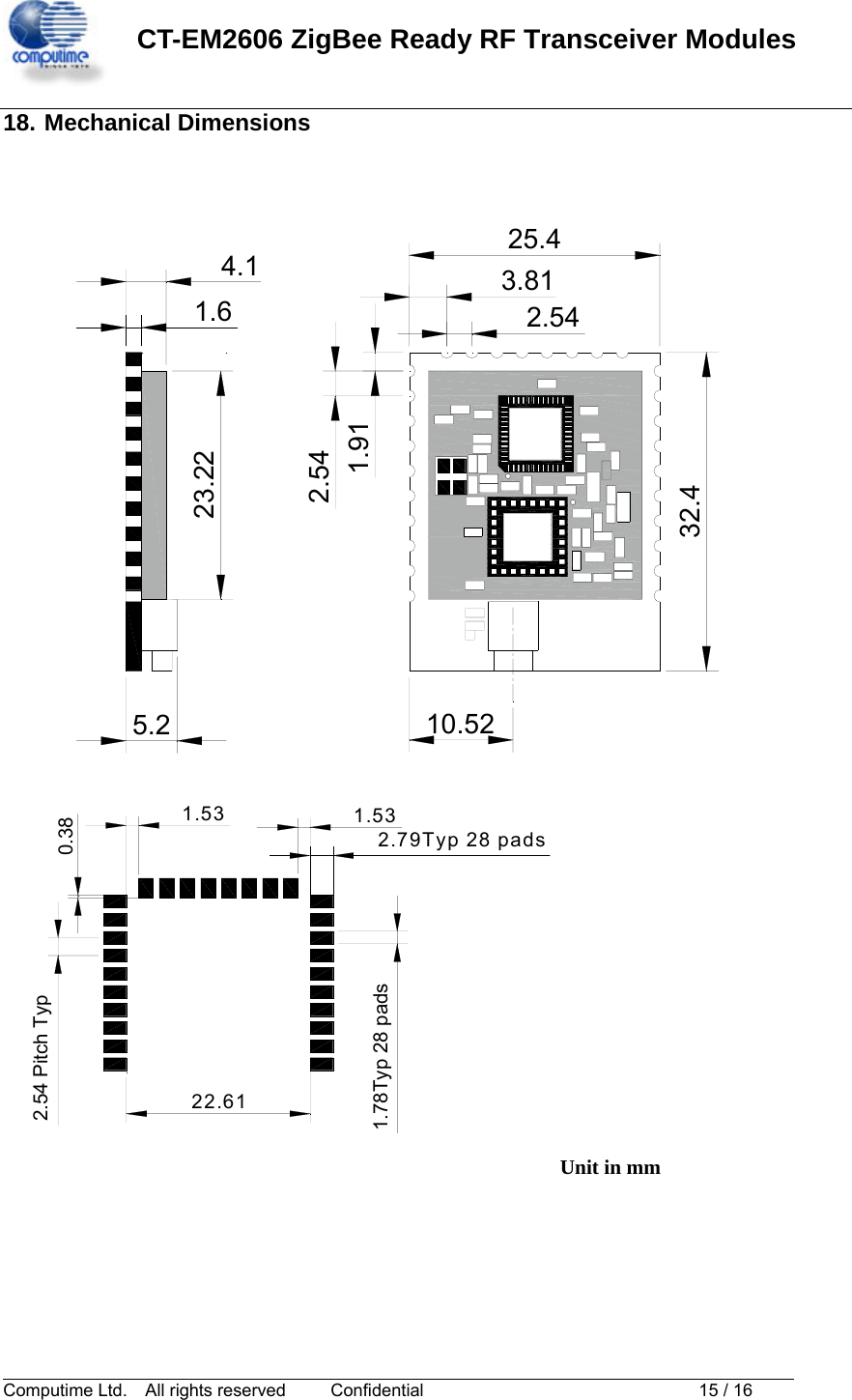

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                                Computime Ltd.    All rights reserved   Confidential              15 / 16   18. Mechanical Dimensions   1.64.15.225.432.410.522.542.541.913.8123.22 2.79Typ 28 pads1.531.530.381.78Typ 28 pads22.612.54 Pitch Typ  Unit in mm

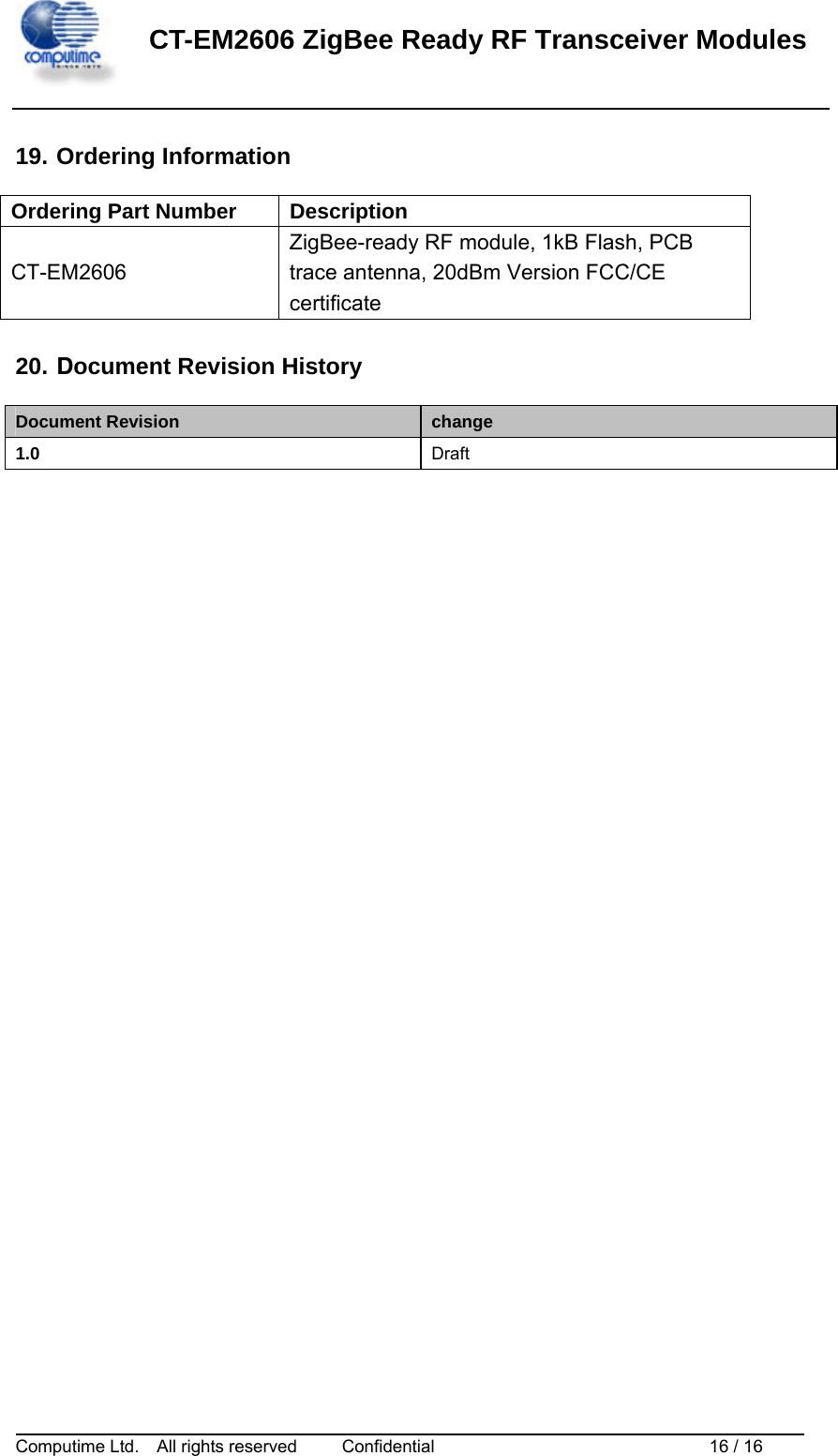

 CT-EM2606 ZigBee Ready RF Transceiver Modules                                                                               Computime Ltd.    All rights reserved   Confidential              16 / 16   19. Ordering Information Ordering Part Number  Description CT-EM2606 ZigBee-ready RF module, 1kB Flash, PCB trace antenna, 20dBm Version FCC/CE certificate 20. Document Revision History Document Revision  change 1.0  Draft
