User Manual
TLM
Touch Light On/Off Remote Control
INSTALLATION AND OPERATING INSTRUCTIONS
This wireless wall on/off/ remote control – system provides a safe,
reliable, and user-friendly remote control for millivolt valve gas
appliances. The system can be manually turned on and off with
the transmitter. Always check the appliance home owner’s manual
for additional information, or warnings regarding accessory instal-
lation before connecting this remote control system.
Carefully inspect the contents for shipping damage. If any parts
are missing or damaged, immediately contact the dealer from
whom you purchased the kit. Do not attempt to install any part of
the kit unless all parts are in good condition. Please keep this
booklet for future reference.
CONTENTS OF KIT
Description Qty
Touch Light Transmitter 1
Battery Alkaline AA (for Transmitter and receiver) 6
Receiver (Assembly) consists of : 1
Receiver Box
Slide Button-Black (On/RS/Off)
L-Bracket (Floor Mount)
Wall Cover Plate-Black 1
Wall Cover Plate-White 1
Slide Button-White (On/RS/Off) 1
Screws (for Wall Cover Plate) 2
Plug-In Wiring Assembly – 18" Inches 1
Velcro (Loop and Hook) 1
Wall Anchor Screws 2
Wall Anchor 2
Installation Instructions 1
Screws (for fireplace system control covers) 2
Wall Bracket 1
FEATURES/SPECIFICATIONS
• Contemporary Ergonomic Table Top or Wall Mount
Transmitter with Large LCD Display
• Battery Powered Transmitter and Receiver
• Easy Access Battery Door
• Pre-Programmed for Quick Installation
• Low battery Indication
• Child Proof Lock-out
• 128 Security Codes
• 2 hour Shut Down (Optional)
• Thermal Safety Shutdown (Transmitter Only)
• Quick Disconnect Wiring Assembly
• Reset Button
WARNING
Important Safety Information
• Read this manual thoroughly prior to installing, programming
or operating any remote control.
• This remote control system is designed for use with a milli
volt gas valve system. Do not use this remote control system
on applications with voltages above 24 Volts DC and 1 amp
current.
• This remote control system requires two (2) "AA" alkaline
batteries for the transmitter and four (4) "AA" alkaline
batteries for the receiver.
• Wiring must conform to appliance requirement and building
codes/ordinances as required by local and national code
authorities having jurisdiction.
• Do not short (or jumper) across the gas valve terminals to test
the remote control installation. This could damage the unit
and void the warranty.
• This remote control system should only be used as described
in this manual. Any other use is not recommended and will
void the warranty.
Due to the sensitive temperature monitoring
components in the transmitter, it is necessary to
allow the transmitter to stabilize to room
temperature before accurate room temperatures
are displayed. If the transmitter is activated from
a severe cold condition, allow 15 minutes for
accurate temperature readings to appear on the
LCD.
Turn appliance OFF and allow to cool before
installing or servicing. DO NOT connect
110-120 VAC wiring to the milli-volt gas control
valve. The remote operator must be installed
exactly as outlined in these instructions. Read all
instructions completely before attempting
installation. Follow instructions carefully during
installation. Any modification of components will
void the warranty and may cause a fire hazard.
Turn appliance OFF (at the appliance or remote
receiver) if you are away from your house for a
long period of time. Never leave anything on top
of the surface on the touch light transmitter.

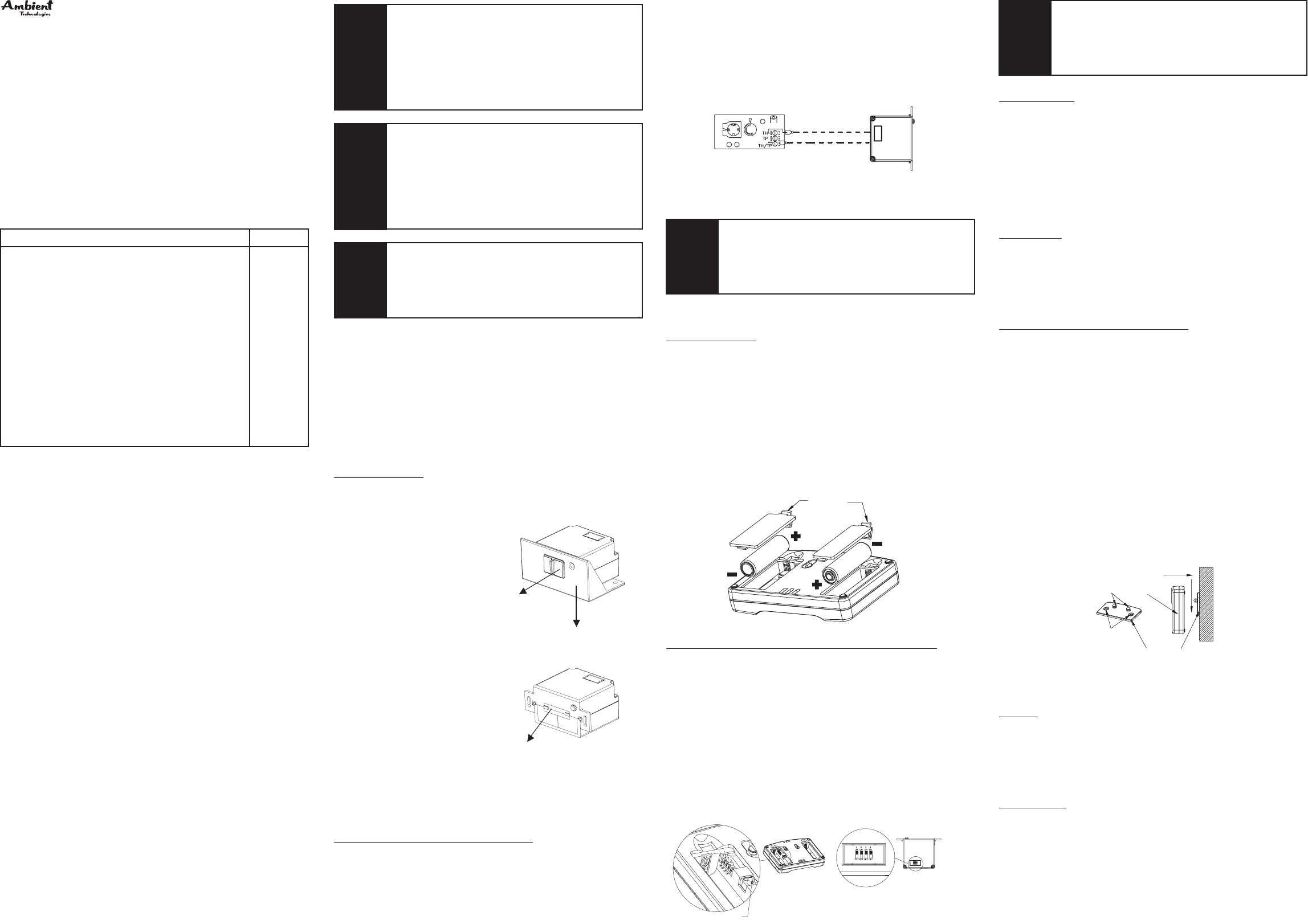

INSTALLATIONS
Remote Receiver:
The remote receiver may be wall mounted or installed in the appli-
ance per the appliance homeowner’s manual. Refer to the
Homeowner’s Manual for special installation instructions. If
wall mounted, the remote receiver must be installed in a junction
box with cover plate provided. Failure to follow the installation
instructions found in the appropriate Homeowner’s Manual will
void the warranty and may cause a fire hazard.
Installing Batteries:
The remote receiver uses four (4) "AA"- size batteries. To install
batteries,
1.Remove the slide switch by
gently pulling straight out.
2.Use your thumb and index
finger to gently pull down the
L-bracket.
3.Open the battery door by
pressing the two tabs located on
the door.
4.Install the batteries as indicated
in the receiver cover.
5.Close the battery door until the
door tab snaps in place.
6.To install the receiver into a
wall junction box, install the
receiver with the screws
provided .
7.If you decided to install the
receiver into the appliance,
reinstall the L-bracket.
8.Gently, install the slide switch
back to the receiver stem.
9.The batteries should be replaced
at least once every 6 months or
when the battery indicator
flashes.
Connecting the Receiver to your appliance:
This system comes with an 18 inch wire assembly. Insert the
white terminal to the back of the receiver. The terminal wire
block can only be installed one way. Do not force the terminal
plug onto the receiver.
Connect the wiring terminal two (2) 1/4" female spade terminals
to the appliance. Refer to the appropriate Homeowner’s Manual
for proper wiring connections to the appliance. Your appliance
may have other options to connect wiring from receiver. For
applications longer than 18 inches, use 18 gauge wire, 105ºC
rated, with no splices. Connect to the two (2) 1/4" female spade
wiring terminals. Wire can be no longer than 20 feet.
Make sure that the wires do not contact the
appliances any place other than at the terminals.
Exposure to temperatures higher than 105ºC
(250ºF) may cause the receiver to malfunction or
fire hazard.
Touch Light Transmitter:
Installing Batteries:
The Touch Light transmitter uses two (2) "AA"- size batteries. To
install batteries,
1.Press down the battery door tab and lift up and remove the
battery door.
2.Install the battery.
3.Close the battery door by snapping in place
4.Repeat the above step for the other battery.
5.When both batteries are installed, the transmitter will initialize
for 10 seconds and then is ready for use.
6.The batteries should be replaced at least once every 6 months or
when the battery icon indicator flashes.
Setting Privacy (DIP) Switch on Receiver and Transmitter:
The remote receiver and transmitter privacy (DIP) switches are
preset at the factory. In the event of activation or interference
from other nearby transmissions, reset the code using the follow-
ing procedure:
1.Slide the code switches on the transmitter or receiver to your
choice of ON or OFF position. Switches #1 to #4 are preset to
"ON" for both the transmitter and receiver.
2.The switches on the transmitter and receiver must match in
order for the system to work.
3.To check, touch the transmitter groove surfaces for at least 1
second and release, the transmitter will emit a beep, and the
receiver indicator light will blink. If not repeat step 2.
4.The system is now ready to operate.
Do not use two (2) or more remote control systems
in the same area with the same dip switch settings,
as they will communicate with each other. This
may cause the appliances to malfunction.
Auto Shutdown:
1.The Touch Light transmitter comes preset from the factory with
a 2 hour shutdown from its last ON operation. This is done to
prevent the appliance from continuing to run if unattended.
2.You may disable this feature if you wish. To disable, change the
Touch Light transmitter privacy (DIP) switch #1 ONLY to the
OFF position (by sliding the switch towards the battery door.)
Make sure the receiver privacy (DIP) switches are set the same.
Follow the instructions on how to set the privacy (DIP) switch
setting.
Reset Button:
1.The reset button can be used to reset the transmitter if
transmitter is not working properly. The reset button is located
behind the battery door cover. Using a paper clip, press the reset
button and the transmitter will reset and initialize for 10 seconds
before it can be used.
Where to place Touch Light Transmitter?
1.The Touch Light transmitter is recommended to be placed on a
non metal table top or wall mount. Make sure there is no direct
contact of metal parts to the body of the transmitter.
2.If wall mount, choose a mouting location about 5 feet above the
floor in an area with good air circulation and away from the fol
lowing:
a. Air ducts
b.Radiant heat from the sun and appliances
c. Concealed pipes and chimneys
3.Align the wall bracket to the desired location. Mark two (2)
holes using the wall bracket as template.
4.Drill two (2) holes and insert the plastic anchors until they are
flush with the wall.
5.Fasten securely the wall bracket to the wall with the two (2)
screws.
6.Refer to the figure on how to install the transmitter to the wall
bracket.
OPERATIONS:
Transmitter:
General:
The TLM is a touch sensitive On/Off remote control system.
The transmitter will operate the remote receiver from 1foot to a
maximum of 30 feet. The operational range is reduced when bat-
teries are low or when the receiver is inside a metal enclosure.
Initial start up:
1.After initial power up or reset button is pressed, the transmitter
is reset.
2.During transmitter reset, all segments of the LCD will be turned
on. After ten (10) seconds, the LCD will be initialized and
operational. You will hear a beep during this time.
3.After reset, only the room temperature will be displayed on the
LCD display.
L-Bracket
Slide Switch
Battery Door
ALIGN THE TRANSMITTER MOUNTING
KEYHOLES TO THE PIN. PUSH IN AND
SLIDE DOWN UNTIL SNAP.
MOUNTING TRANSMITTER
PIN
MOUNTING
HOLES
WALL BRACKET
WALL
NOTE WARNING
WARNING
WARNING
WARNING
MILLIVOLT VALVE
GENERIC WIRING DIAGRAM FOR RECEIVER. THE RECEIVER WIRE
NEED TO CONNECT TO THE VALVE AT THE "TH" AND "TH/TP"
JUNCTION
REMOTE CONTROL
RECEIVER
BATTERY
DOOR TAB
RESET BUTTON
TRANSMITTER
FACTORY PRESET DIP SWITCH SETTING
RECEIVER

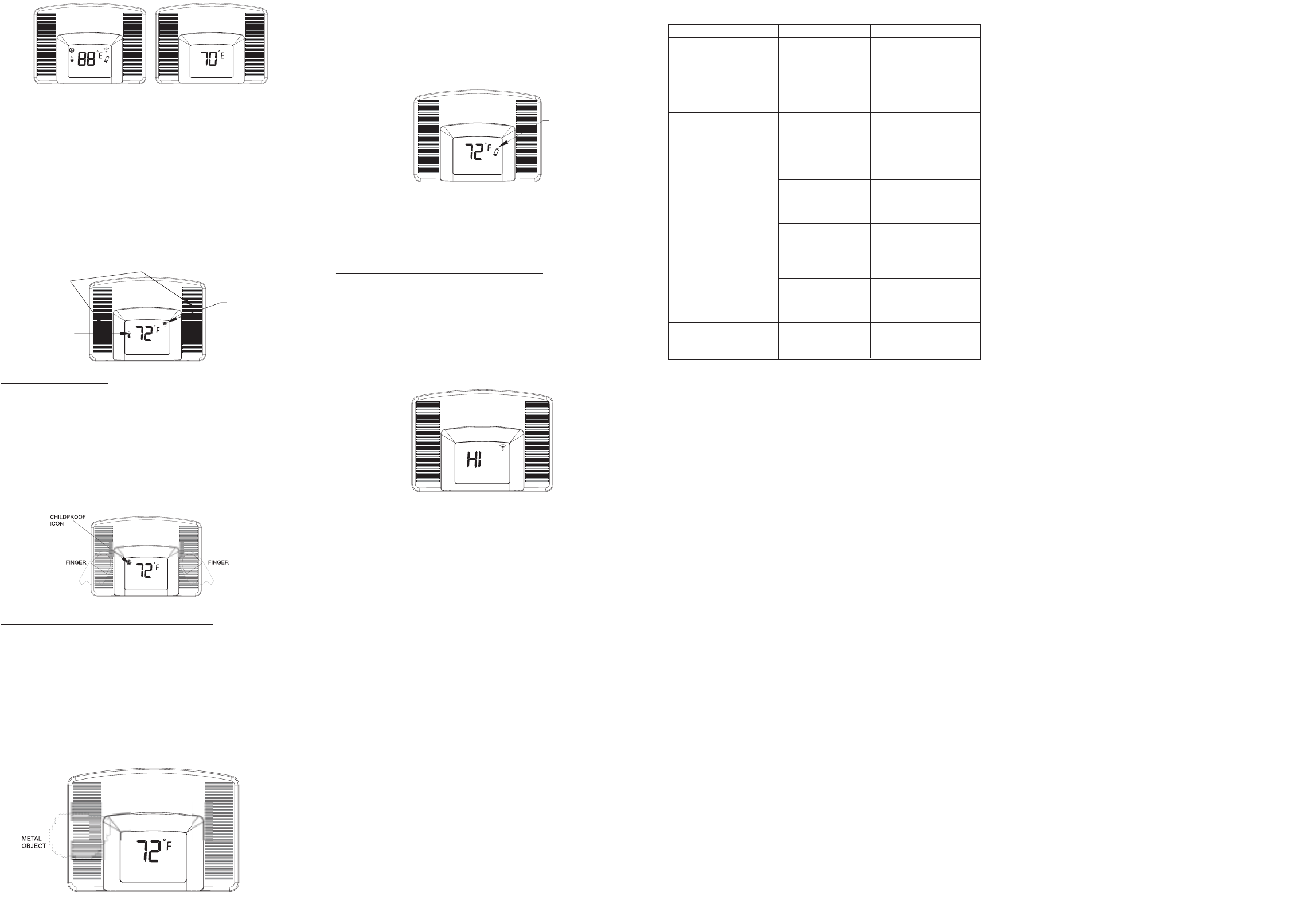

Manual Mode- On or Off Operation:
1.Since Touch Light transmitter is touch sensitive equipment, we
recommend to use only your index finger to touch. Do not use
any metal object to contact or touch the surface. The transmitter
will recognize a valid touch if either side of the surface area are
covered more than 10% for a period of at least 2 second.
2.To activate a signal, you need to touch either side of the groove
surfaces for at least 2 second and then release your finger. If
the touch is valid, it will beep once and a signal will be sent to
the receiver. During this time you will see the transmission icon
on the LCD display for a brief time. No other command can
be given until the transmission is completed.
Child-proof protection:
1.Touch both sides of the groove surface with your two index
fingers simultaneously for at least 3 seconds to enter child-proof
mode. Once you hear two (2) beeps and the child proof icon
appears on the LCD display, the child proof mode is activated.
You will not able to turn the appliance on or off in this mode.
2.Always place both fingers on the middle of the groove surfaces
to ensure a proper touch.
3.To deactivate child proof, repeat step 1. You will hear two (2)
beeps and the child proof icon will disappear.
10 Seconds Continuous Touch Auto Shut Off:
1.If a metal object, (i.e. car key) or your hand is resting
continuously for more than ten (10) seconds on either side of the
groove surfaces (NOT BOTH SURFACES), the transmitter
will emit three (3) beeps and send an off signal to turn off the
appliance. Once the object is removed from the groove
surfaces, the transmitter will remain in the off state until your
next valid touch. Never leave anything on top of the surface
of the touch light transmitter to prevent undesirable
operation.
Low-battery detection:
1.Battery voltage is checked once a minute. When the battery
voltage drops to a certain level, the low-battery warning will
come on, and the transmitter will emit three (3) beeps and send
signals to turn off the appliance. The transmitter will not
function anymore until new batteries are installed.
2.When the batteries are low, the LCD shows a blinking low
battery indicator.
3.Change the battery every six months before the battery is too
weak for normal operation. TURN THE UNIT OFF BEFORE
REPLACING BATTERIES.
Touch Light Transmitter Thermal Shutdown:
1.If transmitter measures a room temperature exceeding 99
degrees Fahrenheit, the LCD will display "HI", emit three (3)
beeps and send an off signal to turn off the appliance.
2.Transmitter will not function until the room temperature has
dropped below 99 degree Fahrenheit.
3.If transmitter measures a room temperature less than 40 degrees
Fahrenheit, the LCD will display "LO", and no signals will be
sent to turn on the appliance.
Receiver:
Slide Switch:
1.ON position: the system will remain on until the slide switch is
placed in the OFF or RS position.
2.RS position: the system will only operate if the remote receiver
receives a signal from the transmitter.
3.OFF position, the system is off. The slide switch should be
placed in the OFF position if you will be away for an extended
period of time. If the remote receiver is mounted out of
children’s reach, the OFF position also functions as a safety
device by both turning the system off and rendering the receiver
inoperable.
TESTING YOUR NEW REMOTE CONTROL
SYSTEM
1.Light your gas appliance following the appliance lighting
instructions that came with the appliance. Confirm that the pilot
light is on; it must be in operation for the remote control to
operate the main gas valve. Appliance control knob must be in
the ON position. Appliance ON/OFF switch must be in OFF
position.
2.Slide the 3 position button on the remote receiver to the ON
position. The main gas flame should ignite.
3.Slide the button to OFF. The flame should extinguish (the pilot
light will remain on).
4.Slide the button to RS (the center position), then touch the
transmitter to turn the system to ON. The main gas flame
should ignite.
5.Touch the transmitter to turn the system to OFF. The flame
should extinguish (the pilot light will remain on).
TROUBLESHOOTING
WARNING: Changes or modifications to this unit not expressly
approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable pro-
tection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency
energy and, if not installed and used in accordance with instruc-
tions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful inter-
ference to radio or television reception, which can be determined
by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following meas-
ures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
WARRANTY
This warranty gives you specific legal rights and you may also
have other rights that vary from state to state or province to
province. Answers to any questions regarding our limited warran-
ty may be obtained by writing our corporate offices.
Ambient Technologies warrants each new Ambient Technologies
remote control against any defects that are due to faulty material
or workmanship to the original owner, for a period of five years
after the original date of purchase. This warranty and our liability
does not apply to batteries, nor does it include damage to mer-
chandise or the remote control resulting from accident, alteration,
neglect, misuse, improper installation or any other failure to fol-
low Ambient Technologies installation and operating instructions.
Ambient Technologies agrees to repair or replace at its option any
Ambient Technologies remote control under warranty provided it
is returned postage prepaid to our warranty facility in a padded
carton within the warranty period, with proof of the original date
of purchase and a brief description of the malfunction. This limit-
ed warranty does not include the cost of removal or re-installation
Ambient Technologies
149 Cleveland Drive
Paris KY 40361
FOR TECHNICAL SUPPORT
CALL 800-398-6195
50D0092 Rev 2 May 2004
Symptom
1. LED light on receiver
blinking or battery icon
on LCD on transmitter.
2. LCD display is blank
3. LCD display shows
"funny" display
4. Appliance does not come
on after a valid touch
(beep)
4. Receiver cannot receive
signal.
Causes
1. Low Battery
1. Wiring / Electrical
Connections
2. Privacy (DIP) switch
setting on transmitter
does not match
receiver
3. Transmitter measures
temperature
exceeding 99 degrees
Fahrenheit and
shows "HI" on LCD
4. Distance between the
transmitter and
receiver is more than
30 feet
1. Receiver is installed
in an enclosure
Action
1. Replace batteries.
Change batteries every 6
months.
2. Check battery installation
and replace batteries.
3. Press Reset button at the
back of the transmitter.
1. Slide the switch to ON, if
appliance comes ON,
wiring is not the cause.
2. If appliance does not
come on, check wiring
connections.
1. Make sure the transmitter
and receiver have the
same DIP switch settings.
1. Move transmitter to a
cooler place and wait
until temperature drops
below 99 degree.
1. Make sure the operating
distance is less than 30
feet
1. Make sure the receiver is
not located inside an
enclosure.
LCD Display During Initialization LCD Display After Initialization
TRANSMISSION
ICON INDICATES
A SIGNAL BEING
SEND TO THE
RECEIVER
FLAME ICON
INDICATES
APPLIANCE IS ON
GROOVE
SURFACE
LOW BATTERY
ICON
