User Manual
50D0077 Rev 1 Page 1 of 10 Ambient Technologies
A Division Of MHS
WWTD
Wireless Wall Thermostatic On/Off Remote Control
INSTALLATION AND OPERATING INSTRUCTIONS
This wireless wall thermostatic on/off remote control – system provides a safe, reliable, and user-friendly remote
control for millivolt valve gas appliances. The system can be operated in a thermostatically or manual mode.
Always check the appliance home owner’s manual for additional information, or warnings regarding accessory
installation before connecting this remote control system.
Carefully inspect the contents for shipping damage. If any parts are missing or damaged, immediately contact the
dealer from whom you purchased the kit. Do not attempt to install any part of the kit unless all parts are in good
condition. Please keep this booklet for future reference.
CONTENTS OF KIT
Description Qty
Transmitter 1
Battery Alkaline AA ( for Transmitter) 2
Receiver (Assembly) consists of: 1
Receiver Box with Adapter
Slide Button-Black (On/RS/Off)
L-Bracket (Floor Mount)
Battery Alkaline AA (for Receiver) 4
Wall Cover Plate-Black 1
Wall Cover Plate-White 1
Slide Button-White (On/RS/Off) 1
Screws (for Wall Cover Plate) 2
Plug-In Wiring Assembly – 18” Inches 1
Velcro (Loop and Hook) 1
Wall Anchor Screws 2
Wall Anchor 2
Screws (for fireplace system control covers) 2
Installation Instructions 1
FEATURES/SPECIFICATIONS
• Contemporary Ergonomic Style Transmitter with Large LCD Display
• Backlit LCD Display
• Battery Powered Transmitter
• Compact 30” wire length of plug in Adapter
• Pre-Programmed for Quick Installation
• Low battery Indication
• Child Proof Lock-out
• 128 Security Codes
• Quick Disconnect Wiring Assembly
• On/Off, Thermostatic, Timer, and 5-2 Day Thermostatic Programming Flexibility
• Reset Button
50D0077 Rev 1 Page 2 of 10 Ambient Technologies
A Division Of MHS
WARNING
Important Safety Information
• Read this manual thoroughly prior to installing, programming or operating any remote control.
• This remote control system is designed for use with a millivolt gas valve system. Do not use this remote
control system on applications with voltages above 30 Volts AC.
• This remote control system requires three (3) “AAA” and four (4) “AA” alkaline batteries to power the
transmitter and receiver. Wiring must conform to appliance requirement and building codes/ordinances as
required by local and national code authorities having jurisdiction.
• Do not short (or jumper) across the gas valve terminals to test the remote control installation. This could
damage the unit and void the warranty.
• This remote control system should only be used as described in this manual. Any other use is not
recommended and will void the warranty.
NOTE
Due to the sensitive temperature monitoring components in the transmitter, it is necessary to
allow the transmitter to stabilize to room temperature before accurate room temperatures are
displayed. If the transmitter is activated from a severe cold condition, allow 15 minutes for
accurate temperature readings to appear on the LCD.
WARNING
Turn appliance OFF and allow to cool before installing or servicing. DO NOT connect
110-120 VAC wiring directly to the milli-volt gas control valve. The remote operator must be
installed exactly as outlined in these instructions. Read all instructions completely before
attempting installation. Follow instructions carefully during installation. Any modification of
components will void the warranty and may cause a fire hazard.
WARNING
Low battery power in the transmitter or receiver can affect the operation of the remote
control in the AUTO mode. In some cases the unit may not cycle off when the target
temperature is reached.
50D0077 Rev 1 Page 3 of 10 Ambient Technologies
A Division Of MHS

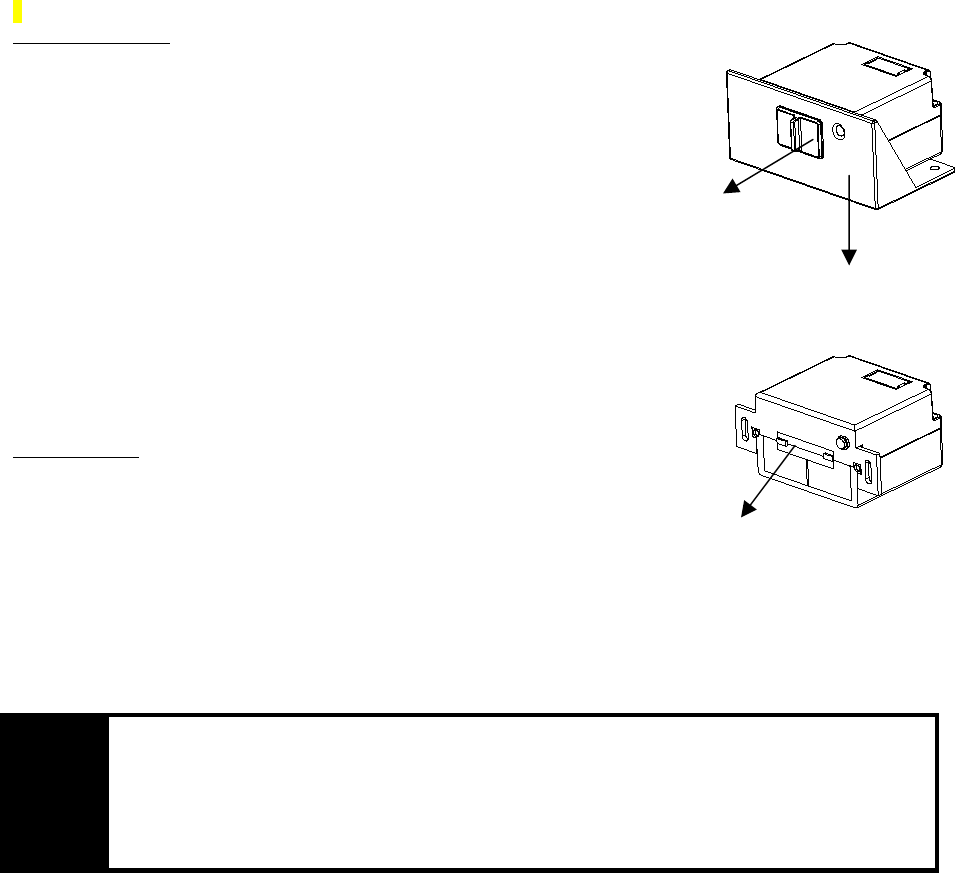

L-Bracket
Slide Switch
Batter
y
Door
INSTALLATIONS
Remote Receiver:
The remote receiver may be wall mounted or installed into the appliance per the appliance homeowner’s manual.
Refer to the Homeowner’s Manual for special installation instructions. If wall mounted, the remote receiver
must be installed in a junction box with cover plate provided. Failure to follow the installation instructions found in
the appropriate Homeowner’s Manual will void the warranty and may cause a fire hazard.
Installing Batteries:
The remote receiver uses four (4) “AA”- size batteries. To install batteries,
1. Remove the slide switch by gently pulling straight out.
2. Use your thumb and index finger to gently pull down the L-bracket.
3. Open the battery door by pressing the two tabs located on the door.
4. Install the batteries as indicated in the receiver cover.
5. Close the battery door until the door tab snaps in place.
6. To install the receiver into a wall junction box, install the receiver with the
screws provided .
7. If you decided to install the receiver into the appliance, reinstall the L-
bracket..
8. Gently, install the slide switch back to the receiver stem.
9. The batteries should be replaced at least once every 6 months or when the
battery indicator flashes.
Installing Wire:
This system comes with an 18 inch pre-assembled wire assembly. Insert the white
terminal to the back of the receiver. The terminal wire block can only be installed
one way. Do not force the terminal plug onto the receiver.
Follow the homeowner’s manual for connecting the two (2) 1/4” female spade terminals to the millivolt valve.
For applications longer than 18 inches, use 18 gauge wire, 105ºC rated, with as few splices as possible. Connect to
the two (2) 1/4“ female spade wiring terminals. Wire can be no longer than 20 feet.
WARNING
Make sure that the wires do not contact the appliances any place other than at the terminals.
Exposure to temperatures higher than 105C (250ºF) may cause the receiver to malfunction or
fire hazard.
50D0077 Rev 1 Page 4 of 10 Ambient Technologies
A Division Of MHS
Wireless Wall Transmitter:
Installing Wireless Transmitter to Wall:
The wireless transmitter can be installed within a radius of 30 feet with no object in
between the line of sight of the receiver . Choose a mounting location about 5 feet
above the floor in an area with good air circulation and away from the following:
1. Air Ducts
2. Radiant heat from the sun and appliances
3. Concealed pipes and chimneys
Installations:
1. Remove the front housing of the wireless thermostat by pressing the two (2)
tabs on the top of the back housing. Let the front housing swing down 180
degress.
2. Mark the holes positions.
3. Drill two (2) holes and insert the plastic anchors carefully until they are flush
with the wall.
4. Fasten securely the back housing to the wall with the two (2) screws.
Installing Batteries:
The wireless transmitter uses two (2) “AA”- size batteries. To install batteries,
1. Remove the front housing of the wireless thermostat by pressing the two (2)
tabs on the top of the back housing. Let the front housing swing down 180
degress.
2. Insert the two (2) batteries into the cavity as indicated on the back of the front
housing. Make sure the polarity of the battery are correct.
3. Close the front housing until the tab snap into the back housing
4. The batteries should be replaced at least once every 6 months or when the low battery come out on the
LCD display.

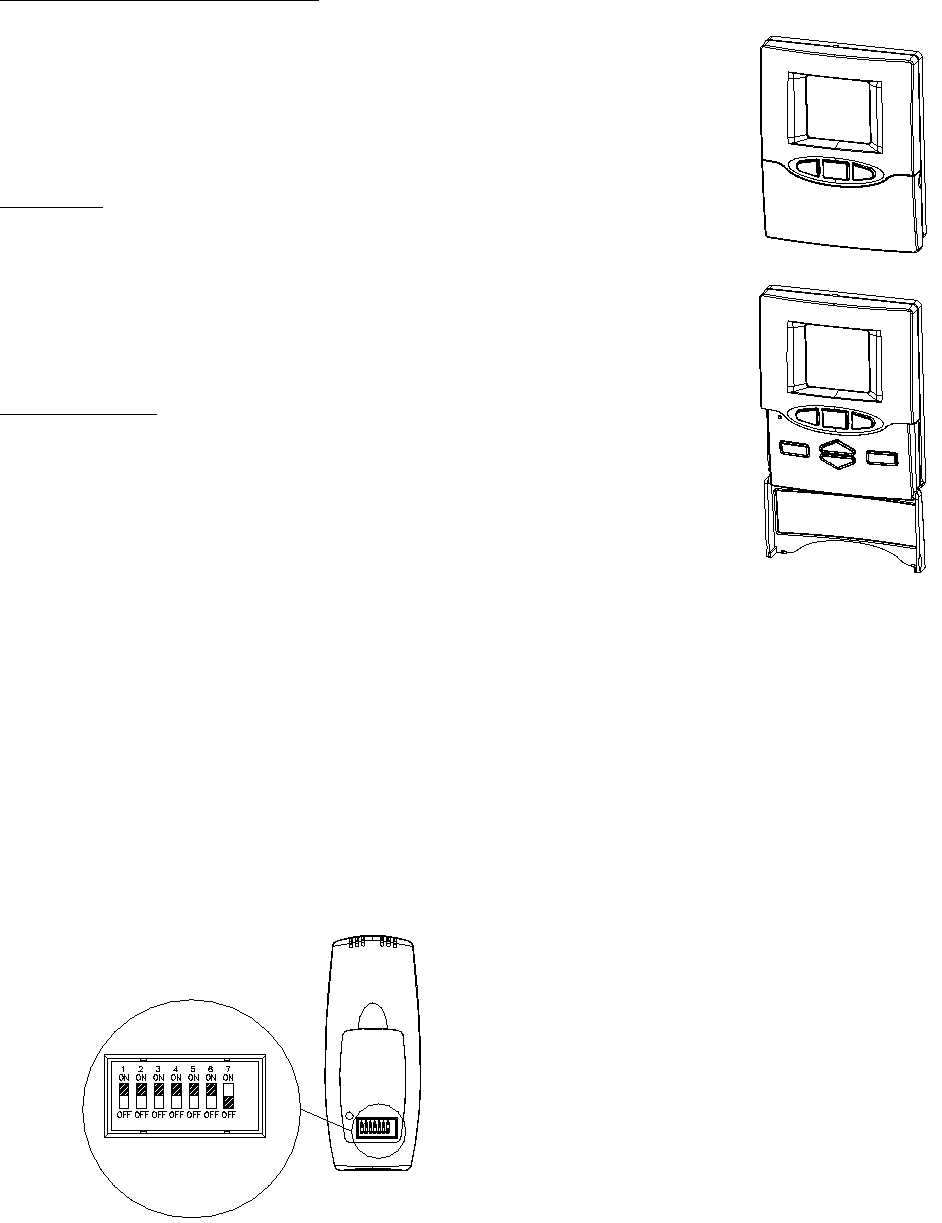

Setting Privacy (DIP) Switch on Receiver and Transmitter:
The remote receiver and transmitter privacy (DIP) switches are preset at the factory. Do not set all DIP switches to
“OFF” position or “ON” position. The receiver and transmitter privacy (DIP) swithes are preset at the factory. In
the event of activation or interference from other nearby transmissions, reset the code using the following procedure:
1. Slide the code switches on the transmitter or receiver to your choice of ON or OFF position. Switches #1
to #6 are preset to “ON”, and #7 are preset to “OFF” for both the transmitter and receiver.
2. The switches on the transmitter and receiver must match in order for the system to work.
3. The system is now ready to operate.
Receiver
Wireless Transmitter
50D0077 Rev 1 Page 5 of 10 Ambient Technologies
A Division Of MHS

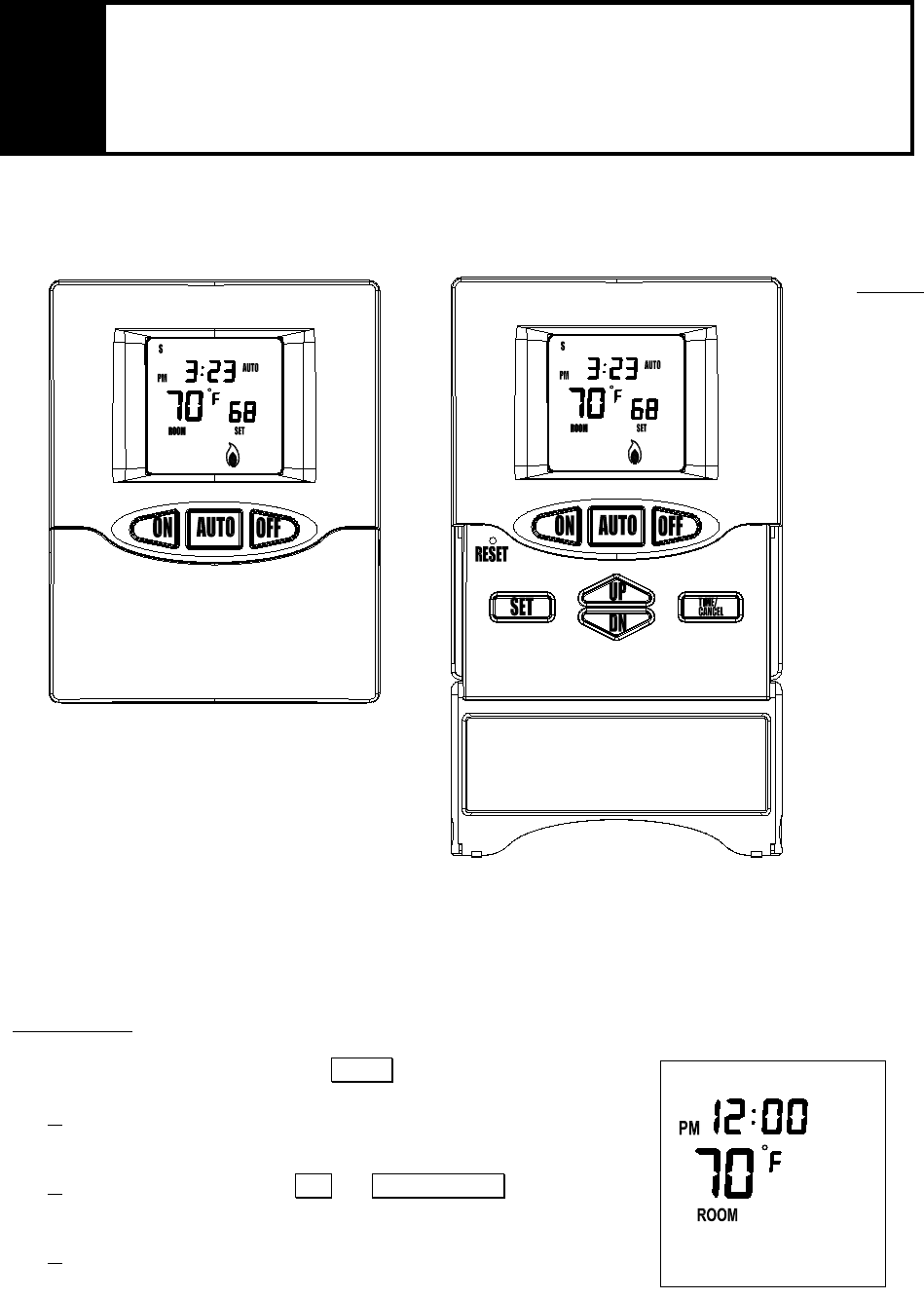

OPERATIONS:
Wireless Wall Transmitter:
General:
The
RCT
Remote
Control
has four
(4 )
operatin
g
modes:
Manual,
Timer,
Auto,
and
Auto-P.
The
control
system
can be
set to
tempera
ture
ranges
between
45°F
and
90°F.
The transmitter will operate the remote receiver from 1foot to a maximum of 30 feet. The distance is reduced when
batteries are low or when the receiver is inside a metal enclosure.
Initial start up:
1. After initial power up or when RESET button is pressed, the
transmitter is reset. The reset button is located behind the flip door.
2. During system reset, all features of the LCD will be visible. After one
second, the LCD will be initialized. A typical reset display is shown
above. Note that the temperature scale is degree F.
3. While °F is flashing, press SET and TIME/CANCEL more than 3
seconds to select between °C and °F display. It will exit setting mode
automatically after 10 seconds if no key is pressed.
4. After reset the transmitter is operating in manual mode. The time and
room temperature are shown as above.
WARNING
Do not use two (2) or more remote control systems in the same area with the same dip switch
settings, as they will communicate with each other. This may cause the appliances to
malfunction.
50D0077 Rev 1 Page 6 of 10 Ambient Technologies
A Division Of MHS
Reset Button:
1. The reset button can be used to reset the systems such as the clock setting. The reset button is located
behind the front flip door.
2. Using a paper clip, press the button and the system will reset and go into clock setting mode.
Setting Clock:
1. While in Manual mode, press SET to enter clock setting mode.
2. In clock setting mode, only clock is displayed. Press SET to select item (hour, minute or day). Selected
item is flashing. Press 4 or 3 to change. Selected item is flashing.
Manual Mode:
1. Press the On button once to turn on the appliance. Press the OFF button to turn it off.
2. In manual mode, the transmitter will not turn the appliance off even if the room temperature is above the
target temperature.

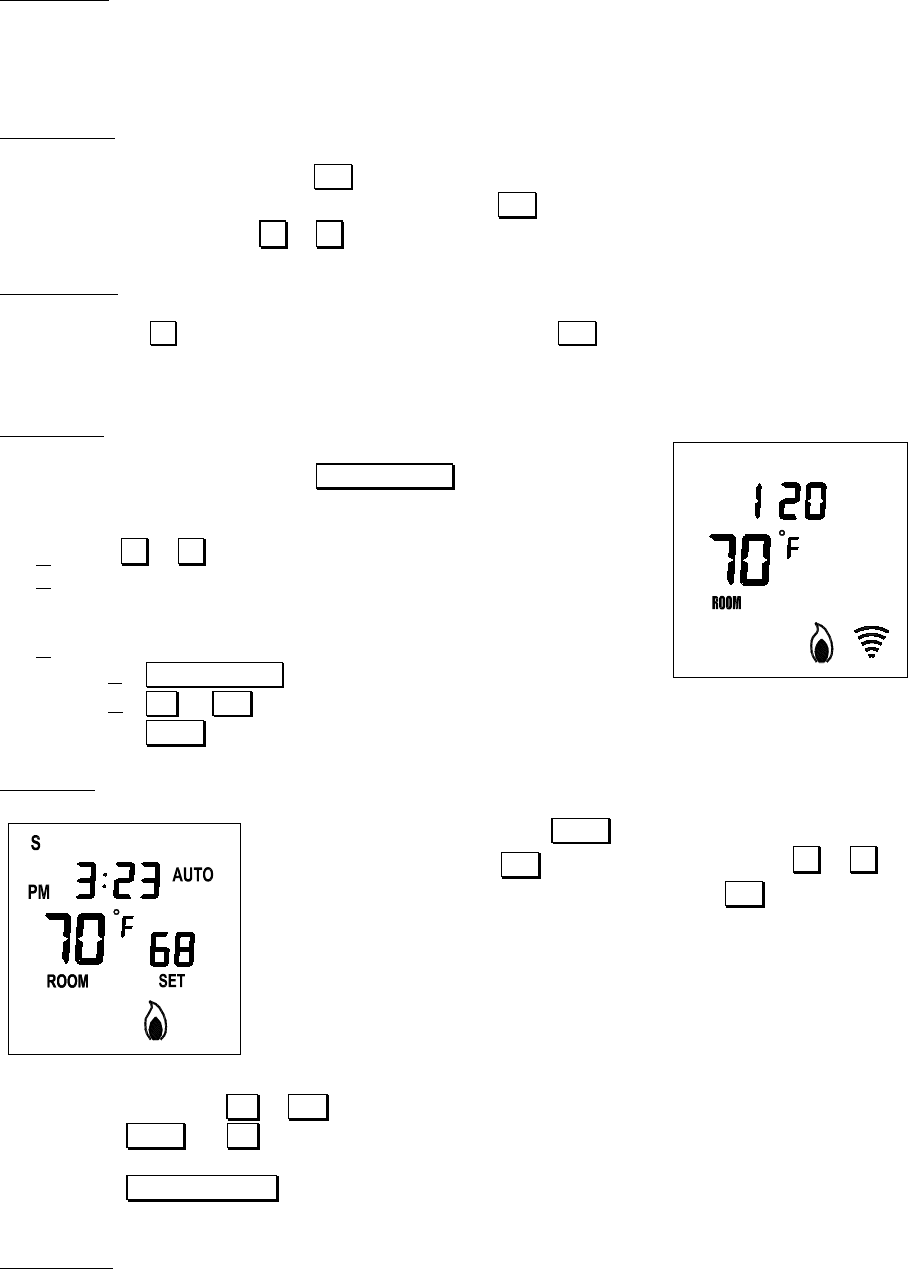

Timer mode:
1. In manual or auto mode press TIME/CANCEL to enter Timer mode.
LCD will display only the timer time and room temperature.
2. In Timer mode, the preset time is 120 minutes (maximum).
3. Press 4 or 3 to select timer time in 10 minute increments.
4. The transmitter will turn on the appliance when entering timer mode.
When the times run out, the transmitter will turn off the appliance and
return to Manual mode.
5. Timer count down can be cancelled by pressing:
a. TIME/CANCEL which returns back to previous mode
b. ON or OFF which returns to manual mode,
c. AUTO which then goes to auto mode.
Auto mode:
1. To enter auto mode, press AUTO in manual mode or timer mode.
2. In auto mode, press SET (set temp will flash) and press 4 or 3 to set
temperature. The default set temperature is 72º F. Press SET again to save and
exit.
3. After entering auto mode, once the setting is completed, the transmitter
will automatically turn on the fireplace when the room temperature is below the
target temperature and turn off the appliance when the room temperature is above
the target temperature.
4. There will be a slight delay in the response of the unit (on/off) to a
temperature. Temperature is monitored every 3 minutes.
5. Flame icon will display when the transmitter is in “ON” position.
6. Pressing either the ON or OFF button, it will change to Manual mode.
7. When AUTO and ON buttons are pressed simultaneously and held more than 3 seconds, it will enter
Auto-P (program) mode.
8. When TIMER/CANCEL button is pressed, it will change to timer mode.

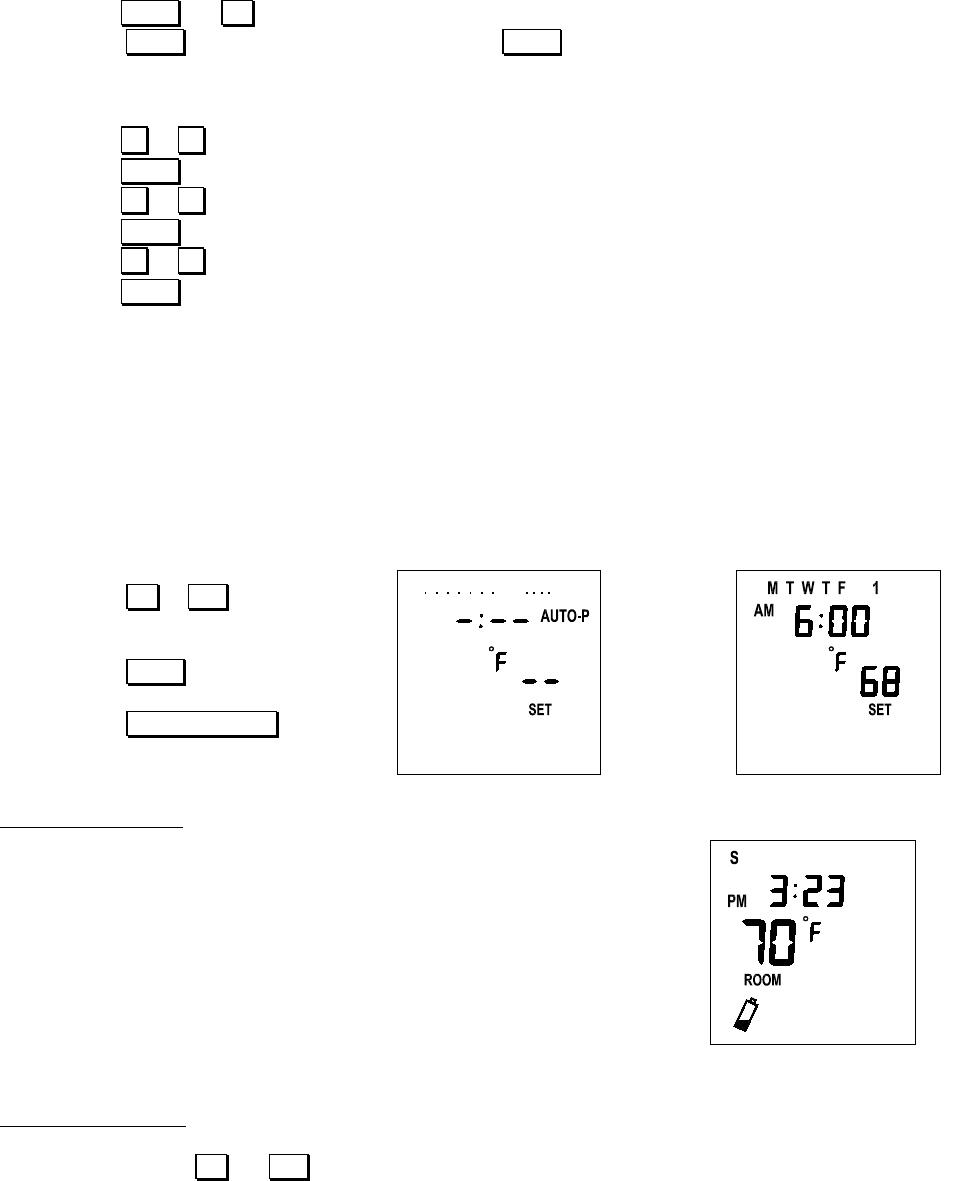

Auto-P mode:
50D0077 Rev 1 Page 7 of 10 Ambient Technologies
A Division Of MHS
Auto-P mode will allow the remote control systems to thermostatically control the appliance on weekdays (Monday
to Friday) and /or on weekends (Saturday and Sunday). The remote control systems cannot be programmed for
individual days. Each group of days (weekdays/weekends) can be programmed for up to two sets of time settings to
cycle.
1. Press AUTO and ON buttons simultaneously and hold for 3 seconds to enter auto programming mode.
2. Press AUTO to start programming the remote. The AUTO button becomes the set button in the Auto P
mode.
3. When entering Auto-P mode, there are no default values and a blank display will be seen as illustrated
below.
4. Press 4 or 3 buttons to set hour for 1’st setting.
5. Press AUTO to save hour and move to minutes.
6. Press 4 or 3 buttons to set minutes for 1’st setting.
7. Press AUTO to save minutes and move to temperature.
8. Press 4 or 3 buttons to set temperature for 1’st setting.
9. Press AUTO to save temperature and move to the 2’nd, 3’rd, & 4th settings of the day.
10. Repeat the program process for each of the settings. Up to 4 settings are available for each day, but you
may set any number up to 4 settings.
11. This completes the programming for Monday (S) to Friday (F) setting. Repeat the process for the Saturday
(S) to Sunday (S) setting.
12. There will be a slight delay in the response of the unit (on/off) to a temperature change.Temperature is
monitored every 3 minutes.
13. When ON or OFF buttons are
pressed, it will change to Manual
mode.
14. When AUTO button is pressed, it
will change to Auto mode.
15. When TIMER/CANCEL button is
pressed, it will change timer mode.
Low-battery detection:
1. Battery voltage is checked once a minute. When the battery voltage
drops to a certain level, the low-battery warning will come on, and the
transmitter will turn off the appliance. The transmitter will not
function anymore until fresh batteries are installed.
2. When the batteries are low, the LCD shows a low battery indicator. The
low battery warning will be displayed in any mode.
3. The transmitter will not operate with low batteries. Change the battery
before the battery is too weak for normal operation. TURN THE UNIT
OFF BEFORE REPLACING BATTERIES.
Child-proof protection:
1. Press and hold ON and OFF buttons simultaneously for 3 seconds to enter child-proof mode.
Blank LCD display
Default LCD values
50D0077 Rev 1 Page 8 of 10 Ambient Technologies
A Division Of MHS
2. The transmitter will not work mode until child-proof mode is deactivated by pressing the ON and OFF
buttons simultaneously for 3 seconds again to exit child-proof mode.

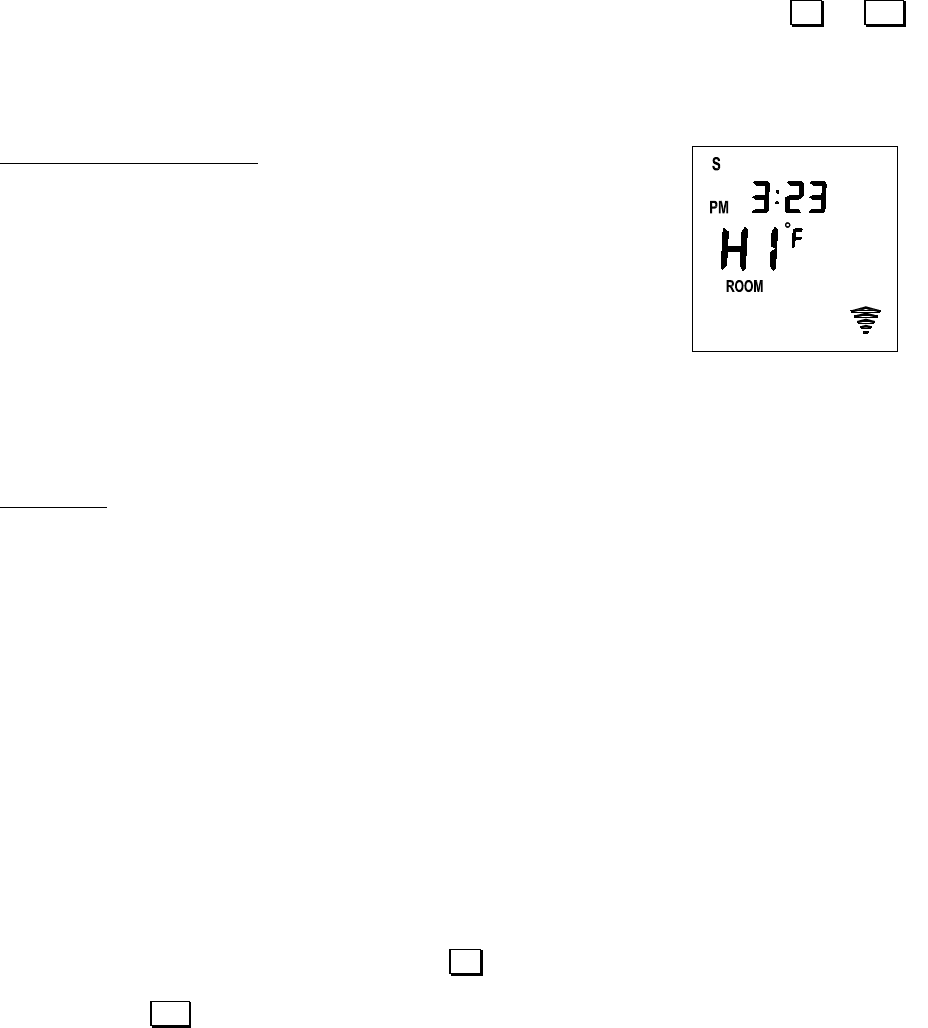

Transmitter Thermal Shutdown:
1. If transmitter measures a room temperature exceeding 99 degrees
Fahrenheit, the LCD will display “HI” and the transmitter will turn off
the appliance.
2. Transmitter will not function until the room temperature has dropped
below 99 degree Fahrenheit.
Receiver:
Slide Switch:
1. ON position: the system will remain on until the slide switch is placed in the OFF or RS (remote) position.
2. RS (remote) position: the system will only operate if the remote receiver receives a signal from the
transmitter.
3. OFF position, the system is off. The slide switch should be placed in the OFF position if you will be away
for an extended period of time. If the remote receiver is mounted out of children’s reach, the OFF position
also functions as a safety device by both turning the system off and rendering the receiver inoperable.
TESTING YOUR NEW REMOTE CONTROL SYSTEM
1. Connect the wiring terminal to the appliance. Refer to the appropriate Homeowner’s Manual for proper
wiring connections to the appliance.
2. Light your gas appliance following the appliance lighting instructions that came with the appliance.
Confirm that the pilot light is on; it must be in operation for the remote control to operate the main gas
valve. Appliance control knob must be in the ON position. Appliance ON/OFF switch must be in OFF
position.
3. Slide the 3 position button on the remote receiver to the ON position. The main gas flame should ignite
4. Slide the button to OFF. The flame should extinguish (the pilot light will remain on).
5. Slide the button to RS (remote), then press the ON button on the transmitter to turn the system to ON. The
main gas flame should ignite.
6. Press the OFF button on the transmitter to turn the system to OFF. The flame should extinguish (the pilot
light will remain on).
TROUBLESHOOTING
50D0077 Rev 1 Page 9 of 10 Ambient Technologies
A Division Of MHS
Symptom Causes Action
1. LCD display is
blank
2. LCD display shows
“funny” display
1. Low Battery 1. Replace batteries. Change
batteries every 6 months.
2. Check battery installation and
replace batteries.
3. Press Reset button at the back of
the transmitter.
4. Appliance does not
come on after pressing
ON on tranmitter
1. Wiring / Electrical Connections 1. Slide the switch to ON, if
appliance comes ON, wiring is not
the causes.
2. If appliance does not come on,
check wiring connections.
2. Privacy (DIP) switch setting on transmitter
does not match receiver
1. Make sure the transmitter and
receiver has the same DIP switch
settings.
3. Transmitter measures temperature exceeding
99 degrees Fahrenheit and shows “HI” on LCD
1. Move transmitter to a cooler
place and wait until temperature
drops below 99 degree.
4. Distance between the transmitter and receiver
is more than 30 feet
1. Make sure the operating distance
is less than 30 feet
5. Receiver cannot
receive signal.
1. Receiver is installed in an enclosure 1. Make sure the receiver is not
located inside an enclosure.
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed
and used in accordance with instructions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
WARRANTY
This warranty gives you specific legal rights and you may also have other rights that vary from state to state or
province to province. Answers to any questions regarding our limited warranty may be obtained by writing our
corporate offices.
Ambient Technologies warrants each new Ambient Technologies remote control against any defects that are due to
faulty material or workmanship to the original owner, for a period of five years after the original date of purchase.
50D0077 Rev 1 Page 10 of 10 Ambient Technologies
A Division Of MHS
This warranty and our liability does not apply to batteries, nor does it include damage to merchandise or the remote
control resulting from accident, alteration, neglect, misuse, improper installation or any other failure to follow
Ambient Technologies installation and operating instructions.
Ambient Technologies agrees to repair or replace at its option any Ambient Technologies remote control under
warranty provided it is returned postage prepaid to our warranty facility in a padded carton within the warranty
period, with proof of the original date of purchase and a brief description of the malfunction. This limited warranty
does not include the cost of removal or re-installation.
Ambient Technologies
149 Cleveland Drive
Paris KY 40361
FOR TECHNICAL SUPPORT
CALL 800-398-6195
