Conexant Systems 37101U 2.4GHz Low power WLAN USB device User Manual ISL37400M EVAL

Conexant Systems Inc. 2.4GHz Low power WLAN USB device ISL37400M EVAL

User manual

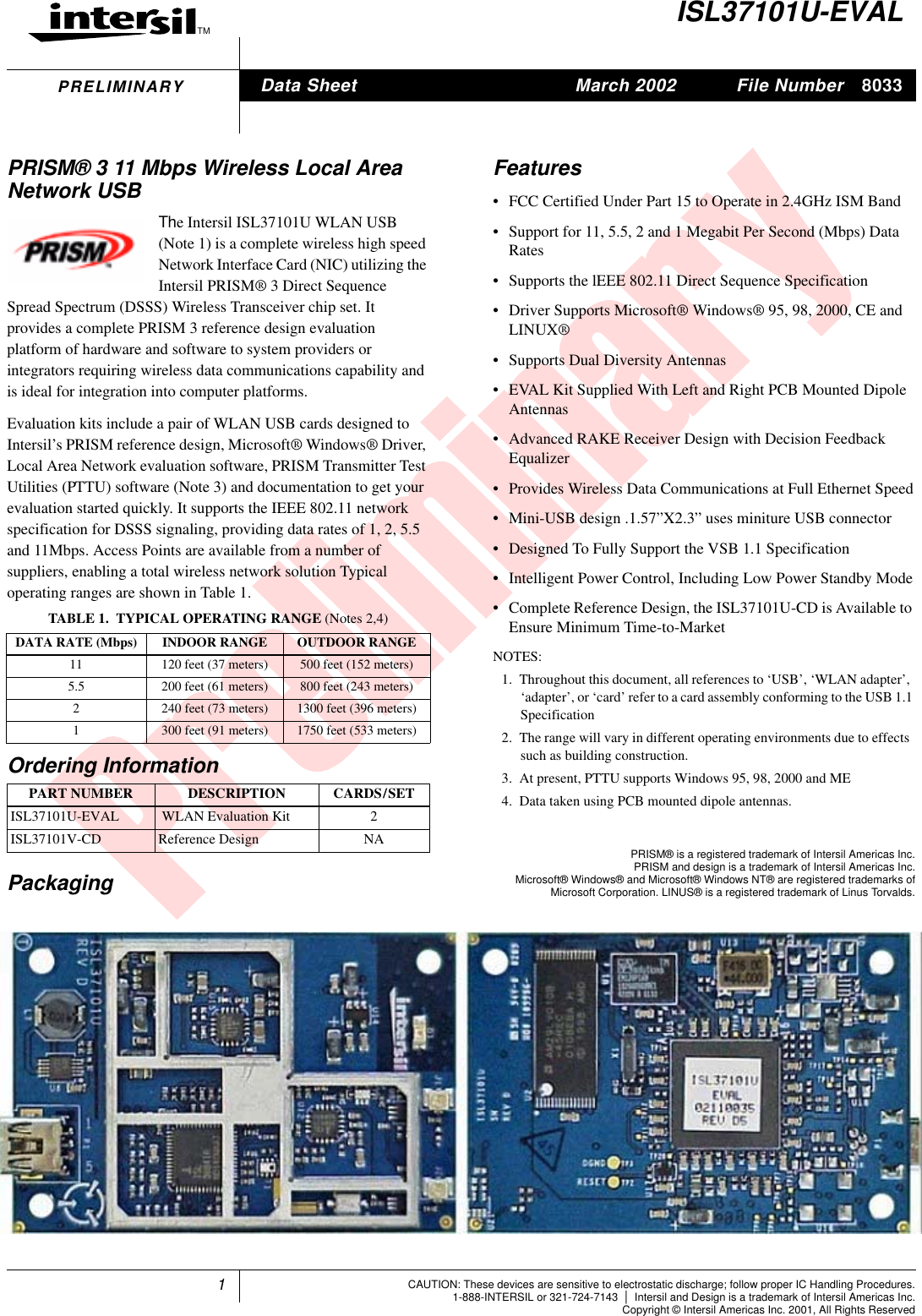

1TMFile Number 8033CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.1-888-INTERSIL or 321-724-7143 |Intersil and Design is a trademark of Intersil Americas Inc.Copyright © Intersil Americas Inc. 2001, All Rights ReservedPRELIMINARYISL37101U-EVALPRISM® 3 11 Mbps Wireless Local AreaNetwork USBThe Intersil ISL37101U WLAN USB(Note 1) is a complete wireless high speedNetwork Interface Card (NIC) utilizing theIntersil PRISM® 3 Direct SequenceSpread Spectrum (DSSS) Wireless Transceiver chip set. Itprovides a complete PRISM 3 reference design evaluationplatform of hardware and software to system providers orintegrators requiring wireless data communications capability andis ideal for integration into computer platforms.Evaluation kits include a pair of WLAN USB cards designed toIntersil’s PRISM reference design, Microsoft® Windows® Driver,Local Area Network evaluation software, PRISM Transmitter TestUtilities (PTTU) software (Note 3) and documentation to get yourevaluation started quickly. It supports the IEEE 802.11 networkspecification for DSSS signaling, providing data rates of 1, 2, 5.5and 11Mbps. Access Points are available from a number ofsuppliers, enabling a total wireless network solution Typicaloperating ranges are shown in Table 1.Features• FCC Certified Under Part 15 to Operate in 2.4GHz ISM Band• Support for 11, 5.5, 2 and 1 Megabit Per Second (Mbps) DataRates• Supports the lEEE 802.11 Direct Sequence Specification• Driver Supports Microsoft® Windows® 95, 98, 2000, CE andLINUX®• Supports Dual Diversity Antennas• EVAL Kit Supplied With Left and Right PCB Mounted DipoleAntennas• Advanced RAKE Receiver Design with Decision FeedbackEqualizer• Provides Wireless Data Communications at Full Ethernet Speed• Mini-USB design .1.57”X2.3” uses miniture USB connector• Designed To Fully Support the VSB 1.1 Specification• Intelligent Power Control, Including Low Power Standby Mode• Complete Reference Design, the ISL37101U-CD is Available toEnsure Minimum Time-to-MarketNOTES:1. Throughout this document, all references to ‘USB’, ‘WLAN adapter’,‘adapter’, or ‘card’ refer to a card assembly conforming to the USB 1.1Specification2. The range will vary in different operating environments due to effectssuch as building construction.3. At present, PTTU supports Windows 95, 98, 2000 and ME4. Data taken using PCB mounted dipole antennas.PackagingTABLE 1. TYPICAL OPERATING RANGE (Notes 2,4)DATA RATE (Mbps) INDOOR RANGE OUTDOOR RANGE11 120 feet (37 meters) 500 feet (152 meters)5.5 200 feet (61 meters) 800 feet (243 meters)2 240 feet (73 meters) 1300 feet (396 meters)1 300 feet (91 meters) 1750 feet (533 meters)Ordering InformationPART NUMBER DESCRIPTION CARDS/SETISL37101U-EVAL WLAN Evaluation Kit 2ISL37101V-CD Reference Design NAData Sheet March 2002PRISM® is a registered trademark of Intersil Americas Inc.PRISM and design is a trademark of Intersil Americas Inc.Microsoft® Windows® and Microsoft® Windows NT® are registered trademarks ofMicrosoft Corporation. LINUS® is a registered trademark of Linus Torvalds.

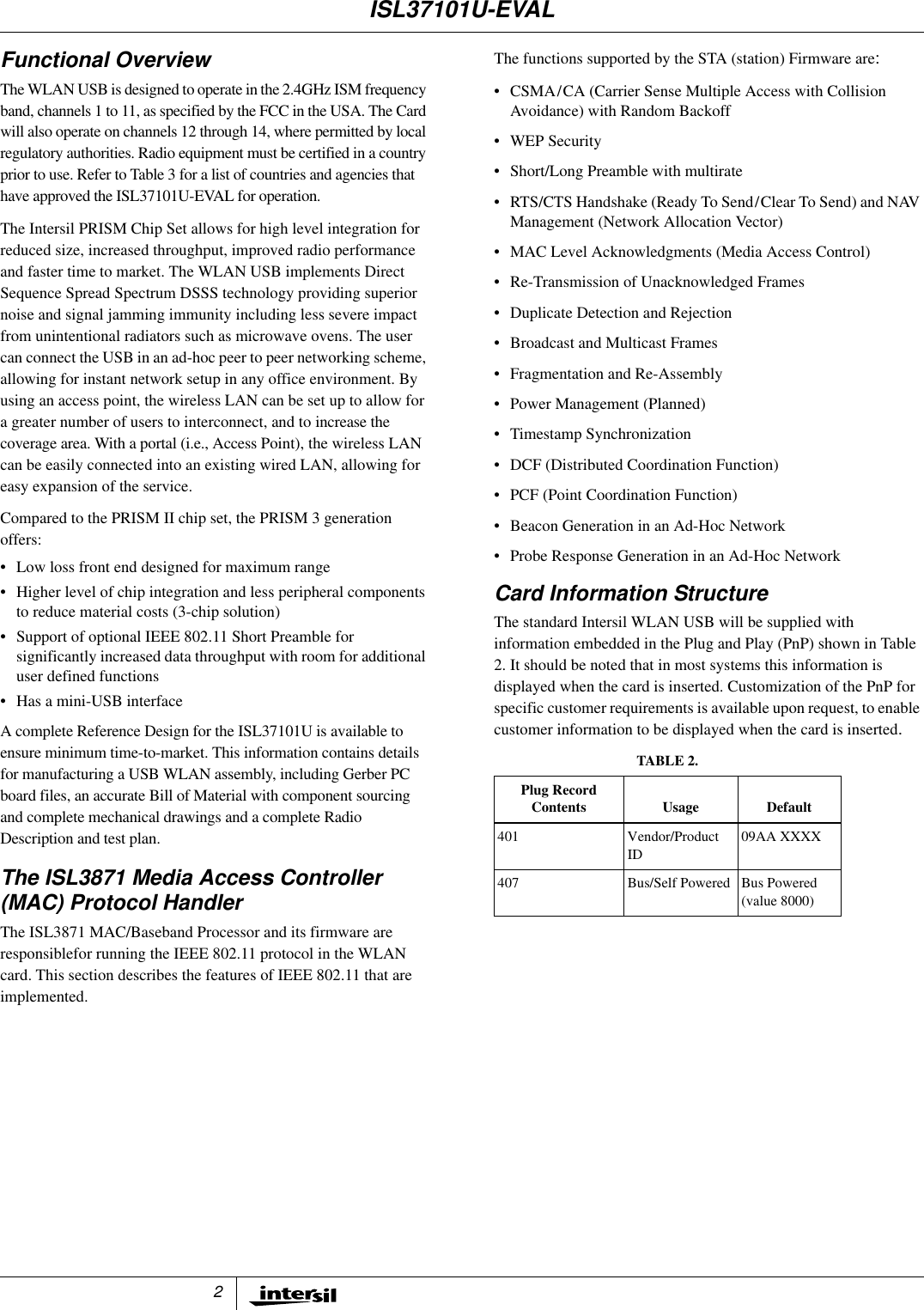

2Functional OverviewThe WLAN USB is designed to operate in the 2.4GHz ISM frequencyband, channels 1 to 11, as specified by the FCC in the USA. The Cardwill also operate on channels 12 through 14, where permitted by localregulatory authorities. Radio equipment must be certified in a countryprior to use. Refer to Table 3 for a list of countries and agencies thathave approved the ISL37101U-EVAL for operation.The Intersil PRISM Chip Set allows for high level integration forreduced size, increased throughput, improved radio performanceand faster time to market. The WLAN USB implements DirectSequence Spread Spectrum DSSS technology providing superiornoise and signal jamming immunity including less severe impactfrom unintentional radiators such as microwave ovens. The usercan connect the USB in an ad-hoc peer to peer networking scheme,allowing for instant network setup in any office environment. Byusing an access point, the wireless LAN can be set up to allow fora greater number of users to interconnect, and to increase thecoverage area. With a portal (i.e., Access Point), the wireless LANcan be easily connected into an existing wired LAN, allowing foreasy expansion of the service.Compared to the PRISM II chip set, the PRISM 3 generationoffers:• Low loss front end designed for maximum range• Higher level of chip integration and less peripheral componentsto reduce material costs (3-chip solution)• Support of optional IEEE 802.11 Short Preamble forsignificantly increased data throughput with room for additionaluser defined functions• Has a mini-USB interfaceA complete Reference Design for the ISL37101U is available toensure minimum time-to-market. This information contains detailsfor manufacturing a USB WLAN assembly, including Gerber PCboard files, an accurate Bill of Material with component sourcingand complete mechanical drawings and a complete RadioDescription and test plan.The ISL3871 Media Access Controller(MAC) Protocol HandlerThe ISL3871 MAC/Baseband Processor and its firmware areresponsiblefor running the IEEE 802.11 protocol in the WLANcard. This section describes the features of IEEE 802.11 that areimplemented.The functions supported by the STA (station) Firmware are:• CSMA/CA (Carrier Sense Multiple Access with CollisionAvoidance) with Random Backoff•WEPSecurity• Short/Long Preamble with multirate• RTS/CTS Handshake (Ready To Send/Clear To Send) and NAVManagement (Network Allocation Vector)• MAC Level Acknowledgments (Media Access Control)• Re-Transmission of Unacknowledged Frames• Duplicate Detection and Rejection• Broadcast and Multicast Frames• Fragmentation and Re-Assembly• Power Management (Planned)• Timestamp Synchronization• DCF (Distributed Coordination Function)• PCF (Point Coordination Function)• Beacon Generation in an Ad-Hoc Network• Probe Response Generation in an Ad-Hoc NetworkCard Information StructureThe standard Intersil WLAN USB will be supplied withinformationembeddedinthePlugandPlay(PnP)showninTable2. It should be noted that in most systems this information isdisplayed when the card is inserted. Customization of the PnP forspecific customer requirements is available upon request, to enablecustomer information to be displayed when the card is inserted.TABLE 2.Plug RecordContents Usage Default401 Vendor/ProductID09AA XXXX407 Bus/Self Powered Bus Powered(value 8000)ISL37101U-EVAL

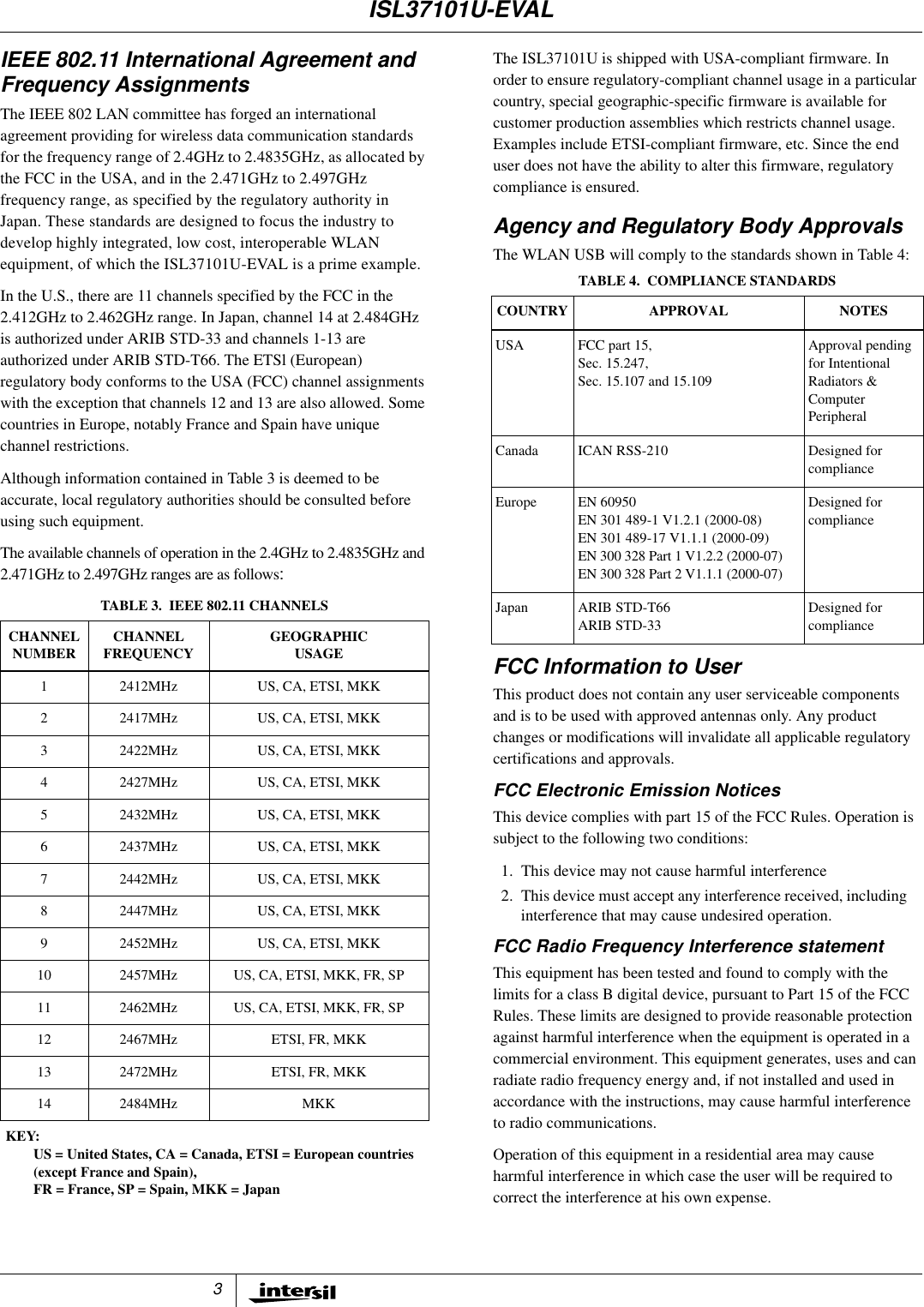

3IEEE 802.11 International Agreement andFrequency AssignmentsThe IEEE 802 LAN committee has forged an internationalagreement providing for wireless data communication standardsfor the frequency range of 2.4GHz to 2.4835GHz, as allocated bythe FCC in the USA, and in the 2.471GHz to 2.497GHzfrequency range, as specified by the regulatory authority inJapan. These standards are designed to focus the industry todevelop highly integrated, low cost, interoperable WLANequipment, of which the ISL37101U-EVAL is a prime example.In the U.S., there are 11 channels specified by the FCC in the2.412GHz to 2.462GHz range. In Japan, channel 14 at 2.484GHzis authorized under ARIB STD-33 and channels 1-13 areauthorized under ARIB STD-T66. The ETSl (European)regulatory body conforms to the USA (FCC) channel assignmentswith the exception that channels 12 and 13 are also allowed. Somecountries in Europe, notably France and Spain have uniquechannel restrictions.Although information contained in Table 3 is deemed to beaccurate, local regulatory authorities should be consulted beforeusing such equipment.The available channels of operation in the 2.4GHz to 2.4835GHz and2.471GHz to 2.497GHz ranges are as follows:The ISL37101U is shipped with USA-compliant firmware. Inorder to ensure regulatory-compliant channel usage in a particularcountry, special geographic-specific firmware is available forcustomer production assemblies which restricts channel usage.Examples include ETSI-compliant firmware, etc. Since the enduser does not have the ability to alter this firmware, regulatorycompliance is ensured.Agency and Regulatory Body ApprovalsThe WLAN USB will comply to the standards shown in Table 4:FCC Information to UserThis product does not contain any user serviceable componentsand is to be used with approved antennas only. Any productchanges or modifications will invalidate all applicable regulatorycertifications and approvals.FCC Electronic Emission NoticesThis device complies with part 15 of the FCC Rules. Operation issubject to the following two conditions:1. This device may not cause harmful interference2. This device must accept any interference received, includinginterference that may cause undesired operation.FCC Radio Frequency Interference statementThis equipment has been tested and found to comply with thelimits for a class B digital device, pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protectionagainst harmful interference when the equipment is operated in acommercial environment. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interferenceto radio communications.Operation of this equipment in a residential area may causeharmful interference in which case the user will be required tocorrect the interference at his own expense.TABLE 3. IEEE 802.11 CHANNELSCHANNELNUMBER CHANNELFREQUENCY GEOGRAPHICUSAGE1 2412MHz US, CA, ETSI, MKK2 2417MHz US, CA, ETSI, MKK3 2422MHz US, CA, ETSI, MKK4 2427MHz US, CA, ETSI, MKK5 2432MHz US, CA, ETSI, MKK6 2437MHz US, CA, ETSI, MKK7 2442MHz US, CA, ETSI, MKK8 2447MHz US, CA, ETSI, MKK9 2452MHz US, CA, ETSI, MKK10 2457MHz US, CA, ETSI, MKK, FR, SP11 2462MHz US, CA, ETSI, MKK, FR, SP12 2467MHz ETSI, FR, MKK13 2472MHz ETSI, FR, MKK14 2484MHz MKKKEY:US = United States, CA = Canada, ETSI = European countries(except France and Spain),FR = France, SP = Spain, MKK = JapanTABLE 4. COMPLIANCE STANDARDSCOUNTRY APPROVAL NOTESUSA FCC part 15,Sec. 15.247,Sec. 15.107 and 15.109Approval pendingfor IntentionalRadiators &ComputerPeripheralCanada ICAN RSS-210 Designed forcomplianceEurope EN 60950EN 301 489-1 V1.2.1 (2000-08)EN 301 489-17 V1.1.1 (2000-09)EN 300 328 Part 1 V1.2.2 (2000-07)EN 300 328 Part 2 V1.1.1 (2000-07)Designed forcomplianceJapan ARIB STD-T66ARIB STD-33Designed forcomplianceISL37101U-EVAL

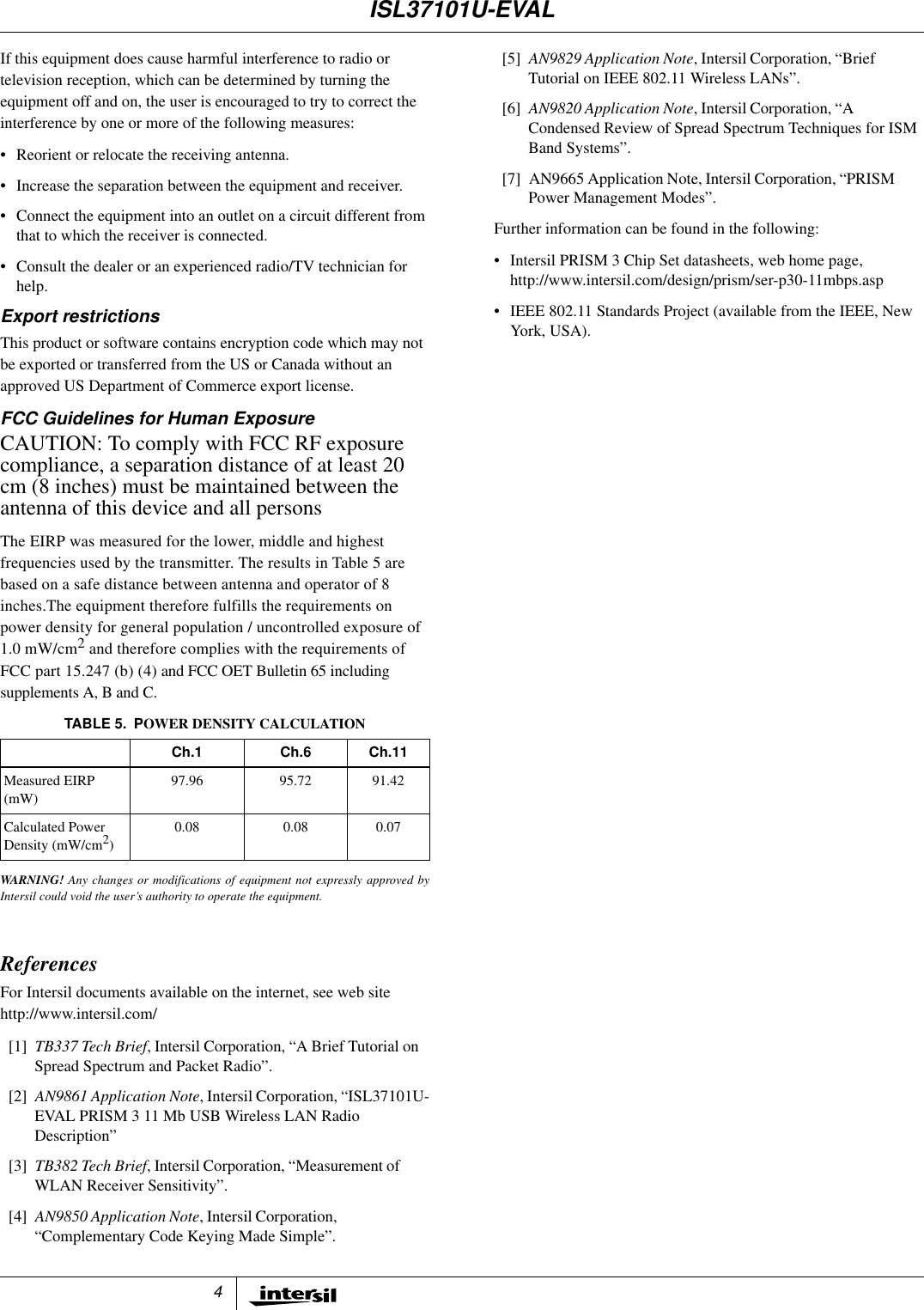

4If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning theequipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician forhelp.Export restrictionsThis product or software contains encryption code which may notbe exported or transferred from the US or Canada without anapproved US Department of Commerce export license.FCC Guidelines for Human ExposureCAUTION: To comply with FCC RF exposurecompliance, a separation distance of at least 20cm (8 inches) must be maintained between theantenna of this device and all personsThe EIRP was measured for the lower, middle and highestfrequencies used by the transmitter. The results in Table 5 arebased on a safe distance between antenna and operator of 8inches.The equipment therefore fulfills the requirements onpower density for general population / uncontrolled exposure of1.0 mW/cm2and therefore complies with the requirements ofFCC part 15.247 (b) (4) and FCC OET Bulletin 65 includingsupplements A, B and C.WARNING! Any changes or modifications of equipment not expressly approved byIntersil could void the user’s authority to operate the equipment.ReferencesFor Intersil documents available on the internet, see web sitehttp://www.intersil.com/[1] TB337 Tech Brief, Intersil Corporation, “A Brief Tutorial onSpread Spectrum and Packet Radio”.[2] AN9861 Application Note, Intersil Corporation, “ISL37101U-EVAL PRISM 3 11 Mb USB Wireless LAN RadioDescription”[3] TB382 Tech Brief, Intersil Corporation, “Measurement ofWLAN Receiver Sensitivity”.[4] AN9850 Application Note, Intersil Corporation,“Complementary Code Keying Made Simple”.[5] AN9829 Application Note, Intersil Corporation, “BriefTutorial on IEEE 802.11 Wireless LANs”.[6] AN9820 Application Note, Intersil Corporation, “ACondensed Review of Spread Spectrum Techniques for ISMBand Systems”.[7] AN9665 Application Note, Intersil Corporation, “PRISMPower Management Modes”.Further information can be found in the following:• Intersil PRISM 3 Chip Set datasheets, web home page,http://www.intersil.com/design/prism/ser-p30-11mbps.asp• IEEE 802.11 Standards Project (available from the IEEE, NewYork, USA).TABLE 5. POWER DENSITY CALCULATIONCh.1 Ch.6 Ch.11Measured EIRP(mW)97.96 95.72 91.42Calculated PowerDensity (mW/cm2)0.08 0.08 0.07ISL37101U-EVAL

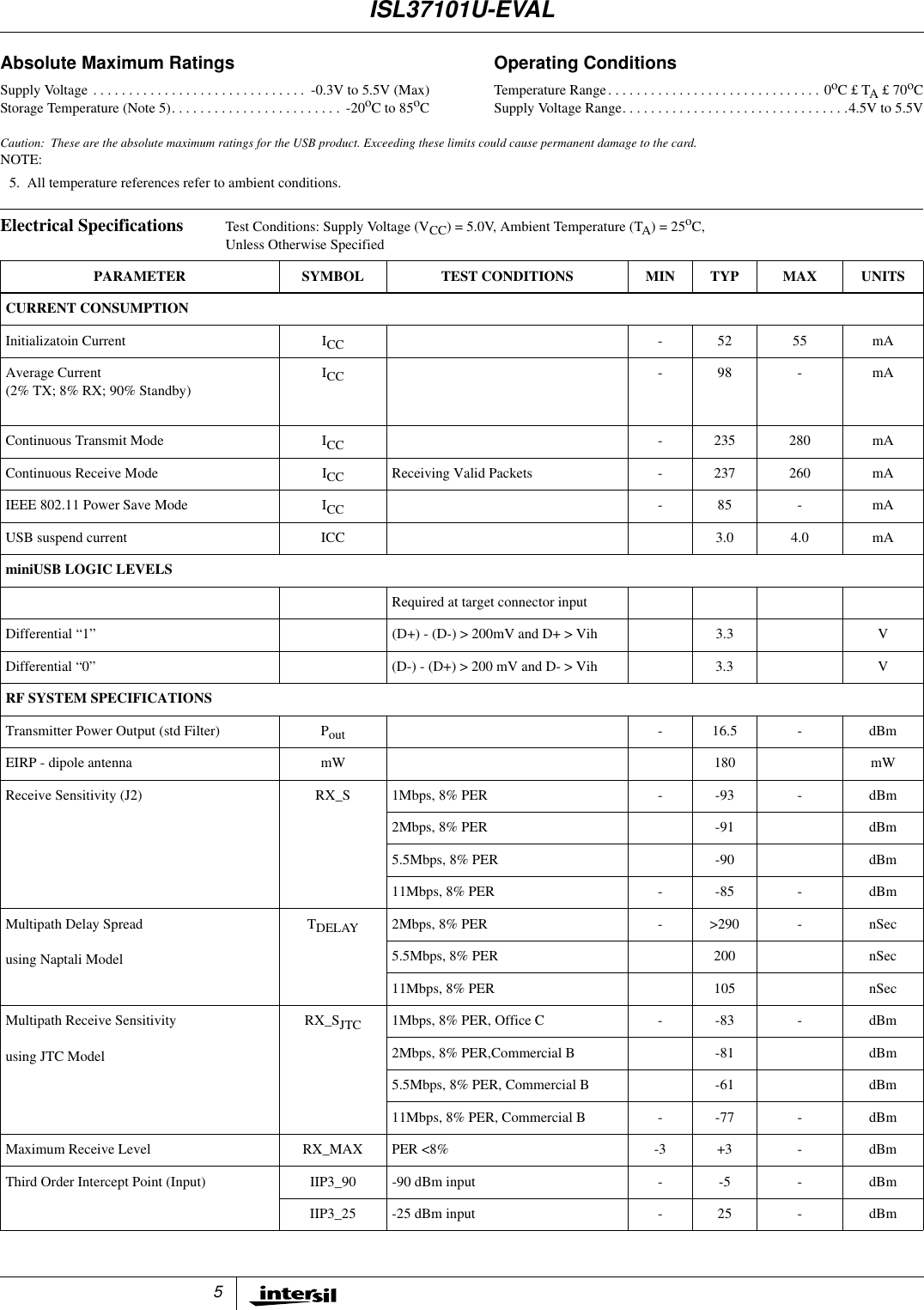

5Absolute Maximum Ratings Operating ConditionsSupplyVoltage.............................. -0.3Vto5.5V(Max)StorageTemperature(Note5)........................ -20oCto85oCTemperatureRange..............................0oC£TA£70oCSupplyVoltageRange................................4.5Vto5.5VCaution: These are the absolute maximum ratings for the USB product. Exceeding these limits could cause permanent damage to the card.NOTE:5. All temperature references refer to ambient conditions.Electrical Specifications Test Conditions: Supply Voltage (VCC) = 5.0V, Ambient Temperature (TA)=25oC,Unless Otherwise SpecifiedPARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITSCURRENT CONSUMPTIONInitializatoin Current ICC -52 55 mAAverage Current(2% TX; 8% RX; 90% Standby)ICC -98 - mAContinuous Transmit Mode ICC -235 280 mAContinuous Receive Mode ICC Receiving Valid Packets - 237 260 mAIEEE 802.11 Power Save Mode ICC -85 - mAUSB suspend current ICC 3.0 4.0 mAminiUSB LOGIC LEVELSRequired at target connector inputDifferential “1” (D+) - (D-) > 200mV and D+ > Vih 3.3 VDifferential “0” (D-) - (D+) > 200 mV and D- > Vih 3.3 VRF SYSTEM SPECIFICATIONSTransmitter Power Output (std Filter) Pout - 16.5 - dBmEIRP - dipole antenna mW 180 mWReceive Sensitivity (J2) RX_S 1Mbps, 8% PER - -93 - dBm2Mbps, 8% PER -91 dBm5.5Mbps, 8% PER -90 dBm11Mbps, 8% PER - -85 - dBmMultipath Delay Spreadusing Naptali ModelTDELAY 2Mbps, 8% PER - >290 - nSec5.5Mbps, 8% PER 200 nSec11Mbps, 8% PER 105 nSecMultipath Receive Sensitivityusing JTC ModelRX_SJTC 1Mbps, 8% PER, Office C - -83 - dBm2Mbps, 8% PER,Commercial B -81 dBm5.5Mbps, 8% PER, Commercial B -61 dBm11Mbps, 8% PER, Commercial B - -77 - dBmMaximum Receive Level RX_MAX PER <8% -3 +3 - dBmThird Order Intercept Point (Input) IIP3_90 -90 dBm input - -5 - dBmIIP3_25 -25 dBm input - 25 - dBmISL37101U-EVAL

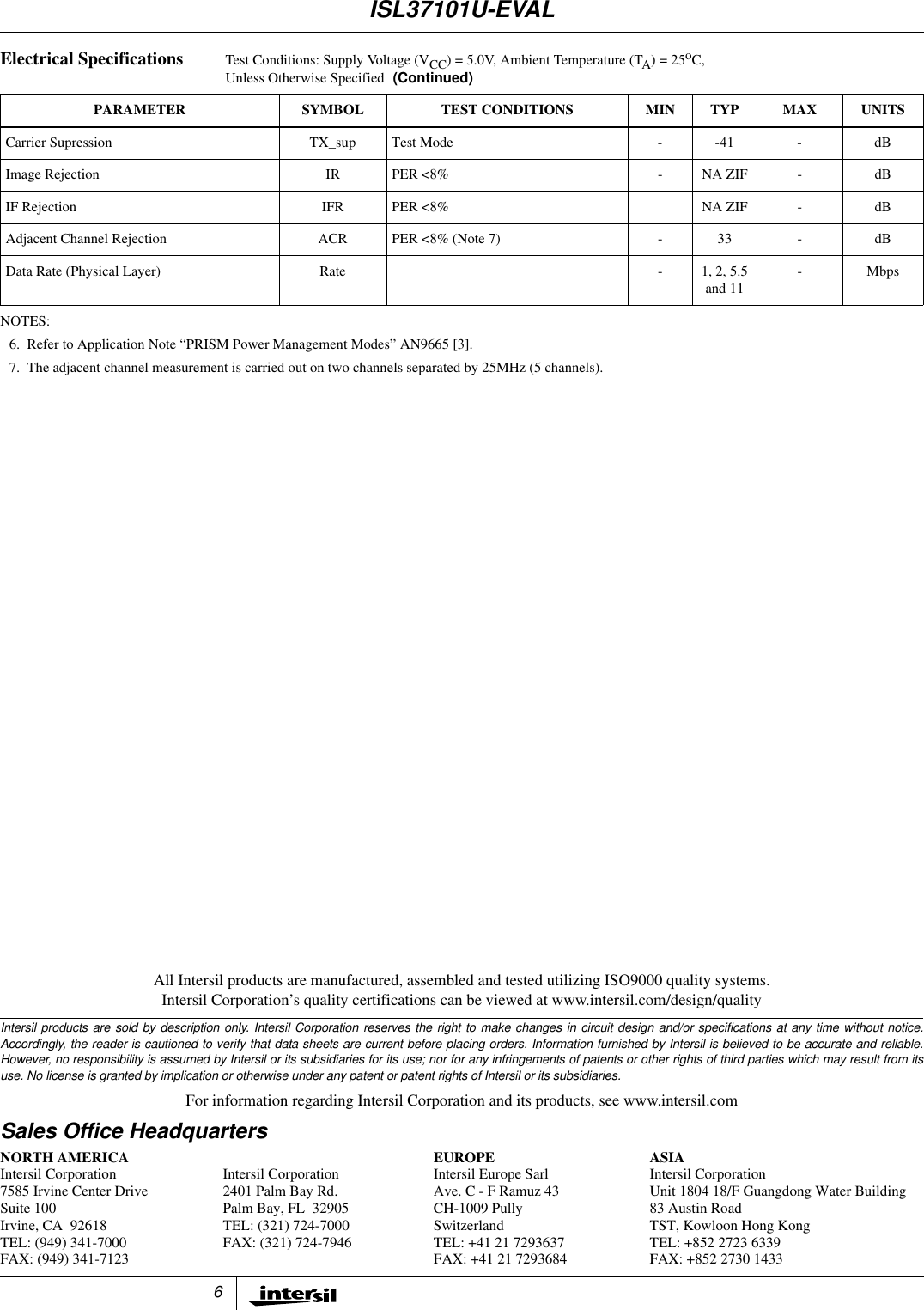

6All Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems.Intersil Corporation’s quality certifications can be viewed at www.intersil.com/design/qualityIntersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice.Accordingly, the reader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable.However, no responsibility is assumed by Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from itsuse. No license is granted by implication or otherwise under any patent or patent rights of Intersil or its subsidiaries.For information regarding Intersil Corporation and its products, see www.intersil.comSales Office HeadquartersNORTH AMERICAIntersil Corporation7585 Irvine Center DriveSuite 100Irvine, CA 92618TEL: (949) 341-7000FAX: (949) 341-7123Intersil Corporation2401 Palm Bay Rd.Palm Bay, FL 32905TEL: (321) 724-7000FAX: (321) 724-7946EUROPEIntersil Europe SarlAve. C - F Ramuz 43CH-1009 PullySwitzerlandTEL: +41 21 7293637FAX: +41 21 7293684ASIAIntersil CorporationUnit 1804 18/F Guangdong Water Building83 Austin RoadTST, Kowloon Hong KongTEL: +852 2723 6339FAX: +852 2730 1433Carrier Supression TX_sup Test Mode - -41 - dBImage Rejection IR PER <8% - NA ZIF - dBIF Rejection IFR PER <8% NA ZIF - dBAdjacent Channel Rejection ACR PER <8% (Note 7) - 33 - dBData Rate (Physical Layer) Rate - 1, 2, 5.5and 11-MbpsNOTES:6. Refer to Application Note “PRISM Power Management Modes” AN9665 [3].7. The adjacent channel measurement is carried out on two channels separated by 25MHz (5 channels).Electrical Specifications Test Conditions: Supply Voltage (VCC) = 5.0V, Ambient Temperature (TA)=25oC,Unless Otherwise Specified (Continued)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITSISL37101U-EVAL
7ISL37100P-EVAL
