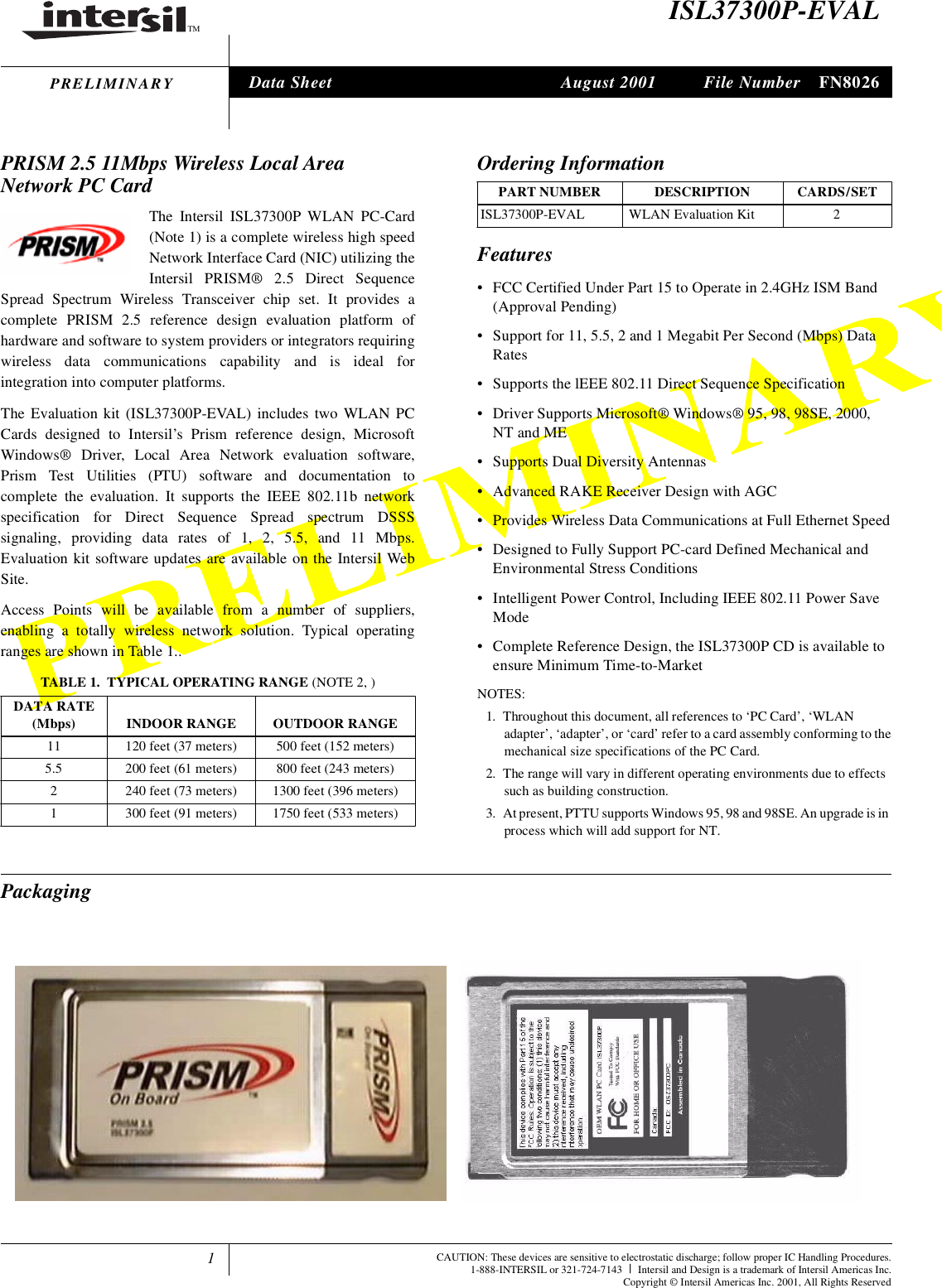

1TMFile Number FN8026CAUTION: These devices are sensitive to electrostatic discharge; follow proper IC Handling Procedures.1-888-INTERSIL or 321-724-7143 |Intersil and Design is a trademark of Intersil Americas Inc.Copyright © Intersil Americas Inc. 2001, All Rights ReservedPRELIMINARYISL37300P-EVALPRISM 2.5 11Mbps Wireless Local AreaNetwork PC CardThe Intersil ISL37300P WLAN PC-Card(Note 1) is a complete wireless high speedNetwork Interface Card (NIC) utilizing theIntersil PRISM® 2.5 Direct SequenceSpread Spectrum Wireless Transceiver chip set. It provides acomplete PRISM 2.5 reference design evaluation platform ofhardware and software to system providers or integrators requiringwireless data communications capability and is ideal forintegration into computer platforms.The Evaluation kit (ISL37300P-EVAL) includes two WLAN PCCards designed to Intersil’s Prism reference design, MicrosoftWindows® Driver, Local Area Network evaluation software,Prism Test Utilities (PTU) software and documentation tocomplete the evaluation. It supports the IEEE 802.11b networkspecification for Direct Sequence Spread spectrum DSSSsignaling, providing data rates of 1, 2, 5.5, and 11 Mbps.Evaluation kit software updates are available on the Intersil WebSite.Access Points will be available from a number of suppliers,enabling a totally wireless network solution. Typical operatingranges are shown in Table 1..Features• FCC Certified Under Part 15 to Operate in 2.4GHz ISM Band(Approval Pending)• Support for 11, 5.5, 2 and 1 Megabit Per Second (Mbps) DataRates• Supports the lEEE 802.11 Direct Sequence Specification• Driver Supports Microsoft® Windows® 95, 98, 98SE, 2000,NT and ME• Supports Dual Diversity Antennas• Advanced RAKE Receiver Design with AGC• Provides Wireless Data Communications at Full Ethernet Speed• Designed to Fully Support PC-card Defined Mechanical andEnvironmental Stress Conditions• Intelligent Power Control, Including IEEE 802.11 Power SaveMode• Complete Reference Design, the ISL37300P CD is available toensure Minimum Time-to-MarketNOTES:1. Throughout this document, all references to ‘PC Card’, ‘WLANadapter’, ‘adapter’, or ‘card’ refer to a card assembly conforming to themechanical size specifications of the PC Card.2. The range will vary in different operating environments due to effectssuch as building construction.3. At present, PTTU supports Windows 95, 98 and 98SE. An upgrade is inprocess which will add support for NT.PackagingTABLE 1. TYPICAL OPERATING RANGE (NOTE 2, )DATA RATE(Mbps) INDOOR RANGE OUTDOOR RANGE11 120 feet (37 meters) 500 feet (152 meters)5.5 200 feet (61 meters) 800 feet (243 meters)2 240 feet (73 meters) 1300 feet (396 meters)1 300 feet (91 meters) 1750 feet (533 meters)Ordering InformationPART NUMBER DESCRIPTION CARDS/SETISL37300P-EVAL WLAN Evaluation Kit 2Data Sheet August 2001tlejecthow()atoCIareeOesCWar

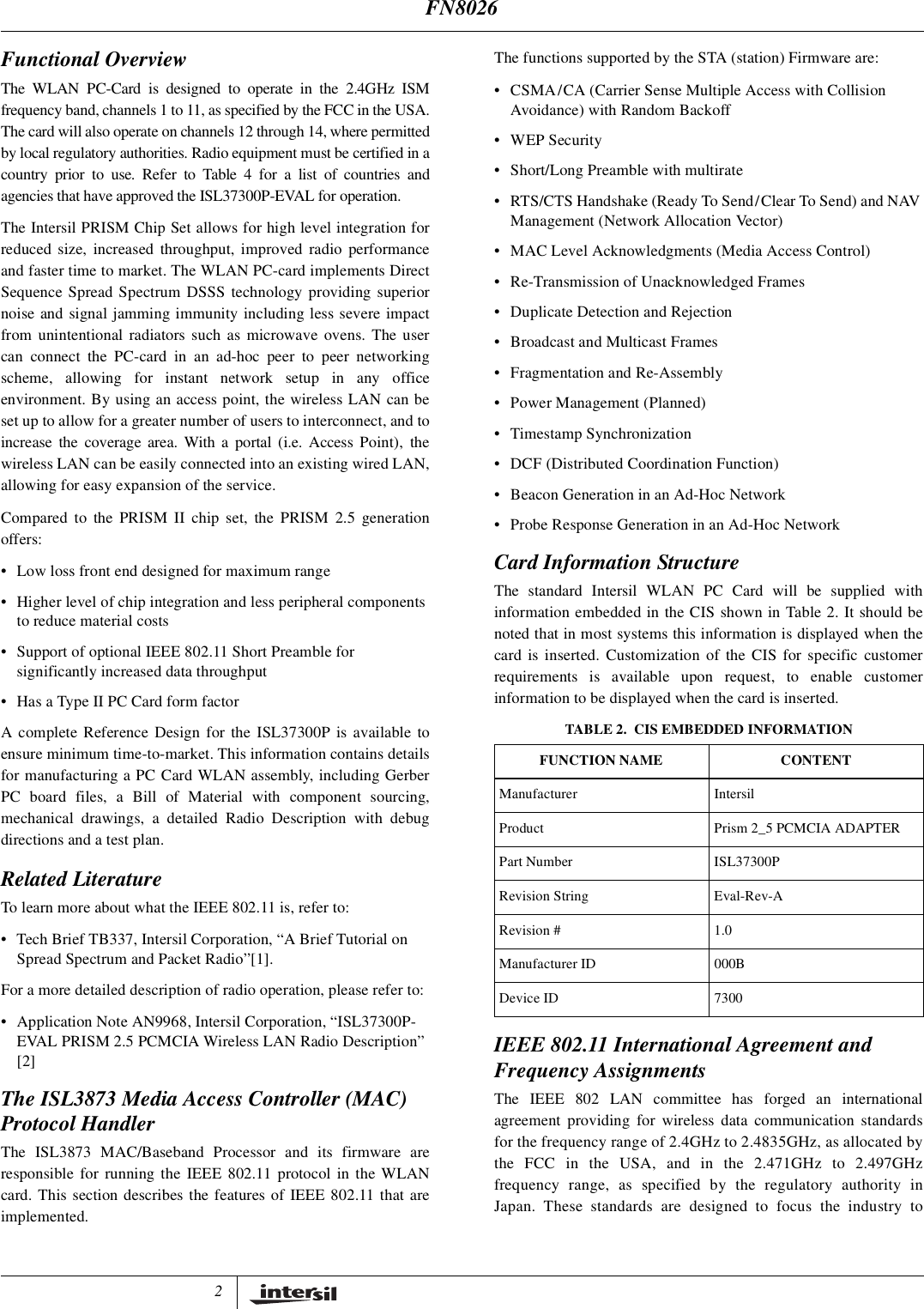

2Functional OverviewThe WLAN PC-Card is designed to operate in the 2.4GHz ISMfrequency band, channels 1 to 11, as specified by the FCC in the USA.The card will also operate on channels 12 through 14, where permittedby local regulatory authorities. Radio equipment must be certified in acountry prior to use. Refer to Table 4 for a list of countries andagencies that have approved the ISL37300P-EVAL for operation.The Intersil PRISM Chip Set allows for high level integration forreduced size, increased throughput, improved radio performanceand faster time to market. The WLAN PC-card implements DirectSequence Spread Spectrum DSSS technology providing superiornoise and signal jamming immunity including less severe impactfrom unintentional radiators such as microwave ovens. The usercan connect the PC-card in an ad-hoc peer to peer networkingscheme, allowing for instant network setup in any officeenvironment. By using an access point, the wireless LAN can beset up to allow for a greater number of users to interconnect, and toincrease the coverage area. With a portal (i.e. Access Point), thewireless LAN can be easily connected into an existing wired LAN,allowing for easy expansion of the service.Compared to the PRISM II chip set, the PRISM 2.5 generationoffers:• Low loss front end designed for maximum range• Higher level of chip integration and less peripheral componentsto reduce material costs• Support of optional IEEE 802.11 Short Preamble forsignificantly increased data throughput• Has a Type II PC Card form factorA complete Reference Design for the ISL37300P is available toensure minimum time-to-market. This information contains detailsfor manufacturing a PC Card WLAN assembly, including GerberPC board files, a Bill of Material with component sourcing,mechanical drawings, a detailed Radio Description with debugdirections and a test plan.Related LiteratureTo learn more about what the IEEE 802.11 is, refer to:• Tech Brief TB337, Intersil Corporation, “A Brief Tutorial onSpread Spectrum and Packet Radio”[1].For a more detailed description of radio operation, please refer to:• Application Note AN9968, Intersil Corporation, “ISL37300P-EVAL PRISM 2.5 PCMCIA Wireless LAN Radio Description”[2]The ISL3873 Media Access Controller (MAC)Protocol HandlerThe ISL3873 MAC/Baseband Processor and its firmware areresponsible for running the IEEE 802.11 protocol in the WLANcard. This section describes the features of IEEE 802.11 that areimplemented.The functions supported by the STA (station) Firmware are:• CSMA/CA (Carrier Sense Multiple Access with CollisionAvoidance) with Random Backoff•WEPSecurity• Short/Long Preamble with multirate• RTS/CTS Handshake (Ready To Send/Clear To Send) and NAVManagement (Network Allocation Vector)• MAC Level Acknowledgments (Media Access Control)• Re-Transmission of Unacknowledged Frames• Duplicate Detection and Rejection• Broadcast and Multicast Frames• Fragmentation and Re-Assembly• Power Management (Planned)• Timestamp Synchronization• DCF (Distributed Coordination Function)• Beacon Generation in an Ad-Hoc Network• Probe Response Generation in an Ad-Hoc NetworkCard Information StructureThe standard Intersil WLAN PC Card will be supplied withinformation embedded in the CIS shown in Table 2. It should benoted that in most systems this information is displayed when thecard is inserted. Customization of the CIS for specific customerrequirements is available upon request, to enable customerinformation to be displayed when the card is inserted.IEEE 802.11 International Agreement andFrequency AssignmentsThe IEEE 802 LAN committee has forged an internationalagreement providing for wireless data communication standardsfor the frequency range of 2.4GHz to 2.4835GHz, as allocated bythe FCC in the USA, and in the 2.471GHz to 2.497GHzfrequency range, as specified by the regulatory authority inJapan. These standards are designed to focus the industry toTABLE 2. CIS EMBEDDED INFORMATIONFUNCTION NAME CONTENTManufacturer IntersilProduct Prism 2_5 PCMCIA ADAPTERPart Number ISL37300PRevision String Eval-Rev-ARevision # 1.0Manufacturer ID 000BDevice ID 7300FN8026

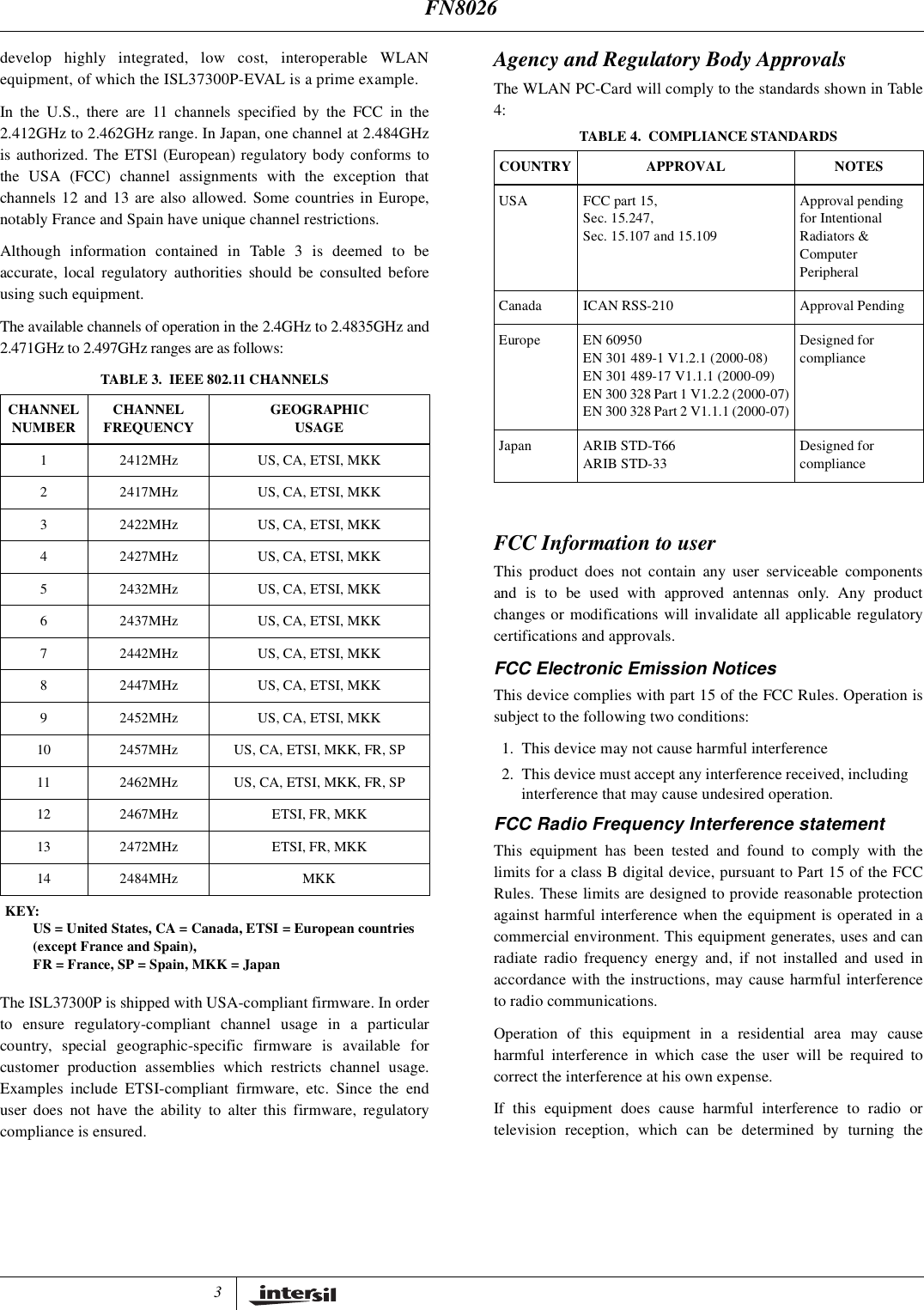

3develop highly integrated, low cost, interoperable WLANequipment, of which the ISL37300P-EVAL is a prime example.In the U.S., there are 11 channels specified by the FCC in the2.412GHz to 2.462GHz range. In Japan, one channel at 2.484GHzis authorized. The ETSl (European) regulatory body conforms tothe USA (FCC) channel assignments with the exception thatchannels 12 and 13 are also allowed. Some countries in Europe,notably France and Spain have unique channel restrictions.Although information contained in Table 3 is deemed to beaccurate, local regulatory authorities should be consulted beforeusing such equipment.The available channels of operation in the 2.4GHz to 2.4835GHz and2.471GHz to 2.497GHz ranges are as follows:The ISL37300P is shipped with USA-compliant firmware. In orderto ensure regulatory-compliant channel usage in a particularcountry, special geographic-specific firmware is available forcustomer production assemblies which restricts channel usage.Examples include ETSI-compliant firmware, etc. Since the enduser does not have the ability to alter this firmware, regulatorycompliance is ensured.Agency and Regulatory Body ApprovalsThe WLAN PC-Card will comply to the standards shown in Table4:FCC Information to userThis product does not contain any user serviceable componentsand is to be used with approved antennas only. Any productchanges or modifications will invalidate all applicable regulatorycertifications and approvals.FCC Electronic Emission NoticesThis device complies with part 15 of the FCC Rules. Operation issubject to the following two conditions:1. This device may not cause harmful interference2. This device must accept any interference received, includinginterference that may cause undesired operation.FCC Radio Frequency Interference statementThis equipment has been tested and found to comply with thelimits for a class B digital device, pursuant to Part 15 of the FCCRules. These limits are designed to provide reasonable protectionagainst harmful interference when the equipment is operated in acommercial environment. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used inaccordance with the instructions, may cause harmful interferenceto radio communications.Operation of this equipment in a residential area may causeharmful interference in which case the user will be required tocorrect the interference at his own expense.If this equipment does cause harmful interference to radio ortelevision reception, which can be determined by turning theTABLE 3. IEEE 802.11 CHANNELSCHANNELNUMBER CHANNELFREQUENCY GEOGRAPHICUSAGE1 2412MHz US, CA, ETSI, MKK2 2417MHz US, CA, ETSI, MKK3 2422MHz US, CA, ETSI, MKK4 2427MHz US, CA, ETSI, MKK5 2432MHz US, CA, ETSI, MKK6 2437MHz US, CA, ETSI, MKK7 2442MHz US, CA, ETSI, MKK8 2447MHz US, CA, ETSI, MKK9 2452MHz US, CA, ETSI, MKK10 2457MHz US, CA, ETSI, MKK, FR, SP11 2462MHz US, CA, ETSI, MKK, FR, SP12 2467MHz ETSI, FR, MKK13 2472MHz ETSI, FR, MKK14 2484MHz MKKKEY:US = United States, CA = Canada, ETSI = European countries(except France and Spain),FR=France,SP=Spain,MKK=JapanTABLE 4. COMPLIANCE STANDARDSCOUNTRY APPROVAL NOTESUSA FCC part 15,Sec. 15.247,Sec. 15.107 and 15.109Approval pendingfor IntentionalRadiators &ComputerPeripheralCanada ICAN RSS-210 Approval PendingEurope EN 60950EN 301 489-1 V1.2.1 (2000-08)EN 301 489-17 V1.1.1 (2000-09)EN 300 328 Part 1 V1.2.2 (2000-07)EN 300 328 Part 2 V1.1.1 (2000-07)Designed forcomplianceJapan ARIB STD-T66ARIB STD-33Designed forcomplianceFN8026

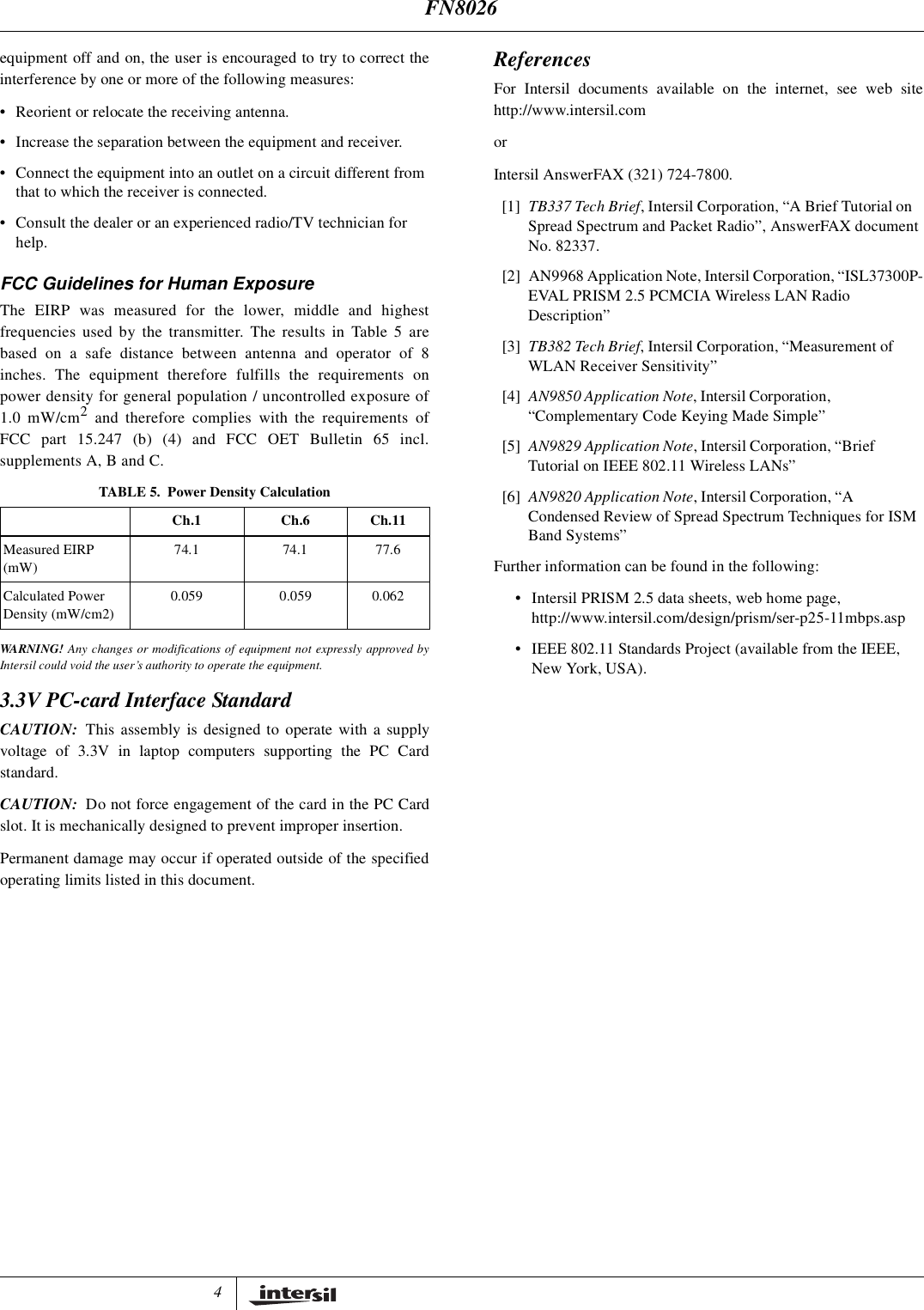

4equipment off and on, the user is encouraged to try to correct theinterference by one or more of the following measures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver.• Connect the equipment into an outlet on a circuit different fromthat to which the receiver is connected.• Consult the dealer or an experienced radio/TV technician forhelp.FCC Guidelines for Human ExposureThe EIRP was measured for the lower, middle and highestfrequencies used by the transmitter. The results in Table 5 arebased on a safe distance between antenna and operator of 8inches. The equipment therefore fulfills the requirements onpower density for general population / uncontrolled exposure of1.0 mW/cm2and therefore complies with the requirements ofFCC part 15.247 (b) (4) and FCC OET Bulletin 65 incl.supplements A, B and C.WARNING! Any changes or modifications of equipment not expressly approved byIntersil could void the user’s authority to operate the equipment.3.3V PC-card Interface StandardCAUTION: This assembly is designed to operate with a supplyvoltage of 3.3V in laptop computers supporting the PC Cardstandard.CAUTION: Do not force engagement of the card in the PC Cardslot. It is mechanically designed to prevent improper insertion.Permanent damage may occur if operated outside of the specifiedoperating limits listed in this document.ReferencesFor Intersil documents available on the internet, see web sitehttp://www.intersil.comorIntersil AnswerFAX (321) 724-7800.[1] TB337TechBrief, Intersil Corporation, “A Brief Tutorial onSpread Spectrum and Packet Radio”, AnswerFAX documentNo. 82337.[2] AN9968 Application Note, Intersil Corporation, “ISL37300P-EVAL PRISM 2.5 PCMCIA Wireless LAN RadioDescription”[3] TB382 Tech Brief, Intersil Corporation, “Measurement ofWLAN Receiver Sensitivity”[4] AN9850 Application Note, Intersil Corporation,“Complementary Code Keying Made Simple”[5] AN9829 Application Note, Intersil Corporation, “BriefTutorial on IEEE 802.11 Wireless LANs”[6] AN9820 Application Note, Intersil Corporation, “ACondensed Review of Spread Spectrum Techniques for ISMBand Systems”Further information can be found in the following:• Intersil PRISM 2.5 data sheets, web home page,http://www.intersil.com/design/prism/ser-p25-11mbps.asp• IEEE 802.11 Standards Project (available from the IEEE,New York, USA).TABLE 5. Power Density CalculationCh.1 Ch.6 Ch.11Measured EIRP(mW)74.1 74.1 77.6Calculated PowerDensity (mW/cm2)0.059 0.059 0.062FN8026

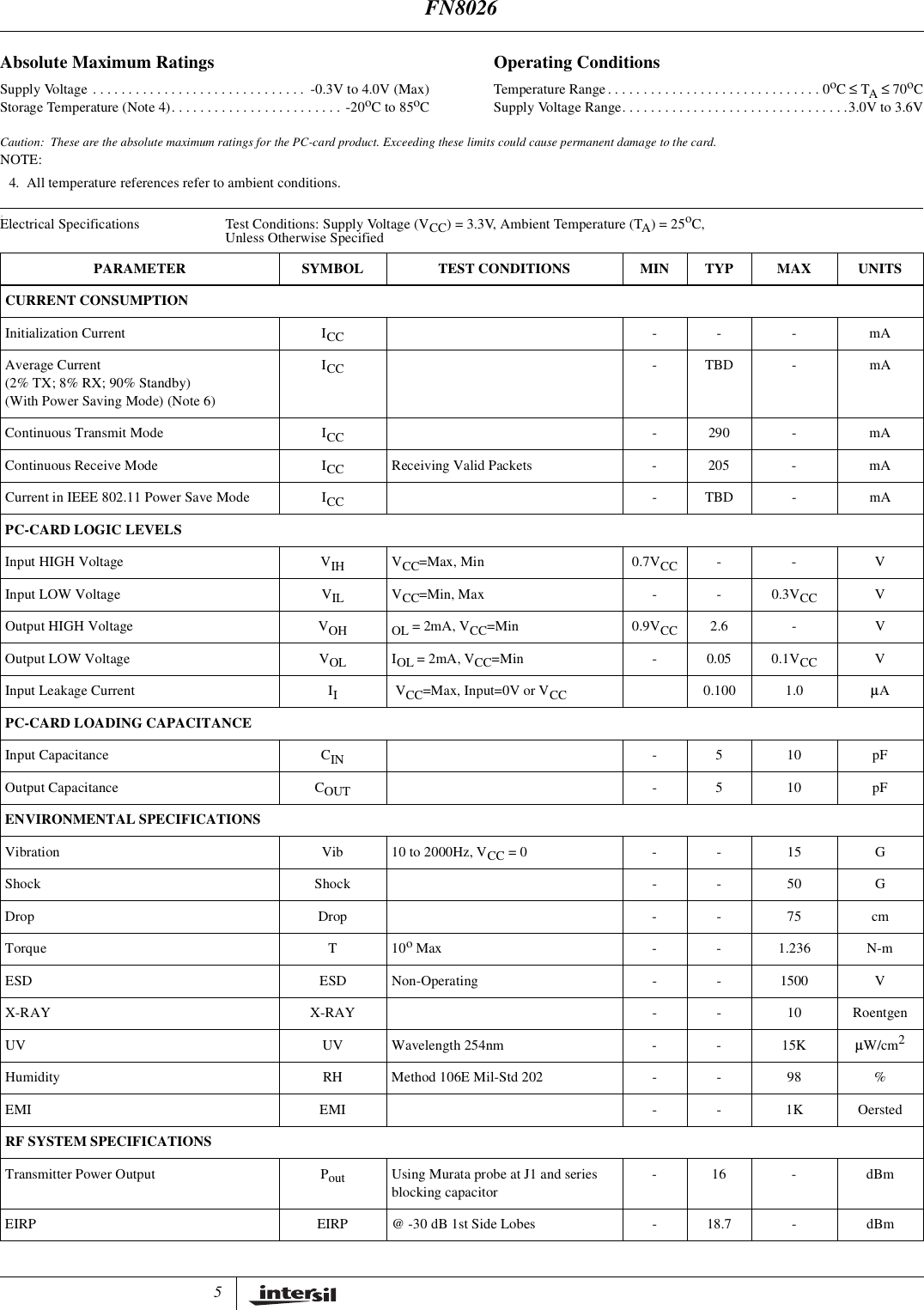

51Absolute Maximum Ratings Operating ConditionsSupplyVoltage.............................. -0.3Vto4.0V(Max)StorageTemperature(Note4)........................-20oCto85oCTemperatureRange..............................0oC≤ TA≤70oCSupplyVoltageRange................................3.0Vto3.6VCaution: These are the absolute maximum ratings for the PC-card product. Exceeding these limits could cause permanent damage to the card.NOTE:4. All temperature references refer to ambient conditions.Electrical Specifications Test Conditions: Supply Voltage (VCC) = 3.3V, Ambient Temperature (TA)=25oC,Unless Otherwise SpecifiedPARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITSCURRENT CONSUMPTIONInitialization Current ICC -- - mAAverage Current(2% TX; 8% RX; 90% Standby)(With Power Saving Mode) (Note 6)ICC -TBD - mAContinuous Transmit Mode ICC -290 - mAContinuous Receive Mode ICC Receiving Valid Packets - 205 - mACurrent in IEEE 802.11 Power Save Mode ICC -TBD - mAPC-CARD LOGIC LEVELSInput HIGH Voltage VIH VCC=Max, Min 0.7VCC -- VInput LOW Voltage VIL VCC=Min, Max - - 0.3VCC VOutput HIGH Voltage VOH OL =2mA,VCC=Min 0.9VCC 2.6 - VOutput LOW Voltage VOL IOL =2mA,VCC=Min - 0.05 0.1VCC VInput Leakage Current IIVCC=Max, Input=0V or VCC 0.100 1.0 µAPC-CARD LOADING CAPACITANCEInput Capacitance CIN - 5 10 pFOutput Capacitance COUT - 5 10 pFENVIRONMENTAL SPECIFICATIONSVibration Vib 10 to 2000Hz, VCC =0 - - 15 GShock Shock - - 50 GDrop Drop - - 75 cmTorque T 10oMax - - 1.236 N-mESD ESD Non-Operating - - 1500 VX-RAY X-RAY - - 10 RoentgenUV UV Wavelength 254nm - - 15K µW/cm2Humidity RH Method 106E Mil-Std 202 - - 98 %EMI EMI - - 1K OerstedRF SYSTEM SPECIFICATIONSTransmitter Power Output Pout Using Murata probe at J1 and seriesblocking capacitor-16 - dBmEIRP EIRP @ -30 dB 1st Side Lobes - 18.7 - dBmFN8026

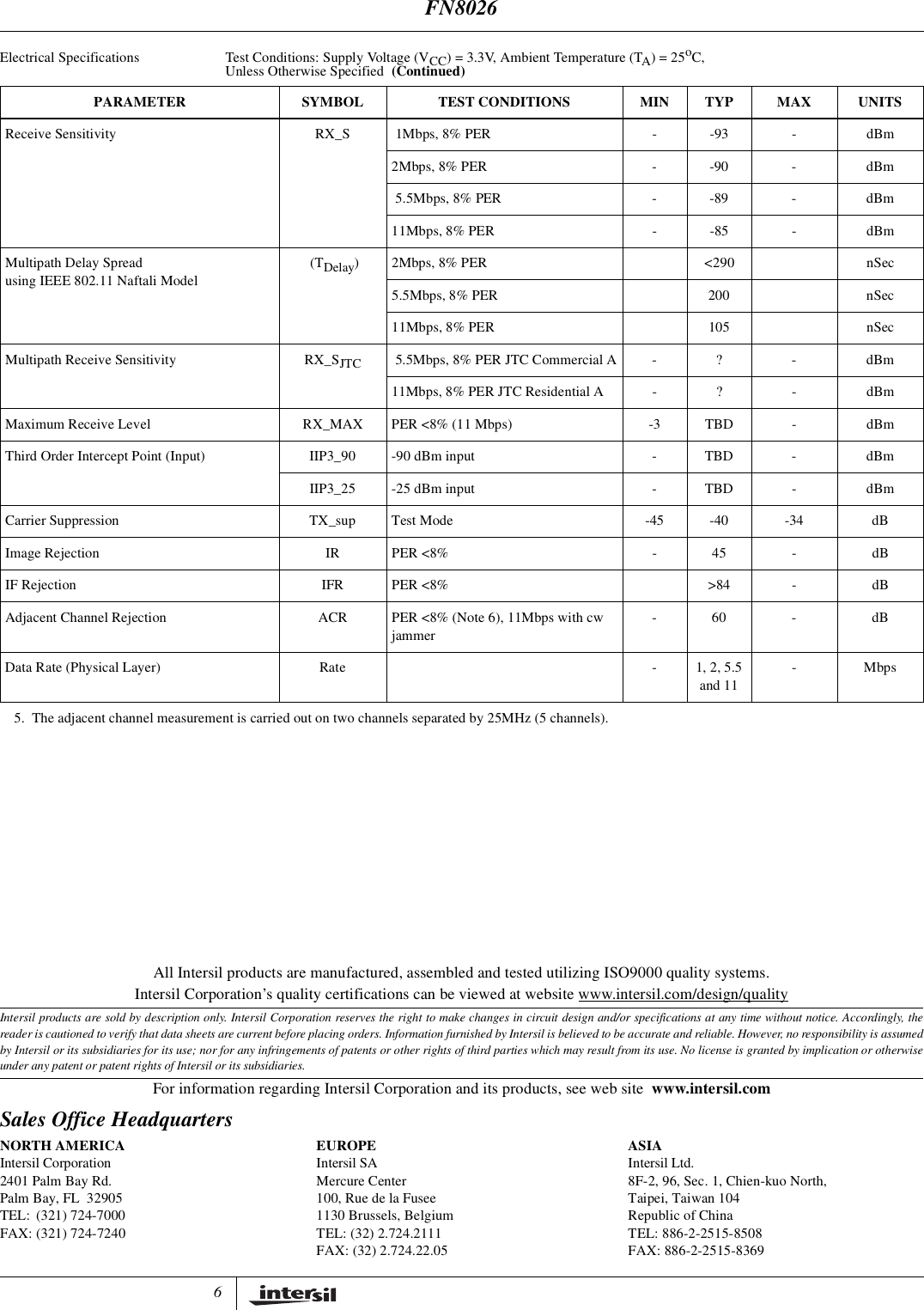

6All Intersil products are manufactured, assembled and tested utilizing ISO9000 quality systems.Intersil Corporation’s quality certifications can be viewed at website www.intersil.com/design/qualityIntersil products are sold by description only. Intersil Corporation reserves the right to make changes in circuit design and/or specifications at any time without notice. Accordingly, thereader is cautioned to verify that data sheets are current before placing orders. Information furnished by Intersil is believed to be accurate and reliable. However, no responsibility is assumedby Intersil or its subsidiaries for its use; nor for any infringements of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwiseunder any patent or patent rights of Intersil or its subsidiaries.For information regarding Intersil Corporation and its products, see web site www.intersil.comSales Office HeadquartersNORTH AMERICAIntersil Corporation2401 Palm Bay Rd.Palm Bay, FL 32905TEL: (321) 724-7000FAX: (321) 724-7240EUROPEIntersil SAMercure Center100, Rue de la Fusee1130 Brussels, BelgiumTEL: (32) 2.724.2111FAX: (32) 2.724.22.05ASIAIntersil Ltd.8F-2, 96, Sec. 1, Chien-kuo North,Taipei, Taiwan 104Republic of ChinaTEL: 886-2-2515-8508FAX: 886-2-2515-8369Receive Sensitivity RX_S 1Mbps, 8% PER - -93 - dBm2Mbps, 8% PER - -90 - dBm5.5Mbps, 8% PER - -89 - dBm11Mbps, 8% PER - -85 - dBmMultipath Delay Spreadusing IEEE 802.11 Naftali Model(TDelay) 2Mbps, 8% PER <290 nSec5.5Mbps, 8% PER 200 nSec11Mbps, 8% PER 105 nSecMultipath Receive Sensitivity RX_SJTC 5.5Mbps, 8% PER JTC Commercial A - ? - dBm11Mbps, 8% PER JTC Residential A - ? - dBmMaximum Receive Level RX_MAX PER <8% (11 Mbps) -3 TBD - dBmThird Order Intercept Point (Input) IIP3_90 -90 dBm input - TBD - dBmIIP3_25 -25 dBm input - TBD - dBmCarrier Suppression TX_sup Test Mode -45 -40 -34 dBImage Rejection IR PER <8% - 45 - dBIF Rejection IFR PER <8% >84 - dBAdjacent Channel Rejection ACR PER <8% (Note 6), 11Mbps with cwjammer-60 - dBData Rate (Physical Layer) Rate - 1, 2, 5.5and 11-Mbps5. The adjacent channel measurement is carried out on two channels separated by 25MHz (5 channels).Electrical Specifications Test Conditions: Supply Voltage (VCC) = 3.3V, Ambient Temperature (TA)=25oC,Unless Otherwise Specified (Continued)PARAMETER SYMBOL TEST CONDITIONS MIN TYP MAX UNITSFN8026
7
