Conexant Systems 37704C 5GHz Low Power Cardbus WLAN Card User Manual Regulatory text for Indigo ref designs

Conexant Systems Inc. 5GHz Low Power Cardbus WLAN Card Regulatory text for Indigo ref designs

Users Manual

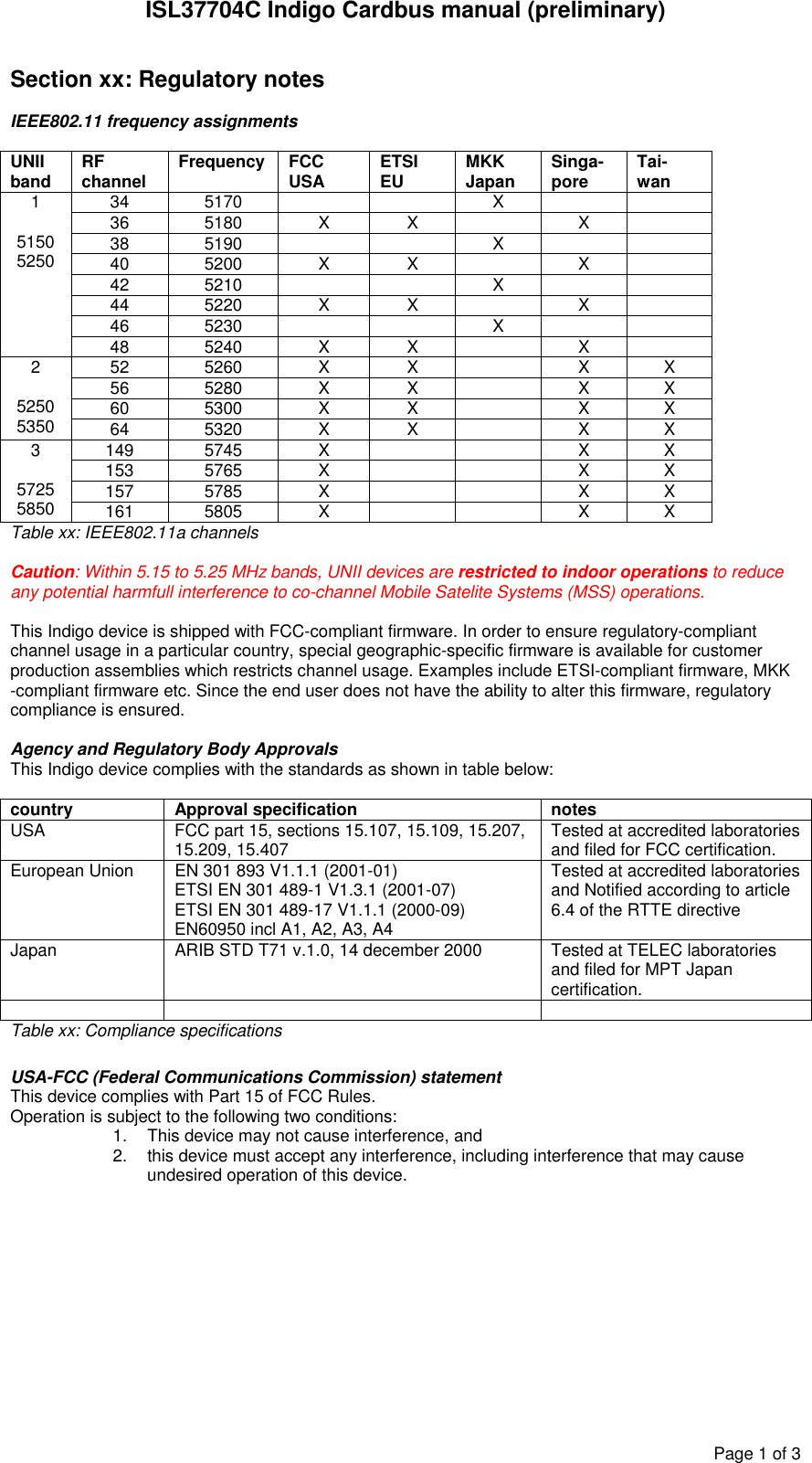

ISL37704C Indigo Cardbus manual (preliminary)Page1of3Section xx: Regulatory notesIEEE802.11 frequency assignmentsUNIIband RFchannel Frequency FCCUSA ETSIEU MKKJapan Singa-pore Tai-wan34 5170 X36 5180 X X X38 5190 X40 5200 X X X42 5210 X44 5220 X X X46 5230 X15150525048 5240 X X X52 5260 X X X X56 5280 X X X X60 5300 X X X X252505350 64 5320 X X X X149 5745 X X X153 5765 X X X157 5785 X X X357255850 161 5805 X X XTable xx: IEEE802.11a channelsCaution: Within 5.15 to 5.25 MHz bands, UNII devices are restricted to indoor operations to reduceany potential harmfull interference to co-channel Mobile Satelite Systems (MSS) operations.This Indigo device is shipped with FCC-compliant firmware. In order to ensure regulatory-compliantchannel usage in a particular country, special geographic-specific firmware is available for customerproduction assemblies which restricts channel usage. Examples include ETSI-compliant firmware, MKK-compliant firmware etc. Since the end user does not have the ability to alter this firmware, regulatorycompliance is ensured.Agency and Regulatory Body ApprovalsThis Indigo device complies with the standards as shown in table below:country Approval specification notesUSA FCC part 15, sections 15.107, 15.109, 15.207,15.209, 15.407 Tested at accredited laboratoriesand filed for FCC certification.European Union EN 301 893 V1.1.1 (2001-01)ETSI EN 301 489-1 V1.3.1 (2001-07)ETSI EN 301 489-17 V1.1.1 (2000-09)EN60950 incl A1, A2, A3, A4Tested at accredited laboratoriesand Notified according to article6.4 of the RTTE directiveJapan ARIB STD T71 v.1.0, 14 december 2000 Tested at TELEC laboratoriesand filed for MPT Japancertification.Table xx: Compliance specificationsUSA-FCC (Federal Communications Commission) statementThis device complies with Part 15 of FCC Rules.Operation is subject to the following two conditions:1. This device may not cause interference, and2. this device must accept any interference, including interference that may causeundesired operation of this device.

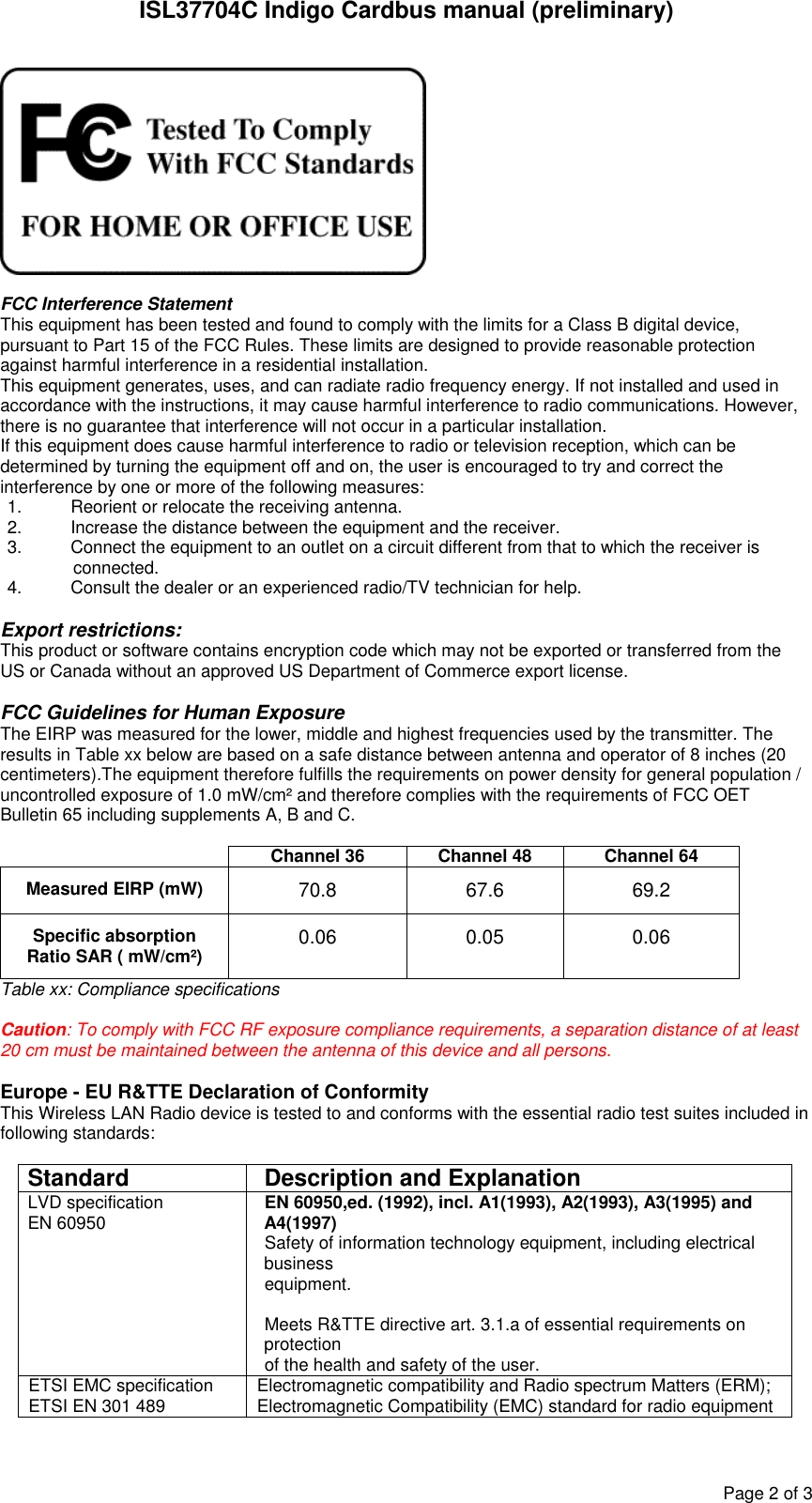

ISL37704C Indigo Cardbus manual (preliminary)Page2of3FCC Interference StatementThis equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protectionagainst harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy. If not installed and used inaccordance with the instructions, it may cause harmful interference to radio communications. However,there is no guarantee that interference will not occur in a particular installation.If this equipment does cause harmful interference to radio or television reception, which can bedetermined by turning the equipment off and on, the user is encouraged to try and correct theinterference by one or more of the following measures:1. Reorient or relocate the receiving antenna.2. Increase the distance between the equipment and the receiver.3. Connect the equipment to an outlet on a circuit different from that to which the receiver isconnected.4. Consult the dealer or an experienced radio/TV technician for help.Export restrictions:This product or software contains encryption code which may not be exported or transferred from theUS or Canada without an approved US Department of Commerce export license.FCC Guidelines for Human ExposureThe EIRP was measured for the lower, middle and highest frequencies used by the transmitter. Theresults in Table xx below are based on a safe distance between antenna and operator of 8 inches (20centimeters).The equipment therefore fulfills the requirements on power density for general population /uncontrolled exposure of 1.0 mW/cm² and therefore complies with the requirements of FCC OETBulletin 65 including supplements A, B and C.Channel 36 Channel 48 Channel 64Measured EIRP (mW) 70.8 67.6 69.2Specific absorptionRatio SAR ( mW/cm²) 0.06 0.05 0.06Table xx: Compliance specificationsCaution: To comply with FCC RF exposure compliance requirements, a separation distance of at least20 cm must be maintained between the antenna of this device and all persons.Europe - EU R&TTE Declaration of ConformityThis Wireless LAN Radio device is tested to and conforms with the essential radio test suites included infollowing standards:Standard Description and ExplanationLVD specificationEN 60950 EN 60950,ed. (1992), incl. A1(1993), A2(1993), A3(1995) andA4(1997)Safety of information technology equipment, including electricalbusinessequipment.Meets R&TTE directive art. 3.1.a of essential requirements onprotectionof the health and safety of the user.ETSI EMC specificationETSI EN 301 489 Electromagnetic compatibility and Radio spectrum Matters (ERM);Electromagnetic Compatibility (EMC) standard for radio equipment

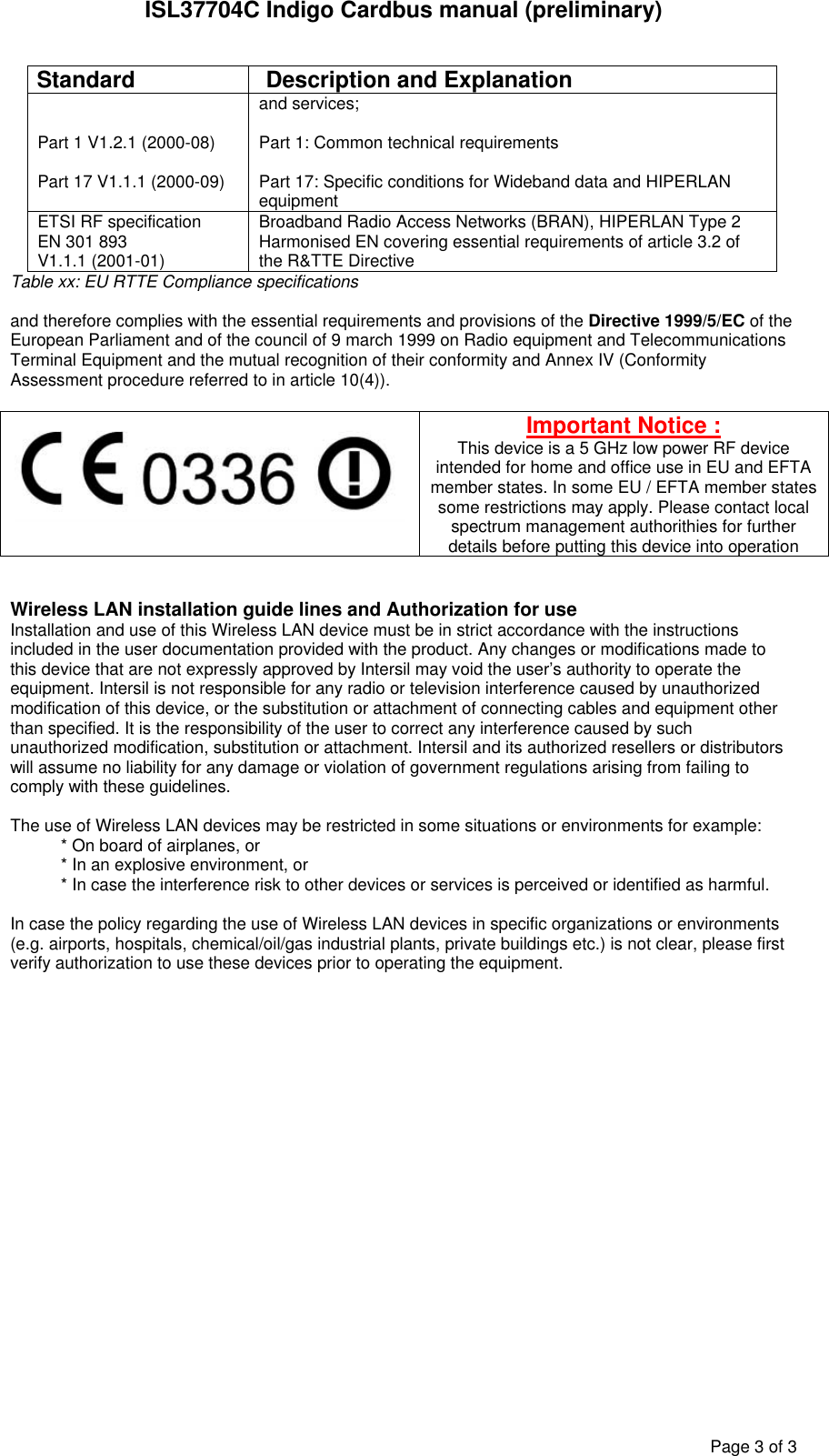

ISL37704C Indigo Cardbus manual (preliminary)Page3of3Standard Description and ExplanationPart 1 V1.2.1 (2000-08)Part 17 V1.1.1 (2000-09)and services;Part 1: Common technical requirementsPart 17: Specific conditions for Wideband data and HIPERLANequipmentETSI RF specificationEN 301 893V1.1.1 (2001-01)Broadband Radio Access Networks (BRAN), HIPERLAN Type 2Harmonised EN covering essential requirements of article 3.2 ofthe R&TTE DirectiveTable xx: EU RTTE Compliance specificationsand therefore complies with the essential requirements and provisions of the Directive 1999/5/EC of theEuropean Parliament and of the council of 9 march 1999 on Radio equipment and TelecommunicationsTerminal Equipment and the mutual recognition of their conformity and Annex IV (ConformityAssessment procedure referred to in article 10(4)).Important Notice :This device is a 5 GHz low power RF deviceintended for home and office use in EU and EFTAmember states. In some EU / EFTA member statessome restrictions may apply. Please contact localspectrum management authorithies for furtherdetails before putting this device into operationWireless LAN installation guide lines and Authorization for useInstallation and use of this Wireless LAN device must be in strict accordance with the instructionsincluded in the user documentation provided with the product. Any changes or modifications made tothis device that are not expressly approved by Intersil may void the user’s authority to operate theequipment. Intersil is not responsible for any radio or television interference caused by unauthorizedmodification of this device, or the substitution or attachment of connecting cables and equipment otherthan specified. It is the responsibility of the user to correct any interference caused by suchunauthorized modification, substitution or attachment. Intersil and its authorized resellers or distributorswill assume no liability for any damage or violation of government regulations arising from failing tocomply with these guidelines.The use of Wireless LAN devices may be restricted in some situations or environments for example:* On board of airplanes, or* In an explosive environment, or* In case the interference risk to other devices or services is perceived or identified as harmful.In case the policy regarding the use of Wireless LAN devices in specific organizations or environments(e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please firstverify authorization to use these devices prior to operating the equipment.
