Conexant Systems 39200C1 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card User Manual OSZ39200C1 v 0 3

Conexant Systems Inc. 2.4/5 GHz IEEE 802.11g/a WLAN Cardbus card OSZ39200C1 v 0 3

user manual

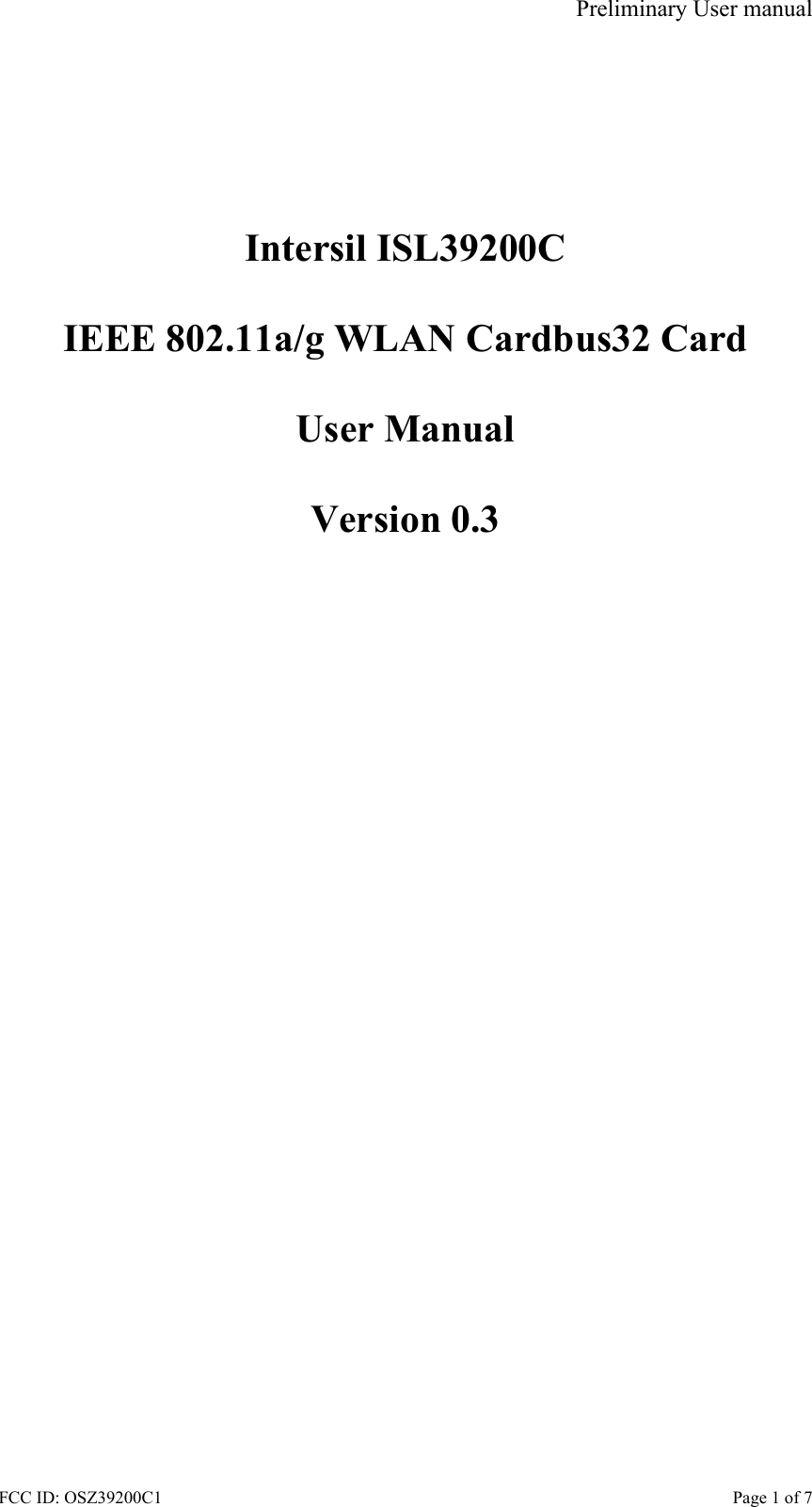

Preliminary User manual FCC ID: OSZ39200C1 Page 1 of 7 Intersil ISL39200C IEEE 802.11a/g WLAN Cardbus32 Card User Manual Version 0.3

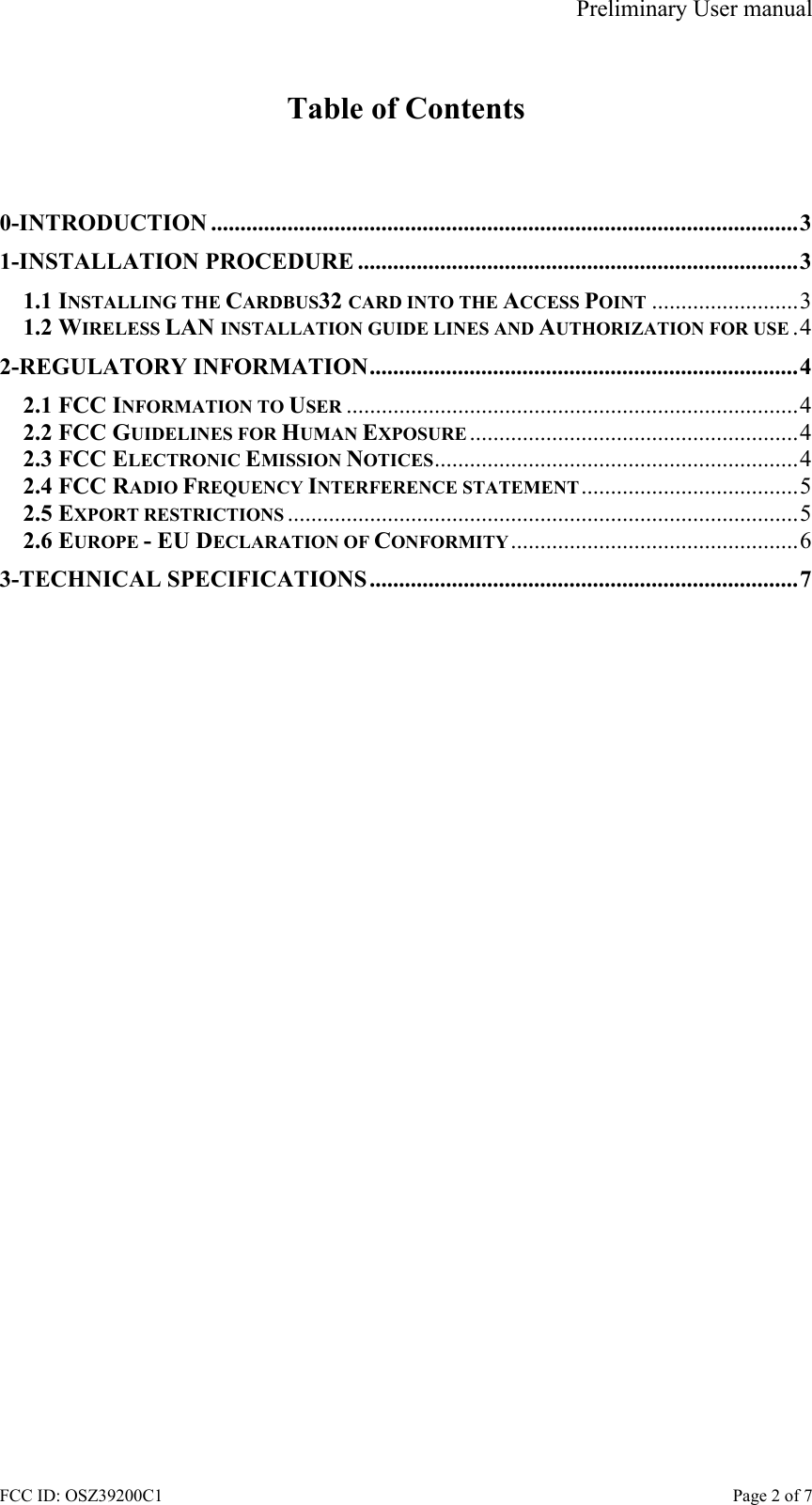

Preliminary User manual FCC ID: OSZ39200C1 Page 2 of 7 Table of Contents 0-INTRODUCTION ....................................................................................................3 1-INSTALLATION PROCEDURE ...........................................................................3 1.1 INSTALLING THE CARDBUS32 CARD INTO THE ACCESS POINT .........................3 1.2 WIRELESS LAN INSTALLATION GUIDE LINES AND AUTHORIZATION FOR USE .4 2-REGULATORY INFORMATION.........................................................................4 2.1 FCC INFORMATION TO USER .............................................................................4 2.2 FCC GUIDELINES FOR HUMAN EXPOSURE ........................................................4 2.3 FCC ELECTRONIC EMISSION NOTICES..............................................................4 2.4 FCC RADIO FREQUENCY INTERFERENCE STATEMENT.....................................5 2.5 EXPORT RESTRICTIONS .......................................................................................5 2.6 EUROPE - EU DECLARATION OF CONFORMITY.................................................6 3-TECHNICAL SPECIFICATIONS.........................................................................7

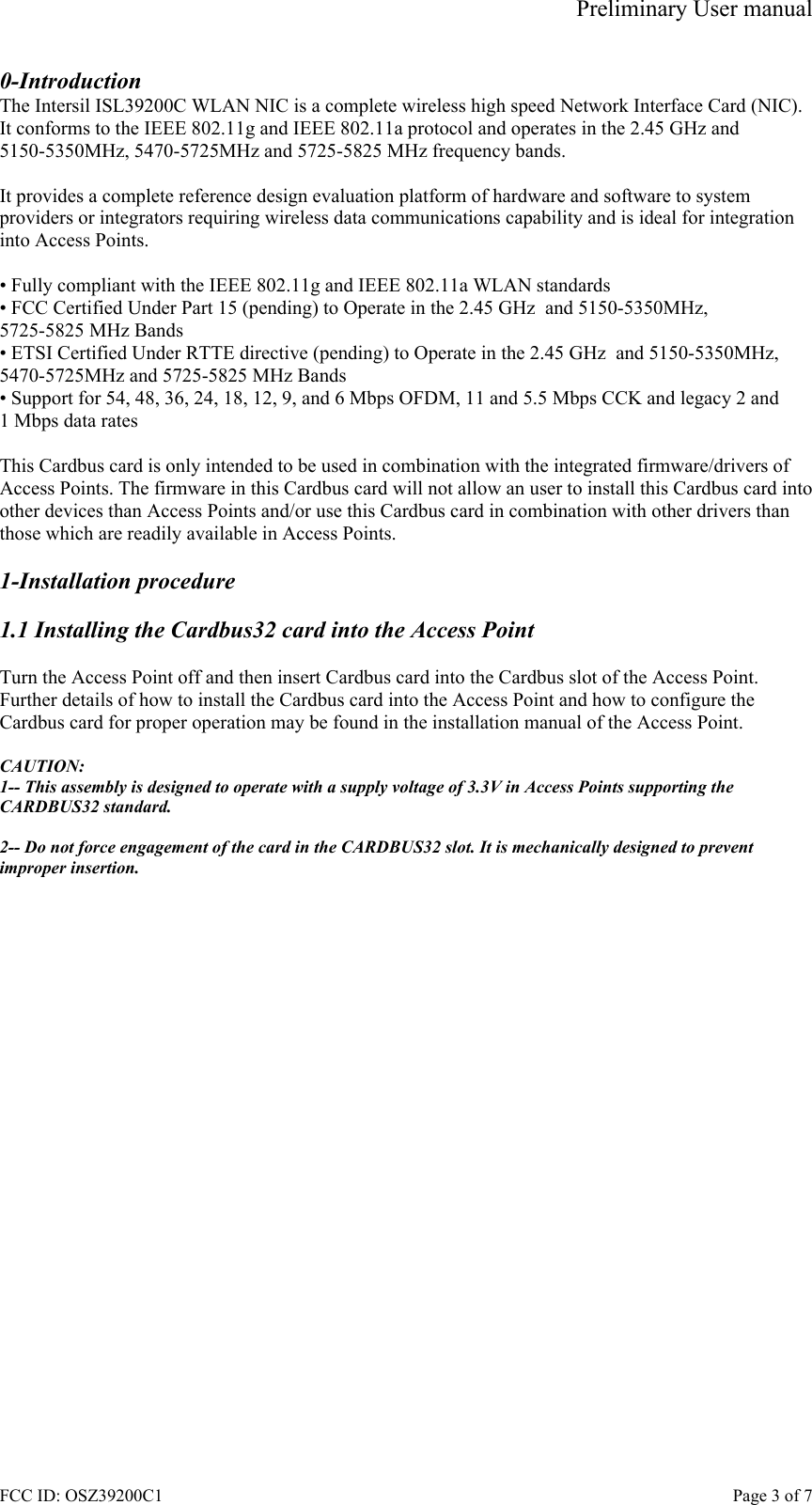

Preliminary User manual FCC ID: OSZ39200C1 Page 3 of 7 0-Introduction The Intersil ISL39200C WLAN NIC is a complete wireless high speed Network Interface Card (NIC). It conforms to the IEEE 802.11g and IEEE 802.11a protocol and operates in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz frequency bands. It provides a complete reference design evaluation platform of hardware and software to system providers or integrators requiring wireless data communications capability and is ideal for integration into Access Points. • Fully compliant with the IEEE 802.11g and IEEE 802.11a WLAN standards • FCC Certified Under Part 15 (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5725-5825 MHz Bands • ETSI Certified Under RTTE directive (pending) to Operate in the 2.45 GHz and 5150-5350MHz, 5470-5725MHz and 5725-5825 MHz Bands • Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates This Cardbus card is only intended to be used in combination with the integrated firmware/drivers of Access Points. The firmware in this Cardbus card will not allow an user to install this Cardbus card into other devices than Access Points and/or use this Cardbus card in combination with other drivers than those which are readily available in Access Points. 1-Installation procedure 1.1 Installing the Cardbus32 card into the Access Point Turn the Access Point off and then insert Cardbus card into the Cardbus slot of the Access Point. Further details of how to install the Cardbus card into the Access Point and how to configure the Cardbus card for proper operation may be found in the installation manual of the Access Point. CAUTION: 1-- This assembly is designed to operate with a supply voltage of 3.3V in Access Points supporting the CARDBUS32 standard. 2-- Do not force engagement of the card in the CARDBUS32 slot. It is mechanically designed to prevent improper insertion.

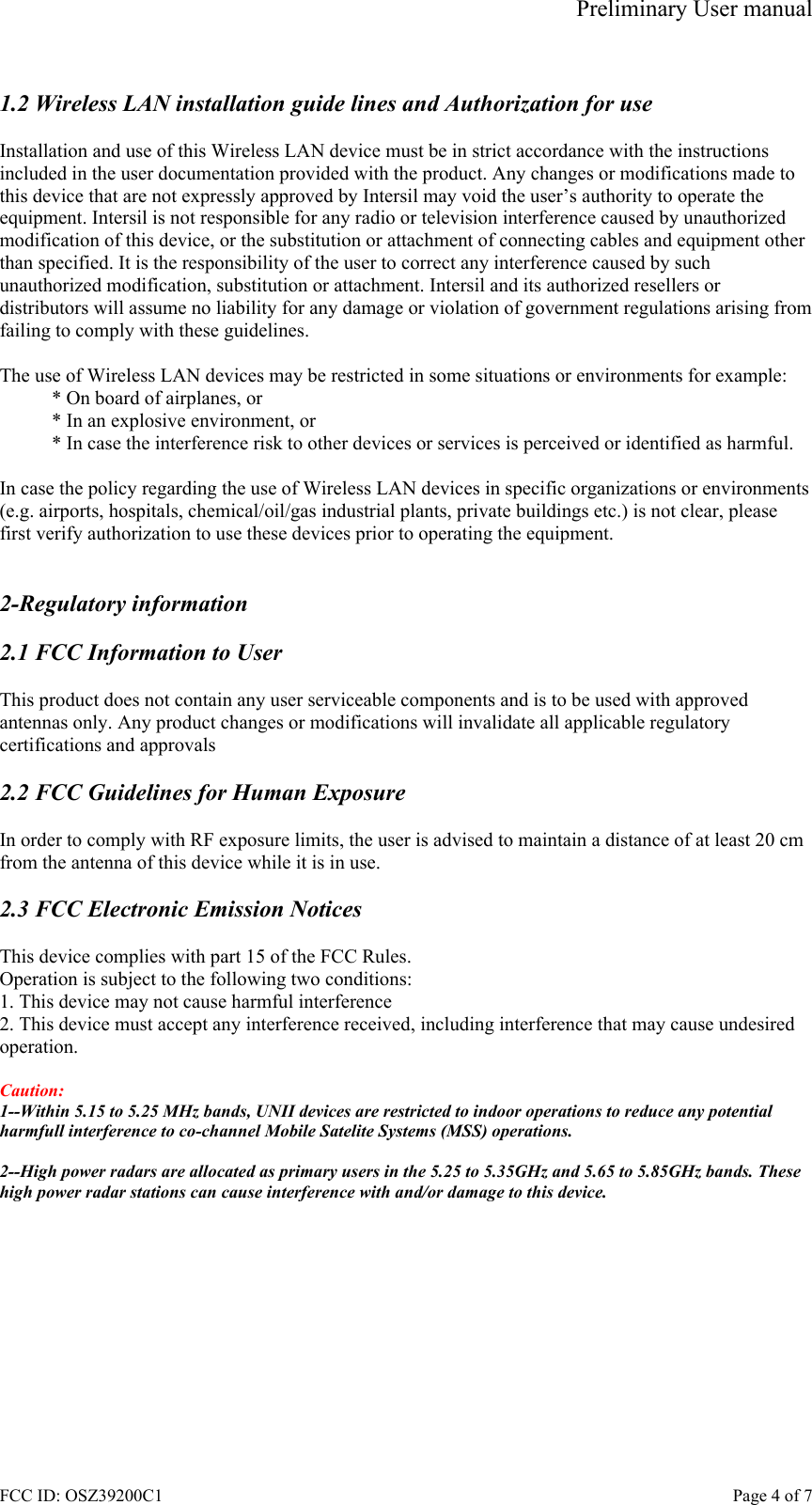

Preliminary User manual FCC ID: OSZ39200C1 Page 4 of 7 1.2 Wireless LAN installation guide lines and Authorization for use Installation and use of this Wireless LAN device must be in strict accordance with the instructions included in the user documentation provided with the product. Any changes or modifications made to this device that are not expressly approved by Intersil may void the user’s authority to operate the equipment. Intersil is not responsible for any radio or television interference caused by unauthorized modification of this device, or the substitution or attachment of connecting cables and equipment other than specified. It is the responsibility of the user to correct any interference caused by such unauthorized modification, substitution or attachment. Intersil and its authorized resellers or distributors will assume no liability for any damage or violation of government regulations arising from failing to comply with these guidelines. The use of Wireless LAN devices may be restricted in some situations or environments for example: * On board of airplanes, or * In an explosive environment, or * In case the interference risk to other devices or services is perceived or identified as harmful. In case the policy regarding the use of Wireless LAN devices in specific organizations or environments (e.g. airports, hospitals, chemical/oil/gas industrial plants, private buildings etc.) is not clear, please first verify authorization to use these devices prior to operating the equipment. 2-Regulatory information 2.1 FCC Information to User This product does not contain any user serviceable components and is to be used with approved antennas only. Any product changes or modifications will invalidate all applicable regulatory certifications and approvals 2.2 FCC Guidelines for Human Exposure In order to comply with RF exposure limits, the user is advised to maintain a distance of at least 20 cm from the antenna of this device while it is in use. 2.3 FCC Electronic Emission Notices This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference 2. This device must accept any interference received, including interference that may cause undesired operation. Caution: 1--Within 5.15 to 5.25 MHz bands, UNII devices are restricted to indoor operations to reduce any potential harmfull interference to co-channel Mobile Satelite Systems (MSS) operations. 2--High power radars are allocated as primary users in the 5.25 to 5.35GHz and 5.65 to 5.85GHz bands. These high power radar stations can cause interference with and/or damage to this device.

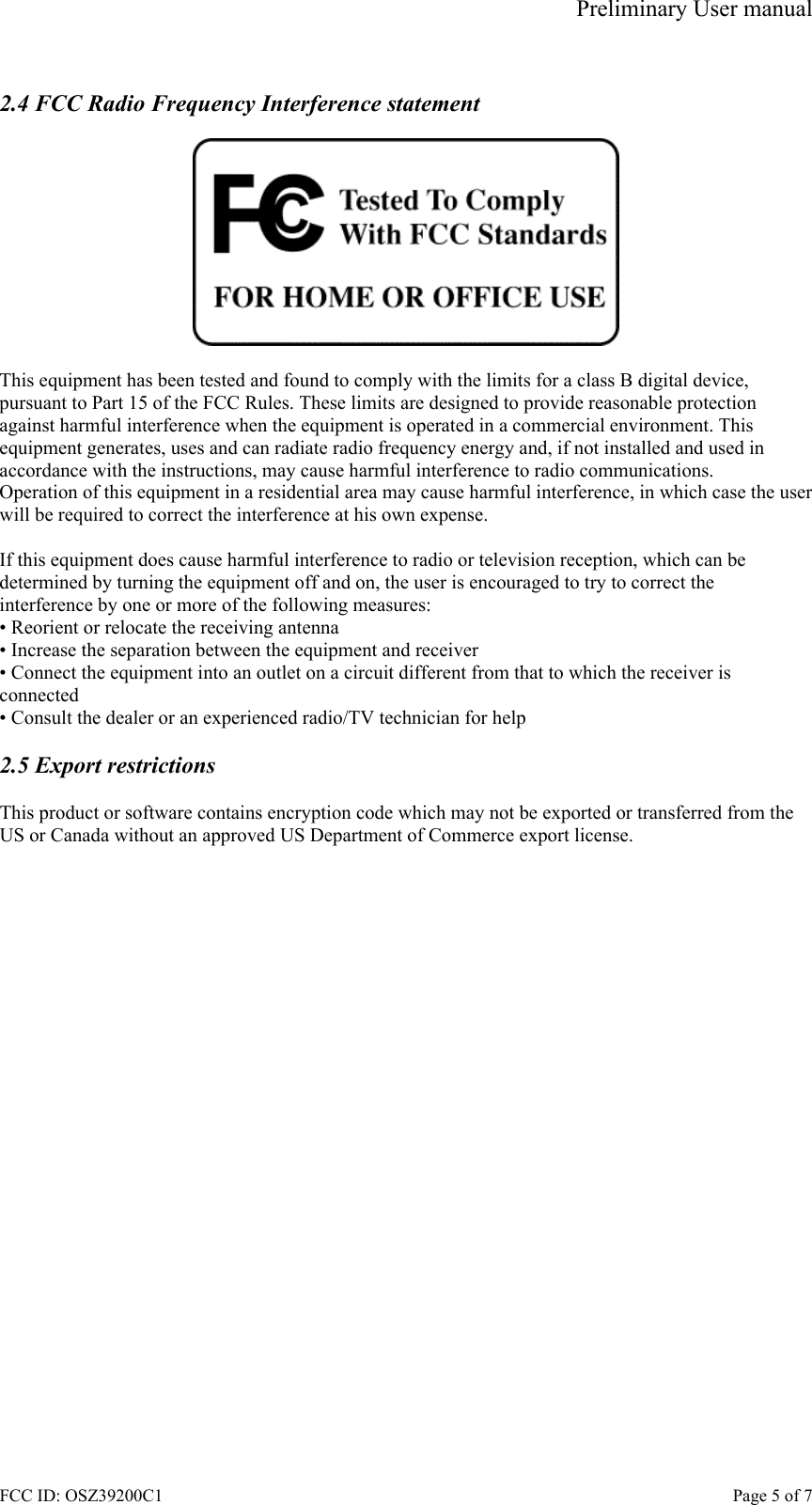

Preliminary User manual FCC ID: OSZ39200C1 Page 5 of 7 2.4 FCC Radio Frequency Interference statement This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area may cause harmful interference, in which case the user will be required to correct the interference at his own expense. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna • Increase the separation between the equipment and receiver • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help 2.5 Export restrictions This product or software contains encryption code which may not be exported or transferred from the US or Canada without an approved US Department of Commerce export license.

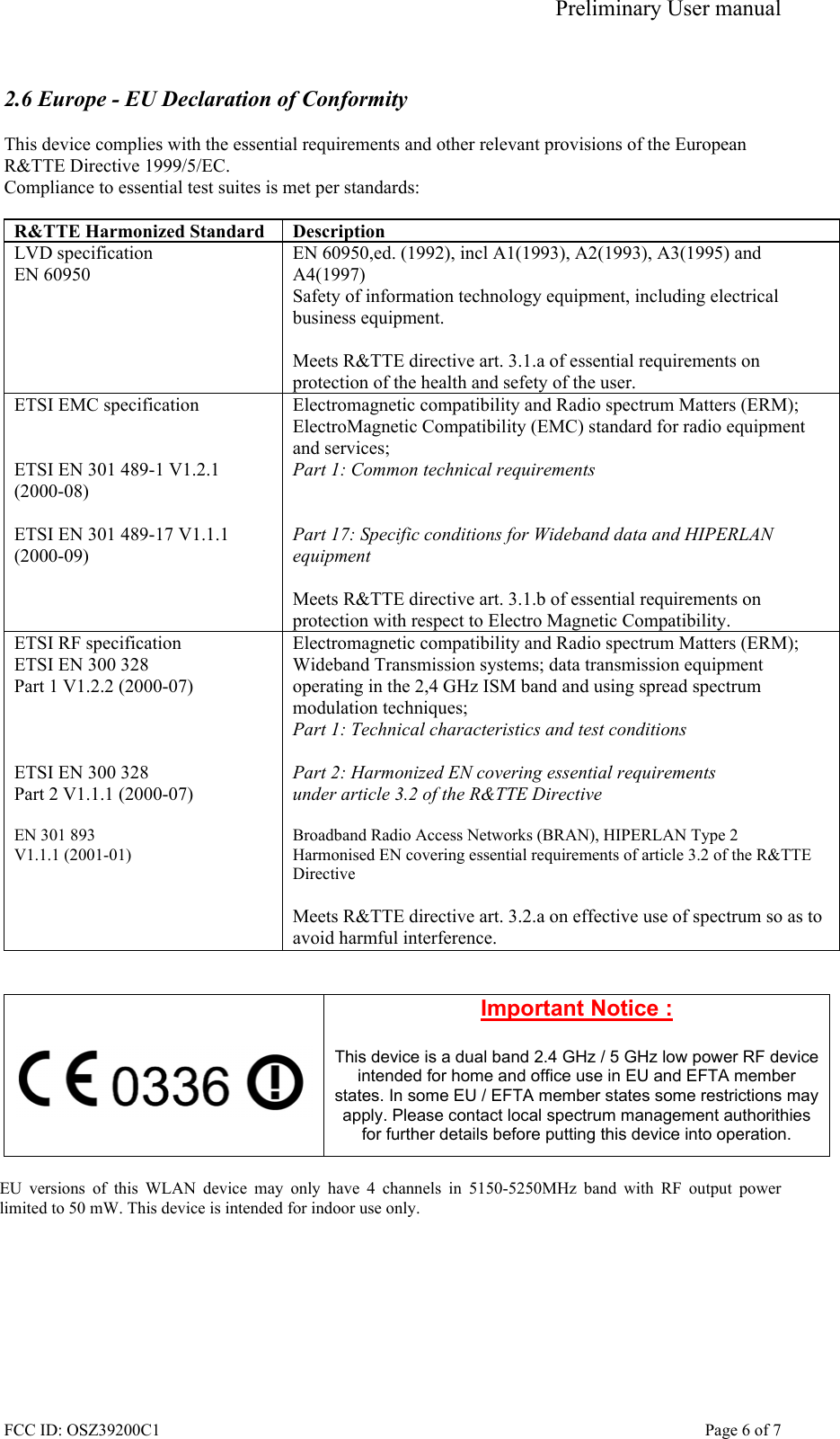

Preliminary User manual FCC ID: OSZ39200C1 Page 6 of 7 2.6 Europe - EU Declaration of Conformity This device complies with the essential requirements and other relevant provisions of the European R&TTE Directive 1999/5/EC. Compliance to essential test suites is met per standards: R&TTE Harmonized Standard Description LVD specification EN 60950 EN 60950,ed. (1992), incl A1(1993), A2(1993), A3(1995) and A4(1997) Safety of information technology equipment, including electrical business equipment. Meets R&TTE directive art. 3.1.a of essential requirements on protection of the health and sefety of the user. ETSI EMC specification ETSI EN 301 489-1 V1.2.1 (2000-08) ETSI EN 301 489-17 V1.1.1 (2000-09) Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 1: Common technical requirements Part 17: Specific conditions for Wideband data and HIPERLAN equipment Meets R&TTE directive art. 3.1.b of essential requirements on protection with respect to Electro Magnetic Compatibility. ETSI RF specification ETSI EN 300 328 Part 1 V1.2.2 (2000-07) ETSI EN 300 328 Part 2 V1.1.1 (2000-07) EN 301 893 V1.1.1 (2001-01) Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission systems; data transmission equipment operating in the 2,4 GHz ISM band and using spread spectrum modulation techniques; Part 1: Technical characteristics and test conditions Part 2: Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive Broadband Radio Access Networks (BRAN), HIPERLAN Type 2 Harmonised EN covering essential requirements of article 3.2 of the R&TTE Directive Meets R&TTE directive art. 3.2.a on effective use of spectrum so as to avoid harmful interference. Important Notice : This device is a dual band 2.4 GHz / 5 GHz low power RF device intended for home and office use in EU and EFTA member states. In some EU / EFTA member states some restrictions may apply. Please contact local spectrum management authorithies for further details before putting this device into operation. EU versions of this WLAN device may only have 4 channels in 5150-5250MHz band with RF output power limited to 50 mW. This device is intended for indoor use only.

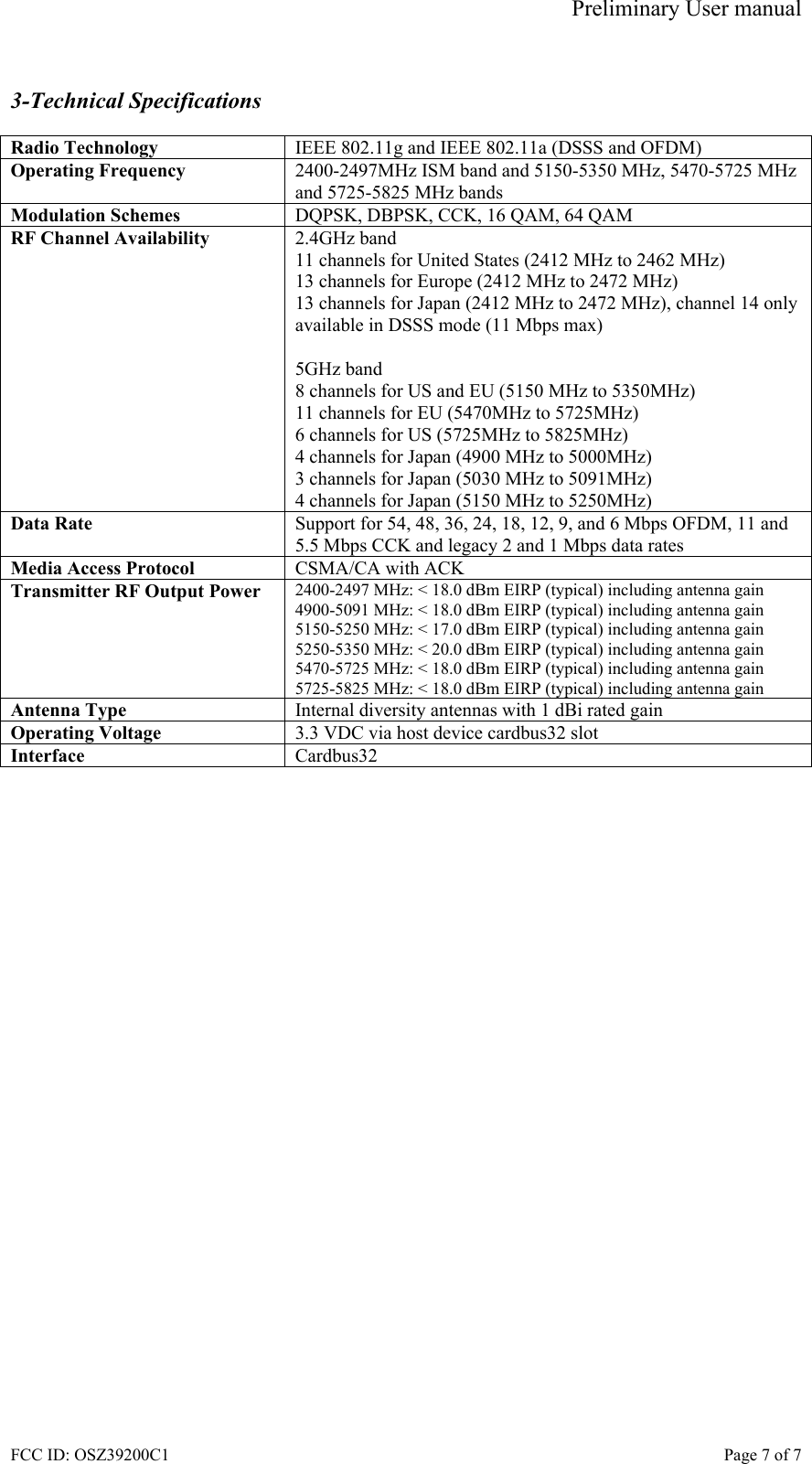

Preliminary User manual FCC ID: OSZ39200C1 Page 7 of 7 3-Technical Specifications Radio Technology IEEE 802.11g and IEEE 802.11a (DSSS and OFDM) Operating Frequency 2400-2497MHz ISM band and 5150-5350 MHz, 5470-5725 MHz and 5725-5825 MHz bands Modulation Schemes DQPSK, DBPSK, CCK, 16 QAM, 64 QAM RF Channel Availability 2.4GHz band 11 channels for United States (2412 MHz to 2462 MHz) 13 channels for Europe (2412 MHz to 2472 MHz) 13 channels for Japan (2412 MHz to 2472 MHz), channel 14 only available in DSSS mode (11 Mbps max) 5GHz band 8 channels for US and EU (5150 MHz to 5350MHz) 11 channels for EU (5470MHz to 5725MHz) 6 channels for US (5725MHz to 5825MHz) 4 channels for Japan (4900 MHz to 5000MHz) 3 channels for Japan (5030 MHz to 5091MHz) 4 channels for Japan (5150 MHz to 5250MHz) Data Rate Support for 54, 48, 36, 24, 18, 12, 9, and 6 Mbps OFDM, 11 and 5.5 Mbps CCK and legacy 2 and 1 Mbps data rates Media Access Protocol CSMA/CA with ACK Transmitter RF Output Power 2400-2497 MHz: < 18.0 dBm EIRP (typical) including antenna gain 4900-5091 MHz: < 18.0 dBm EIRP (typical) including antenna gain 5150-5250 MHz: < 17.0 dBm EIRP (typical) including antenna gain 5250-5350 MHz: < 20.0 dBm EIRP (typical) including antenna gain 5470-5725 MHz: < 18.0 dBm EIRP (typical) including antenna gain 5725-5825 MHz: < 18.0 dBm EIRP (typical) including antenna gain Antenna Type Internal diversity antennas with 1 dBi rated gain Operating Voltage 3.3 VDC via host device cardbus32 slot Interface Cardbus32
