Connect One SM2144N2BIO WIFI MODULE User Manual
Connect One Ltd. WIFI MODULE Users Manual
Users Manual
Connect One Ltd.
20 Atir Yeda Street
Kfar Saba 44643, Israel
Phone: +972-9-766-
0456
Fax: +972-9-766-0461
Email: sales@connectone.com
www.connectone.com
Pub. No. 11-4400-03, Copyright © Connect One, 2008-2011. All rights reserved.
WiReach BK
Data Sheet
Ver. 1.30
WiReach BK
WiReach BK Data Sheet ii
Information provided by Connect One Ltd. is believed to be accurate and reliable.
However, Connect One assumes no responsibility for its use, nor any infringement of
patents or other rights of third parties, which may result from its use. No license is
granted by implication or otherwise under any patent rights of Connect One other than for
circuitry embodied in Connect One’s products. Connect One reserves the right to change
circuitry at any time without notice. This document is subject to change without notice.
The software described in this document is furnished under a license agreement and may
be used or copied only in accordance with the terms of such a license agreement. It is
forbidden by law to copy the software on any medium except as specifically allowed in the
license agreement. No part of this document may be reproduced or transmitted in any
form or by any means, electronic or mechanical, including but not limited to photocopying,
recording, transmitting via fax and/or modem devices, scanning, and/or information
storage and retrieval systems for any purpose without the express written consent of
Connect One.
WARNING: THE WiReach BK IS AN RF MODULE INTENDED FOR EMBEDDING IN A
HOST DEVICE. LOCAL RELEVANT RF REGULATIONS SUCH AS ALLOWED
FREQUENCIES AND USAGE IN COMMERCIAL FLIGHTS MUST BE OBSERVED.
SAFETY INSTRUCTIONS MUST BE INCLUDED IN THE MANUALS OF THE HOST
DEVICE. CONNECT ONE ASSUMES NO LIABILITY FOR CUSTOMER FAILURE TO
COMPLY WITH THESE PRECAUTIONS.
iChip, WiReach BK, IP Communication Controller, SerialNET, AT+i and Connect One are
trademarks of Connect One Ltd.
Copyright 2008 – 2011 Connect One Ltd. All rights reserved.
Connect One
Revision History
WiReach BK Data Sheet iii
Revision History
11-4400-03
Version
Date
Description
1.00
August 2010
Initial preliminary version
1.10
August 2010
Updated Mechanical Dimensions
1.15
August 2010
Misc. Updates
1.20
August 2010
Formatting
1.30
February 2011
Added FCC Notices
Connect One
Contents
WiReach BK Data Sheet iv
Contents
1 Introduction ....................................................................................................................... 1-1
1.1 General Description ..................................................................................................... 1-1
1.2 Hardware Description ................................................................................................... 1-1
1.3 Performance Specifications ......................................................................................... 1-1
2 Features ............................................................................................................................. 2-1
2.1 Security ........................................................................................................................ 2-1
2.2 Protocols ...................................................................................................................... 2-1
2.3 Additional Features ...................................................................................................... 2-1
3 Typical Applications ........................................................................................................ 3-1
4 Connector Pin Description .............................................................................................. 4-1
4.1 Pin Numbers ................................................................................................................. 4-1
4.2 Pin Functional Description ........................................................................................... 4-2

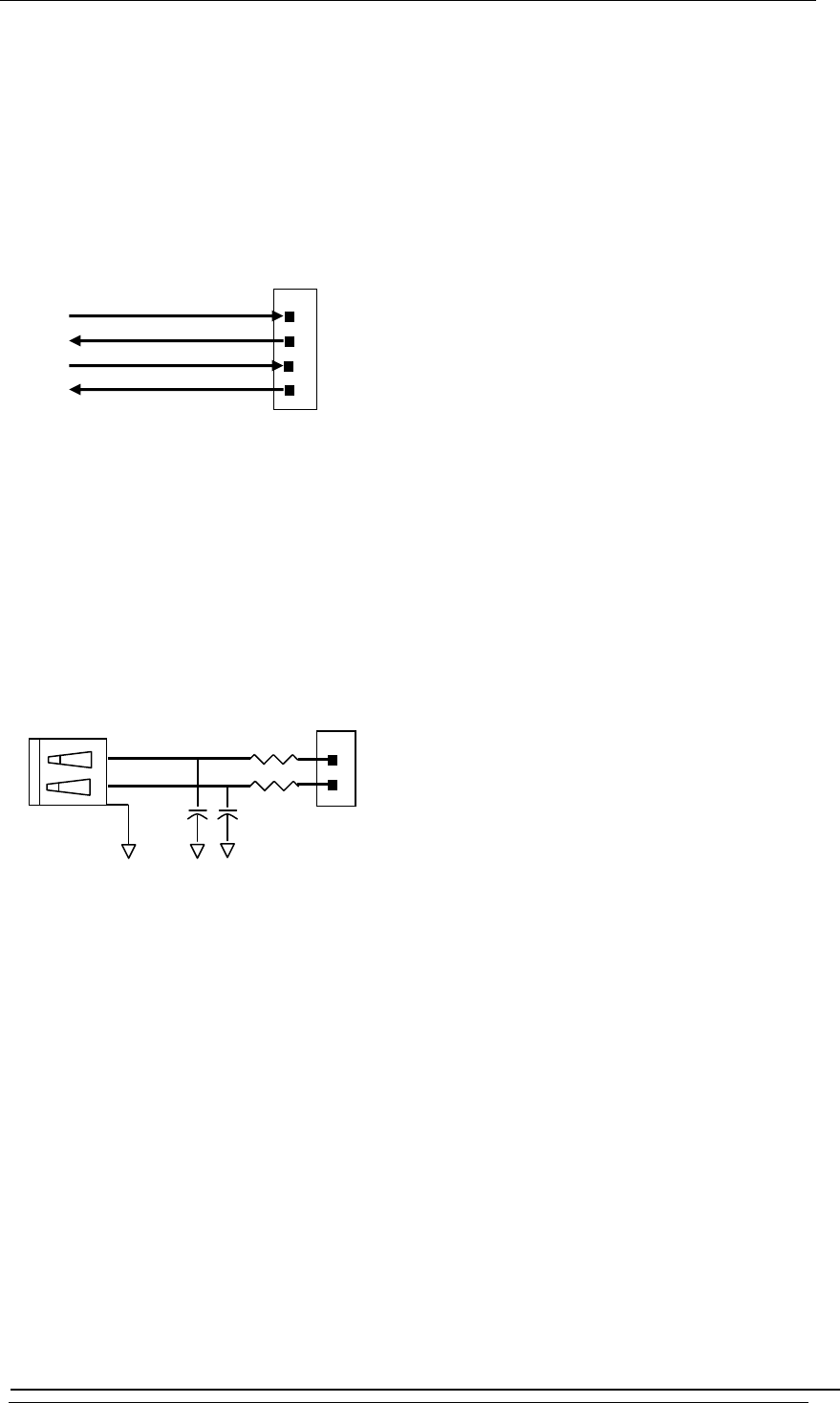

5 Interfaces ........................................................................................................................... 5-1
5.1 Serial Interface ............................................................................................................. 5-1
5.2 USB Interface ............................................................................................................... 5-1
6 Electrical Specifications .................................................................................................. 6-1
6.1 Absolute Maximum Ratings ......................................................................................... 6-1
6.2 DC Operating Characteristics ...................................................................................... 6-1
6.3 Tx Specifications .......................................................................................................... 6-2
6.4 Rx Specifications .......................................................................................................... 6-2
7 Mechanical Dimensions ................................................................................................... 7-1
8 Ordering Information ....................................................................................................... 8-2
9 Internet Protocol Compliance ......................................................................................... 9-3
Connect One
Figures
WiReach BK Data Sheet v
Figures
Figure 4-1: Pin-out for WiReach BK .......................................................................................... 4-1

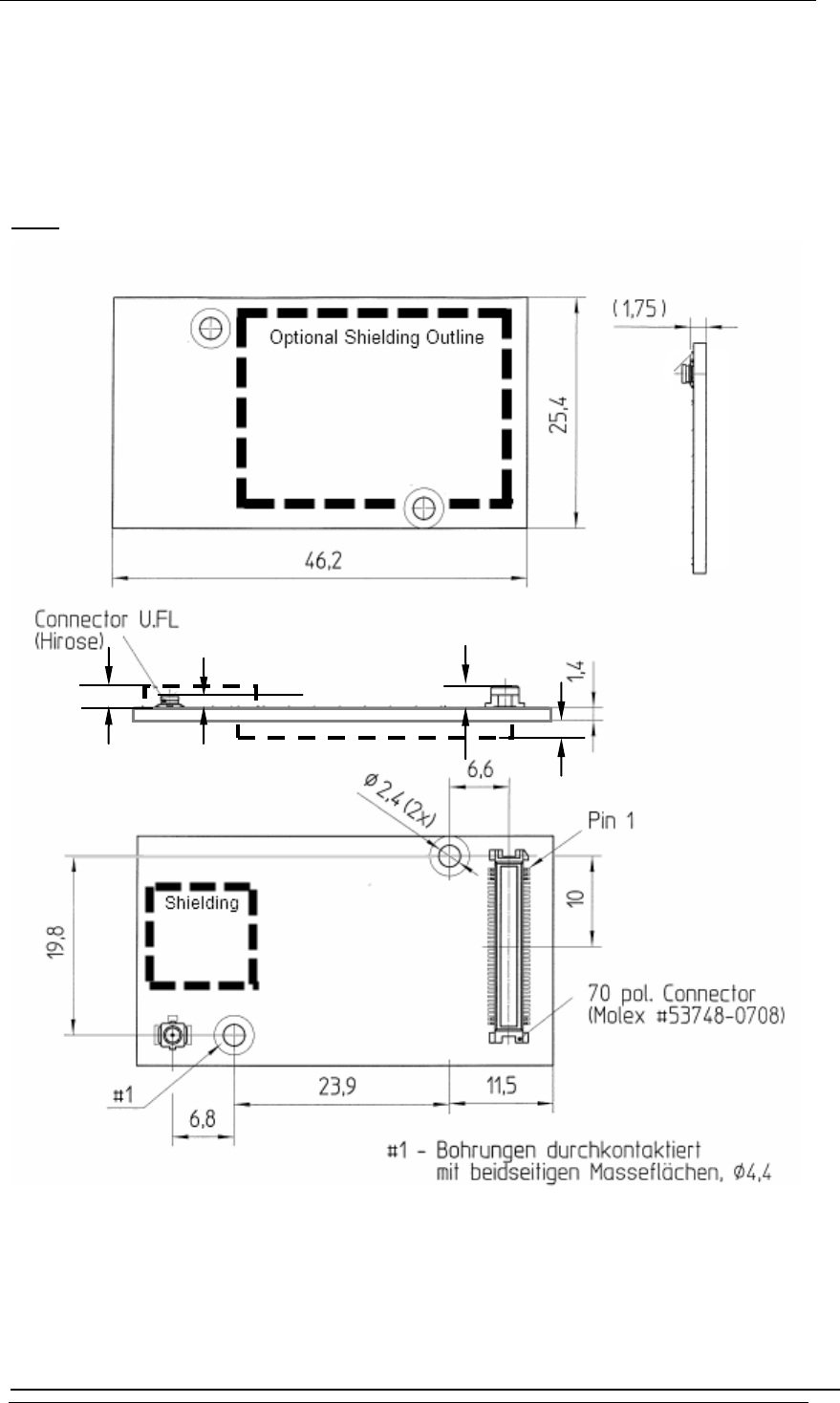

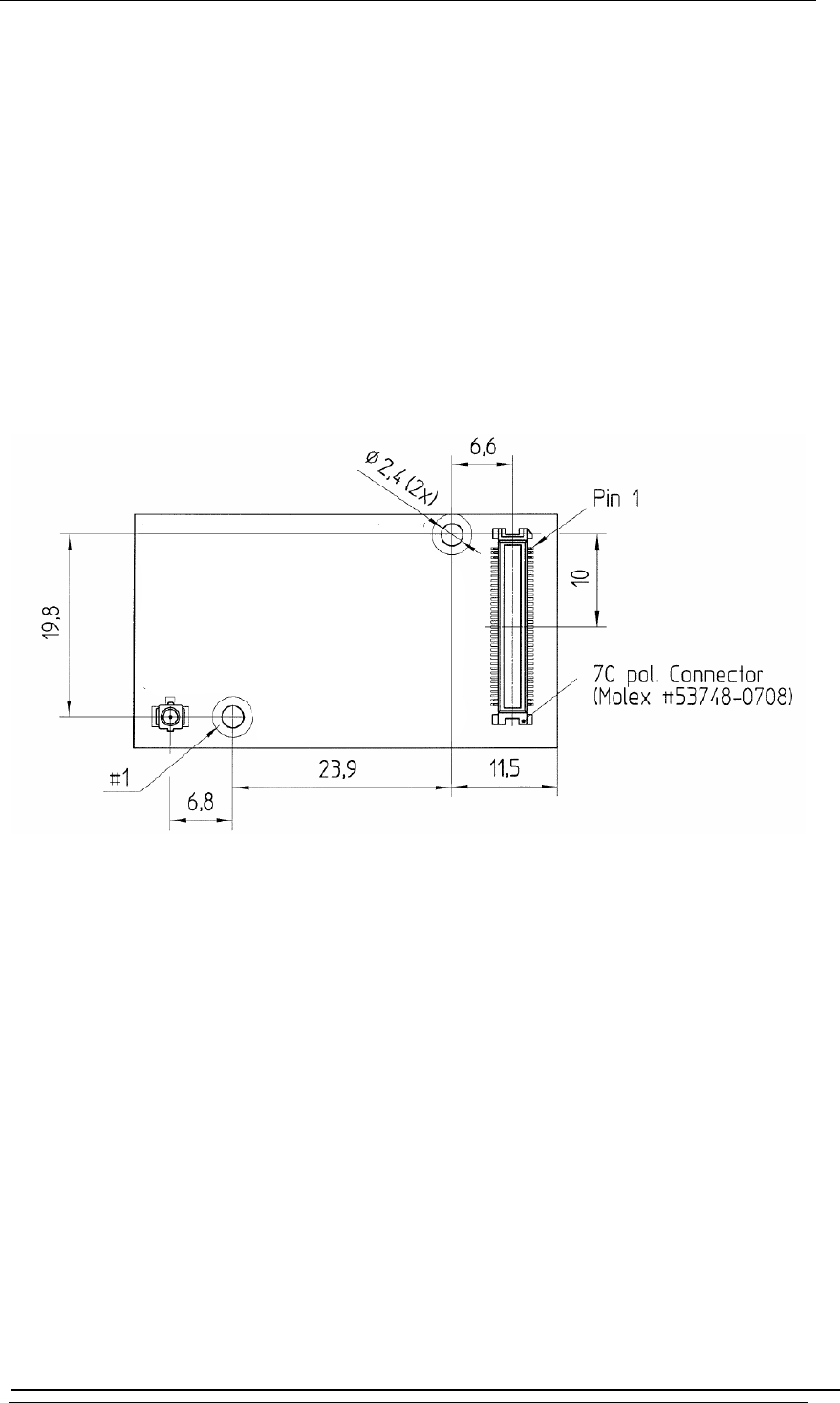

Figure7-1: Mechanical Dimensions .......................................................................................... 7-1
Connect One
Tables
WiReach BK Data Sheet vi
Tables
Table 4-1: Connector Signal Description ................................................................................. 4-2
Table 6-1: Absolute Maximum Ratings..................................................................................... 6-1
Table 6-2: DC Operating Characteristics.................................................................................. 6-1
Table 9-1: Internet Protocol Compliance ................................................................................. 9-3
Connect One
Introduction
WiReach BK Data Sheet 1-1
1 Introduction
1.1 General Description
WiReach BK is a secure serial-to-
Wireless LAN device server module that
also acts as a bridge to connect serial
devices to 802.11b/g Wireless LANs. It
includes the iChip™ CO2144 IP
Communication Controller™ chip and
Marvell 88W8686 WiFi chipset. It is
packaged in RoHS-compliant ultra-slim
form factor and uses an industry
standard pin-out.
WiReach BK offers much more than
many other device servers on the
market. It acts as a security gap between
the application and the network;
supports up to 10 simultaneous
TCP/UDP sockets; two listening sockets;
a web server with two websites; SMTP
and POP3 clients; MIME attachments;
FTP and TELNET clients, and
SerialNET™ mode for serial-to-IP
bridging.
WiReach BK supports the SSL3/TLS1
protocol for secure sockets, HTTPS and
FTPS, WEP, WPA and WPA2 WiFi
encryption.
WiReach BK minimizes the need to
redesign the host device hardware. It
easily inserts into headers on the host
PCB and connects to an external
antenna. Minimal or no software
configuration is needed for WiReach BK
to access the Wireless LAN.
Connect One’s high-level AT+i™ API
eliminates the need to add WiFi drivers,
security and networking protocols and
tasks to the host application. The AT+i
SerialNET operating mode offers a true
plug-and-play mode that eliminates any
changes to the host application.
WiReach BK firmware – the IP stack and
Internet configuration parameters – are
stored in an external flash memory. The
module is power-efficient: the core
operates at 1.2V, while I/Os operate at
3.3V. Power Save mode further reduces
power consumption.
1.2 Hardware Description
Size: 46.2 x 25.4 x 5.0 mm
(46.2 x 25.4 x 6mm with shielding option)
Core CPU: 32-bit RISC ARM7TDMI, low-
leakage, 0.13 micron, running at 48MHz
Operating Voltage: +3.58V+/-5%
Operating Humidity: 90% maximum
(non-condensing)
Operating Temperature Range:
-20° to 75°C (-4° to 167°F)
Power Consumption:
Transmit – 250mA @16dbm
235mA @12dbm (typical)
Receive – 190mA (typical)
Power Save mode – 8mA
RF Connector: U.FL of Hirose
Connector: Low profile 70 pin (Molex
#53748-0708)
Host Interface: TTL Serial and USB
device.
RoHS-compliant; lead-free
1.3 Performance
Specifications
Host Data Rate: up to 3Mbps in serial
mode
Serial Data Format (AT+i mode):
Asynchronous character; binary; 8 data
bits; no parity; 1 stop bit
SerialNET mode: Asynchronous
character; binary; 7 or 8 data bits; odd,
even, or no parity; 1 stop bit
Flow Control: Hardware (-RTS, -CTS)
and software flow control.
Connect One
Introduction
WiReach BK Data Sheet 1-2
Internet Protocols
ARP, ICMP, IP, UDP, TCP, DHCP, DNS,
NTP, SMTP, POP3, MIME, HTTP, FTP
and TELNET
Security Protocols
SSL3/TLS1, HTTPS, FTPS, RSA,
AES-128/256, 3DES, RC-4, SHA-1, MD-
5, WEP, WPA and WPA2
Protocols Accelerated in HW
AES, 3DES and SHA
Application Program Interface
Connect One’s AT+i protocol
SerialNET mode for transparent serial
data-to-Internet bridging
Wireless Specifications
Standards Supported: IEEE 802.11b,
IEEE 802.11g
Frequency:
Europe – 2.412-2.472GHz
USA – 2.412-2.462GHz
Japan – 2.412-2.484GHz
Channels:
Europe – 13 channels
USA – 11 channels
Japan – 14 channels
Recommended Antenna
iW-ANT2-BL Antenna: 2.4GHz, 2.0dBi, 50Ω,
omni-directional, 1/4 wavelength dipole
configuration, VSWR≤2.0,
Warranty
One year
Certifications
• Radio and EMC:
- USA
o CFR Title 47
o IFCC Part 15.247
o FCC Part 15/ICES-003 class B
- Canada
o Industry Canada ICES-003, RSS-
Gen, RSS-210
- EU
o EN 300 328 V1.7.1 (2006-10)
o EN 301 489-1 V1.8.1 (2008-04)
o EN 301 489-17 V 1.3.2 (2008-04)
CE – Self declaration
- Japan
o Article 38-2 Paragraph1 Item 1:
Low Power Data Communications
System in 2.4 GHz Band
• Safety:
o UL 60950
o CAN/CSA-C22.2 No. 60950
o EN 60950-1, Low Voltage Directive
(2006/95/EC)

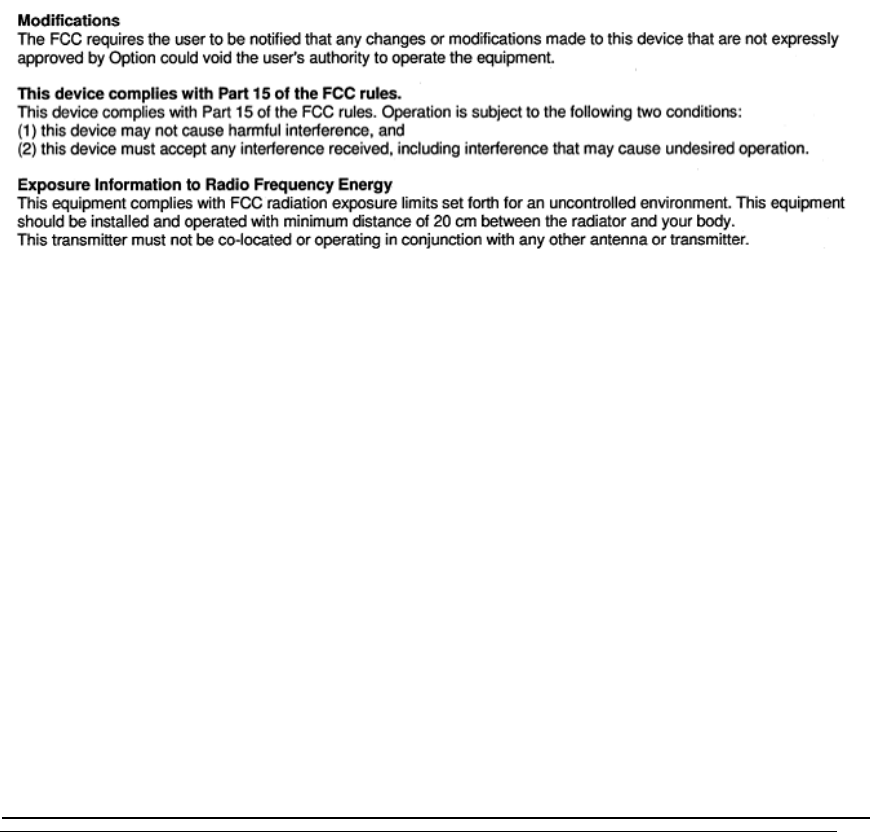

THIS DEVICE COMPLIES WITH PART
15 OF THE FCC RULES. OPERATION IS
SUBJECT TO THE FOLLOWING TWO
CONDITIONS: (1) THIS DEVICE MAY
NOT CAUSE HARMFUL
INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING
INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.(*)
Installation Requirements
The WiReach BK must be installed
within a full-enclosure device that is
safety certified.
(*) NOTE: THE MANUFACTURER IS NOT RESPONSIBLE
FOR ANY RADIO OR TV INTERFERENCE
CAUSED BY UNAUTHORIZED
MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE
USER’S AUTHORITY TO OPERATE THE
EQUIPMENT.
Connect One
Features
WiReach BK Data Sheet 2-1
2 Features
2.1 Security
Acts as a security gap between the host application and the network
One secure SSL3/TLS1 socket
Provides WEP, WPA and WPA2 Wireless LAN security
Supports multiple Certificate Authorities and both client-side and server-side
authentication
Secure FTP and HTTP clients (over SSL3)
Includes a true hardware random number generator
AES, 3DES and SHA accelerated in hardware
2.2 Protocols
Up to 10 simultaneous TCP/UDP sockets and two listening sockets
HTTP client
HTTP web server with two on-chip websites: configuration site and application site
FTP and TELNET clients
DHCP client and server
Sending and receiving textual email and binary email with MIME attachments
2.3 Additional Features
Non-volatile, on-chip operational parameter database
Supports infrastructure and ad-hoc Wireless LAN networks
SerialNET mode for serial-to-IP bridging (port server mode)
Local firmware update
Remote configuration and firmware update over the Internet
Retrieval of time data from a Network Time Server
Immediate baud rate change on High Speed USART up to 3Mbps with the AT+iBDRI
command.
Change WiFi country specific configuration with the AT+iWPRF parameter.
Note: For a detailed description of all available features, see the
AT+i Programmer’s Manual.
Connect One
Typical Applications
WiReach BK Data Sheet 3-1
3 Typical Applications
Adding IP communications over WiFi to serial embedded devices.
Adding SSL security to M2M solutions.
WiReach BK supports several operational modes:
SerialNetTM Serial to WiFi Bridge - allowing transparent bridging of Serial over
WiFi, using a 3Mbps fast UART. This is a true plug-and-play mode that eliminates
any changes to the host application.
PPP modem emulation – allowing existing (i.e. modem) designs currently using
PPP to connect transparently over WiFi.
Full Internet Controller mode – allowing simple MCU to use the WiReach BK’s rich
protocol and application capabilities to perform complex Internet operations such as
E-mail, FTP, SSL, embedded Web server and others. It also acts as a firewall,
providing a security gap between the application and the network.
Connect One
Pin Descriptions
WiReach BK Data Sheet 4-1
4 Connector Pin Description
The WiReach BK module includes the iChip CO2144 IP Communication Controller and
the Marvell 88W8686 802.11b/g WiFi chipset mounted on a socket form-factor module.
4.1 Pin Numbers
Figure 4-1: Pin-out for WiReach BK
Connector: Molex 53748-0708
Mate with: Molex 52991-0708
Bottom View
Connect One
Pin Descriptions
WiReach BK Data Sheet 4-2
4.2 Pin Functional Description
Pin
Signal
type
Description
1
GND
power
2
GND
power
3
GND
power
4
GND
power
5
VDD
Power
6
VDD
Power
7
VDD
Power
8
VDD
Power
9
nCTS0
Digital Input
UART 0 clear to send
11
TXD0
Digital
Output
UART 0 transmit
12
DDP
Analog
USB device positive
14
DDM
Analog
USB device negative
15
nRTS0
Digital
Output
UART 0 request to send
21
RXD0
Digital Input
UART 0 receive
25
VREF
Digital
Output
3.3V from internal
regulator.
28
MSEL
Digital Input
Mode select
53
nRESET
Digital Input
Reset Module.
59
GND
power
All
other
N.C
Not Connected
Table 4-1: Connector Signal Description
Connect One
Interfaces
WiReach BK Data Sheet 5-1
5 Interfaces
5.1 Serial Interface
5.2 USB Interface
12
14
DDP
DDM
WiReach BK
Connector
2
3
USB-B
27
27
15pF
15pF
4
21
11
9
15
RXD0
TXD0
nCTS0
nRTS0
WiReach BK
Connector
Connect One
Electrical Specifications
WiReach BK Data Sheet 6-1
6 Electrical Specifications
6.1 Absolute Maximum Ratings
Parameter
Rating
VDD supply respect to ground
-0.3V to +5V
Voltage at any other pin with respect to ground
-0.3V to +3.5V
Operating temperature
-20°C to 75°C (-4°F to 1675°F)
Storage temperature
-65°C to 125°C (-85°F to 257°F)
Table 6-1: Absolute Maximum Ratings
6.2 DC Operating Characteristics
Parameter
Min
Typical
Max
Units
VDD
3.4
3.58
3.76
Volts
High-level Input
2.0
+3.5V
Volts
Low-level Input
-0.3
0.8
Volts
High-level Output @2mA
2.8
Volts
High-level Output @0mA
3
Volts
Low-level Output @2mA
0.4
Volts
Low-level Output @0mA
0.2
Volts
Input leakage current
10
µA
Power supply current from VDD
(Transmit Mode)
260
280
mA
Power supply current from VDD
(Receive Mode)
190
210
mA
Power supply current from VDD
(Power Save Mode)
8
mA
Input Capacitance
5.3
pF
Radio Frequency Range
(subject to local regulation)
2.412
2.484
GHz
Table 6-2: DC Operating Characteristics
Connect One
Electrical Specifications
WiReach BK Data Sheet 6-2
6.3 Tx Specifications
Item
Condition
Min
Typ
Max
Unit
Transmit Power Levels
11b
15
dBm
11g
15
dBm
Transmit Spectrum Mask
11b
Fc+/-11MHz
40
dBc
Fc+/-22MHz
60
dBc
11g
Fc+/-11MHz
30
dBc
Fc+/-20MHz
40
dBc
Fc+/-30MHz
50
dBc
Transmit Center
Frequency Tolerance
Temperature=25°C
±10
ppm
Table 6-2: Tx Specifications
6.4 Rx Specifications
Item
Condition
Min
Typ
Max
Unit
Receiver Minimum Input
Level Sensitivity
802.11b Data Rate=11Mbps,
PER<8%
-88
dBm
802.11g Data Rate=54Mbps,
PER<10%
-74
dBm
Adjacent Channel
Rejection
Desired channel is 3dB
above sensitivity
802.11b Data Rate=11Mbps,
PER<8%
48
dBc
802.11g Data Rate=54Mbps,
PER<10%
15
dBc
Table 6-3: Rx Specifications
PER(%)=(Number of all packets – Number of received packets)/(Number of all
packetsX100)
Connect One
Protocol Compliance
WiReach BK Data Sheet 7-1
7 Mechanical Dimensions
Note: All measures are in millimeters
Figure7-1: Mechanical Dimensions
2.4
2.2
1.2
5
1.8
Connect One
Electrical Specifications
WiReach BK Data Sheet 8-2
8 Ordering Information
Ordering Information
Part Number
Description
CO-IW-SM2144N2-BIO
WiReach BK module
iW-CAB-150
Miniature coaxial w/ pigtail cable. UFL-SMA connectors.
150mm length.
iW-ANT2-BL
2.4GHz WiFi antenna, 2.0dBi, 50Ω, omni-directional,
1/4 wavelength dipole configuration
Connect One
Electrical Specifications
WiReach BK Data Sheet 9-3
9 Internet Protocol Compliance
WiReach BK complies with the Internet standards listed in the following table.
RFC 768
User datagram protocol (UDP)
RFC 791
Internet protocol (IP)
RFC 792
ICMP – Internet control message protocol
RFC 793
Transmission control protocol (TCP)
RFC 821
Simple mail transfer protocol (SMTP)
RFC 822
Standard for the format of ARPA Internet text messages
RFC 826
Ethernet address resolution protocol (ARP)
RFC 959
File transfer protocol (FTP)
RFC 854
TELNET protocol specification
RFC 857
Telnet ECHO option
RFC 858
Telnet suppress go-ahead option
RFC 1034
Domain names (DNS) - concepts and facilities
RFC 1035
Domain names (DNS) - implementation and specification
RFC 1073
Telnet window size option
RFC 1091
Telnet terminal type option
RFC 1321
MD5 message digest algorithm
RFC 1939
Post office protocol - version 3 (POP3)
RFC 1957
Some observations on the implementations of the post office protocol (POP3)
RFC 2030
Simple network time protocol (SNTP)
RFC 2045
Multipurpose Internet mail extensions (MIME) part one: internet message body format
RFC 2046
MIME part two: media types
RFC 2047
MIME part three: message header extensions for non-ASCII text
RFC 2048
MIME part four: registration procedures
RFC 2049
MIME part five: conformance criteria and examples
RFC 2068
Hypertext transfer protocol HTTP/1.1
RFC 2131
Dynamic host configuration protocol (DHCP)
RFC 2132
DHCP options (only relevant parts)
RFC 2228
FTP security extensions
RFC 2246
The TLS protocol version 1.0
Table 9-1: Internet Protocol Compliance
