ConnecteDevice BT01 Bluetrek Bluetooth Wireless Headset User Manual User Guide
ConnecteDevice Limited Bluetrek Bluetooth Wireless Headset User Guide
User Manual
Bluetrek
Bluetooth Wireless Headset
for mobile phones
User Guide
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause
undesired operation.
Caution : Changes or modifications to this Bluetooth headset not expressly approved by the
manufacturer could void the user's authority to operate the equipment.
1. Introduction
BlueTrek is a wireless Headset for mobile phones.
It uses the Bluetooth Technology, a new standard for wireless short distance radio
communications. Devices like a headset and a mobile phone can communicate with each other
without wires within approximately 10 meters.
BlueTrek Headset is a qualified Bluetooth headset that complies with the Bluetooth 1.1
protocol. Bluetrek can be used with:
- A qualified BlueTooth Mobile Phone;
- A non-Bluetooth mobile Phone when used with the BT07 adaptor (optional).
To check the list of qualified Bluetooth Mobile Phones working with Bluetrek, please consult:
www.bluetrek.com
Your package includes:
- Bluetrek Headset
- Headset charger
- Headset carrying case with belt clip (optional)
2. BlueTrek Headset

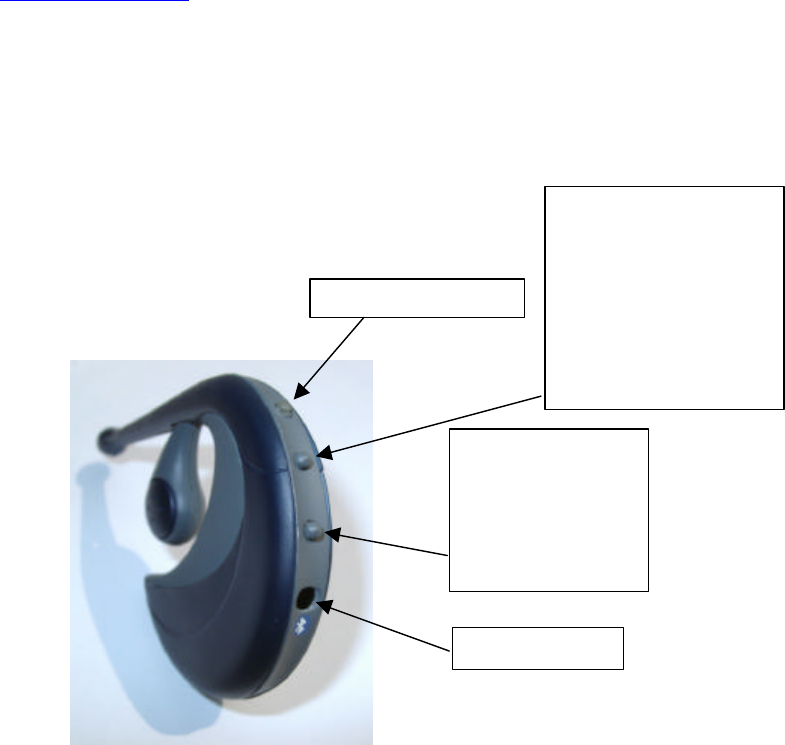

FIGURE 1
Dual colour light
-
Switch on
- Pairing mode
- Take a call
- Volume Up
- End a call
- Switch off
(together with
button2)
-
Take a call
- Volume Down
- End a call
- Switch off
(together with
button 1)
Charging plug
1
2
3. Charging BlueTrek
Your Headset is delivered uncharged. So before you start to use Bluetrek, you must
fully recharge it for about 2 hours.
It is mandatory to use the charger provided with your product. The use of any other
charger will automatically suspend the warranty.
Plug the charger jack into the Headset. Because the jack is new, it is harder to plug when you
start to use it. So please make sure you push it completely. During the charge (about 2
hours), the Headset light will be red and continuously on. Once the charge is completed, the
light with turn to green. You can now use your headset.
When you hear a beep in your Headset at regular intervals or approximately 1 minute, your
Headset needs to be recharged. It is recommended to recharge your headset to full capacity
once a day, until the light turns to green.
During the charge you still can use your headset.
The Headset is using a rechargeable battery that has a life of about 500 charging cycles. Once
the talk-time of your Headset is reduced significantly, contact your vendor for battery
replacement. The battery must be disposed of properly and may need to be recycled. Please
contact your local recycling for proper disposal. Do not dispose of batteries in fire as they may
explode.

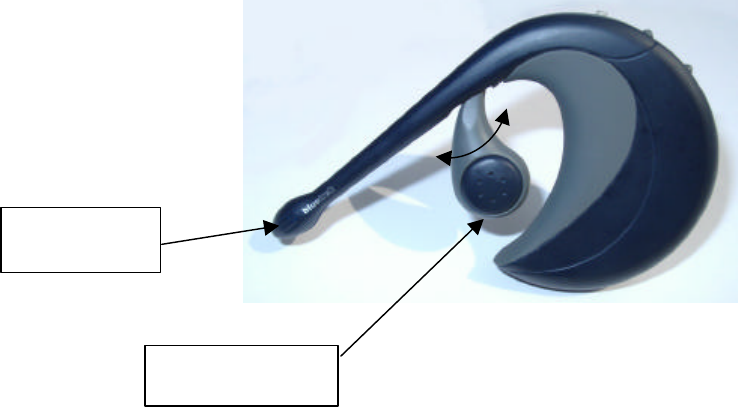

Microphone
Adjustable
speaker
4. Pairing Bluetrek headset to a Bluetooth mobile phone
Before using the BlueTrek Headset, you must pair it with your BlueTooth mobile phone.
Pairing is the process of linking two BlueTooth devices, so that they can communicate.
The pairing only needs to be done once. Afterwards, every time you switch on your Headset, it
will automatically connect to your mobile phone. If you pair your Bluetooth mobile phone with
another Bluetooth device, you will have to pair the Bluetrek Headset with your phone again
before use.
IMPORTANT: before pairing, all Bluetooth devices have to be switched off.
To initiate a pairing, put both the Headset and the mobile phone within 1 meter (3 feet) from
each other.
1- Switch on your phone and select the BlueTooth discover mode (or sniff mode) on
the Mobile Phone (See the BlueTooth Mobile Phone user’s manual)
2- Press the ON button (See Button 1 on Figure 1) on the Headset and keep it pressed
for about 8 seconds.
(Remark: After 3 seconds, the light with flash green and red and you will hear a
music tone in the speaker; Do not release the button at that time! Only after 8
seconds, when the light flashes only in red and you can hear a lighter tone, can you
release the button).
3- Once the mobile phone detects the headset, a message is displayed with the
following information: Bluetrek 01.
4- Follow the phone instructions to accept the Pairing; PIN code (or passkey) is 0000.
5- When the pairing has been completed, the light switches from red to green, and
flashes slowly.
Now you can make calls and receive calls from your BlueTrek headset.
Example: How to pair your headset with the Sony Ericsson T68i.
1. Take your Sony Ericsson T68i and go to the main menu. From there select the
“CONNECT” option
2. Select option 3, “Bluetooth”
3. Select option 2, “Paired devices” and if you had previously paired your phone with
another headset, you will see it in the list. To cancel a pairing, highlight the device and
press on “C” to delete it.
4. Switch off completely your headset by pressing simultaneously button 1 and button 2
until you hear a music tone.
5. Press button 1 and keep your finger pressed: the headset will be switched on
6. Keeps on pressing button 1 until you hear a second music tone and you see a red light
flashing quickly. You can now release button 1.
7. From your T68i, go back to the previous screen and select option 3, “Discover”: The
T68i is now searching for the Bluetrek.
8. Once it has found it, press the “Yes” key to confirm it.
9. Press again the “Yes” key to confirm the option 1: “Add to paired”
10. Type your passkey: 0000 (four zeros) and then press “Yes”
11. The pairing is then in process and you should read under the title Nametag: BlueTrek 1.
12. Press “Yes” to confirm again.
13. Your mobile phone is now paired and ready to use.
5. Wearing the headset
Please refer to Figure 2.

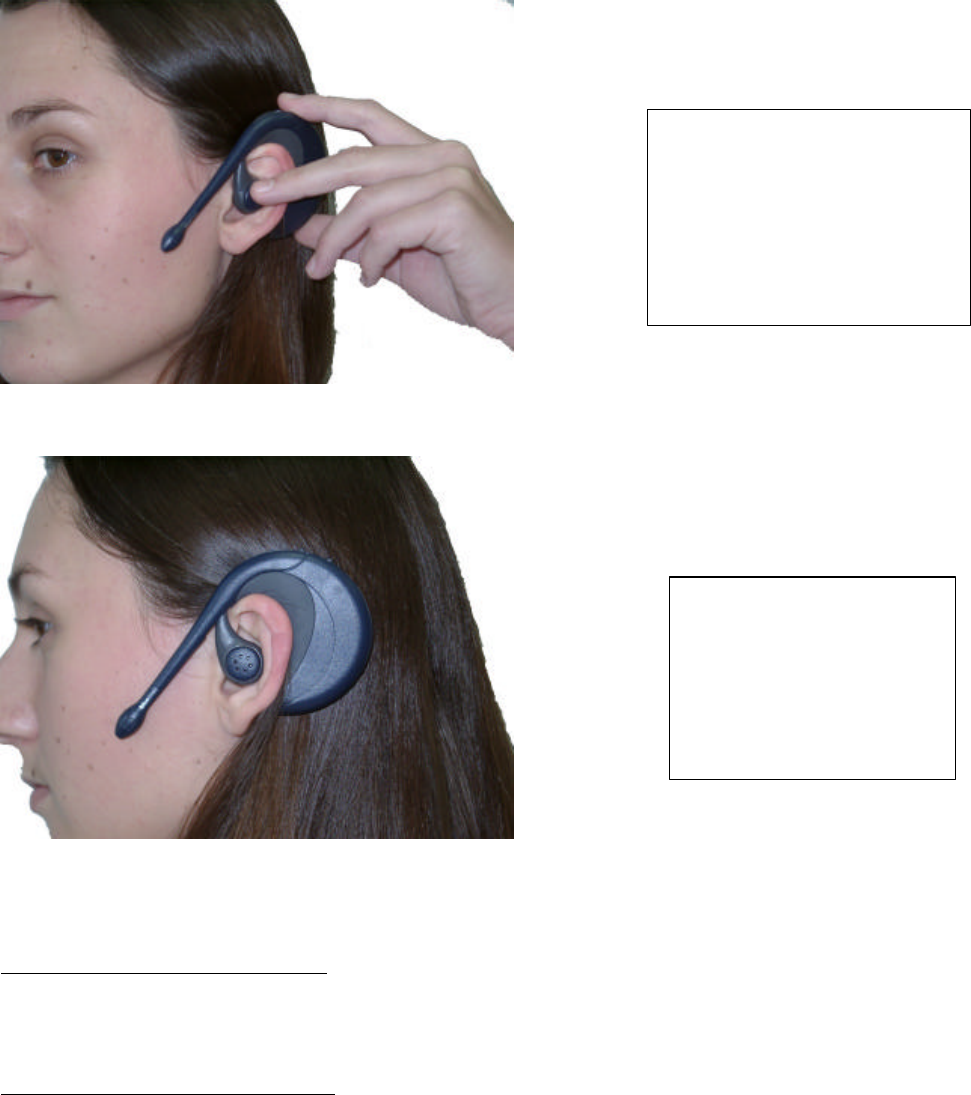

FIGURE 2
The headset can be
used in both ears. Hold
the headset with the
opposite hand while
holding your ear with
the other hand. For
instance, if you want
to place the headset
on your left ear, hold
the headset with your
right hand while
holding your ear with
your left hand.

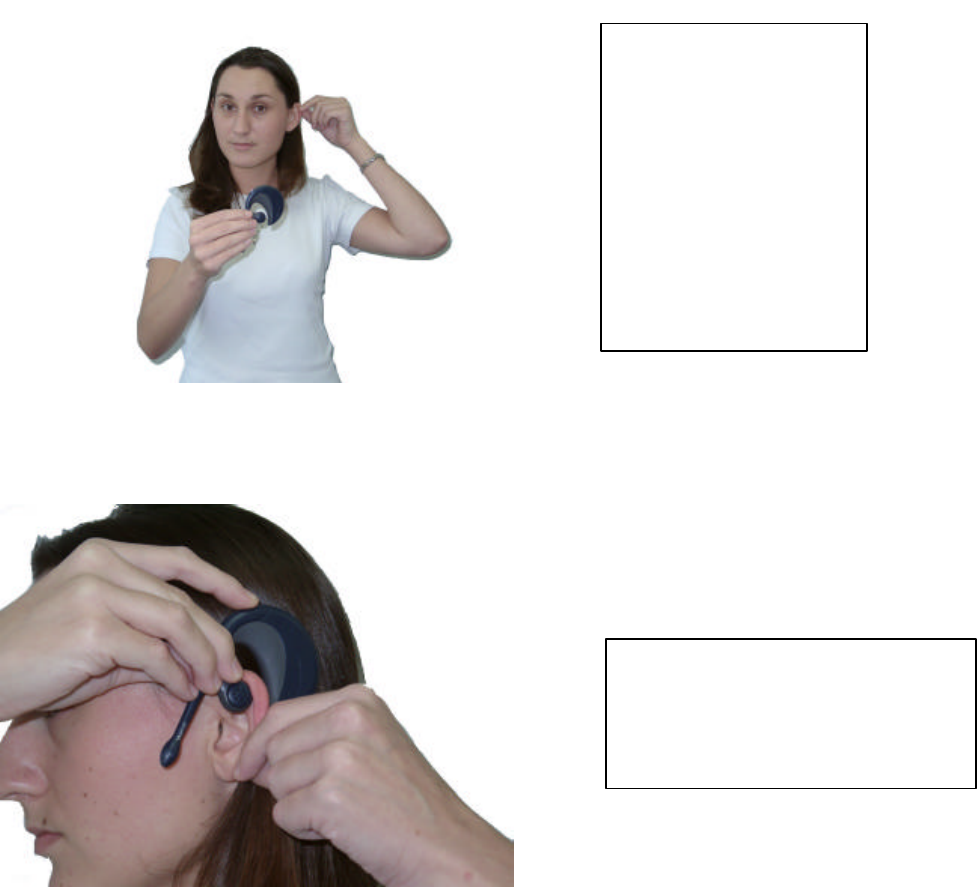

While holding the headset, pull
slightly the small speaker away
from your ear and place the
headset on your ear as shown on
the picture.
6. Switching the Headset ON and OFF:
6.a. Switching the Headset ON :
If you Headset is switched OFF, press button 1 for about 3 seconds until the light flashes green
and red, and you will hear a music tone in the speaker. Your Headset is now ready to make
and receive calls.
6.b. Switching the Headset OFF :
Once you have finished using the Headset, press at the same time on buttons 1 and 2 for
about 1 second until you hear a music tone in the speaker.
Position the headset
properly on your ear and
then release the speaker.
Finally, make sure that the
speaker fits well into your
ear. At this stage it should
be stable and comfortable.
Your headset is now
ready.
7. Making a Call
Preliminary remark: The voice recognition feature is not available on all mobile phones.
However you can always dial directly on your keypad. If your mobile phone offers the voice
recognition feature, you can make a call directly from the headset without any operation on
you mobile phone.
Mobile with voice recognition:
1. Make sure the voice recognition function on your mobile is activated and your voice
tags have been recorded.
2. Press any button on the BlueTrek headset for about 1 second until you hear a
tone.
3. The audio connection is established and the light flashes green continuously.
4. Wait for the audio signal sent by the mobile Phone (generally a short tone).
5. Speak out name of person you wish to call, as stored in the voice tags.
6. Mobile Phone is dialling the stored number.
Mobile without voice recognition:
1. Make sure both devices are in the stand-by mode,
2. Dial the phone number you wish to call on your mobile phone,
3. After roughly 2 seconds the audio connection is established so that you can hear
short tones when dialling.
8. Volume Control
During a call you can change the earpiece speaker volume from the BlueTrek headset:
1. Press Button 1 to increase the Volume
2. Press Button 2 to decrease the Volume
Every time you press Button 1 or 2 for volume adjustment, you will hear a light tone. A
different tone can be heard when you have reached the highest or lowest volume.
Volume will be higher when the Headset is worn on the right ear.
9. Ending a Call
To end a call from the BlueTrek headset, press on any button of the Headset until you hear a
short tone. The headset returns to standby mode, and the light flashes slowly in green (or red
if battery is low).
To end a call from the mobile phone press the ‘End Call’ key. The headset will also return to
standby mode.
10. Incoming Call
When you receive a call:
1. The green led flashes quickly (red led is used if the Battery Voltage is low) on
BlueTrek headset
2. A ring tone is audible at the BlueTrek headset
To answer the call presses shortly any button on the BlueTrek Headset for about 1
second until you hear a tone. The light will flash green slowly (or red if battery is low)
on the BlueTrek Headset.
11. Transferring a Call to the Mobile Phone
Check your Mobile Phone user guide to see if your phone supports this feature and follow
instructions.
Remark: On some phones, you must switch OFF your Headset, and your mobile phone will give
you the option to retrieve the call on your phone.
12. Transferring a Call to the headset
When the mobile phone is receiving a call, to transfer the call to the headset:
1. Switch ON the BlueTrek headset,
2. Then press shortly any button on the BlueTrek headset,
3. A short tone is heard on the BlueTrek headset speaker,
4. The conversation can go on through the BlueTrek headset.
13. Troubleshooting guide
In general, the first thing you should do when encountering a problem that you cannot solve
with this manual, is to switch off your Headset and your mobile phone, and switch them on
again.
To find out more, please consult our website: www.bluetrek.com.
14. Guidelines for safe use
Read those guidelines before using your Headset.
- Do not drop or try to alter the shape of your Headset.
- Do not expose your Headset to liquid or moisture.
- Do not expose your Headset to extreme temperatures.
- Do not expose your Headset to fire or open flames.
- Do not try to disassemble your Headset. Service and Maintenance can only be
performed by authorized Bluetrek dealers.
- CAUTION : Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type.
- Keep your Headset away from dust and dirt.
- Do not let children play with your Headset, since it contains small parts that could
become detached and create a choking hazard.
- Check the regulation in you area if you plan to use your Headset while driving.
- Turn off your Headset before boarding an airplane.
