ConnecteDevice BT07 Bluetooth Dongle, Identification: V27 User Manual Headset Profile Test Report
ConnecteDevice Limited Bluetooth Dongle, Identification: V27 Headset Profile Test Report
Manual
Dongle
User’s Guide
INNOVI Technologies
Version: 1.0
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
Table of Contents
1. Introduction.....................................................................................4
2. Bluetooth Dongle..........................................................................5
3. Charging the Dongle...................................................................6
3.1. Preliminary remark : ...................................................................................6
3.2. How to connect the charger :........................................................................6
4. Dongle status and LED indication .......................................7
4.1. The dongle can have four modes :.................................................................7
4.1.1. Switch off ..................................................................................................7
4.1.2. Standby mode............................................................................................7
4.1.3. Pairing mode..............................................................................................7
4.1.4. Profiles mode .............................................................................................7
5. Pairing.................................................................................................9
5.1. Pairing the Dongle to BlueTrek......................................................................9
5.2. Pairing the Dongle to a BlueTooth Headset .....................................................9
5.3. Checking if the Pairing is correct with Bluetrek ................................................9
6. Connecting your dongle.......................................................... 10
7. Incoming Call................................................................................ 11
7.1. Nokia and Ericsson phones ......................................................................... 11
7.2. Others than Nokia or Ericsson..................................................................... 11
7.2.1. Automatic answer .....................................................................................11
7.2.2. Manual answer .........................................................................................11
8. Volume Control............................................................................ 12
9. Ending a Call ................................................................................. 12
10. Making a Call ................................................................................ 13
10.1. Mobile with voice recognition :.................................................................... 13
10.2. Mobile without voice recognition : ............................................................... 13
11. Transferring a Call to the Mobile Phone ........................ 14
12. Transferring a Call to the headset.................................... 14
13. Appendix : dongle profiles for phones ........................... 15
Page 2 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions :
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
Caution : Changes or modifications to this Bluetooth headset not expressly approved by
the manufacturer could void the user's authority to operate the equipment.
Page 3 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
1. Introduction
Complete Bluetooth offer from Innovi consists in two parts :
- Bluetooth Headset or Bluetrek,
- Bluetooth Dongle.
The purpose of these devices is to provide a Bluetooth wireless solution for a non mobile
phone which has the functionnality of hands free with wires.
Bluetrek and the Dongle can be used together or independtly as following :
- Use BlueTrek and the Dongle to transform your non Bluetooth mobile Phone in a
compatible BlueTooth mobile phone with a wireless headset (following the
Bluetooth spec V1.1)
- Use BlueTrek with your BlueTooth Mobile Phone (please refer as the Bluetrek
User’s guide),
- Use the Dongle with your non Bluetooth mobile Phone to connect to another
BlueTooth Headset manufacturer.
This guide provides informations about setting up and using the Dongle with a Bluetooth
headset like Bluetrek.
Page 4 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1

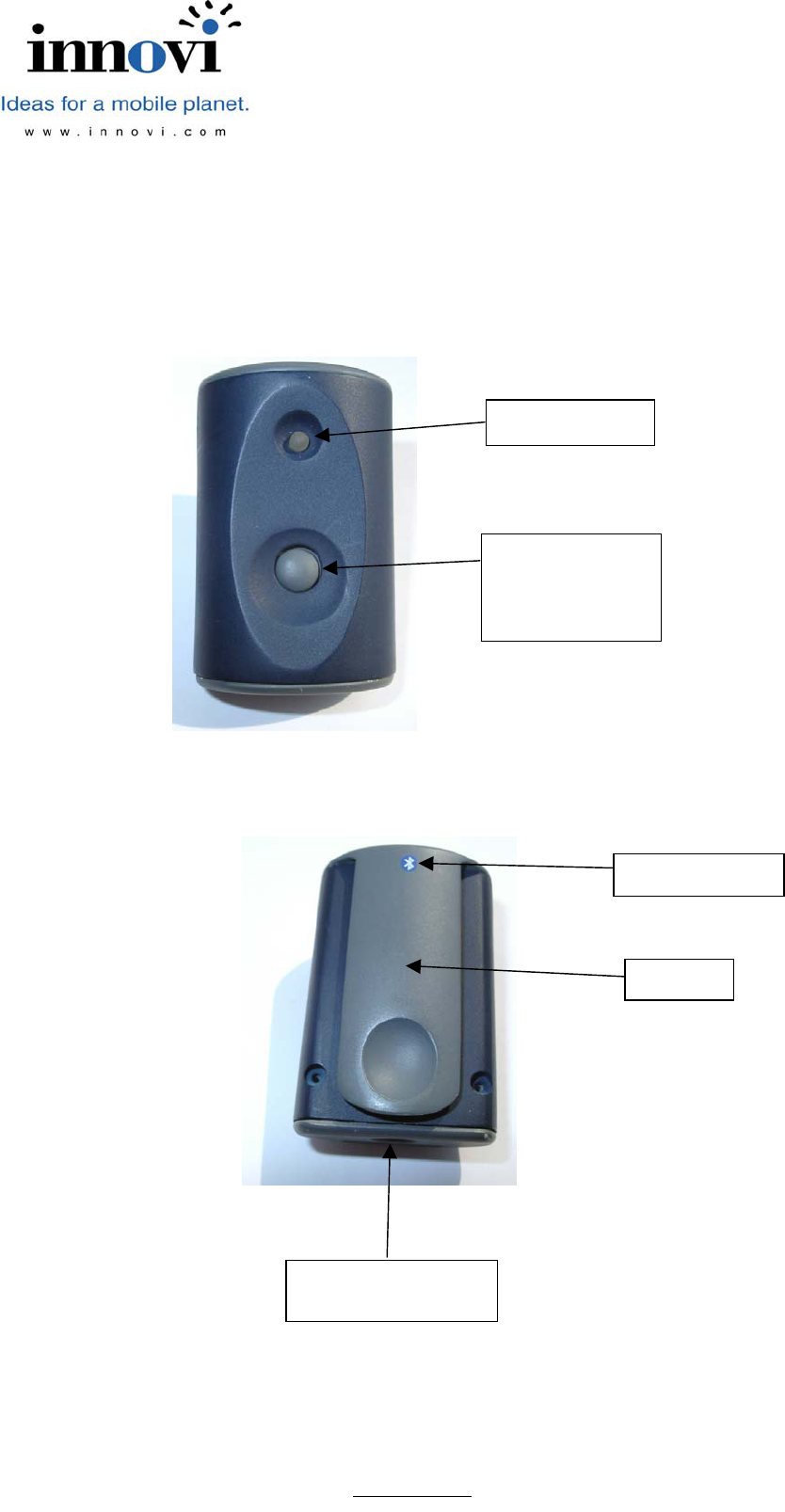

2. Bluetooth Dongle
Belt clip
- Switch on
- Switch off
- Pairing mode
- Profiles mode
Bluetooth logo
Dual color LED
- Charging hole
- Connecting hole
Page 5 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
3. Charging the Dongle
3.1. Preliminary remark :
It is mandatory to use the charger provided with your product. The use of any other
brand will suspend automatically the warranty.
Before using your Dongle connect it to the charger for an initial charge preferably for all
night. During the charge you should see the red LED continuously on. Once the charge is
finished you should see the green LED on. Now you can use your product.
Then daily please connect your product to the charger for few minutes to recharge the
battery to full capacity.
3.2. How to connect the charger :
Take one of the two jack connectors and plug it inside the hole. This is the same hole as
for the connection to the mobile. So it is not possible to use your dongle when charging.
Page 6 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
4. Dongle status and LED indication
The dongle was designed to be very easy to use for a daily use. But it is important to
understand how to configurate this device before you use it. So please read carefully the
information just below :
4.1. The dongle can have four modes :
4.1.1. Switch off
This mode is very simple to recognise because the LED is always off. When you are in
one of the mode 2,3 or 4 please press 2 to 3 seconds until you see green and red LED
together. Then you relaese the button and the LED becomes off.
4.1.2. Standby mode
The dongle is in this mode when the green LED (or red when the battery is low) is
flashing slowly. Be carefull because the flash is short every 7 seconds.
To go in standby mode be sure first your dongle is switched off. Then press the button
for aroud 3 seconds until you see the led on then release the button. You will see the red
LED on and quick flashes of the green LED. The number of green flashes indicates the
profile number which is programmed. Then the green LED (or red if the battery is low)
will flash slowly.
4.1.3. Pairing mode
The dongle is in this mode when you can see an alternating very quick flash of the red
and green LED.
To go to pairing mode be sure first your dongle is switched off. Then press the button for
around 10 seconds until you see aternating quick red and green flashes. Actually to go to
pairing mode you go first in standby mode (don’t release the button) then the LED
switches off for around 1 second (you still have to keep pressed the button) and just
after you will see the quick flashes. You can now release the button.
4.1.4. Profiles mode
This mode was created for the first time in the world by Innovi. This mode allows you to
have only one device, your dongle, able to work with almost all non Bluetooth mobile
phone on the market. By choosing the mode according to your mobile phone (see
appendix) the electronic adapts automatically the signals to the dedicated cable provided
with the dongle. The programmation of the profile has to be done only once when you
have a new phone or when you change it. Each phone has a profile. Sometimes this is
the same so you don’t need to reprogram it.
Page 7 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
The dongle is in this mode when you see the red LED on and flashes on the green LED.
Each flash in quick succession means the profile number. For example one quick flash
means profile numer one, three flashes in quick succession mean profile number 3 etc.
There are 5 possible profiles. So you have 5 differents type of flashes on the green light.
To go to profiles mode be sure first your dongle is switched off. Then press the button for
around 14 seconds until you see the red LED on together with quick green flashes. Now
you can release the button. Be carefull not to be confused with the beginning of the
standby mode which indicates only once the default profile. So you have to keep pressed
the button in order to pass through the standby mode and the pairing mode then you
access the profiles mode.
To change the profile you have first to be in profiles mode. Then observe the number of
green flashes. For example 2 quick flashes means you are in profile number 2. If you
press the button once (quick pres) so you will go to the next profile. In our example you
can see now 3 quick flashes. Then one more press you go to the profile 4 and so on.
After profile number 5 you go to profile number 1. Actually you browse in a loop until you
access the required profile.
After choosing the right profile you have to save it as the default profile by switching off
your dongle. So please press few seconds until you see the 2 LED on continuously. Then
release the button. Your dongle is now off.
To check if everything is good you switch on your dongle then you can see the number of
green flashes telling you the default profile you’ve just programmed.
Page 8 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
5. Pairing
Before using the dongle with an headset, you must pair it with a BlueTooth headset like
Bluetrek.
Pairing is the process of linking two BlueTooth devices, so that they can be connected to
each other with a worlwide unique link.
IMPORTANT : before pairing all Bluetooth devices have to be switched off.
5.1. Pairing the Dongle to BlueTrek
To initiate the pairing :
1- Put your Bluetrek into pairing mode (please refer to the Bluetrek manual)
2- Put your dongle into pairing mode (please refer to the paragraph 4.1.3)
3- After few seconds, when the pairing has been completed, in both side, the
green led flashes slowly. You are now in standby mode.
5.2. Pairing the Dongle to a BlueTooth Headset
To initiate a pairing with a BlueTooth Headset :
1- Put your BlueTooth Headset in the Pairing Mode (See your BlueTooth headset
user’s manual)
2- Put your dongle into pairing mode (please refer to the paragraph 4.1.3)
3- After few seconds, when the pairing has been completed, the green led flashes
slowly on your dongle. You are now in standby mode.
5.3. Checking if the Pairing is correct with Bluetrek
Your headset and your dongle are in standby mode. Your dongle doesn’t need to have
the cable. Press 2 to 3 seconds one of the button on Blutrek until you can hear a bitone.
Then release the button and wait. After few seconds you should be able to see the green
LED of the dongle lights on continuously for about 1 second. At the same time you could
hear something like wind in the headset speaker.
Page 9 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
6. Connecting your dongle
(put pictures)
Your mobile phone has to be switched on.
Before you connect your dongle it has to be in standby mode with the pairing done and
the good profile programmed. Then it is very important to plug first the extremity to
the dongle. Then you connect the other extremity to the mobile. If the connection is good
you should be able to see the hands free logo on the display (if available because some
phone doesn’t have this logo).
Page 10 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
7. Incoming Call
Before you use for the first time your dongle please read carefully all details in the
appendix concerning your mobile.
The action you have to take depends on your phone. Basically there are two families :
7.1. Nokia and Ericsson phones
When you receive a call :
1- The green led flashes quickly (red led is used if the Battery Voltage is low) in
both side
2- A ring tone is played in the BlueTrek speaker
3- To answer the call press shortly any button on BlueTrek until you can hear a
bi-tone
4- Then the Voice connection is established,
5- The green led (or red led if voltage battery low) lights on continuously on the
dongle and with quick flashes on Bluetrek.
Comments : in order to avoid any malfunctioning it is very important, when you have an
incoming call, to wait until you hear the ring in the headset and not on the phone. In
case you take the call when you hear the ring on the phone you might have some
problems. Actually when the phone rings, the dongle has to establish the link to the
headset before you can hear the ring in the headset. It can take few milliseconds to 1.5
seconds depending on the phone.
7.2. Others than Nokia or Ericsson
Basically you have to choices : automatic or manual answer.
7.2.1. Automatic answer
Put your phone into automatic answer. When you have an incoming call you have nothing
to do. Only waiting until you can hear in the headset the voice of your interlocutor.
7.2.2. Manual answer
When you have an incoming call you answer directly on your phone. Then you wait until
you can hear in the headset the voice of your interlocutor.
Comments for both types of answers : depending on the phone you can have a
period of time between the automatic answer from the phone and the connection
establishement (from few milliseconds to 2 seconds).
Page 11 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
8. Volume Control
With the use of the dongle you have two ways to adjust the volume :
First you can directly adjust the volume on your phone. Actually the dongle is working
like a wired hands free so that you adjust the volume on your phone.
Secondly you can adjust the speaker volume on BlueTrek by pressing button 1 to
increase the volume or button 2 to decrease the volume.
Comments : the volume adjustment can be completely different depending on your
phone. So please be sure not to put to high the volume otherwise you might have some
problem like distortion, echo, abnormal vibration.
In general we recommend to adjust your phone in the middle position then you adjust
your headset according to the environment.
9. Ending a Call
You have two possibilities to end a call. Either directly on your phone or from your
headset.
1/ On your phone
You cut the line on your phone then you wait until your dongle and your headset return
to standby mode. Please refer to the appendix for profile 4.
2/ From your headset
You can only have this option if, of course, you could previously take the call with your
headset.
To end a call from BlueTrek keep pressed any button on the headset until you hear a bi-
tone. The headset and the dongle return to standby mode.
Page 12 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
10. Making a Call
Preliminary remark : The voice recognition feature is not available on all mobile
phones. However you can always dial directly on your keyboard. If your mobile phone
offers the voice recognition feature, you can make a call directly from the headset
without any operation on you mobile phone.
10.1. Mobile with voice recognition :
1. Make sure the voice recognition function on your mobile is well activated
2. Press any button on BlueTrek,
3. The audio connection is established and the green Led lights on continuously
on the dongle,
4. Wait for the audio signal sent by the mobile Phone (generally a short tone)
5. Speak name of stored number
6. Mobile Phone voice recognition function is dialing the stored number.
10.2. Mobile without voice recognition :
1. Make sure both devices are in the stand-by mode (green led is flashing
slowly),
2. Dial the phone number you wish to call on your mobile phone and wait until
you can hear your interlocutor
Page 13 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
11. Transferring a Call to the Mobile Phone
When the BlueTrek is in active call, to transfer the call to your mobile phone you only
have to disconnect the cable from the mobile. Normally when you disconnect the cable
both devices should return to standby mode.
If you reconnect it you could use again your headset.
12. Transferring a Call to the headset
When the mobile phone is in active call, to transfer the call to the headset :
1- Switch on BlueTrek and the dongle (both of them are in standby mode, the
dongle is paired with the correct profile programmed),
2- Connect the cable first to the dongle then to the mobile,
3- The audio connection is transferred atomatically (you have to wait 1 to 3
seconds) to BlueTrek and the green led (or red led if voltage battery low)
lights on continuously on the dongle. The conversation can goes on through
BlueTrek.
Comment : if you want to take back your converstation directly on the phone you only
have to disconnect the cable. And if you want to use again the headset you only have to
reconnect the cable (at that stage no need to press any button on the BlueTrek headset,
the link is automatically released).
Page 14 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
13. Appendix : dongle profiles for phones
Comment : if the reference of your mobile is not in this table, please take the reference
which is the closest and try. If still it is not working so you can have a look on
www.bluetrek.com to see whether you have the reference of your phone (if not please
send us an email).
HS : Headset
Manufacturer Model Profile Function
NOKIA 3210 1 - You have to wait until you hear the ring in
the HS speaker
- HS can take the call
- HS can hang up
- No voice recognition
NOKIA 3310 1 - You have to wait until you hear the ring in
the HS speaker
- HS can take the call
- HS can hang up
- voice recognition enabled
NOKIA 8210 1 - You have to wait until you hear the ring in
the HS speaker
- HS can take the call
- HS can hang up
- No voice recognition
NOKIA 8310 2 - You have to wait until you hear the ring in
the HS speaker
- HS can take the call
- HS can hang up
- voice recognition enabled
ALCATEL OT310 1 - You have to wait until you hear the ring in
the HS speaker
- HS can take the call
- HS can hang up
- No voice recognition
ALCATEL OT511 1 - You have to wait until you hear the ring in
the HS speaker
- HS can take the call
- HS can hang up
- No voice recognition
Page 15 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Dongle User’Guide Aug02/BtrekRefV1/GpoV1
Page 16 of 16
Innovi Technologies Ltd
Suite 501-3, 5/F, Chinachem Leighton Plaza, 29 Leighton Road, Causeway Bay, Hong Kong
Tel: (+852) 2882 2296, Fax: (+852) 2882 2316
Email: sales@innovi.com, Web: www.innovi.com
Constructeur Model Profil Fonctionnement
SIEMENS C25 3 - Set your mobile in automatic answer
- You can hear the ring in the HS speaker
- HS cannot take the call, take on the mobile
- HS cannot hang up, do it on your phone
- Dongle cut itself automatically the link with the
HS.
ERICSSON T29SC 5 - You have to wait until you hear the ring in the HS
speaker
- HS can take the call
- HS can hang up
- voice recognition enabled
SONY J5 3 - Set your mobile in automatic answer
- You can hear the ring in the HS speaker
- HS cannot take the call, take on the mobile
- HS cannot hang up, do it on your phone
- Dongle cut itself automatically the link with the
HS.
SAMSUNG 4 - It is a very special profile which maintains only
the carrier frequency
- When you hear the ring on the phone, please
press one of the 2 buttons on the headset until you
hear a dual-tone => the link will be established
shortly between the dongle and the HS
- After you hang up on the phone you have to cut
the link between th HS and the dongle by pressing
one of the 2 buttons until you hear a dual-tone.
Please don’t forget to do it otherwise the link is still
established and the power consumption of the HS
and dongle will be always at the highest level
MOTOROLA V Series 66 3 - Set your mobile in automatic answer
- You could hear (sometimes not) the ring in the
HS speaker
- HS cannot take the call, take on the mobile
- HS cannot hang up, do it on your phone
- Dongle cut itself automatically the link with the
HS.
Constructeur Model Profil Fonctionnement
PANASONIC GD75 3 - Set your mobile in automatic answer
- You could hear (sometimes not) the ring in the HS
speaker
- HS cannot take the call, take on the mobile
- HS cannot hang up, do it on your phone
- Dongle cut itself automatically the link with the HS.
